Model # CRE3510LWG Official Crosley electric range

Here are the diagrams and repair parts for Official Crosley CRE3510LWG electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |

Galaxy Range Bake Element (replaces 316075104) 316075103
#67

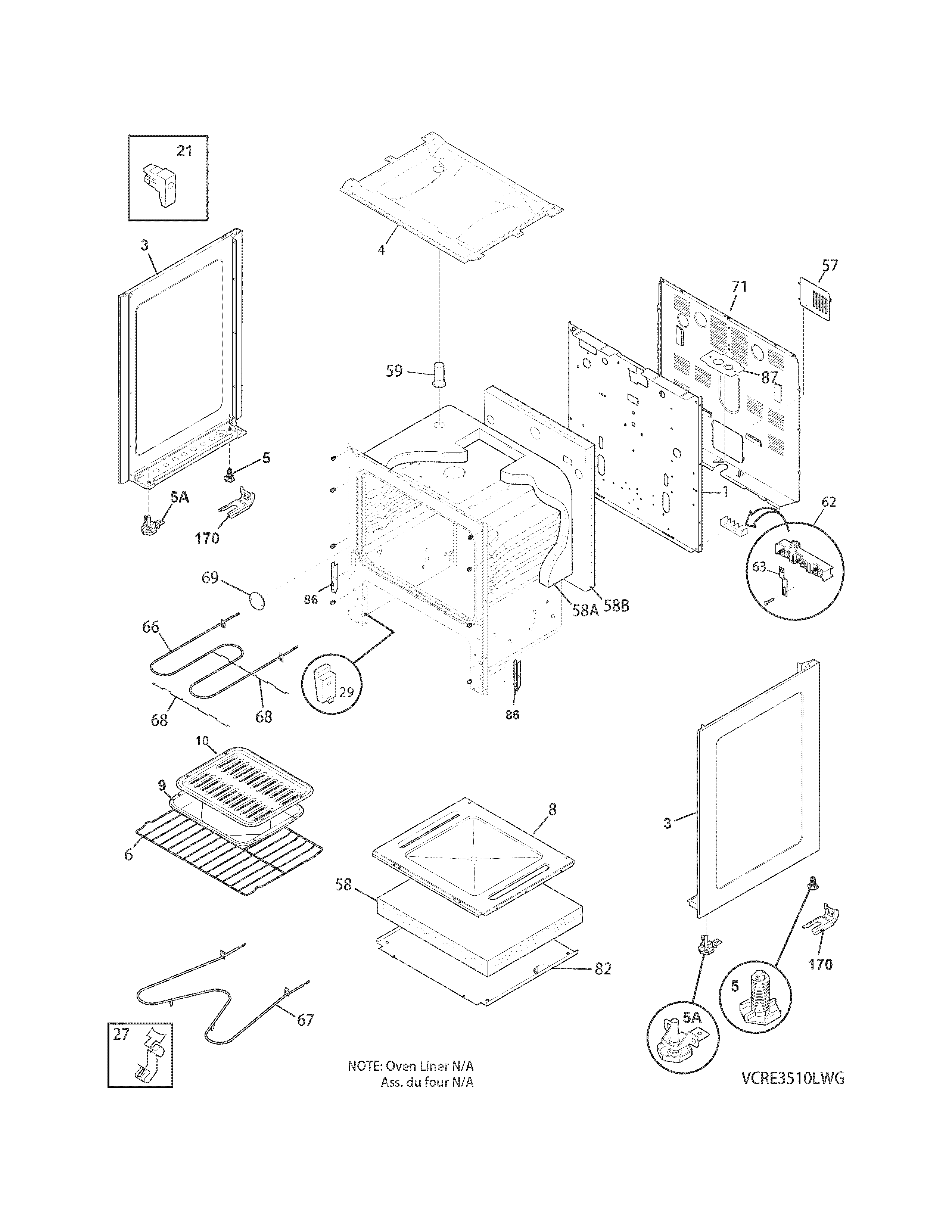

Body diagram

Galaxy range bake element (replaces 316075104)

Part #316075103

BEST SELLER
$27.06
18% OFF Phone Price : $33.06
In Stock
Block 5303912666
#27

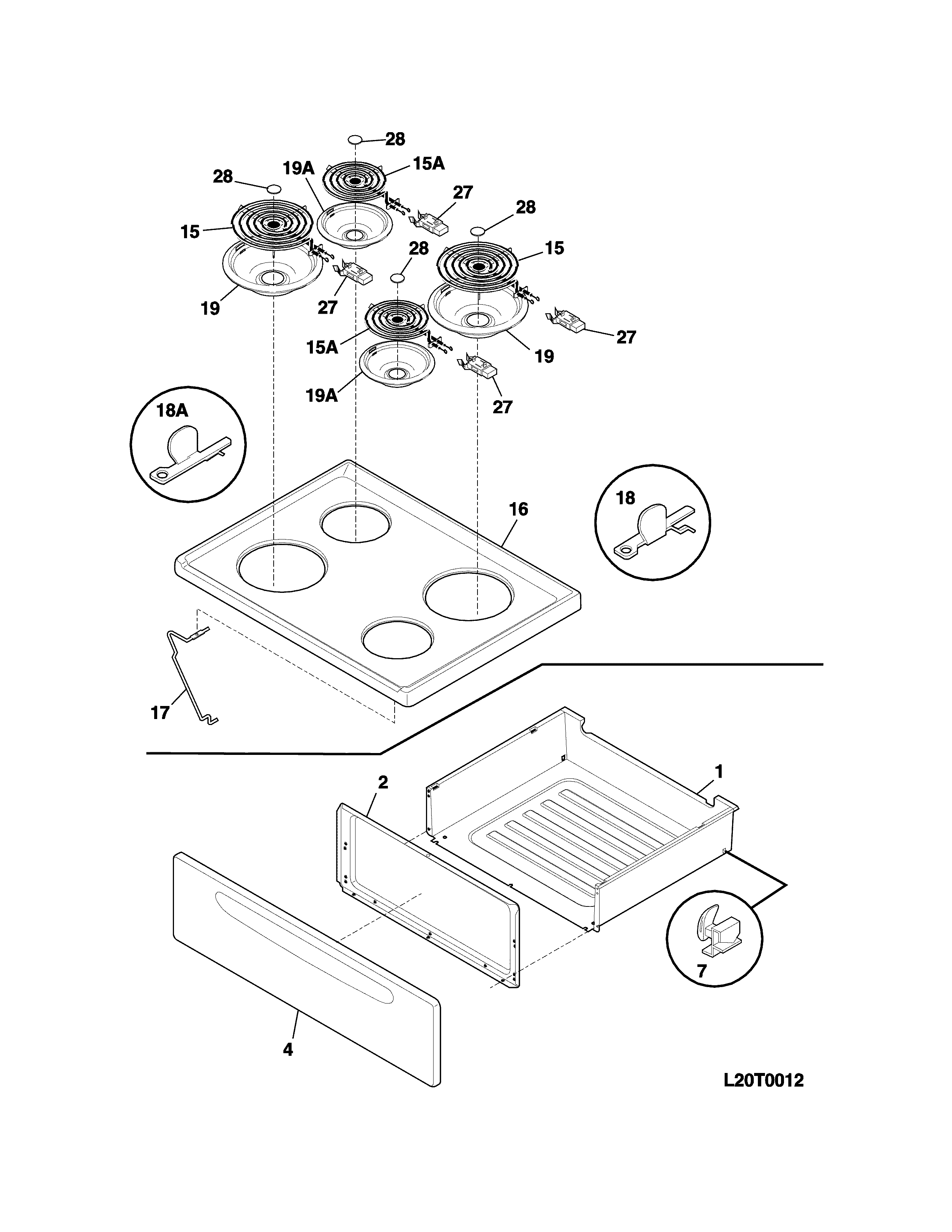

Top/drawer diagram

Block

Part #5303912666

Replaced by #5303935058

?
Manufacturer substitution
This part replaces 5303912666. Substitute parts can look different from the original.
BEST SELLER
$8.60
10% OFF Phone Price : $9.60
In Stock
Range Drip Pan, 8-in (chrome) (replaces 318067010, 5303013588, 5303935054, 5304432495) 316048413
#19

Top/drawer diagram

Range drip pan, 8-in (chrome) (replaces 318067010, 5303013588, 5303935054, 5304432495)

Part #316048413

BEST SELLER
$7.30
12% OFF Phone Price : $8.30
In Stock
Range Indicator Light Lens (replaces 316437800) 316557300
#46

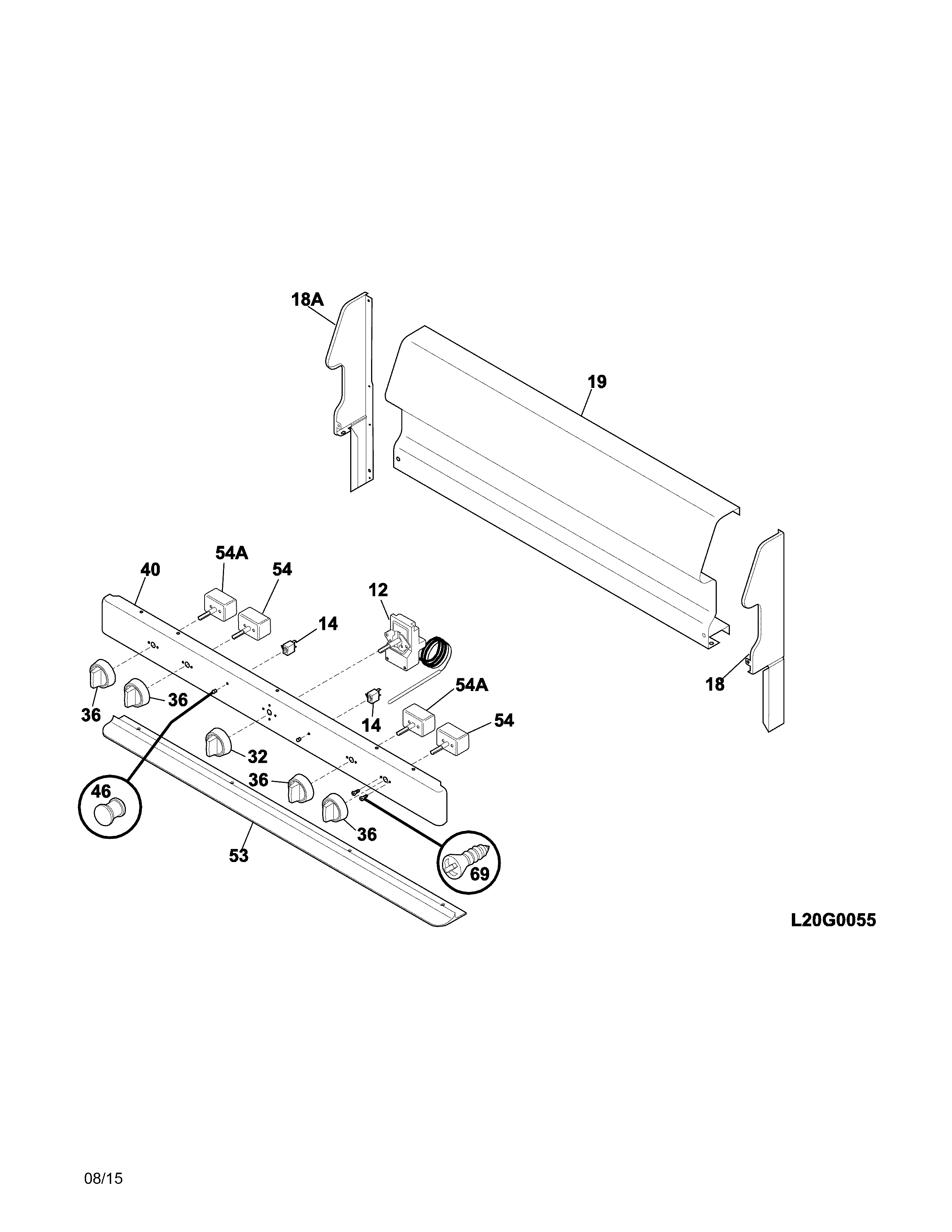

Backguard diagram

Range indicator light lens (replaces 316437800)

Part #316557300

BEST SELLER
$12.86
13% OFF Phone Price : $14.86
In Stock
Element 318372213
#15

Top/drawer diagram

Element

Part #318372213

Replaced by #316442300

?
Manufacturer substitution
This part replaces 318372213. Substitute parts can look different from the original.
BEST SELLER
$27.33
18% OFF Phone Price : $33.33
In Stock
Range Washer (replaces 316136500, 7316008401) 316008401
#10B

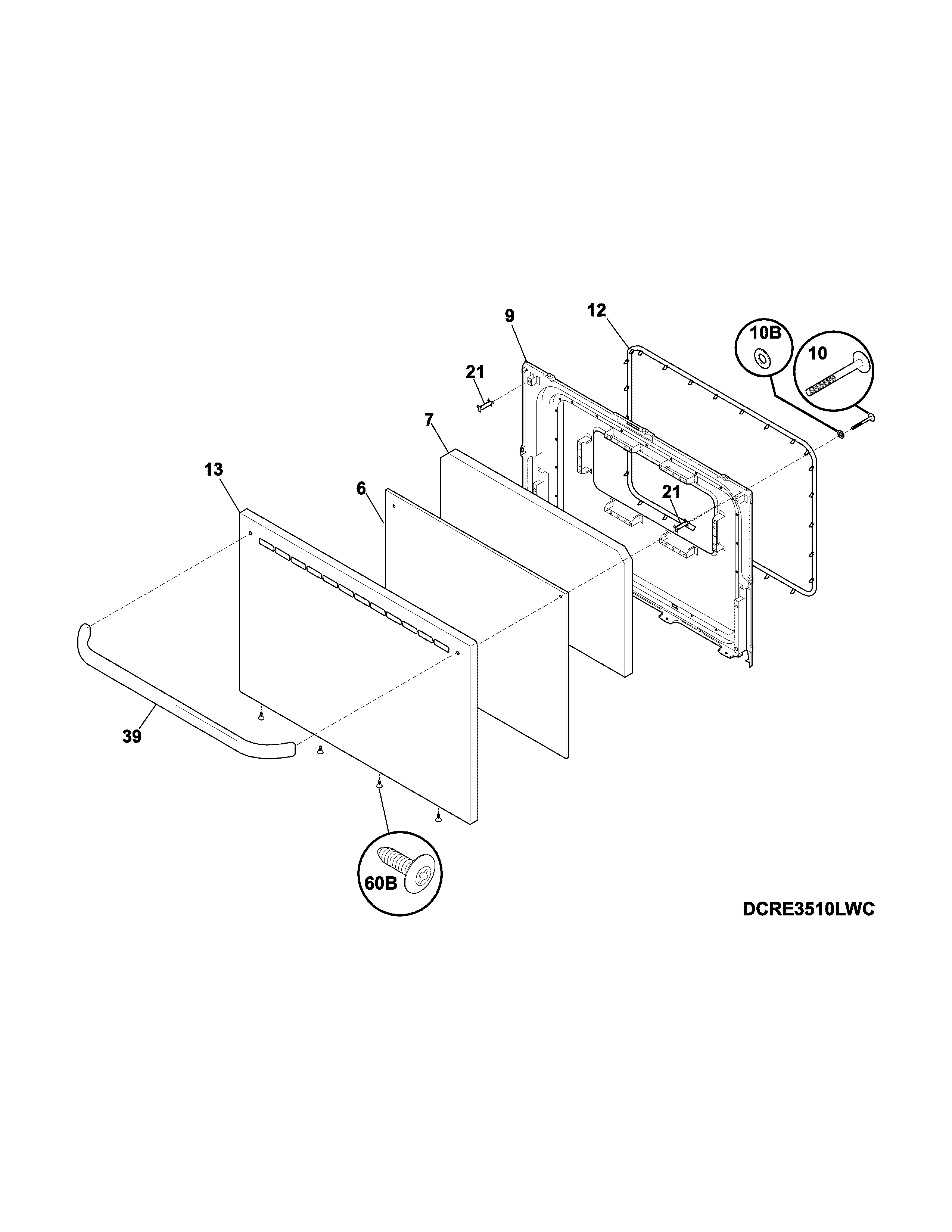

Door diagram

Range washer (replaces 316136500, 7316008401)

Part #316008401

BEST SELLER
$12.32
14% OFF Phone Price : $14.32
In Stock
Range Oven Rack 316067902
#6

Body diagram

Range oven rack

Part #316067902

$76.01
7% OFF Phone Price : $82.01
In Stock
Range Screw (replaces 316021105, 316021110, 316021112, 5303288571, 7316021109) 316021109
Range screw (replaces 316021105, 316021110, 316021112, 5303288571, 7316021109)

Part #316021109

$14.89
12% OFF Phone Price : $16.89
In Stock
Range Hex Head Screw, #8-18 X 3/8-in 316021105
Range hex head screw, #8-18 x 3/8-in

Part #316021105

Replaced by #316021109

?
Manufacturer substitution
This part replaces 316021105. Substitute parts can look different from the original.
$14.89
12% OFF Phone Price : $16.89
In Stock
Range Screw 316021110
Range screw

Part #316021110

Replaced by #316021109

?
Manufacturer substitution
This part replaces 316021110. Substitute parts can look different from the original.
$14.89
12% OFF Phone Price : $16.89
In Stock
