Model # 4KUCC150S1 Official KitchenAid compactor

Here are the diagrams and repair parts for Official KitchenAid 4KUCC150S1 compactor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

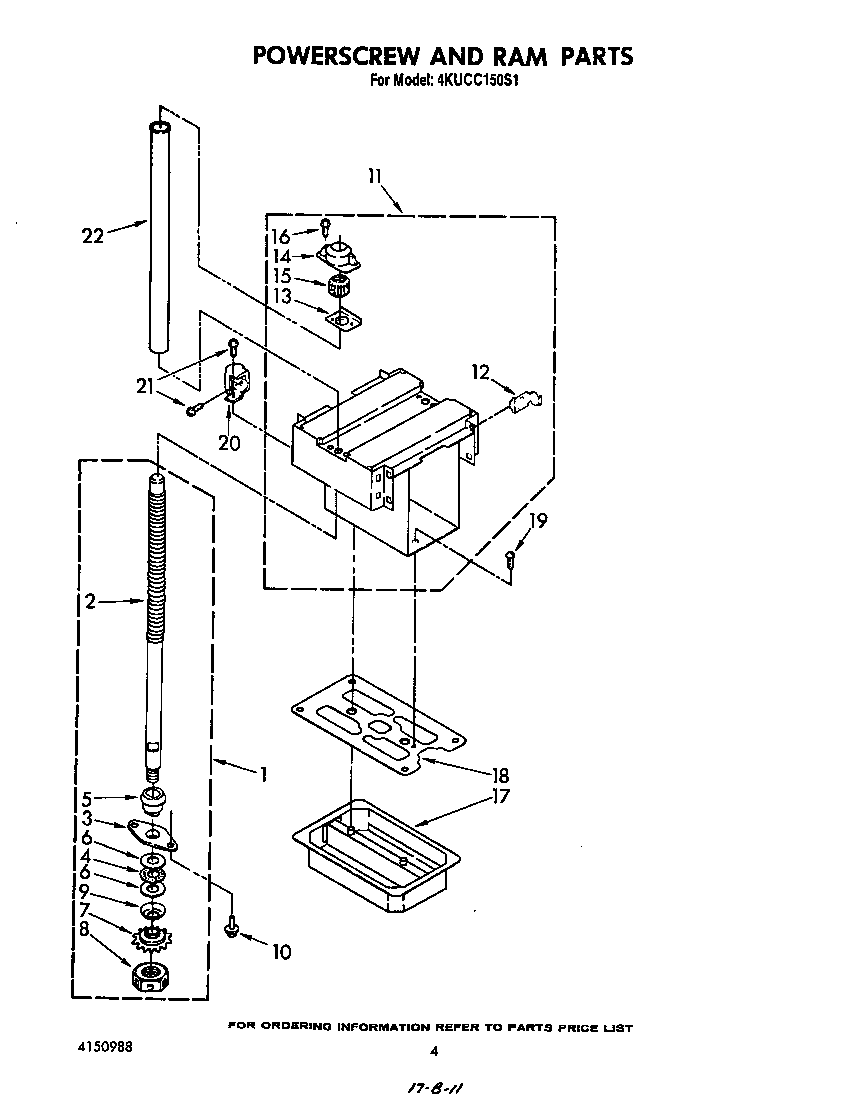

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 146 parts  |

Gear 777124
#10

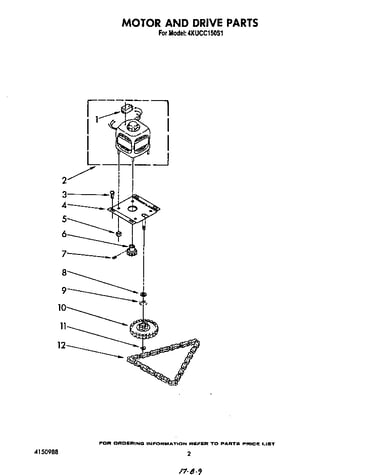

Motor and drive diagram

Gear

Part #777124

Replaced by #882699

?
Manufacturer substitution
This part replaces 777124. Substitute parts can look different from the original.
BEST SELLER
$55.45
11% OFF Phone Price : $62.17
In Stock
Gear 776839
#6

Motor and drive diagram

Gear

Part #776839

Replaced by #882699

?
Manufacturer substitution
This part replaces 776839. Substitute parts can look different from the original.
BEST SELLER
$55.45
11% OFF Phone Price : $62.17
In Stock
Bag 4163348
#2A

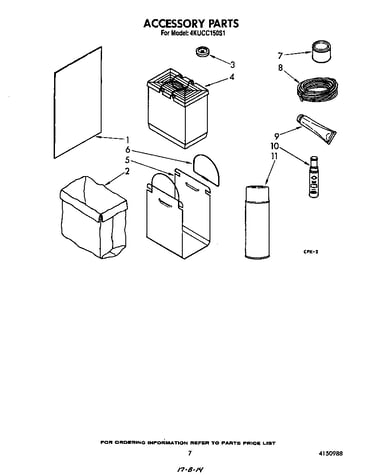

Accessory diagram

Bag

Part #4163348

Replaced by #W10165295RP

?
Manufacturer substitution
This part replaces 4163348. Substitute parts can look different from the original.
BEST SELLER
$17.48
13% OFF MSRP : $20.00
In Stock
Paint (white) 350930
#11F

Accessory diagram

Paint (white)

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69
11% OFF Phone Price : $17.69
In Stock
Trash Compactor Top Limit And Directional Switch 777811
#18

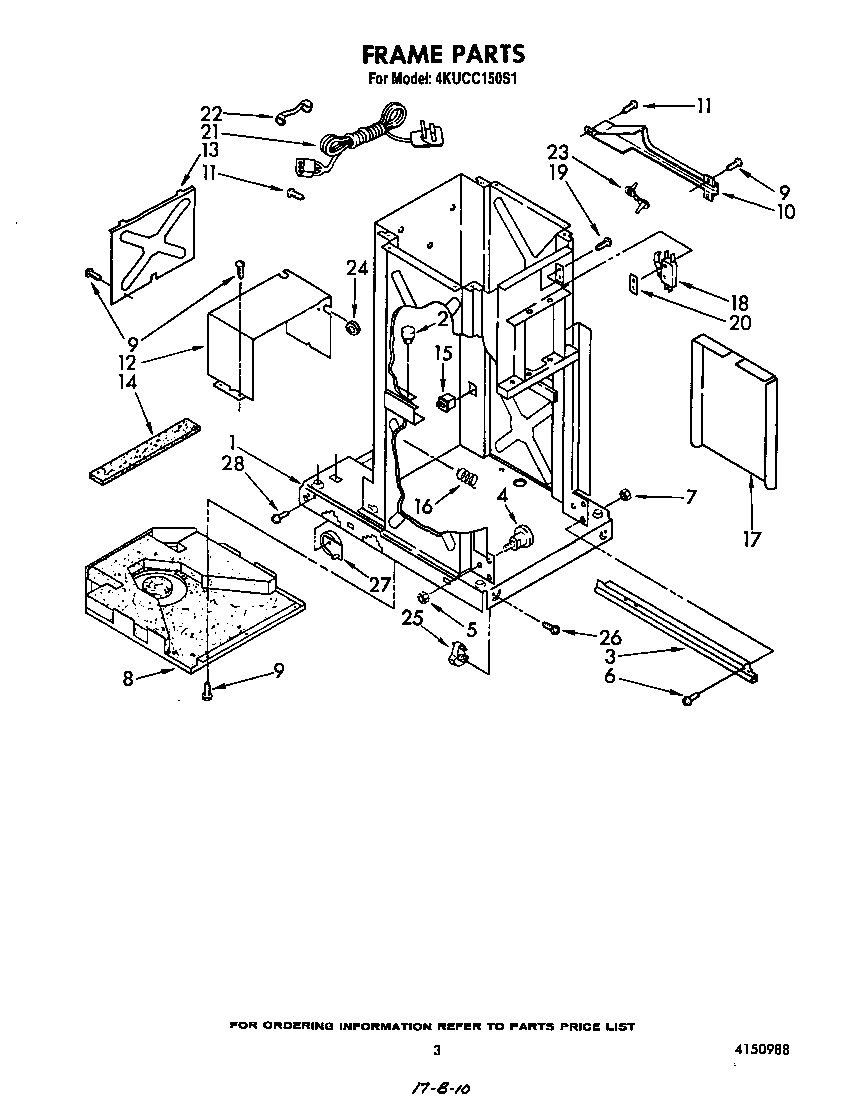

Frame diagram

Trash compactor top limit and directional switch

Part #777811

Replaced by #WP777811

?
Manufacturer substitution
This part replaces 777811. Substitute parts can look different from the original.
BEST SELLER
$50.97
27% OFF MSRP : $70.00
In Stock
Appliance Touch-up Paint, 0.6-oz (black) (replaces 20001009, 72032p, 72032r, W10831982) 72032
#10B

Accessory diagram

Appliance touch-up paint, 0.6-oz (black) (replaces 20001009, 72032p, 72032r, w10831982)

Part #72032

BEST SELLER
This item is not returnable
$6.18
49% OFF MSRP : $12.00
In Stock
Off Switch 608824
#10

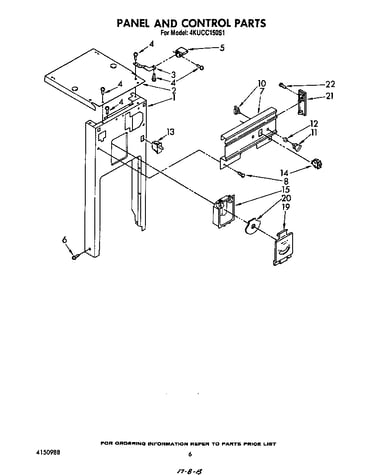

Panel and control diagram

Off switch

Part #608824

Replaced by #675382

?
Manufacturer substitution
This part replaces 608824. Substitute parts can look different from the original.
BEST SELLER
$102.63
9% OFF Phone Price : $112.63
In Stock
Carrier 776989
#5

Accessory diagram

Carrier

Part #776989

Replaced by #13030RP

?
Manufacturer substitution
This part replaces 776989. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$28.05
15% OFF Phone Price : $33.05
In Stock
Switch 777971
#1

Motor and drive diagram

Switch

Part #777971

Replaced by #W10439651

?
Manufacturer substitution
This part replaces 777971. Substitute parts can look different from the original.
BEST SELLER
$181.13
14% OFF MSRP : $210.00
In Stock
Pedal 777172
#7

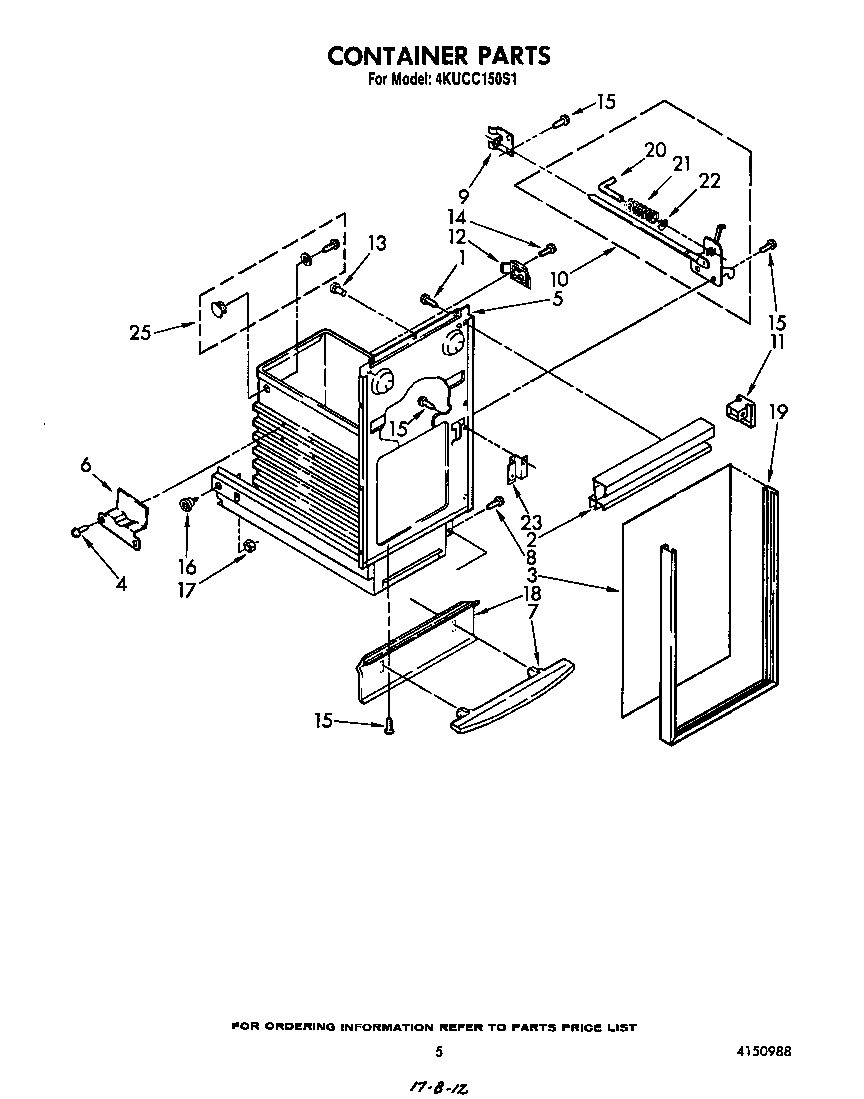

Container diagram
