Kenmore
Microwave/Hood Combo

Model # 72181623600 Official Kenmore microwave/hood combo

Here are the diagrams and repair parts for Official Kenmore 72181623600 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

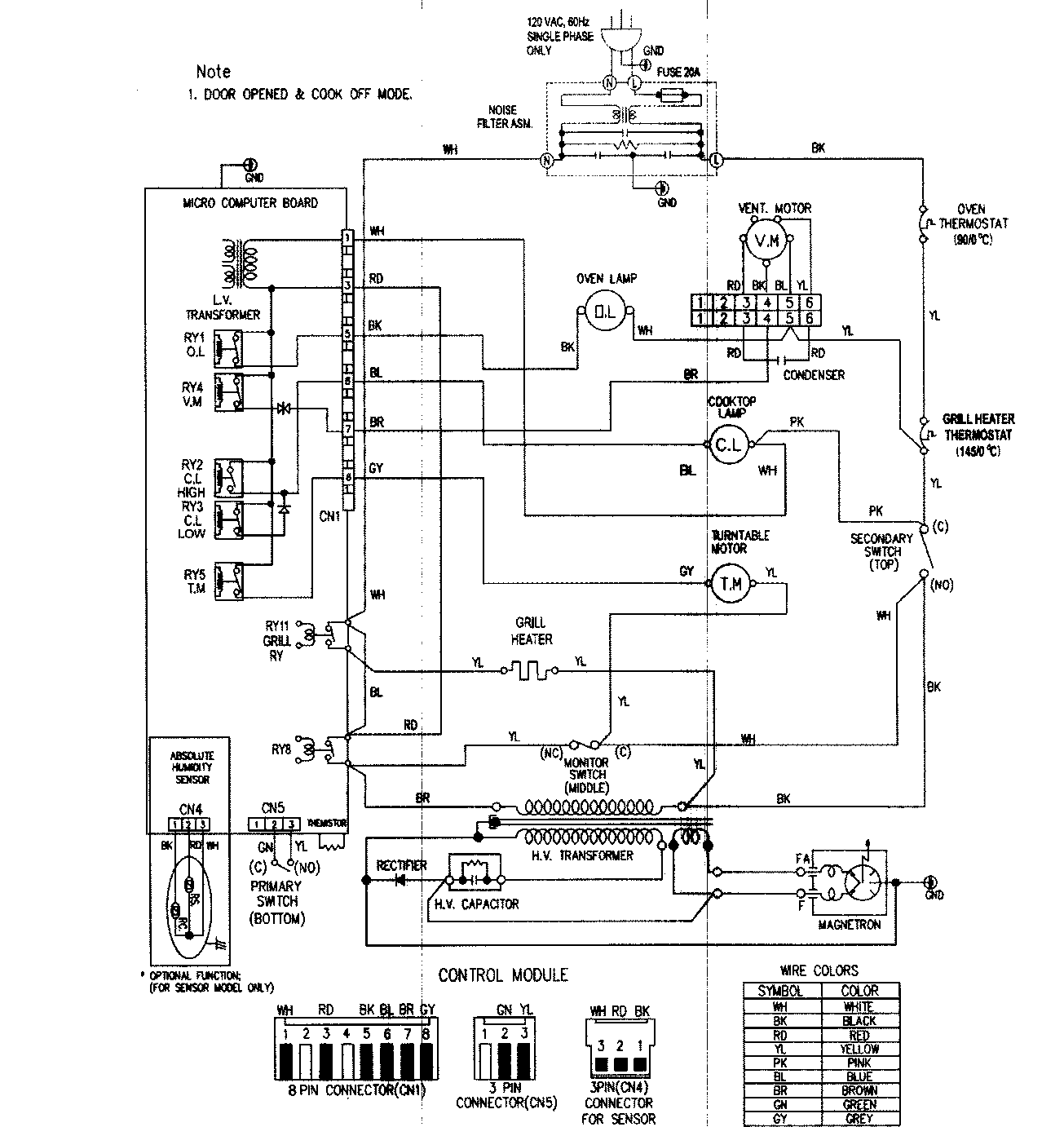

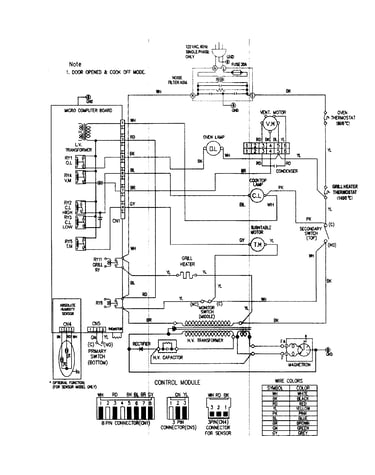

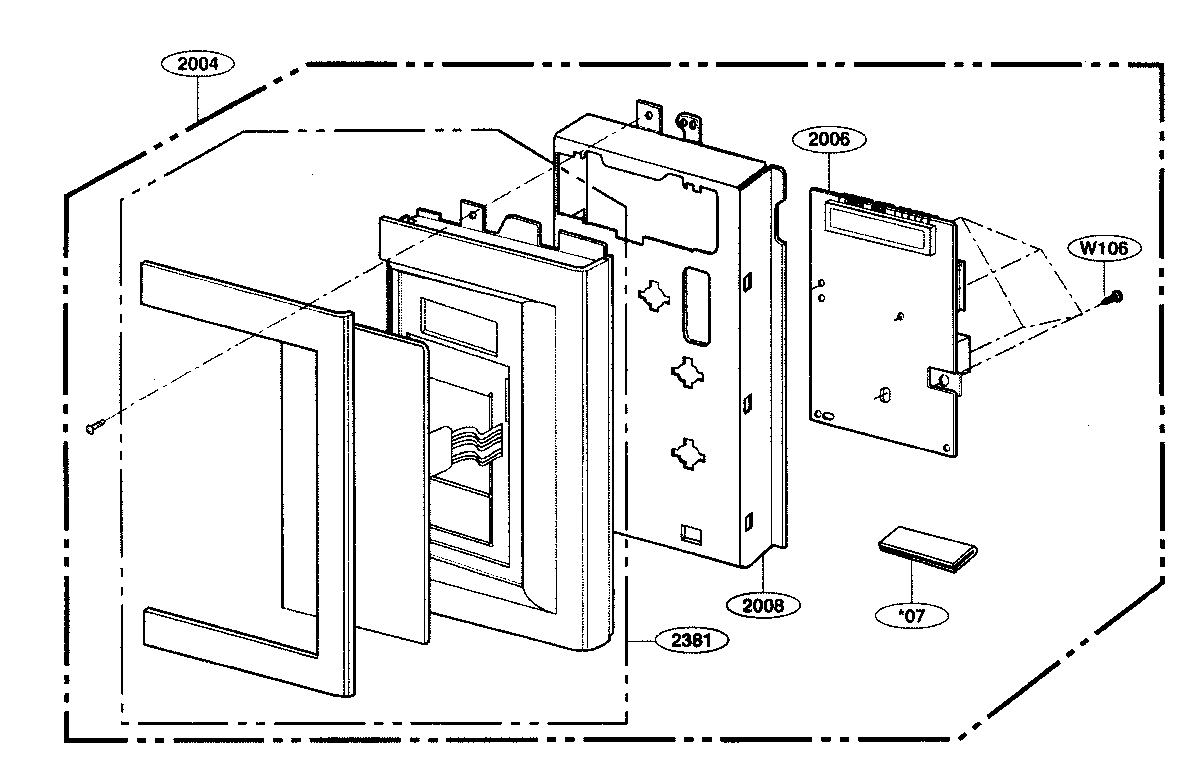

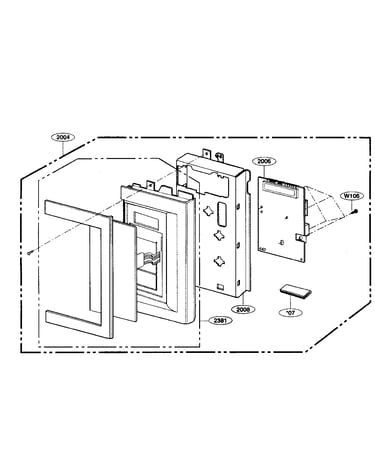

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |
Microwave Grease Filter (replaces 2b72705b) 5230W1A012B
#3026

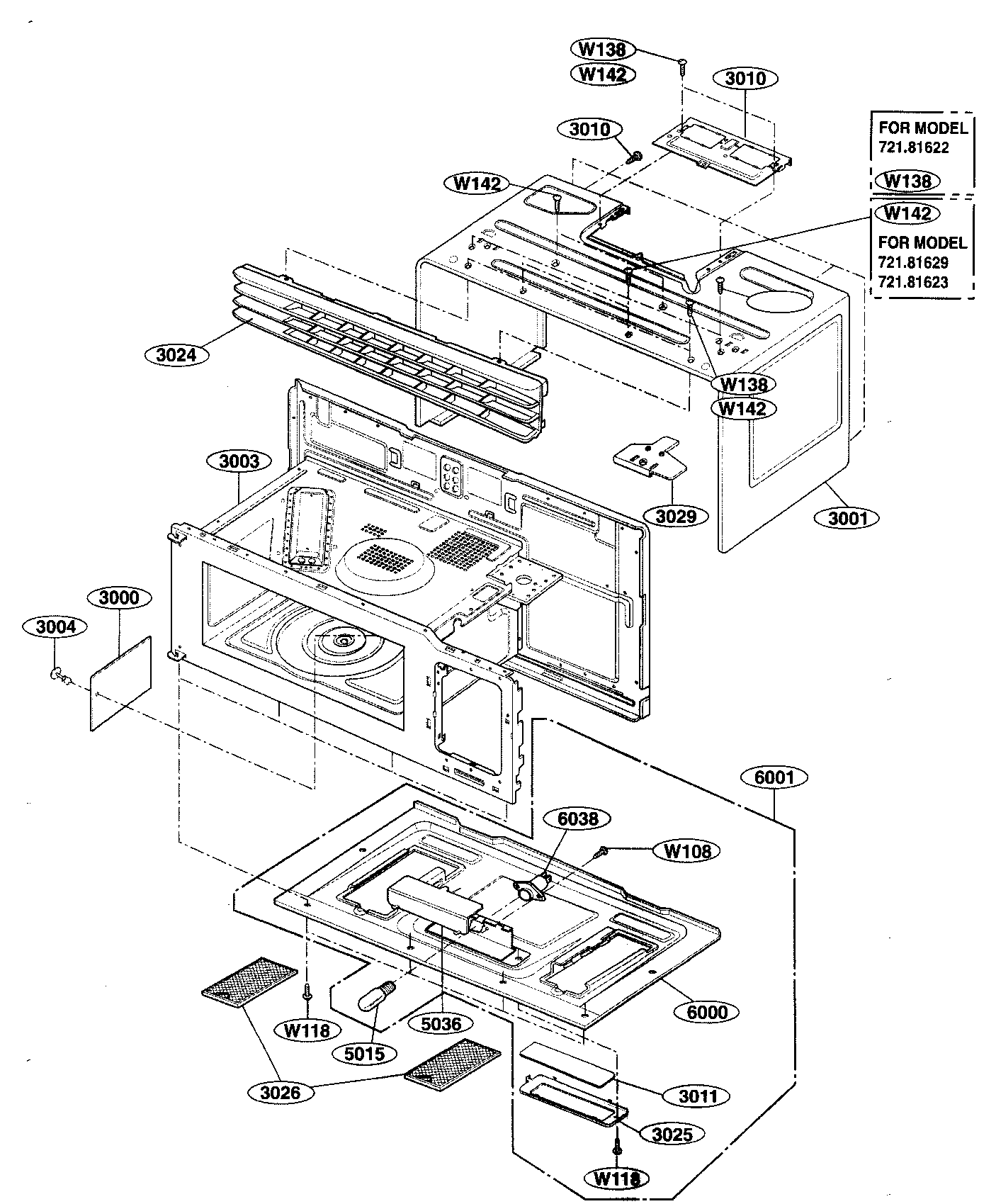

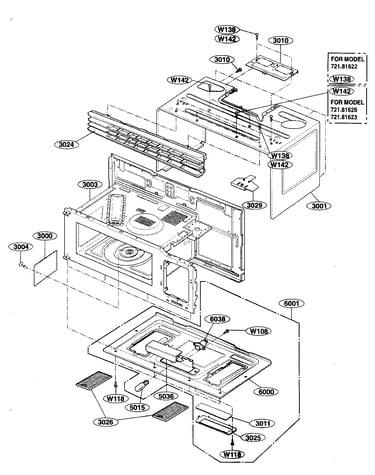

Oven cavity diagram

Microwave grease filter (replaces 2b72705b)

Part #5230W1A012B

BEST SELLER
$12.00 |
14% OFF Phone Price : $14.00
In Stock

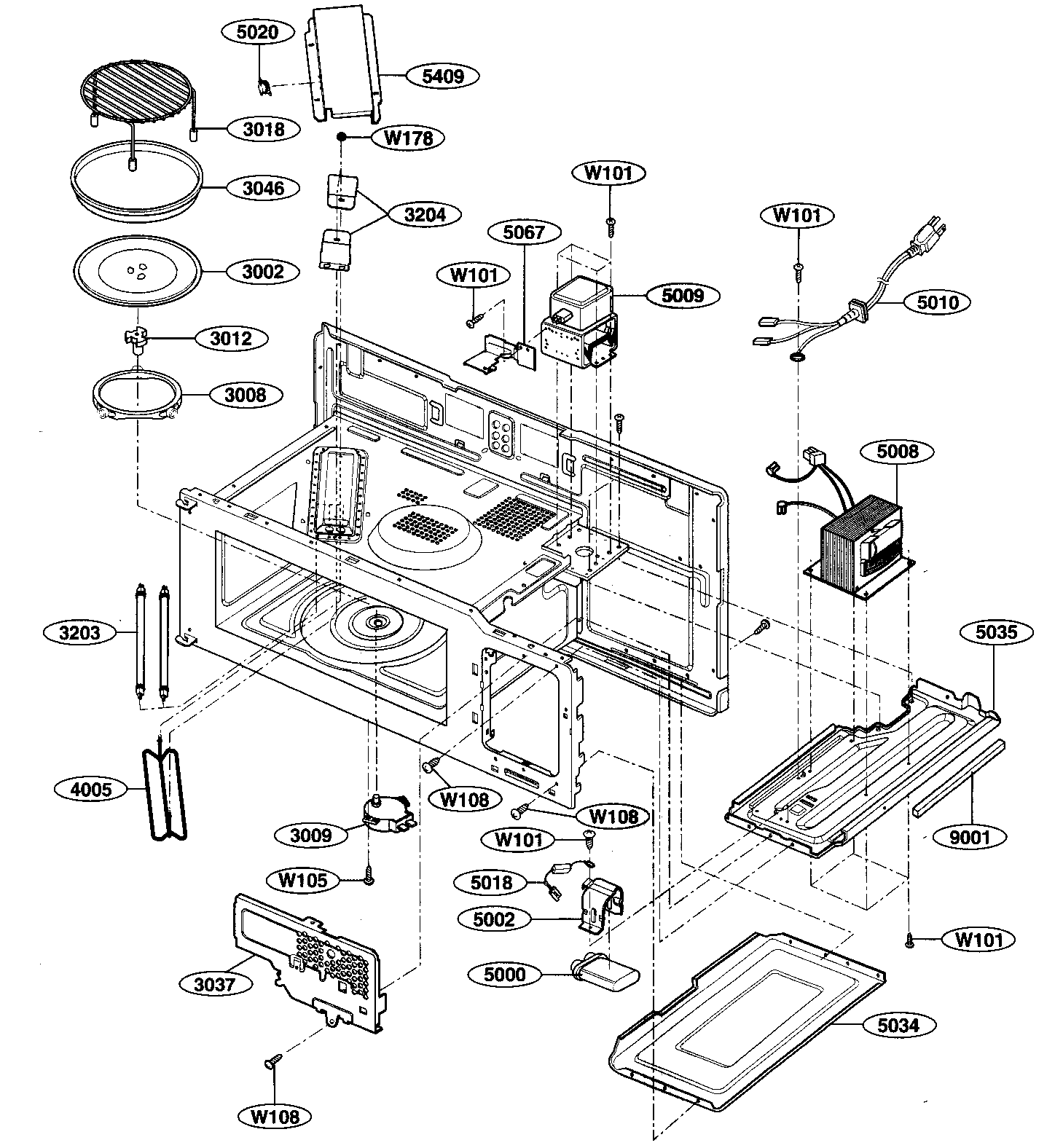

Microwave Magnetron (replaces 6324w1a001h) 6324W1A001L
#5009

Interior parts 1 diagram

Microwave magnetron (replaces 6324w1a001h)

Part #6324W1A001L

BEST SELLER
$91.94 |
5% OFF Phone Price : $96.94
In Stock
Microwave Light Bulb (replaces 3b70067f, 6912w3q001a, 6912w3q001d) 6912W1Z004B
#5015

Oven cavity diagram

Microwave light bulb (replaces 3b70067f, 6912w3q001a, 6912w3q001d)

Part #6912W1Z004B

BEST SELLER
$9.42 |
10% OFF Phone Price : $10.42
In Stock

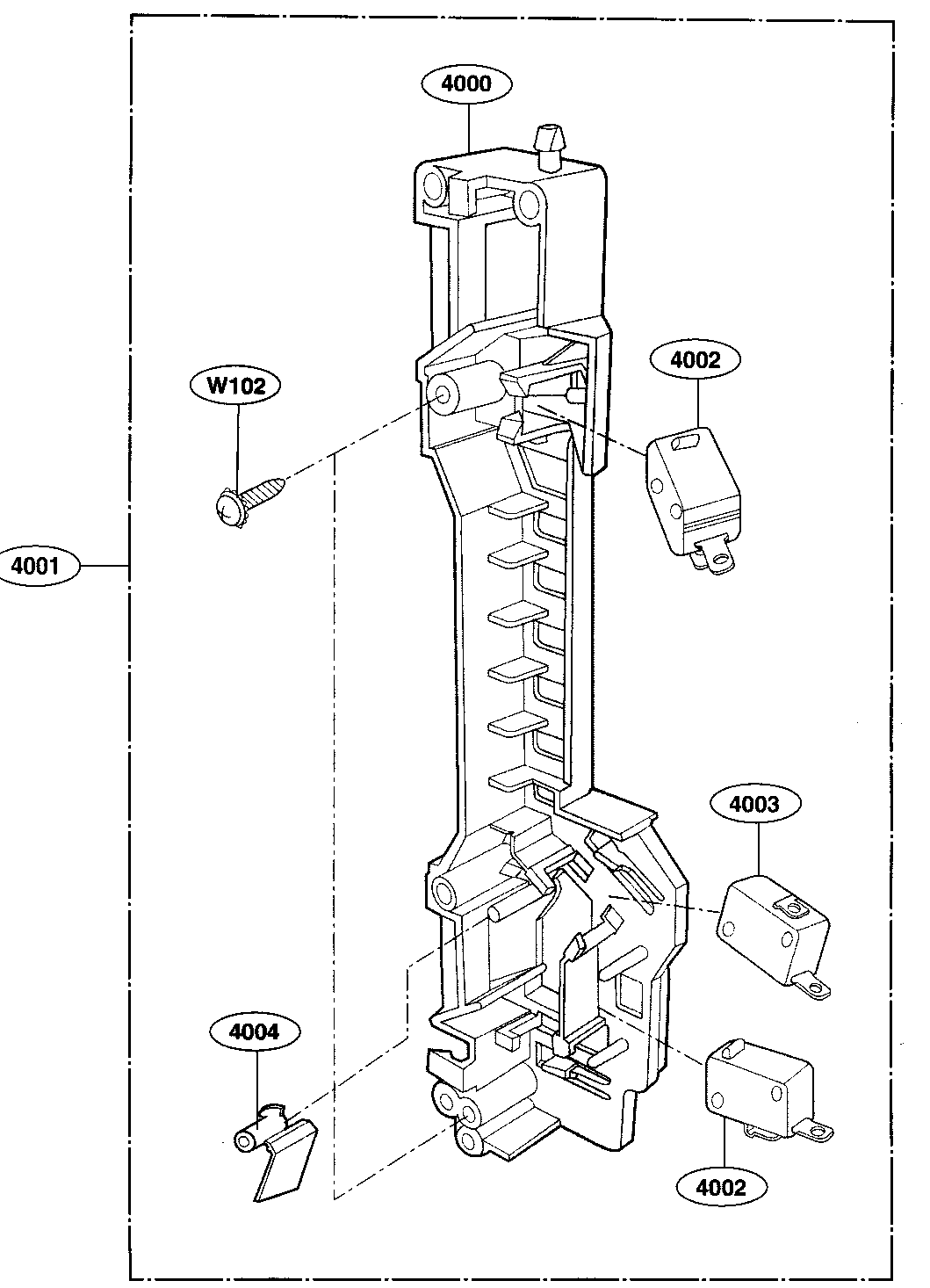

Microwave Door Interlock Switch (replaces 3b73361e, 6600w1k004e, 6600w1k004f) 6600W1K001C
#4003

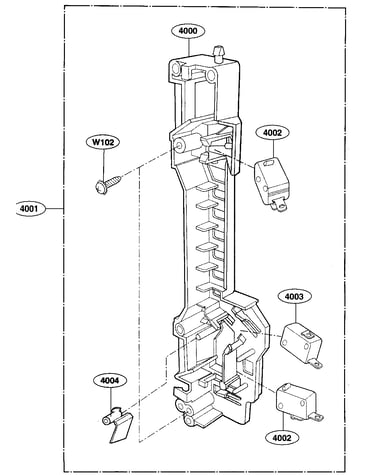

Latch parts diagram

Microwave door interlock switch (replaces 3b73361e, 6600w1k004e, 6600w1k004f)

Part #6600W1K001C

BEST SELLER
$12.16 |
14% OFF Phone Price : $14.16
In Stock
Microwave Door Interlock Switch (replaces 6600w1k003d) 6600W1K001D
#4002

Latch parts diagram

Microwave door interlock switch (replaces 6600w1k003d)

Part #6600W1K001D

BEST SELLER
$9.76 |
9% OFF Phone Price : $10.76
In Stock
Microwave High-voltage Capacitor (replaces 0czzw1h004g, 0czzw1h004p, 6120w3h003h, Eae61082101) 0CZZW1H004B
#5000

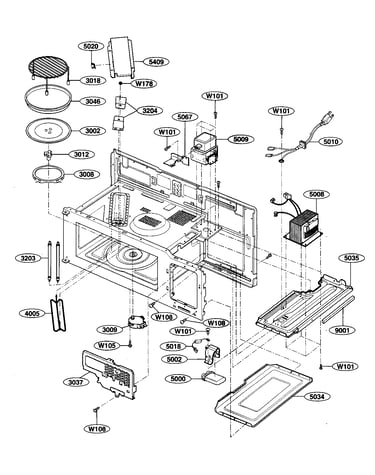

Interior parts 1 diagram

Microwave high-voltage capacitor (replaces 0czzw1h004g, 0czzw1h004p, 6120w3h003h, eae61082101)

Part #0CZZW1H004B

BEST SELLER
$28.54 |
15% OFF Phone Price : $33.54
In Stock
Microwave Door Latch Housing And Interlock Switch Assembly 3501W1A019D
#4001

Latch parts diagram

Microwave door latch housing and interlock switch assembly

Part #3501W1A019D

The manufacturer no longer makes this part, and there's no substitute part

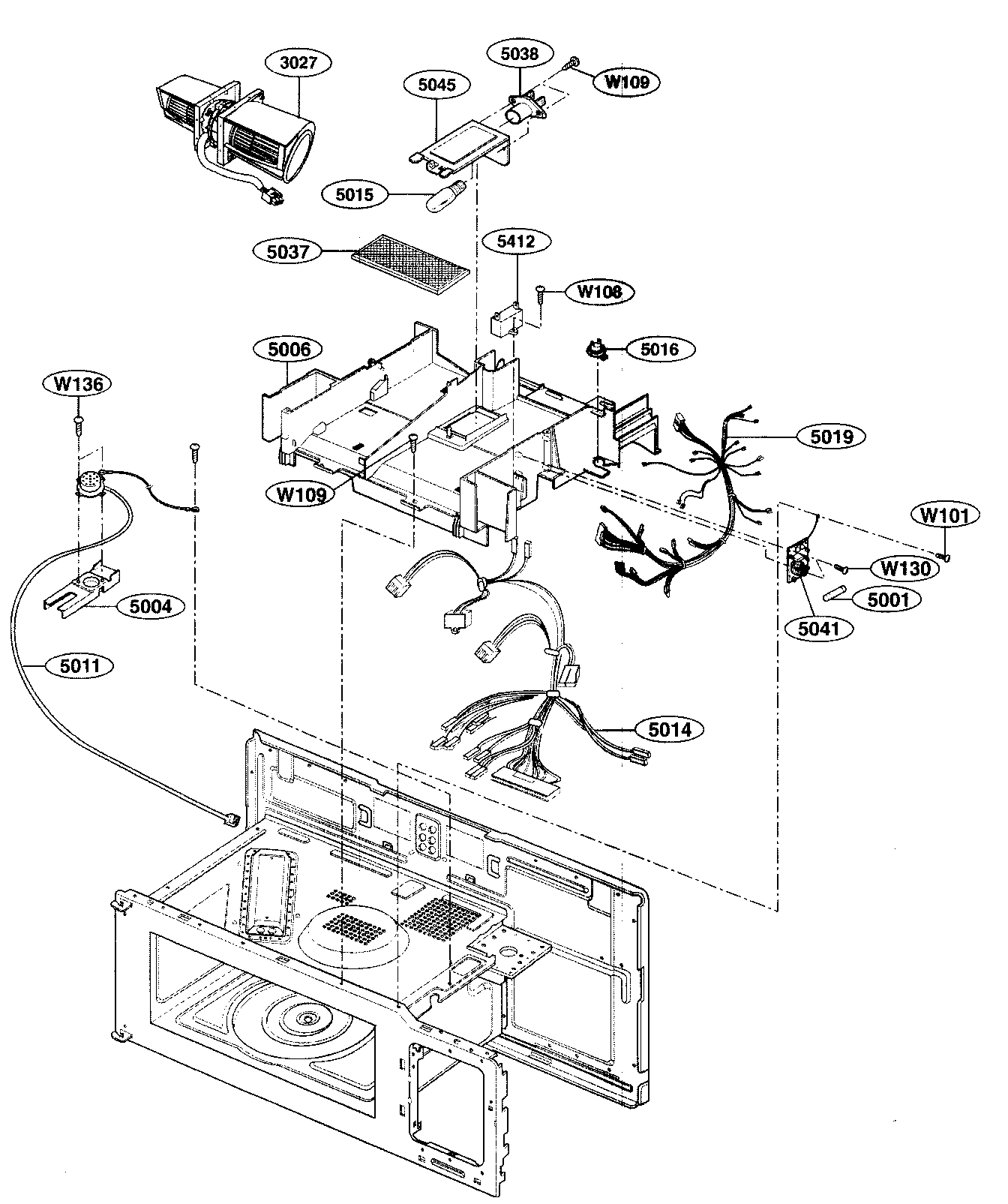

Microwave Charcoal Filter (replaces 5230w1a002a, 5230w1a011a) 5230W1A011B
#5037

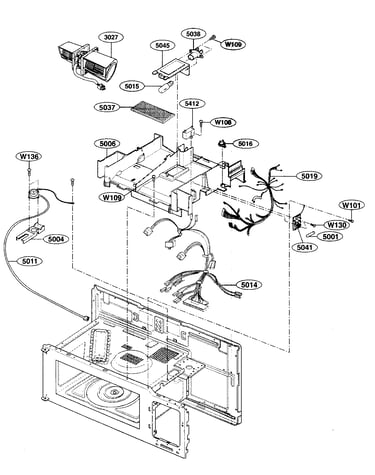

Interior parts 2 diagram

Microwave charcoal filter (replaces 5230w1a002a, 5230w1a011a)

Part #5230W1A011B

BEST SELLER
$13.07 |
13% OFF Phone Price : $15.07
In Stock

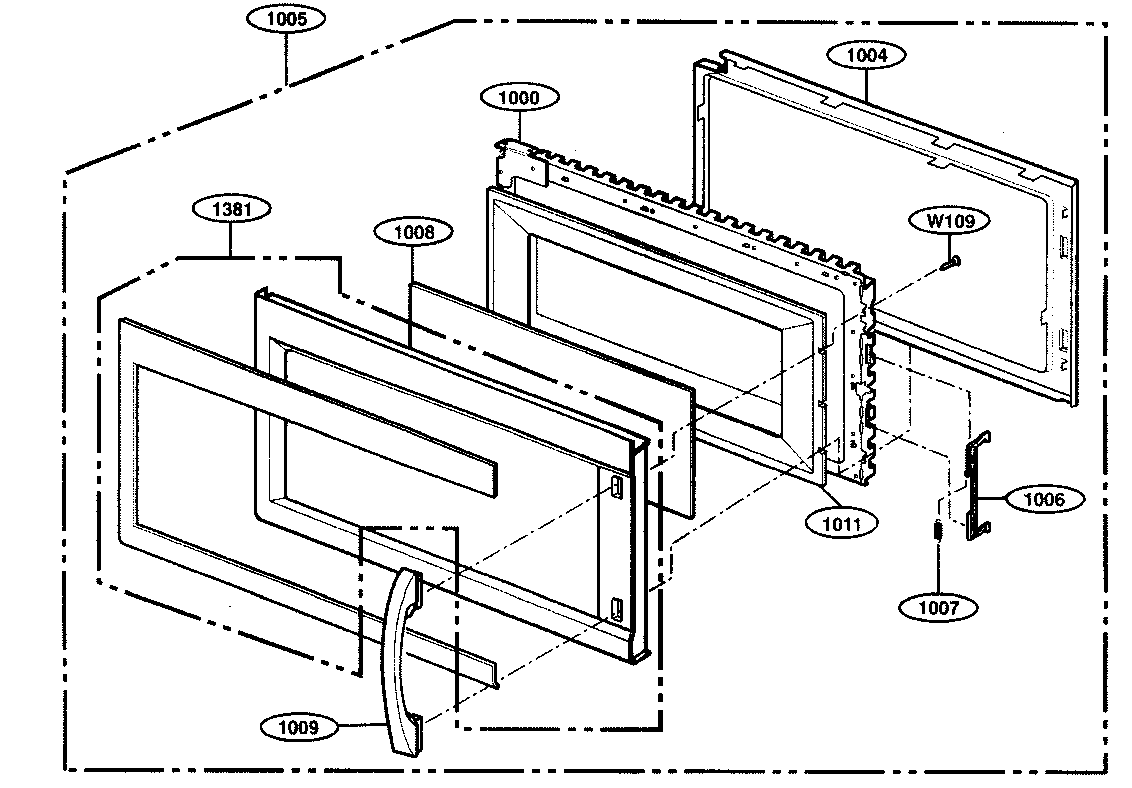

Microwave Door Latch 4026W2A019A
#1006

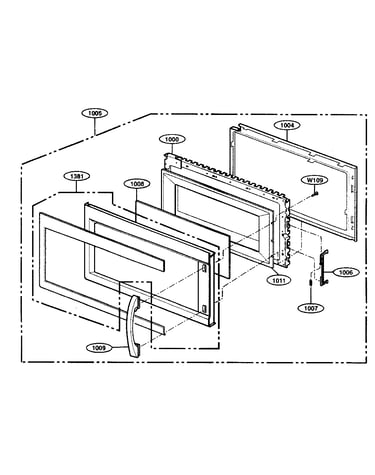

Door assy diagram

Microwave door latch

Part #4026W2A019A

Replaced by #4026W2A019C

?
Manufacturer substitution
This part replaces 4026W2A019A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.48 |
15% OFF Phone Price : $6.48
In Stock

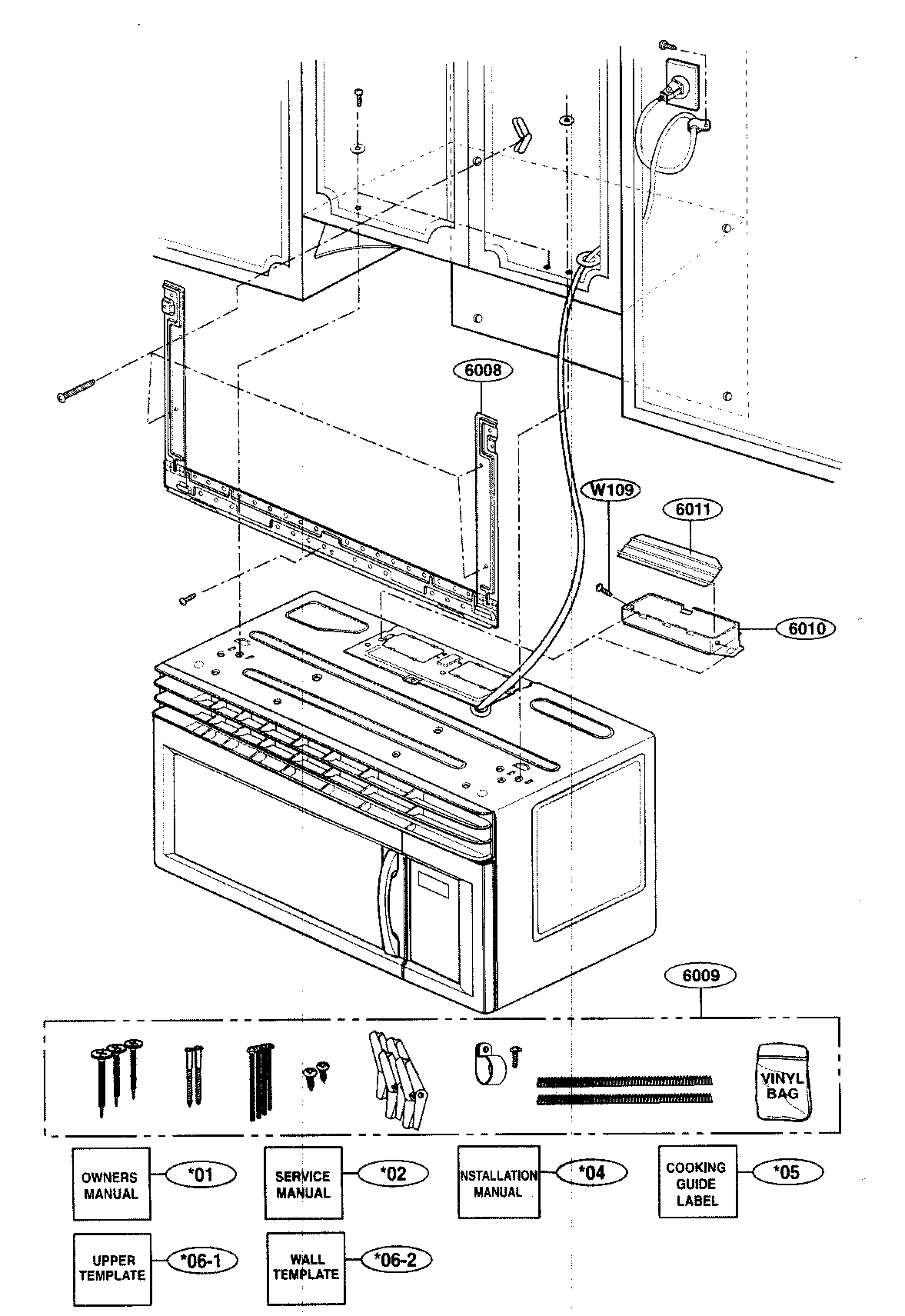

Microwave Exhaust Damper Bracket (replaces 3b72144a) 4810W1A151A
#6010

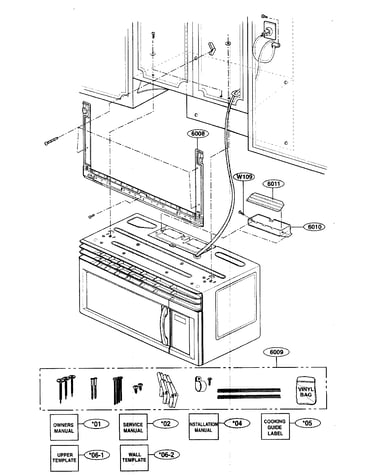

Installation parts diagram

Microwave exhaust damper bracket (replaces 3b72144a)

Part #4810W1A151A

BEST SELLER
This item is not returnable
$12.43 |
14% OFF Phone Price : $14.43
In Stock
