Frigidaire FEB798WCCC electric wall oven - 5995288254

Frigidaire FEB798WCCC electric wall oven - 5995288254 Parts

Here are the diagrams and repair parts for Frigidaire FEB798WCCC electric wall oven - 5995288254, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for FEB798WCCC Wall Ovens

  • Wall Oven Thermal Fuse for Frigidaire FEB798WCCC - Part 318004900

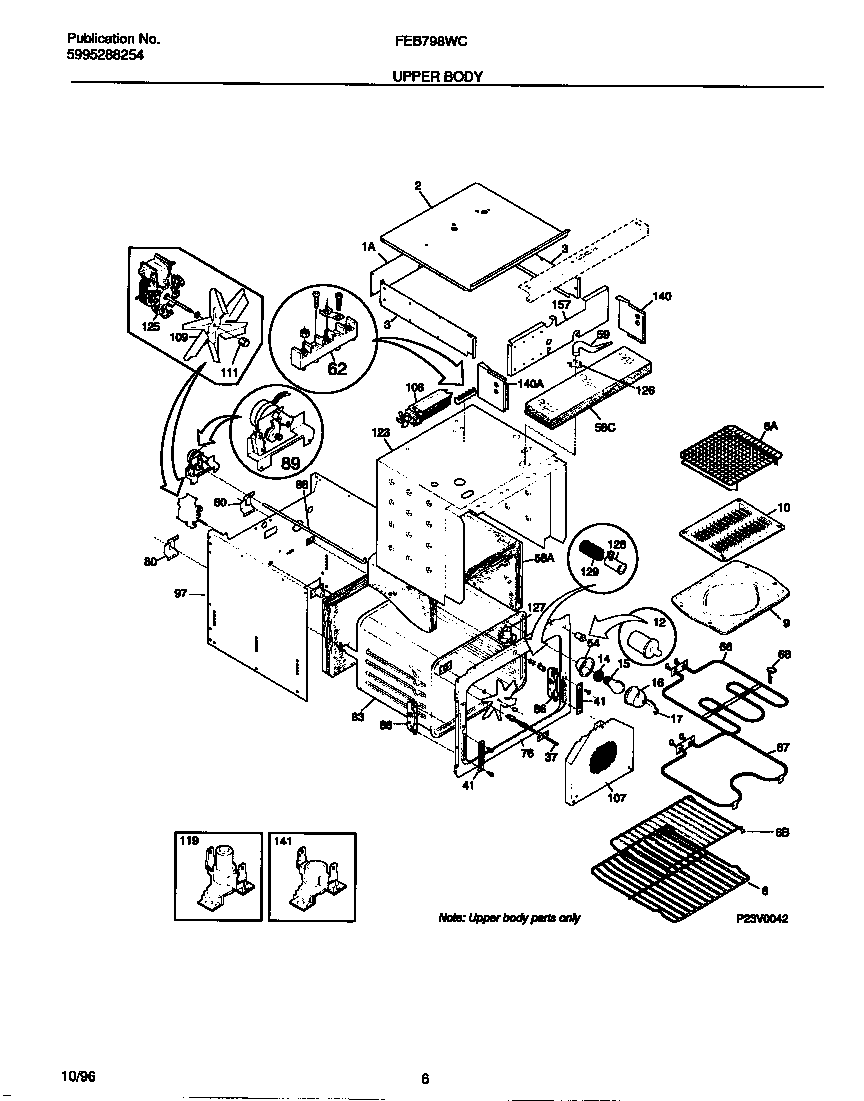

    Upper body diagram

    Wall Oven Thermal Fuse

    Part #318004900
    In Stock
    $35.01
    15% OFF Phone Price : $41.01Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Light Socket for Frigidaire FEB798WCCC - Part 316116400

    Receptacle

    Part #5308011085

    Replaced by #316116400

    Info Icon
    Manufacturer substitution
    This part replaces 5308011085. Substitute parts can look different from the original.
    In Stock
    $49.60
    11% OFF Phone Price : $55.60Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Light Lens for Frigidaire FEB798WCCC - Part 5304524341

    Cover

    Part #3201911

    Replaced by #5304524341

    Info Icon
    Manufacturer substitution
    This part replaces 3201911. Substitute parts can look different from the original.
    In Stock
    $17.11
    10% OFF Phone Price : $19.11Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Door Lock Switch for Frigidaire FEB798WCCC - Part 318394803

    Upper body diagram

    Door Switch

    Part #5303311157

    Replaced by #318394803

    Info Icon
    Manufacturer substitution
    This part replaces 5303311157. Substitute parts can look different from the original.
    In Stock
    $42.60
    12% OFF Phone Price : $48.60Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Vent Smoke Eliminator for Frigidaire FEB798WCCC - Part 318317100

    Adapter Assembly

    Part #5303310542

    Replaced by #318317100

    Info Icon
    Manufacturer substitution
    This part replaces 5303310542. Substitute parts can look different from the original.
    In Stock
    $68.28
    8% OFF Phone Price : $74.28Info Icon
    Minus Item
    Qty
    Plus Item
  • Frigidaire Range Bake Element for Frigidaire FEB798WCCC - Part 318255100

    Bake Element

    Part #5303299718

    Replaced by #318255100

    Info Icon
    Manufacturer substitution
    This part replaces 5303299718. Substitute parts can look different from the original.
    In Stock
    $152.81
    7% OFF Phone Price : $164.81Info Icon
    Minus Item
    Qty
    Plus Item
  • Oven Spacer for Frigidaire FEB798WCCC - Part 318014410

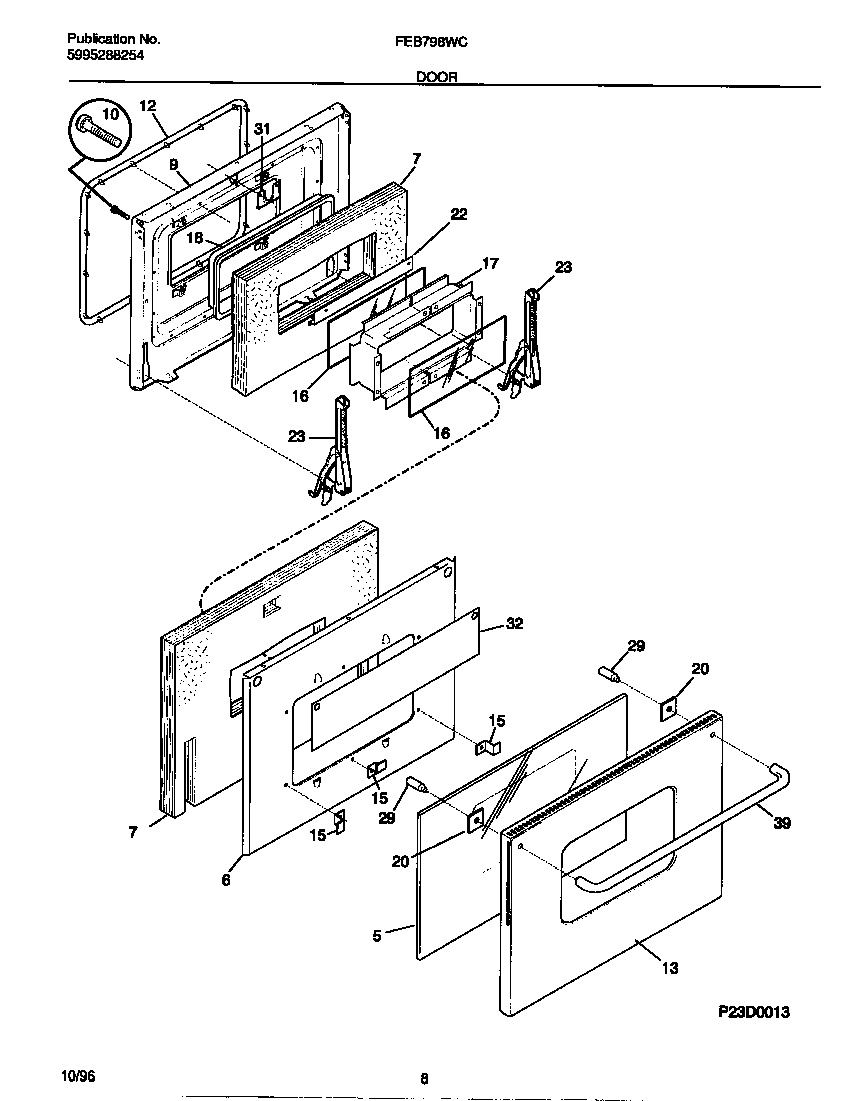

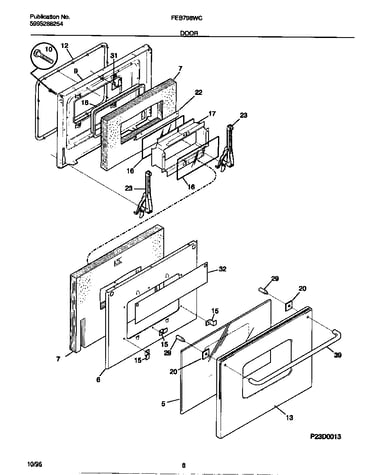

    Door diagram

    Wall Oven Door Handle Spacer

    Part #318014400

    Replaced by #318014410

    Info Icon
    Manufacturer substitution
    This part replaces 318014400. Substitute parts can look different from the original.
    In Stock
    $10.77
    16% OFF Phone Price : $12.77Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Control Board for Frigidaire FEB798WCCC - Part 318022001

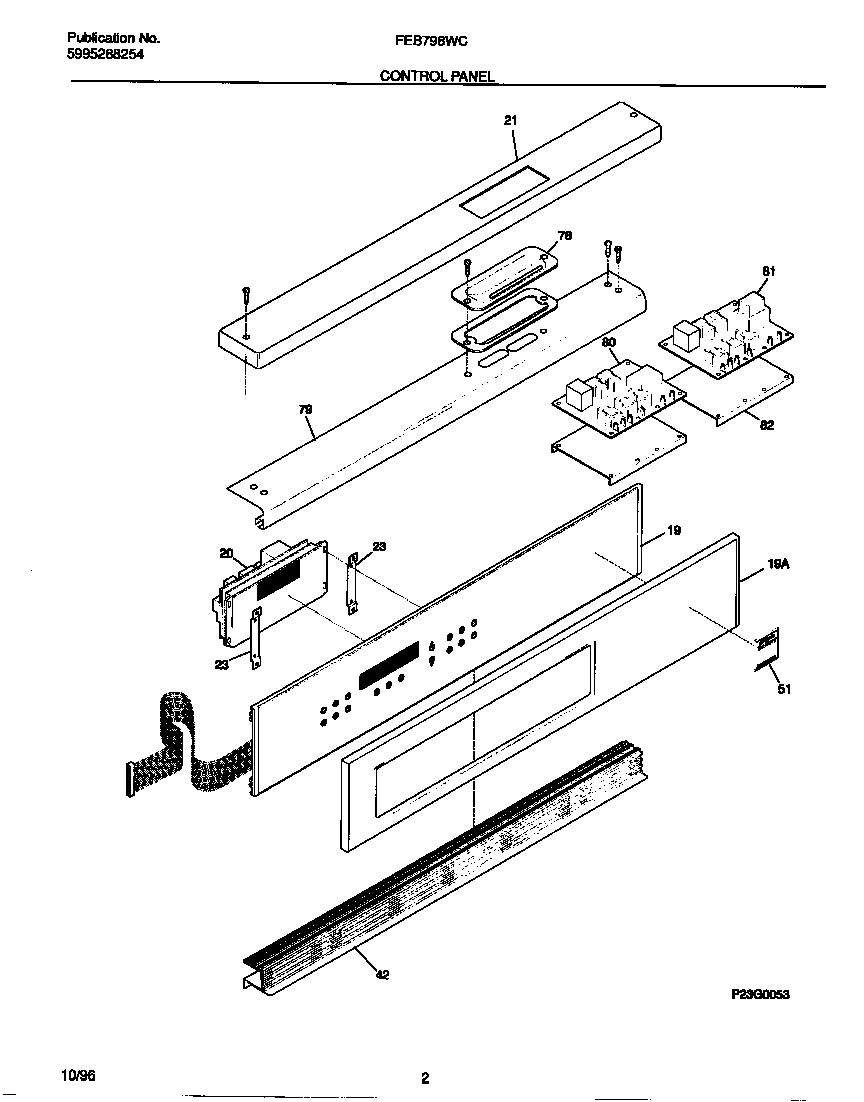

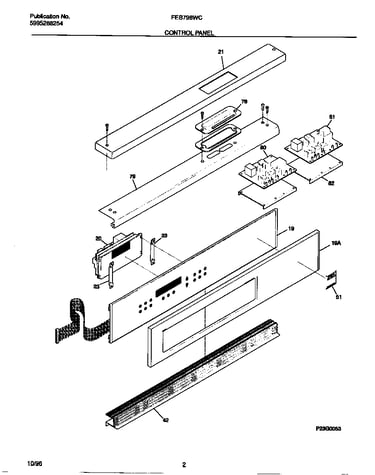

    Control panel diagram

    Range Oven Control Board

    Part #318022001
    This item is not returnable
    In Stock
    $266.11
    9% OFF Was : $292.72Info Icon
    Minus Item
    Qty
    Plus Item
  • Handle Screw for Frigidaire FEB798WCCC - Part 5303316953

    Door diagram

    Handle Screw

    Part #5303316953
    In Stock
    $25.22
    Minus Item
    Qty
    Plus Item
  • White-westinghouse Range Surface Burner Igniter Spring for Frigidaire FEB798WCCC - Part 5303311164

    White-westinghouse Range Surface Burner Igniter Spring

    Part #5303311164
    In Stock
    $20.42
    23% OFF Phone Price : $26.42Info Icon
    Minus Item
    Qty
    Plus Item

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Range Oven Door Trim Double-sided Tape 5303316982

Range Oven Door Trim Double-sided Tape

Part #5303316982
This item is not returnable
In Stock
$8.98
10% OFF Phone Price : $9.98Info Icon
Minus Item
Qty
Plus Item

Most common symptoms to help you fix your wall oven

Choose a symptom to see related wall oven repairs.

View all

Why won't my wall oven door unlock?

Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure…

Read more

Why isn't my wall oven at the temperature I set?

Main causes: faulty oven temperature sensor, control system problem, weak burner igniter, damaged oven element…

Read more

Why won't my wall oven heat?

Main causes: lack of gas supply, broken igniter, tripped circuit breaker, broken oven element, tripped thermal fuse, con…

Read more

Why doesn't my wall oven work?

Main causes: lack of electrical power, bad electronic control board, faulty oven control thermostat…

Read more

Why won't my wall oven broil?

Main causes: broken broil element, faulty broil burner igniter, control system failure…

Read more

Why won't my wall oven bake?

Main causes: broken bake element, bad bake burner igniter, tripped thermal switch, control system failure…

Read more
