Kenmore
Mechanical Sewing Machine

Model # 15817850 Official Kenmore sewing machine

Here are the diagrams and repair parts for Official Kenmore 15817850 sewing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

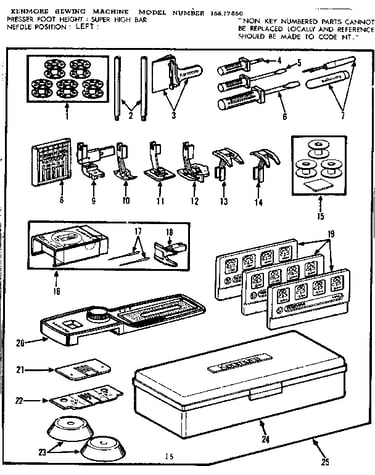

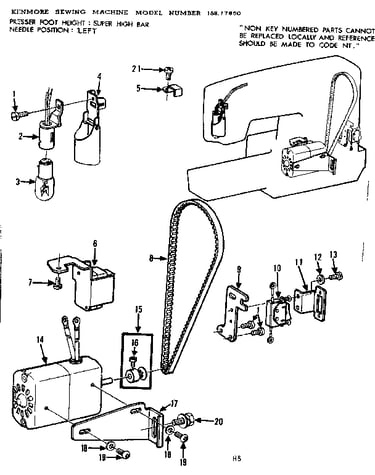

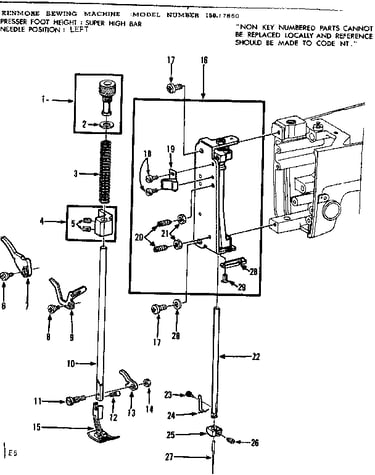

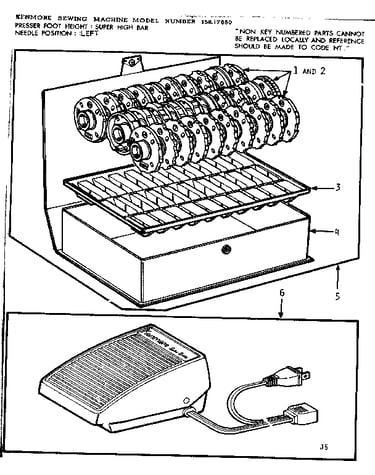

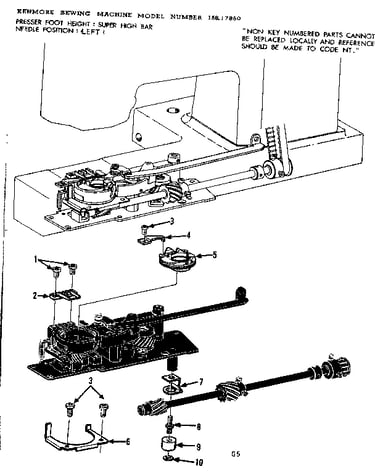

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 256 parts  |
Clutch Sleve 49140
#1

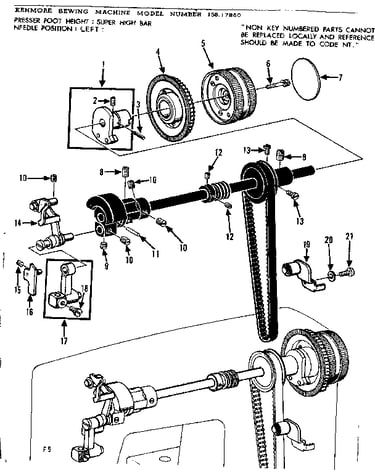

Clutch wheel assembly diagram

Clutch sleve

Part #49140

The manufacturer no longer makes this part, and there's no substitute part

Spring Plate 45353
#13

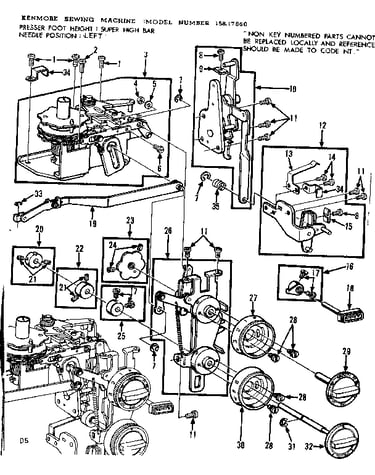

Dial control and bell crank assembly diagram

Spring plate

Part #45353

The manufacturer no longer makes this part, and there's no substitute part

Hinge Pin 41811
#5

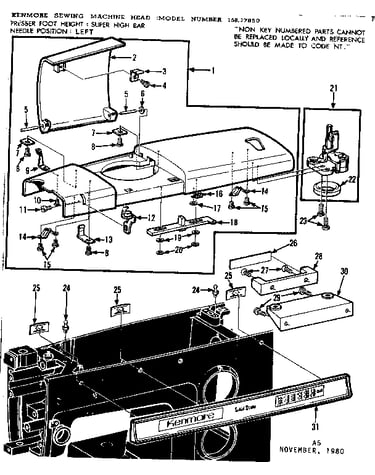

Bobbin winder and top plate diagram

Hinge pin

Part #41811

The manufacturer no longer makes this part, and there's no substitute part

Clipon Washr 40395
#17

Bobbin winder and top plate diagram

Clipon washr

Part #40395

The manufacturer no longer makes this part, and there's no substitute part

Crank Bell 49458
#12

Dial control and bell crank assembly diagram

Crank bell

Part #49458

The manufacturer no longer makes this part, and there's no substitute part

Pl Washer 54897
#13

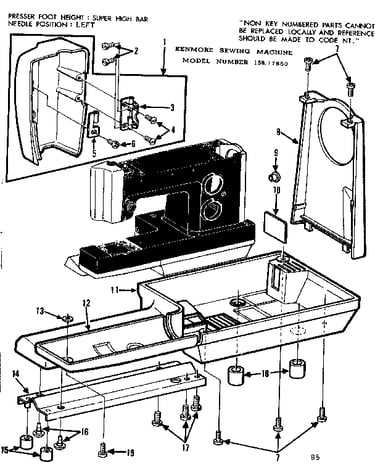

Base assembly diagram

Pl washer

Part #54897

The manufacturer no longer makes this part, and there's no substitute part

Spring 43522
#15

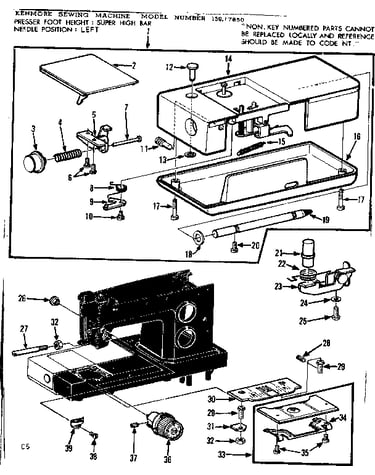

Thread tension assembly diagram

Spring

Part #43522

The manufacturer no longer makes this part, and there's no substitute part

Lenght Contl 41556
#30

Dial control and bell crank assembly diagram

Lenght contl

Part #41556

The manufacturer no longer makes this part, and there's no substitute part

Cam Cover 55507
#2

Bobbin winder and top plate diagram

Cam cover

Part #55507

The manufacturer no longer makes this part, and there's no substitute part

Spring Plate 45740
#9

Dial control and bell crank assembly diagram

Spring plate

Part #45740

The manufacturer no longer makes this part, and there's no substitute part
