Model # GFDS150GD0WW Official GE gas dryer

Here are the diagrams and repair parts for Official GE GFDS150GD0WW gas dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

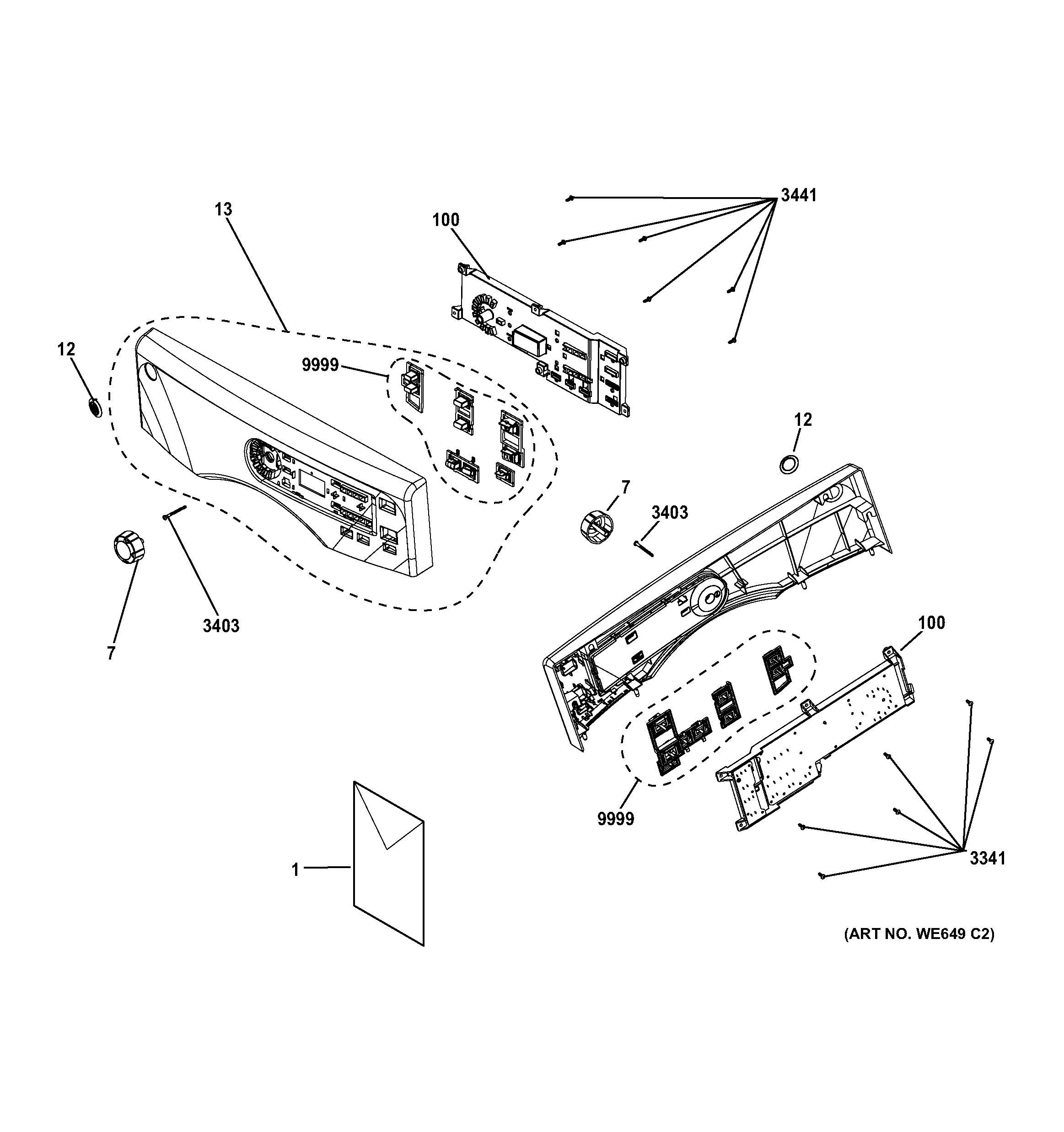

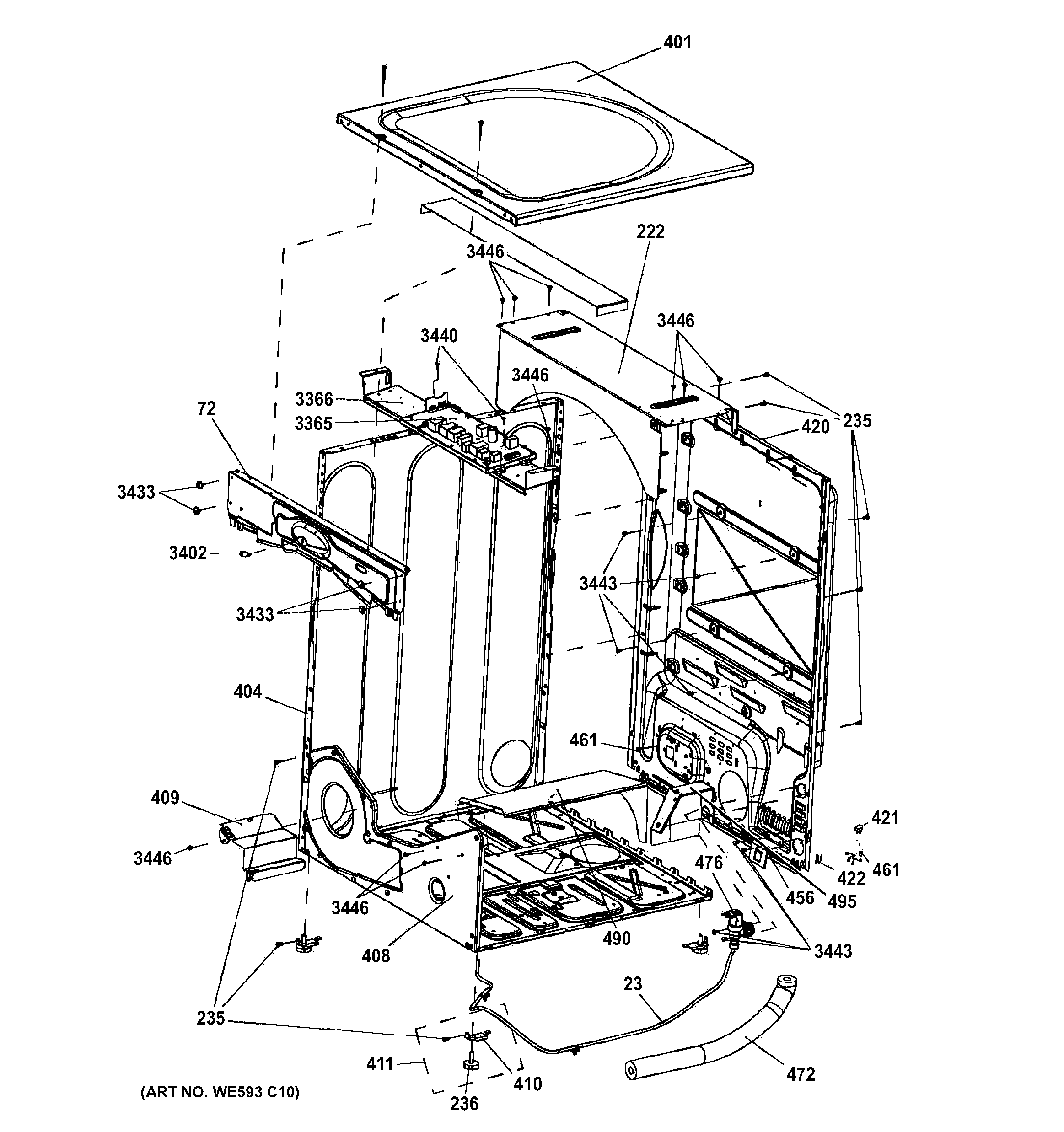

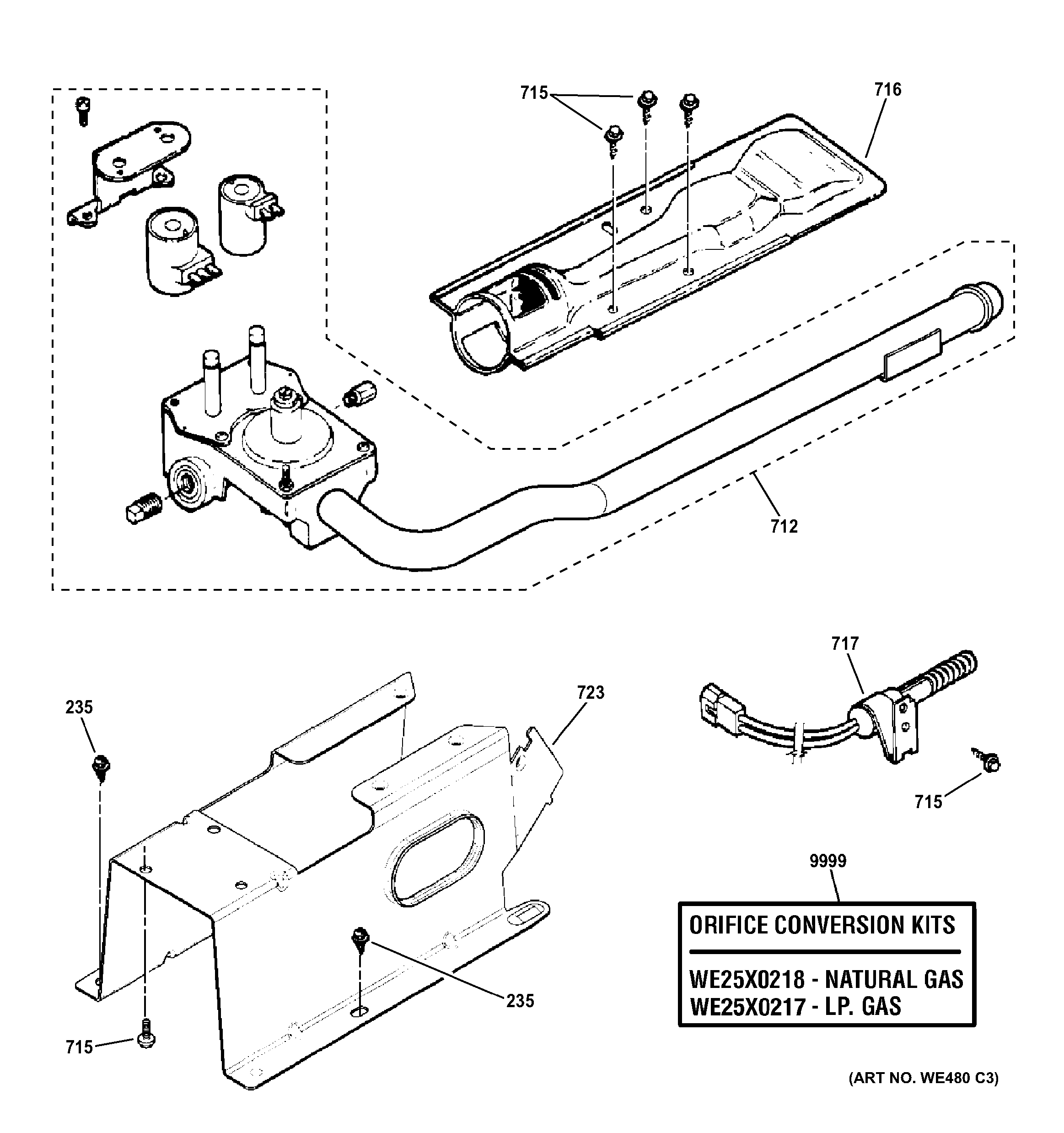

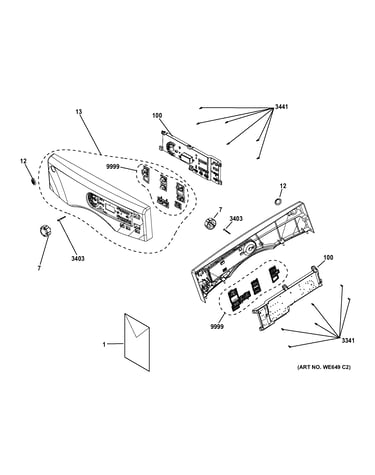

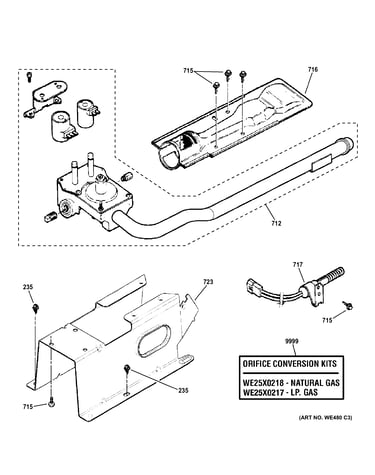

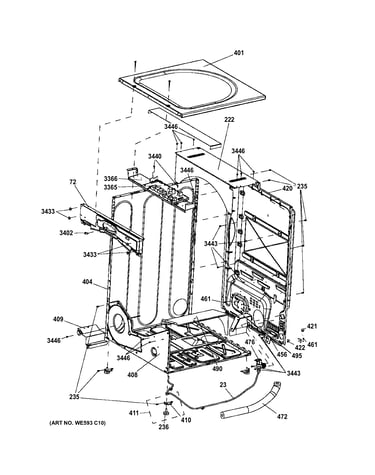

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 129 parts  |
Dryer Drum Belt WE12M29
#213

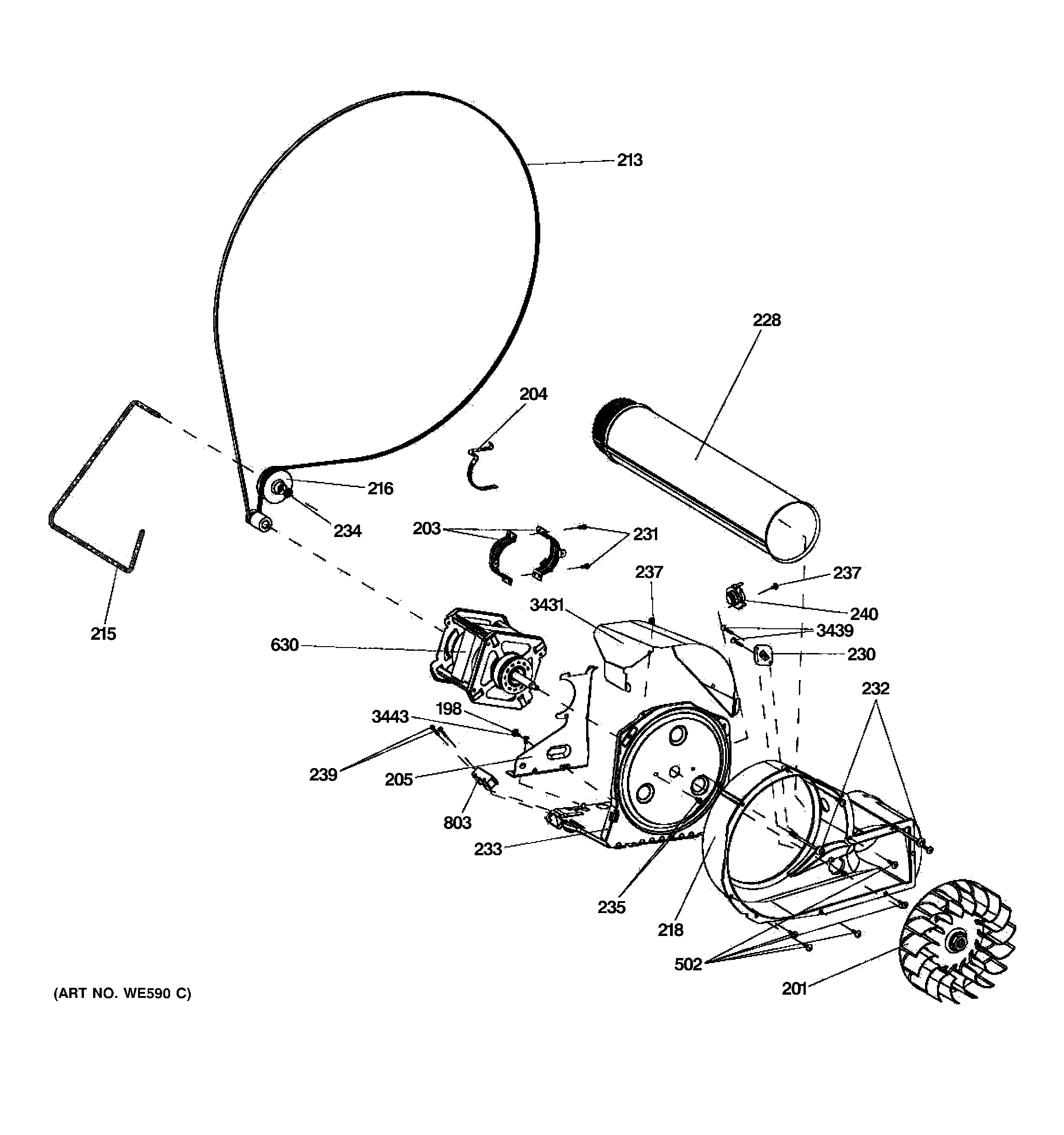

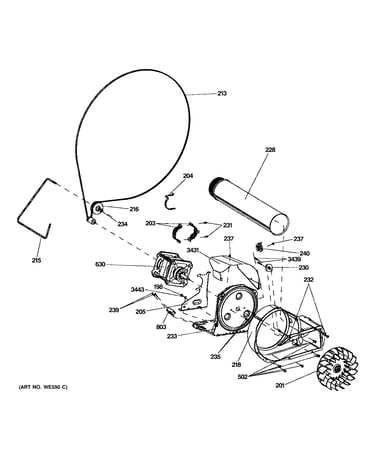

Blower & motor assembly diagram

Dryer drum belt

Part #WE12M29

Replaced by #WE03X29897

?
Manufacturer substitution
This part replaces WE12M29. Substitute parts can look different from the original.
BEST SELLER
$30.53 |
16% OFF Phone Price : $36.53
In Stock
Dryer Drum Glide Bearing (replaces We03m0051, We1m404) WE3M51
#315

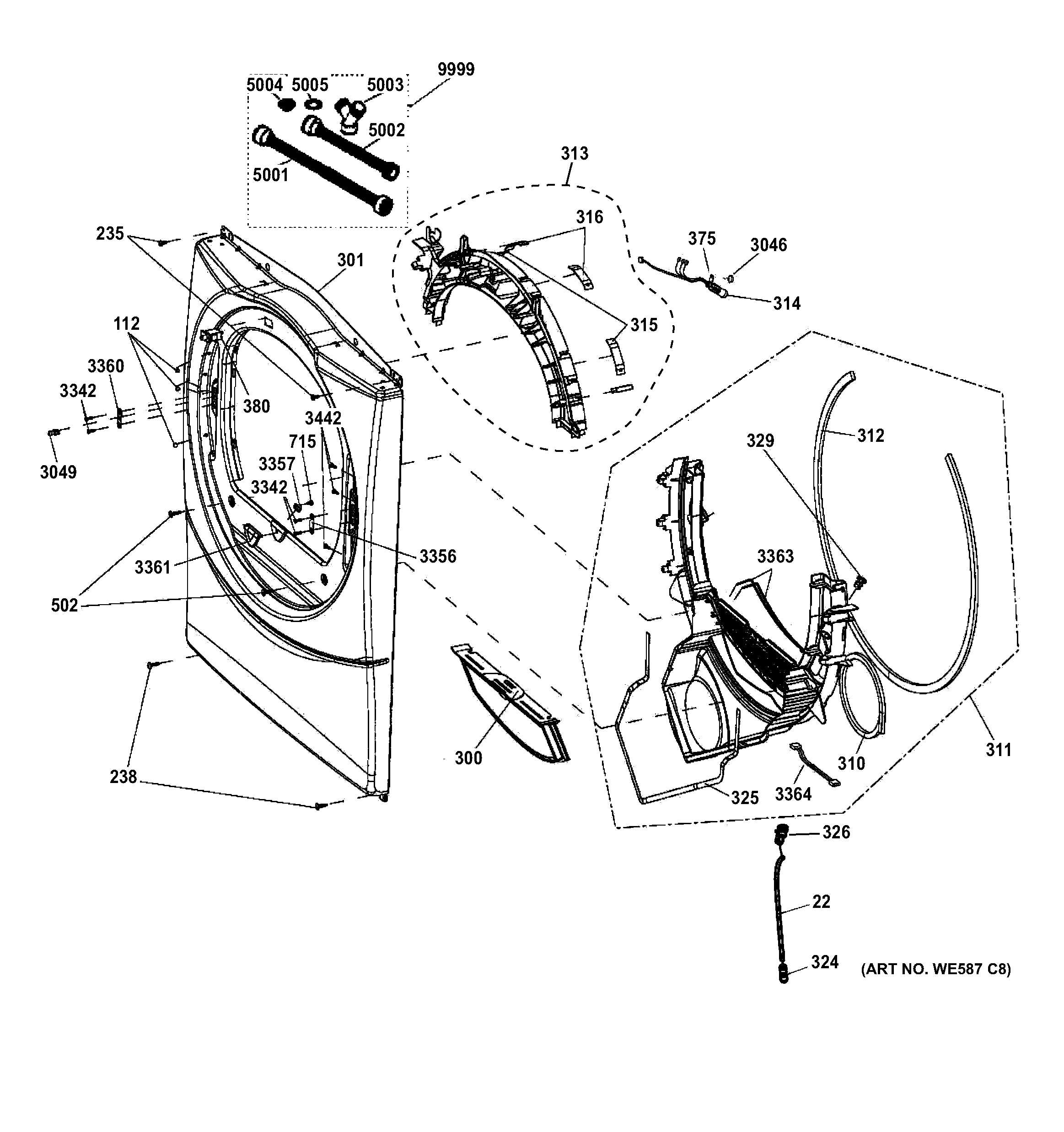

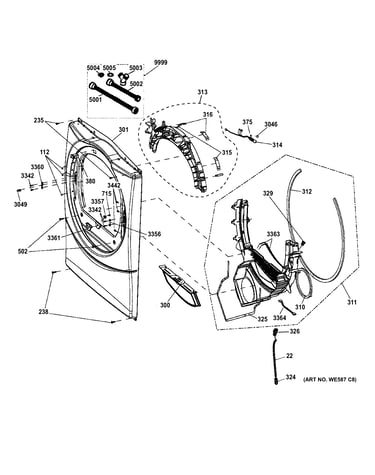

Front panel diagram

Dryer drum glide bearing (replaces we03m0051, we1m404)

Part #WE3M51

BEST SELLER
$12.67 |
14% OFF Phone Price : $14.67
In Stock
Kenmore Dryer Drum Support Shaft (replaces We03m0033) WE3M33
#508

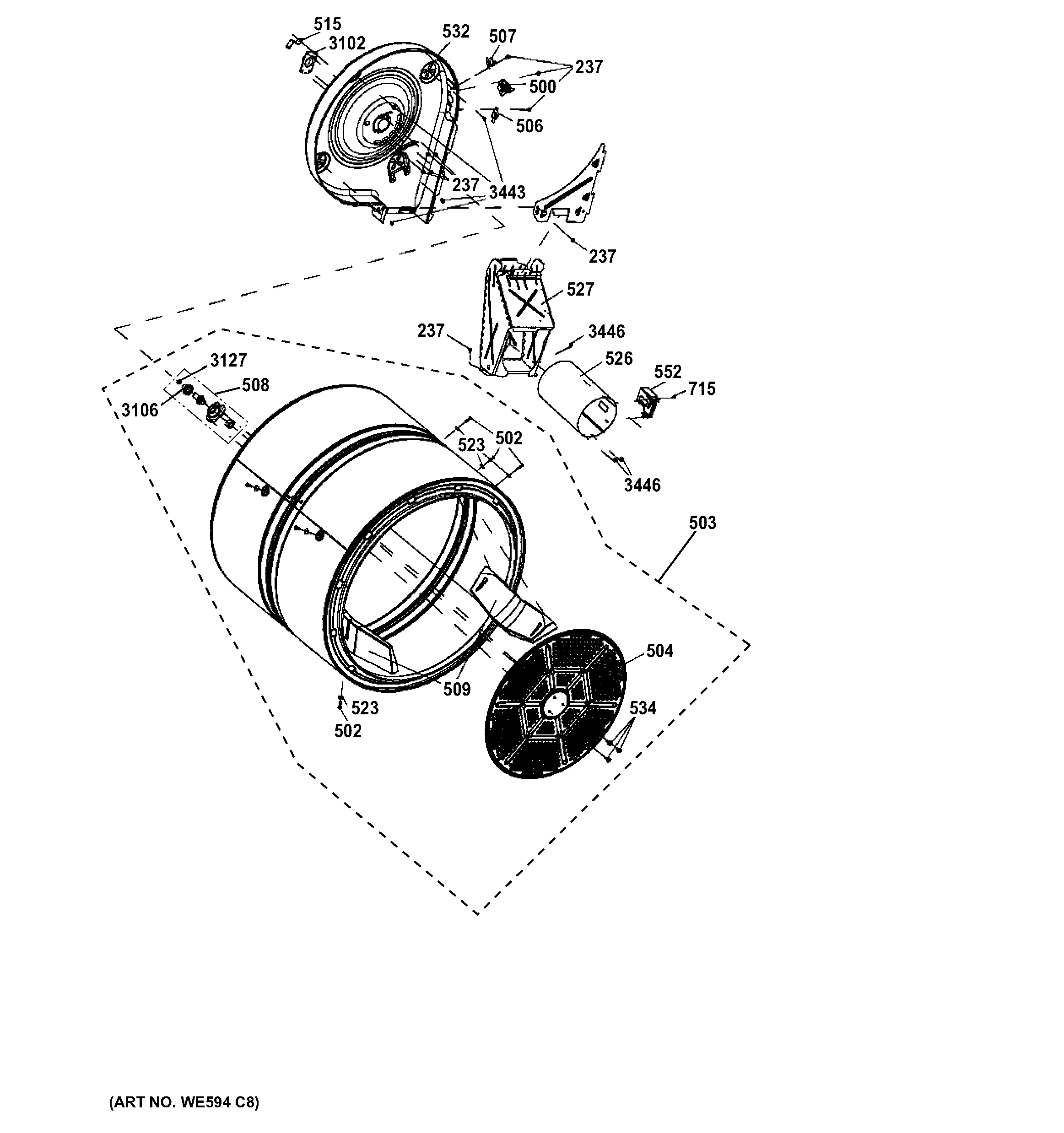

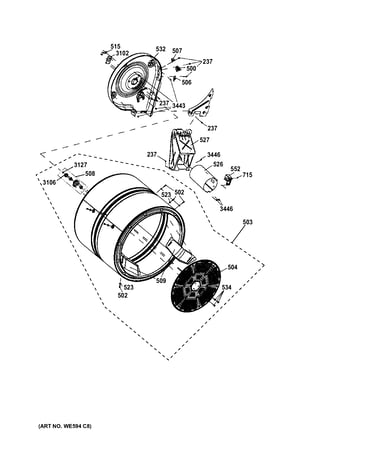

Drum diagram

Kenmore dryer drum support shaft (replaces we03m0033)

Part #WE3M33

BEST SELLER
$31.67 |
16% OFF Phone Price : $37.67
In Stock
Kenmore Dryer Rear Bearing WE1M462
#3106

Drum diagram

Kenmore dryer rear bearing

Part #WE1M462

BEST SELLER
$24.80 |
19% OFF Phone Price : $30.80
In Stock
Dryer High-limit Thermostat (replaces We03m0026, We3m20, We4m457) WE4M137
#507

Drum diagram

Dryer high-limit thermostat (replaces we03m0026, we3m20, we4m457)

Part #WE4M137

BEST SELLER
$78.01 |
7% OFF Phone Price : $84.01
In Stock
Laundry Center Dryer Blower Wheel (replaces We16m17, Wh16x20270) WE16X20393
#201

Blower & motor assembly diagram

Laundry center dryer blower wheel (replaces we16m17, wh16x20270)

Part #WE16X20393

BEST SELLER
$42.32 |
12% OFF Phone Price : $48.32
In Stock
Interlock Switch WD21X0557
#803

Blower & motor assembly diagram

Interlock switch

Part #WD21X0557

Replaced by #WD21X10261

?
Manufacturer substitution
This part replaces WD21X0557. Substitute parts can look different from the original.
BEST SELLER
$21.69 |
22% OFF Phone Price : $27.69
In Stock
Dryer Drum Lamp WE4M305
#314

Front panel diagram

Dryer drum lamp

Part #WE4M305

Replaced by #WE05X20431

?
Manufacturer substitution
This part replaces WE4M305. Substitute parts can look different from the original.
BEST SELLER
$13.71 |
13% OFF Phone Price : $15.71
In Stock
Duct Complete Trap WE1M574
#325

Front panel diagram

Duct complete trap

Part #WE1M574

Replaced by #WE14M119

?
Manufacturer substitution
This part replaces WE1M574. Substitute parts can look different from the original.
BEST SELLER
$198.20 |
6% OFF Was : $210.86
In Stock
Latch WE1M536
#327

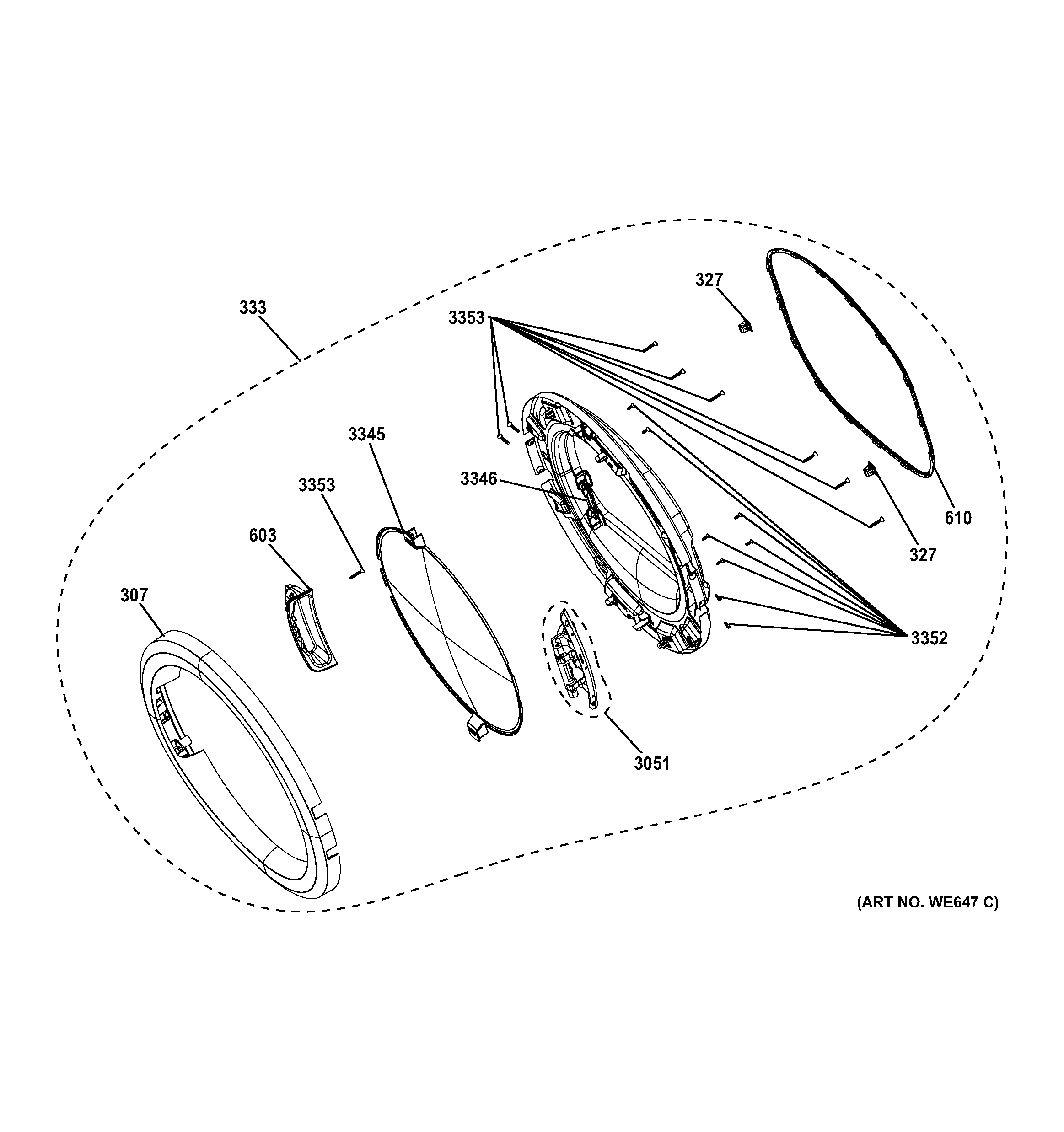

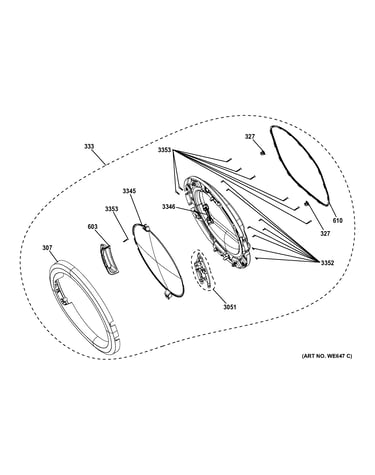

Door diagram
