Bosch B20CS51SNB/01 refrigerator Parts
Here are the diagrams and repair parts for Bosch B20CS51SNB/01 refrigerator, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

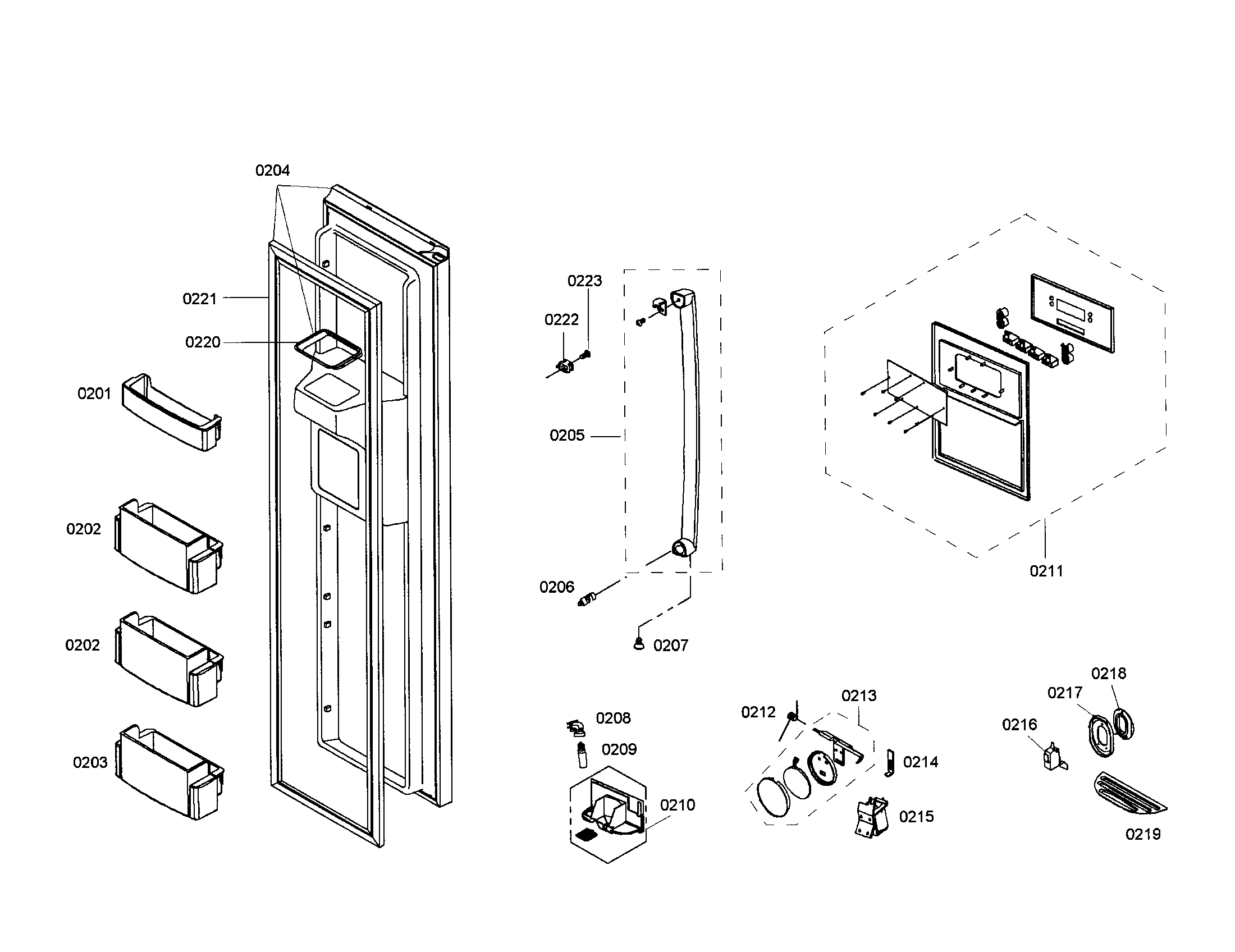

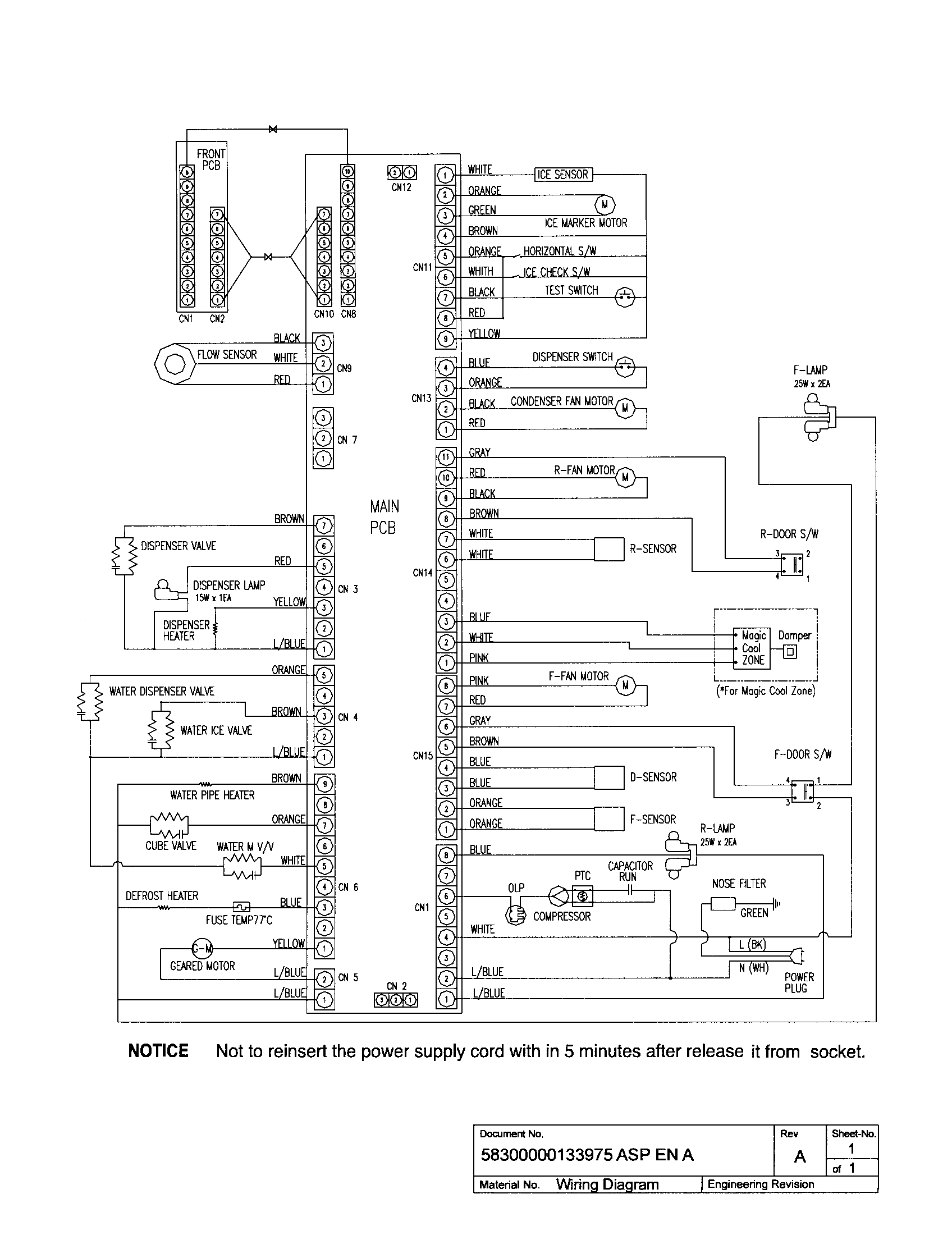

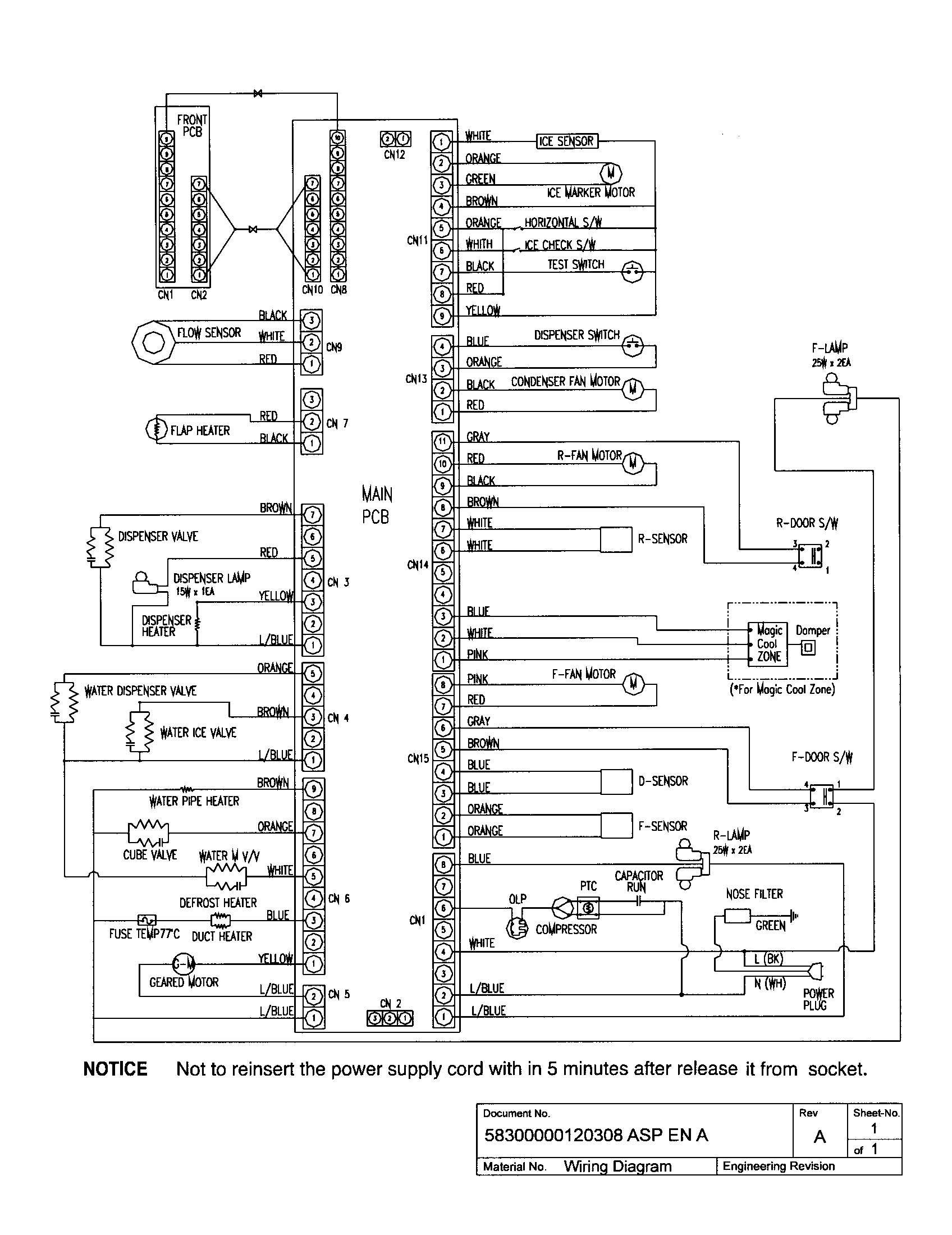

Browse Parts for B20CS51SNB/01 Refrigerators

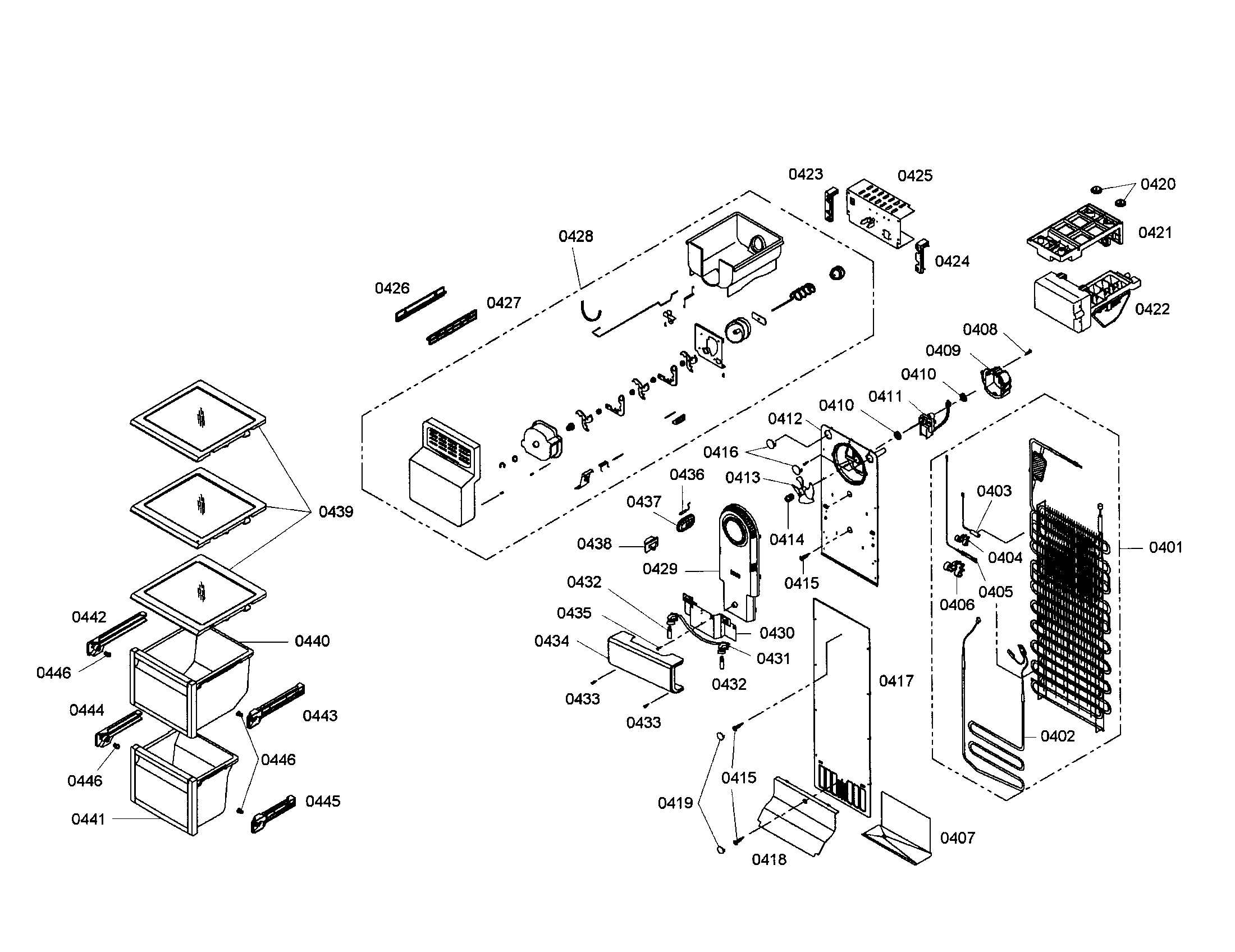

Evaporator/icemaker diagram
Fuse-thermal
Part #601602
The manufacturer no longer makes this part, and there's no substitute part
Evaporator/icemaker diagram
Refrigerator Reflector
Part #601084
The manufacturer no longer makes this part, and there's no substitute part

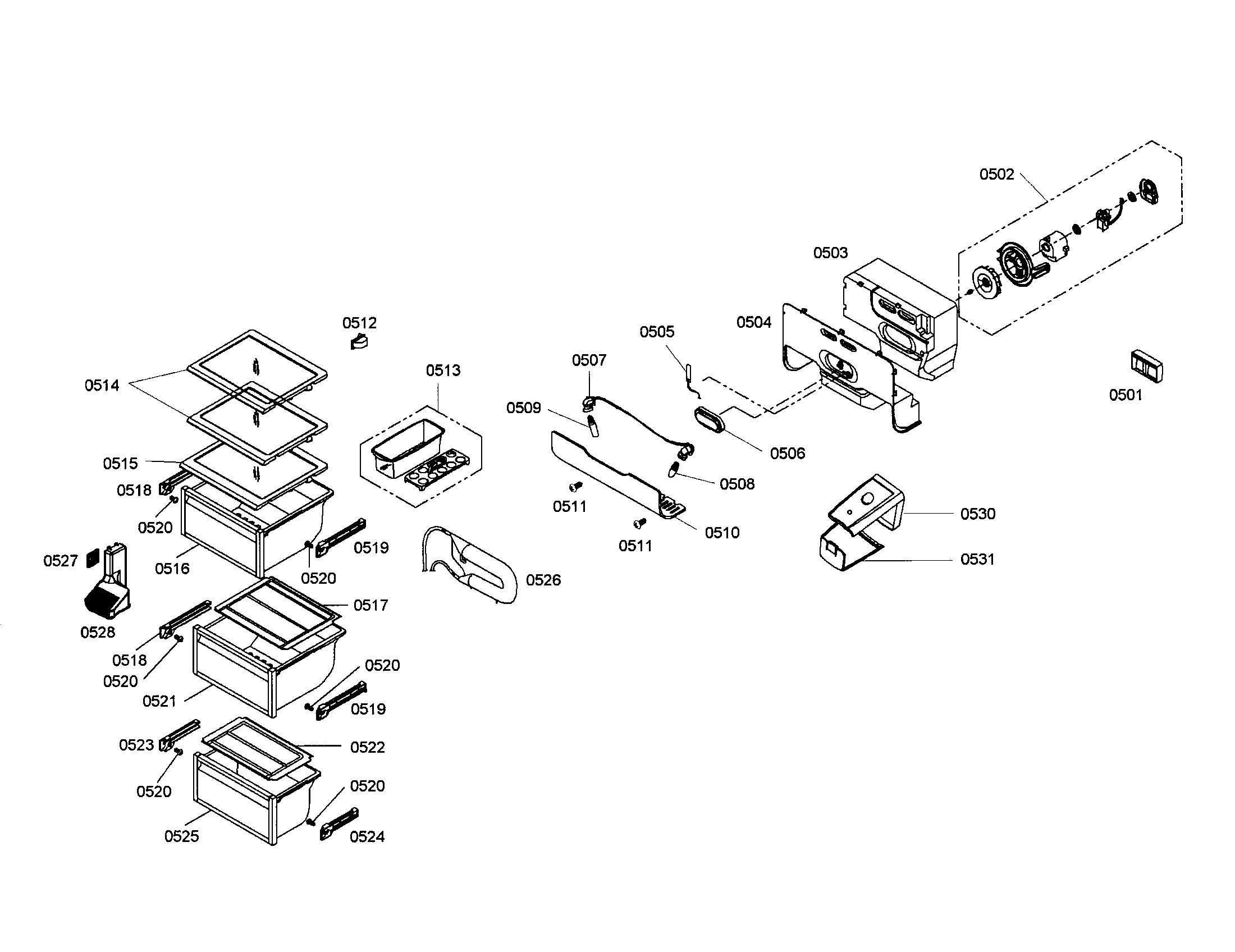

Fan/drawer diagram
Glass Shelf
Part #670866
The manufacturer no longer makes this part, and there's no substitute part
Fan/drawer diagram
Refrigerator Crisper Drawer, Center
Part #445990
The manufacturer no longer makes this part, and there's no substitute part

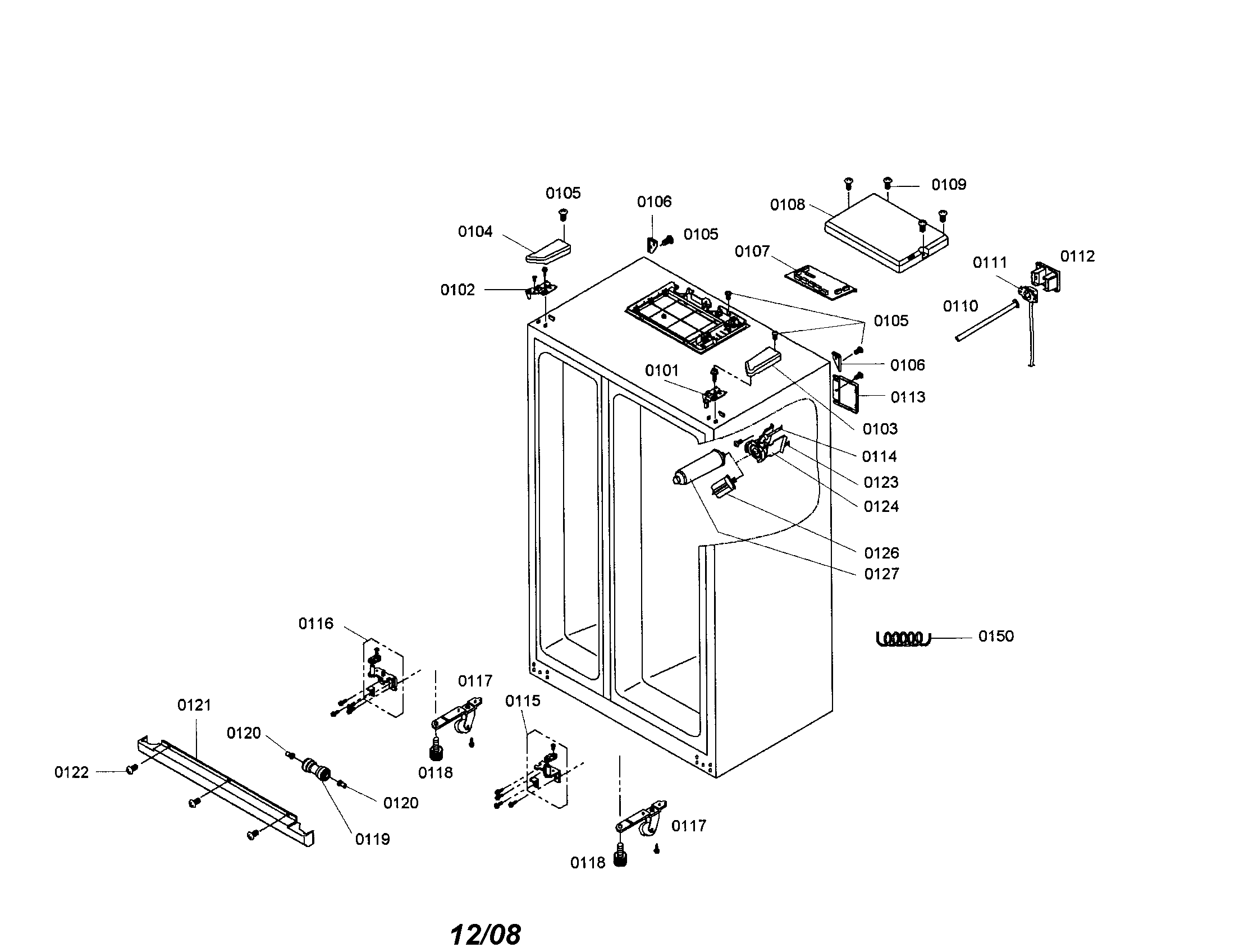

Cabinet diagram
Refrigerator Cover
Part #605659
The manufacturer no longer makes this part, and there's no substitute part
Evaporator/icemaker diagram
Refrigerator Holder
Part #601065
The manufacturer no longer makes this part, and there's no substitute part
Fan/drawer diagram
Refrigerator Fan
Part #497841
The manufacturer no longer makes this part, and there's no substitute part

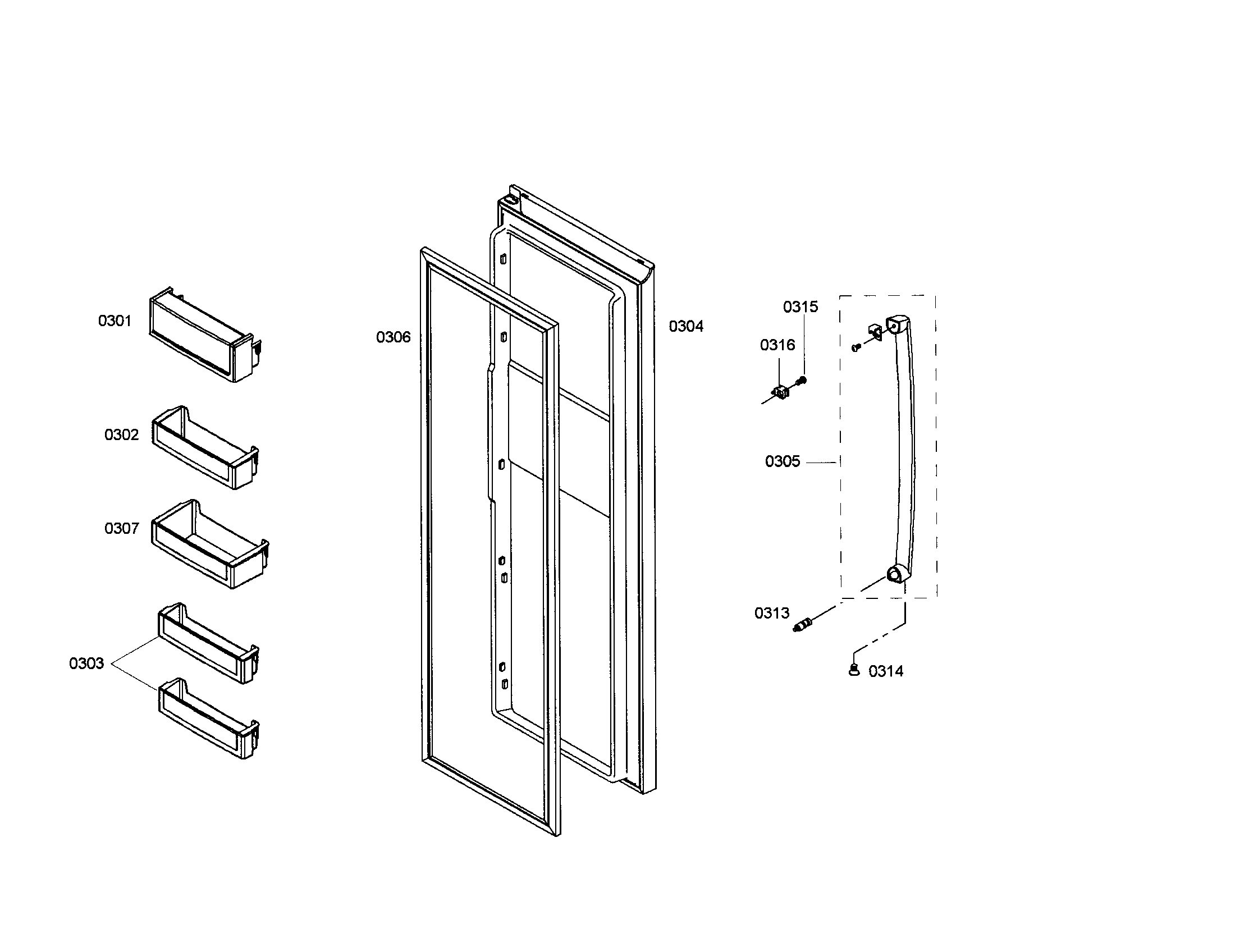

Refrigerator door diagram
Refrigerator Door Bin, Upper
Part #446135
The manufacturer no longer makes this part, and there's no substitute part
Refrigerator Drawer Slide Rail
Part #445997
The manufacturer no longer makes this part, and there's no substitute part

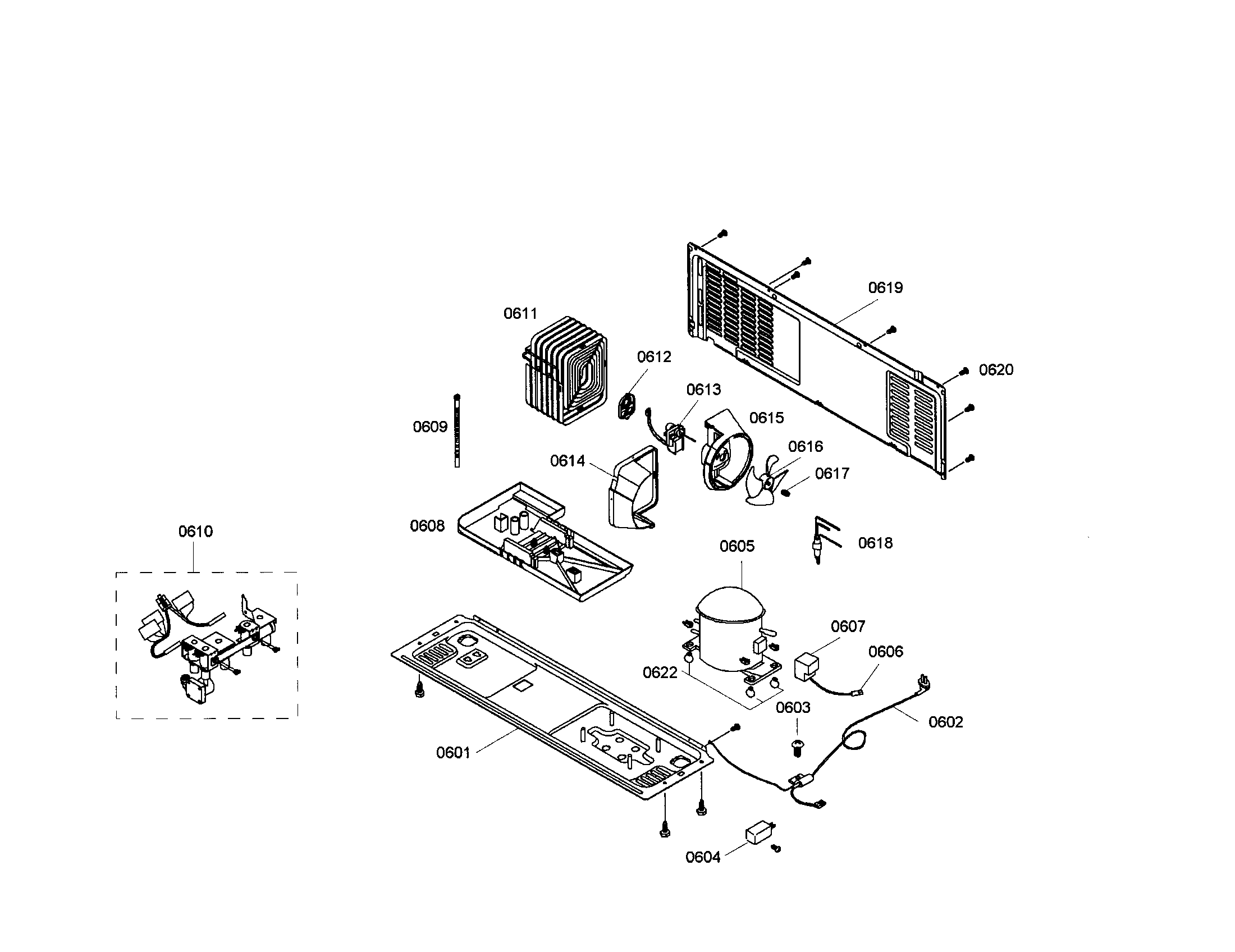

Compressor/condenser diagram
Refrigerator Hose
Part #604203
The manufacturer no longer makes this part, and there's no substitute part
