Bosch
Side-By-Side Refrigerator

Model # B20CS51SNB/01 Official Bosch refrigerator

Here are the diagrams and repair parts for Official Bosch B20CS51SNB-01 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

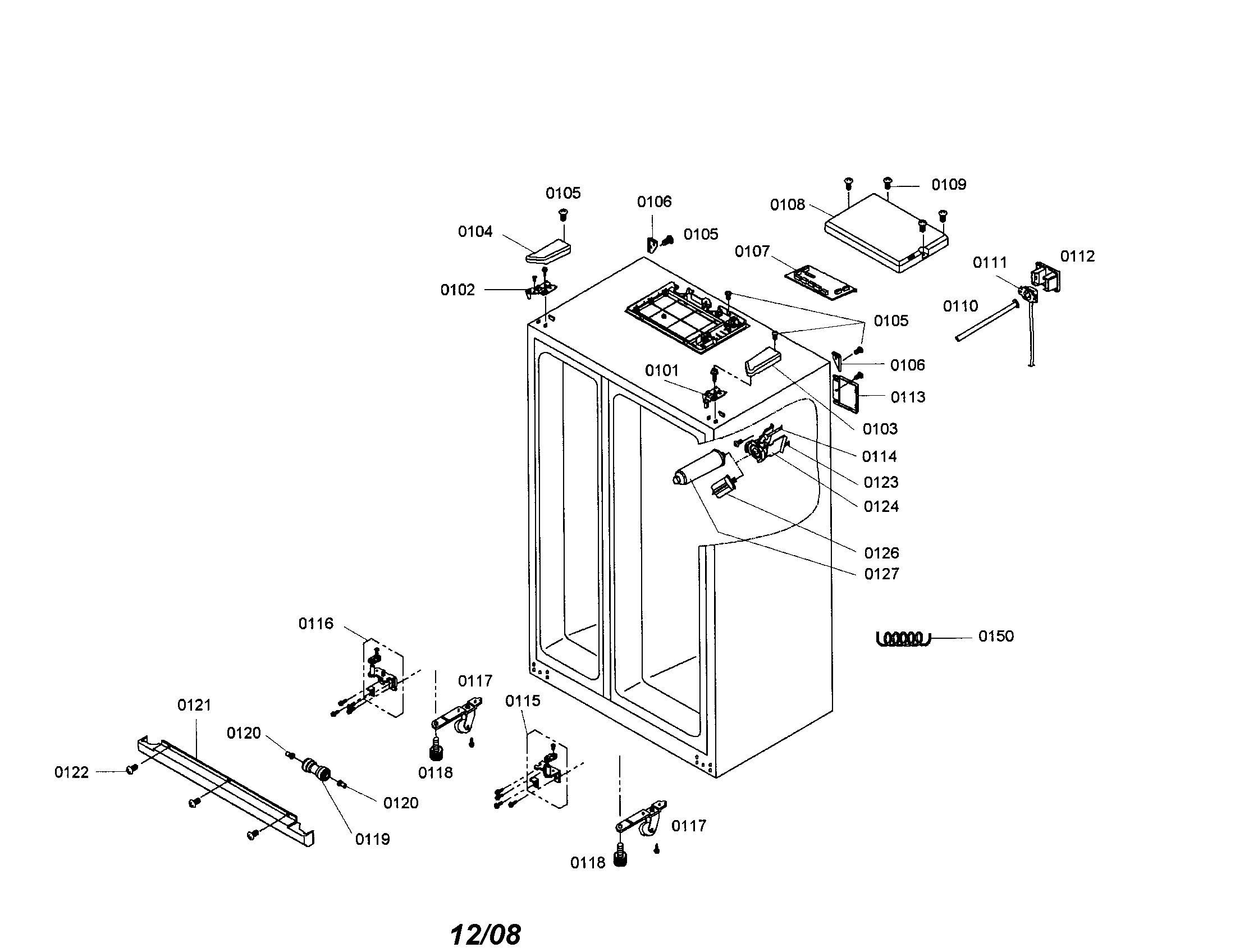

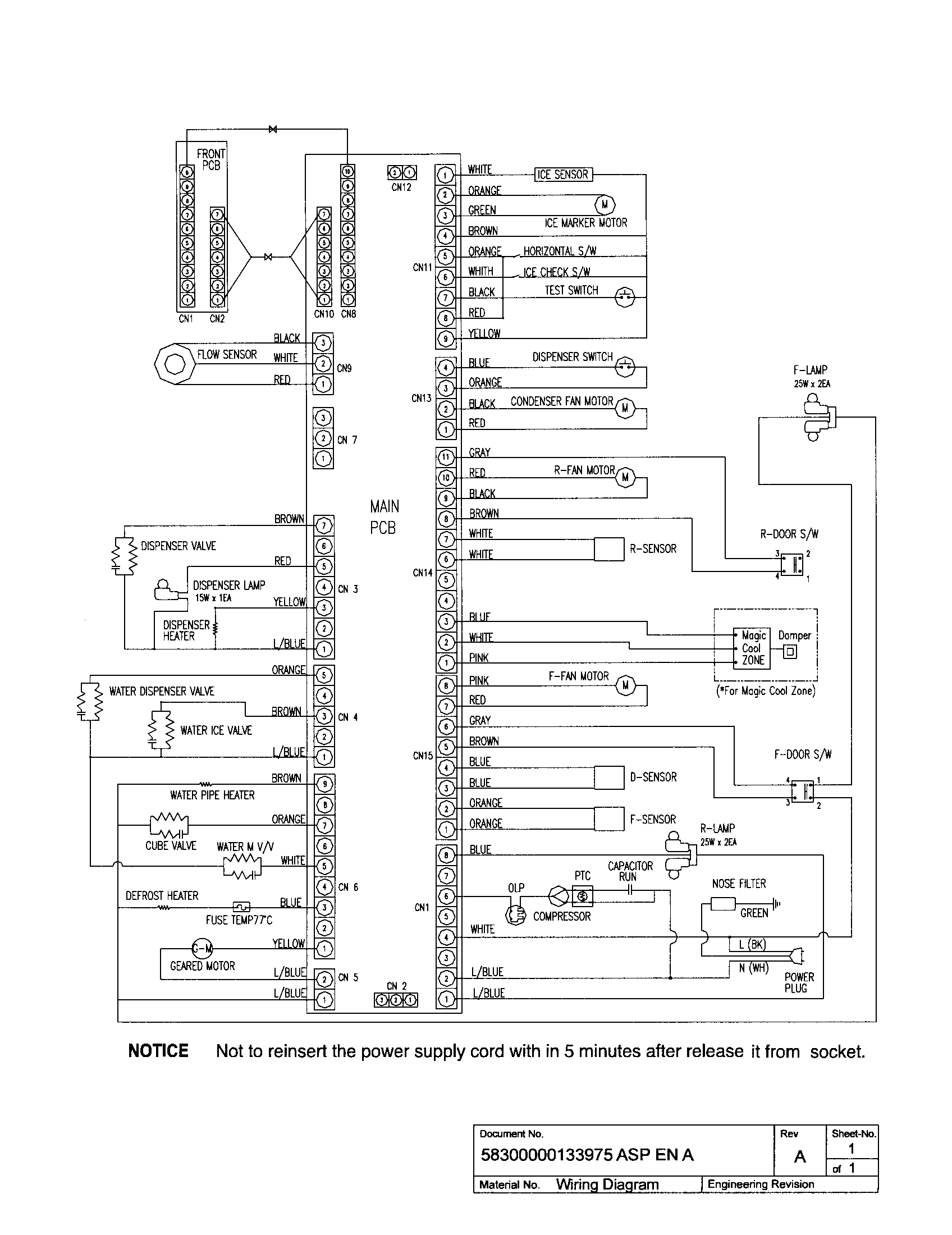

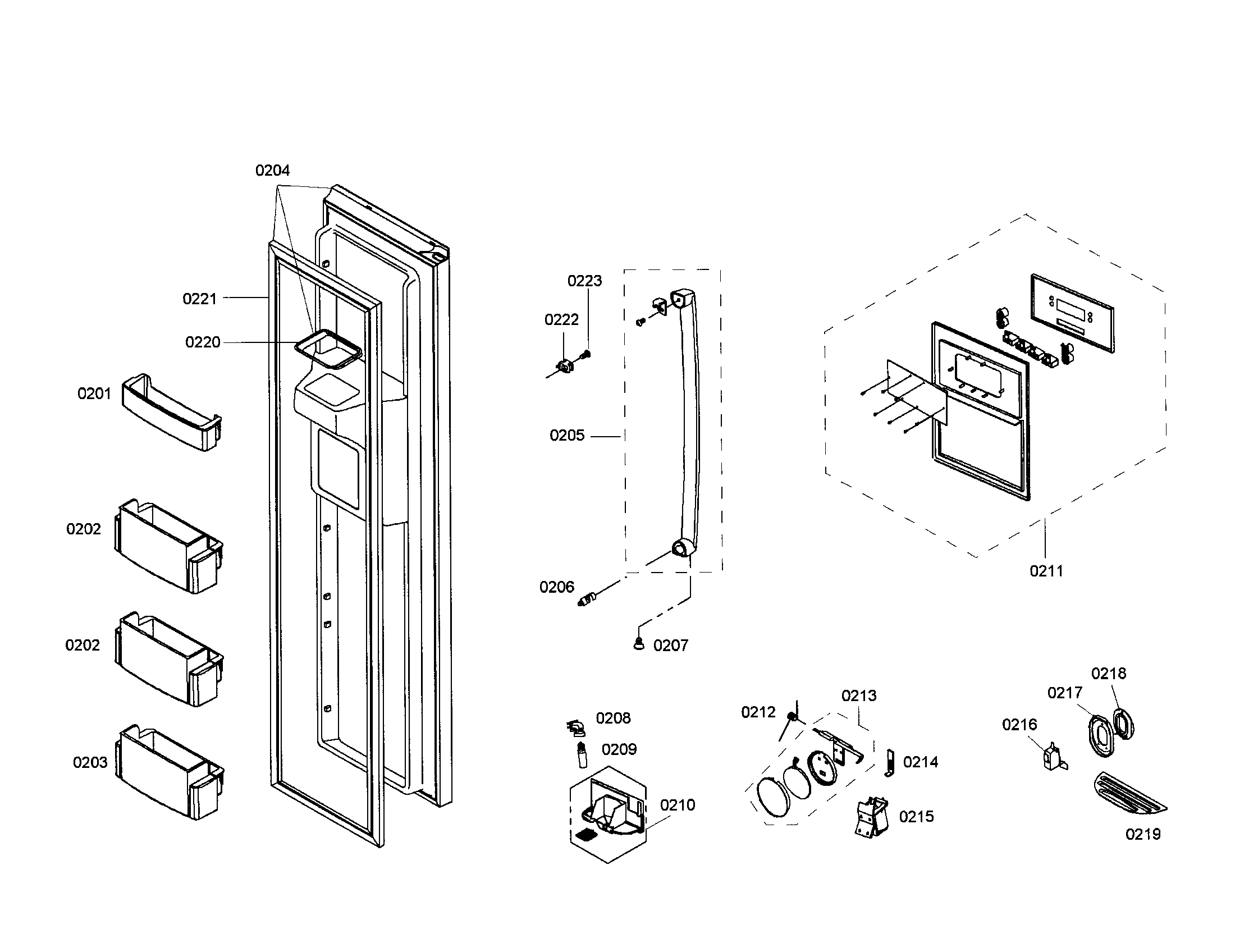

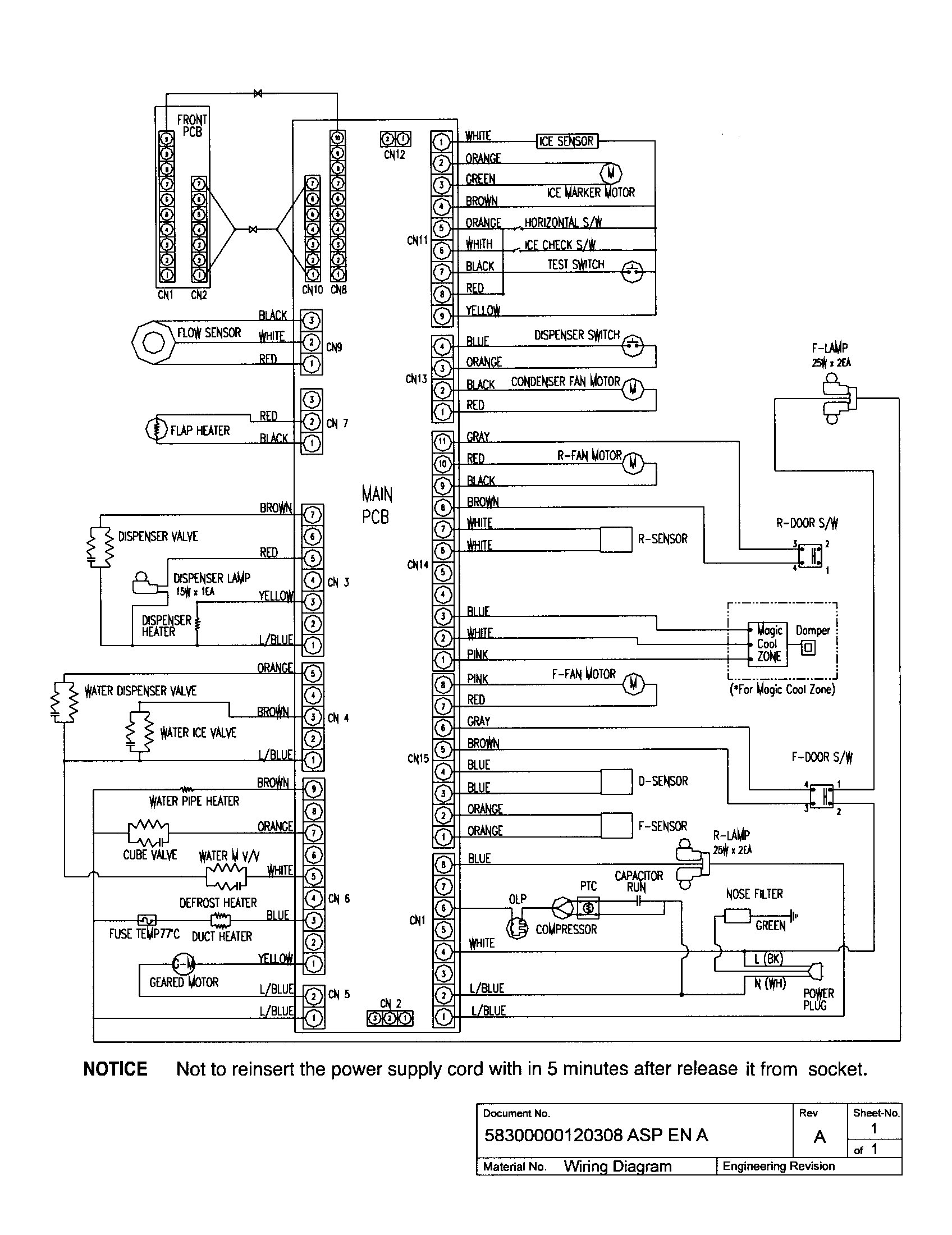

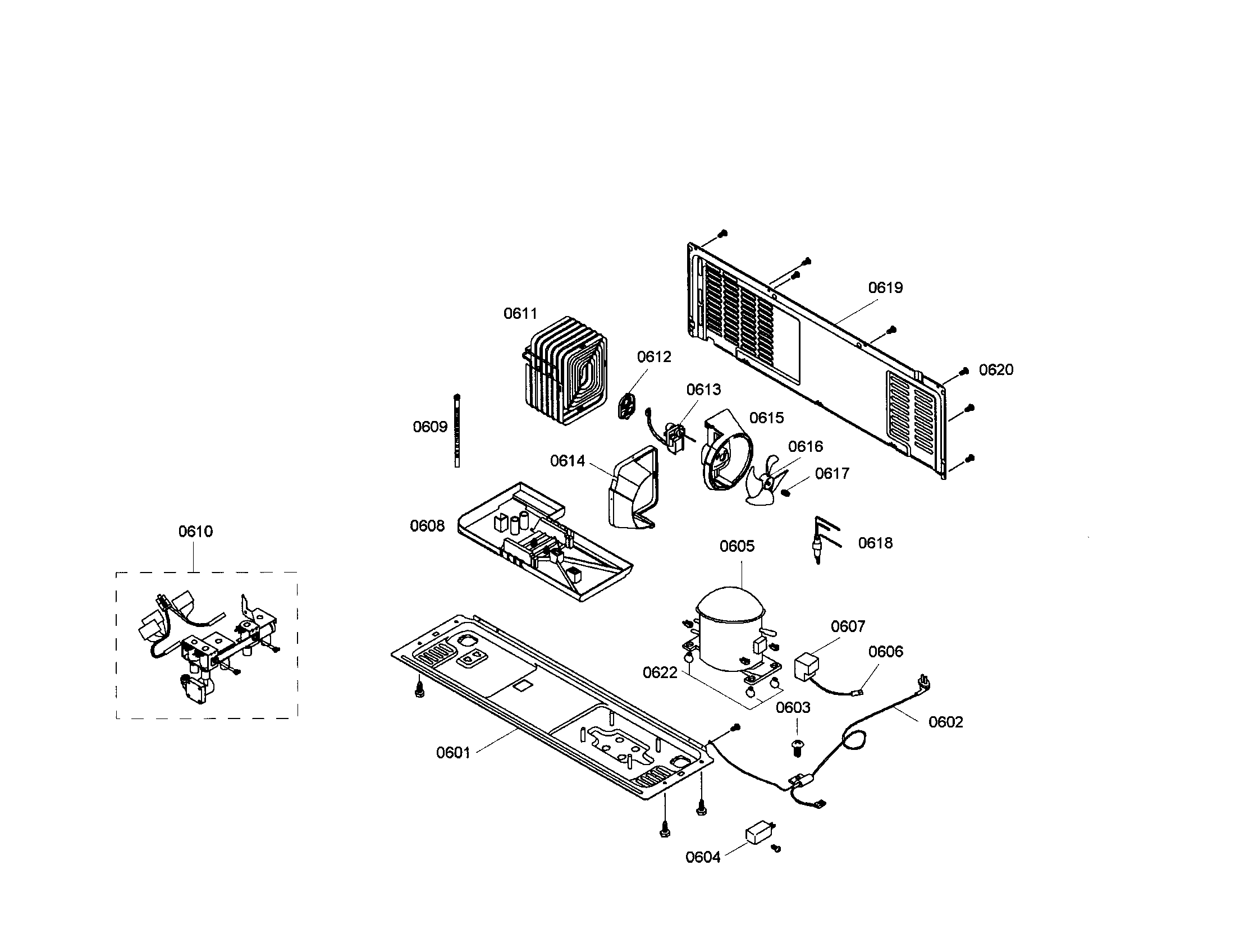

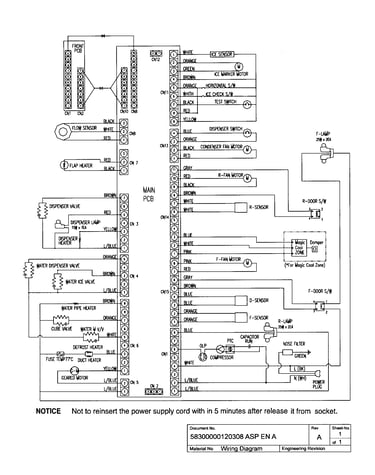

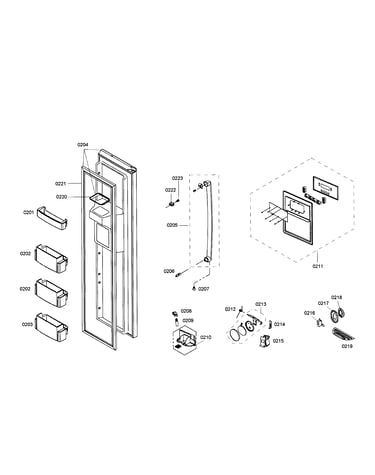

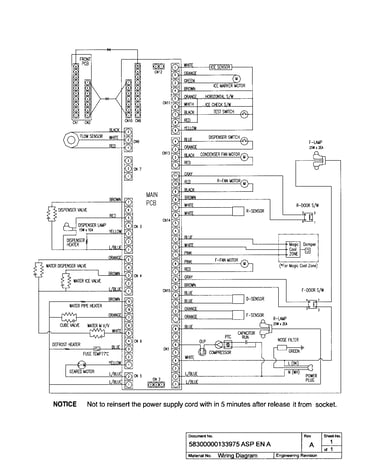

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 140 parts  |

Refrigerator Frame 497877
#421

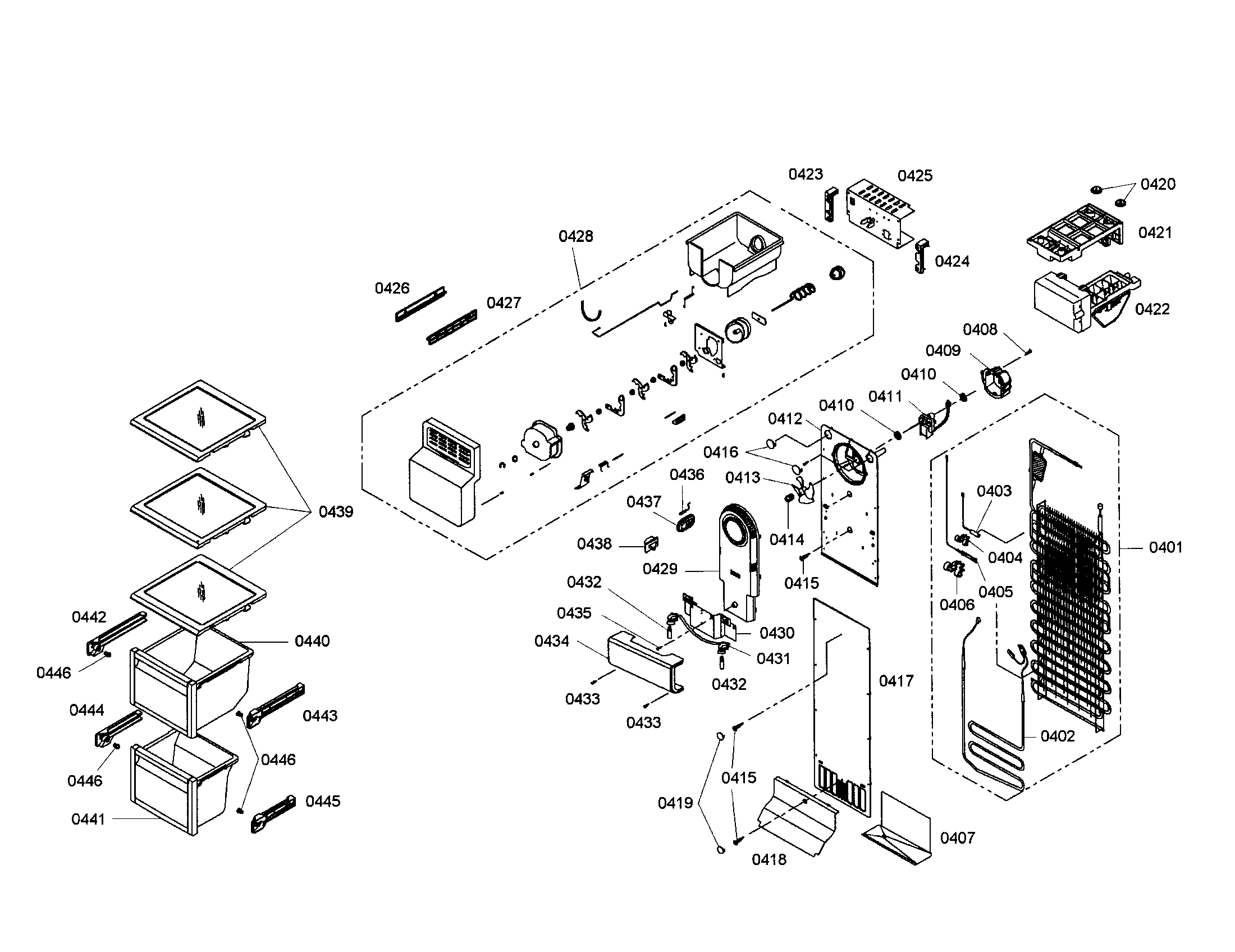

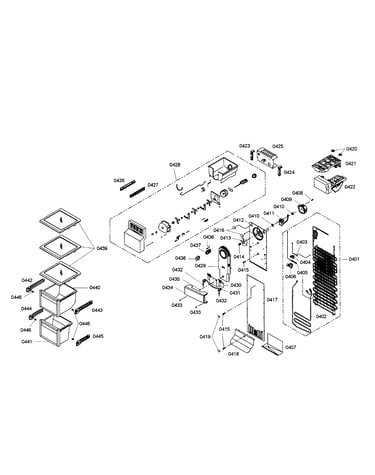

Evaporator/icemaker diagram

Refrigerator frame

Part #497877

Replaced by #00649288

?
Manufacturer substitution
This part replaces 497877. Substitute parts can look different from the original.
$202.05
5% OFF Phone Price : $212.05
Back Order
Refrigerator Ice Maker 497878
#422

Evaporator/icemaker diagram

Refrigerator ice maker

Part #497878

Replaced by #00649288

?
Manufacturer substitution
This part replaces 497878. Substitute parts can look different from the original.
$202.05
5% OFF Phone Price : $212.05
Back Order
Refrigerator Filter 601057
#527

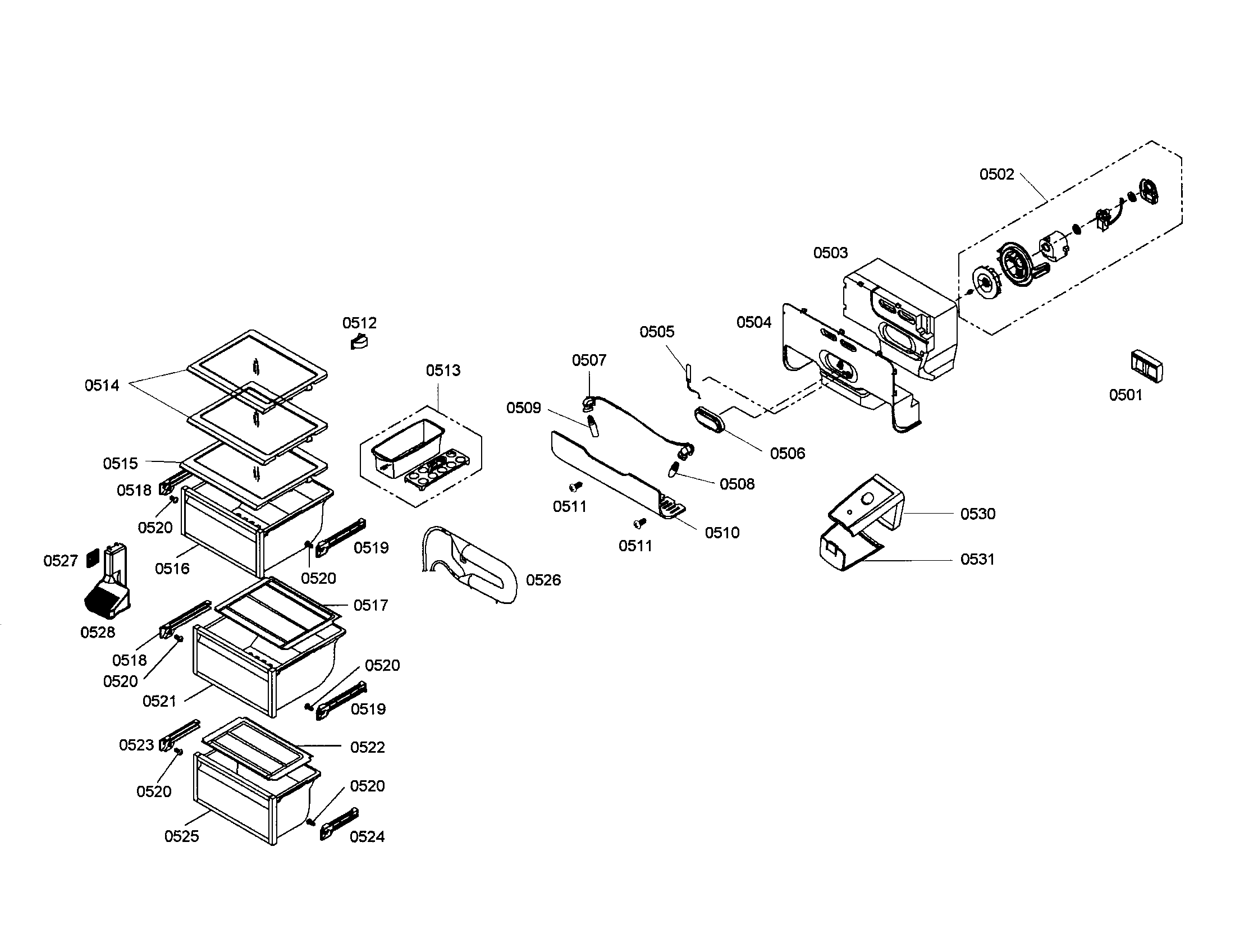

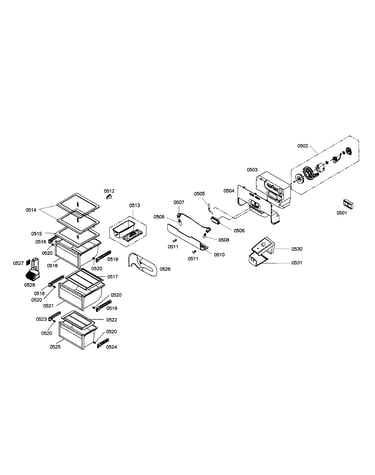

Fan/drawer diagram

Refrigerator filter

Part #601057

Replaced by #00601057

?
Manufacturer substitution
This part replaces 601057. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$26.69
16% OFF Phone Price : $31.69
Back Order
Refrigerator Fan 497841
#502

Fan/drawer diagram

Refrigerator fan

Part #497841

Replaced by #00497841

?
Manufacturer substitution
This part replaces 497841. Substitute parts can look different from the original.
$87.77
5% OFF Phone Price : $92.77
Back Order
Refrigerator Freezer Drawer Slide Rail 445987
Refrigerator freezer drawer slide rail

Part #445987

Replaced by #00445987

?
Manufacturer substitution
This part replaces 445987. Substitute parts can look different from the original.
In Stock
Refrigerator Drawer Slide Rail 445985
Refrigerator drawer slide rail

Part #445985

Replaced by #00445985

?
Manufacturer substitution
This part replaces 445985. Substitute parts can look different from the original.
In Stock
Refrigerator Drawer Slide Rail 445997
Refrigerator drawer slide rail

Part #445997

Replaced by #00445997

?
Manufacturer substitution
This part replaces 445997. Substitute parts can look different from the original.
Back Order
Refrigerator Drawer Slide Rail 445996
Refrigerator drawer slide rail

Part #445996

Replaced by #00445996

?
Manufacturer substitution
This part replaces 445996. Substitute parts can look different from the original.
Back Order
Refrigerator Freezer Evaporator Sensor 601059
#403

Evaporator/icemaker diagram

Refrigerator freezer evaporator sensor

Part #601059

Replaced by #00601059

?
Manufacturer substitution
This part replaces 601059. Substitute parts can look different from the original.
In Stock
Refrigerator Door Bin, Upper 446135
#302

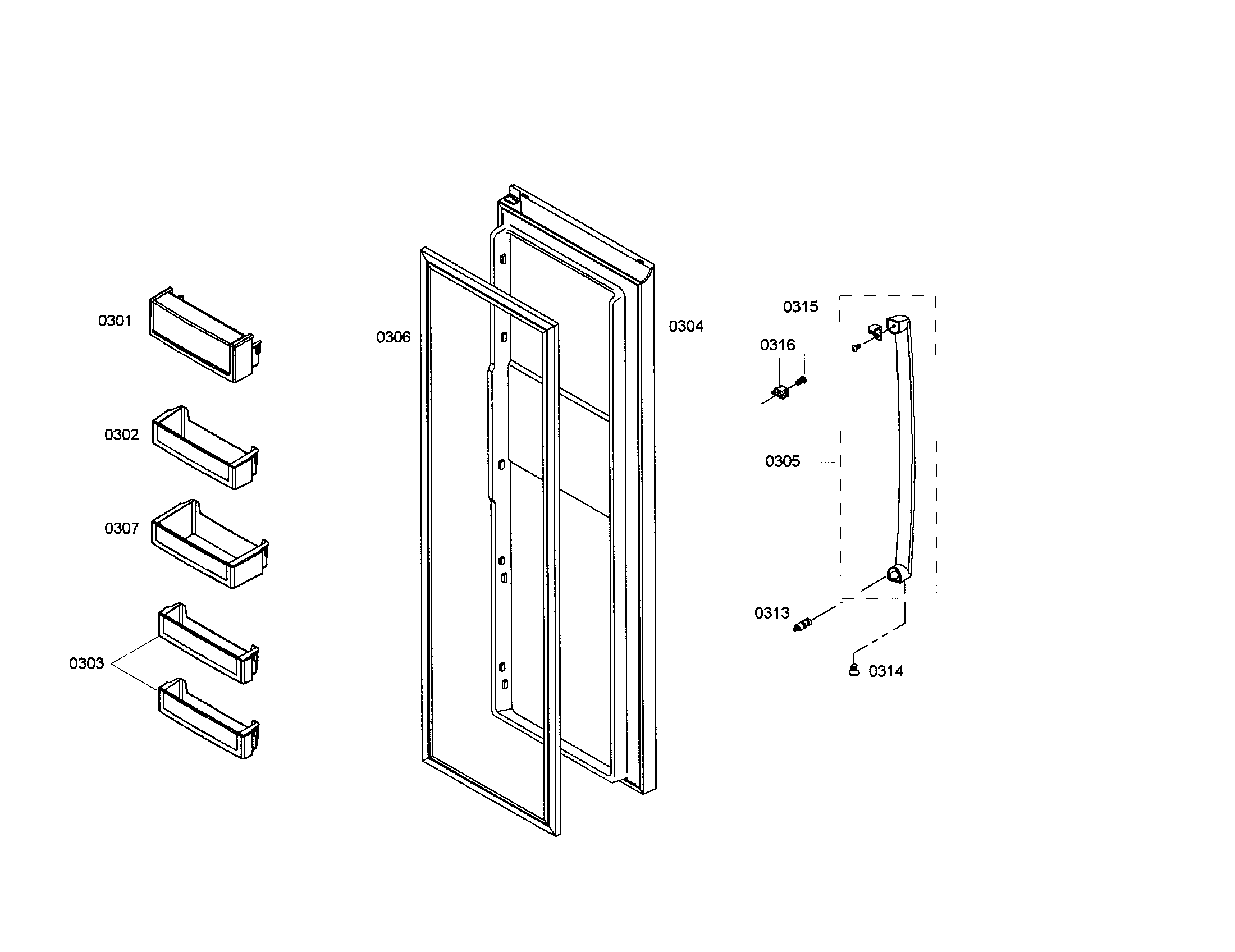

Refrigerator door diagram

Refrigerator door bin, upper

Part #446135

Replaced by #00446135

?
Manufacturer substitution
This part replaces 446135. Substitute parts can look different from the original.
$99.79
9% OFF Phone Price : $109.79
Back Order
