Craftsman 917287110 tractor Parts
Here are the diagrams and repair parts for Craftsman 917287110 tractor, as well as links to manuals and error code tables, if available.
Owner’s manual

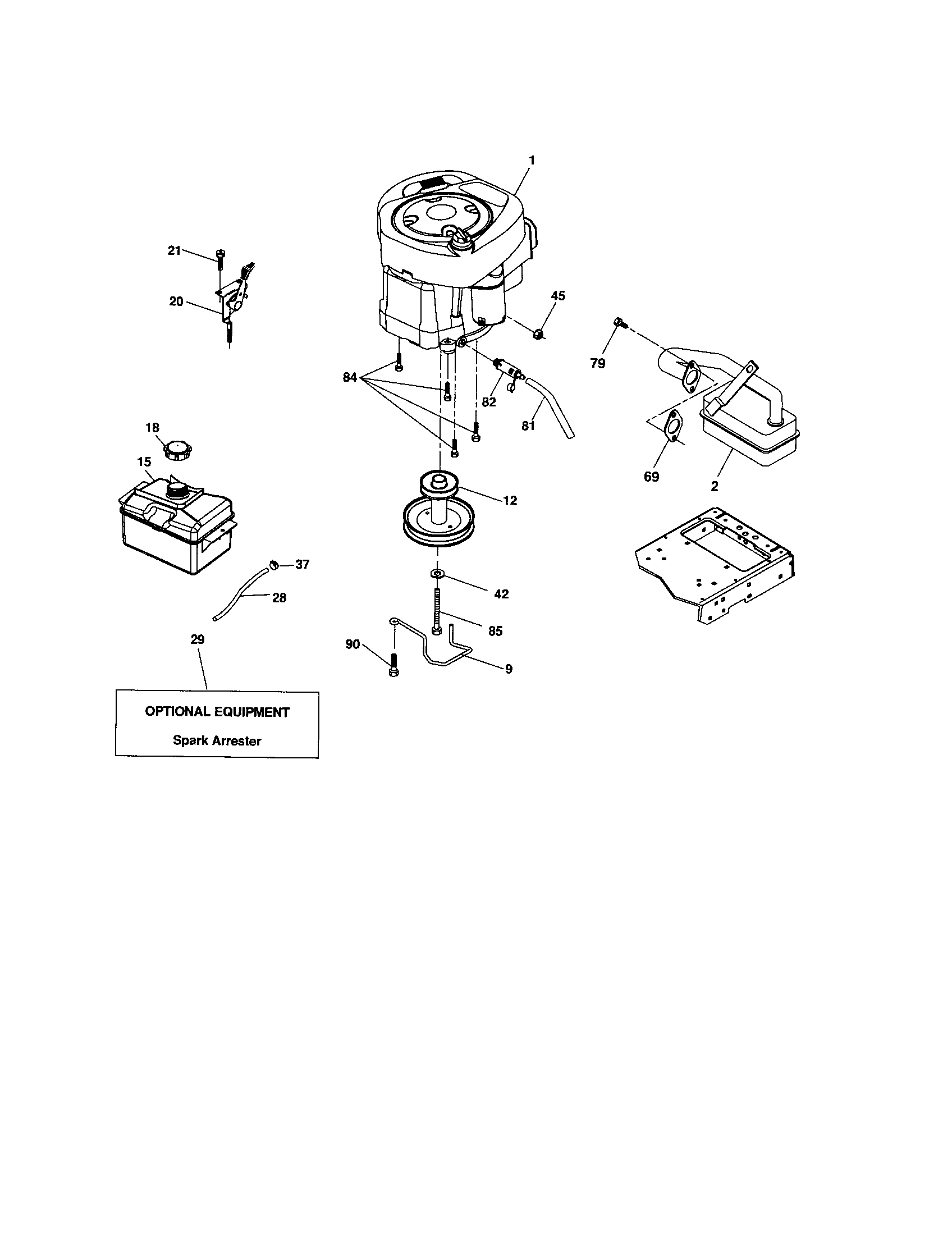

View engineBy Schematic
By Part

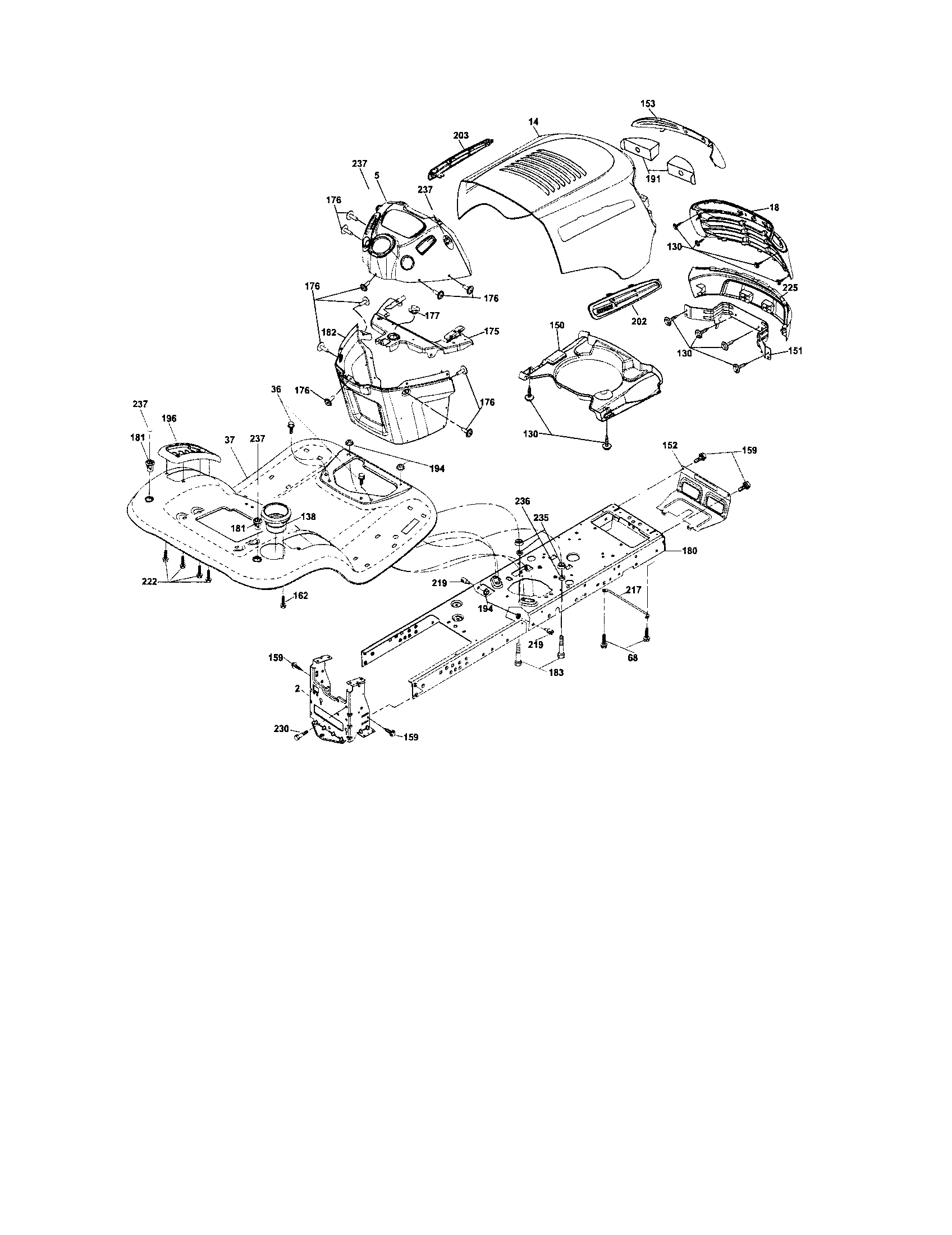

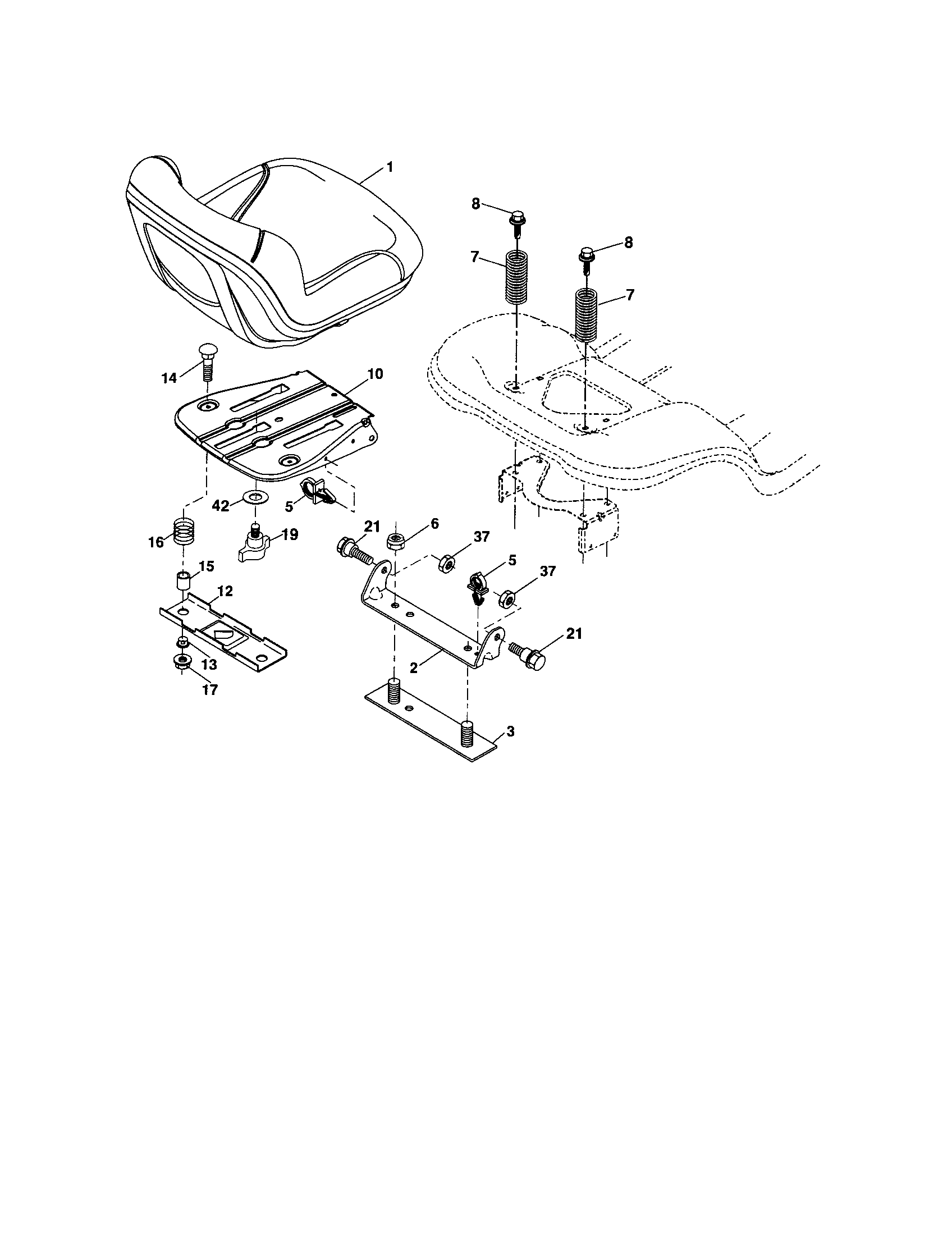

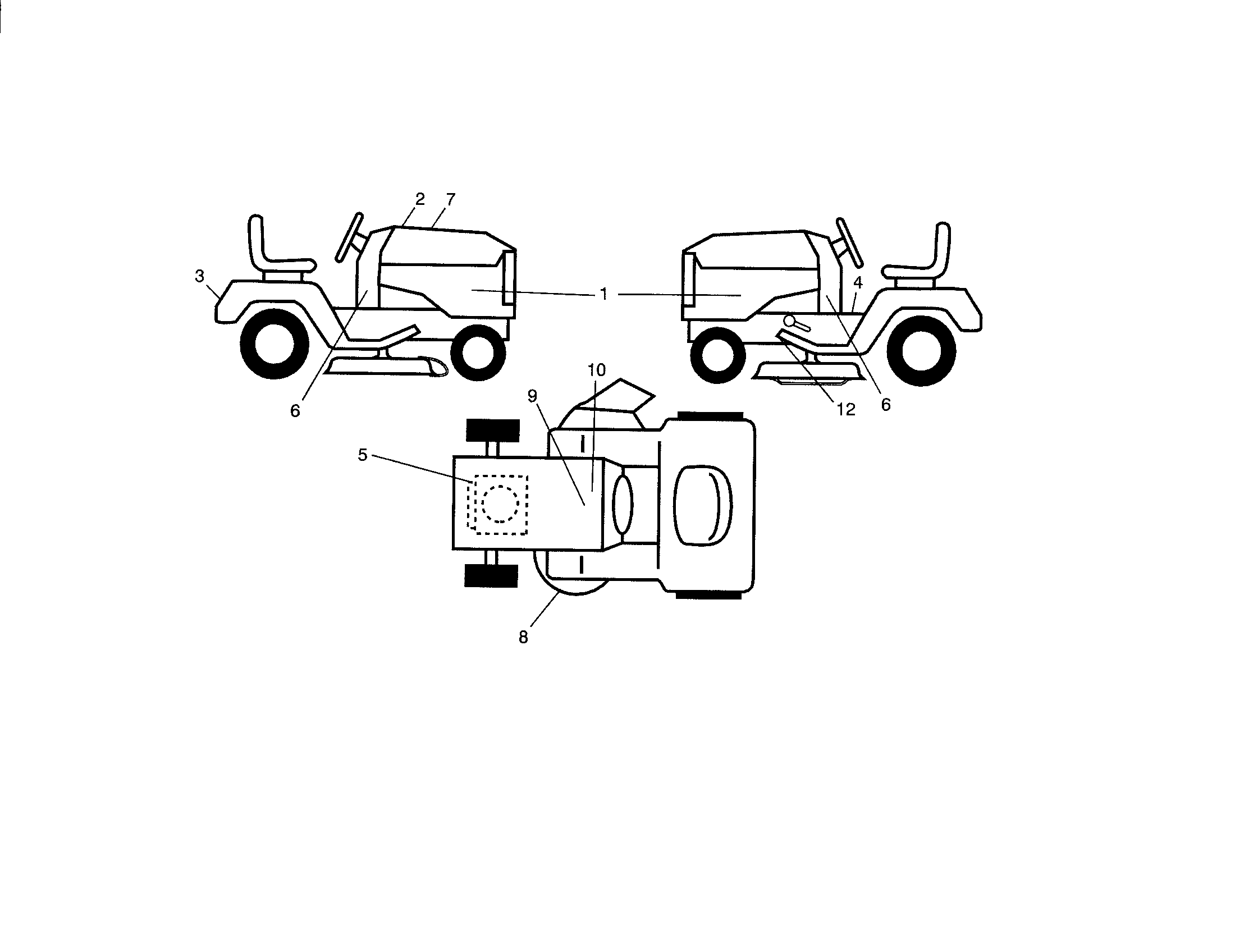

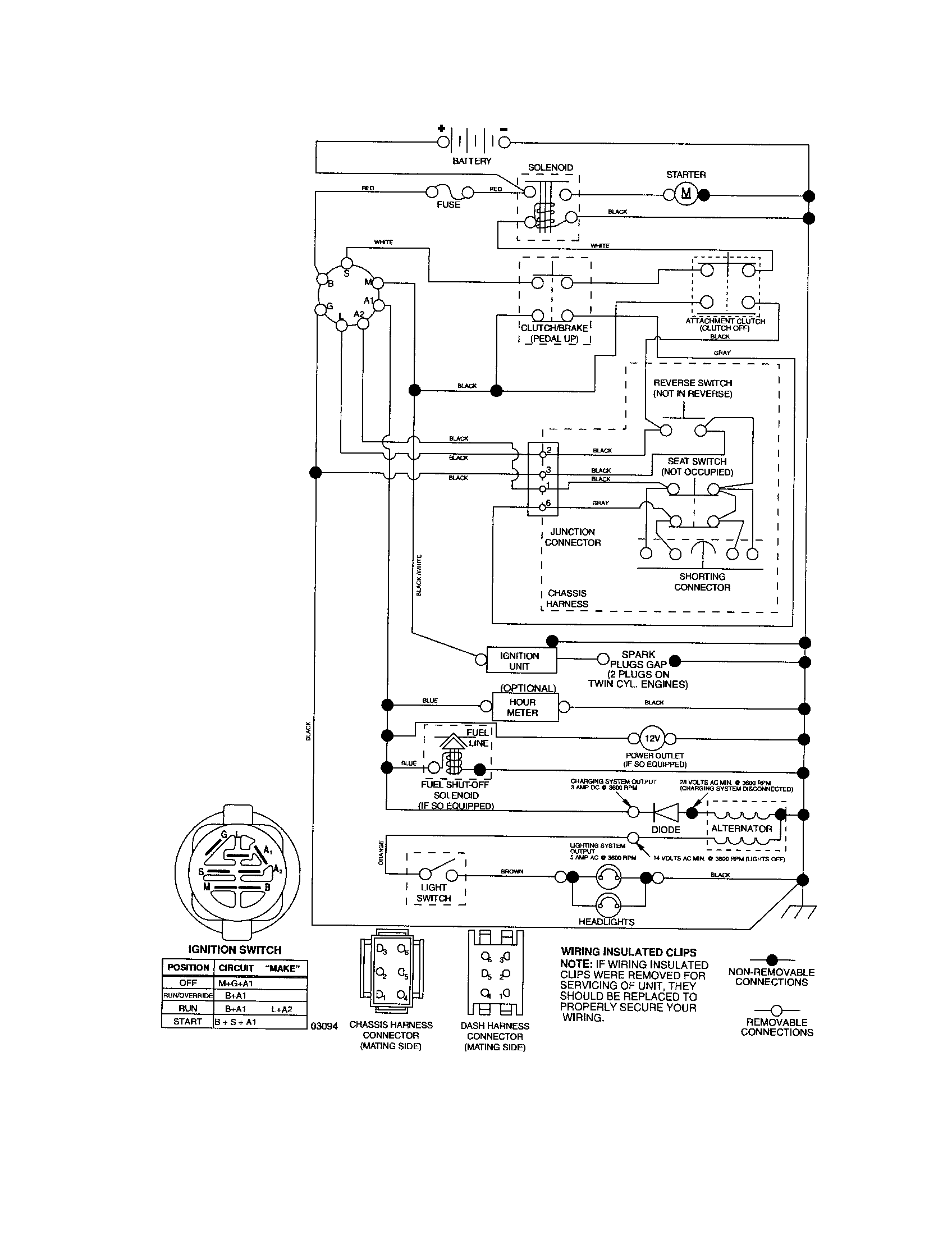

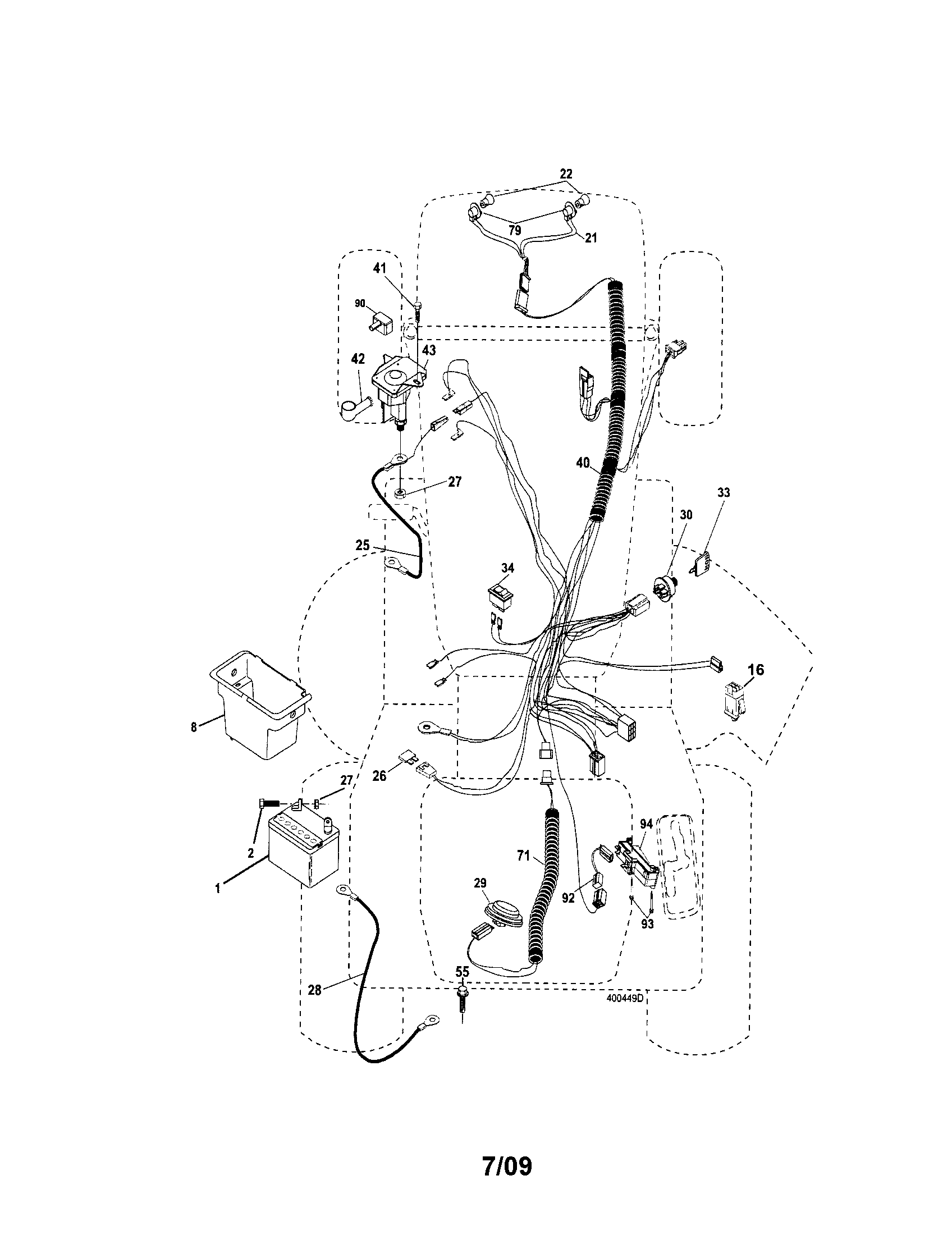

SELECT DIAGRAM
Browse Parts for 917287110 Riding Mowers & Tractors

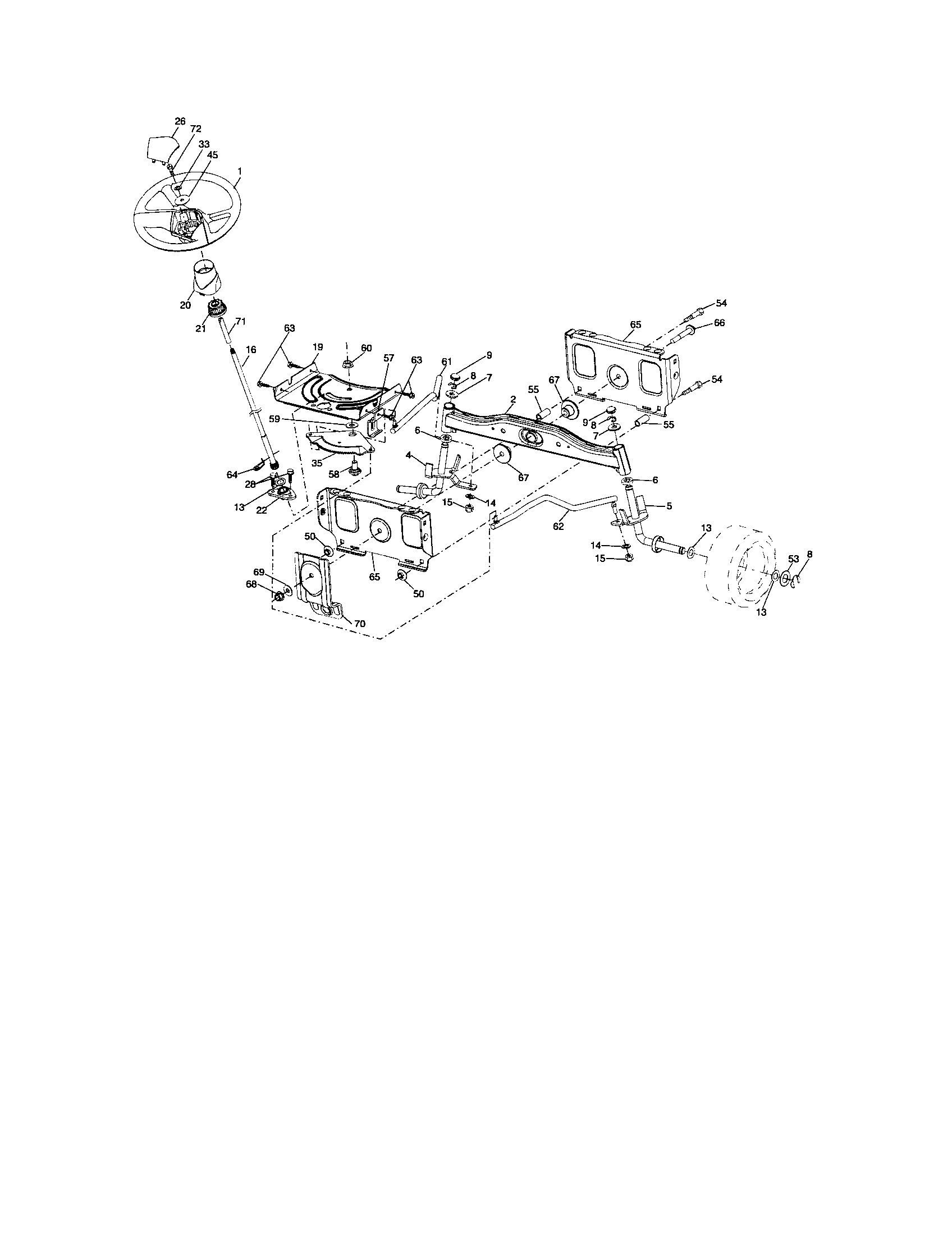

Steering diagram
Lawn Tractor Drag Link, Right
Part #194741Replaced by #597047902
Manufacturer substitutionThis part replaces 194741. Substitute parts can look different from the original.In Stock$25.4519% OFF Phone Price : $31.45
Qty
Lawn & Garden Equipment Screw
Part #137729Replaced by #532137729
Manufacturer substitutionThis part replaces 137729. Substitute parts can look different from the original.This item is not returnableIn Stock$3.3723% OFF Phone Price : $4.37QtyLawn & Garden Equipment Washer
Part #121748XReplaced by #532121748

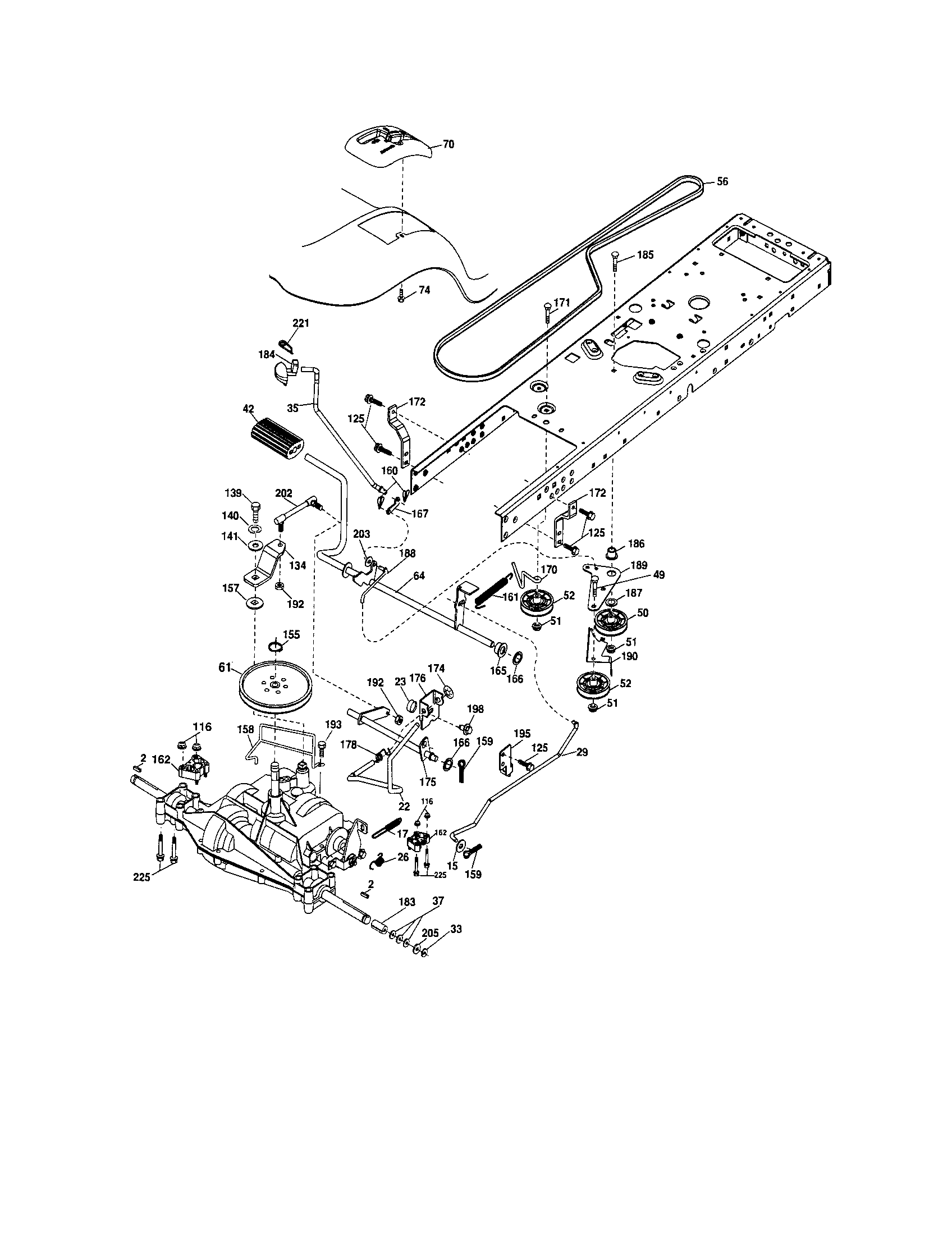

Manufacturer substitutionThis part replaces 121748X. Substitute parts can look different from the original.This item is not returnableIn Stock$7.1312% OFF Phone Price : $8.13QtyGround drive diagram
Clutch Return Spring
Part #195403Replaced by #532105709

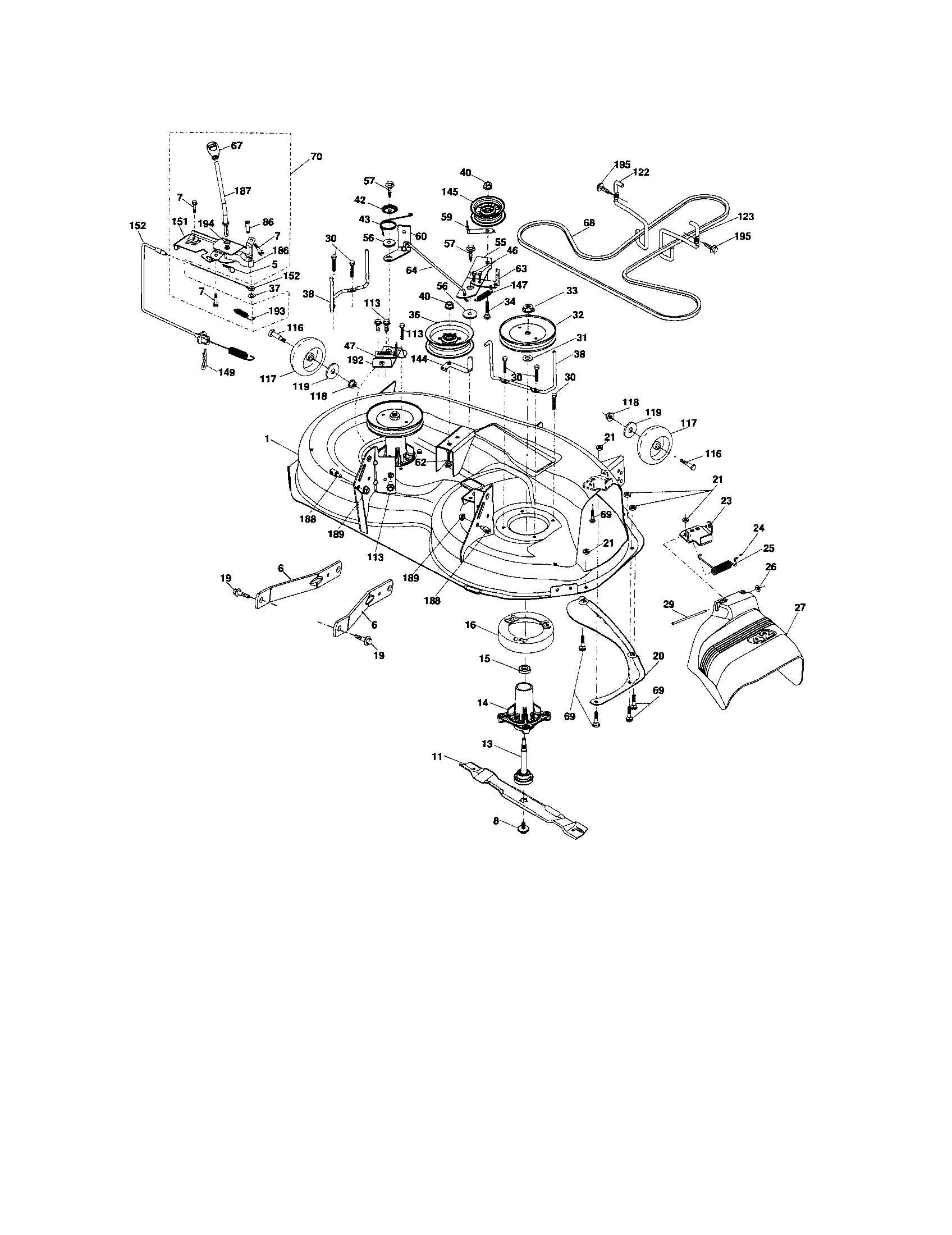

Manufacturer substitutionThis part replaces 195403. Substitute parts can look different from the original.In Stock$21.4122% OFF Phone Price : $27.41QtyMower deck diagram
Riding Lawn Mower Deck Weldment
Part #196495Replaced by #598602801
Manufacturer substitutionThis part replaces 196495. Substitute parts can look different from the original.In Stock$487.16$12.00 OFF Phone Price : $499.16Qty#NI07
All parts diagram
Lawn Tractor 42-in Deck Housing
Part #199608
The manufacturer no longer makes this part, and there's no substitute part
Steering diagram
Husqvarna Lawn Tractor Spindle Cap (black)
Part #121232XReplaced by #532121232
Manufacturer substitutionThis part replaces 121232X. Substitute parts can look different from the original.In Stock$6.7213% OFF Phone Price : $7.72QtyMower deck diagram
Lawn Tractor Gauge Wheel
Part #188606Replaced by #589527401

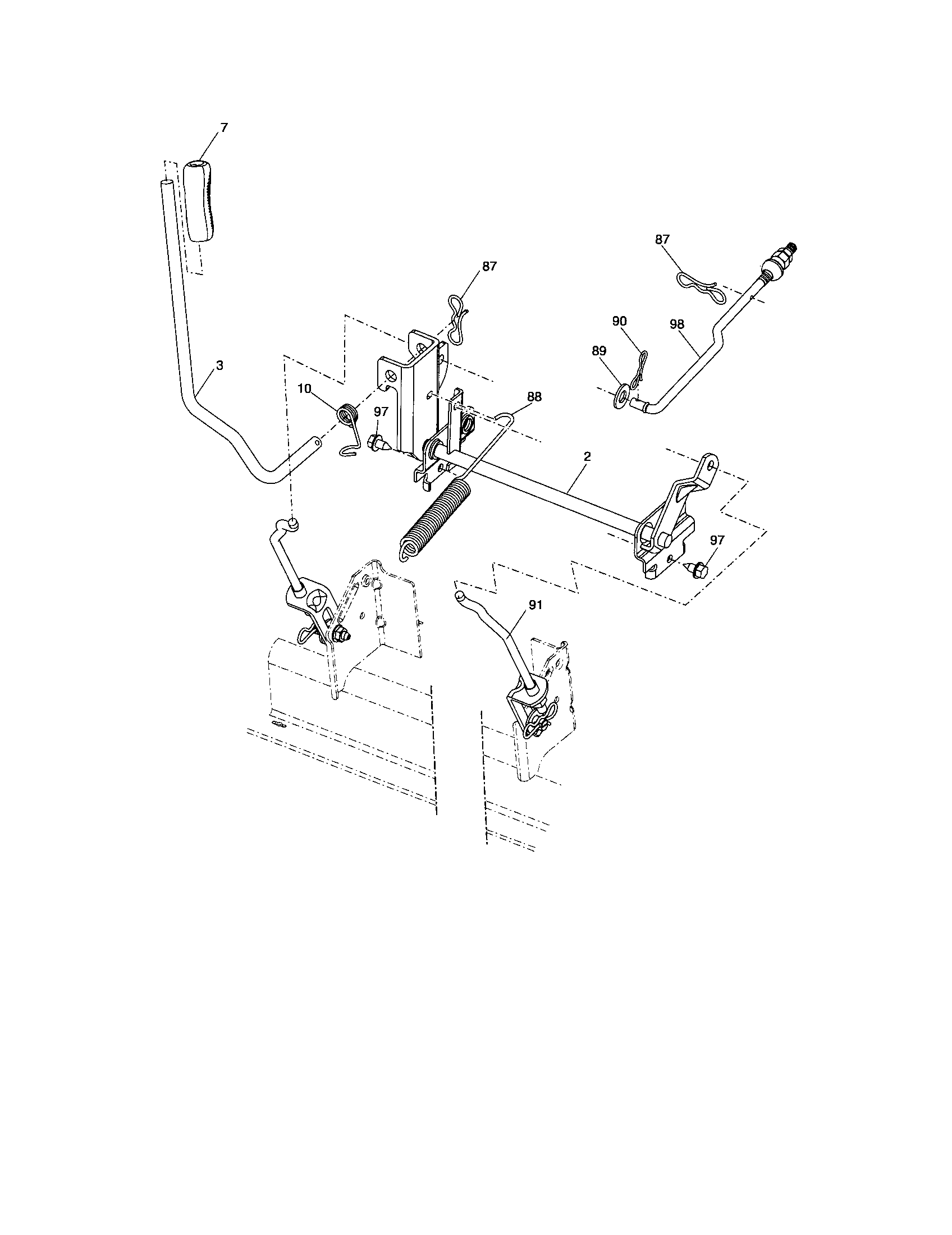

Manufacturer substitutionThis part replaces 188606. Substitute parts can look different from the original.In Stock$20.5523% OFF Phone Price : $26.55QtyLift diagram
Husqvarna Lawn Tractor Washer (clear)
Part #19191912Replaced by #819191912

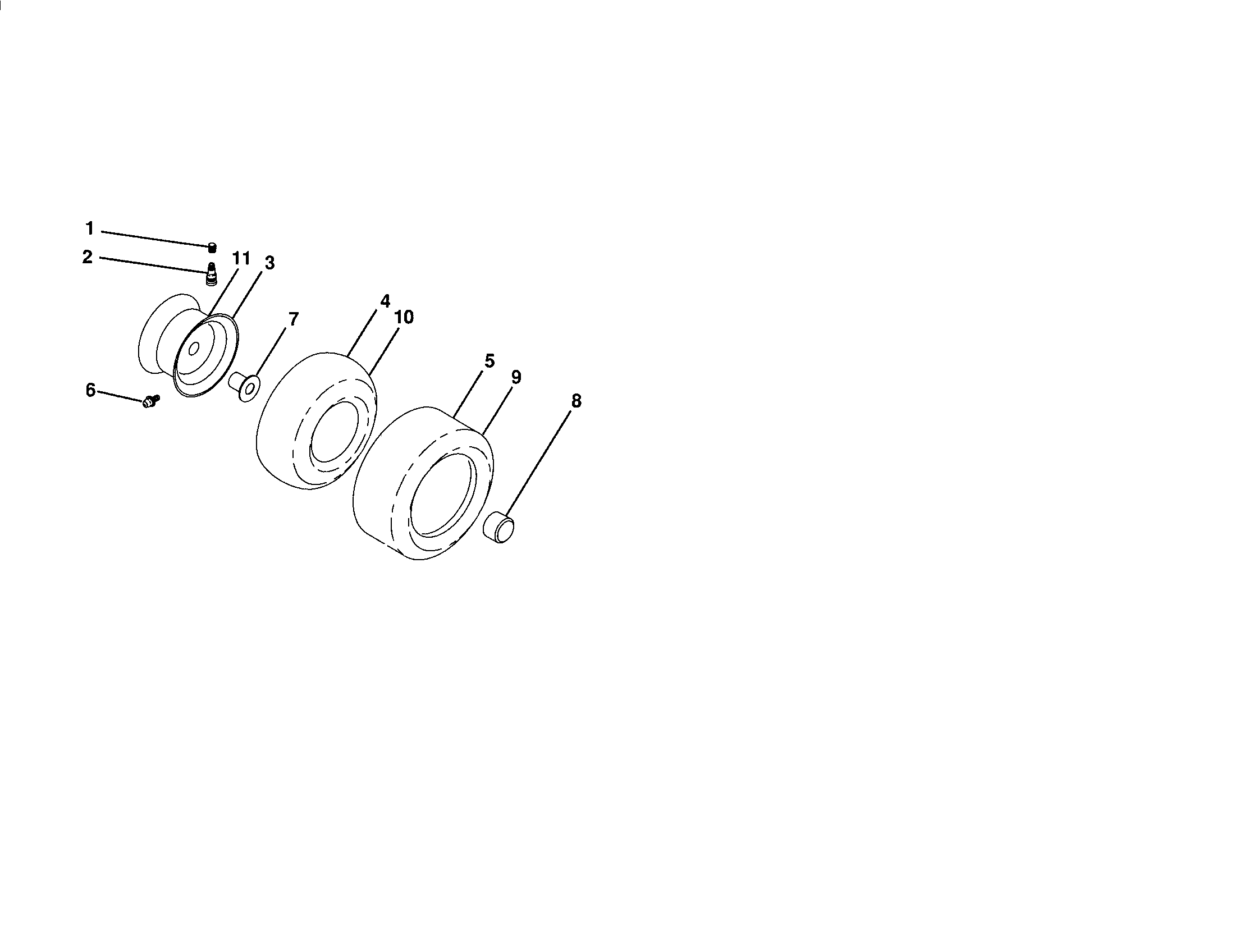

Manufacturer substitutionThis part replaces 19191912. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8717% OFF Phone Price : $5.87QtyWheels & tires diagram
Husqvarna Lawn Tractor Tire Inner Tube
Part #59904Replaced by #532059904
Manufacturer substitutionThis part replaces 59904. Substitute parts can look different from the original.In Stock$18.5610% OFF Phone Price : $20.56Qty
Most common symptoms to help you fix your riding mowers & tractors
Choose a symptom to see related riding mower and lawn tractor repairs.
Main causes: damaged tie rods, bent or worn wheel spindle, worn front axle, damaged sector gear assembly…
Main causes: dead battery, stale fuel, bad starter solenoid, ignition system problem, bad ignition interlock switch, clo…
Main causes: worn or broken blade belt, broken belt idler pulley, blade clutch cable failure, bad PTO switch, damaged ma…
Main causes: engine overfilled with oil, leaky head gasket or sump gasket, damaged carburetor seals, cracked fuel pump, …
Main causes: punctured tire or inner tube, leaky valve stem, damaged wheel rim…
Main causes: unlevel mower deck, dull or damaged cutting blades, worn mandrel pulleys, bent mower deck, engine needs tun…
Main causes: worn or broken ground drive belt, bad seat switch, transaxle freewheel control engaged, transaxle failure, …
Main causes: faulty battery, bad alternator…
