Magic Chef
Gas Range

Model # 31FK-10-FJ Official Magic Chef gas range

Here are the diagrams and repair parts for Official Magic Chef 31FK-10-FJ gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
Thermostat Clip 7112P004-60
#8A

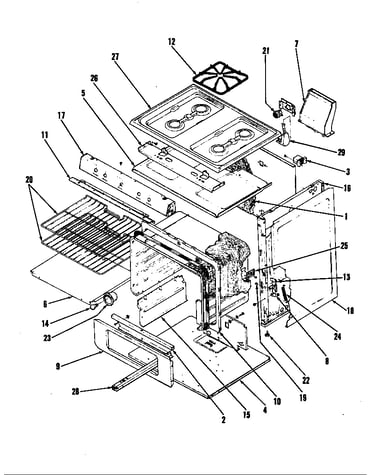

Body diagram

Thermostat clip

Part #7112P004-60

Replaced by #WP7112P004-60

?
Manufacturer substitution
This part replaces 7112P004-60. Substitute parts can look different from the original.
This item is not returnable
$8.99 |
10% OFF Phone Price : $9.99
In Stock
Insert 3413F002-11
#13B

Body diagram

Insert

Part #3413F002-11

Replaced by #4396923

?
Manufacturer substitution
This part replaces 3413F002-11. Substitute parts can look different from the original.
$25.33 |
35% OFF MSRP : $39.00
In Stock
Handle Screw 7101P283-60
#17E

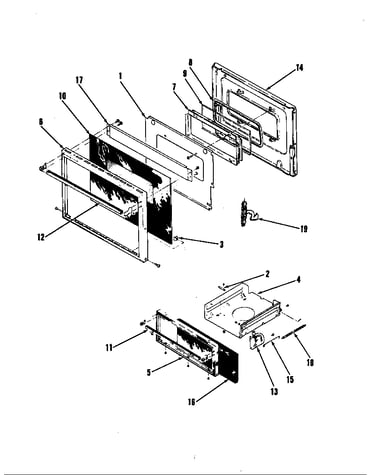

Door parts diagram

Handle screw

Part #7101P283-60

Replaced by #74002481

?
Manufacturer substitution
This part replaces 7101P283-60. Substitute parts can look different from the original.
This item is not returnable
$5.40
In Stock
Grate 2003W001-00
#12

Body diagram

Grate

Part #2003W001-00

Replaced by #W11400301

?
Manufacturer substitution
This part replaces 2003W001-00. Substitute parts can look different from the original.
$103.49 |
9% OFF Phone Price : $113.49
In Stock
Range Burner Control Knob 7711P135-60
#6B

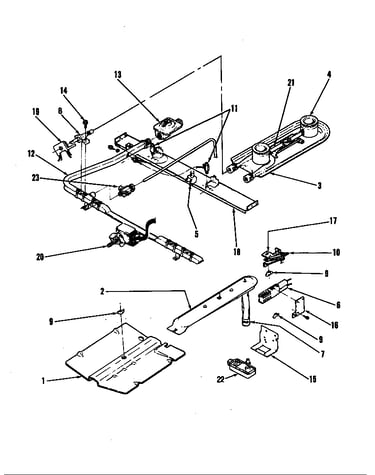

Oven control system diagram

Range burner control knob

Part #7711P135-60

Replaced by #WP7711P135-60

?
Manufacturer substitution
This part replaces 7711P135-60. Substitute parts can look different from the original.
This item is not returnable
$26.89 |
16% OFF Phone Price : $31.89
In Stock
Clamp Screw 7101P080-60
#17B

Door parts diagram

Clamp screw

Part #7101P080-60

Replaced by #WP3387230

?
Manufacturer substitution
This part replaces 7101P080-60. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Broiler Pan 3401F004-11
#16A

Body diagram

Broiler pan

Part #3401F004-11

Replaced by #4396923

?
Manufacturer substitution
This part replaces 3401F004-11. Substitute parts can look different from the original.
$25.33 |
35% OFF MSRP : $39.00
In Stock
10 X 3/4 Ph 1986238
#17A

Door parts diagram

10 x 3/4 ph

Part #1986238

Replaced by #WP3387230

?
Manufacturer substitution
This part replaces 1986238. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Panel Screw 7101P041-60
#4A

Control panel diagram

Panel screw

Part #7101P041-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P041-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Broiler Panel 0684314A
#16

Door parts diagram

Broiler panel

Part #0684314A

The manufacturer no longer makes this part, and there's no substitute part
