Model # ATF7000EE0 Official Frigidaire washer

Here are the diagrams and repair parts for Official Frigidaire ATF7000EE0 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

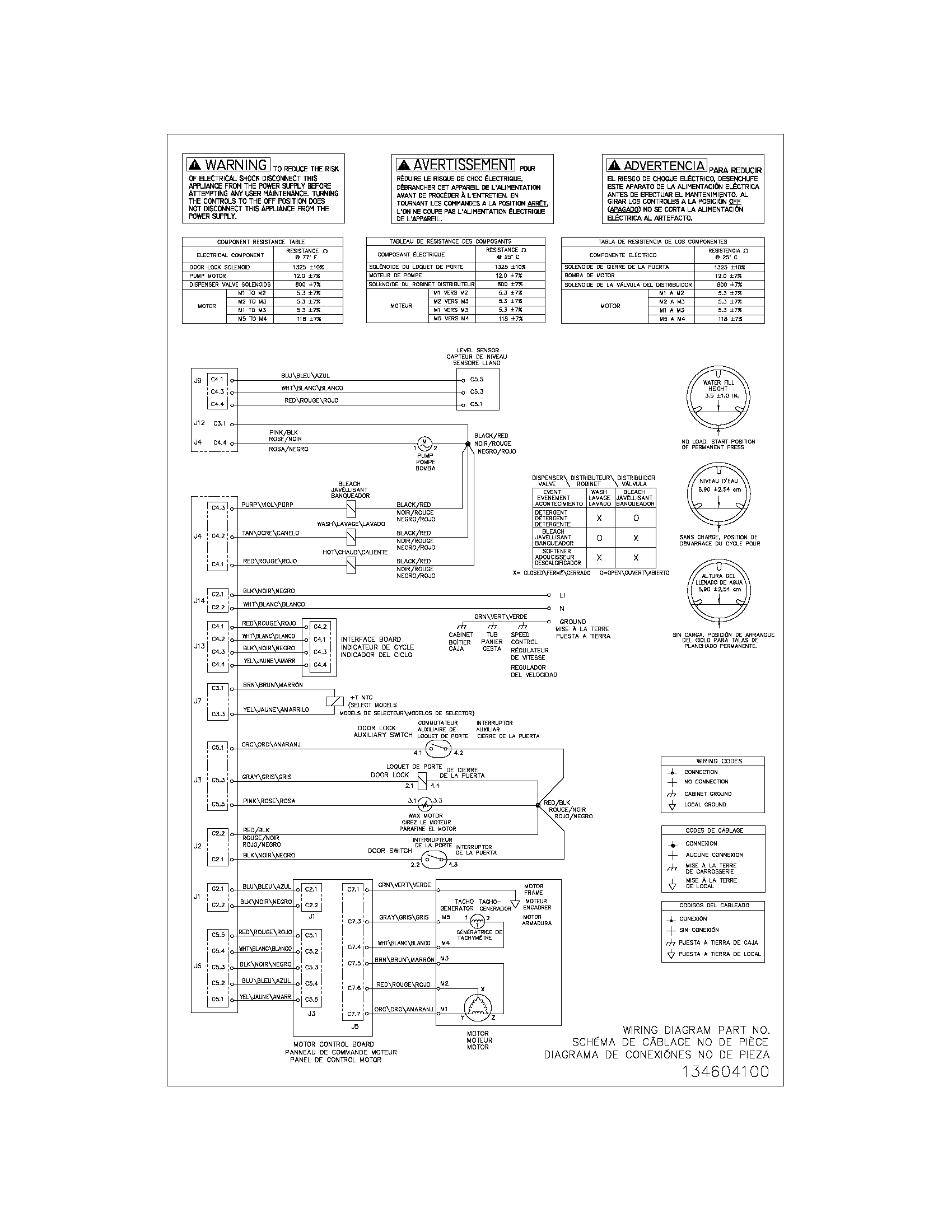

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 132 parts  |

Door Lock Switch 131763245
#8

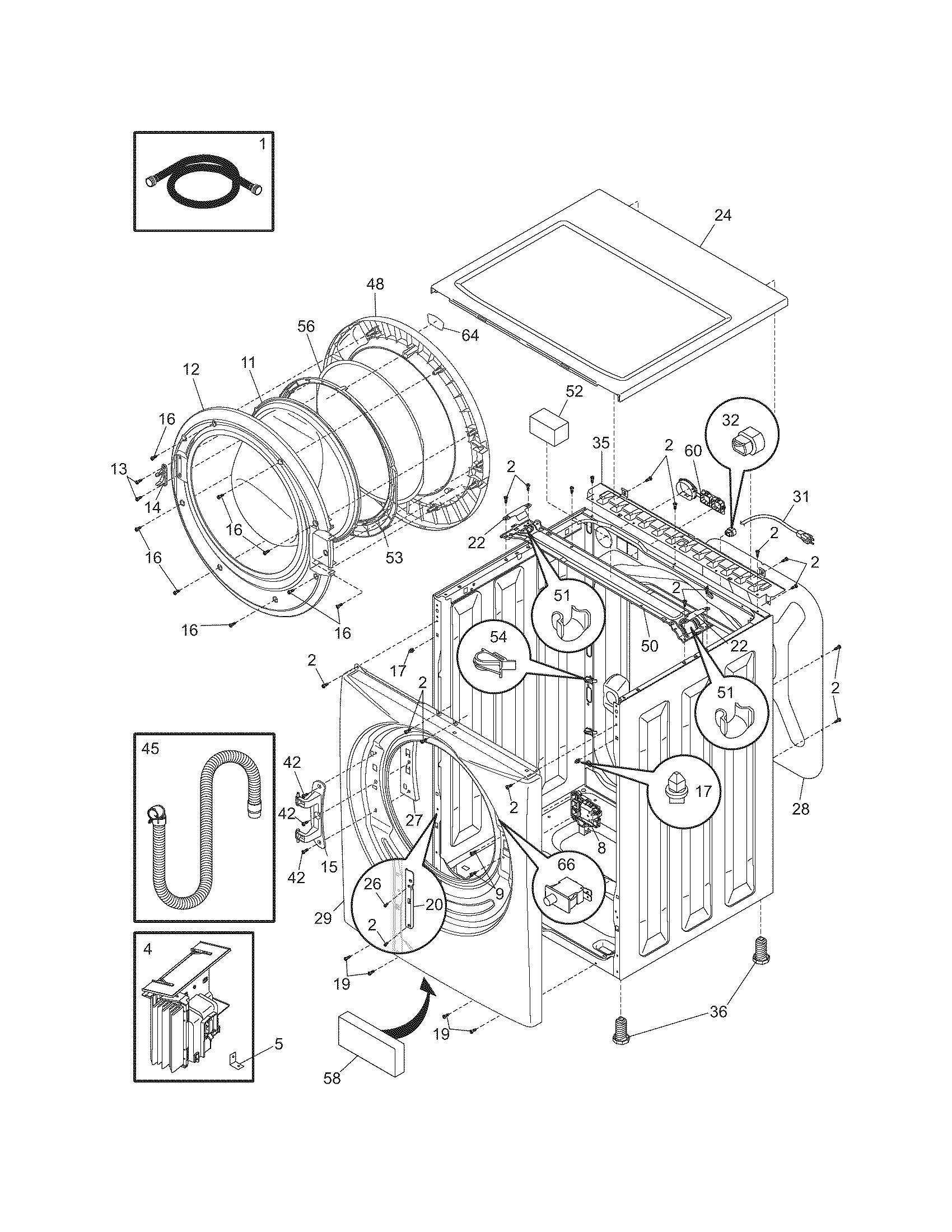

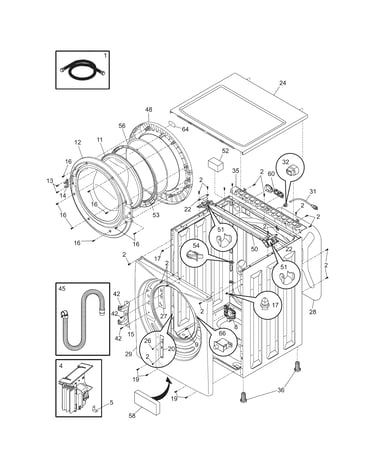

Cabinet/top diagram

Door lock switch

Part #131763245

Replaced by #131763256

?
Manufacturer substitution
This part replaces 131763245. Substitute parts can look different from the original.
BEST SELLER
In Stock
Washer Door Hinge 134550800
#15

Cabinet/top diagram

Washer door hinge

Part #134550800

BEST SELLER
$90.70
5% OFF Phone Price : $95.70
Back Order
Washer Door Boot Spring Clamp (replaces 134365400) 134527100
#49

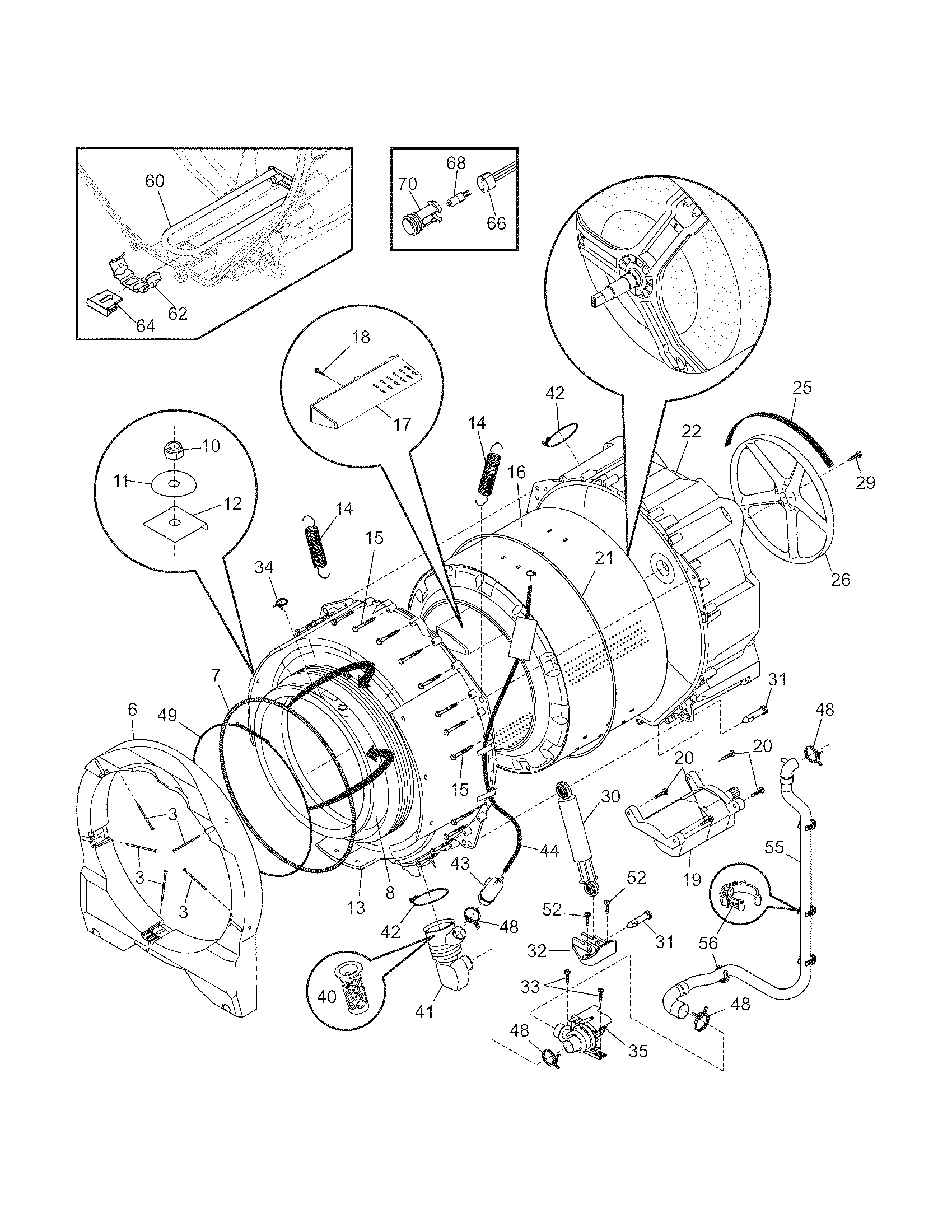

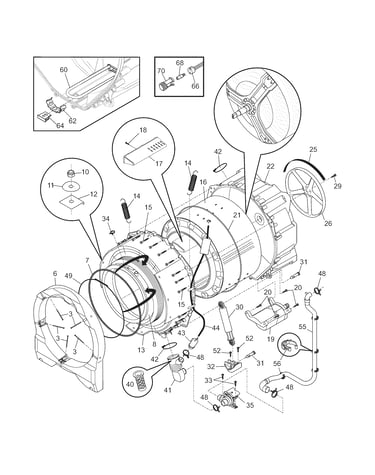

Motor/tub diagram

Washer door boot spring clamp (replaces 134365400)

Part #134527100

BEST SELLER
$34.85
13% OFF Phone Price : $39.85
In Stock
Washer Water Inlet Valve 134371220
#36

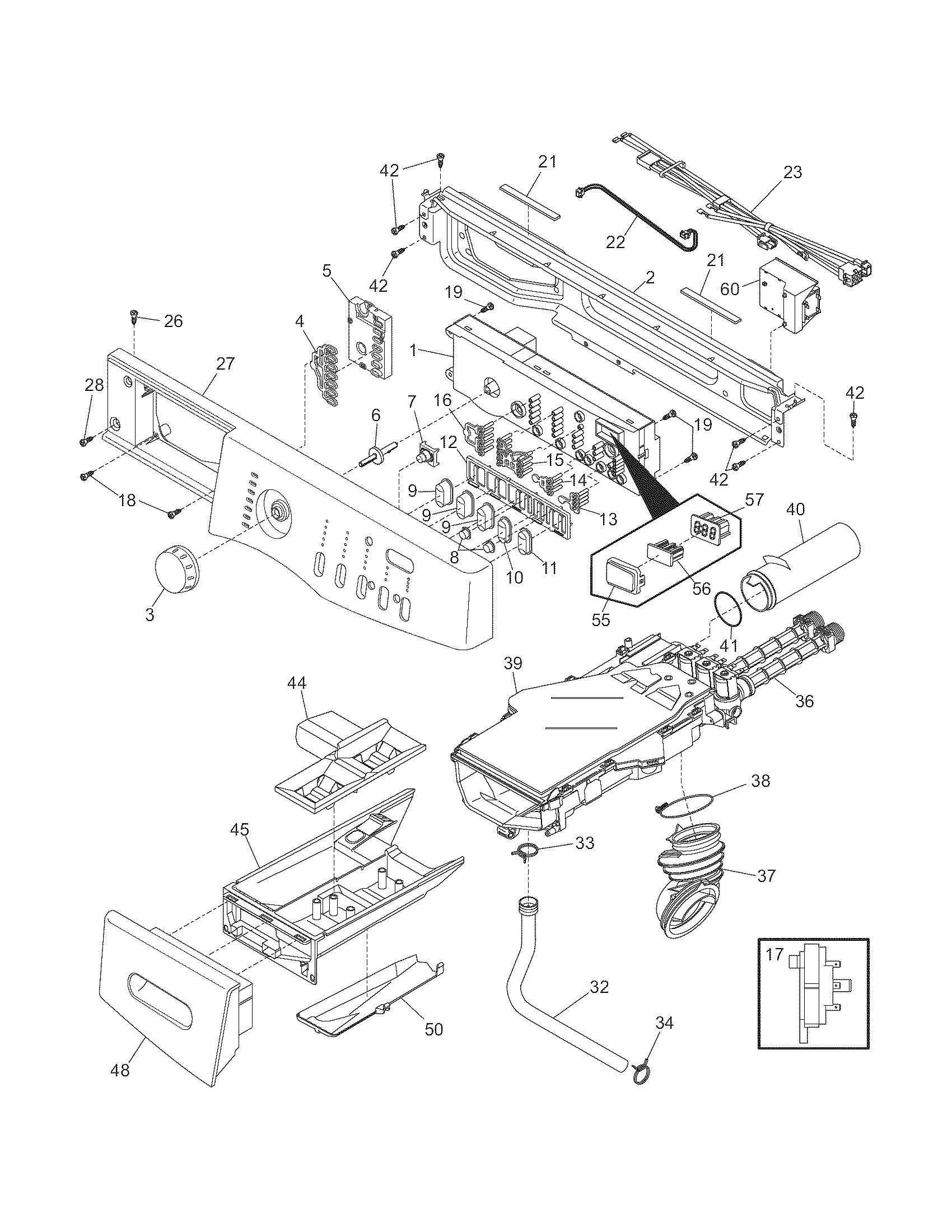

Control panel diagram

Washer water inlet valve

Part #134371220

BEST SELLER
In Stock
Washer Drive Belt 134051001
#25

Motor/tub diagram

Washer drive belt

Part #134051001

Replaced by #134051003

?
Manufacturer substitution
This part replaces 134051001. Substitute parts can look different from the original.
$34.40
13% OFF Phone Price : $39.40
In Stock
Washer Leveling Leg (replaces 5303309673) 134548800
#36

Cabinet/top diagram

Washer leveling leg (replaces 5303309673)

Part #134548800

This item is not returnable
$14.57
12% OFF Phone Price : $16.57
In Stock
Washer Outer Tub Gasket 134361900
#21

Motor/tub diagram

Washer outer tub gasket

Part #134361900

Replaced by #5304520351

?
Manufacturer substitution
This part replaces 134361900. Substitute parts can look different from the original.
$80.82
6% OFF Phone Price : $85.82
In Stock
Washer Door Boot Spring Clamp 134365300
#7

Motor/tub diagram

Washer door boot spring clamp

Part #134365300

$47.79
9% OFF Phone Price : $52.79
In Stock
Frame 134550740
#12

Cabinet/top diagram

Frame

Part #134550740

Replaced by #134550702

?
Manufacturer substitution
This part replaces 134550740. Substitute parts can look different from the original.
$97.17
9% OFF Phone Price : $107.17
In Stock
Washer Motor 134362500
#19

Motor/tub diagram

Washer motor

Part #134362500

Replaced by #137043000

?
Manufacturer substitution
This part replaces 134362500. Substitute parts can look different from the original.
$234.15
6% OFF Phone Price : $248.92
In Stock
