Model # 11086673700 Official Kenmore electric dryer

Here are the diagrams and repair parts for Official Kenmore 11086673700 electric dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 166 parts  |

Belt 660997
#30

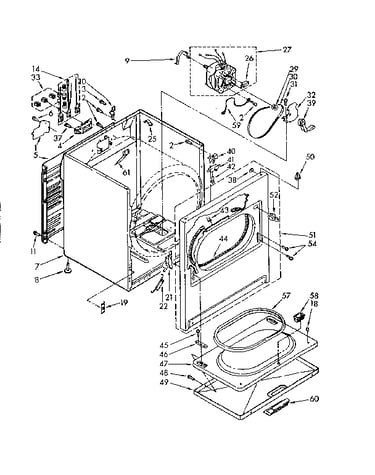

Cabinet diagram

Belt

Part #660997

Replaced by #341241

?
Manufacturer substitution
This part replaces 660997. Substitute parts can look different from the original.
BEST SELLER
$12.71
15% OFF MSRP : $14.94
In Stock
Fuse 694511
#59

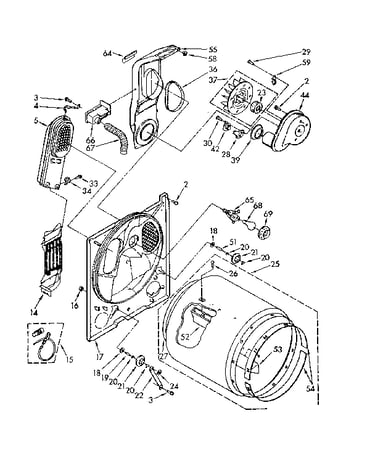

Bulkhead diagram

Fuse

Part #694511

Replaced by #WP3392519

?
Manufacturer substitution
This part replaces 694511. Substitute parts can look different from the original.
BEST SELLER
$20.36
20% OFF Phone Price : $25.36
In Stock
Screen (white) 348851
#22A

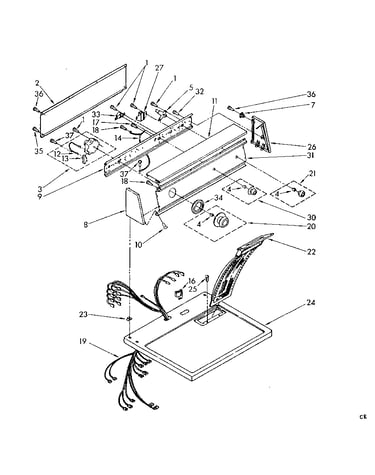

Top and console diagram

Screen (white)

Part #348851

Replaced by #WPW10717210

?
Manufacturer substitution
This part replaces 348851. Substitute parts can look different from the original.
BEST SELLER
$38.99
15% OFF MSRP : $46.00
In Stock
Screen (almond) 689465
#22C

Top and console diagram

Screen (almond)

Part #689465

Replaced by #WPW10717210

?
Manufacturer substitution
This part replaces 689465. Substitute parts can look different from the original.
BEST SELLER
$38.99
15% OFF MSRP : $46.00
In Stock
Bulb 311255
#68

Bulkhead diagram

Bulb

Part #311255

Replaced by #40A15

?
Manufacturer substitution
This part replaces 311255. Substitute parts can look different from the original.
BEST SELLER
$15.39
12% OFF Phone Price : $17.39
In Stock
Support 349241
#21

Bulkhead diagram

Support

Part #349241

Replaced by #349241T

?
Manufacturer substitution
This part replaces 349241. Substitute parts can look different from the original.
BEST SELLER
$14.33
49% OFF MSRP : $28.00
In Stock
Dryer Idler Pulley 691366
#39

Cabinet diagram

Dryer idler pulley

Part #691366

Replaced by #WP691366

?
Manufacturer substitution
This part replaces 691366. Substitute parts can look different from the original.
BEST SELLER
$13.88
44% OFF MSRP : $25.00
In Stock
Element 660982
#14

Bulkhead diagram

Element

Part #660982

Replaced by #WP4391960

?
Manufacturer substitution
This part replaces 660982. Substitute parts can look different from the original.
BEST SELLER
$45.54
16% OFF MSRP : $54.00
In Stock
Pulley 694871
#29

Cabinet diagram

Pulley

Part #694871

Replaced by #WP8066184

?
Manufacturer substitution
This part replaces 694871. Substitute parts can look different from the original.
BEST SELLER
$38.23
19% OFF MSRP : $47.00
In Stock
Dryer Lint Screen Housing Foam Seal 339956
#36

Bulkhead diagram

Dryer lint screen housing foam seal

Part #339956

Replaced by #WP339956

?
Manufacturer substitution
This part replaces 339956. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.09
12% OFF Phone Price : $8.09
In Stock
