Jenn-Air W105 electric wall oven Parts
Here are the diagrams and repair parts for Jenn-Air W105 electric wall oven, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

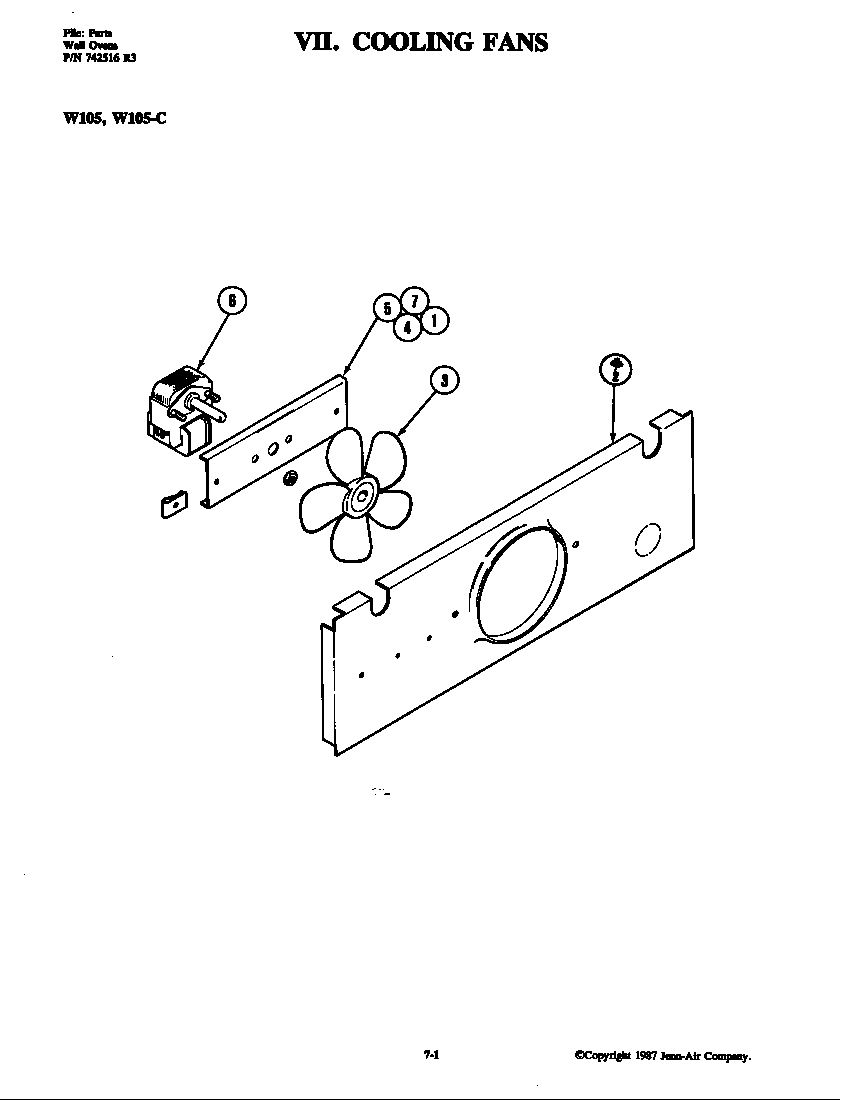

SELECT DIAGRAM
Browse Parts for W105 Wall Ovens

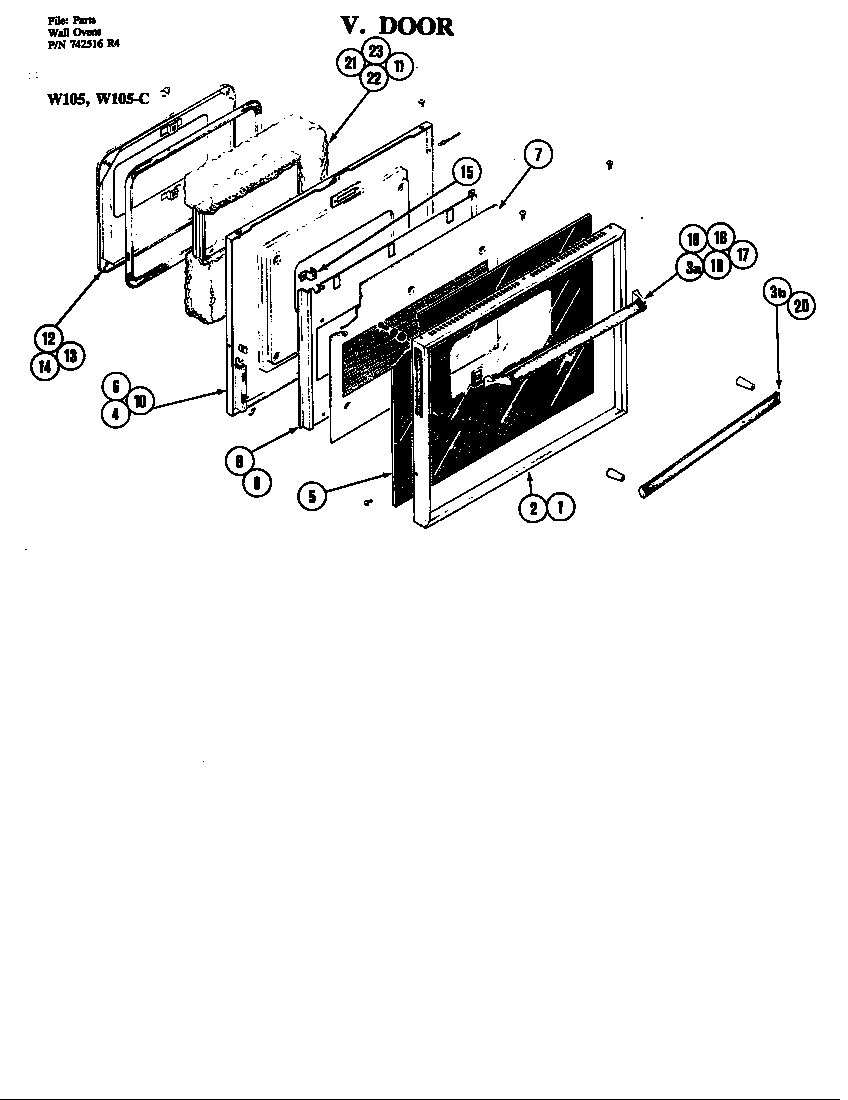

Door diagram
Rivet
Part #701662Replaced by #WP210720
Manufacturer substitutionThis part replaces 701662. Substitute parts can look different from the original.In Stock$18.6110% OFF Phone Price : $20.61
Qty

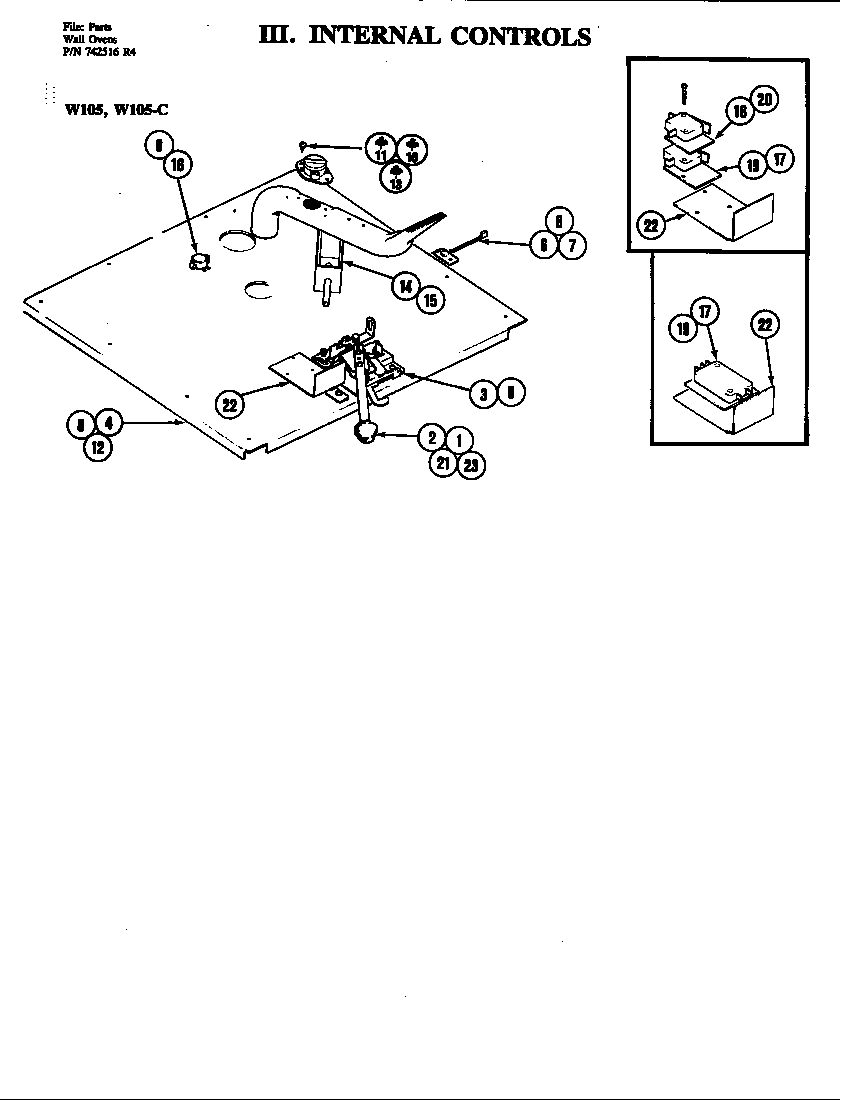

Internal controls diagram
Insulator, S
Part #702350
The manufacturer no longer makes this part, and there's no substitute part

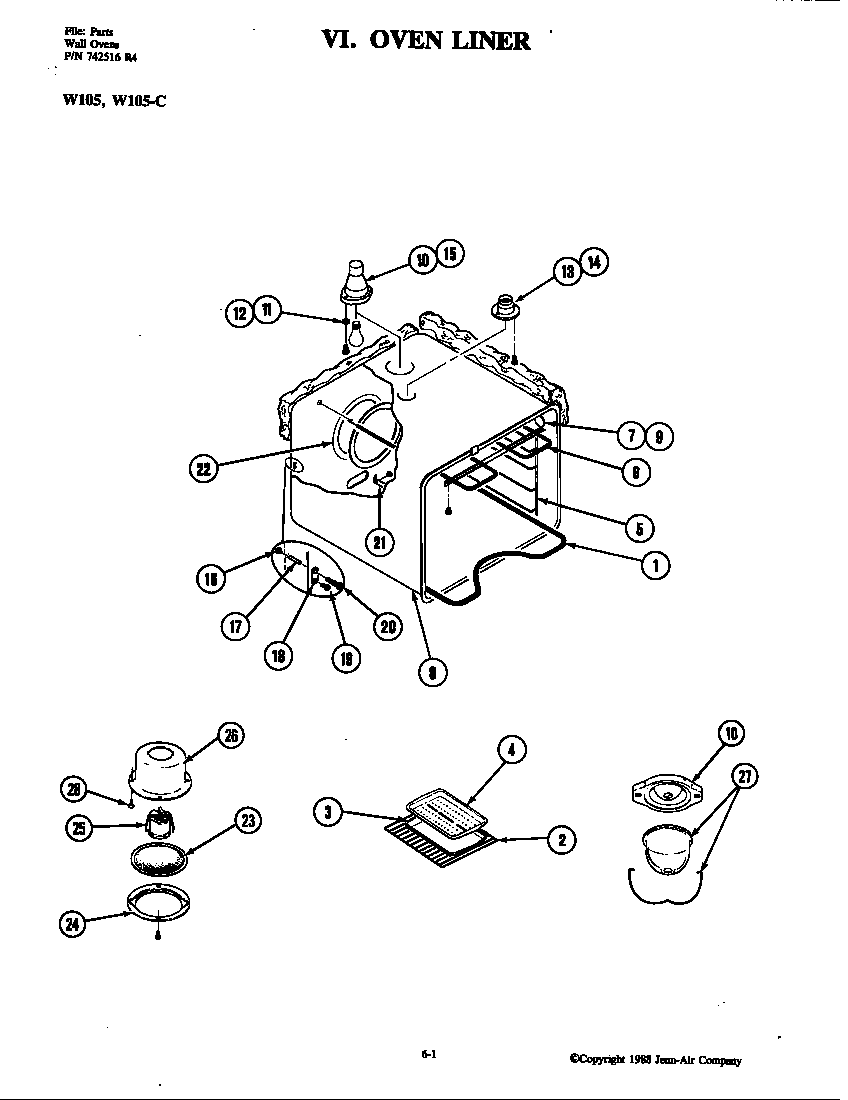

Oven diagram
Meat Cover
Part #712088
The manufacturer no longer makes this part, and there's no substitute part

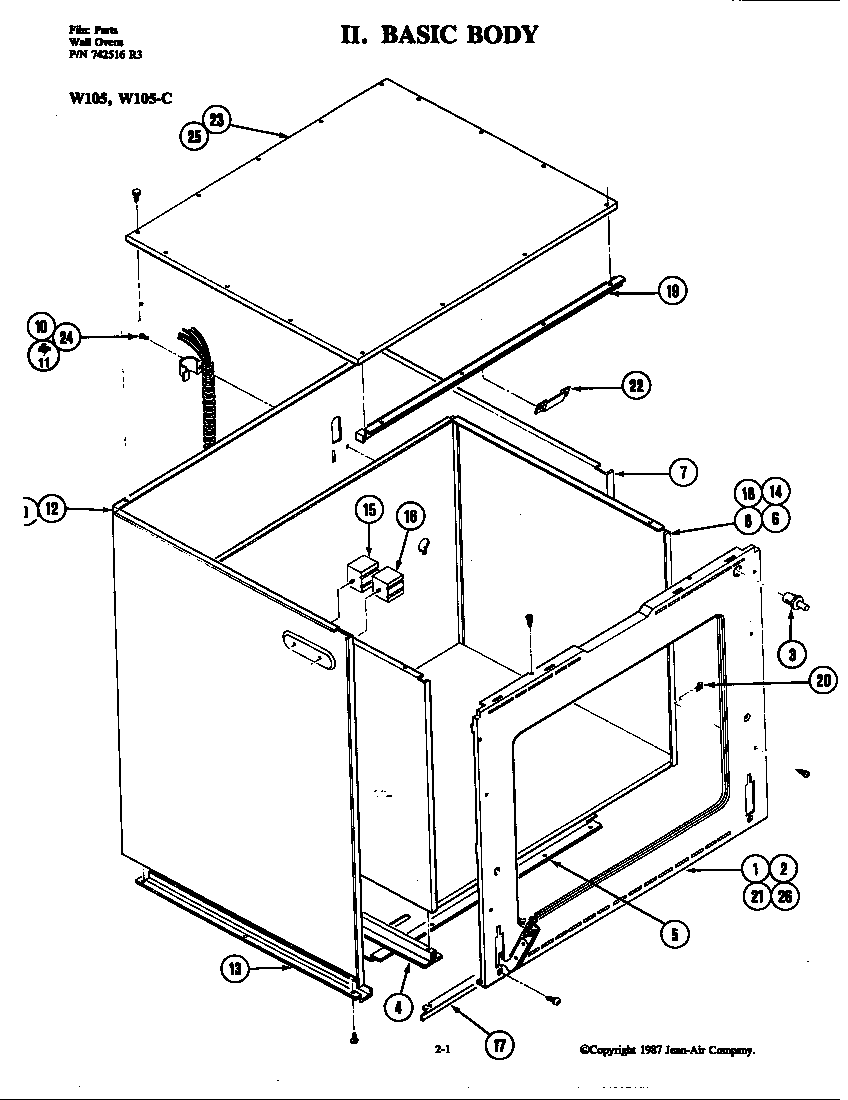

Body diagram
Hinge
Part #703419
The manufacturer no longer makes this part, and there's no substitute part
Internal controls diagram
Vent Tube
Part #702795
The manufacturer no longer makes this part, and there's no substitute part
Oven diagram
Vent Tube
Part #701738
The manufacturer no longer makes this part, and there's no substitute part
Body diagram
Panel
Part #701676
The manufacturer no longer makes this part, and there's no substitute part
Internal controls diagram
Insulator
Part #703264
The manufacturer no longer makes this part, and there's no substitute part

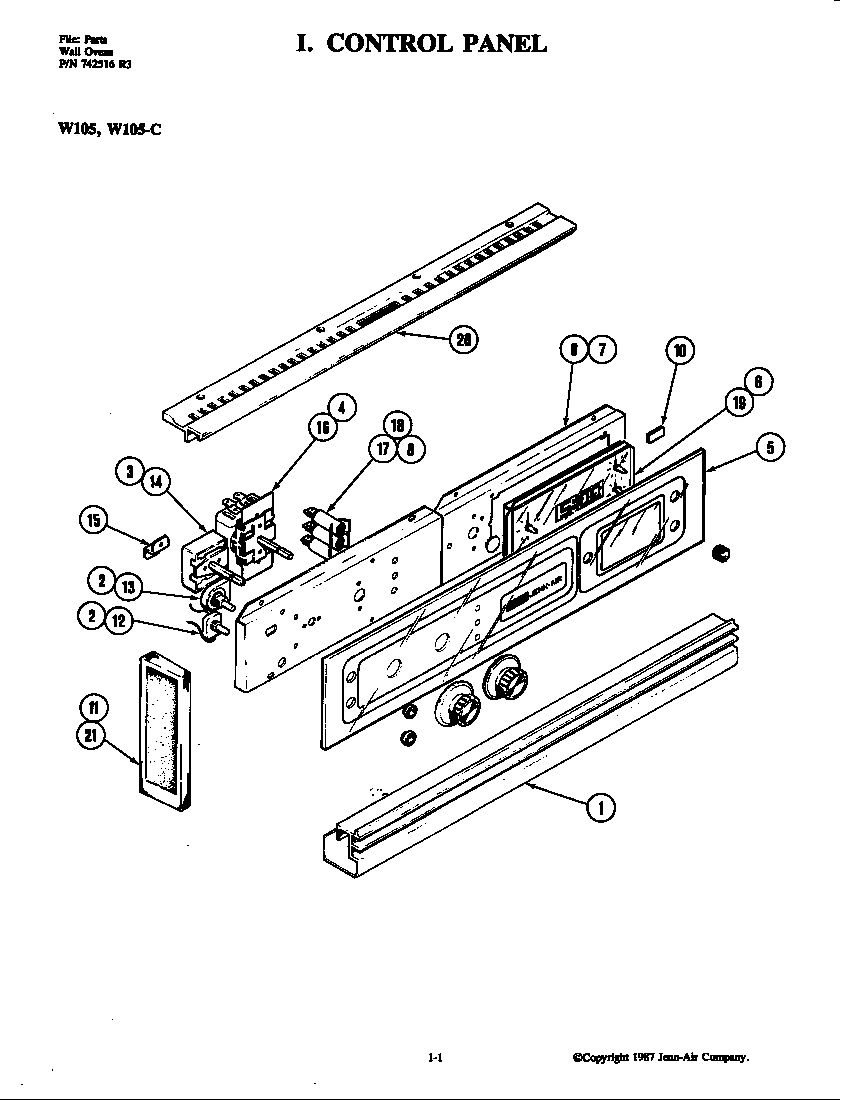

Control panel diagram
Selector Switch
Part #702885
The manufacturer no longer makes this part, and there's no substitute part
Door diagram
Oven Plug
Part #701649
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your wall oven
Choose a symptom to see related wall oven repairs.
Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure…
Main causes: faulty oven temperature sensor, control system problem, weak burner igniter, damaged oven element…
Main causes: lack of gas supply, broken igniter, tripped circuit breaker, broken oven element, tripped thermal fuse, con…
Main causes: lack of electrical power, bad electronic control board, faulty oven control thermostat…
Main causes: broken broil element, faulty broil burner igniter, control system failure…
Main causes: broken bake element, bad bake burner igniter, tripped thermal switch, control system failure…
Most common repair guides to help fix your wall oven
These step-by-step repair guides will help you safely fix what’s broken on your wall oven.
How to replace the thermal switch in a wall oven
If the oven won't heat after resetting the thermal switch, replace the thermal switch.…
Repair time and Difficulty
60 minutes or less
How to replace a wall oven thermal fuse
The thermal fuse trips to prevent the over from excessively overheating. The oven won't heat again until you replace the…
Repair time and Difficulty
60 minutes or less
How to replace a wall oven door outer glass panel
Learn how to replace a damaged outer window panel on your wall oven door with these step-by-step instructions. …
Repair time and Difficulty
45 minutes or less
Effective articles & videos to help repair your wall oven
Use the advice and tips in these articles and videos to get the most out of your wall oven.
Oven looking grimy? Discover how to clean a greasy oven using safe, effective methods like baking soda and more.…
Learn how to decipher symbols so you can buy the right part for your problem.…
If your oven consistently undercooks or overcooks, it might need recalibration. You can reset it yourself.…
