Is it worth replacing a lawn mower engine?
Replacing the engine on a Craftsman 917270963 20.5-hp 42-inch automatic lawn tractor is worth it when the tractor’s deck, transmission, and frame are in good shape and you want to extend service life; it is usually not worth it when the repair total approaches half the cost of a comparable replacement tractor.
Quick decision checklist
- The tractor starts, drives, and stops normally (no major transmission or brake issues).
- The mower deck is solid (no severe rust-through or cracked housing).
- You can still get key wear parts (belts, blades, mandrel parts) for your model.
- The engine problem is truly engine-related (not a safety interlock, wiring, or fuel issue).
- The total repair estimate (engine + labor + incidentals) stays under about 50% of replacement cost.
Before you buy an engine: rule out common “no-start” causes
Many “bad engine” symptoms are actually safety or control issues. On this tractor, the engine should only crank/start when the clutch/brake is fully depressed and the attachment clutch is disengaged; the seat and parking brake interlocks can also shut the engine off if conditions are not met. Use the 917270963 owner’s manual to confirm the correct starting and interlock checks.
- Verify clutch/brake pedal is fully depressed
- Disengage the attachment clutch (PTO)
- Set parking brake correctly

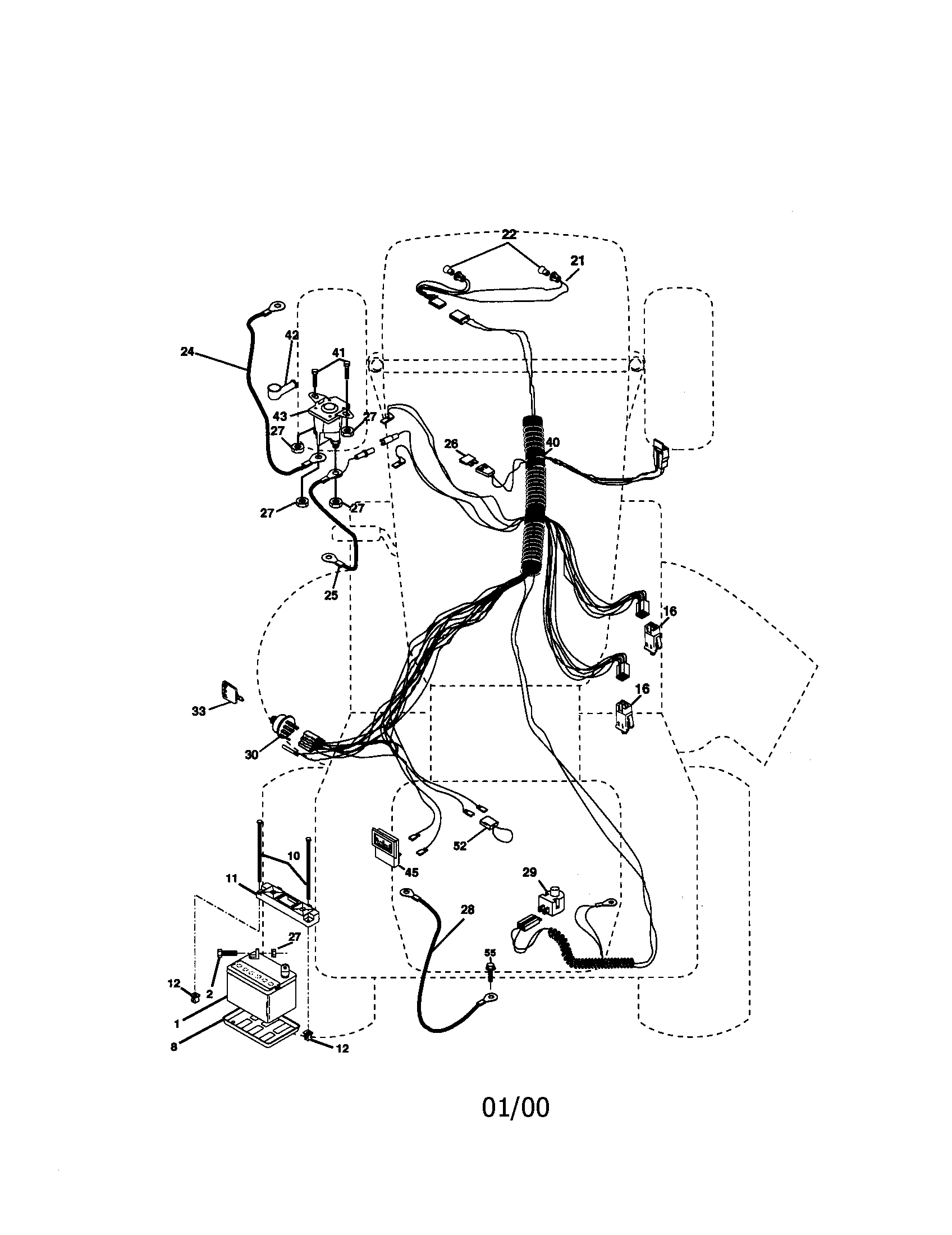

- Inspect wiring for looseness or damage
- Check for fuel contamination and stale fuel
Cost comparison (typical ranges)
| Option | Typical cost range | Best when |
|---|---|---|
| Repair existing engine (carb, ignition, starter) | $75 to $400 | Engine is basically sound and parts are available |
| Replace engine | $600 to $1,500+ | Tractor is otherwise in excellent condition |
| Replace tractor | $1,800 to $3,500+ | Multiple major systems are worn or failing |
Why it matters
An engine swap can make sense, but it does not fix worn deck spindles, belts, or cutting performance problems. If you are also chasing poor cut quality, address deck wear items first, such as a worn ground drive belt or blade system components.
If you are refreshing the deck at the same time, common related parts for this model include the lawn tractor ground drive belt, 1/2 x 82-in 532140294 and the husqvarna lawn tractor mandrel assembly 532130794.
Last updated: January 2026
What engine does Craftsman riding mower use?
The Craftsman riding mower model 917270963 is a 20.5 HP, electric-start, front-engine lawn tractor. The owner’s manual confirms the 20.5 HP rating and provides the operating and maintenance specs you will use for tune-ups and service. See the 917270963 owner's manual.

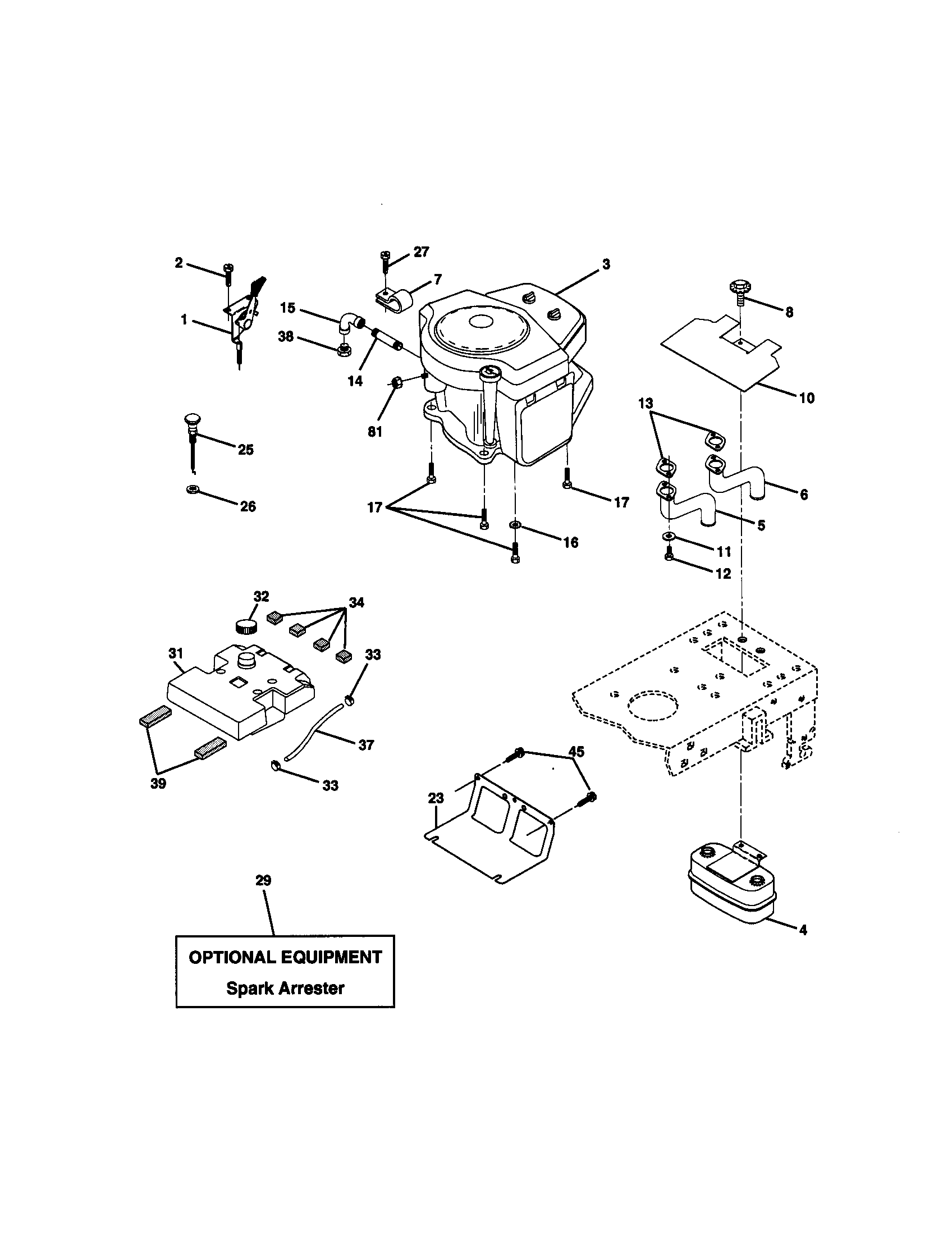

How to identify the exact engine on your tractor
Craftsman tractors in this series commonly use a single-cylinder gasoline engine, but the exact engine make and model is best confirmed from the engine label on your unit.
- Lift the hood and look for the engine ID label on the blower housing or valve cover area
- Record the engine model, type, and code (or spec number)
- Match that engine ID when ordering engine-specific parts (air filter, spark plug, fuel filter)
- Use the tractor model 917270963 when ordering chassis and deck parts (belts, blades, mandrels)
Specs from the 917270963 manual (helpful for engine-related maintenance)
These manual specs help you service the engine correctly even before you confirm the engine brand.
| Item | Specification |
|---|---|
| Engine output (tractor rating) | 20.5 HP |
| Gasoline capacity | 3.5 gallons (unleaded regular) |
| Oil type | SAE 30 (above 32°F), SAE 5W-30 (below 32°F) |
| Oil capacity | 3.0 pints |
| Spark plug | Champion RJ19LM or J19LM (gap .030") |
Parts that relate to performance (not the engine itself)
If the tractor feels weak, slips, or cuts poorly, the issue is often in the drive or mower deck system rather than the engine.

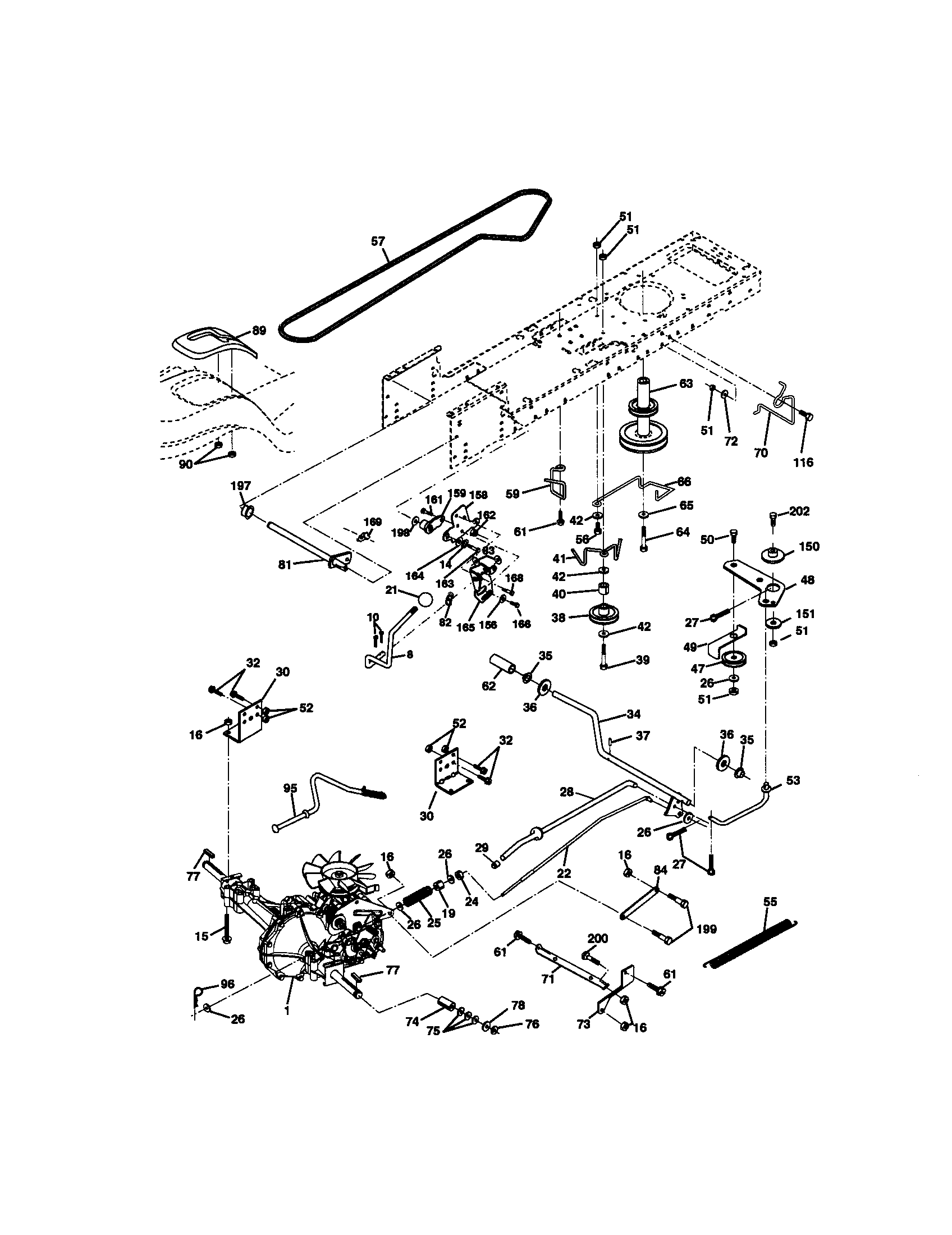

- Worn ground drive belt can reduce ground speed and pulling power
- Dull or damaged blades can make the engine sound like it is laboring
- A failing mandrel can add drag and vibration at the deck
Common related parts for this model include the lawn tractor ground drive belt, 1/2 x 82-in 532140294 and the husqvarna lawn tractor mulching blade, 21-in 532134149.
Why it matters
The tractor model number (917270963) identifies the correct Craftsman chassis and deck configuration, but the engine label identifies the correct engine tune-up parts. Using both prevents wrong-part returns and speeds up repairs.
Last updated: January 2026
What replacement parts are most commonly needed for the 917270963?

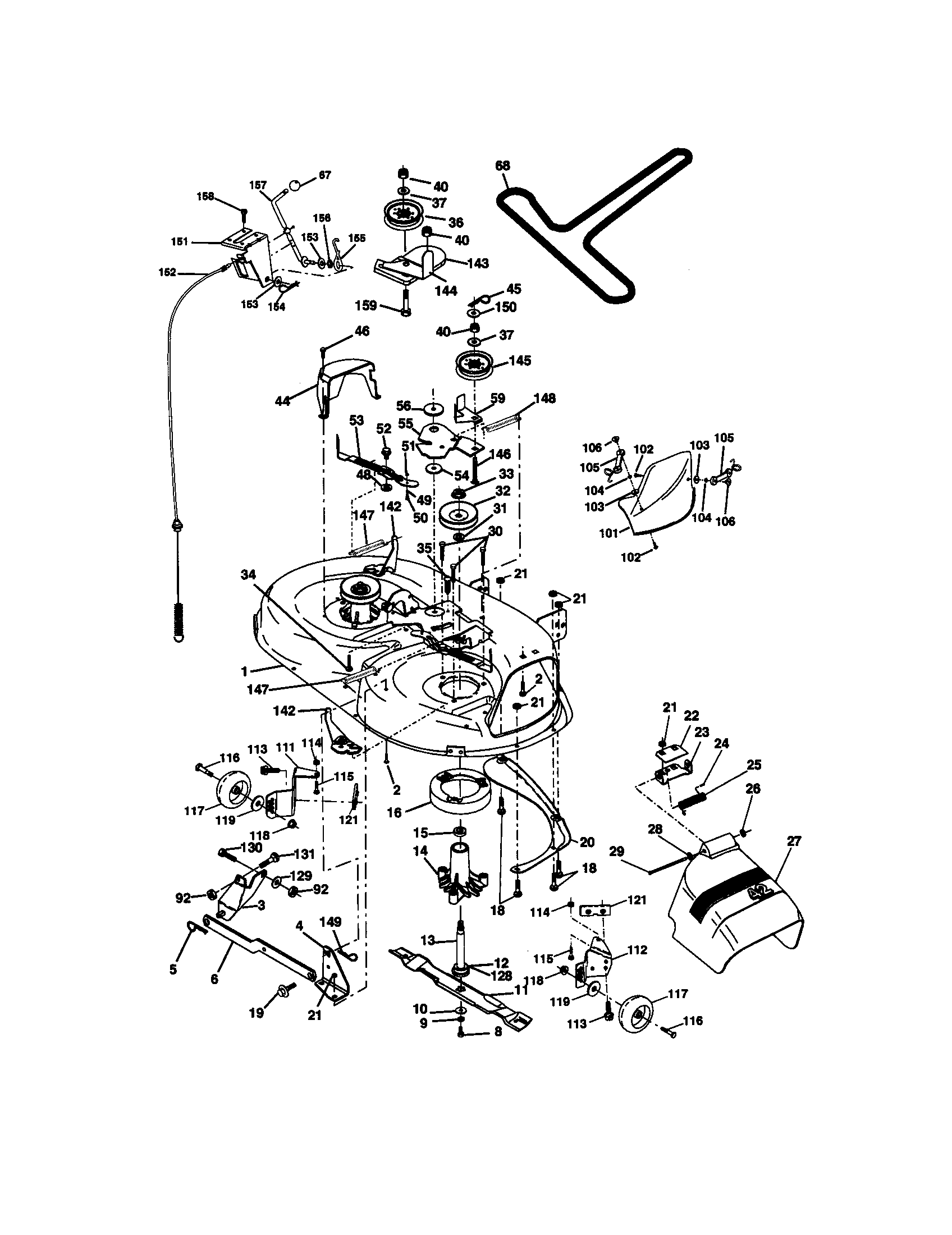

For the Craftsman 917270963 (20.5-hp 42-inch automatic lawn tractor), the most commonly replaced parts are the mower deck wear items (blades and mandrel components) and the drive and idler parts that keep belts tight. Use the diagrams in the owner's manual to match parts to your exact deck and drive setup.
Most common wear parts for this model
These are the parts we see replaced most often on riding mowers like the 917270963, and they are listed for this model:
- Mower blade: husqvarna lawn tractor mulching blade, 21-in 532134149
- Mandrel and spindle components: husqvarna lawn tractor mandrel assembly 532130794, vented mandrel shaft assembly 532137646, husqvarna lawn tractor mandrel housing, 6 in 532128774
- Ground drive belt: lawn tractor ground drive belt, 1/2 x 82-in 532140294
- Idler and tension parts: lawn tractor blade idler pulley 532139245, lawn mower idler pulley 532173437, lawn tractor blade idler spring 532169022
- Starting and convenience items: molded ignition key 532140403
Quick “what it does” guide
| Part type | What it affects | Common symptom when worn |
|---|---|---|
| Blade | Cut quality | Ragged cut, streaking, longer mow time |
| Mandrel (spindle) | Blade rotation | Squealing, wobble, vibration, uneven cut |
| Drive belt | Forward/reverse drive | Slipping, slow movement, belt squeal |
| Idler pulley/spring | Belt tension | Belt jumping off, inconsistent blade engagement |
| Ignition key | Starting | Key won’t turn, intermittent start (after key damage) |
How we recommend confirming the right part
Even within the same model number, deck and drive configurations can vary by production run. We recommend:
- Use the 917270963 exploded diagrams in the owner's manual to identify the exact key number
- Match the part description to your symptom (cut quality, vibration, slipping drive)
- Compare your old part to the diagram (mounting holes, pulley width, belt routing)
- Replace related hardware when needed (lock nuts, clips) to keep repairs secure
Why it matters
On the 917270963, the mower deck and belt drive systems do the hardest work. Replacing worn blades, mandrel parts, and belt-tension components restores cut quality, reduces vibration, and helps prevent belt damage and repeat breakdowns.
