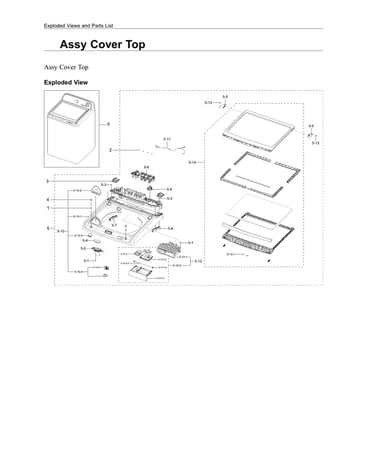

Samsung WA44A3405AV/A4-00 washer Parts

On the Samsung WA44A3405AV washer, we clear many temporary error (information) codes by power-cycling the washer, then correcting the condition that triggered the code (such as a fill or drain problem). If the code returns, use the built-in Smart Care self-diagnosis for model-specific guidance in the WA44A3405AV user manual.

Quick reset steps (safe first try)

• Press POWER to turn the washer off.
• Unplug the washer (or switch the breaker off) for 5 to 10 minutes.
• Restore power and start a Rinse + Spin or a normal cycle.
• If the same code reappears, treat it as an active problem and troubleshoot that code.

Use Smart Care to identify and clear the cause

Your WA44A3405AV supports Smart Care: when an information code appears, you can press Smart Care on the washer, then use the Samsung Laundry app to read the code and follow the recommended fix.

• Press Smart Care when the code is on the display.
• Run the Samsung Laundry app and select Smart Care.
• Hold the phone camera close to the washer display so the app can read the code.
• If the app cannot read it due to glare, enter the code manually in the app.

Common codes and what usually fixes them

The manual lists code meanings and the first checks to make. Here are examples that commonly stop the code from coming back:

Code	What it means	What to check first
4C	Water is not supplied	Open water taps, check hoses for kinks/clogs, clean inlet screens
1C	Water level sensing issue	Check wiring connections to the water level system; then retest
3C	Motor operation issue	Restart the cycle; reduce load size; retest

If you are seeing multiple different codes, start with the basics: correct loading, proper detergent amount, and solid water supply.

Why it matters

Clearing the code without fixing the underlying cause usually leads to repeat interruptions, longer cycle times, and potential draining or filling problems. Using Smart Care and the code chart helps you target the right system (fill, drain, motor, or sensing) the first time.

For a full list of codes and model-specific steps, use our Samsung top load washer error codes reference alongside the WA44A3405AV user manual.

Last updated: February 2026

On the Samsung WA44A3405AV top-load washer, the built-in “force drain” behavior is tied to Child Lock and an unsafe-high water level; if the lid is opened with Child Lock on and the tub is above the safe level, the washer starts draining automatically after about 30 seconds. For step-by-step button actions and display codes (dC, CL), use the WA44A3405AV owner’s manual.

Fast ways to get the washer draining

• If Child Lock is ON and you see dC: close the lid and let the washer begin the forced drain sequence.
• If the washer will not spin or drain: close the lid, then press START/PAUSE (the washer will not spin unless the lid is closed).
• If you need to stop a cycle first: press START/PAUSE to pause; wait a moment for the lid lock to disengage.
• Check the drain path: confirm the drain hose is not kinked or clogged.
• Reduce oversudsing: use HE detergent; too many suds can interfere with draining and spinning.

What the display codes mean during forced draining

Code	What it indicates	What we do next
dC	Lid opened while Child Lock is on; if water is above the safe level, the washer will force drain	Close lid; allow drain to run; then cancel Child Lock if needed
CL	Child Lock mode (after compulsory drain, only POWER works until reset)	Turn POWER off, then on to exit CL mode

How to turn Child Lock on or off (WA44A3405AV)

• Press and hold Temp. and Water Level together for about 3 seconds.
• To cancel dC mode, deactivate Child Lock the same way.
• After a compulsory drain, if the washer enters CL mode, power the washer off and back on.

If it still will not drain

A no-drain condition is usually a restriction (hose kink/clog) or a drain system issue. If the drain hose checks out, the drain pump or related plumbing may need attention.

• Common drain-related parts to inspect/replace:
  • Samsung washing machine drain pump assembly DC97-19289F
  • Drain hose (routing, kinks, clogs)
  • Tub-to-pump hose (blockages)

Why it matters

Forcing a drain safely lowers the water level so the washer can protect against overflow, clear certain lid-open conditions, and get you back to normal draining and spinning without leaving water in the tub.

Last updated: February 2026

Samsung front-load washer capacity typically runs about 2.2 to 5.0 cu. ft., depending on whether it’s a compact, standard, or extra-large model. Your Samsung WA44A3405AV is a top-load washer; use the WA44A3405AV owner's manual to confirm the exact capacity and loading guidance for your unit.

Typical Samsung front-load capacity ranges

These ranges cover most Samsung front-load washers sold in the U.S.:

• Compact: 2.2 to 2.8 cu. ft.
• Standard: 4.2 to 4.6 cu. ft.
• Large: 4.8 to 5.0 cu. ft.
• Extra-large: 5.0 cu. ft. and up

How to choose the right capacity for your laundry

Capacity is most useful when you match it to what you wash most often:

• 1 to 2 people: compact to standard is usually enough
• Families: standard to large reduces the number of loads
• Bulky items (comforters, bedding): large to extra-large works best
• Frequent heavy loads: choose larger capacity to avoid overpacking

What you wash most	Capacity that fits best	Why
Everyday mixed loads	4.2 to 4.6 cu. ft.	Good balance of size and cycle performance
Towels and jeans	4.8 to 5.0 cu. ft.	More room for agitation and rinsing
Comforters and bedding	5.0 cu. ft. and up	Extra drum volume helps prevent tight packing

Why it matters

Washer capacity affects cleaning and spin performance. When the drum is packed too tightly, clothes cannot tumble or rinse well, and the washer is more likely to go out of balance during high-speed spin.

Last updated: February 2026
