Canister Vacuum

Model # 970A Official Eureka canister vacuum

Here are the diagrams and repair parts for Official Eureka 970A canister vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |

Stand 61604
#36

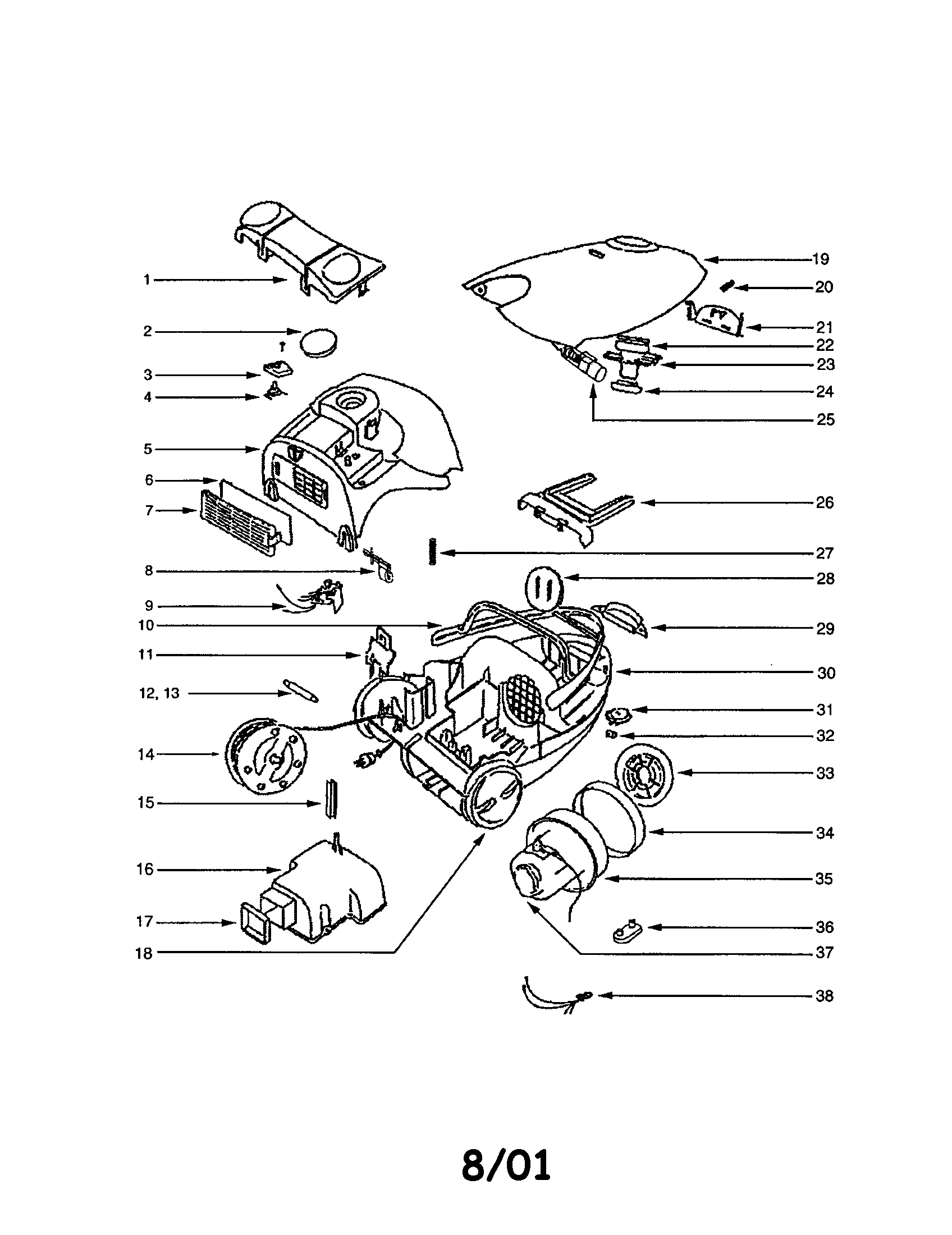

Cover diagram

Stand

Part #61604

The manufacturer no longer makes this part, and there's no substitute part

Eureka Lock 61573
#21

Cover diagram

Eureka lock

Part #61573

The manufacturer no longer makes this part, and there's no substitute part

Eureka Motor 61579
#35

Cover diagram

Eureka motor

Part #61579

The manufacturer no longer makes this part, and there's no substitute part

Eureka Vacuum Hose 61564
#6

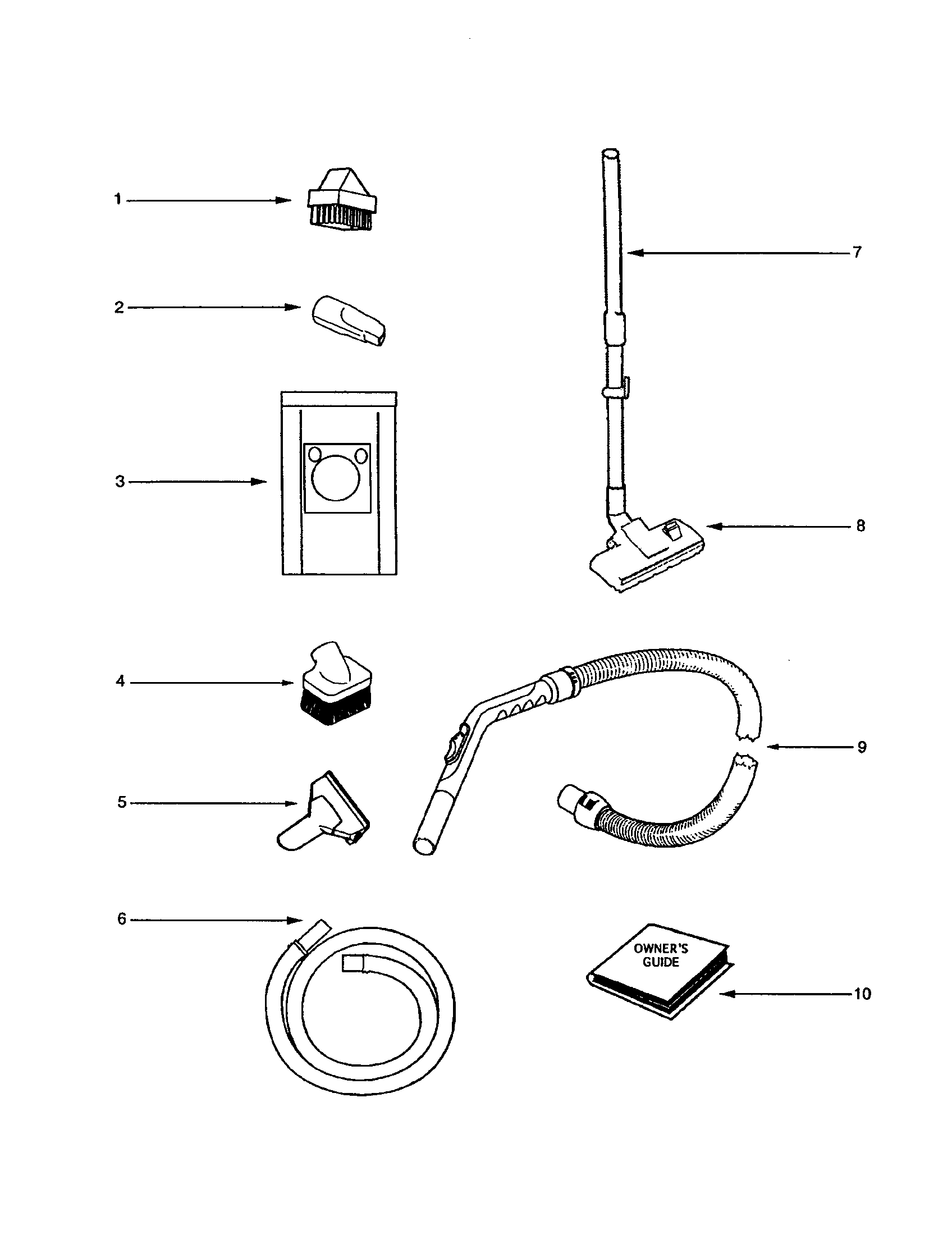

Hose diagram

Eureka vacuum hose

Part #61564

The manufacturer no longer makes this part, and there's no substitute part

Nozzle 61719
#5

Hose diagram

Nozzle

Part #61719

The manufacturer no longer makes this part, and there's no substitute part

Ring 61566
#10

Cover diagram

Ring

Part #61566

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 61582
#38

Cover diagram

Thermostat

Part #61582

The manufacturer no longer makes this part, and there's no substitute part

Brake 61597
#8

Cover diagram

Brake

Part #61597

The manufacturer no longer makes this part, and there's no substitute part

Cover 61585
#3

Cover diagram

Cover

Part #61585

The manufacturer no longer makes this part, and there's no substitute part

Window 61592
#11

Cover diagram

Window

Part #61592

The manufacturer no longer makes this part, and there's no substitute part
