Hotpoint RB757BB1 electric range Parts
Here are the diagrams and repair parts for Hotpoint RB757BB1 electric range, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for RB757BB1 Ranges

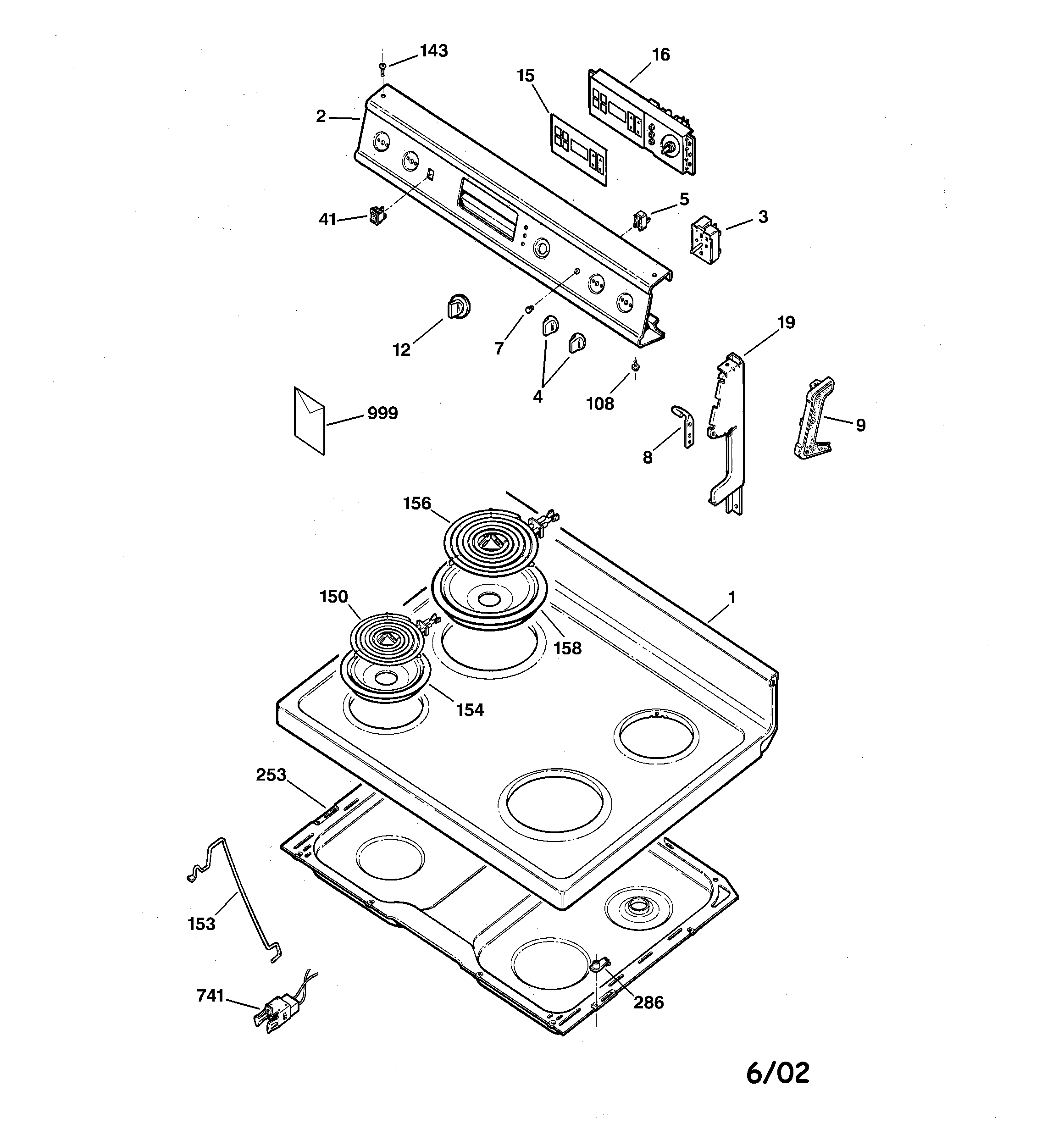

Control panel & cooktop diagram
Clip Receptacle
Part #WB02X8228Replaced by #WB2X8228
Manufacturer substitutionThis part replaces WB02X8228. Substitute parts can look different from the original.This item is not returnableIn Stock$34.5215% OFF Phone Price : $40.52
Qty
Control panel & cooktop diagram
Uc/install
Part #49-8927Replaced by #49-8962-2
Manufacturer substitutionThis part replaces 49-8927. Substitute parts can look different from the original.In Stock$32.41QtyBody parts diagram
Range Anti-tip Bracket
Part #WB02T10053Replaced by #WB02T10415

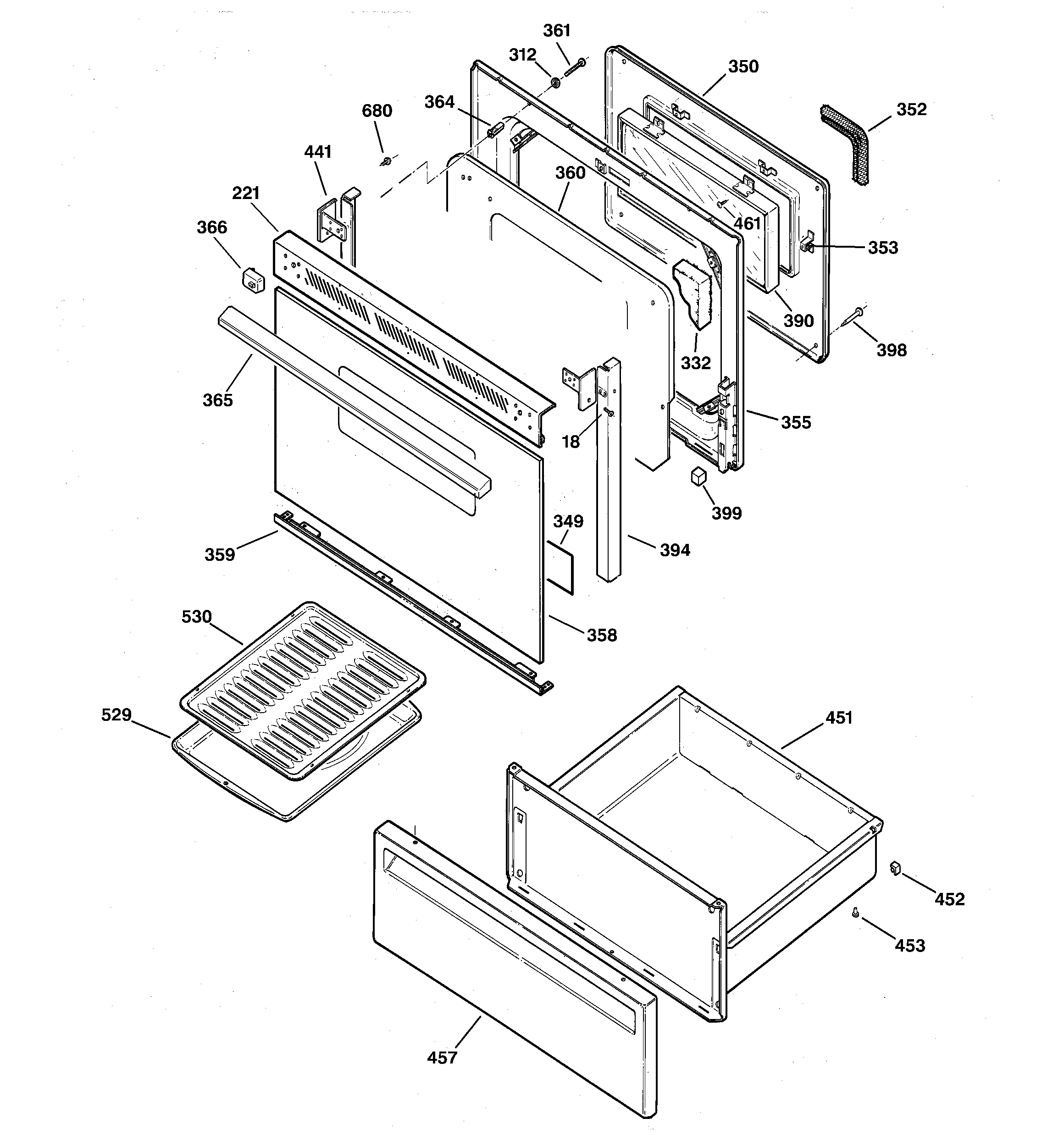

Manufacturer substitutionThis part replaces WB02T10053. Substitute parts can look different from the original.In Stock$36.4214% OFF Phone Price : $42.42QtyDoor & drawer parts diagram
Washer
Part #WB01X0119Replaced by #WB02X32440
Manufacturer substitutionThis part replaces WB01X0119. Substitute parts can look different from the original.In Stock$34.54QtyControl panel & cooktop diagram
Scr 8-18 Ba
Part #WB01X5904Replaced by #WB1X5904
Manufacturer substitutionThis part replaces WB01X5904. Substitute parts can look different from the original.In Stock$9.0110% OFF Phone Price : $10.01QtyBody parts diagram
Range Light Socket
Part #WB08T10004Replaced by #WB08T10026
Manufacturer substitutionThis part replaces WB08T10004. Substitute parts can look different from the original.This item is not returnableIn Stock$10.1516% OFF Phone Price : $12.15QtyDoor & drawer parts diagram
Trim
Part #WB07X7198Replaced by #WB07K10250
Manufacturer substitutionThis part replaces WB07X7198. Substitute parts can look different from the original.This item is not returnableIn Stock$25.4419% OFF Phone Price : $31.44QtyBody parts diagram
Wall Oven Light Lens
Part #WB36X0389Replaced by #WB36X192
Manufacturer substitutionThis part replaces WB36X0389. Substitute parts can look different from the original.This item is not returnableIn Stock$15.3912% OFF Phone Price : $17.39QtyDoor & drawer parts diagram
Screw
Part #WB01X0536Replaced by #WB1X536
Manufacturer substitutionThis part replaces WB01X0536. Substitute parts can look different from the original.In Stock$10.3216% OFF Phone Price : $12.32QtyControl panel & cooktop diagram
Faceplate
Part #WB27X10245
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your ranges
Choose a symptom to see related range repairs.
Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure…
Main causes: broken broiler element, weak or broken broil burner igniter, control system failure, faulty temperature sen…
Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner ig…
Main causes: broken oven door lock assembly, wiring failure, electronic control board problem…
Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner ignite…
Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sen…
Main causes: food splatters, spilling food on the oven door, allowing liquid to drip through oven door vent when cleanin…
