Kenmore 66513252K113 undercounter dishwasher Parts

Yes. We still support parts for many Kenmore dishwashers, including Kenmore model 66513252K113. The key is matching parts to your exact model number so you get the correct fit and connections for common repairs like draining, filling, heating, and rack hardware.

How to make sure you order the right part

Use the model number 66513252K113 and confirm the part ID before ordering. Your 66513252K113 owner's manual also helps you identify features and components so you choose the right repair path.

• Match the full model number on the rating label to 66513252K113
• Compare the part ID (for example, WPW10348269) to your existing part
• Check whether your symptom is drain, fill, wash, heat, or leak related
• Replace seals and grommets when you replace pumps to prevent leaks
• After any repair, run a short cycle and confirm the unit fills and drains normally

Common Kenmore dishwasher parts that are still available

These are examples of frequently replaced parts listed for this model:

Symptom	Part to check	Example part for 66513252K113
Won’t drain / water left in tub	Drain pump, drain hose	Dishwasher drain pump WPW10348269, Dishwasher drain hose (8269144A or WPW10545278)
Won’t fill / fills slowly	Water inlet valve	Water inlet valve W11175771

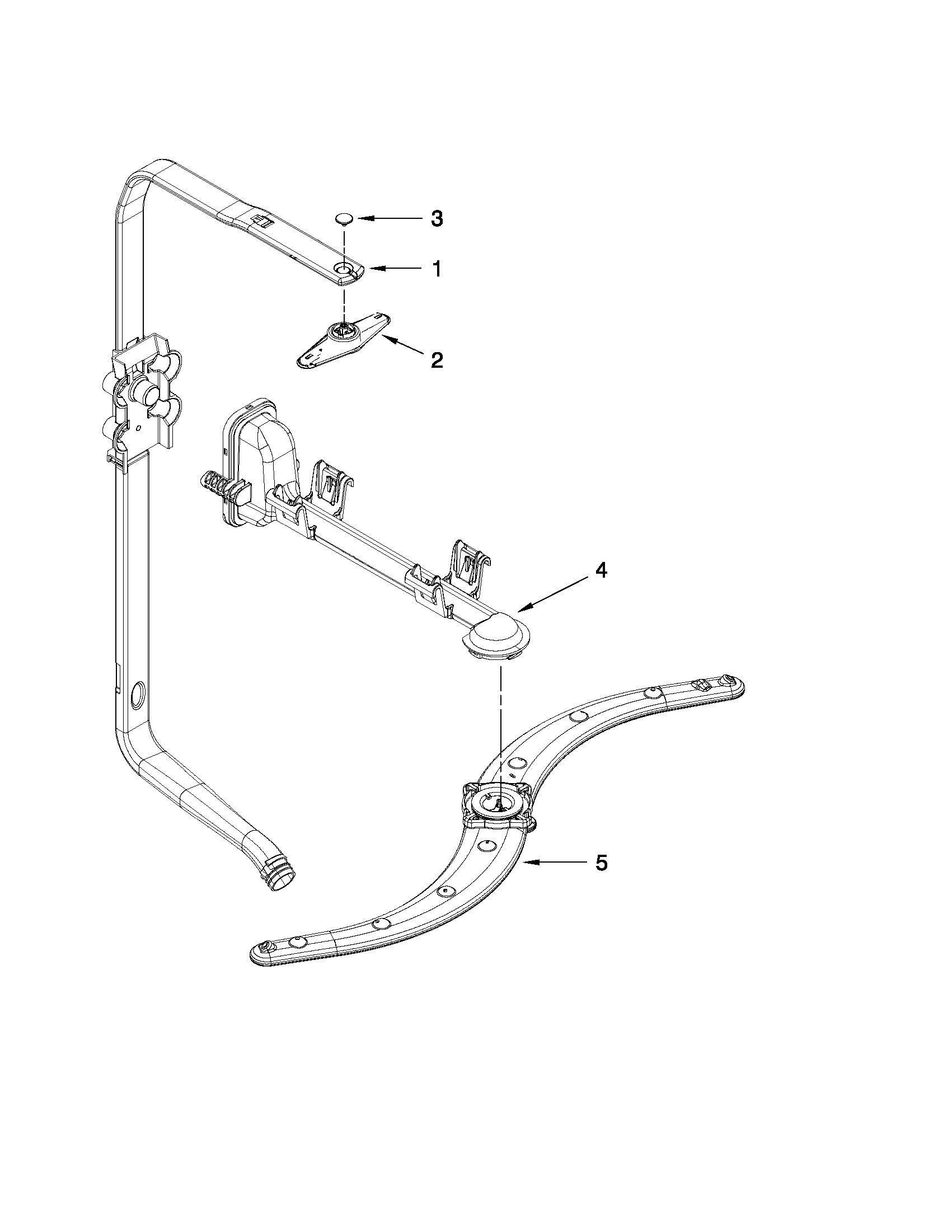

Poor cleaning / weak spray	Spray arm, filter, diverter	Spray arm WPW10491331, filter W10872845, diverter motor W10537869

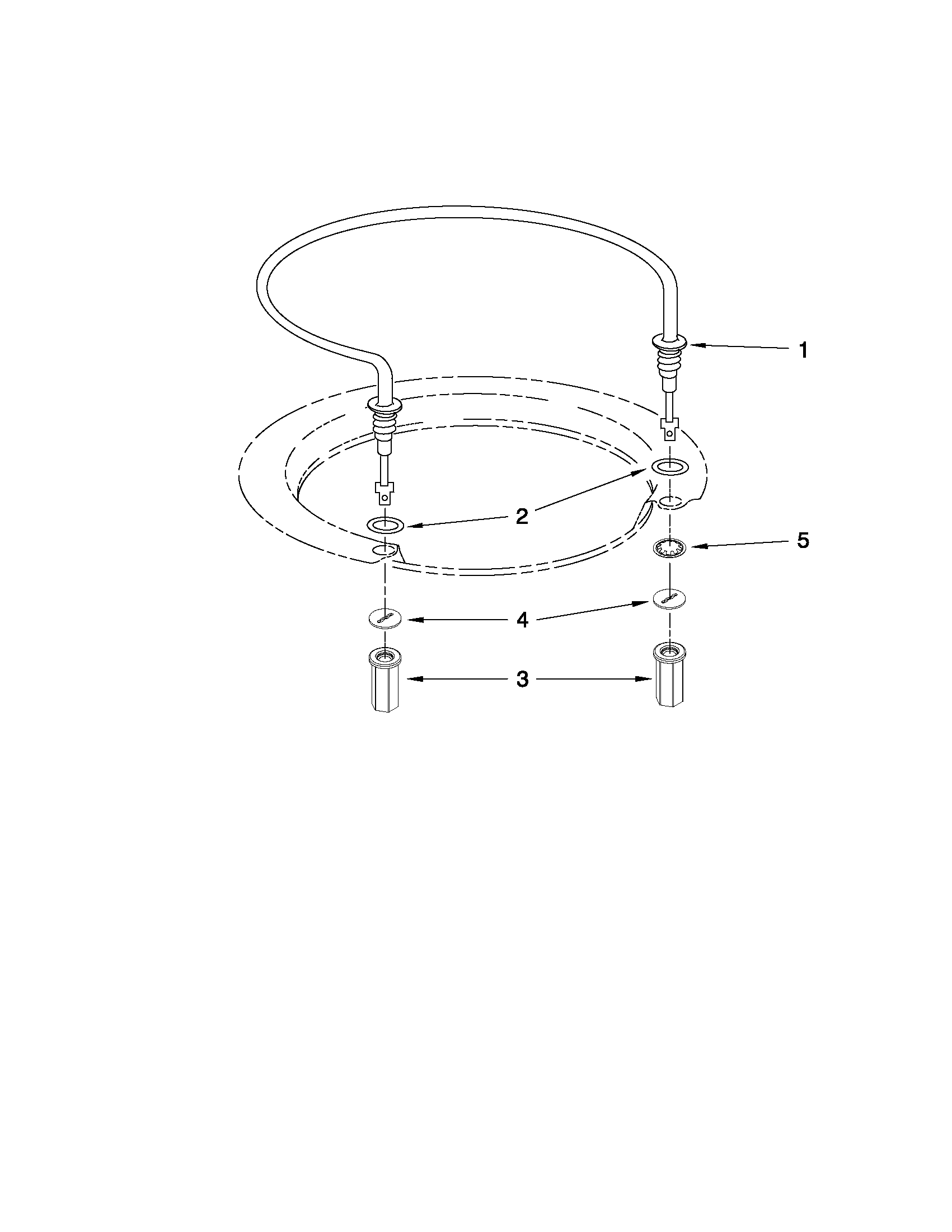

Dishes not drying	Heater	Heater W10703867

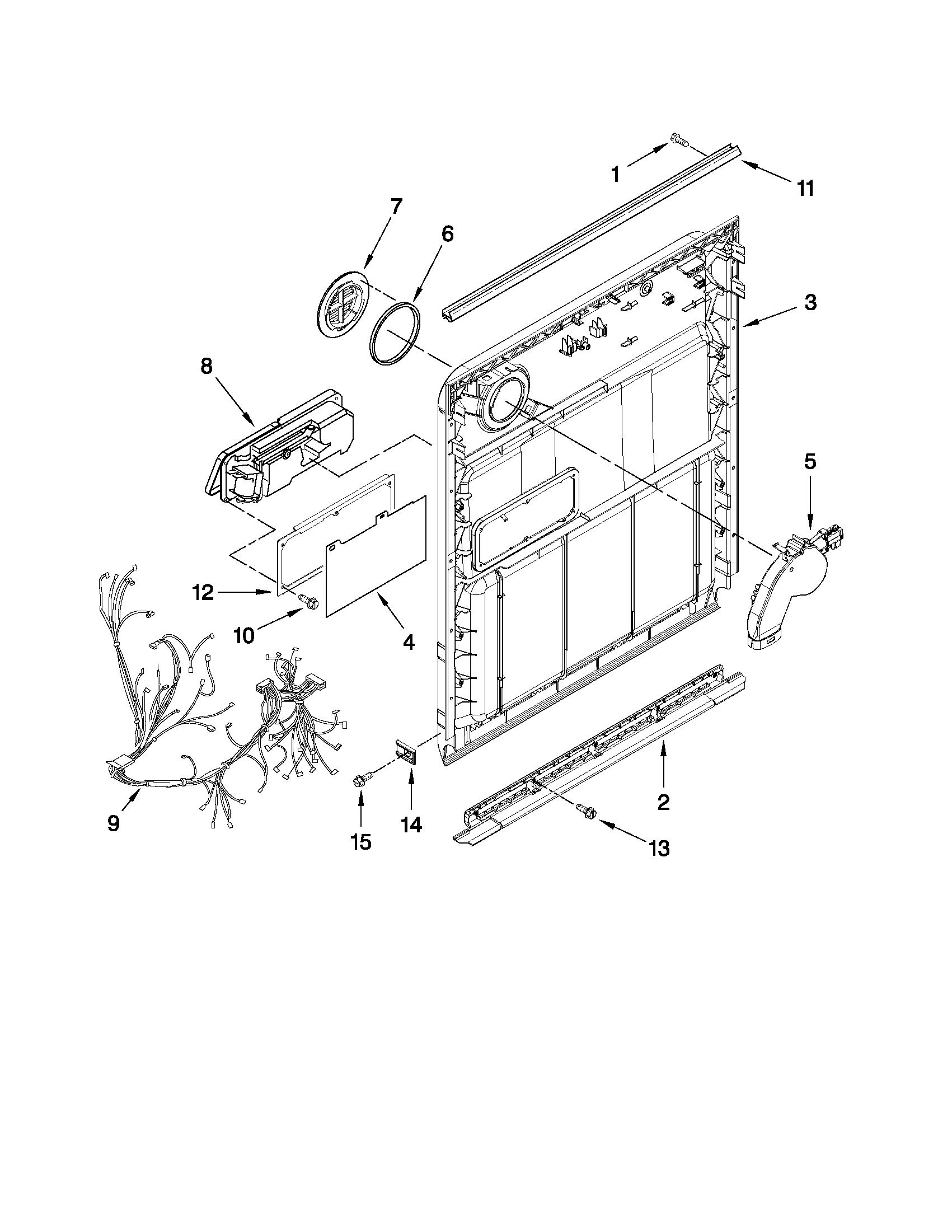

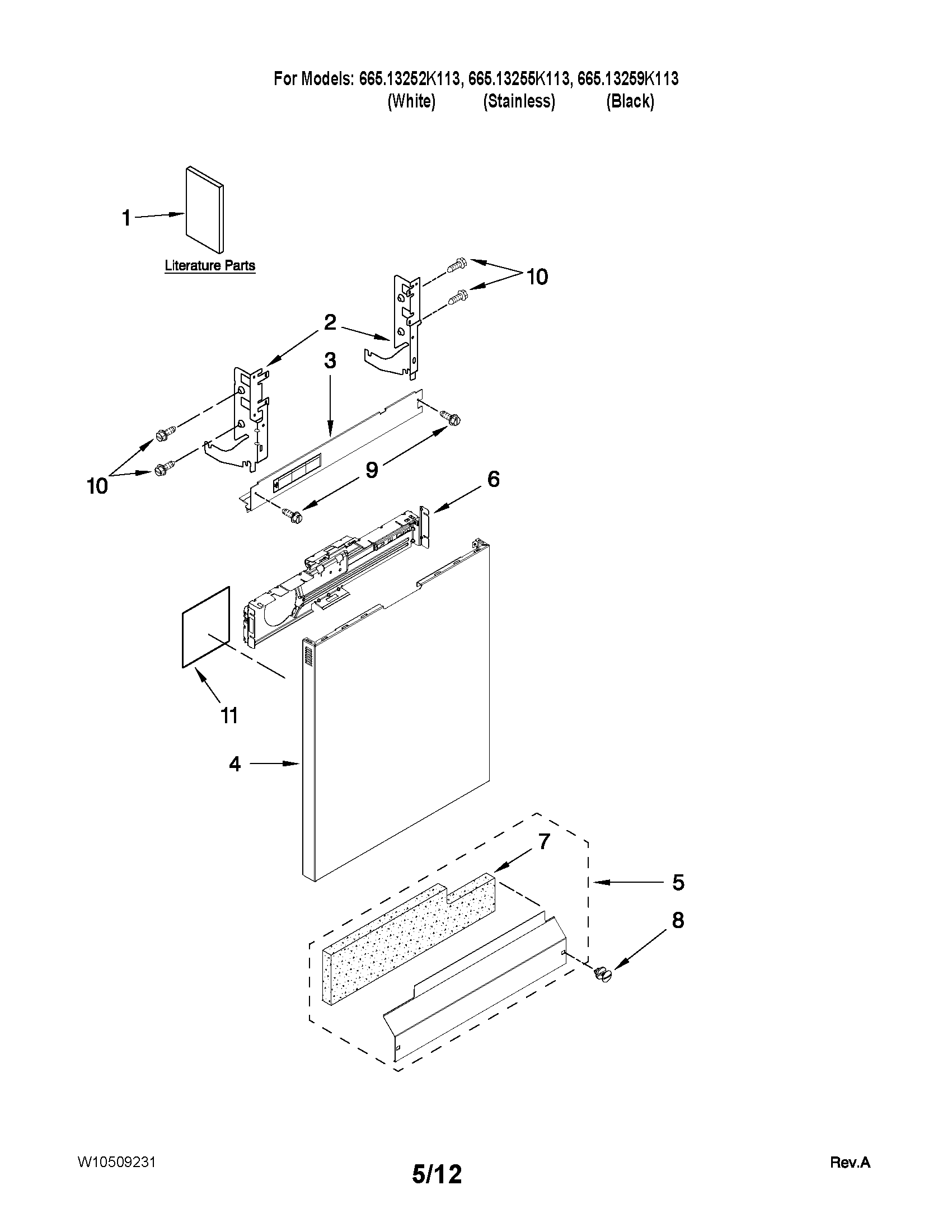

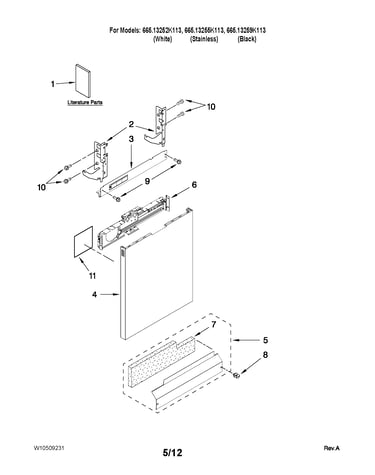

Leaks at bottom of door	Door seal	Door seal (lower) WPW10497235

Why it matters

Kenmore dishwashers are built with model-specific plumbing and electrical connections. Ordering by model number helps you avoid mismatched pumps, valves, or seals that can cause leaks, poor washing, or installation issues.

For installation-related requirements (clearances, leveling, securing the dishwasher, and verifying operation after reconnecting power), use the 66513252K113 installation guide.

Last updated: February 2026

Your Kenmore dishwasher model number is usually printed on a rating label inside the door area. For Kenmore dishwashers, it often starts with 665 (like 66513252K113), and you will use that exact number to match the correct parts, installation requirements, and troubleshooting steps in the 66513252K113 owner's manual.

Where to look for the model number label

Check these spots in order (most common first):

• Along the inner door frame (left or right side)
• On the top edge of the door (visible when the door is open)
• On the tub wall near the door opening
• Behind the lower toe-kick panel (sometimes visible without removing the dishwasher)
• On the side of the dishwasher frame (may require pulling the unit out slightly)

What the model number looks like (and what to write down)

Record the full model number exactly as shown, including letters and any suffix.

What to capture	Example	Why it matters
Model number	66513252K113	Ensures parts fit and diagrams match
Serial number	(varies)	Helps identify production run details
Brand	Kenmore	Confirms correct product family

Why it matters

Kenmore uses the model number to identify the exact configuration of your undercounter dishwasher (rack style, pump setup, controls, and installation hardware). Even small differences can change which items fit, such as a dishwasher drain pump WPW10348269 or a door seal.

Quick tip after you find it

Once you confirm the model number, use the installation and operating details that match that exact unit, especially for drain hose routing and securing the dishwasher to the cabinet in the 66513252K113 installation guide.

Last updated: February 2026

Yes, repairing a Kenmore undercounter dishwasher like model 66513252K113 is usually worth it when the problem is a wear item (drain hose, valve, seal, rack wheels) and the total repair cost stays well below the price of a replacement. For major electrical or motor failures, the decision comes down to total parts cost versus the dishwasher’s overall condition.

Quick decision checklist

• If the dishwasher is cleaning well and the tub is solid (no cracks or heavy rust), repairs typically pay off.
• If the issue is a single, common failure (draining, filling, leaking), repair is usually the best value.
• If multiple expensive parts are failing at once, replacement often makes more sense.
• If you can do basic DIY safely (shut off power and water), you can save a lot on labor.
• If the unit has repeated electrical issues, prioritize a professional diagnosis.

Common repairs that are usually “worth it” on 66513252K113

Many problems on this model are straightforward and parts are readily available.

Symptom	Likely fix	Example part for this model
Won’t drain, water left in tub	Clear blockage; replace drain pump if needed	Dishwasher drain pump WPW10348269
Won’t fill or fills slowly	Verify water is on; replace inlet valve	Dishwasher water inlet valve W11175771
Poor cleaning, debris in bottom	Clean filter and spray arm; replace if damaged	Dishwasher filter W10872845
Door leaks at bottom	Replace lower door seal	Seal WPW10497235

Before you spend money: do these low-cost checks

These steps can prevent an unnecessary part purchase.

• Confirm the door is fully closed and latched.
• Check the house breaker or fuse.
• Verify the water supply valve is turned on.
• Start a short cycle and confirm there is water in the tub after about 2 minutes.
• Make sure the dishwasher is installed level and secured so it does not shift when the door opens.

For the model-specific startup and “does not operate” checks, follow the 66513252K113 installation guide.

Why it matters

A dishwasher that is level, secured, and filling and draining correctly will clean better and avoid secondary damage (leaks, overheating, or pump strain). Spending a few minutes on basic checks helps you choose the right repair path the first time.

Last updated: February 2026

A leak underneath a Kenmore 66513252K113 dishwasher usually comes from a loose drain connection, a split drain hose, a leaking pump or sump seal, or water escaping at the door and running down into the base. We isolate the leak by watching when it drips: fill, wash, or drain.

Quick checks (fastest wins)

• Turn off power at the breaker and shut off the water supply.
• Remove the toe-kick/access panels and find the first wet spot (front, center, left, or right).
• Watch for drips during fill (inlet side) vs drain (pump and hose side).
• Check the drain hose for kinks or pinches; tighten clamps.
• Confirm the dishwasher is level; a forward tilt can send water toward the front edge.

Common leak locations and what they point to

Where you see water	When it leaks	Most likely cause
Left/front area	During fill	Supply connection or inlet valve seepage
Center bottom	During wash or drain	Pump, sump, or pump seal/grommet leak
Rear/side	During drain	Drain hose split or loose connection
Front edge	During wash	Door seal area or door alignment

Parts to inspect on this model

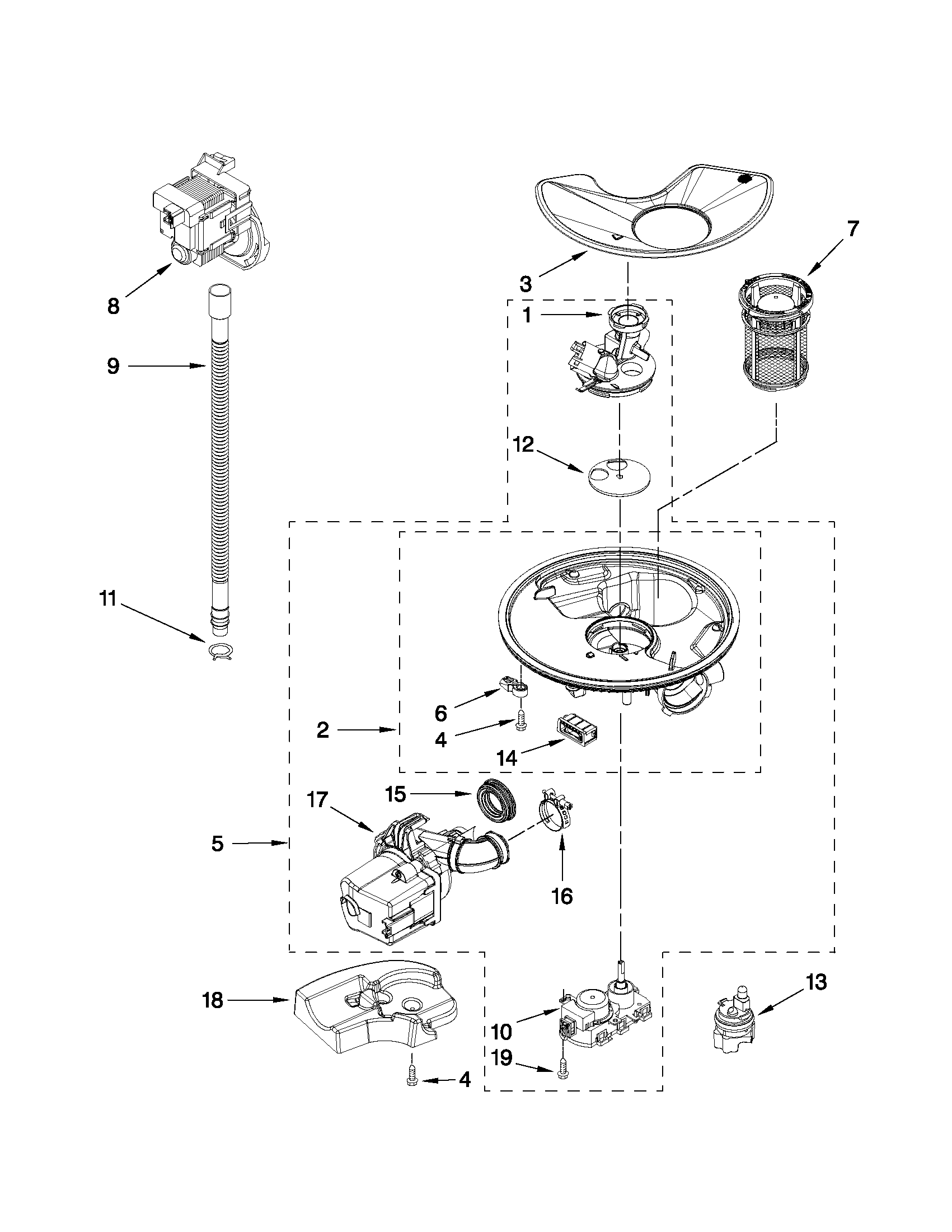

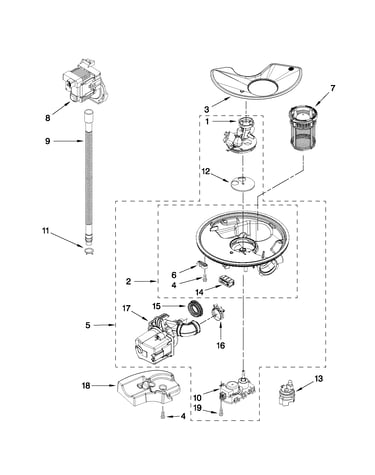

• Drain-side leaks: check the dishwasher drain pump WPW10348269 for cracks, a loose housing, or seal seepage.
• Seepage at the pump mounting: inspect the dishwasher pump grommet WPW10538166 for flattening or tears.

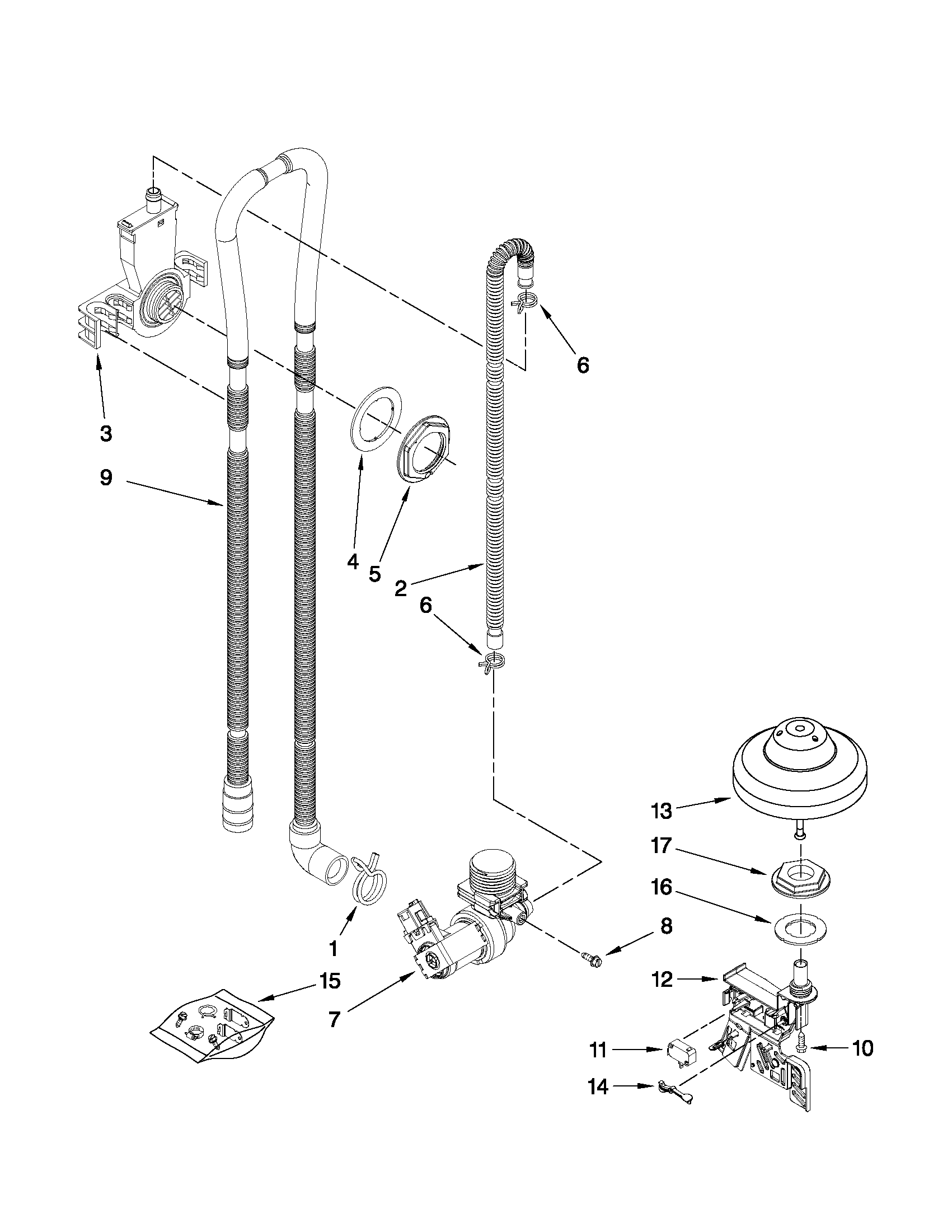

• Drain connection leaks: inspect the dishwasher drain hose 8269144A for splits and verify screw-type clamps are snug.
• Fill leaks: inspect the dishwasher water inlet valve W11175771 and the water supply fitting for drips.

Installation details that prevent repeat leaks

We follow the routing and connection guidance in the 66513252K113 installation guide, including keeping drain and water lines from rubbing the motor/legs and avoiding pinched hoses.

Why it matters

Even a small drip can damage flooring and cabinets, and it can lead to noisy operation or poor draining if water reaches components in the base.

Last updated: February 2026
