Frigidaire FFBD2411NS6B dishwasher Parts

Yes, for the Frigidaire FFBD2411NS6B dishwasher, we can replace many common parts ourselves if we shut off power and water first and follow the correct steps. Simple mechanical items are usually DIY-friendly; wiring, leaks, and installation-related work require extra care and the right tools.

What’s typically safe and realistic to DIY

• Cleaning and checking for clogs (sump area, drain path)
• Replacing a spray component such as the dishwasher spray arm 5304513274
• Replacing a fill component such as the dishwasher water inlet valve 807047901
• Replacing a drain component such as the dishwasher drain hose 807117001

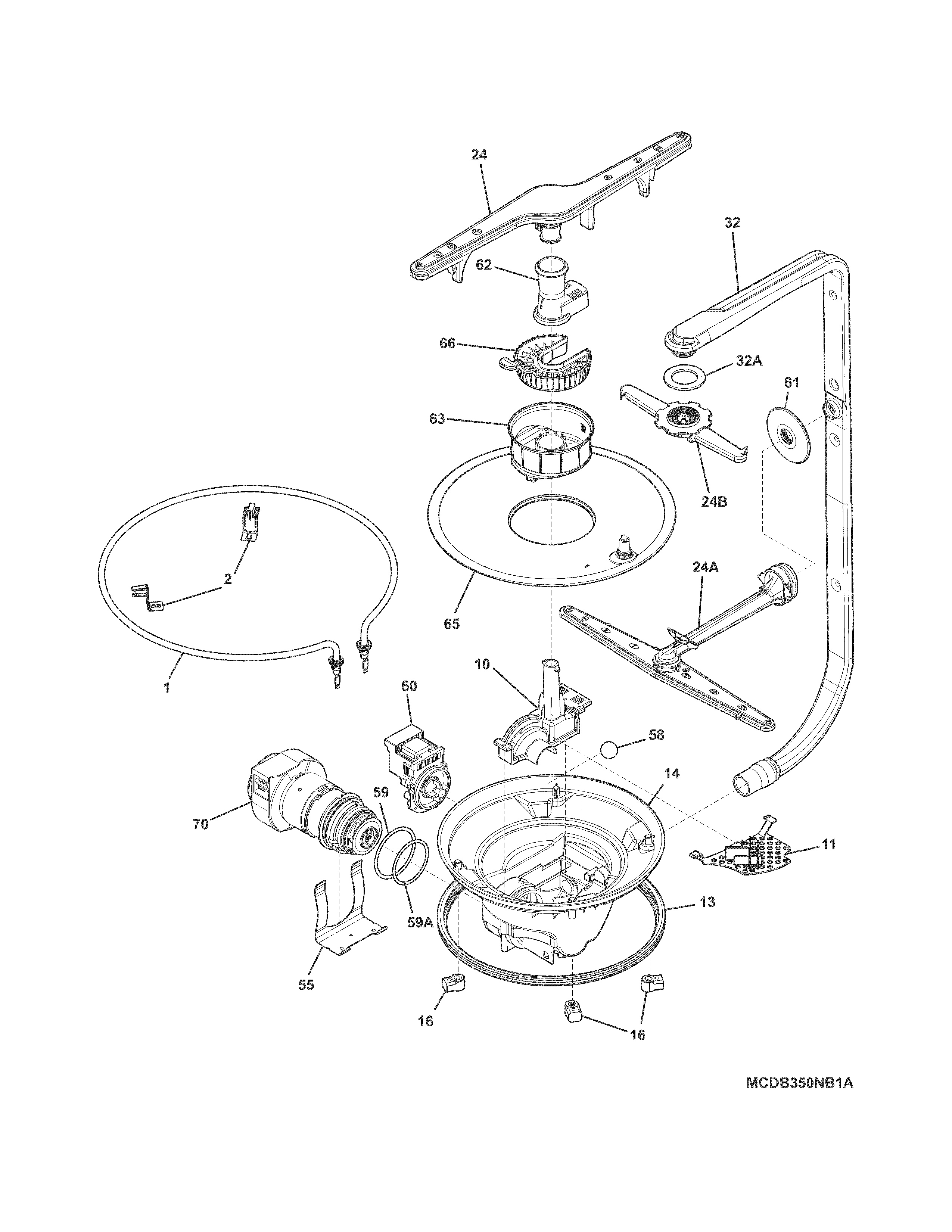

• Replacing a wash system component such as the dishwasher pump and motor assembly 154844301 (more advanced)

Safety steps we follow first (every time)

• Turn off electrical power at the breaker before opening panels or the junction box
• Shut off the water supply valve to the dishwasher
• Pull the dishwasher out only as far as needed; avoid kinking water and drain lines
• Keep electrical, water, and drain lines routed away from the motor and frame areas
• Wear gloves when handling sharp metal panels

Quick “DIY or call a pro?” guide

Job type	Typical difficulty	Common risk	Best reference
Spray arm, hose, inlet valve	Easy to moderate	Leaks from loose clamps/fittings	FFBD2411NS6B installation guide
Drain pump, pump and motor	Moderate to advanced	Leaks, misrouting hoses/wires	FFBD2411NS6B installation guide
Junction box wiring	Advanced	Shock, loose connections	FFBD2411NS6B installation guide

Why it matters

A dishwasher repair that is “almost right” often shows up as a leak, a no-drain problem, or a unit that tilts when the door opens. Following the FFBD2411NS6B installation routing and securing steps helps prevent damaged wiring/hoses and repeat failures.

Last updated: February 2026

The most common Frigidaire dishwasher problems are not draining, not cleaning well, and leaking. On the Frigidaire FFBD2411NS6B, these symptoms usually trace back to a restricted drain path, a clogged spray system, or a door or fill issue; our FFBD2411NS6B installation guide helps you confirm the drain and water setup that often causes these complaints.

Most common symptoms and what usually causes them

• Dishwasher won’t drain: kinked/blocked drain hose, clogged disposer inlet plug, or a failing drain pump
• Poor cleaning: spray arm holes blocked, low fill level, or weak wash pump performance
• Leaks: loose hose connections, drain hose routing issues, or door not closing/latched firmly
• Won’t start or stops mid-cycle: door not fully latched, control issue, or float/overfill protection triggered
• Not drying: heater circuit issue or cycle/option selection that reduces heat

Quick checks we recommend first (fast, high-impact)

1. Verify drain hose routing: the drain hose loop should be at least 32 inches high from the floor for proper drainage.
2. Check for kinks in the water and drain hoses (kinks cause fill and drain complaints).
3. If connected to a disposer: confirm the disposer inlet plug was knocked out (first-time hookups commonly miss this).
4. Confirm hot water supply and pressure: dishwashers need hot water and adequate pressure to fill correctly.
5. Check door closure: a door that is not fully latched can prevent starting or cause stopping.

Parts that commonly solve these problems on FFBD2411NS6B

Symptom	Common part to inspect	What it affects
Not draining	Drain pump a A00126401	Pumps water out during drain/pump-out
Not filling or fills slowly	Dishwasher water inlet valve 807047901	Controls water entering the tub
Not heating or poor drying	Frigidaire dishwasher heating element 154825001	Heats water and supports drying
Poor wash action	Dishwasher pump and motor assembly 154844301	Drives wash circulation

Why it matters

Drain and fill issues are often installation-related (hose height, kinks, disposer plug). Fixing those basics first prevents repeat clogs, standing water, odor, and cycle failures, and it helps parts like the pump and inlet valve last longer.

Last updated: February 2026

A Frigidaire dishwasher typically lasts 7 to 10 years. With consistent cleaning, correct detergent use, and good water conditions, many units reach 10 to 13 years. For your Frigidaire FFBD2411NS6B, following the care and operating guidance in the FFBD2411NS6B owner’s manual helps you get the full expected service life.

What affects dishwasher lifespan most

• Water hardness and mineral buildup (scale shortens heater and pump life)
• How often you run it (daily use wears moving parts faster)
• Drain and fill health (clogs and low fill strain the pump and motor)
• Drying and heating performance (heater cycles add stress over time)
• Installation quality (kinked hoses, poor leveling, and weak water pressure cause repeat issues)

Maintenance that extends life (high impact)

• Clean the filter area and remove debris from the sump regularly.
• Run a monthly cleaning cycle using a dishwasher cleaner (especially with hard water).
• Keep spray paths clear; don’t block the spray arm with tall pans.
• Use rinse aid to reduce spotting and improve drying, which reduces re-wash cycles.
• Confirm the unit is level and hoses are not kinked; the FFBD2411NS6B installation guide calls out that kinked water or drain hoses can cause problems.

Common wear items as the dishwasher ages

Symptom	Often involved system	Example part for FFBD2411NS6B
Not draining, water left in tub	Drain path, drain pump	Drain pump a A00126401
Poor drying, cool water	Heating circuit	Frigidaire dishwasher heating element 154825001
Not filling or fills slowly	Water inlet valve	Dishwasher water inlet valve 807047901
Weak wash, noisy circulation	Pump and motor	Dishwasher pump and motor assembly 154844301

Why it matters

Knowing the typical 7 to 10 year lifespan helps you decide whether to maintain and repair (pump, heater, inlet valve) or plan for replacement when multiple major systems start failing close together.

Last updated: February 2026

On the Frigidaire FFBD2411NS6B dishwasher, the most commonly replaced parts are the wash and drain components (pump, motor, hoses), water fill parts (inlet valve, float switch), and wear items like the door latch and racks. These parts typically fail from clogs, leaks, heat wear, or normal use.

Commonly replaced parts (and what they affect)

• Drain system: drain pump, drain hose; fixes standing water and slow draining
• Wash/circulation system: pump and motor assembly, spray arm; fixes poor cleaning and weak spray
• Water fill system: water inlet valve, float switch; fixes no-fill, overfill, or intermittent filling
• Heating and drying: heating element; fixes poor drying and low wash temperature

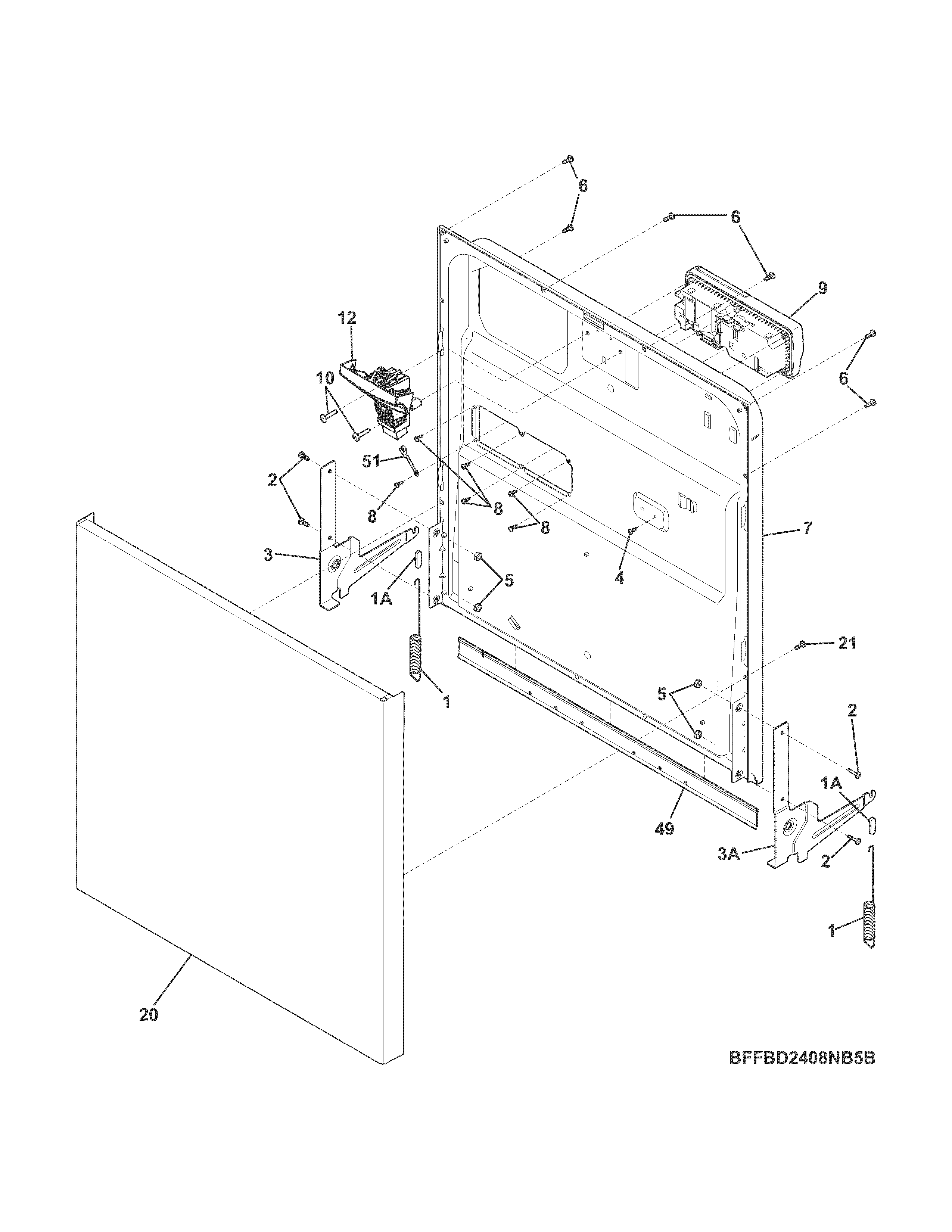

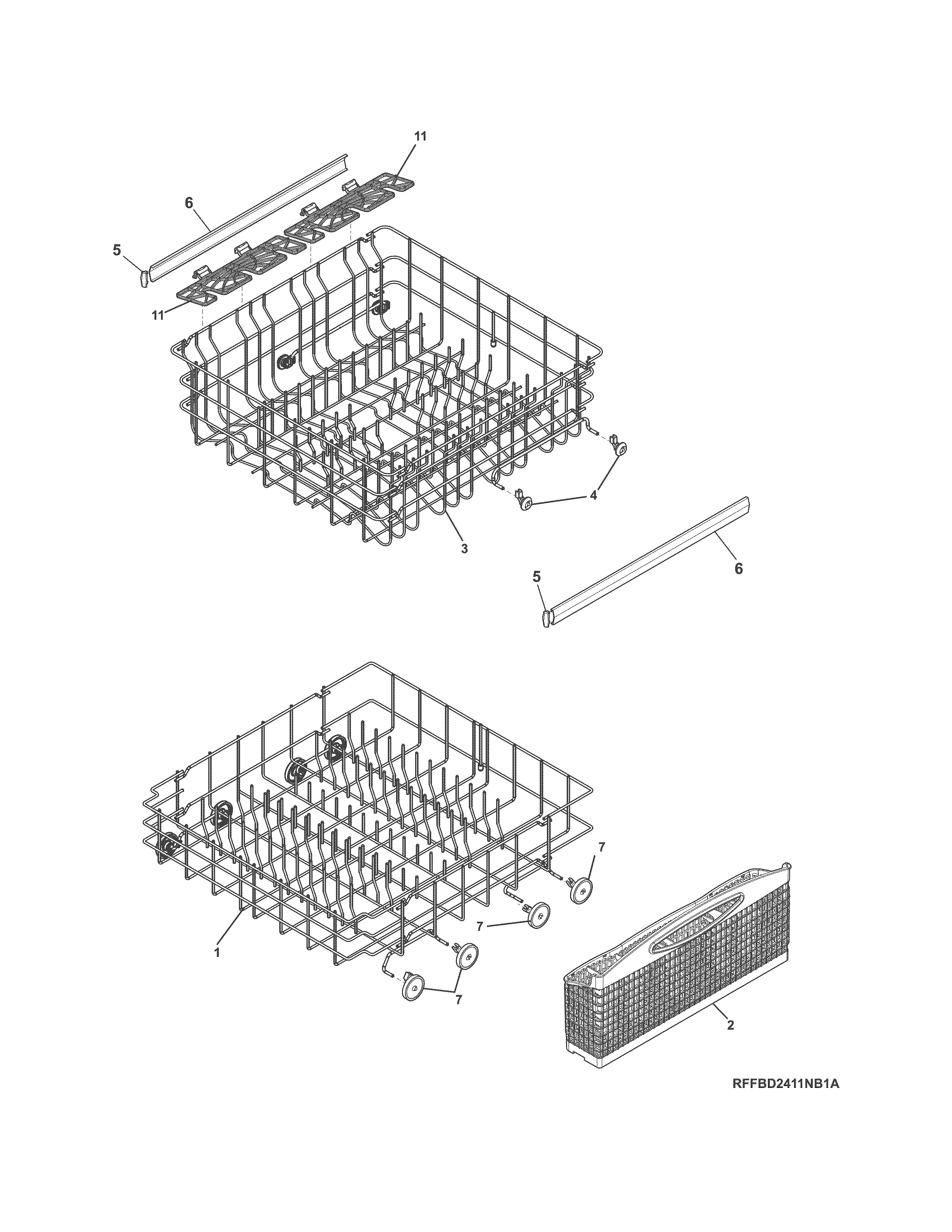

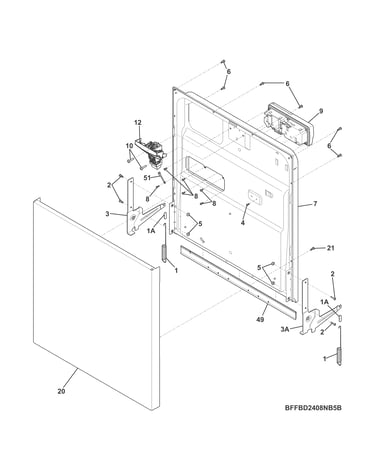

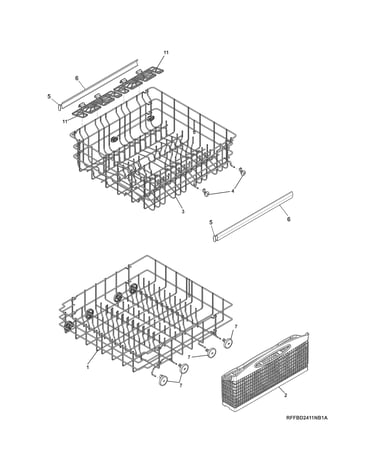

• Door and usability: door latch, racks and rollers; fixes door not latching, rack sliding issues

Model-matched examples for FFBD2411NS6B

Symptom	Part that commonly solves it	Example part for this model
Dishwasher not draining	Drain pump or drain hose	Drain pump a A00126401 or dishwasher drain hose 807117001
Not filling or fills slowly	Water inlet valve	Dishwasher water inlet valve 807047901
Not drying well	Heating element	Frigidaire dishwasher heating element 154825001
Poor cleaning	Pump and motor assembly or spray arm	Dishwasher pump and motor assembly 154844301

Quick checks that prevent repeat failures

• Keep the tub and filter area clean; debris is a top cause of pump and drain problems.
• Make sure the drain hose is not kinked and routing is clear under the sink.
• If filling is weak, shut off water and clean the inlet valve screen (the installation instructions describe cleaning the filter screen when the valve clogs).
• Confirm the dishwasher is level and securely fastened; installation steps call this out because shifting can stress hoses and wiring.
• After any repair, run a fill and pump-out and check for leaks at the water and drain connections.

Why it matters

Replacing the right part first saves time and prevents secondary damage. For example, a restricted drain hose can overwork the drain pump, and a clogged inlet screen can mimic a bad inlet valve.

For model-specific diagrams, part locations, and installation notes, use the FFBD2411NS6B installation guide and the FFBD2411NS6B owner’s manual.

Last updated: February 2026
