Whirlpool SB160PEDB4 24" gas built-in oven Parts
Here are the diagrams and repair parts for Whirlpool SB160PEDB4 24" gas built-in oven, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

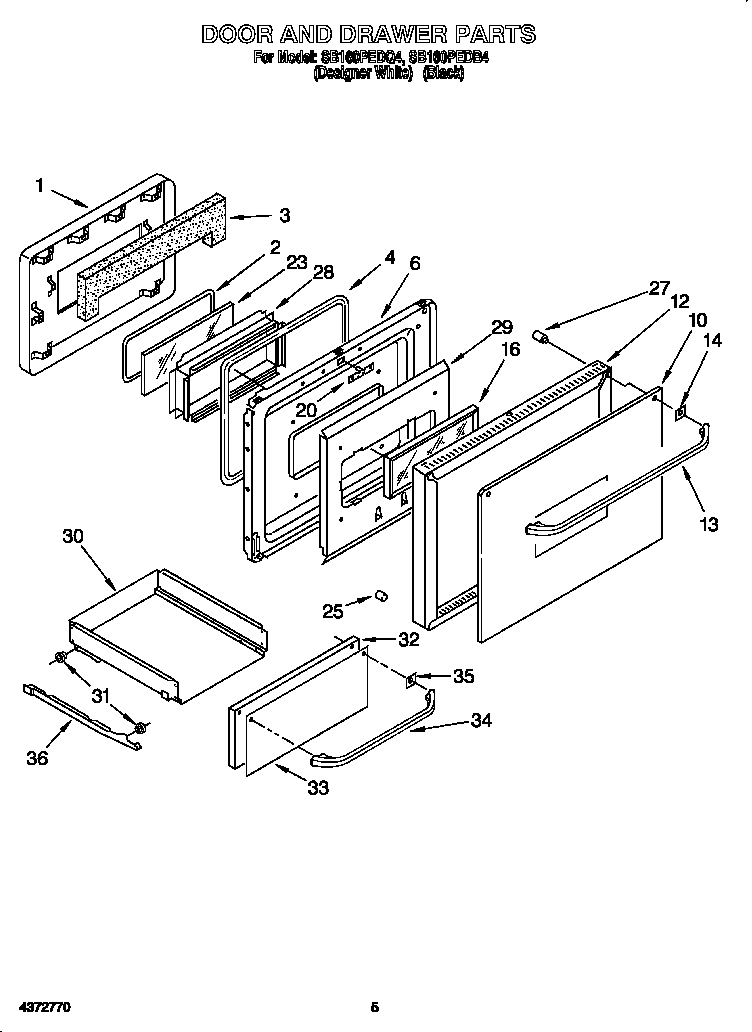

SELECT DIAGRAM
Browse Parts for SB160PEDB4 Wall Ovens

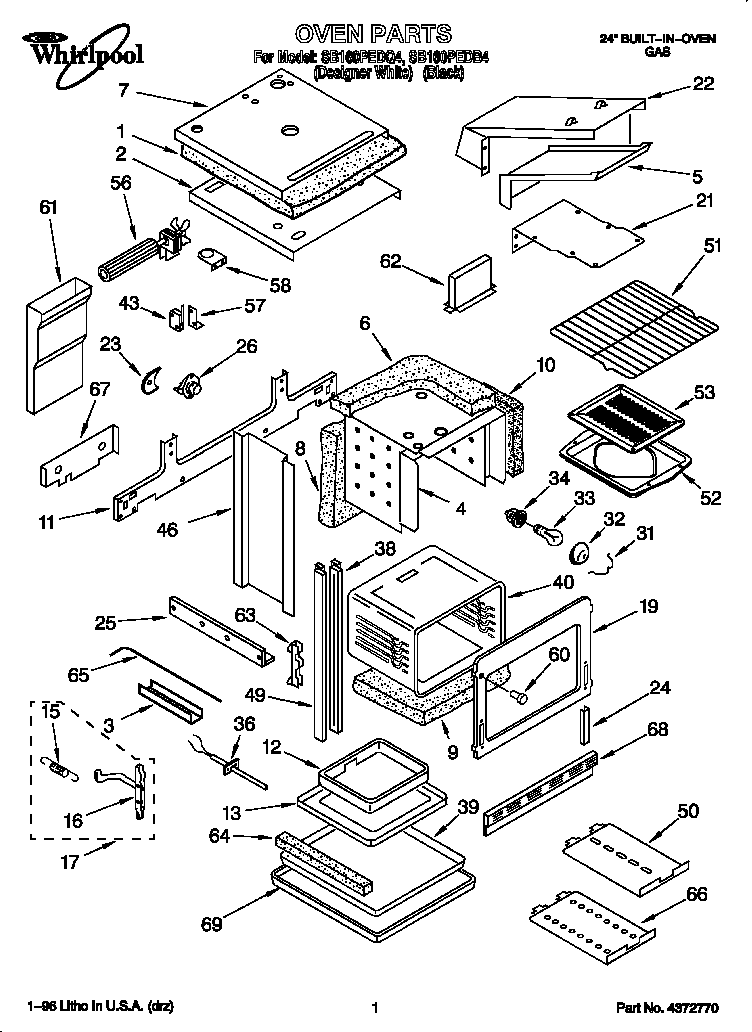

Oven diagram
Light Bulb
Part #4371303Replaced by #8009
Manufacturer substitutionThis part replaces 4371303. Substitute parts can look different from the original.In Stock$35.61
Qty
Nut
Part #816872Replaced by #W10080180
Manufacturer substitutionThis part replaces 816872. Substitute parts can look different from the original.In Stock$18.6110% OFF Phone Price : $20.61
QtyOven diagram
Screw
Part #313638Replaced by #WP488729
Manufacturer substitutionThis part replaces 313638. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9317% OFF Phone Price : $5.93QtyRange Screw
Part #308685Replaced by #WP308685
Manufacturer substitutionThis part replaces 308685. Substitute parts can look different from the original.This item is not returnableIn Stock$5.0916% OFF Phone Price : $6.09QtyButton Plug
Part #816505
The manufacturer no longer makes this part, and there's no substitute part
Burner diagram
Baffle
Part #816827
The manufacturer no longer makes this part, and there's no substitute part
Burner diagram
Oven Igniter
Part #4372534
The manufacturer no longer makes this part, and there's no substitute part

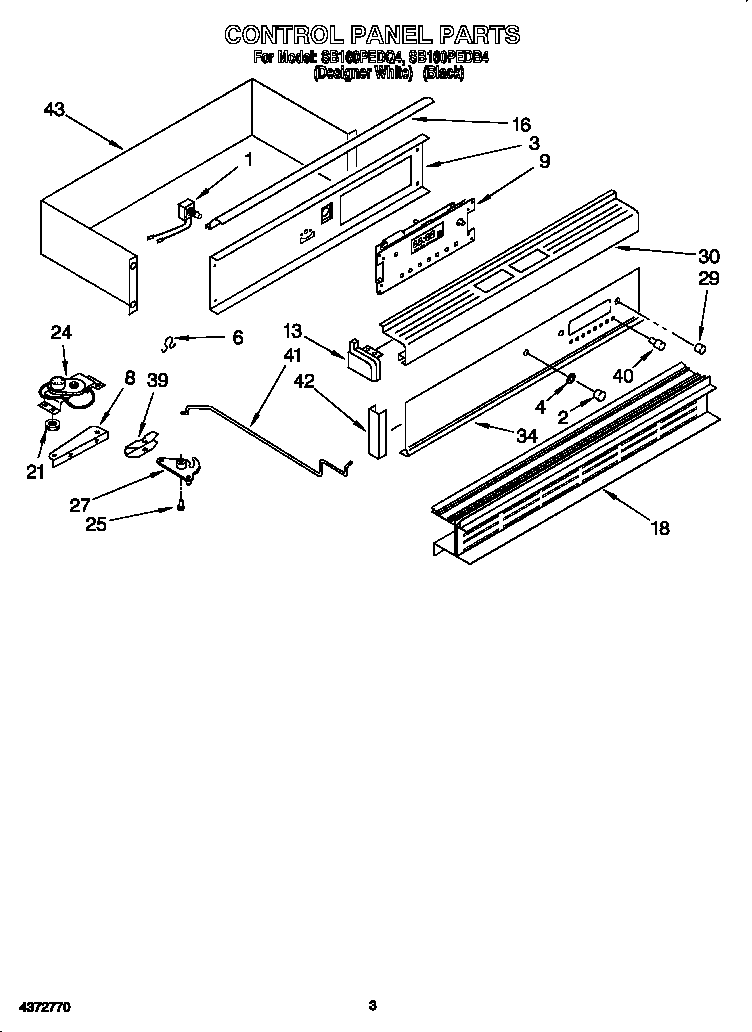

Control panel diagram
Switch Bezel
Part #4372711
The manufacturer no longer makes this part, and there's no substitute part
Control panel diagram
Panel
Part #4372712
The manufacturer no longer makes this part, and there's no substitute part
Oven diagram
Switch Bracket
Part #4372522
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your wall oven
Choose a symptom to see related wall oven repairs.
Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure…
Main causes: faulty oven temperature sensor, control system problem, weak burner igniter, damaged oven element…
Main causes: lack of gas supply, broken igniter, tripped circuit breaker, broken oven element, tripped thermal fuse, con…
Main causes: lack of electrical power, bad electronic control board, faulty oven control thermostat…
Main causes: broken broil element, faulty broil burner igniter, control system failure…
Main causes: broken bake element, bad bake burner igniter, tripped thermal switch, control system failure…
Most common repair guides to help fix your wall oven
These step-by-step repair guides will help you safely fix what’s broken on your wall oven.
How to replace the thermal switch in a wall oven
If the oven won't heat after resetting the thermal switch, replace the thermal switch.…
Repair time and Difficulty
60 minutes or less
How to replace a wall oven thermal fuse
The thermal fuse trips to prevent the over from excessively overheating. The oven won't heat again until you replace the…
Repair time and Difficulty
60 minutes or less
How to replace a wall oven door outer glass panel
Learn how to replace a damaged outer window panel on your wall oven door with these step-by-step instructions. …
Repair time and Difficulty
45 minutes or less
Effective articles & videos to help repair your wall oven
Use the advice and tips in these articles and videos to get the most out of your wall oven.
Oven looking grimy? Discover how to clean a greasy oven using safe, effective methods like baking soda and more.…
Learn how to decipher symbols so you can buy the right part for your problem.…
If your oven consistently undercooks or overcooks, it might need recalibration. You can reset it yourself.…
