Model # FPID2498SF5A Official Frigidaire dishwasher

Here are the diagrams and repair parts for Official Frigidaire FPID2498SF5A dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

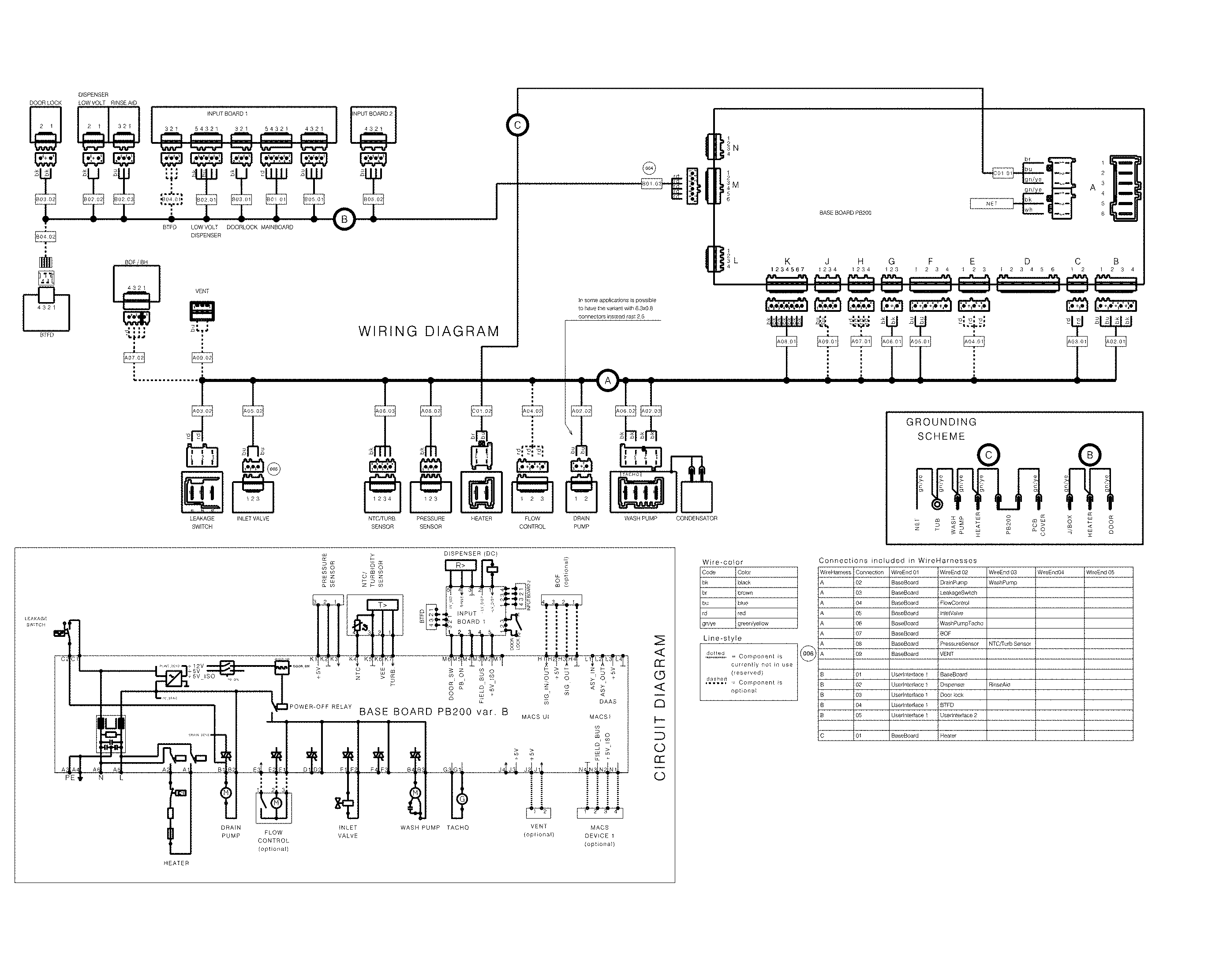

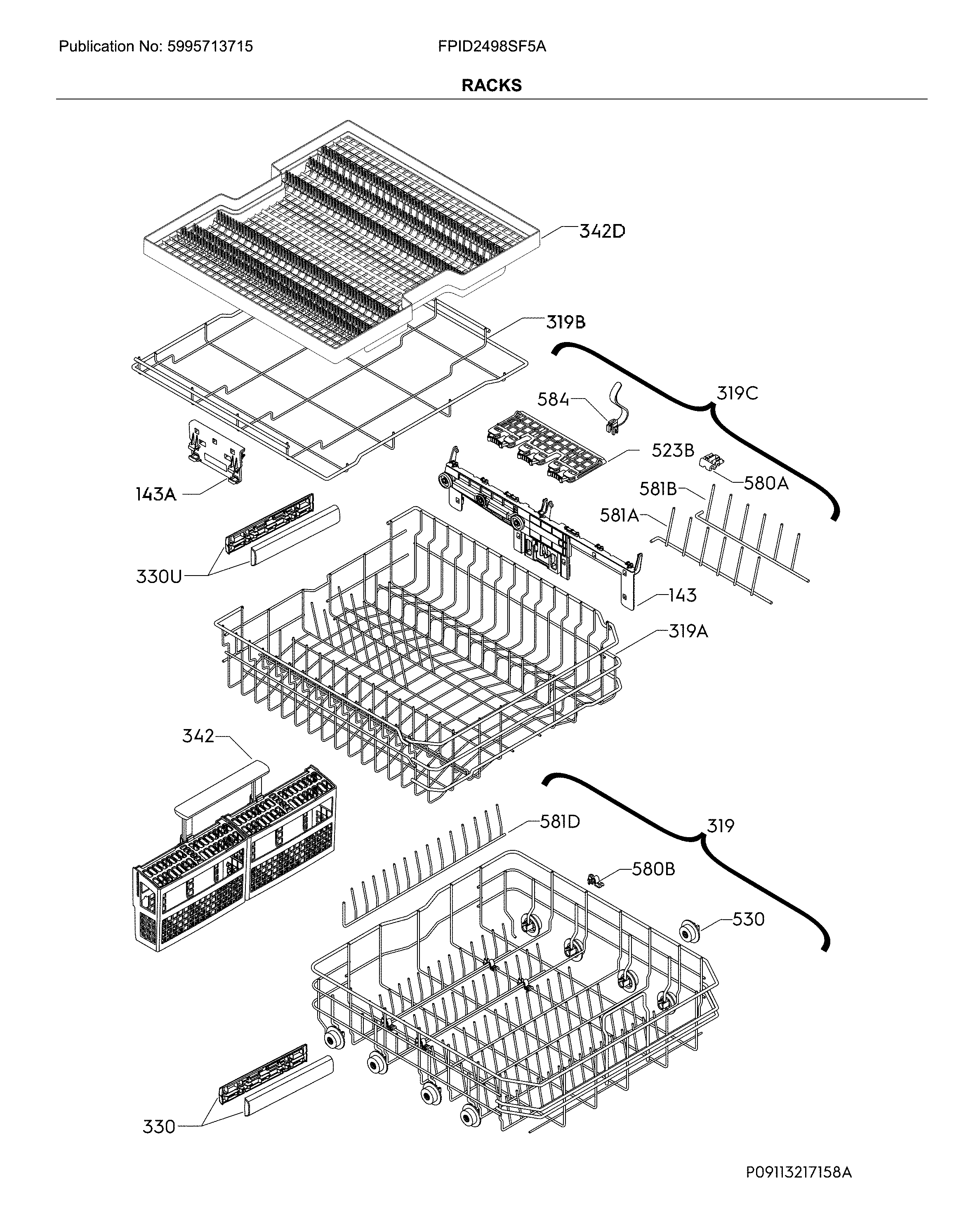

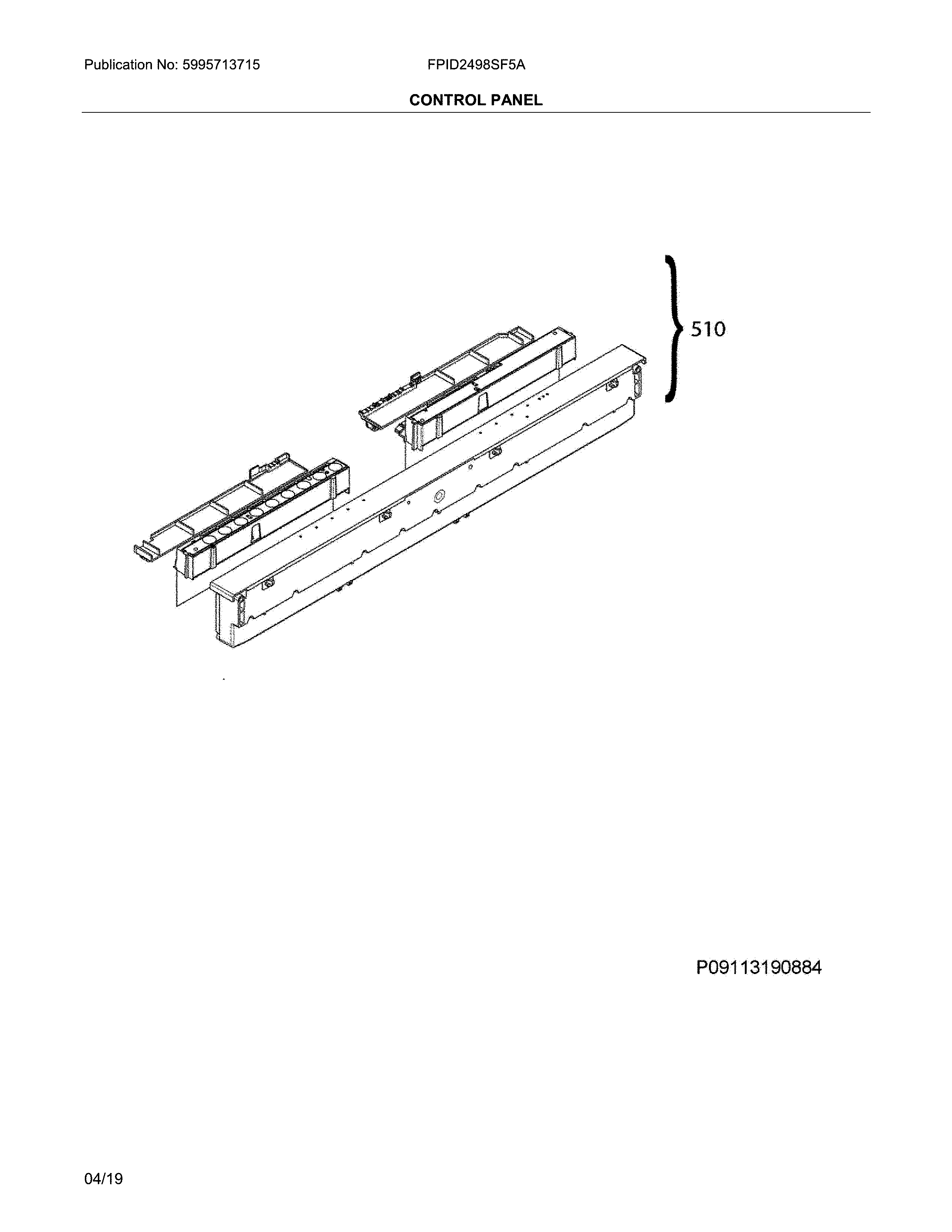

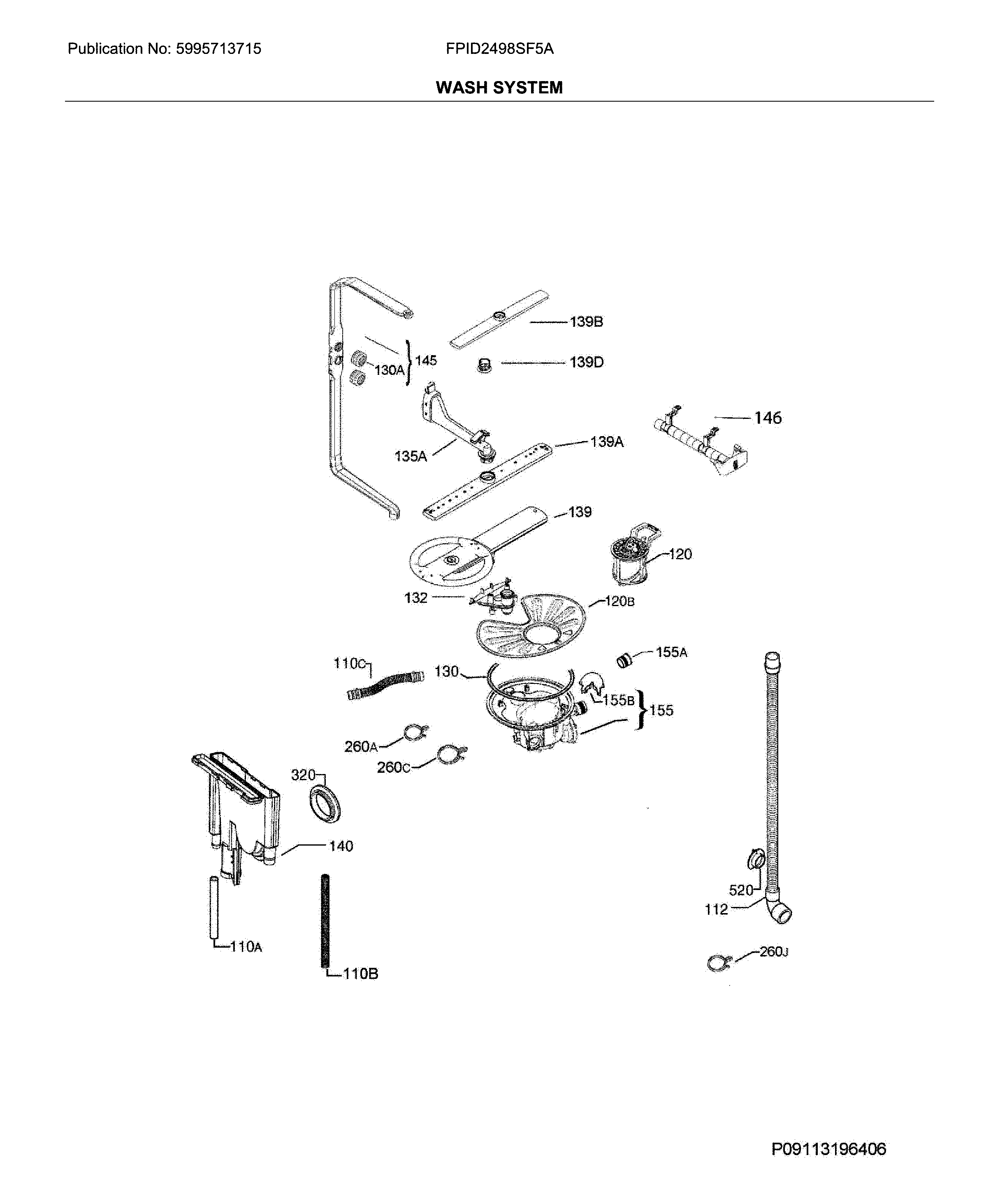

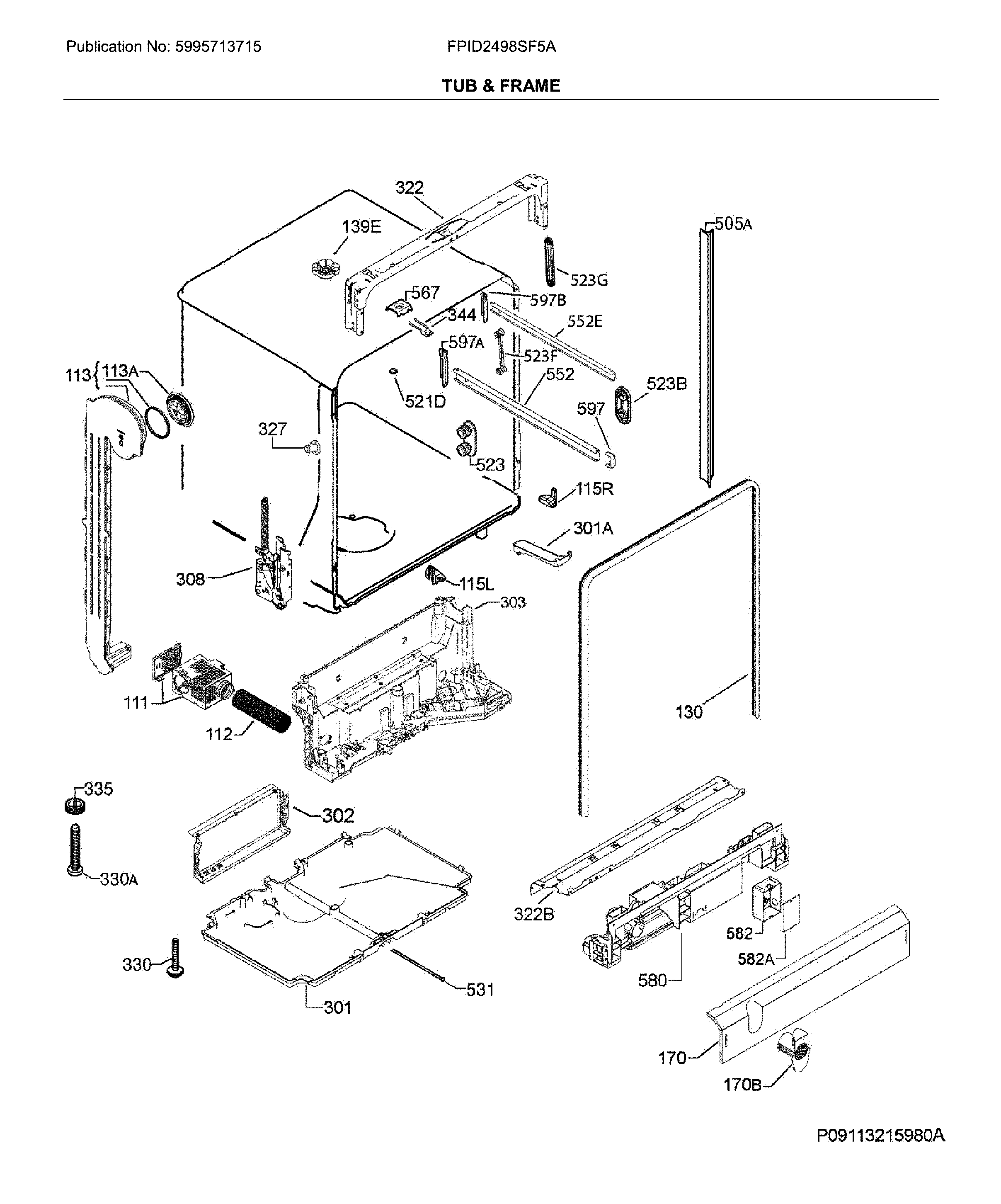

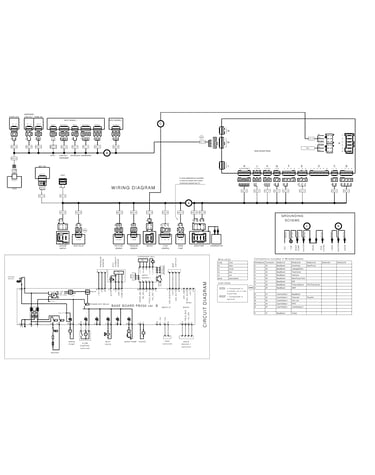

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 111 parts  |
Dishwasher Water-level Pressure Switch (replaces A00055406) A00055408
#12

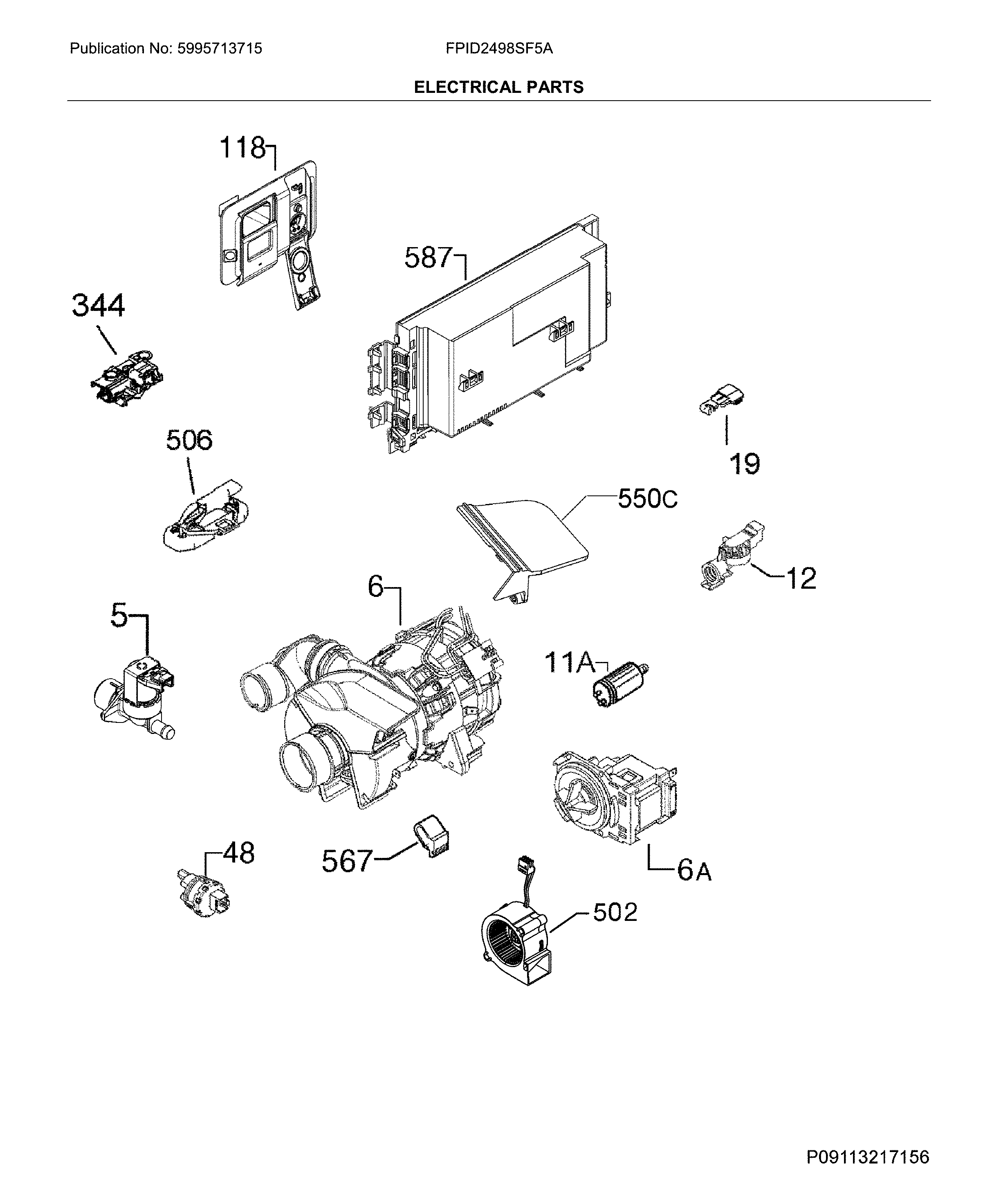

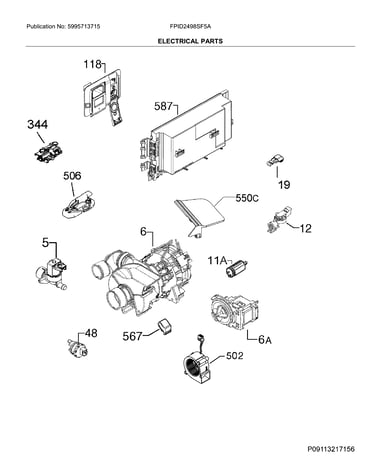

Electrical parts diagram

Dishwasher water-level pressure switch (replaces a00055406)

Part #A00055408

BEST SELLER
$54.40 |
8% OFF Phone Price : $59.40
In Stock
Dishwasher Float Switch Assembly (replaces 14000056504) A00056504
#506

Electrical parts diagram

Dishwasher float switch assembly (replaces 14000056504)

Part #A00056504

$42.56 |
11% OFF Phone Price : $47.56
In Stock
Dishwasher Turbidity Sensor A00040101
#48

Electrical parts diagram

Dishwasher turbidity sensor

Part #A00040101

Replaced by #A00040106

?
Manufacturer substitution
This part replaces A00040101. Substitute parts can look different from the original.
$47.20 |
10% OFF Was : $52.44
In Stock
Dishwasher Door Outer Panel (stainless) 117495103
#305

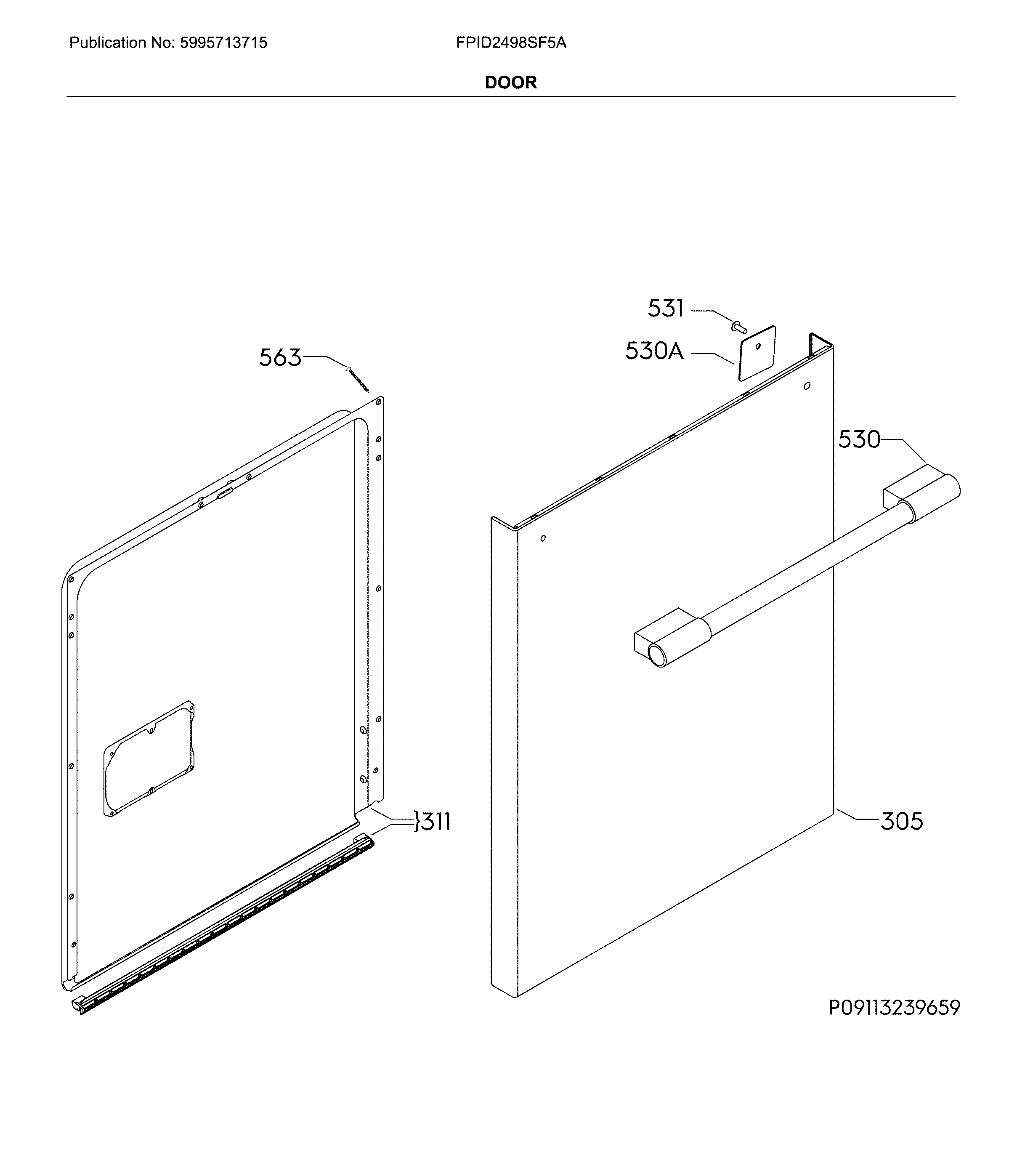

Door diagram

Dishwasher door outer panel (stainless)

Part #117495103

Replaced by #117495104

?
Manufacturer substitution
This part replaces 117495103. Substitute parts can look different from the original.
$184.75
In Stock
Dishwasher Tine Row Retainer 807282902
#580

Racks diagram

Dishwasher tine row retainer

Part #807282902

$52.91 |
9% OFF Phone Price : $57.91
In Stock
Dishwasher Dishrack Roller Kit, Lower 405507213
#530

Racks diagram

Dishwasher dishrack roller kit, lower

Part #405507213

$34.87
In Stock
Dishwasher Toe Panel Insulation 405537597
#170

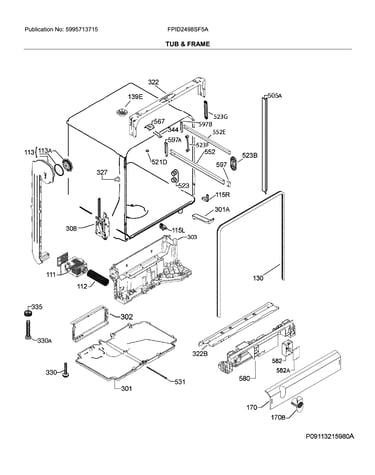

Tub & frame diagram

Dishwasher toe panel insulation

Part #405537597

$93.91 |
5% OFF Phone Price : $98.91
In Stock
Basket A02899201
#342

Racks diagram

Basket

Part #A02899201

$91.64 |
5% OFF Phone Price : $96.64
In Stock
Dishwasher Dishrack Assembly, Lower (replaces A00241307) A06629603
#319

Racks diagram

Dishwasher dishrack assembly, lower (replaces a00241307)

Part #A06629603

$198.66 |
5% OFF Phone Price : $208.66
In Stock
Box A03987801
#582

Tub & frame diagram

Box

Part #A03987801

$23.38
In Stock
