Craftsman
Wet/Dry Vacuum

Model #113178770 Official Craftsman 16-gallon wet/dry vacuum

Here are the diagrams and repair parts for Craftsman 113178770 16-gallon wet/dry vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 55 parts

Hose#26

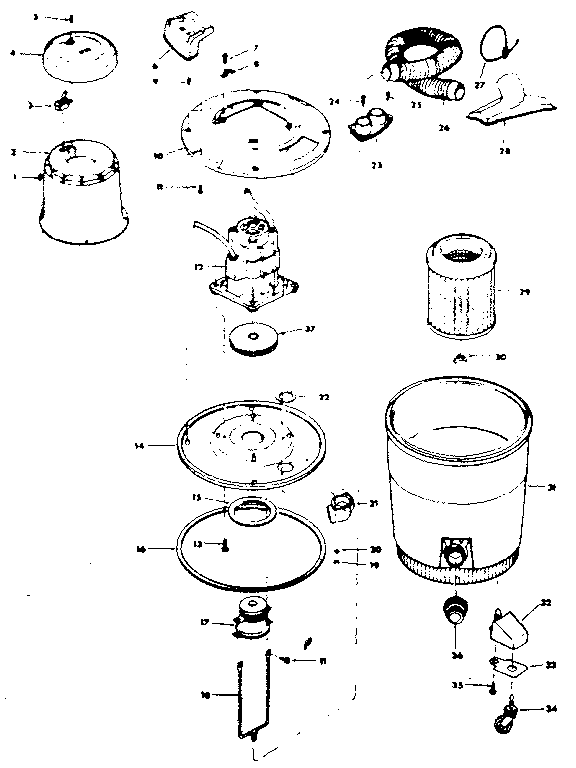

Unit Diagram

Hose

Part #73188

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Caster#34

Unit Diagram

Shop vacuum caster

Part #73102

The manufacturer no longer makes this part, and there's no substitute part

Field Assembly#8

Motor nos. 73190 & 73333 Diagram

Field assembly

Part #813189

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Drain Cap Retainer Strap#27

Unit Diagram

Shop vacuum drain cap retainer strap

Part #73166

The manufacturer no longer makes this part, and there's no substitute part

Gasket (Black)#22

Unit Diagram

Gasket (black)

Part #20866

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Drain Cap#36

Unit Diagram

Shop vacuum drain cap

Part #73185

The manufacturer no longer makes this part, and there's no substitute part

Nozzle (Black)#21

Unit Diagram

Nozzle (black)

Part #28229-01

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum On/Off Switch#3

Unit Diagram

Shop vacuum on/off switch

Part #73180

The manufacturer no longer makes this part, and there's no substitute part

Screw#24

Unit Diagram

Screw

Part #STD510810

The manufacturer no longer makes this part, and there's no substitute part

Screw#5

Unit Diagram

Screw

Part #9426108

The manufacturer no longer makes this part, and there's no substitute part
