Model #316795002 Craftsman brushcutter line trimmer

Here are the diagrams and repair parts for Craftsman 316795002 brushcutter line trimmer, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 114 parts

Bolt

#41

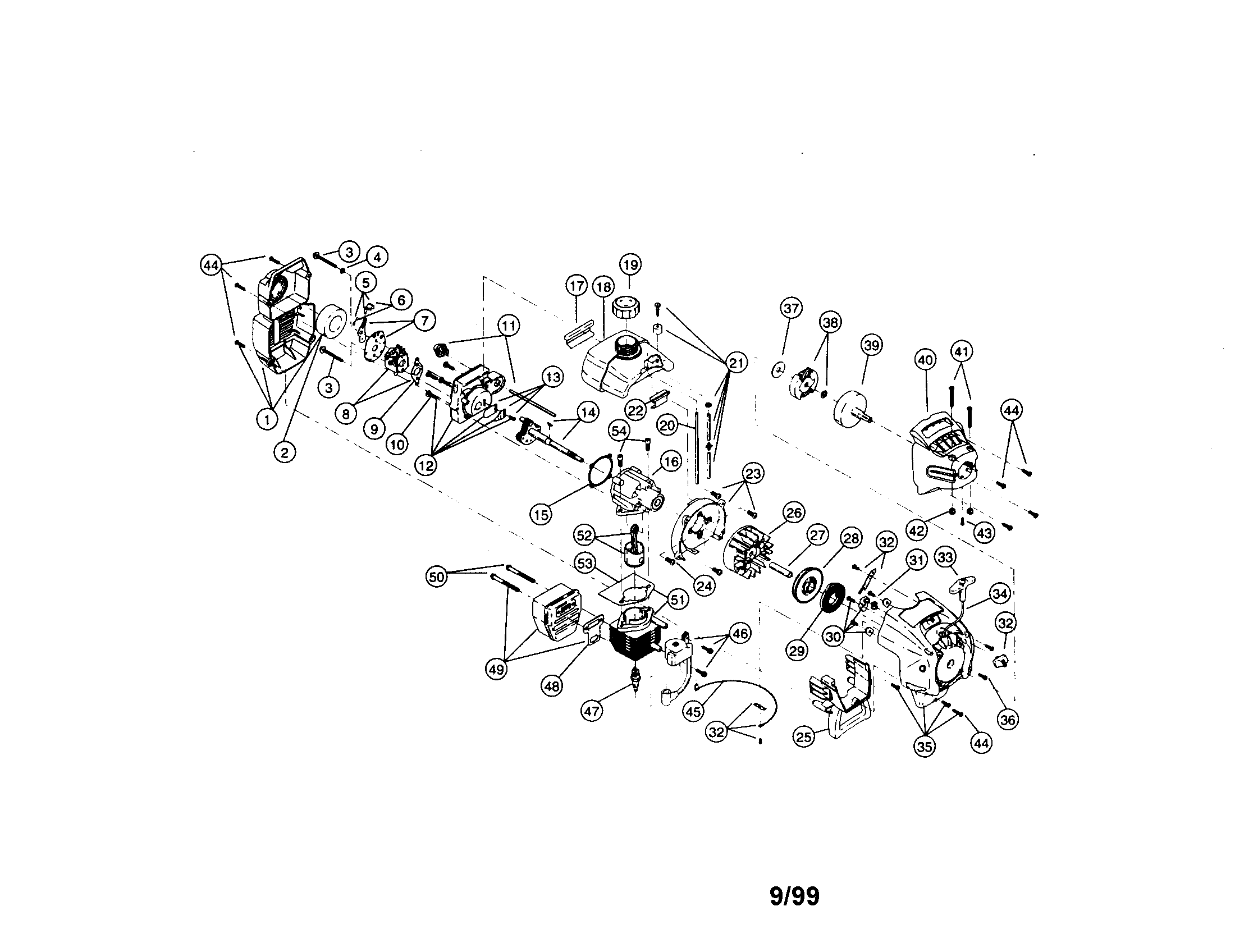

Engine Diagram

Bolt

Part #181799

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Screw

#8

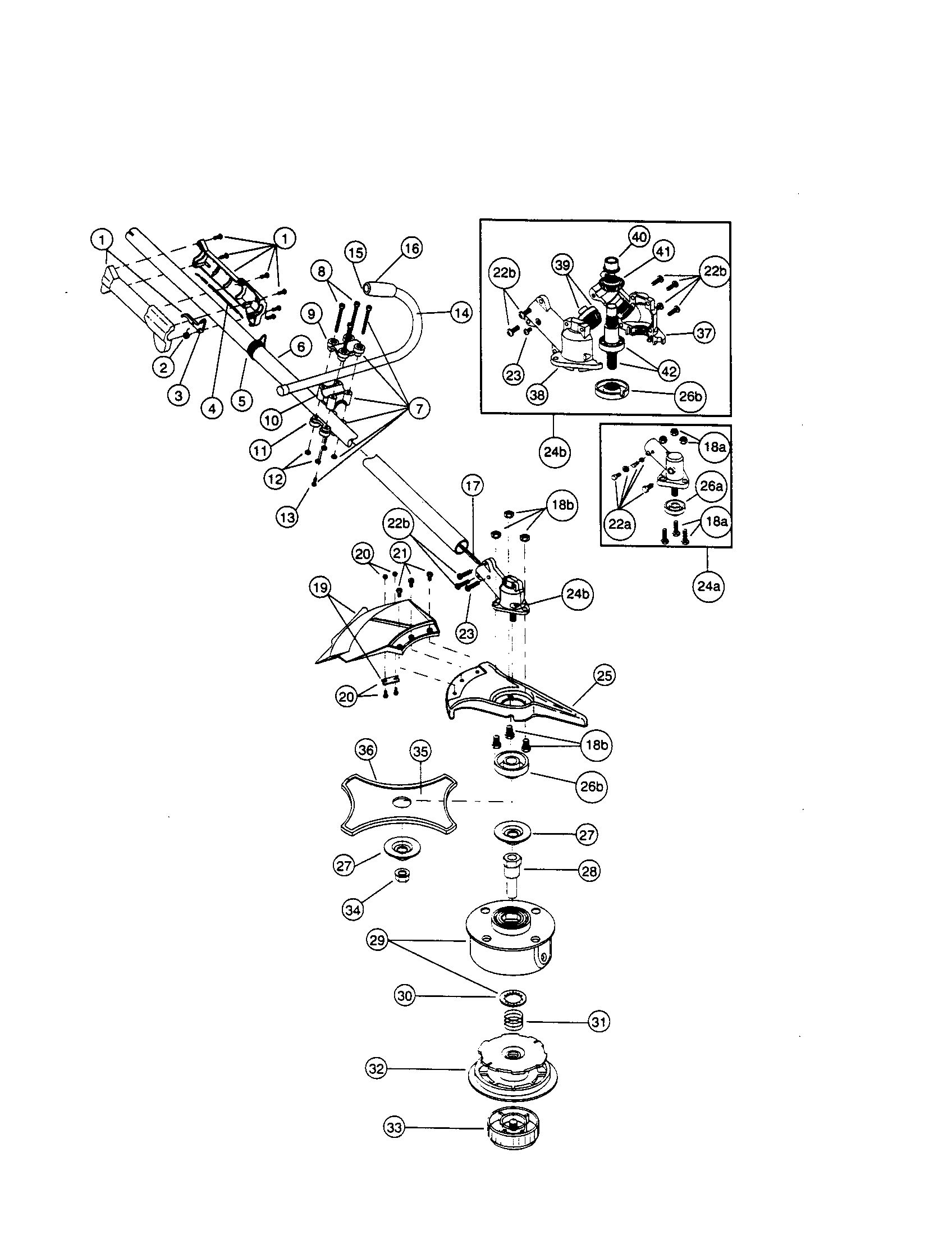

Boom Diagram

Lawn & garden equipment screw

Part #791-181811
?
Manufacturer substitution
This part replaces 181811. Substitute parts can look different from the original.
This part replaces 181811
This item is not returnable
$2.68 |
14% OFF MSRP:$3.10

In Stock

Line Trimmer Flexible Drive Shaft

#17

Boom Diagram

Line trimmer flexible drive shaft

Part #791-181817
?
Manufacturer substitution
This part replaces 181817. Substitute parts can look different from the original.
This part replaces 181817
$47.82 |
19% OFF MSRP:$59.00

In Stock

Shblk:31cc:c

#NI

All parts Diagram

Shblk:31cc:c

Part #791-00039
?
Manufacturer substitution
This part replaces 181623. Substitute parts can look different from the original.
This part replaces 181623
$112.30

In Stock

Line Trimmer Gearbox

#24B

Boom Diagram

Line trimmer gearbox

Part #791-182193
?
Manufacturer substitution
This part replaces 182193. Substitute parts can look different from the original.
This part replaces 182193
$66.42 |
9% OFF MSRP:$73.00

In Stock

Line Trimmer Gear

#39

Boom Diagram

Line trimmer gear

Part #791-182194
?
Manufacturer substitution
This part replaces 182194. Substitute parts can look different from the original.
This part replaces 182194
$21.48

In Stock

Gear

#41

Boom Diagram

Gear

Part #791-182198
?
Manufacturer substitution
This part replaces 182198. Substitute parts can look different from the original.
This part replaces 182198
$10.48

In Stock

Line Trimmer Retainer Ring

#30

Boom Diagram

Line trimmer retainer ring

Part #791-612026
?
Manufacturer substitution
This part replaces 612026. Substitute parts can look different from the original.
This part replaces 612026
This item is not returnable
$3.79 |
23% OFF MSRP:$4.90

In Stock

Lawn & Garden Equipment Engine Carburetor Mount Gasket

#15

Engine Diagram

Lawn & garden equipment engine carburetor mount gasket

Part #753-1208
?
Manufacturer substitution
This part replaces 612115. Substitute parts can look different from the original.
This part replaces 612115
$11.63

In Stock

Line Trimmer Cutting Shield

#19

Boom Diagram

Line trimmer cutting shield

Part #791-180387
?
Manufacturer substitution
This part replaces 180387. Substitute parts can look different from the original.
This part replaces 180387
$39.83 |
9% OFF MSRP:$44.00

In Stock
