Frigidaire FGSS2635TFA side-by-side refrigerator Parts

On the Frigidaire FGSS2635TFA side-by-side refrigerator, we level the cabinet first using the front rollers, then fine-tune door height at the adjustable lower hinge so both doors align and seal. The cabinet should sit solid on all four corners and tilt about 1/4 inch (6 mm) front-to-back for proper closing.

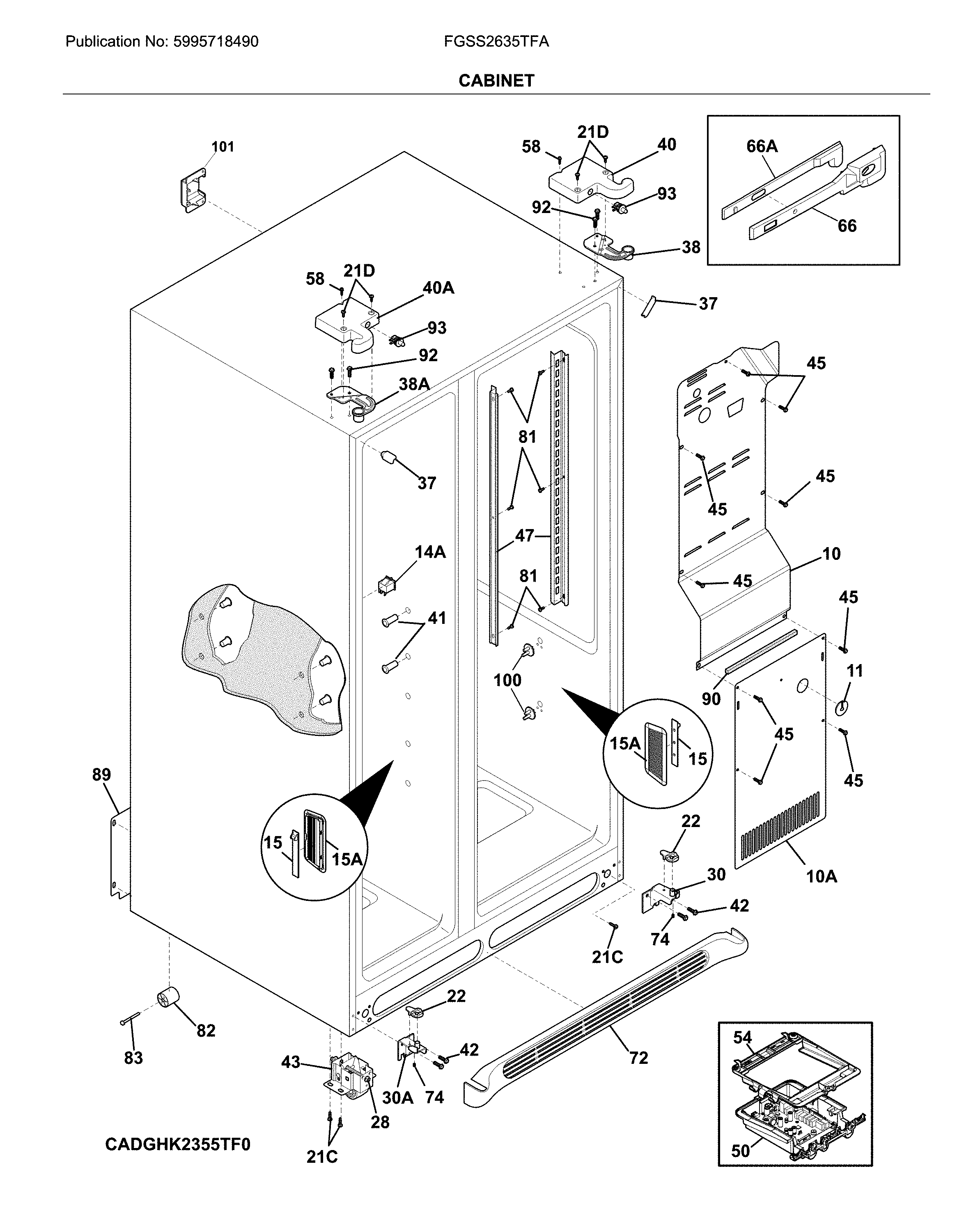

Step-by-step: level the cabinet (front rollers)

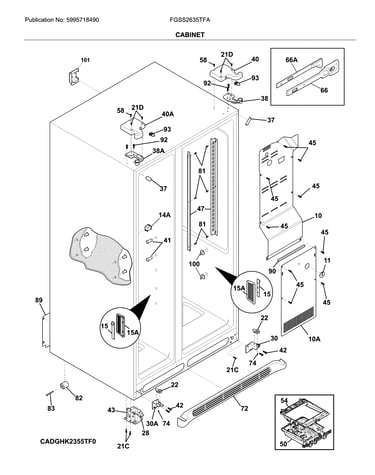

1. Open both doors and remove the toe grille (it clips over the lower hinges).
2. Close both doors.
3. Use a flat-blade screwdriver or a 3/8-inch socket wrench to raise or lower the front rollers.
4. Recheck that both doors move freely and the seals touch the cabinet on all sides.

Quick checks we use while adjusting:

• All four cabinet corners rest firmly on the floor
• Refrigerator is level side-to-side
• Refrigerator tilts about 1/4 inch (6 mm) front-to-back
• Doors close without “springing” back open
• Door gaskets contact the cabinet evenly

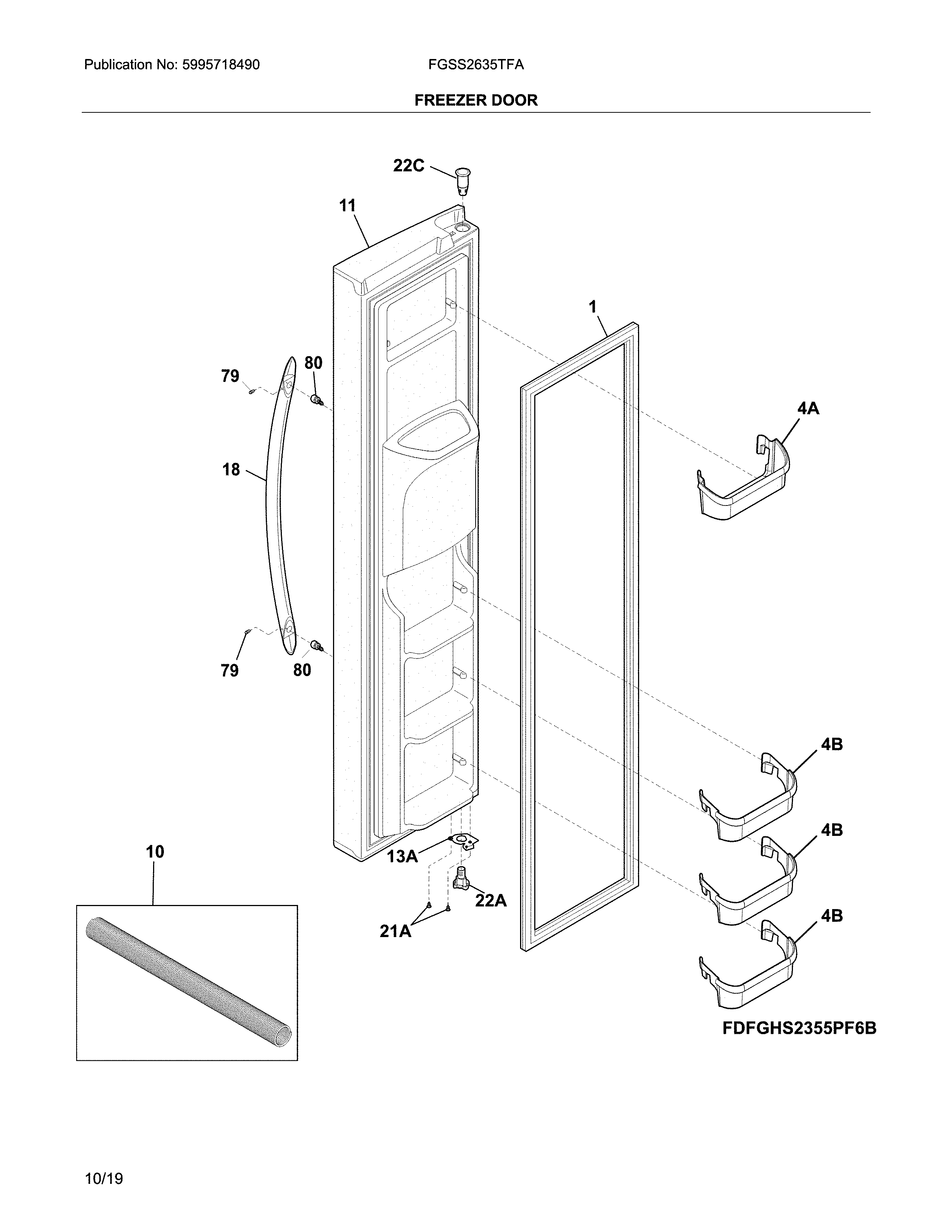

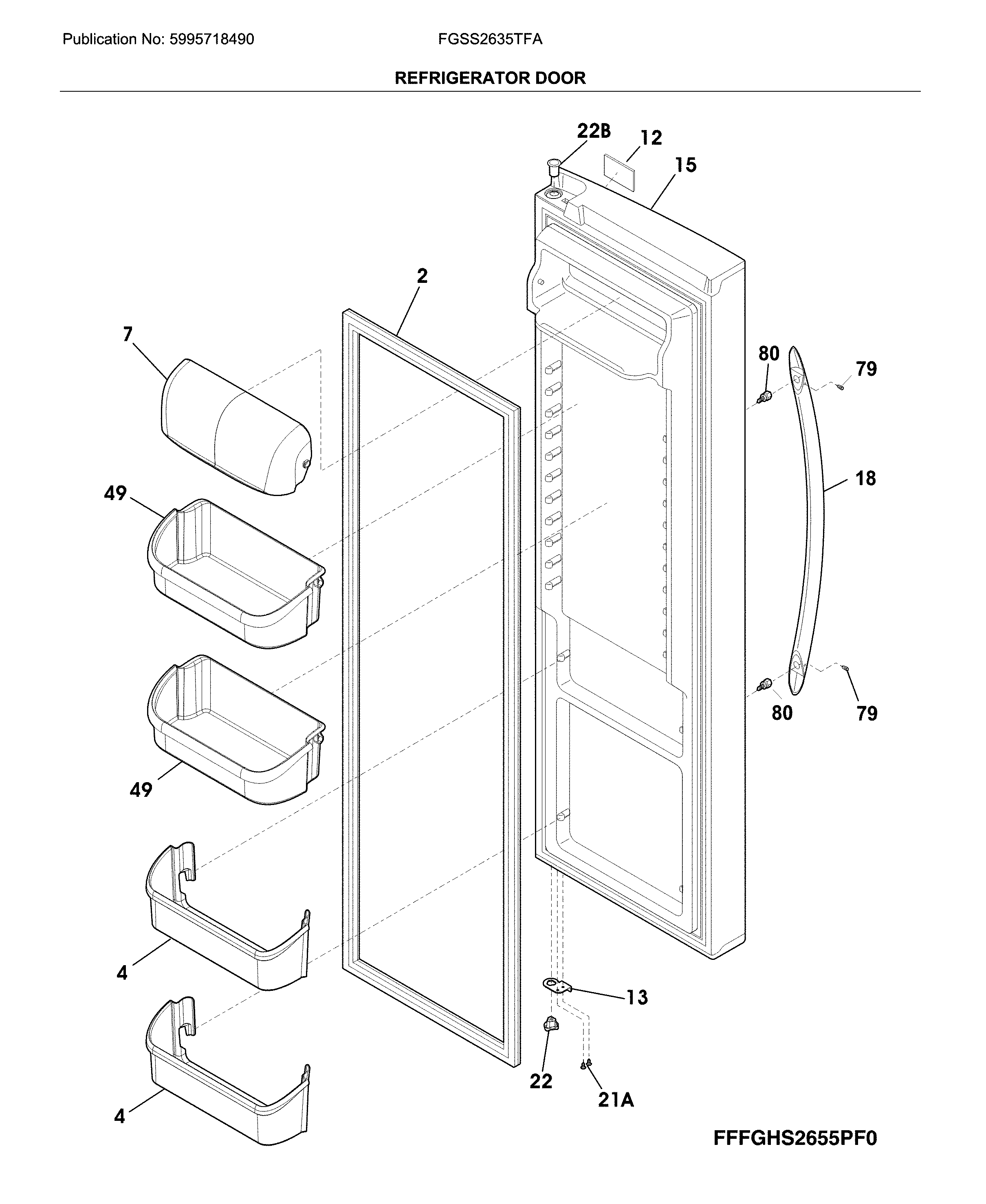

Step-by-step: level the doors (adjustable lower hinge)

Some FGSS2635TFA units use an adjustable lower hinge with a set screw.

• Remove the set screw that locks the door height (the door will not adjust correctly until it is removed).
• If the refrigerator door sits lower than the freezer door, raise the refrigerator door by turning the adjustment screw clockwise with a 7/16-inch wrench.
• If the freezer door sits lower than the refrigerator door, raise the freezer door by turning the adjustment screw clockwise with a 7/16-inch wrench.
• After adjustment, confirm the door stop contacts the lower hinge and the top of the door does not hit the upper hinge area.

What “level” should look like

What to check	What you want to see
Cabinet stance	Solid on all corners, no rocking
Side-to-side	Level
Front-to-back	About 1/4 inch (6 mm) tilt back
Door alignment	Door tops even, seals fully contact

Why it matters

When the cabinet is slightly tilted back and the doors are aligned, the door gaskets seal consistently. That helps prevent warm air leaks, frost buildup, temperature swings, and extra compressor run time.

For the exact toe grille removal and leveling illustrations for FGSS2635TFA, follow the installation guide.

Last updated: January 2026

The most common Frigidaire refrigerator issues are cooling and ice maker or water dispenser problems. On the Frigidaire FGSS2635TFA side-by-side refrigerator, many “common” complaints trace back to airflow restrictions, a clogged filter, or a water supply problem that prevents the ice maker from filling correctly (or slows water dispensing). See the FGSS2635TFA owner's manual for model-specific checks and control settings.

Most common symptoms we see (and what usually causes them)

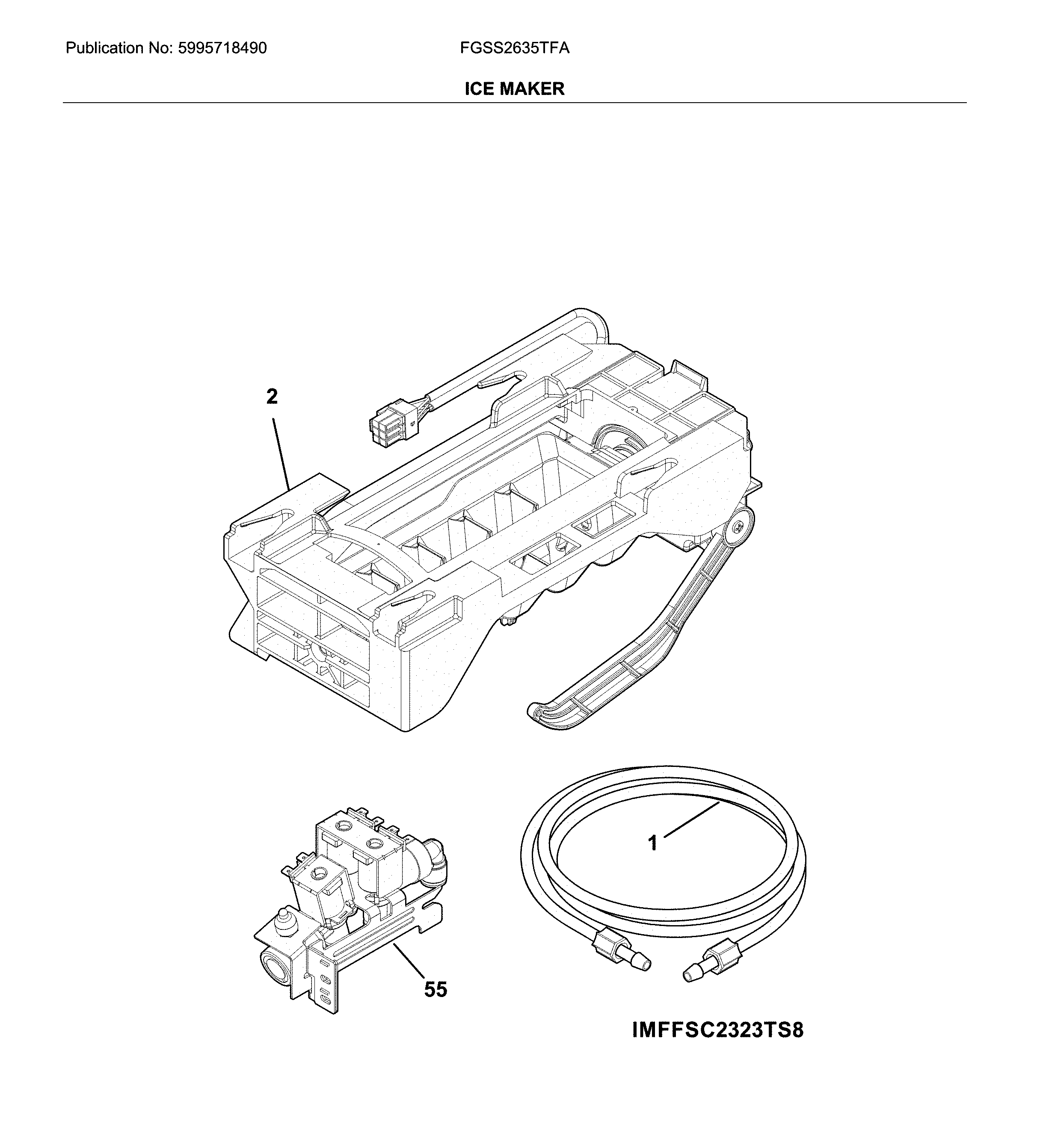

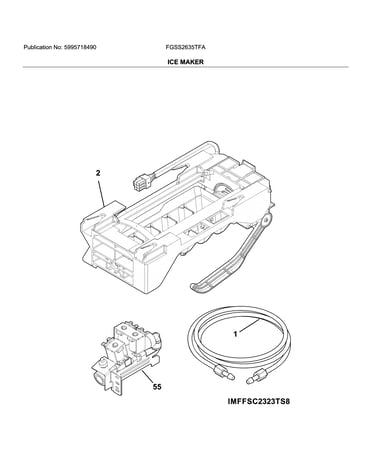

• Not making ice or slow ice production: ice maker turned off, water valve closed, kinked supply line, filter not seated, or filter clogged.
• Small or hollow cubes: restricted water flow (often a clogged filter or partially closed valve).

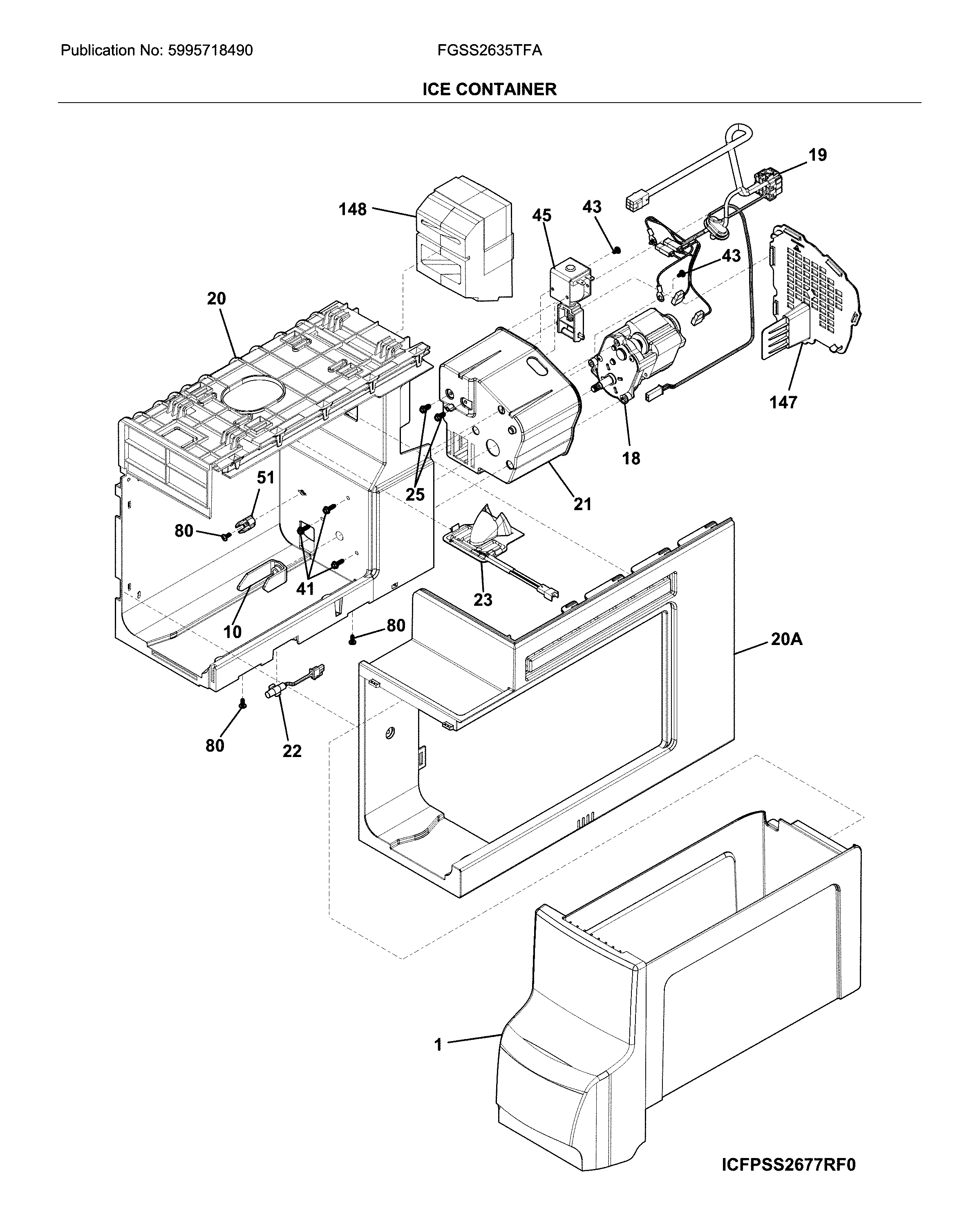

• Ice clumping or freezing together: infrequent use, power outage, temperature swings, or hollow cubes leaking water into the bin.
• Refrigerator “runs all the time”: many models use a variable-speed compressor designed to run nearly continuously except during defrost.
• Moisture inside the cabinet: door slightly open or frequent door openings, especially in humid weather.

Quick checks to try first (FGSS2635TFA)

1. Confirm the ice maker is ON (many Frigidaire units use an ON-OFF button you hold for about 3 seconds).
2. Verify the household water valve is fully open and the water line is not kinked.
3. Reseat or replace the water filter if water flow is slow or the filter is about 6 months old.
4. Make sure both doors close tightly and the gaskets seal all the way around.
5. If the temperature display is flashing, follow the troubleshooting guidance in the manual.

Common causes and best next step

Symptom	Most likely cause	Best next step
No ice	Water supply or filter issue	Replace/seat filter; check valve and line
Hollow cubes	Restricted water flow	Replace filter; check for kinks
Ice clumps	Infrequent use or hollow cubes	Dump bin; use ice regularly
Runs a lot	Normal variable-speed operation	Monitor temps; allow 24 hours after changes

Parts that often solve “common” problems

• If odors are the issue, replace the refrigerator air filter EAFCBF.
• If water taste, flow, or ice quality is the issue, replace the refrigerator water filter and filter cap EPTWFU01.

Why it matters

Most “common problems” are really performance symptoms. Fixing airflow, sealing, and water supply issues early helps protect food temperatures, improves ice production, and reduces unnecessary compressor run time.

Last updated: January 2026

Most Frigidaire side-by-side refrigerators, including model FGSS2635TFA, do not use a traditional mechanical defrost timer; defrost is typically controlled by an electronic control board. For model-specific access points and service-safe steps, follow the FGSS2635TFA owner's manual.

What you will find instead of a defrost timer

On electronic-defrost Frigidaire side-by-sides, the “timer” function is handled by controls and sensors that decide when to run defrost.

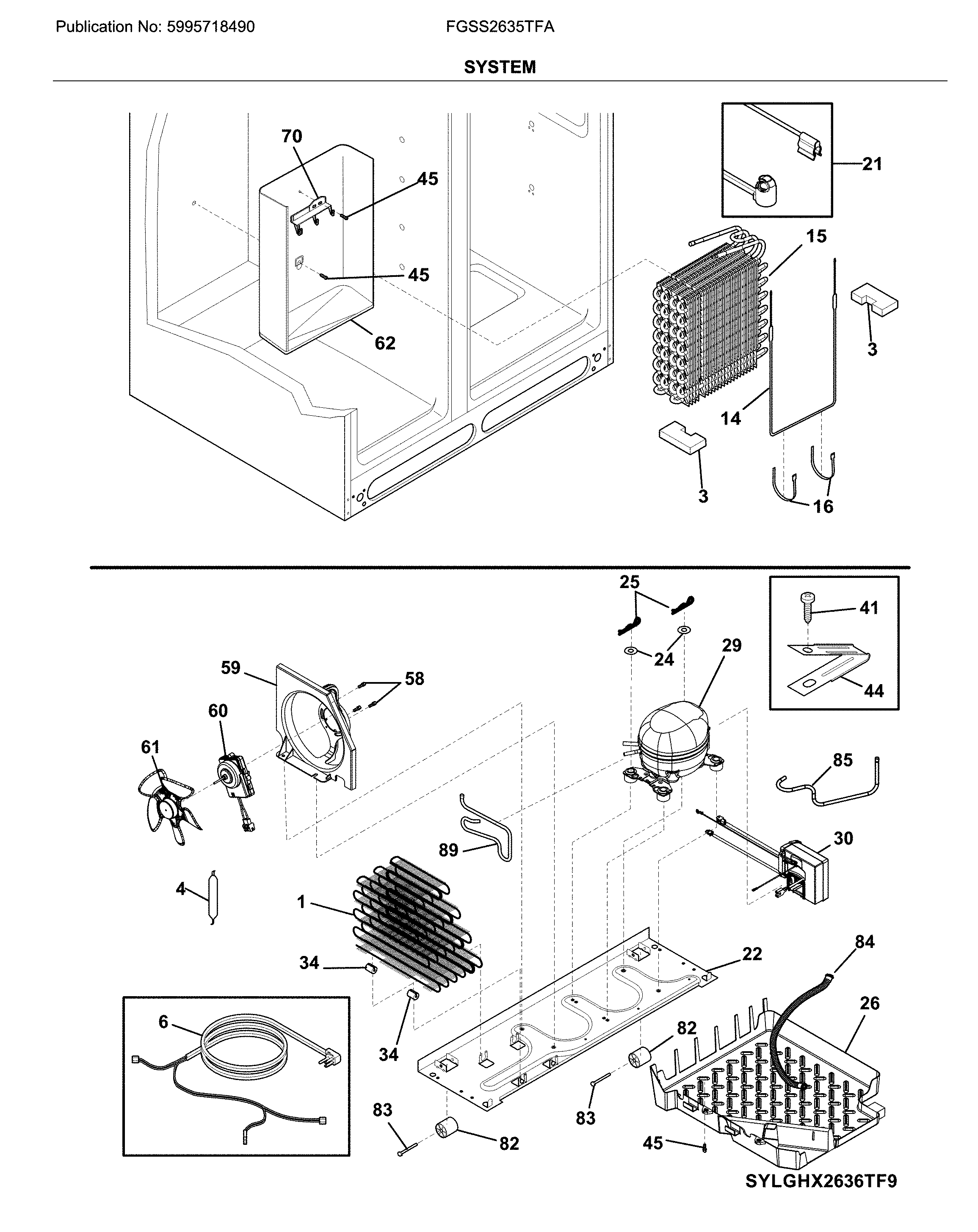

Common components involved:

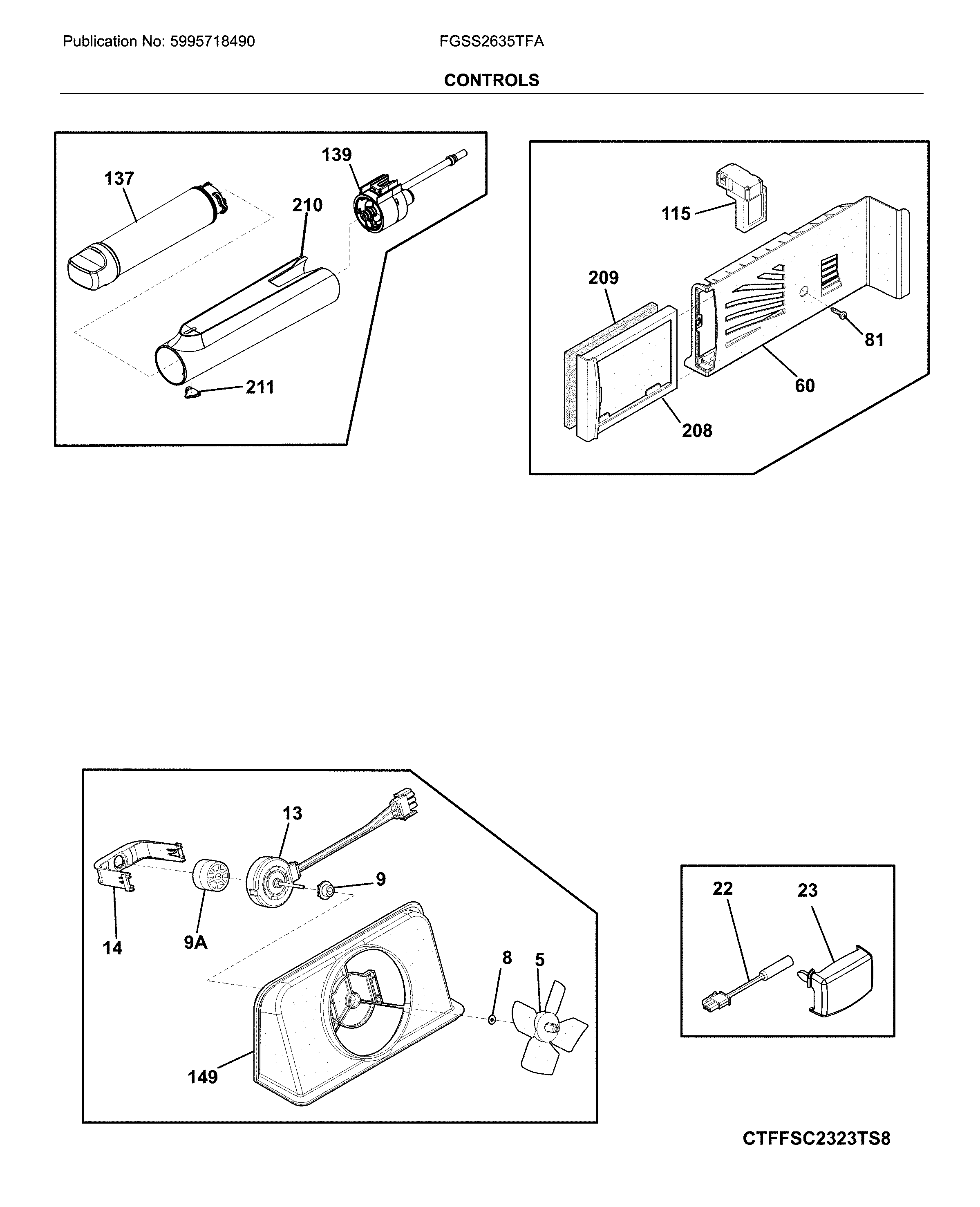

• Main power control board (manages defrost logic)
• Temperature sensors (thermistors) that report cabinet/evaporator temps
• Defrost heater and defrost thermostat (or sensor, depending on design)
• Evaporator fan (moves cold air; symptoms can look like defrost trouble)

Where to check on the refrigerator

Even without a timer, customers usually ask this question because of frost buildup or warm temperatures. These checks help you narrow it down:

• Look for heavy frost on the freezer back wall (often points to a defrost system issue)
• Listen for the evaporator fan running when the compressor is on
• Confirm doors seal tightly and close fully
• Verify the temperature settings are in a normal range
• Check for blocked air vents from overpacked shelves

Quick symptom guide

Symptom	Most likely area to check first	What it can mean
Frost sheet on freezer rear panel	Defrost system	Defrost heater/control issue causing ice buildup
Freezer cold, fresh food warm	Airflow/evaporator fan	Cold air not moving to refrigerator side
Clicking, then no cooling	Compressor start/control	Not a defrost timer problem
Intermittent cooling, odd display behavior	User interface/control	Electronic control issue

Parts that commonly relate to “defrost timer” complaints

If you are troubleshooting airflow and icing symptoms on FGSS2635TFA, these model-matched parts are often involved:

• Refrigerator temperature sensor 240597220 (sensor input affects defrost and temperature control)
• Frigidaire refrigerator evaporator fan motor 809069206 (failed fan can mimic defrost failure)

Why it matters

Replacing a “defrost timer” on an electronic-defrost refrigerator wastes time and money because the real cause is usually a sensor, fan, or control issue. A few targeted checks can prevent unnecessary parts replacement.

Last updated: January 2026
