Jenn-Air JES9860BCB electric slide-in range Parts
Here are the diagrams and repair parts for Jenn-Air JES9860BCB electric slide-in range, as well as links to manuals and error code tables, if available.
Error Codes

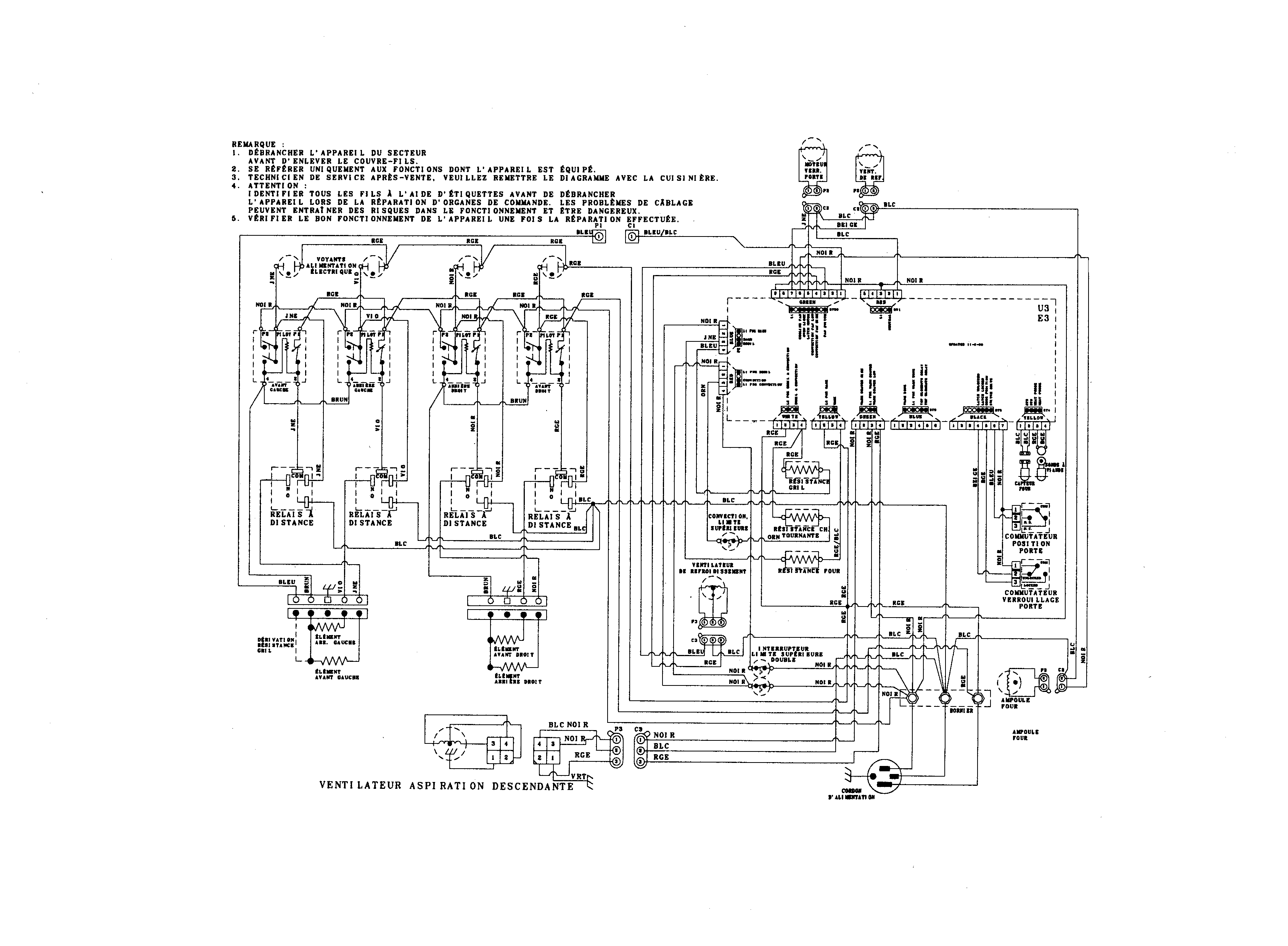

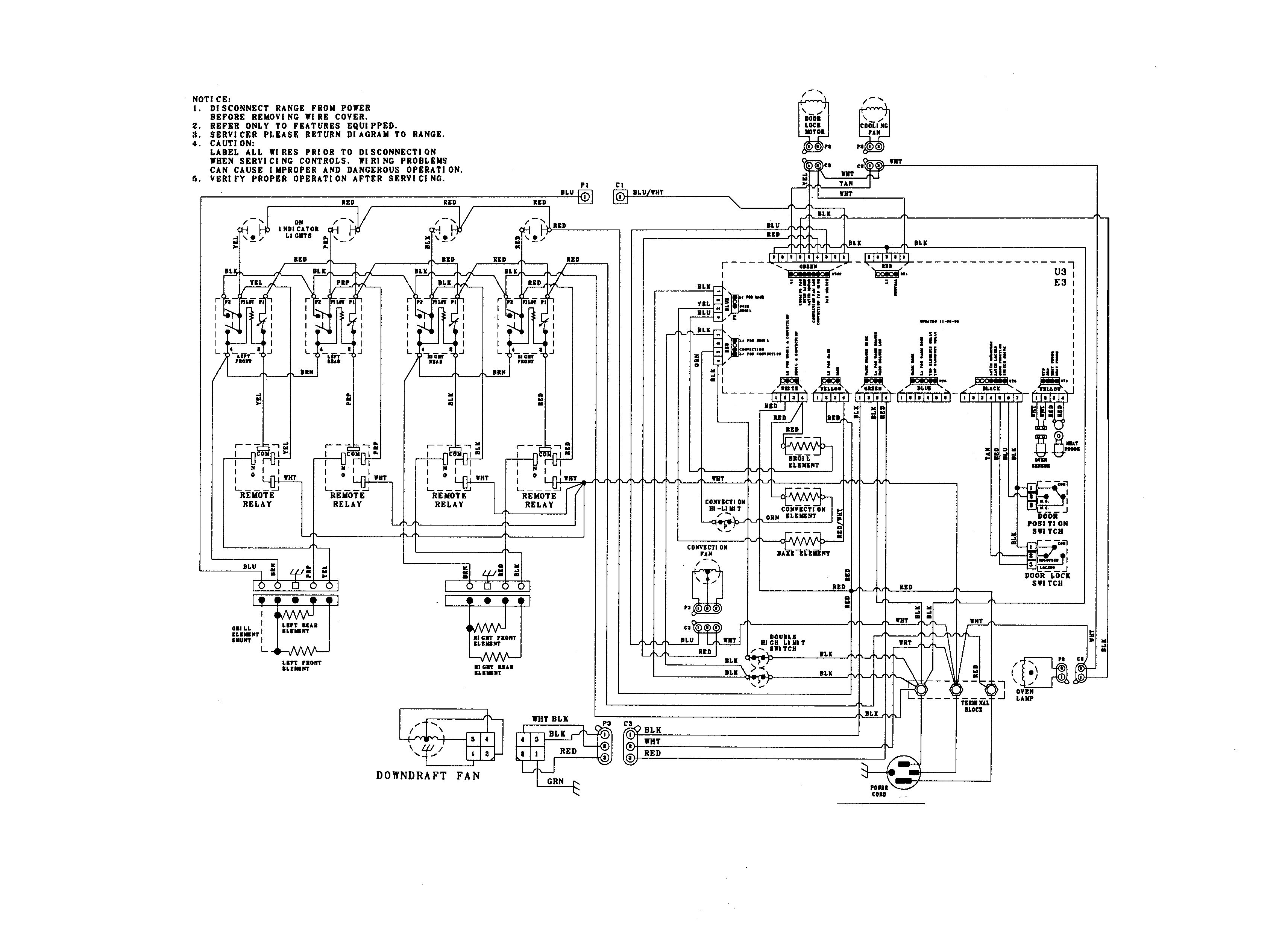

By Schematic
By Part
SELECT DIAGRAM

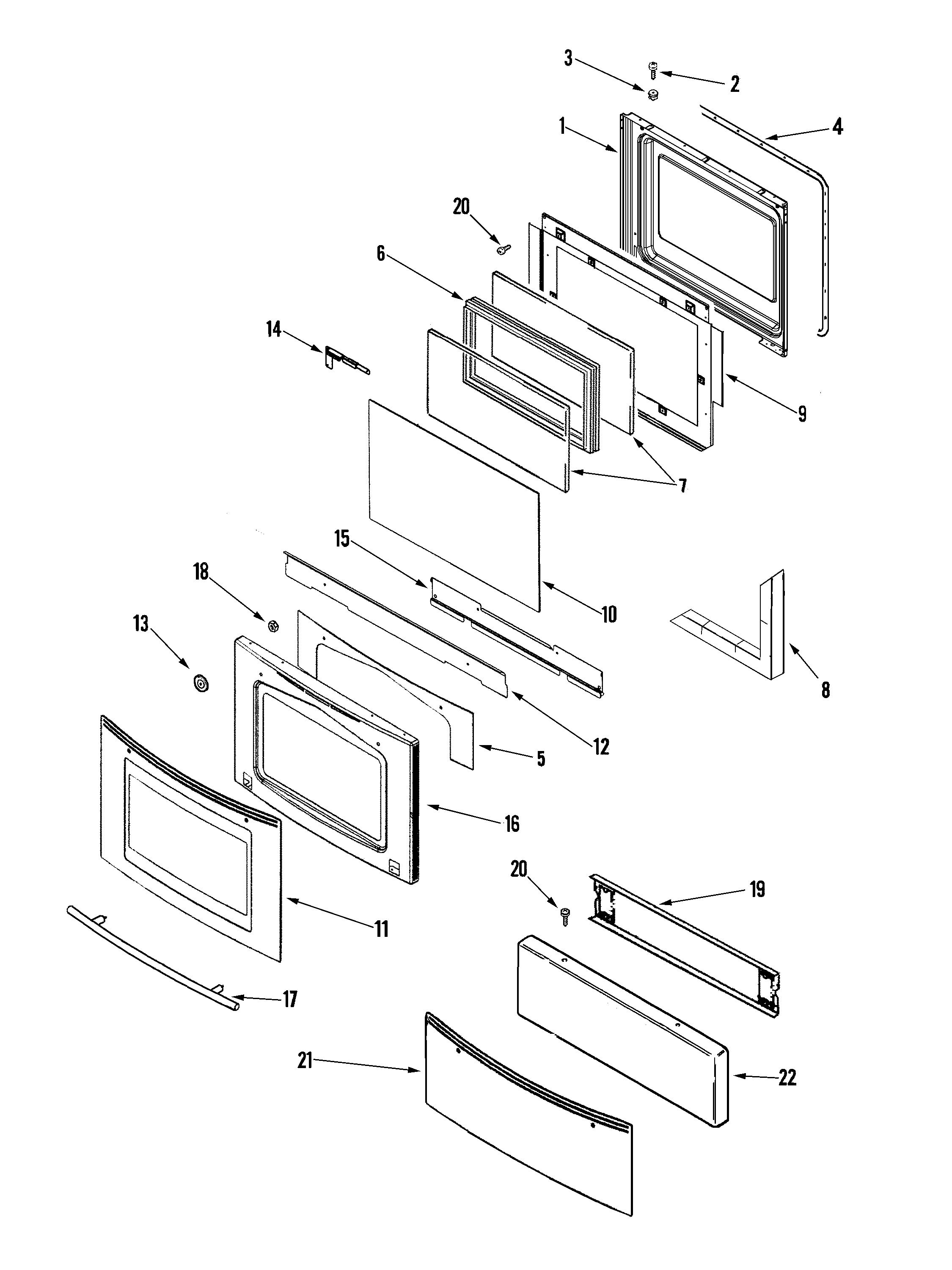

Browse Parts for JES9860BCB Ranges

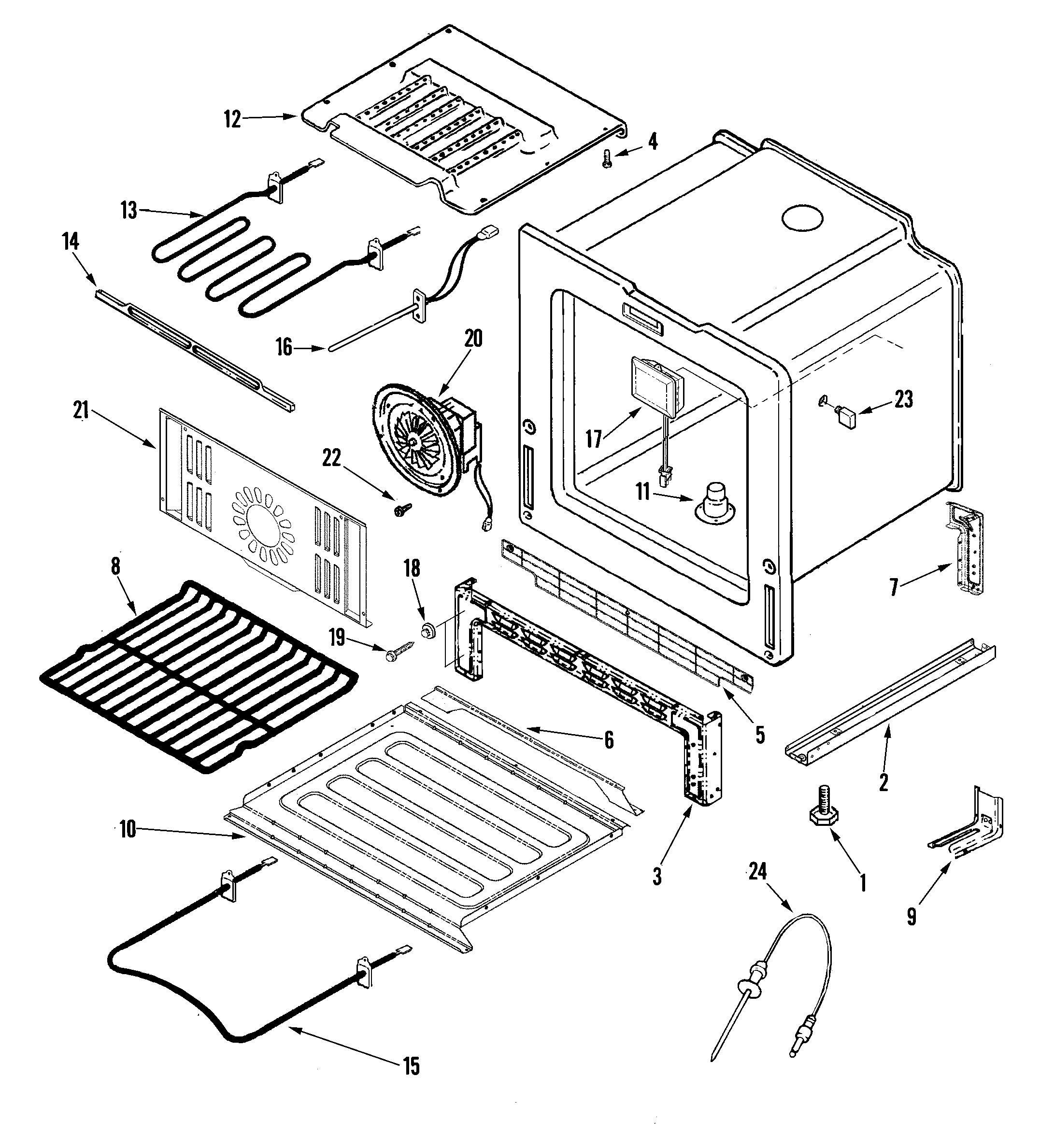

Oven/base diagram
Oven Sensor
Part #74004943Replaced by #12001656
Manufacturer substitutionThis part replaces 74004943. Substitute parts can look different from the original.In Stock$22.6421% OFF Phone Price : $28.64
Qty
Oven Door Handle
Part #74008625Replaced by #WP74008625
Manufacturer substitutionThis part replaces 74008625. Substitute parts can look different from the original.In Stock$185.35QtyBody diagram
Insulation
Part #74011480Replaced by #7002P466-60
Manufacturer substitutionThis part replaces 74011480. Substitute parts can look different from the original.In Stock$163.42QtyRange Push Nut
Part #74001574Replaced by #WP74001574

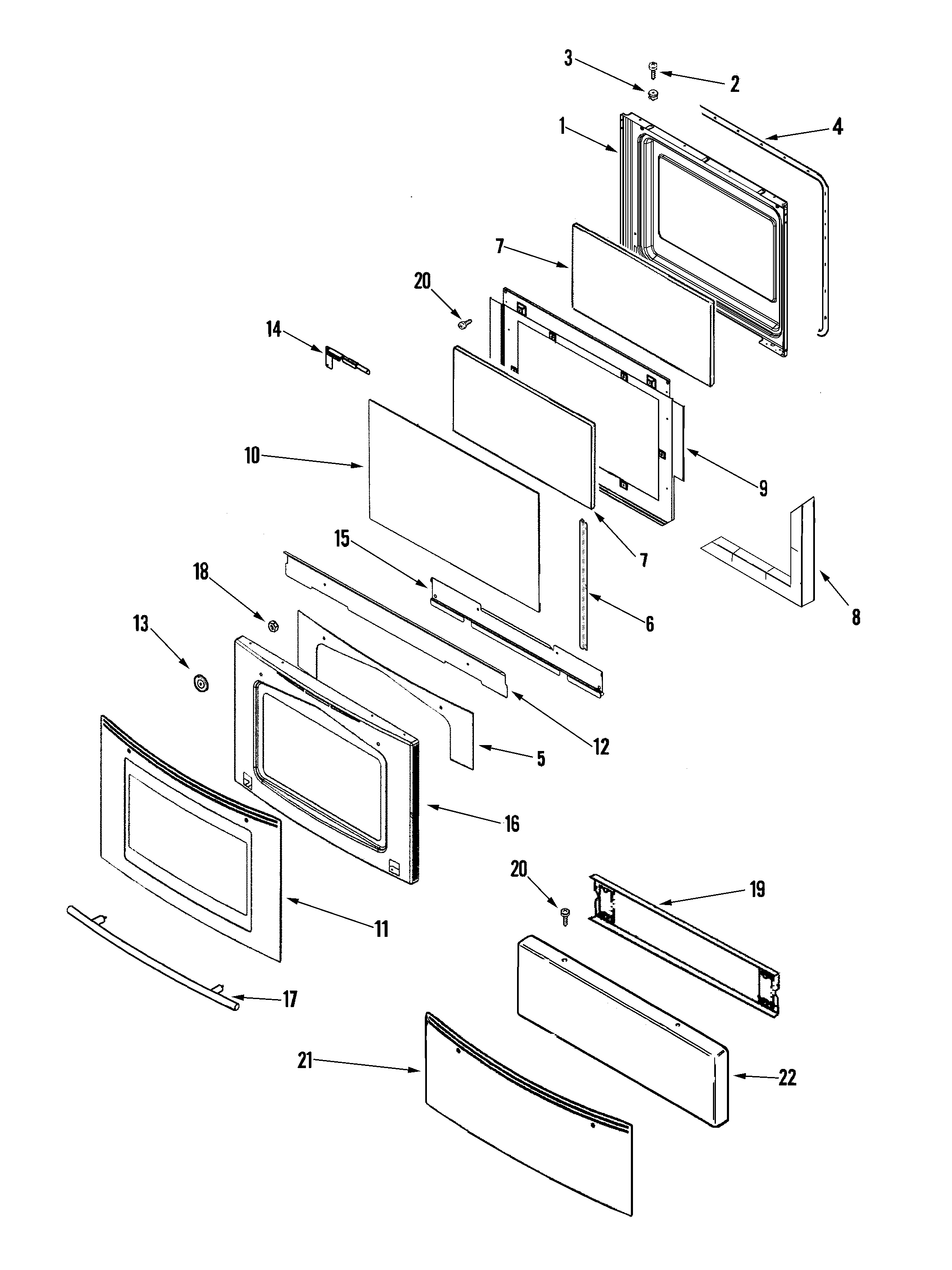

Manufacturer substitutionThis part replaces 74001574. Substitute parts can look different from the original.This item is not returnableIn Stock$9.4810% OFF Phone Price : $10.48QtyDoor/access panel (ser pre 11) diagram
Inner Bracket
Part #74011458Replaced by #3801F886-51

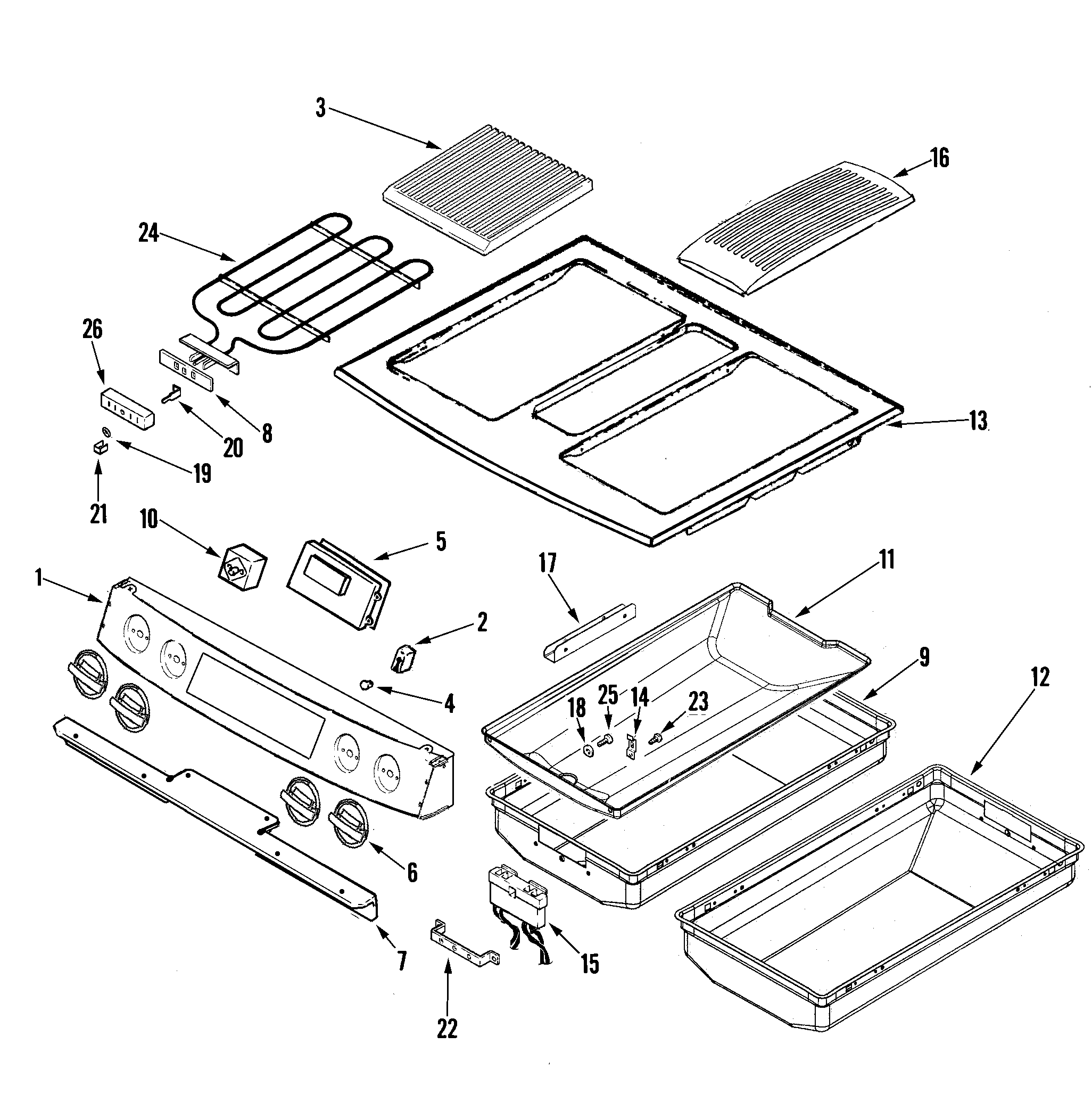

Manufacturer substitutionThis part replaces 74011458. Substitute parts can look different from the original.In Stock$27.9818% OFF Phone Price : $33.98QtyControl panel/top assembly diagram
Range Burner Control Knob
Part #74011493
The manufacturer no longer makes this part, and there's no substitute part

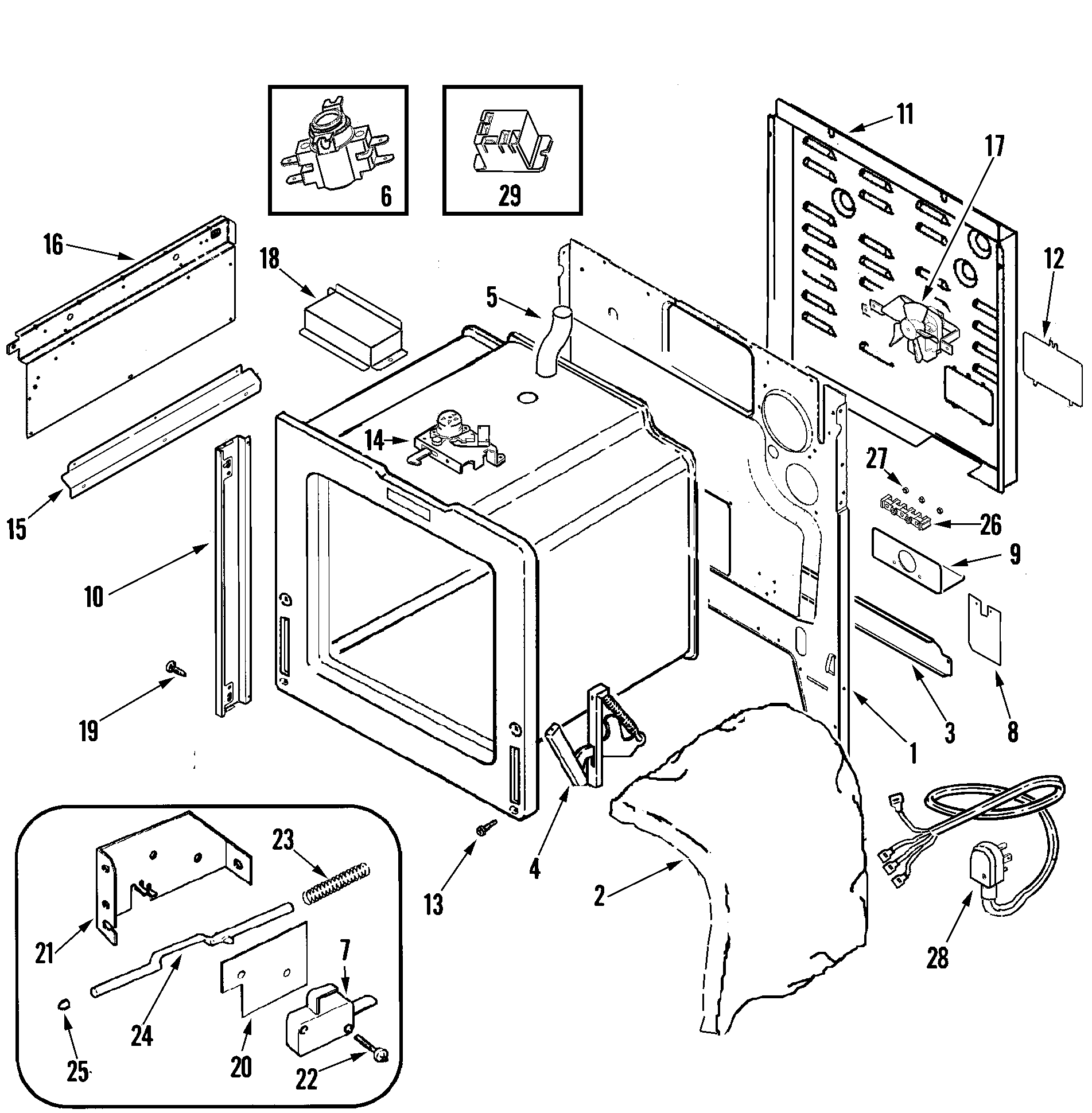

Body diagram
Terminal Block
Part #7401P039-60Replaced by #WPW10245259
Manufacturer substitutionThis part replaces 7401P039-60. Substitute parts can look different from the original.In Stock$28.7517% OFF Phone Price : $34.75QtyBody diagram
Panel, Shiel
Part #74010822Replaced by #2618F206-51
Manufacturer substitutionThis part replaces 74010822. Substitute parts can look different from the original.In Stock$117.52QtyOven/base diagram
Screw
Part #7101P352-60Replaced by #WP7101P485-60

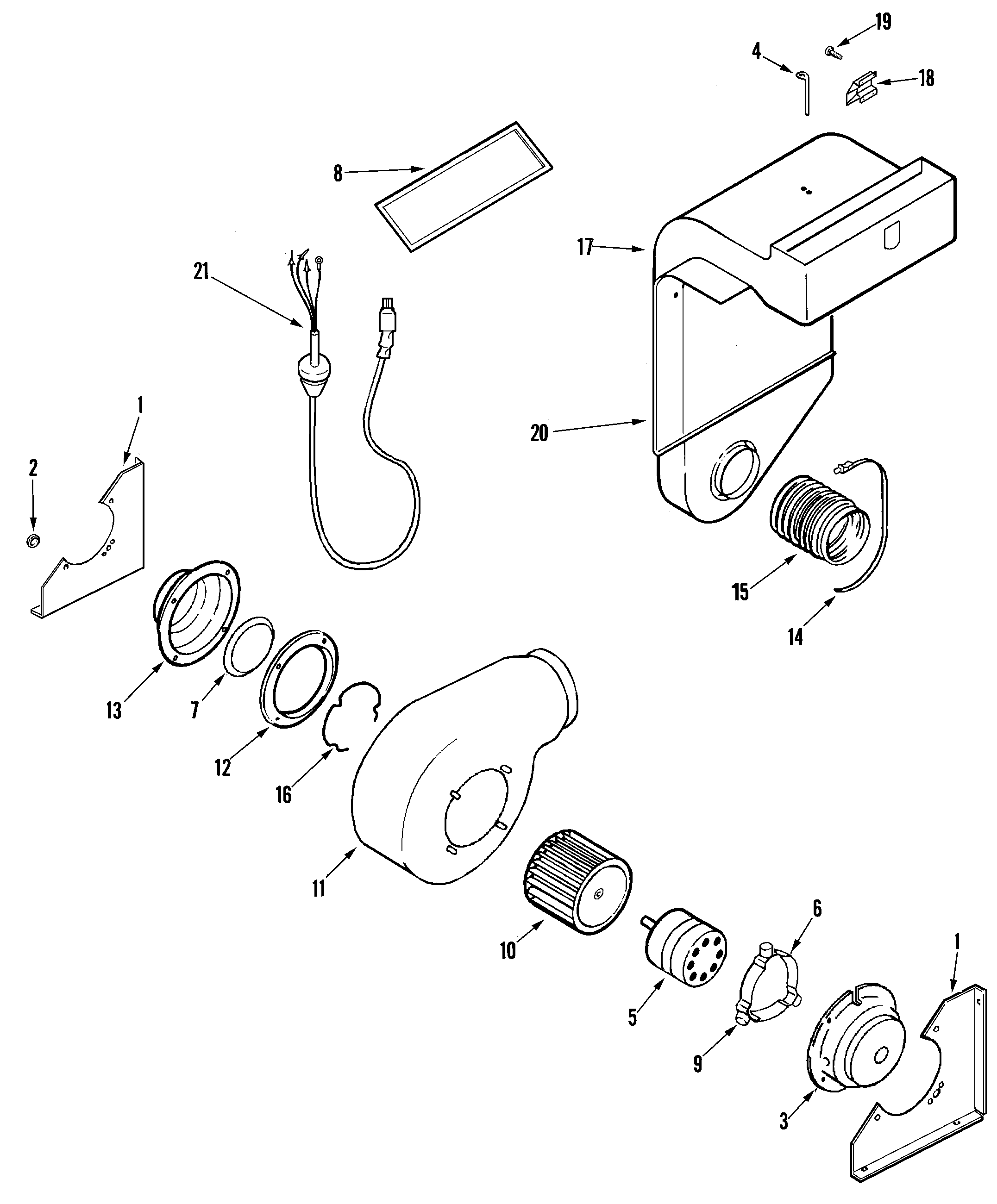

Manufacturer substitutionThis part replaces 7101P352-60. Substitute parts can look different from the original.In Stock$28.2618% OFF Phone Price : $34.26QtyBlower assembly (plenum) diagram
Isolator
Part #708926Replaced by #WP71003558
Manufacturer substitutionThis part replaces 708926. Substitute parts can look different from the original.This item is not returnableIn Stock$10.2616% OFF Phone Price : $12.26Qty
