Kenmore
Countertop Microwave

Model # 72162259200 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 72162259200 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

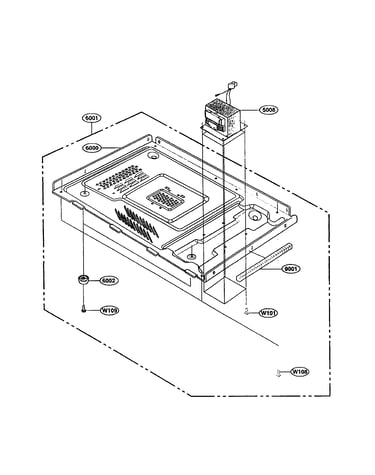

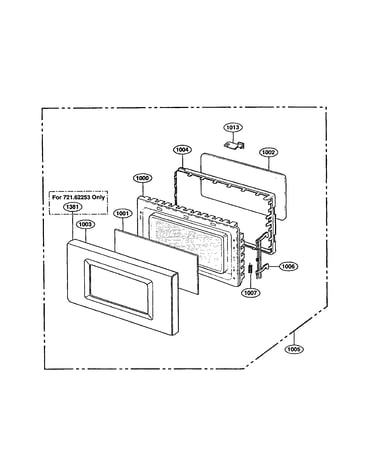

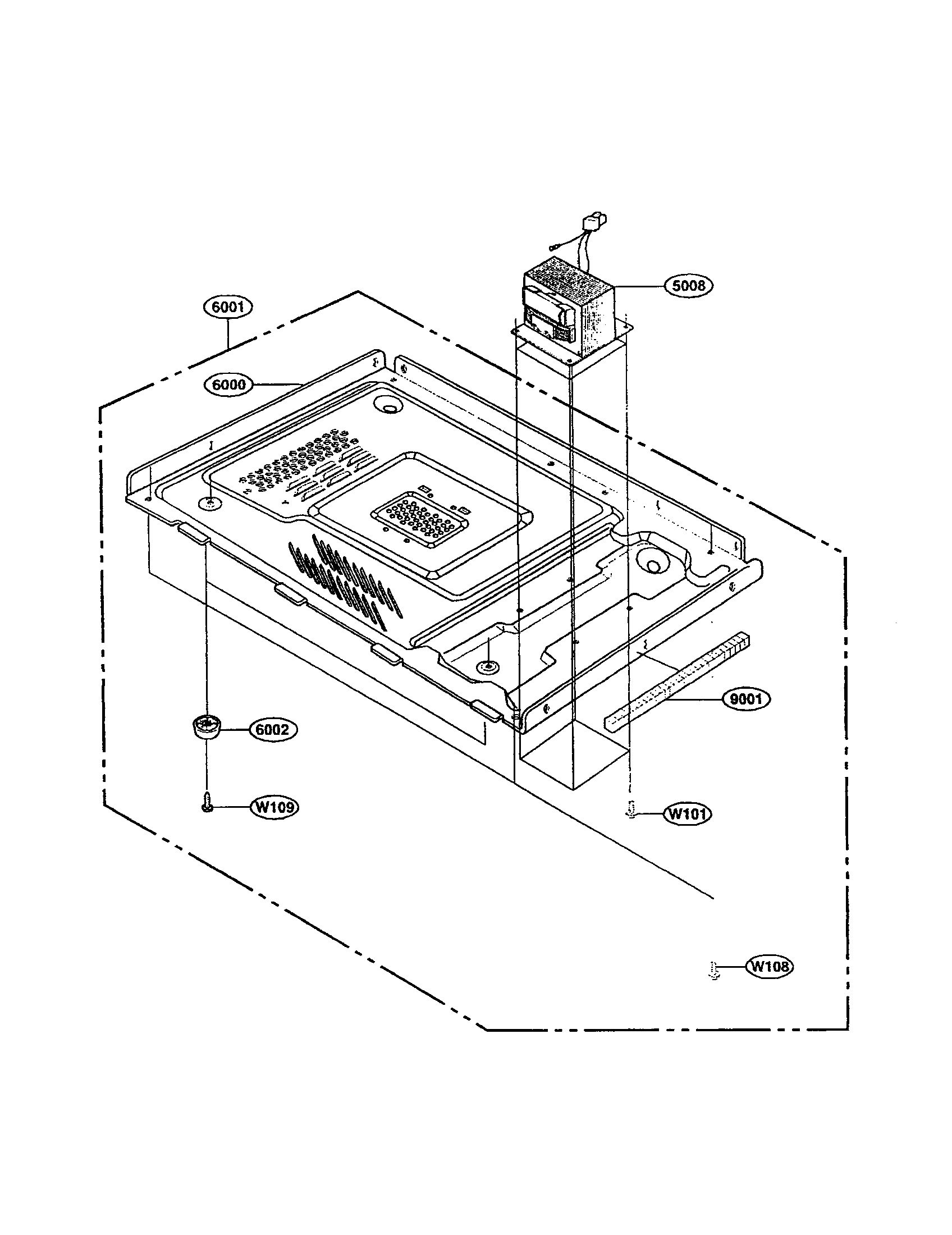

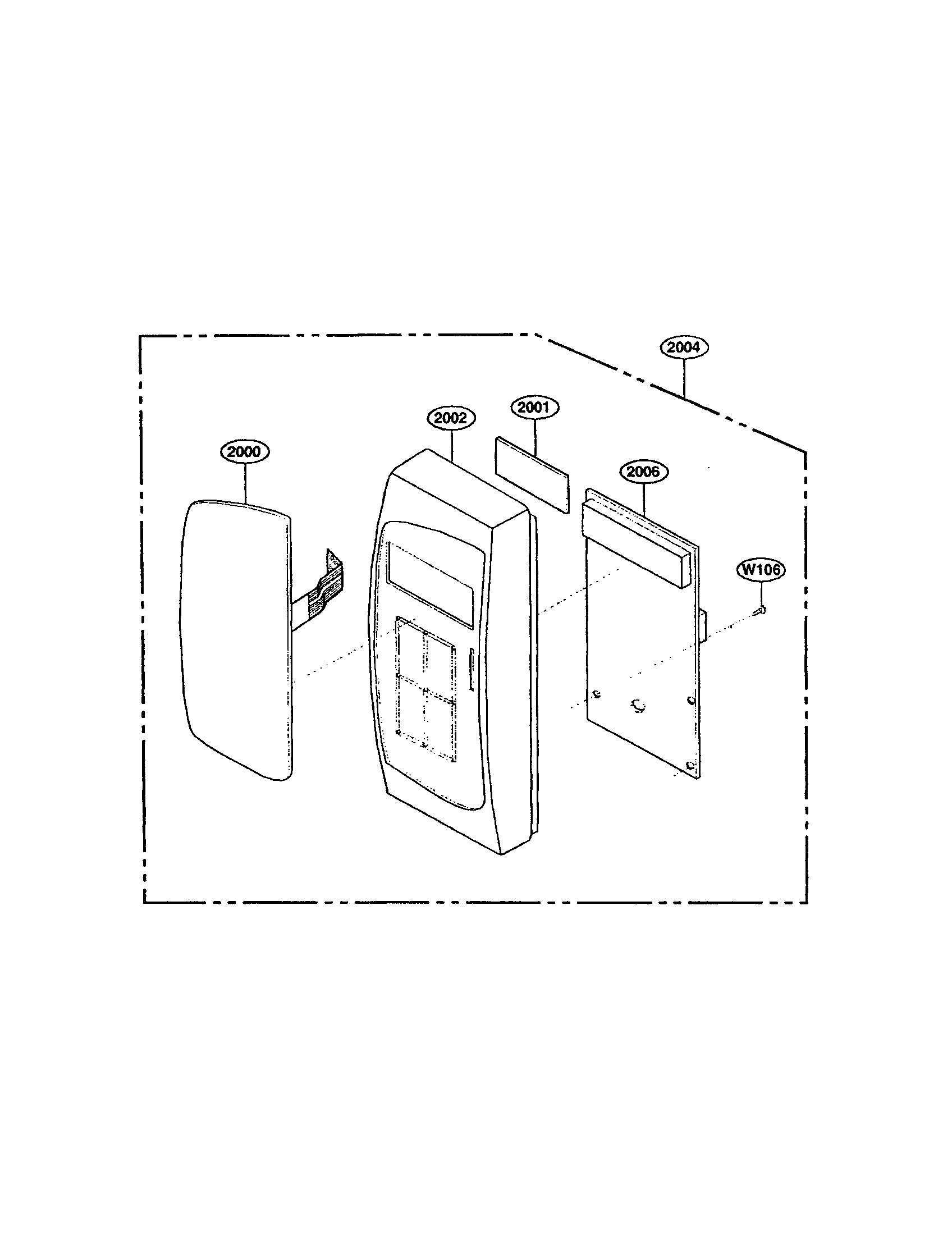

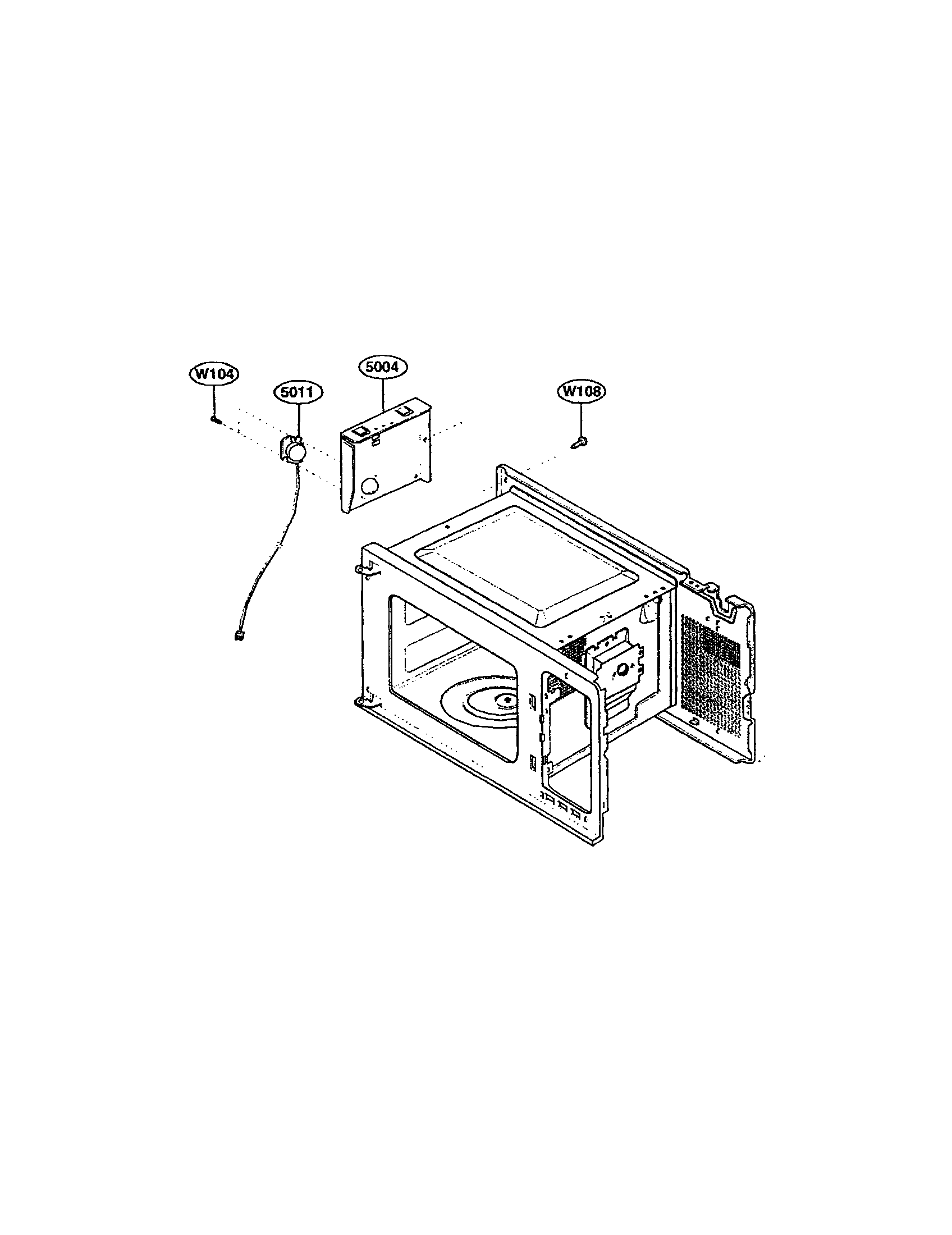

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |

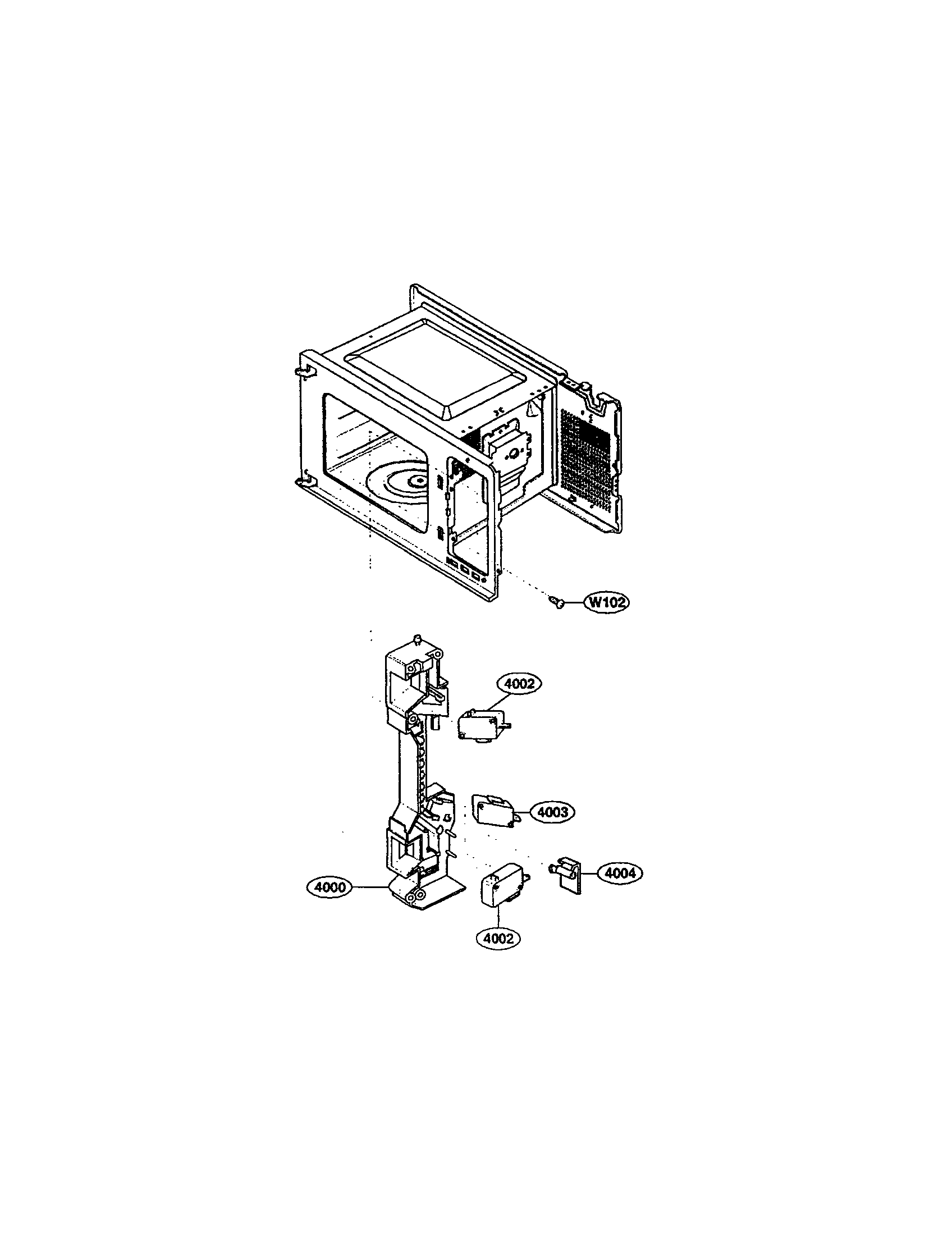

Microwave Door Interlock Switch 6600W1K003D

#4002

All parts diagram

Microwave door interlock switch

Part #6600W1K003D

Replaced by #6600W1K001D

?
Manufacturer substitution
This part replaces 6600W1K003D. Substitute parts can look different from the original.
BEST SELLER
$9.76
9% OFF Phone Price : $10.76
In Stock
Microwave Light Bulb (replaces 6912w3b002g) 6912W3B002L

#5015

All parts diagram

Microwave light bulb (replaces 6912w3b002g)

Part #6912W3B002L

BEST SELLER
This item is not returnable
$9.62
9% OFF Phone Price : $10.62
In Stock

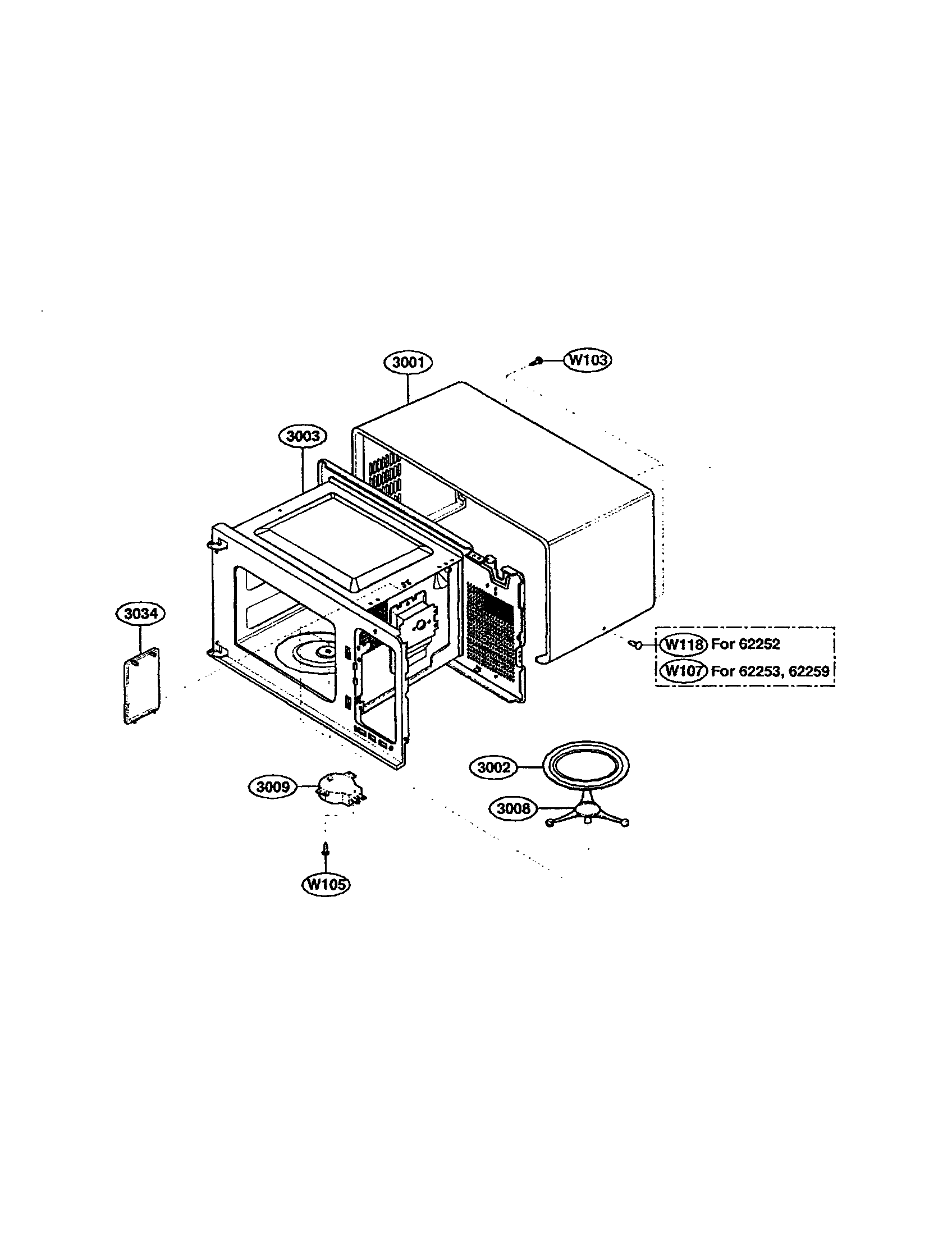

Microwave Turntable Motor (replaces 6549w1s011c, 6549w1s017a) 6549W1S011B

#3009

All parts diagram

Microwave turntable motor (replaces 6549w1s011c, 6549w1s017a)

Part #6549W1S011B

BEST SELLER
This item is not returnable
$20.53
20% OFF Phone Price : $25.53
In Stock

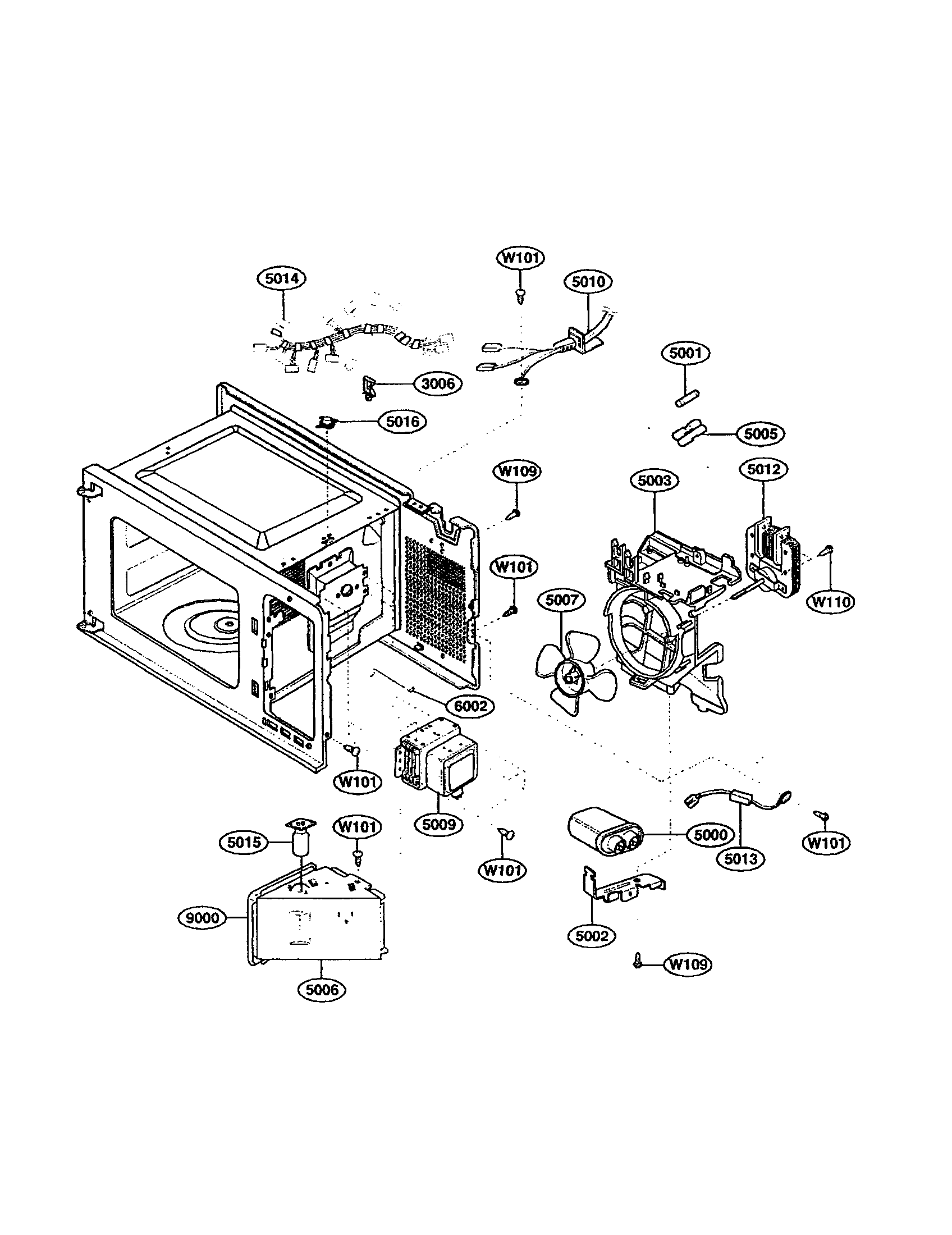

Microwave High-voltage Diode 6021W3B001N

#5013

All parts diagram

Microwave high-voltage diode

Part #6021W3B001N

Replaced by #6021W3B001V

?
Manufacturer substitution
This part replaces 6021W3B001N. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.92
13% OFF Phone Price : $7.92
In Stock

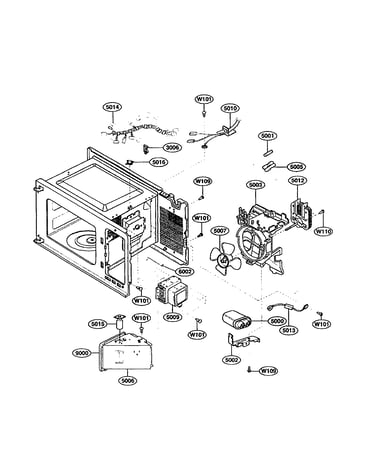

Magnetron 6324W1A001B

#5009

All parts diagram

Magnetron

Part #6324W1A001B

The manufacturer no longer makes this part, and there's no substitute part

Microwave Turntable Tray Support 5889W2A014D

#3008

All parts diagram

Microwave turntable tray support

Part #5889W2A014D

BEST SELLER
This item is not returnable
$12.27
14% OFF Phone Price : $14.27
In Stock

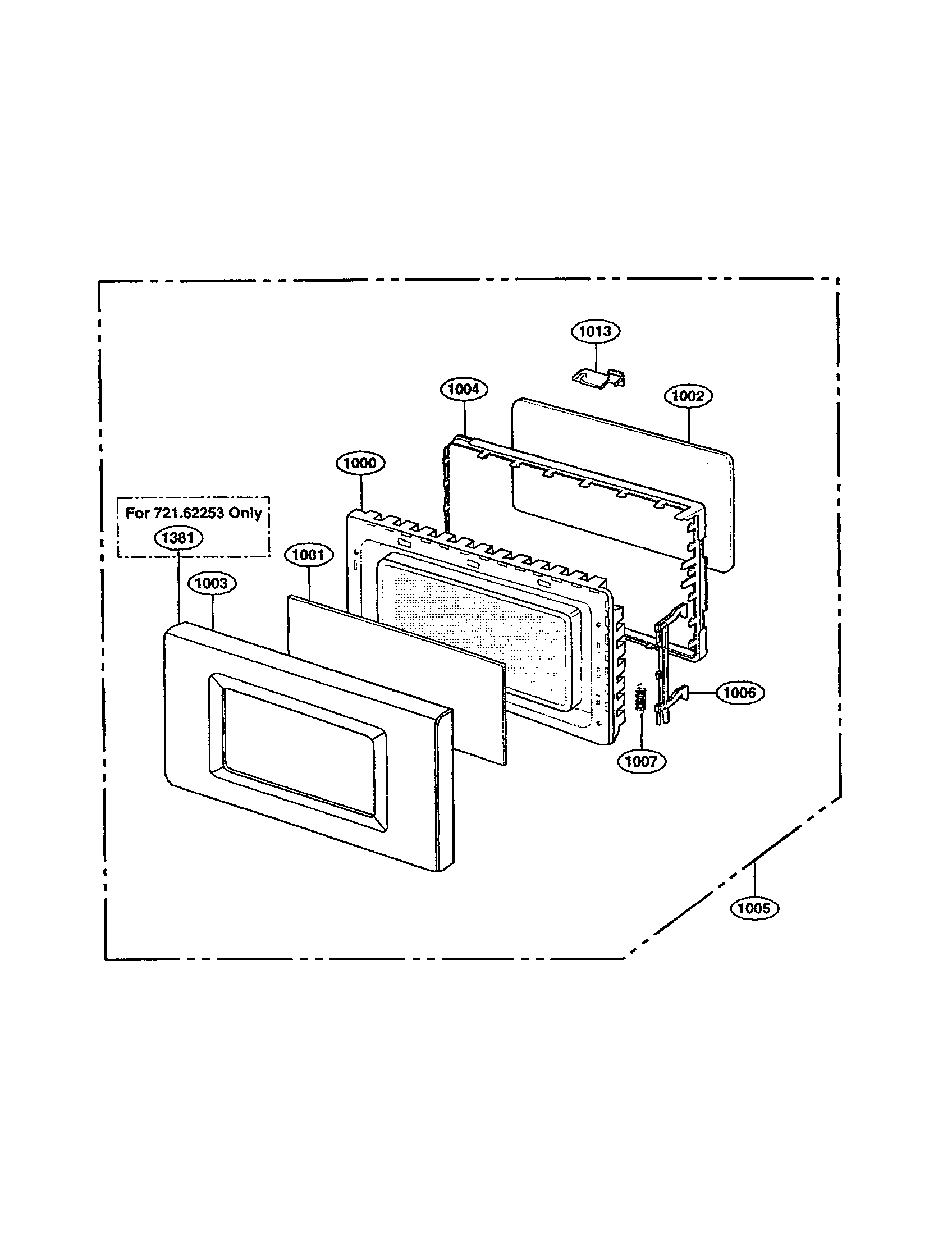

Microwave Door Latch Hook (replaces 4026w2a012a) 4026W2A016A

#1006

All parts diagram

Microwave door latch hook (replaces 4026w2a012a)

Part #4026W2A016A

BEST SELLER
This item is not returnable
$5.48
15% OFF Phone Price : $6.48
In Stock
Microwave Glass Turntable Tray 3390W1G004A

#3002

All parts diagram

Microwave glass turntable tray

Part #3390W1G004A

Replaced by #3390W1A044B

?
Manufacturer substitution
This part replaces 3390W1G004A. Substitute parts can look different from the original.
BEST SELLER
$23.92
17% OFF Phone Price : $28.92
In Stock
Microwave Door Latch Lever (replaces 4510w3l002a) 4510W3L003A

#4004

All parts diagram

Microwave door latch lever (replaces 4510w3l002a)

Part #4510W3L003A

This item is not returnable
In Stock
Microwave Door Latch Spring 4970WRA001E

#1007

All parts diagram

Microwave door latch spring

Part #4970WRA001E

This item is not returnable
$5.52
15% OFF Phone Price : $6.52
In Stock
