Kenmore Elite 10644023601 side-by-side refrigerator Parts

Your Kenmore Elite refrigerator model is 10644023601. To confirm it on the appliance, check the model and serial number label on the inside wall of the refrigerator compartment; that label lists the complete model number you need for parts and service. See the owner's manual for label location details.

Where to find the model number label

We look for the model and serial number label in these common spots on Kenmore side-by-side refrigerators:

• Inside the fresh food (refrigerator) compartment on an inside wall
• Near the crisper area (often behind or beside the lower drawers)
• On a side wall where it is visible when the door is open
• Occasionally behind the toe grille (kick plate) area (varies by model)

What to write down (and why)

The installation documentation recommends recording your appliance details for future reference. Capture:

• Complete model number (example: 10644023601)
• Serial number
• Purchase or installation date

Quick reference table

Item	Where you’ll use it	Why it matters
Model number	Parts lookup	Ensures the part fits your exact Kenmore Elite configuration
Serial number	Service history	Helps identify production details and revisions
Purchase/installation date	Warranty paperwork	Helps document coverage timing

Why it matters

Kenmore model numbers that start with 106 often share similar designs, but parts like the water filter, ice maker, and control components can differ by revision. Using the exact model number from the label prevents ordering the wrong part.

Last updated: February 2026

A Kenmore Elite side-by-side refrigerator like model 10644023601 typically lasts 10 to 15 years. Regular maintenance (especially keeping airflow clear and doors sealing well) helps you reach the upper end of that range and reduces the chance of costly cooling-system repairs.

Typical lifespan and what affects it

Most refrigerators in this class land in the 10 to 15 year window. The biggest factors that move lifespan up or down are:

• Condenser coil cleanliness (dust buildup makes the compressor work harder)
• Door gasket condition (air leaks cause longer run times and frost issues)
• Room temperature and ventilation (tight cabinets and hot garages shorten life)
• Ice maker and dispenser use (more moving parts, more wear)
• Water quality (affects filter changes and can contribute to clogs/leaks)

Maintenance that adds years (high impact)

Use these habits to keep your Kenmore 10644023601 running longer:

• Vacuum and brush the condenser area every 6 to 12 months
• Keep vents inside the refrigerator and freezer unblocked
• Confirm doors close fully and the gasket seals all the way around
• Replace the water filter on schedule; a restricted filter can reduce water flow
• Level the refrigerator so doors self-close properly (see the leveling guidance in the installation guide)

Quick “repair vs. replace” rule of thumb

Refrigerator age	What we recommend	Why
0 to 7 years	Repair is usually worth it	Most major components still have good remaining life
8 to 12 years	Compare repair cost to value	Midlife; multiple issues can start stacking
13 to 15+ years	Replace if cooling-system work is needed	Compressor/evaporator repairs are typically the most expensive

Why it matters

Knowing the expected lifespan helps you decide whether to invest in parts like an ice maker, control, or cooling fan, or to focus on maintenance that prevents compressor strain and temperature swings.

Last updated: February 2026

Yes. Kenmore Elite is Kenmore’s premium line, and model 10644023601 is positioned above standard Kenmore refrigerators with a focus on higher feature sets and overall fit and finish compared to entry-level side-by-side models. For model-specific features and specifications, we use the installation guide.

What “high end” means for this Kenmore Elite refrigerator

In the refrigerator category, “high end” typically shows up as better convenience features, stronger temperature management, and more premium component packages.

Common high-end indicators include:

• In-door ice and water dispensing
• Higher-capacity storage and more adjustable shelving
• Better airflow management for more even cooling
• More refined exterior and interior finishes
• More serviceable, replaceable components (filters, ice maker parts, dispenser parts)

Parts on this model that match a premium feature set

This model supports common premium conveniences like filtered water and automatic ice production. Examples of model-matched parts include:

• Genuine Kenmore refrigerator water filter EDR3RXD1 (water filtration)

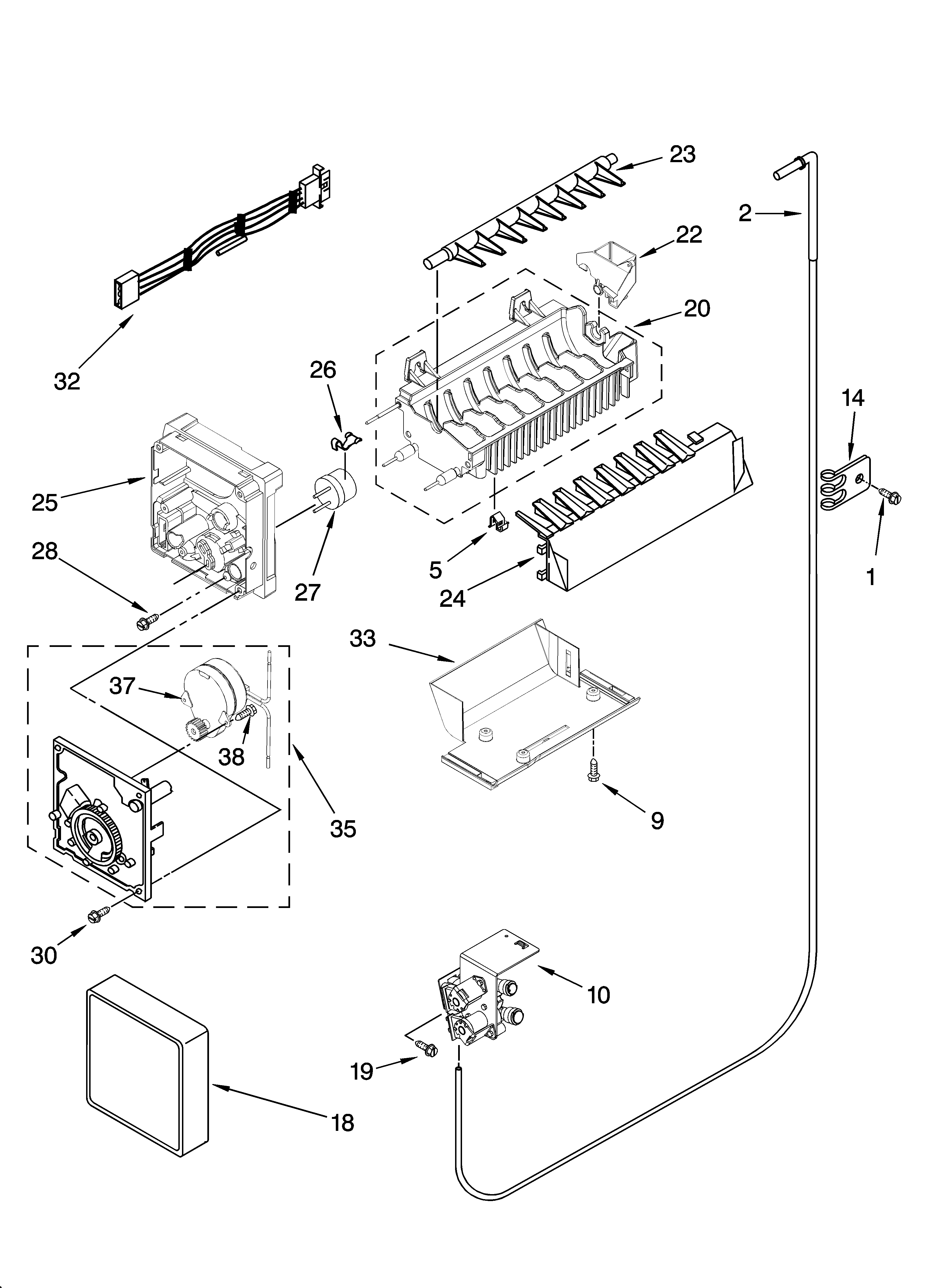

• Whirlpool refrigerator ice maker assembly 2198597 (automatic ice production)

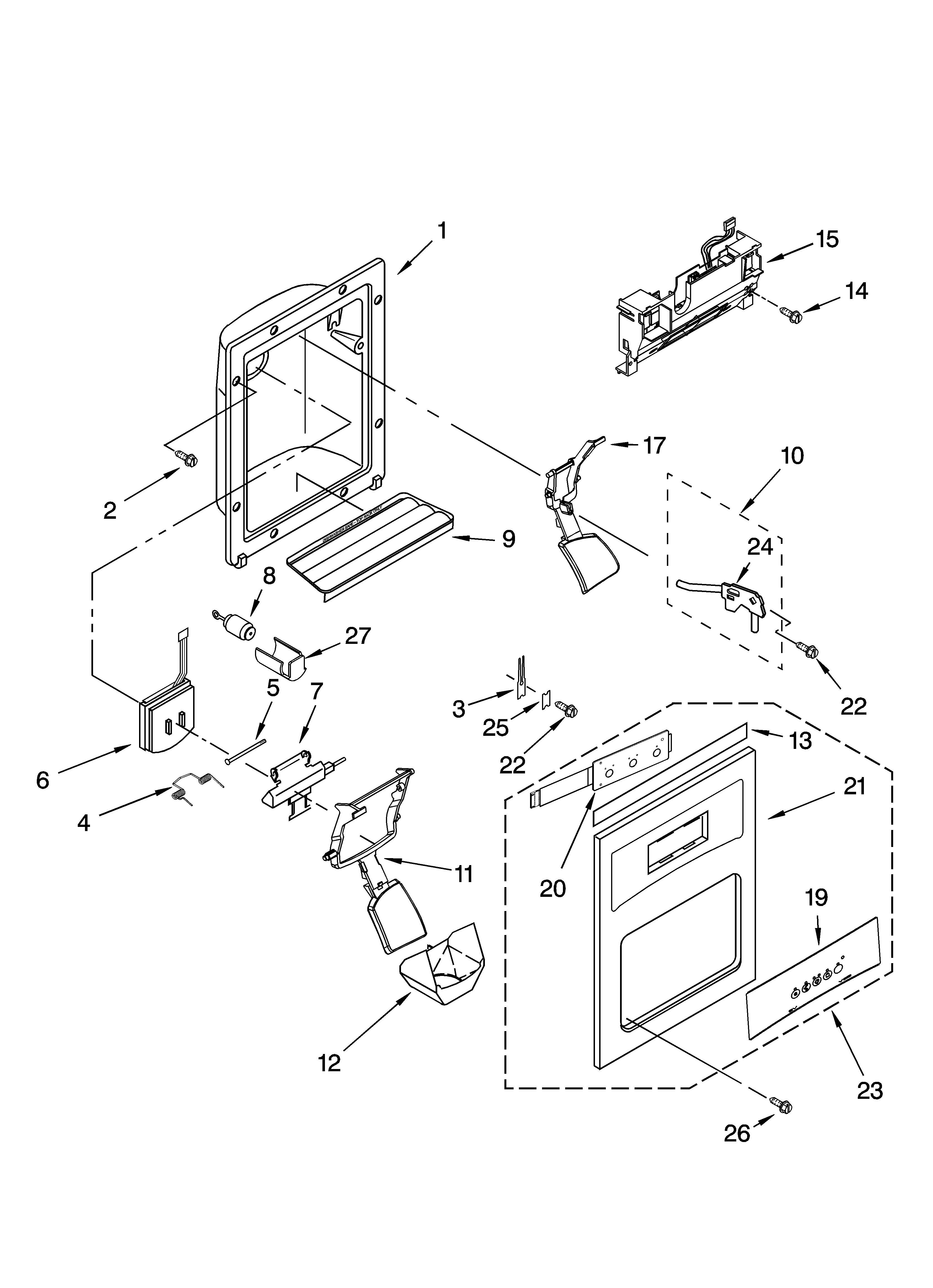

• Refrigerator ice dispenser door WP2180353 (dispenser door function)

Quick “premium features” snapshot

Feature area	What you typically get	Example part on this model
Water quality	Replaceable water filtration	EDR3RXD1
Ice production	Modular ice maker assembly	2198597
Dispenser usability	Serviceable dispenser door components	WP2180353

Why it matters

Knowing this is a higher-end Kenmore line helps set expectations for maintenance. Premium features usually mean more components to keep clean and in good working order (water filter changes, ice maker upkeep, and dispenser door sealing).

Helpful tip for owners

If you’re comparing models or ordering parts, always match using the complete model number from the label inside the refrigerator compartment; the installation guide also explains where to find model and serial information.

Last updated: February 2026

For Kenmore Elite model 10644023601, the model number label confirms the exact unit, but it does not reliably “spell out” the cubic-foot capacity. The most accurate way is to use the capacity listed in the owner's manual or calculate it from the interior measurements.

Fast ways to find the cubic feet

1) Check the documentation (best option)

Capacity is typically listed in the specifications section of the owner's manual. This gives the manufacturer-stated total capacity (refrigerator plus freezer).

2) Calculate it from interior measurements

If you cannot find the spec page quickly, you can estimate capacity by measuring the usable interior spaces.

• Empty the compartment enough to measure safely
• Measure width x height x depth (in inches) of the refrigerator section
• Do the same for the freezer section
• Multiply each section (W x H x D) to get cubic inches
• Add the two sections together
• Divide by 1,728 to convert cubic inches to cubic feet

What the installation guide tells you (and what it does not)

The installation guide focuses on cabinet opening and exterior clearances, not interior storage volume. It does show that this platform commonly comes in 23 cu ft and 25 cu ft size classes, depending on the exact configuration.

What you’re checking	What it tells you	Best source
Model/serial label location	Confirms the exact model identity	Owner's manual
Installation dimensions	Fit, door swing, and clearance	Installation guide
Cubic feet (capacity)	Total storage volume	Owner's manual

Why it matters

Cubic feet affects more than “how much fits.” It also helps you match the right shelves/bins, compare replacement refrigerators, and set realistic expectations for airflow space around food (which impacts cooling performance).

Last updated: February 2026

Common issues we see with the Kenmore Elite 10644023601 side-by-side refrigerator are warm temperatures from airflow or defrost problems, ice maker and dispenser troubles, water leaks around the filter or tubing, and increased noise from fan or condenser-area components. Many symptoms improve after basic cleaning, leveling, and correct temperature setup in the owner's manual.

Most common symptoms (and what they usually point to)

• Not cooling well or temperature swings: dirty condenser coils, blocked vents, evaporator fan issues, or a defrost system problem
• Frost buildup on the back wall or in the freezer: defrost failure (often tied to the defrost thermostat)
• No ice or slow ice production: freezer not cold enough yet, water supply not fully open, or ice maker failure
• Water leaking: loose filter, cracked tubing, or a connection that needs tightening
• Noisy operation: fan blade rubbing ice, condenser fan motor wear, or the unit not level

Quick checks we recommend first

1. Give temperature changes time: adjust only one setting at a time and wait 24 hours between changes.
2. Allow normal ice maker startup time: after installation, allow 24 hours to start making ice and up to 3 days to fill the bin.
3. Confirm water supply is on: the supply valve must be in the open position; then check connections for leaks.
4. Level the refrigerator: an unlevel cabinet can cause door sealing issues and extra noise.
5. Inspect for frost and airflow blockage: make sure vents are not blocked by food packages.

Parts that commonly solve these problems on this model

Problem area	Common fix	Example part for 10644023601
Water taste/flow, leaks at filter area	Replace filter and reseat it fully	Genuine Kenmore refrigerator water filter EDR3RXD1
No ice or intermittent ice	Replace ice maker assembly	Whirlpool refrigerator ice maker assembly 2198597
Frost buildup, warm freezer	Check/replace defrost thermostat	Refrigerator defrost bi-metal thermostat WPW10225581

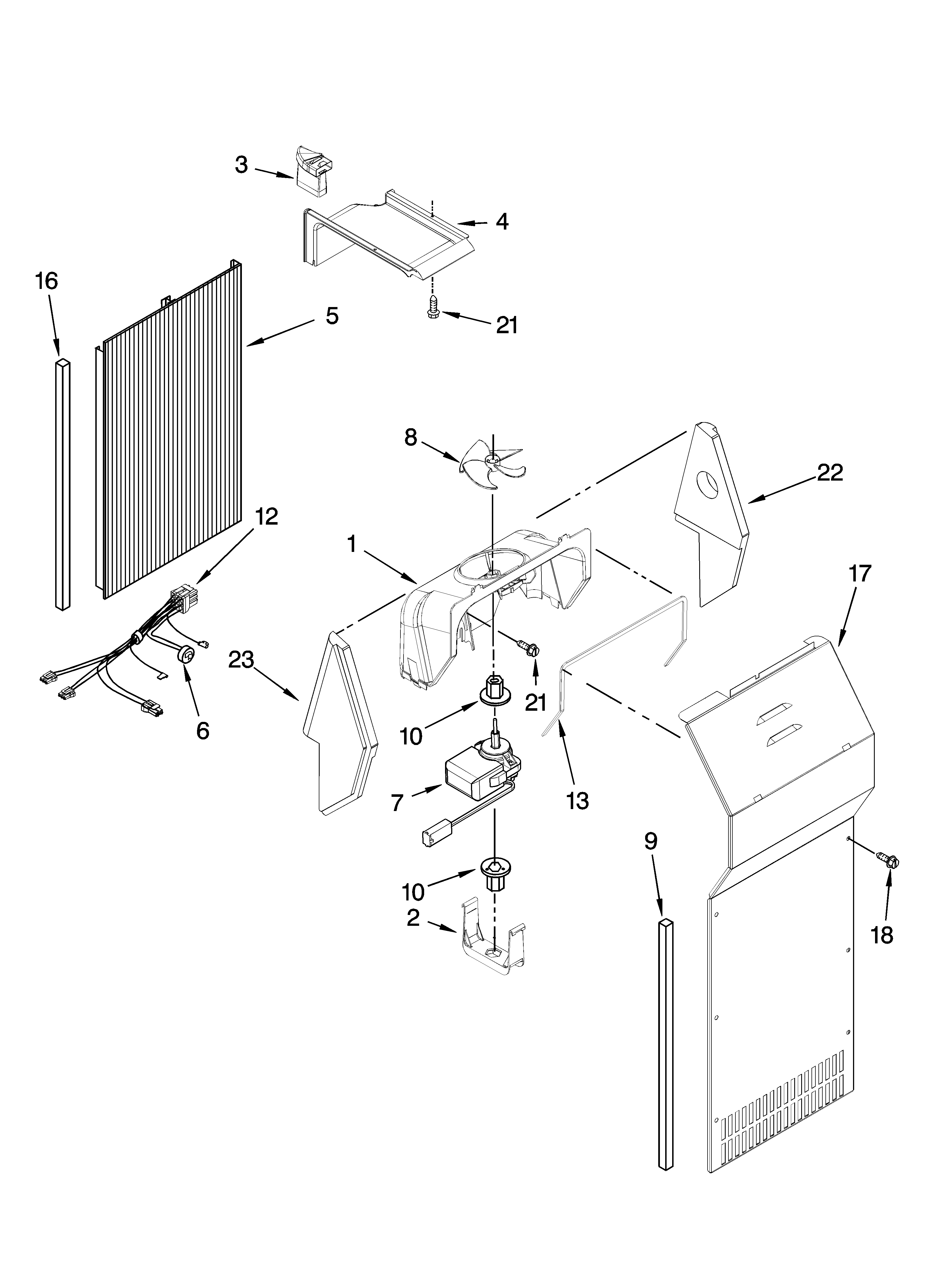

Warm temps, poor airflow	Inspect fan blade for damage/ice contact	Refrigerator evaporator fan blade WP2169142

Why it matters

Cooling, ice, and leak complaints often share the same root causes: restricted airflow, incorrect leveling (doors not sealing), or water supply and filter seating issues. Fixing the basics first prevents unnecessary part replacement and helps the refrigerator reach stable temperatures.

Last updated: February 2026
