Snapper
Rear-Engine Riding Mower

Model # 355ZB2654 Official Snapper tractor

Here are the diagrams and repair parts for Official Snapper 355ZB2654 tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

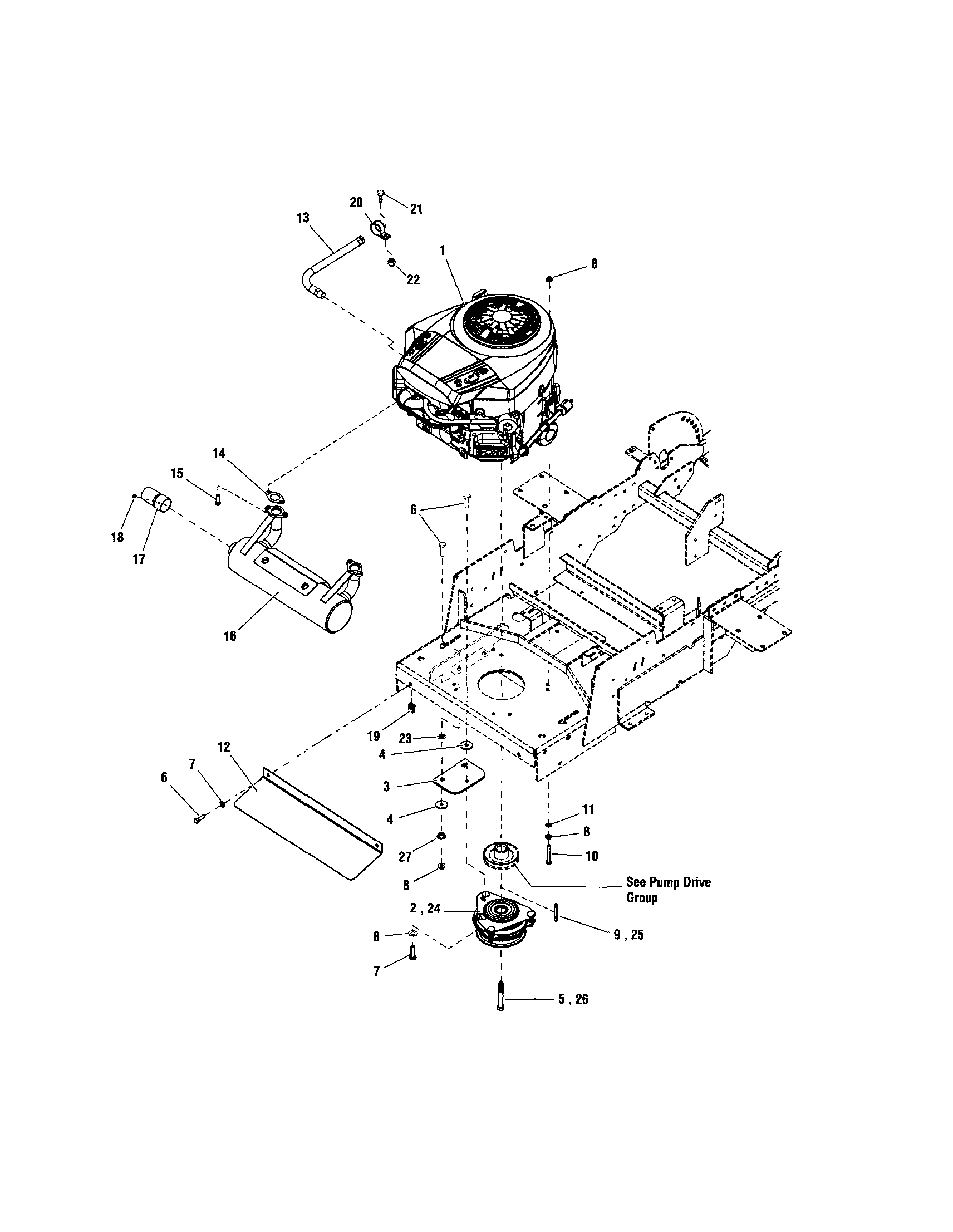

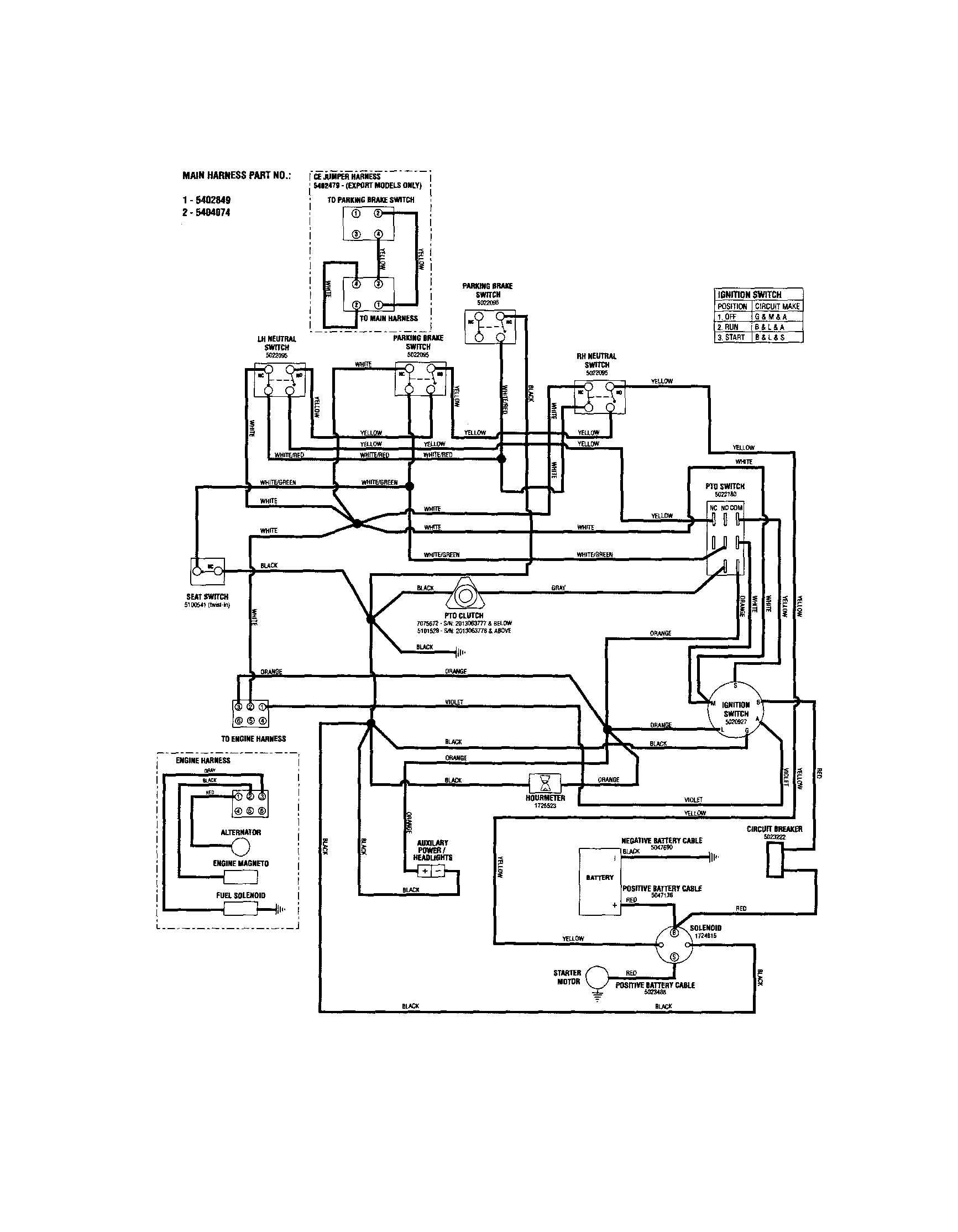

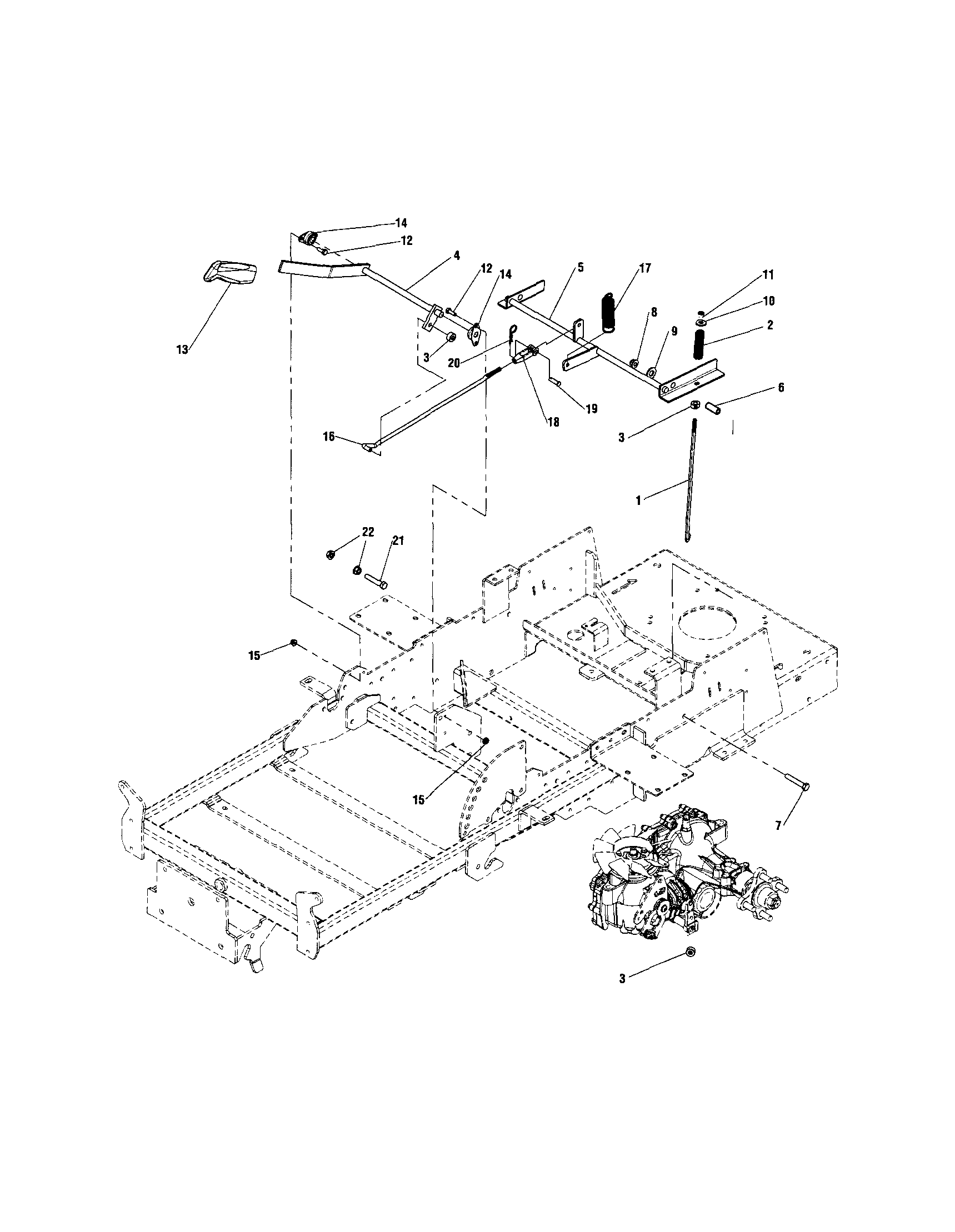

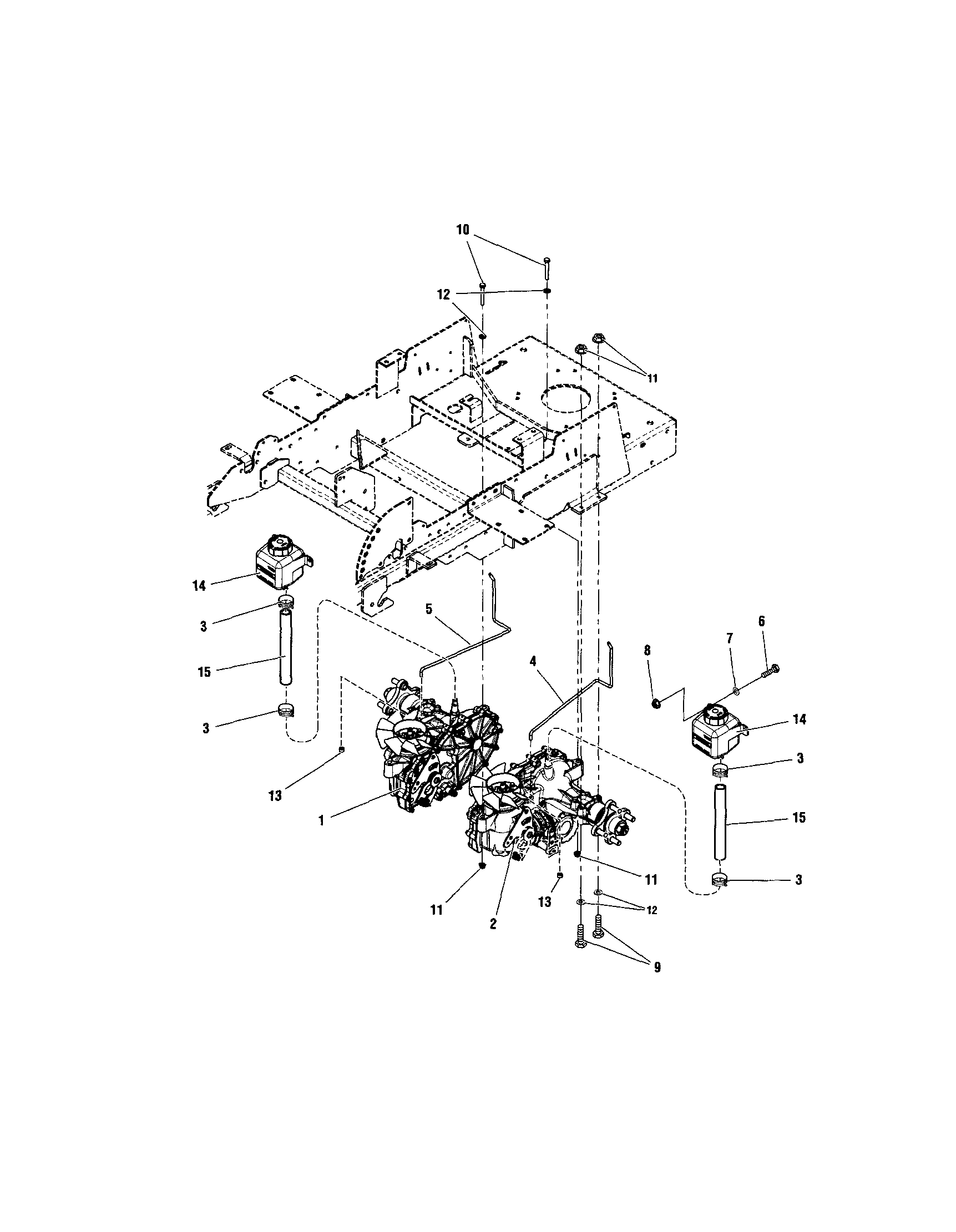

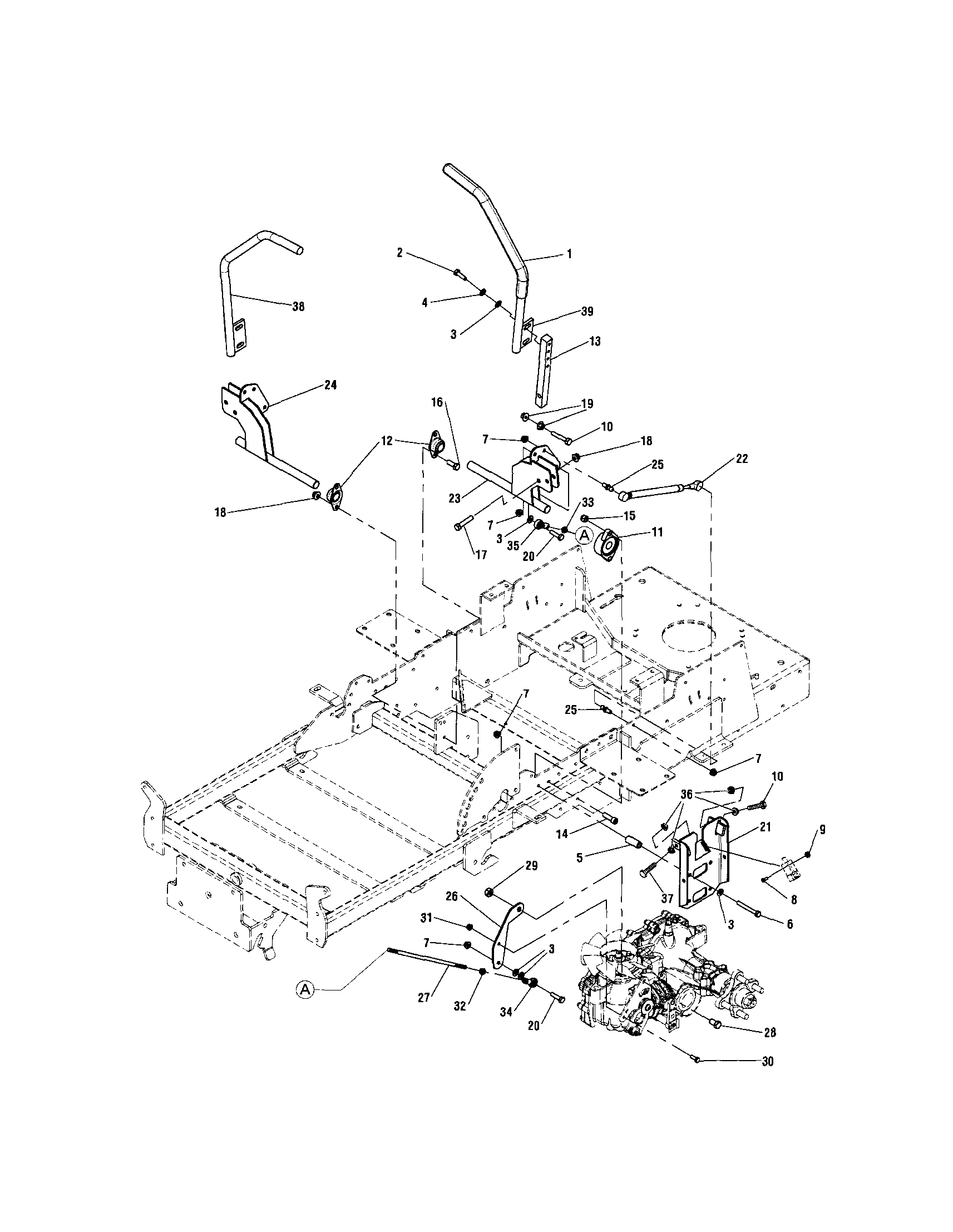

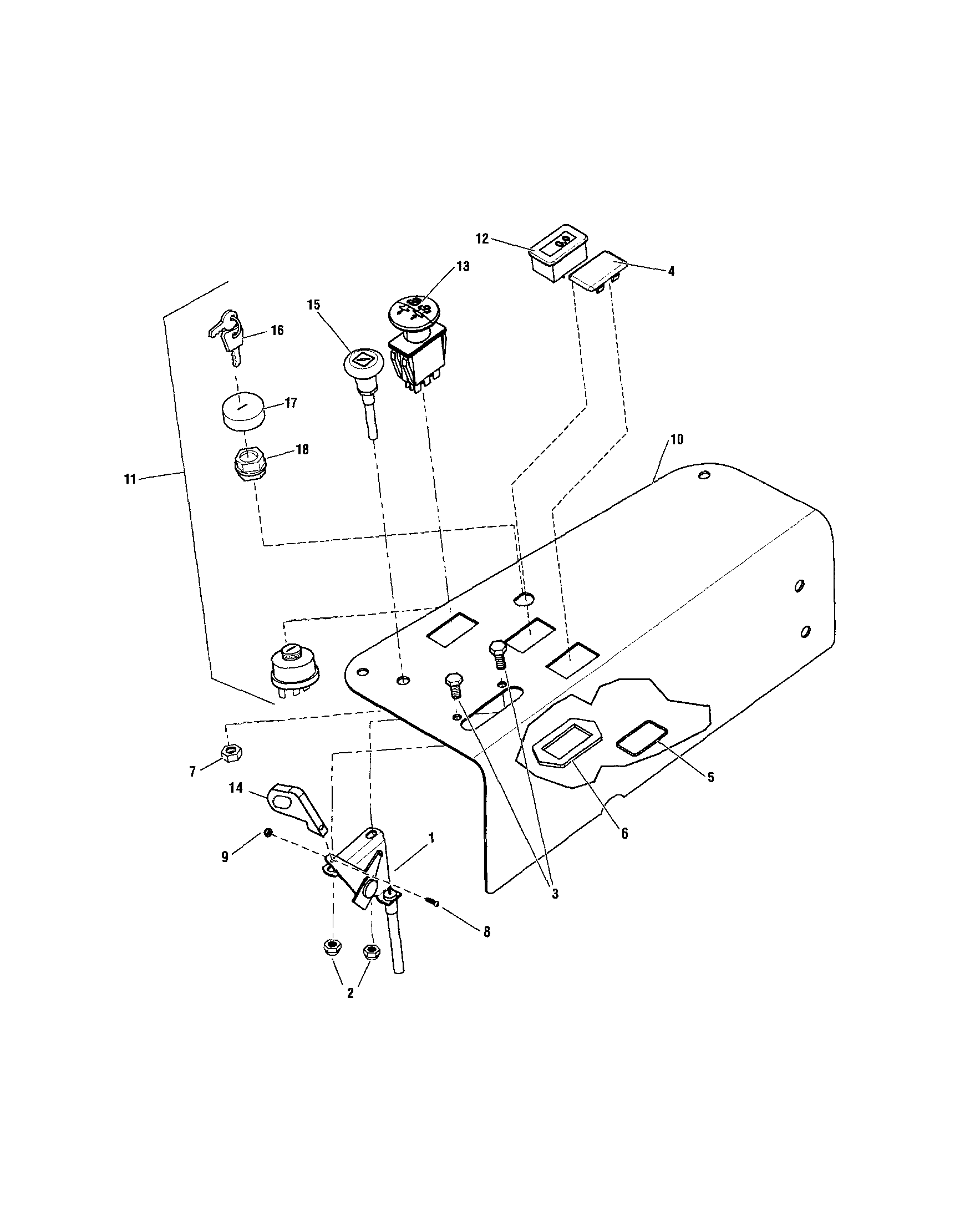

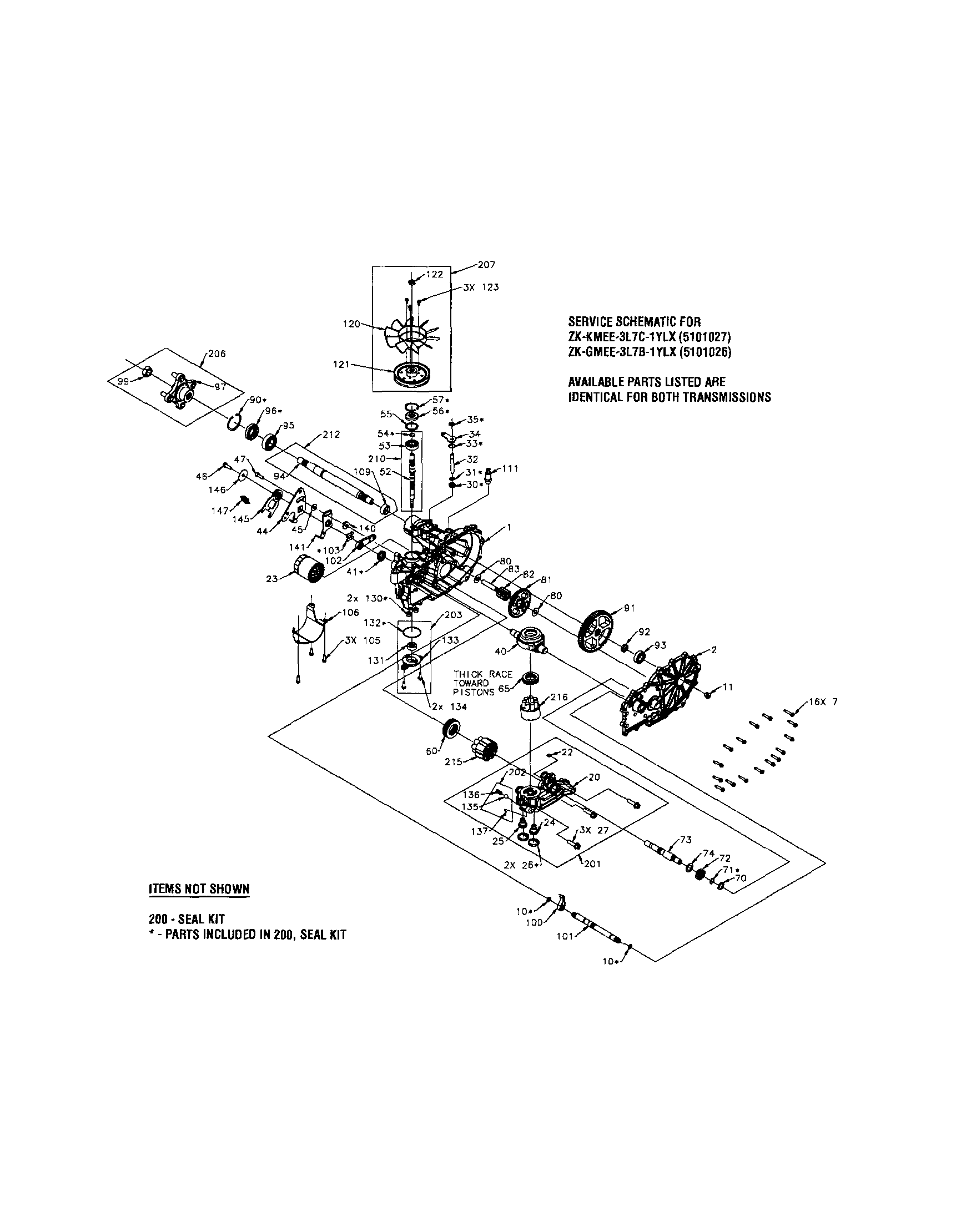

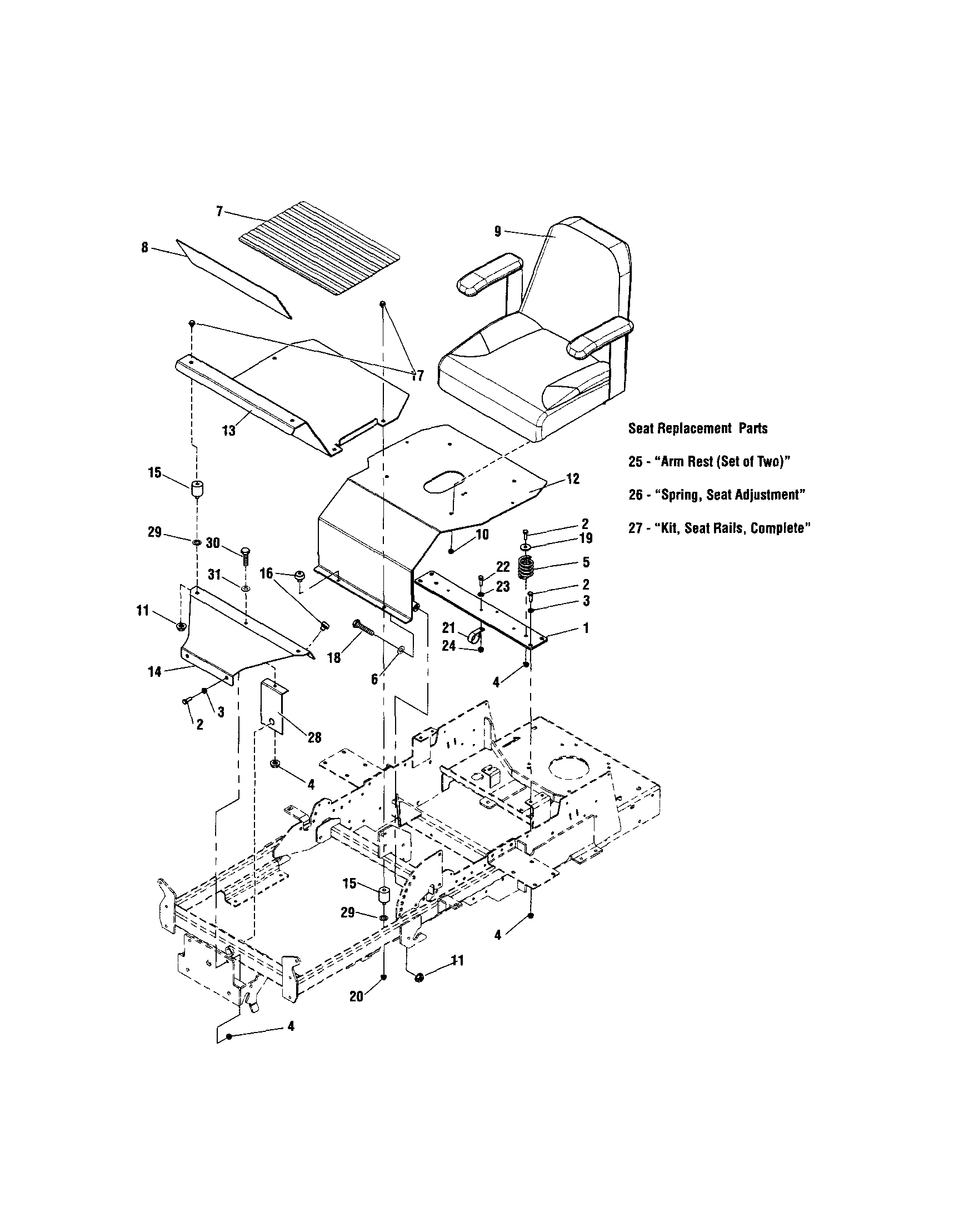

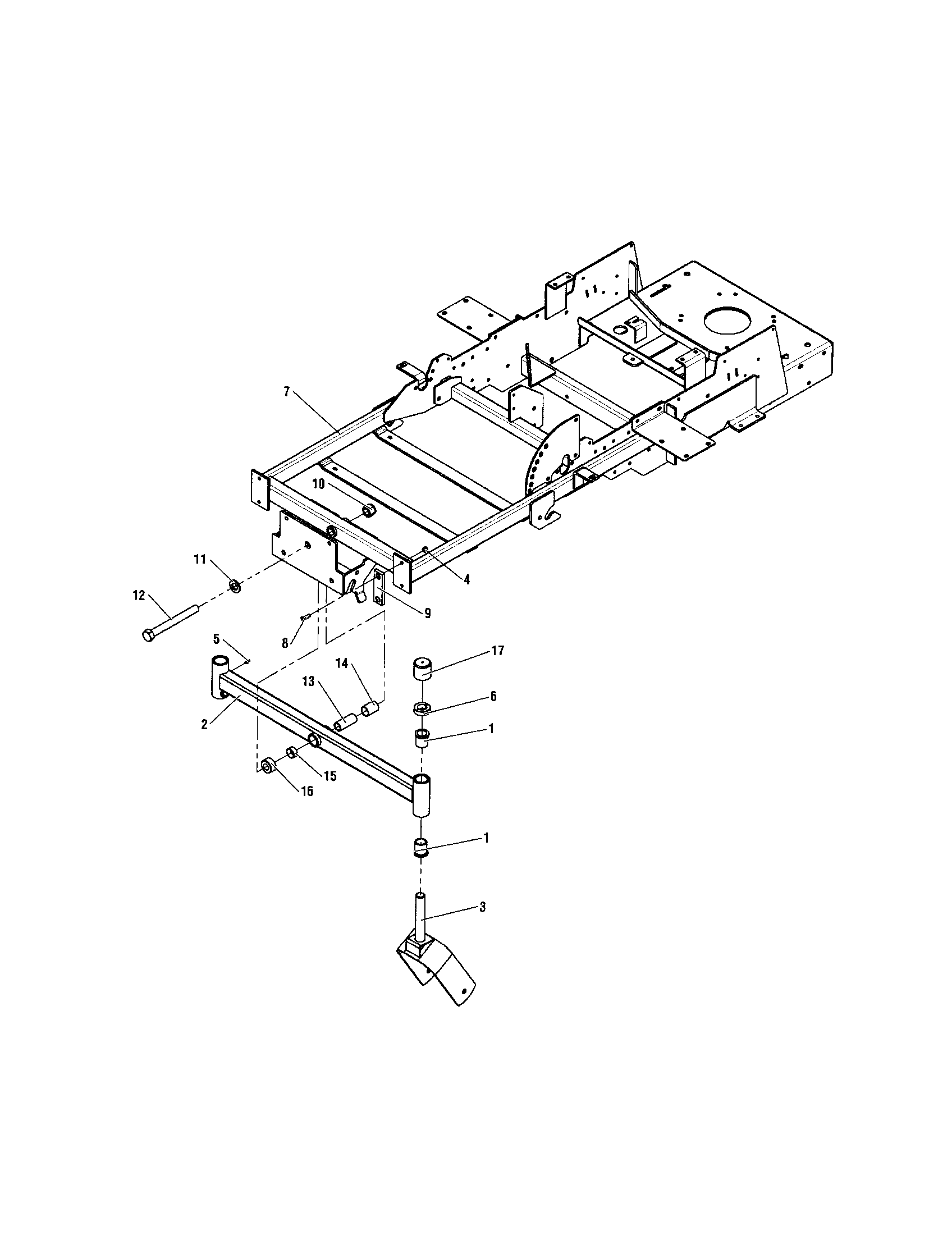

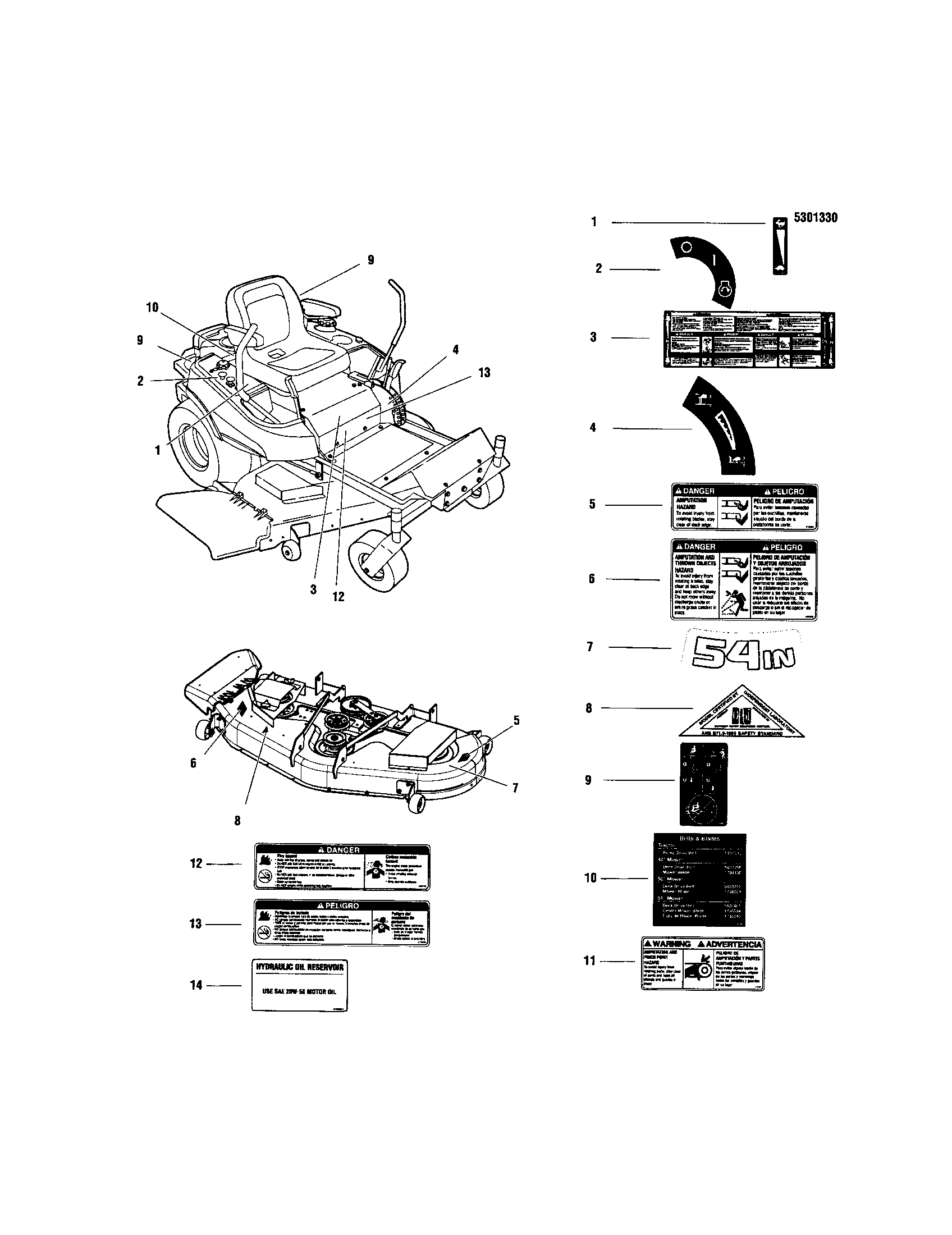

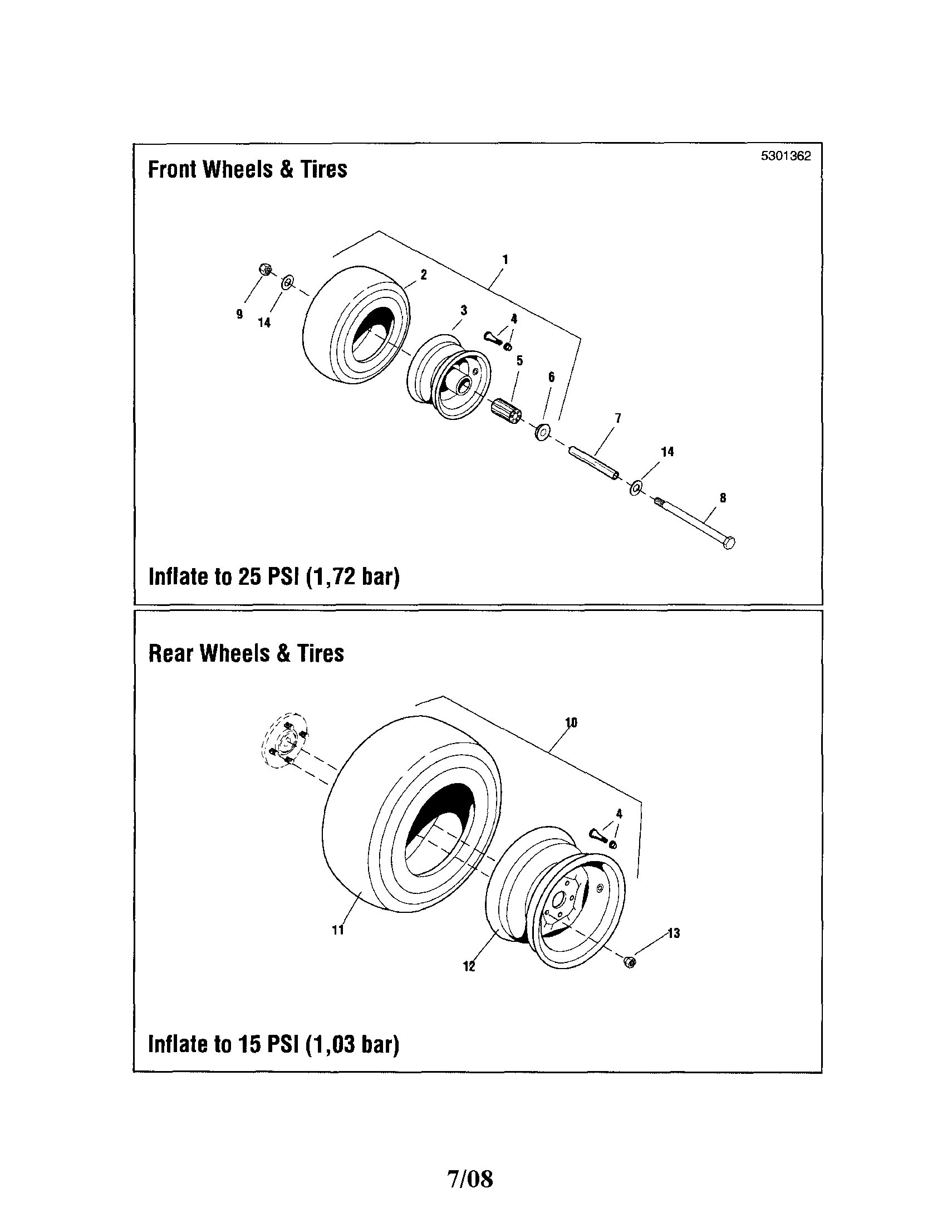

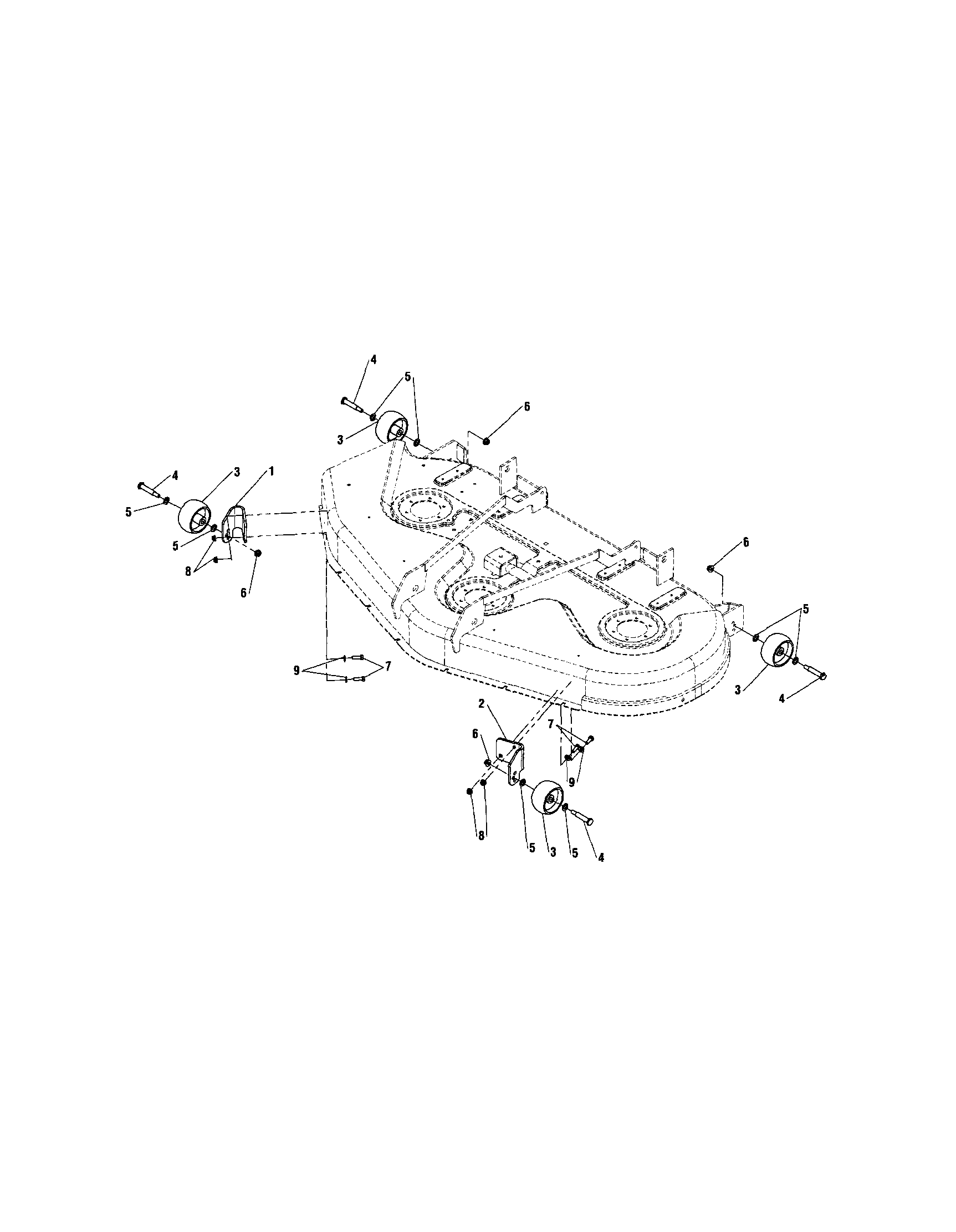

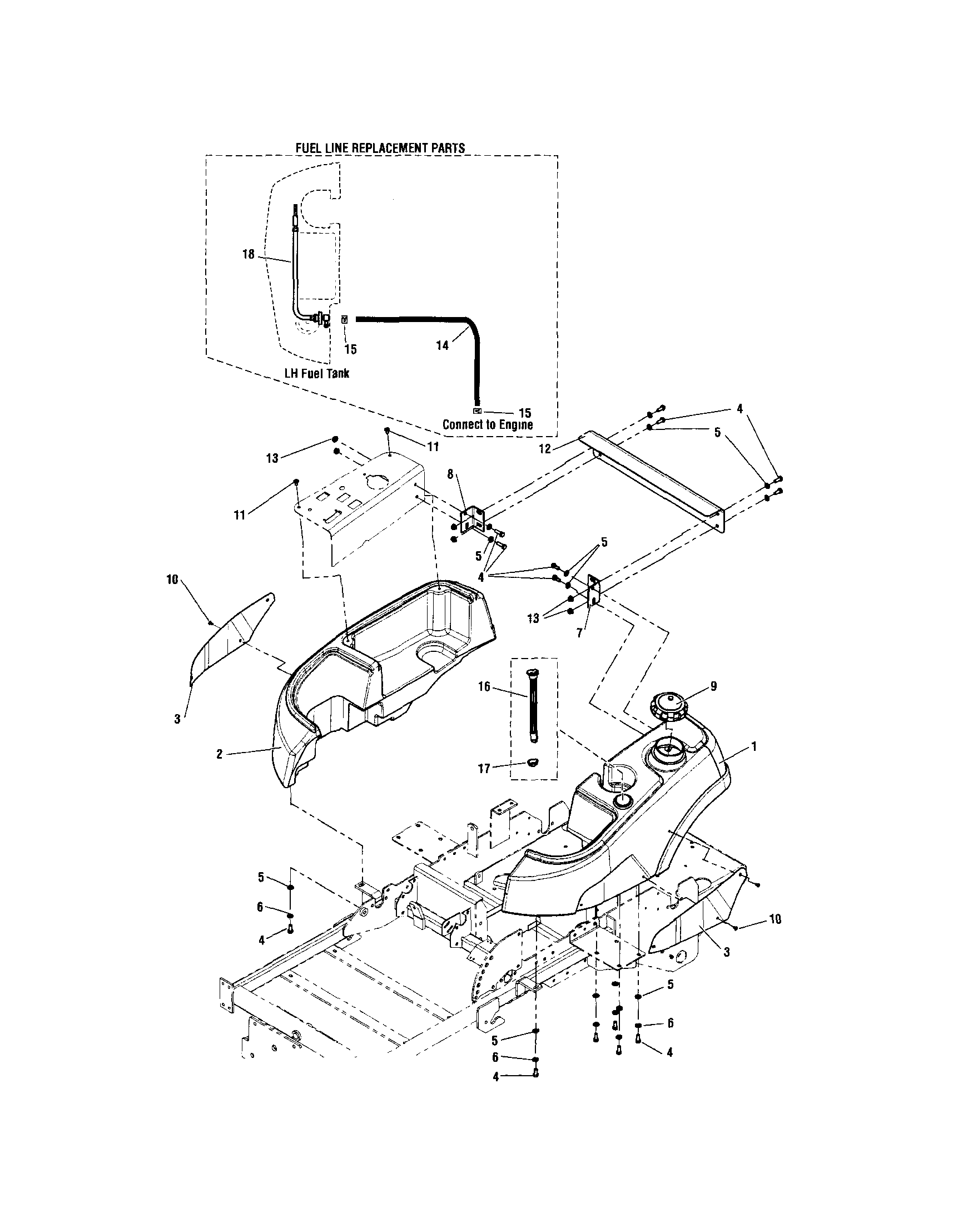

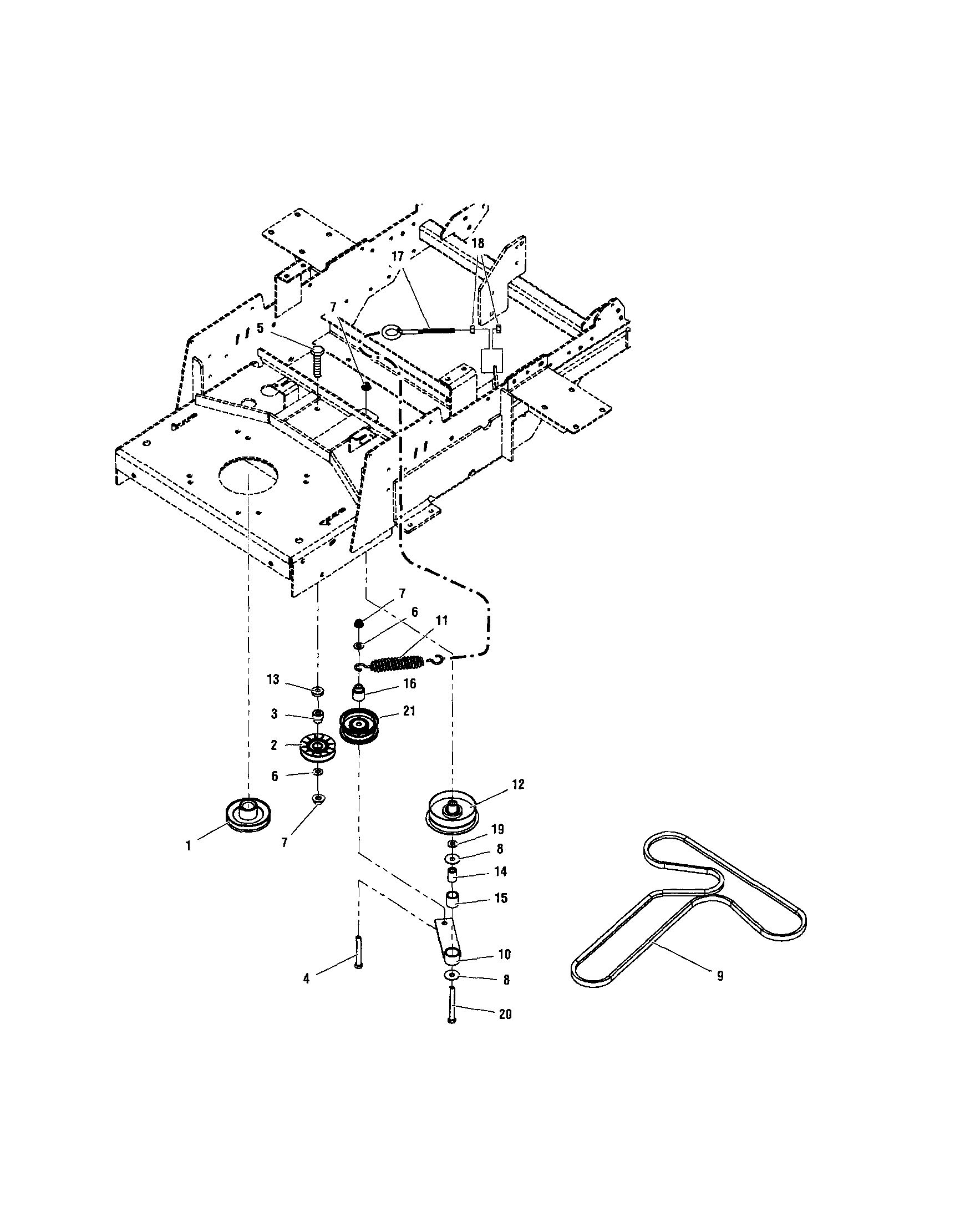

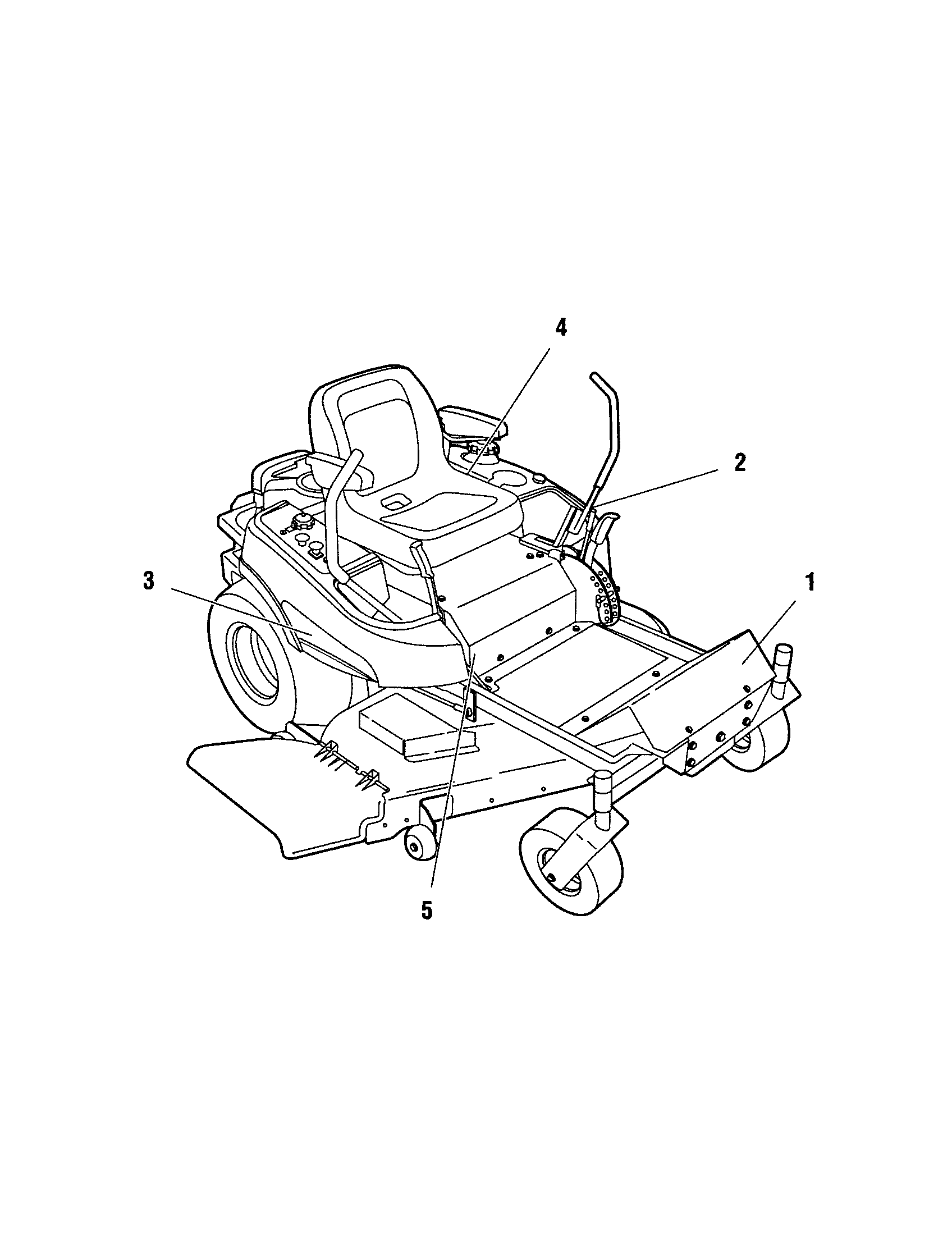

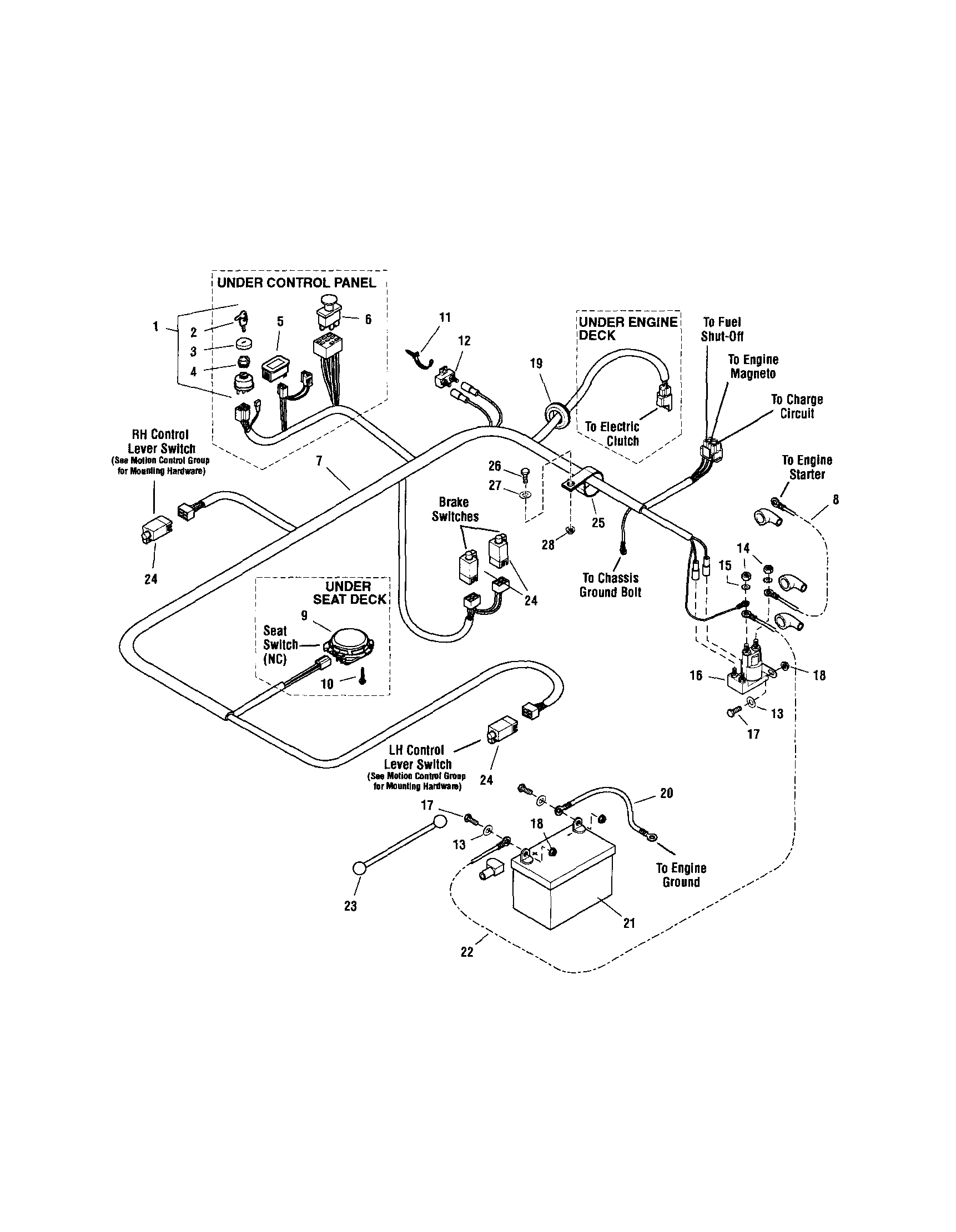

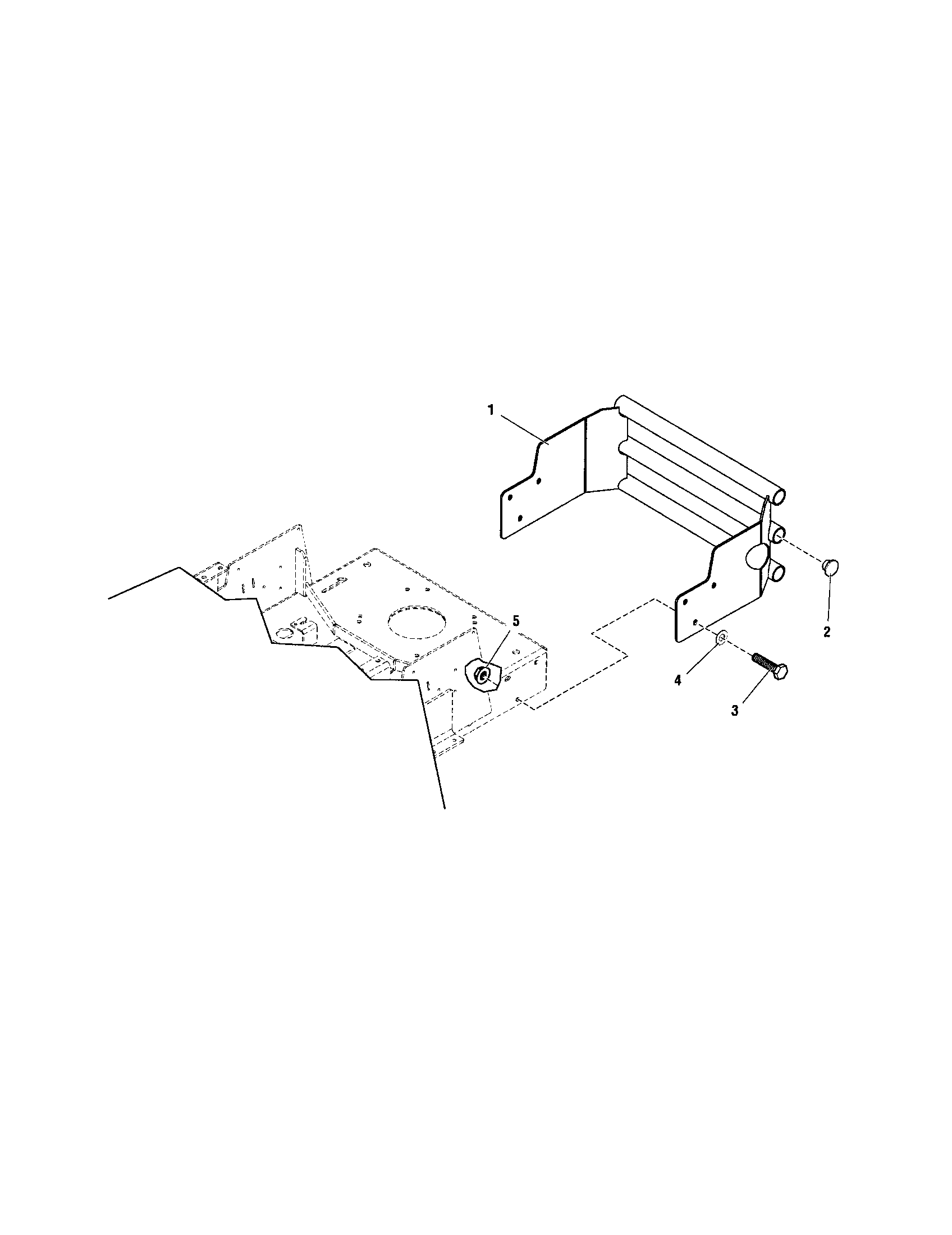

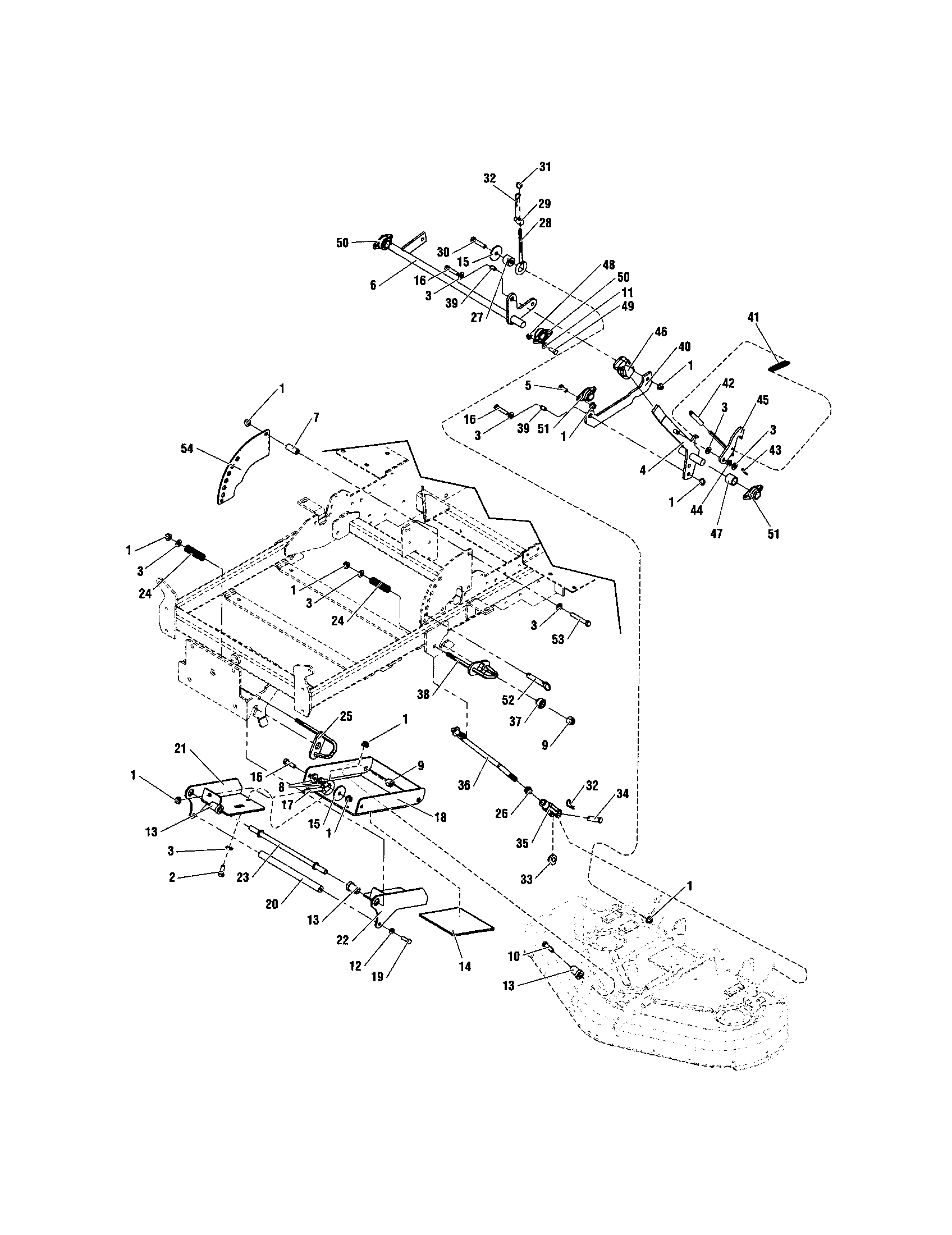

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 330 parts  |

Lawn Tractor Gauge Wheel
#3

Rollers/casters diagram

Wheel

Part #1714760

Replaced by #1714760SM

?
Manufacturer substitution
This part replaces 1714760. Substitute parts can look different from the original.
$10.77
16% OFF Phone Price : $12.77
In Stock
Lawn Tractor PTO Switch (replaces 1716332SM, 1722887, 3032137YP, 5022180SM)
Switch

Part #5022180

Replaced by #1722887SM

?
Manufacturer substitution
This part replaces 5022180. Substitute parts can look different from the original.
$37.79
12% OFF Phone Price : $42.79
In Stock
Lawn & Garden Equipment Washer
Washer

Part #5025156

Replaced by #703590

?
Manufacturer substitution
This part replaces 5025156. Substitute parts can look different from the original.
This item is not returnable
$5.99
14% OFF Phone Price : $6.99
In Stock
Lawn Tractor Screw
#26

Housing/cover/spindles diagram

Lawn & garden equipment screw

Part #1664847

Replaced by #703228

?
Manufacturer substitution
This part replaces 1664847. Substitute parts can look different from the original.
This item is not returnable
$7.49
12% OFF Phone Price : $8.49
In Stock
Lawn Tractor Ignition Switch (replaces 1686734, 1686734YP, 1716061, 5020927YP)
Switch

Part #5020927

Replaced by #1686734SM

?
Manufacturer substitution
This part replaces 5020927. Substitute parts can look different from the original.
$46.19
10% OFF Phone Price : $51.19
In Stock
Snowblower Grease Fitting
#38

Housing/cover/spindles diagram

Fitting

Part #1704314

Replaced by #703907

?
Manufacturer substitution
This part replaces 1704314. Substitute parts can look different from the original.
In Stock
Lawn & Garden Equipment Washer
Washer

Part #5025154

Replaced by #703332

?
Manufacturer substitution
This part replaces 5025154. Substitute parts can look different from the original.
This item is not returnable
$7.09
12% OFF Phone Price : $8.09
In Stock
Lawn Tractor Screw
#4

Housing/cover/spindles diagram

Lawn & garden equipment bolt

Part #1931333

Replaced by #703185

?
Manufacturer substitution
This part replaces 1931333. Substitute parts can look different from the original.
This item is not returnable
$5.63
15% OFF Phone Price : $6.63
In Stock
Lawn Tractor Bushing
#8

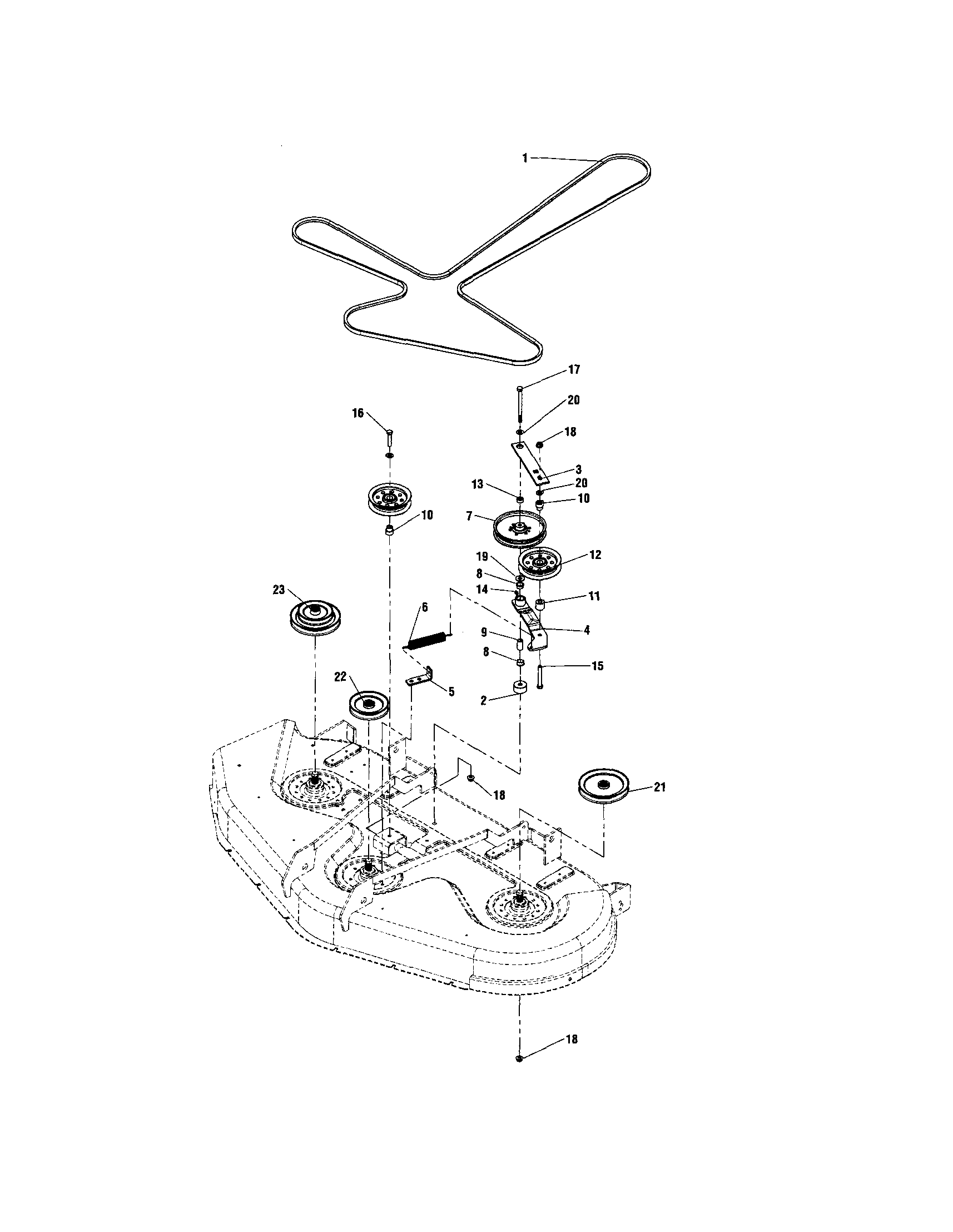

Pulleys/belt/idler arm diagram

Bushing

Part #1676148

Replaced by #1676148SM

?
Manufacturer substitution
This part replaces 1676148. Substitute parts can look different from the original.
In Stock
Lawn Tractor Mandrel Housing Cover
#33

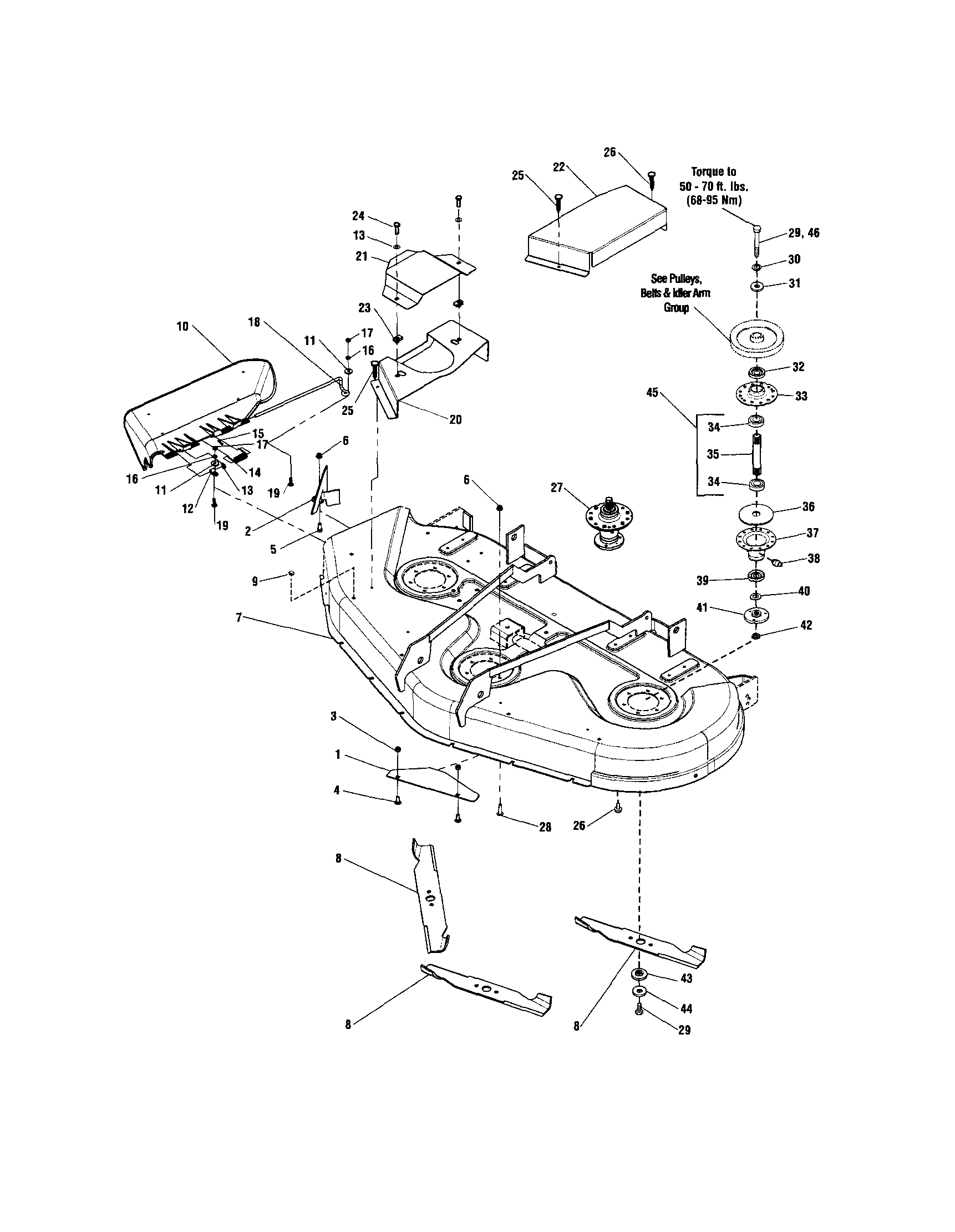

Housing/cover/spindles diagram

Housing

Part #1655729A

Replaced by #1655729ASM

?
Manufacturer substitution
This part replaces 1655729A. Substitute parts can look different from the original.
This item is not returnable
$27.94
15% OFF Phone Price : $32.94
In Stock
