GE
Microwave/Hood Combo

Model #JVM3160DF1WW GE microwave

Here are the diagrams and repair parts for GE JVM3160DF1WW microwave, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 67 parts

Microwave Door Latch Housing

#125

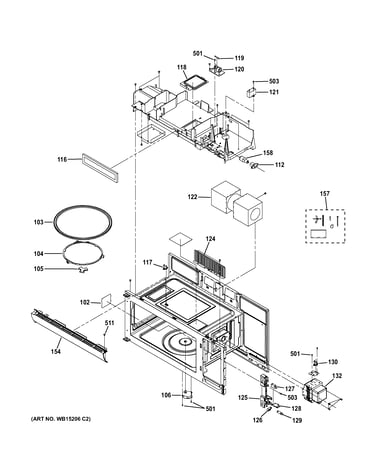

Oven cavity parts Diagram

$31.29

In Stock

Microwave Fuse

#119

Oven cavity parts Diagram

Microwave fuse

Part #WB27X11138
$36.91

In Stock

Microwave Thermostat

#138

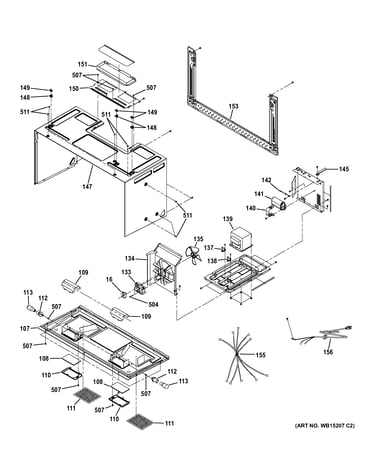

Interior parts Diagram

Microwave thermostat

Part #WB27X11213
$18.86

In Stock

Microwave Door Monitor Switch

#128

Oven cavity parts Diagram

$44.81

In Stock

Microwave Light Bulb

#158

Oven cavity parts Diagram

Microwave light bulb

Part #WB25X10029
$16.04

In Stock

Microwave Door Handle (White)

#207

Door parts Diagram

$140.90

In Stock

Microwave Door Interlock Switch

#127

Oven cavity parts Diagram

$50.53

In Stock

Microwave Glass Turntable Tray

#103

Oven cavity parts Diagram

$93.31

In Stock

Thermostat

#130

Oven cavity parts Diagram

Thermostat

Part #WB27X11210
$36.47

In Stock

Microwave Vent Grille (White)

#154

Oven cavity parts Diagram

$132.26

In Stock
