On Kenmore Elite dishwasher model 66514823N510, an F2 E2 code points to a user interface or keypad communication issue. We reset it by doing a control reset (Cancel/Drain reset) and then restarting a cycle; this clears many temporary UI faults.

Reset steps (control reset)

• Open the door slightly to pause the cycle and wait for spraying to stop.
• Press and hold CANCEL/DRAIN until the Cancel/Drain light turns on.
• Close the door and let it drain; the light typically turns off after about 2 minutes.
• To fully reset the control, press and hold CANCEL/DRAIN twice.
• Select a cycle and press START/RESUME.

For the exact button sequence and what your control panel lights mean, follow the procedure in the 66514823N510 owner's manual.

If F2 E2 comes back right away

These checks target the most common causes of an F2 E2 user interface error:

• Power reset: Turn the dishwasher off at the breaker for 1 minute, then restore power.
• Stuck key: Press each keypad button once to confirm none feel stuck or stay “pressed.”
• Moisture on the console: Wipe the control panel dry and avoid leaning on the keys during a cycle.
• Door not fully latched: Make sure the door closes firmly; a weak latch can cause odd control behavior.

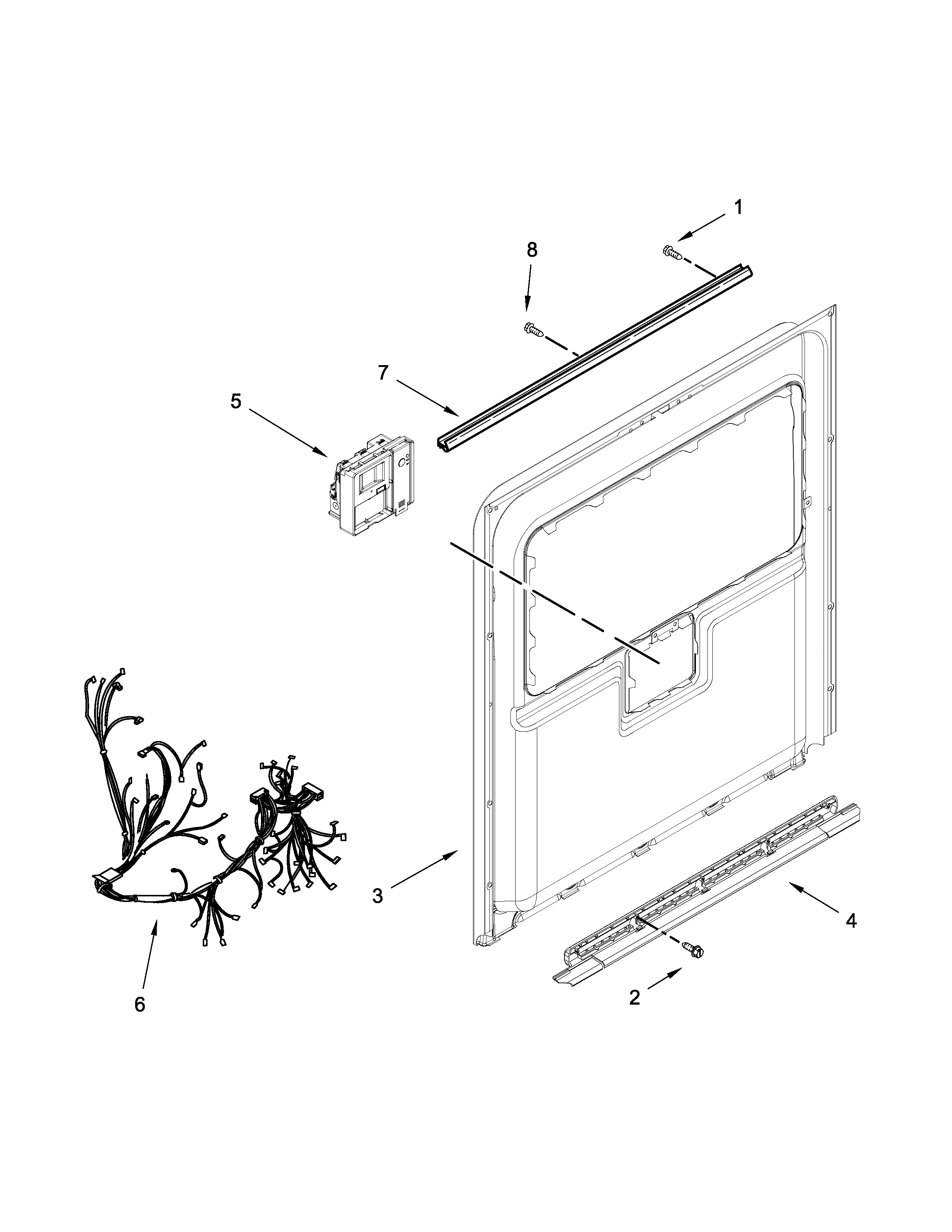

• Inspect the latch: If the door won’t consistently latch, replace the dishwasher door latch WPW10653840.

Quick guide: what each reset does

Action	What it does	When to use it
CANCEL/DRAIN (hold)	Stops the cycle and drains water	Mid-cycle interruption, standing water
CANCEL/DRAIN (twice)	Resets the control so you can restart a new cycle	Error codes, unresponsive controls
Breaker reset	Reboots the electronics	Repeated UI glitches

Why it matters

An F2 E2 error often shows up when the control can’t reliably read the keypad or communicate between the user interface and control. Resetting the control restores normal operation when the issue is temporary; checking the door latch and console conditions helps prevent repeat faults.

Last updated: January 2026

To unlock the controls on Kenmore Elite dishwasher model 66514823N510, press and hold SANI RINSE for 3 seconds to toggle Control Lock off. If the keypad will not respond, wake the control first (open and close the door, or press START/RESUME or CANCEL/DRAIN), then try again using the 66514823N510 owner's manual.

Quick unlock steps (Control Lock)

• Confirm Lock On is lit or the display indicates the controls are locked.
• If the dishwasher seems “asleep,” open and close the door once.
• Press and hold SANI RINSE for 3 seconds.
• Watch for the Lock light to turn off and/or an LCD message confirming unlock.
• Start a cycle normally; the dishwasher will not start if Control Lock is still on.

If it still will not start after unlocking

Sometimes the dishwasher is unlocked but still will not run because the door is not fully latched or START/RESUME was not completed.

• Close the door firmly until it latches.
• If the Start/Resume light is blinking, press START/RESUME and close the door within 3 seconds.

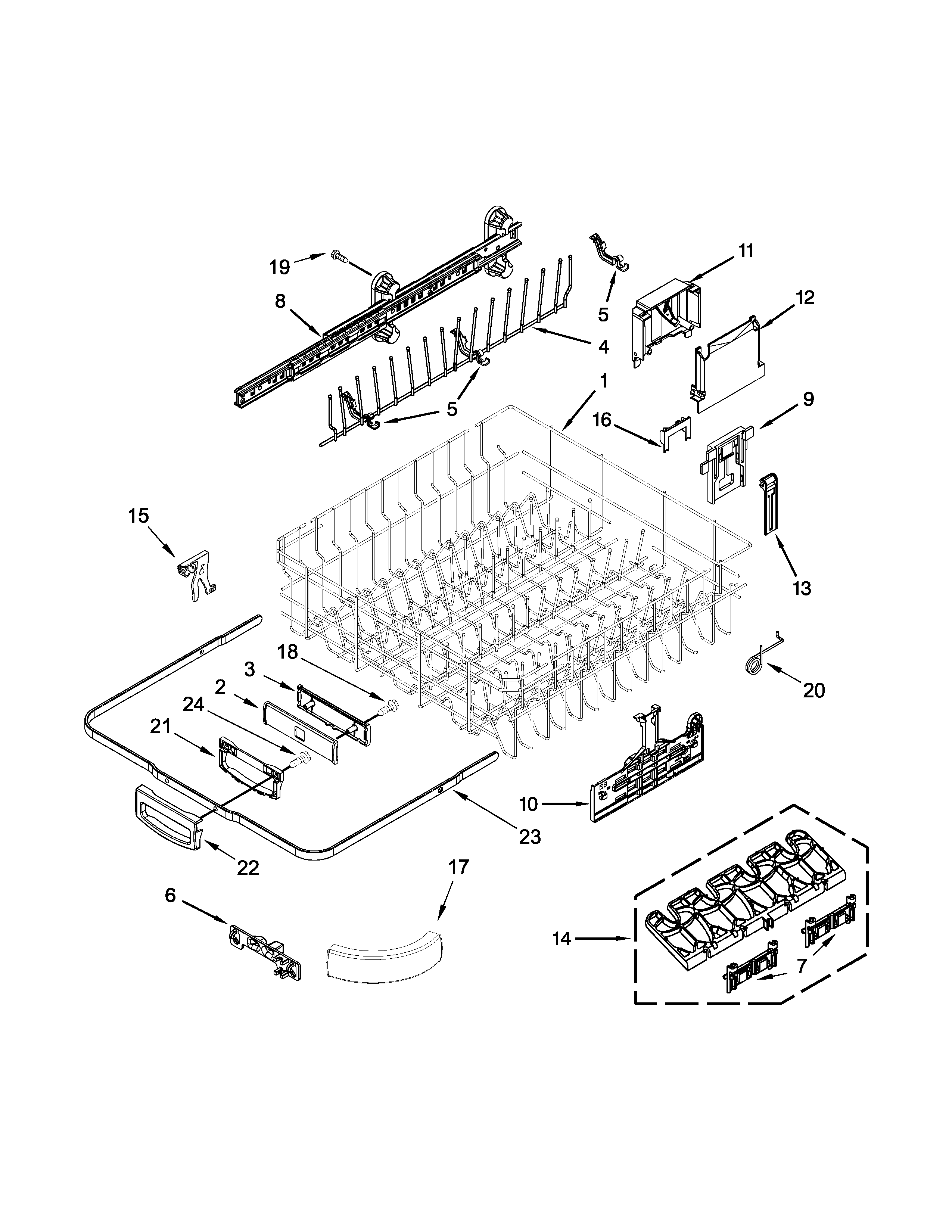

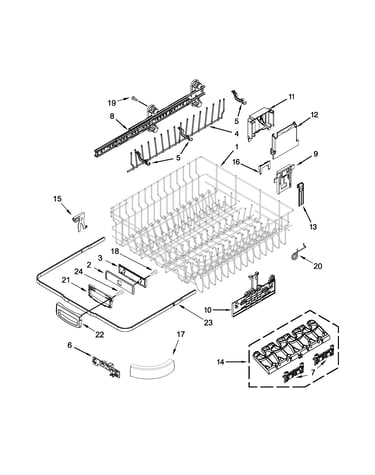

• Check for rack interference; an uneven upper rack can prevent the door from closing.
• Restore power if needed (reset a tripped breaker).

Parts that can cause “won’t start” symptoms

If the door will not latch consistently, the control may act like it is locked.

Symptom	What to check	Common fix
Door will not click shut	Latch alignment, obstruction	Replace the latch
Starts only if you push on door	Weak latch engagement	Replace the latch
Random stopping when bumped	Door not staying latched	Inspect latch and strike

A common replacement part for this model is the dishwasher door latch WPW10653840.

Why it matters

Control Lock prevents unintended button presses between cycles and during a wash. Unlocking it correctly (and waking the control first if needed) avoids unnecessary resets and helps confirm whether you have a control-lock issue or a door-latch issue.

Last updated: January 2026

Many Kenmore dishwashers are designed to run quietly, and your Kenmore Elite dishwasher model 66514823N510 is built to operate with normal, low-level cycle sounds such as water movement, brief hissing at the fill valve, and an occasional snap when the detergent dispenser opens. For the expected sound profile and troubleshooting tips, use the 66514823N510 owner's manual.

What “quiet” sounds like on this dishwasher

Even a quiet dishwasher is not silent. The manual describes several sounds that are considered normal during operation:

• Periodic surging sounds while the dishwasher is draining
• Brief water valve hissing during fills
• A normal snap when the detergent dispenser opens

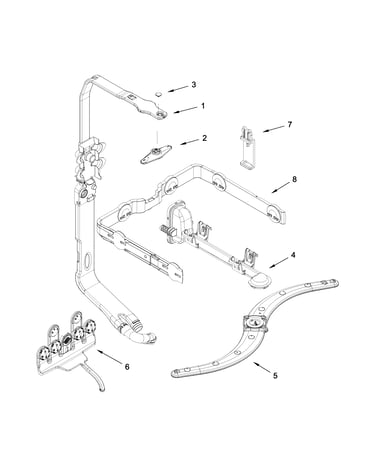

• Thumping if dishes extend beyond the racks and contact the spray arms

When noise is a sign of a problem

If the sound is new, loud, or getting worse, we treat it as a loading, installation, or wash-system issue first.

• Thumping or knocking: items are hitting the spray arms; reload so nothing protrudes
• Rattling: lightweight items or utensils are vibrating; secure them in the rack or basket
• Grinding: debris in the pump area or a damaged wash component; stop the cycle and inspect
• Louder-than-normal operation: installation can amplify vibration; confirm the unit is secured and level

Quick check table

Sound you hear	Most common cause	What to do
Thump/knock	Dishware contacting spray arm	Reposition items; restart cycle
Hiss	Normal inlet valve fill	No action needed
Snap/click	Detergent dispenser opening	No action needed
Surging	Normal draining	No action needed

Parts that can contribute to noise (when worn or loose)

If the noise is tied to rack movement or vibration, these model-matched parts are common fixes:

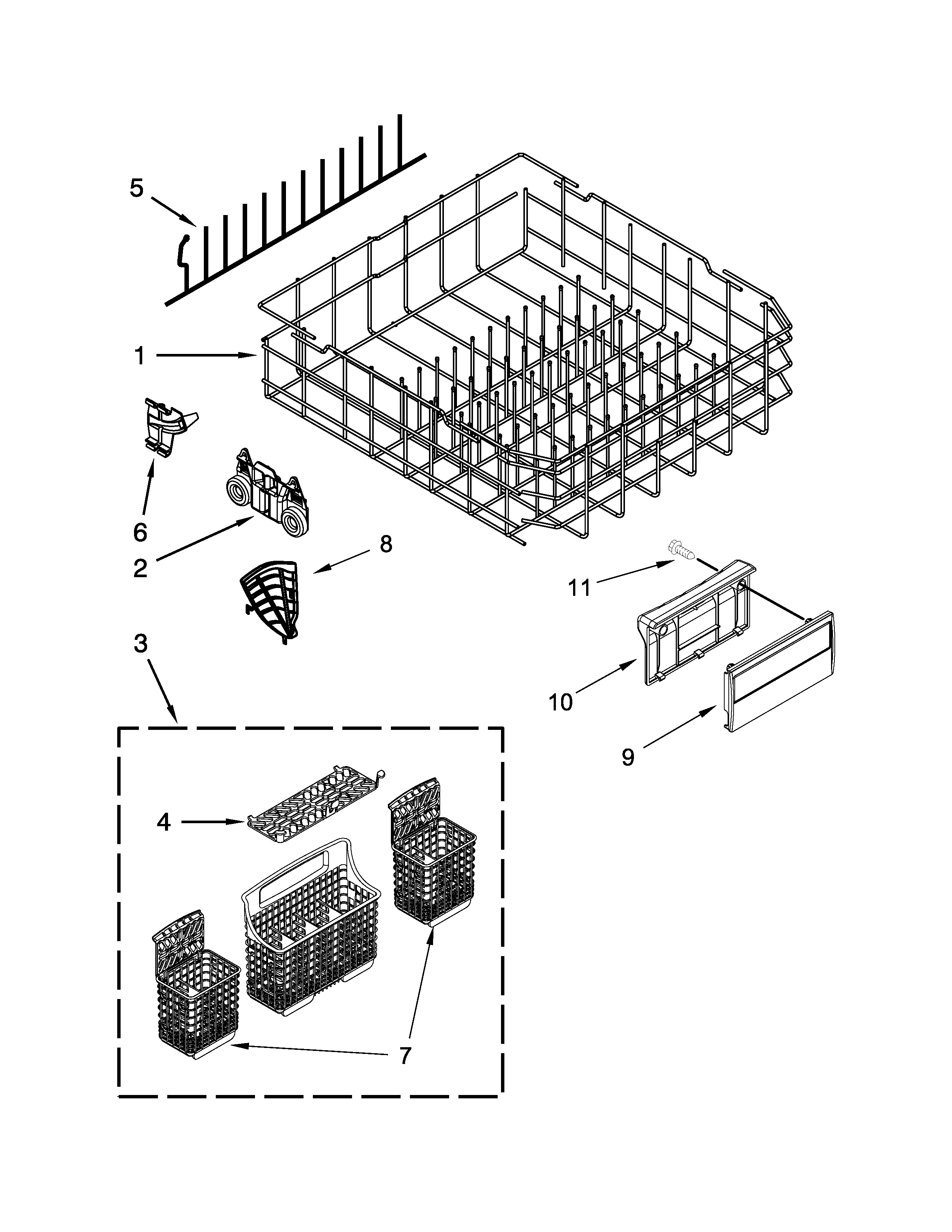

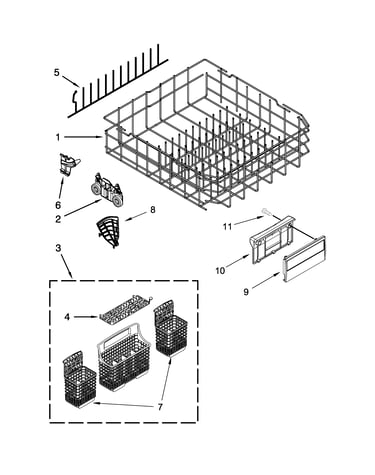

• Dishwasher dishrack roller assembly, lower WPW10195417 if the lower rack rolls roughly or wobbles

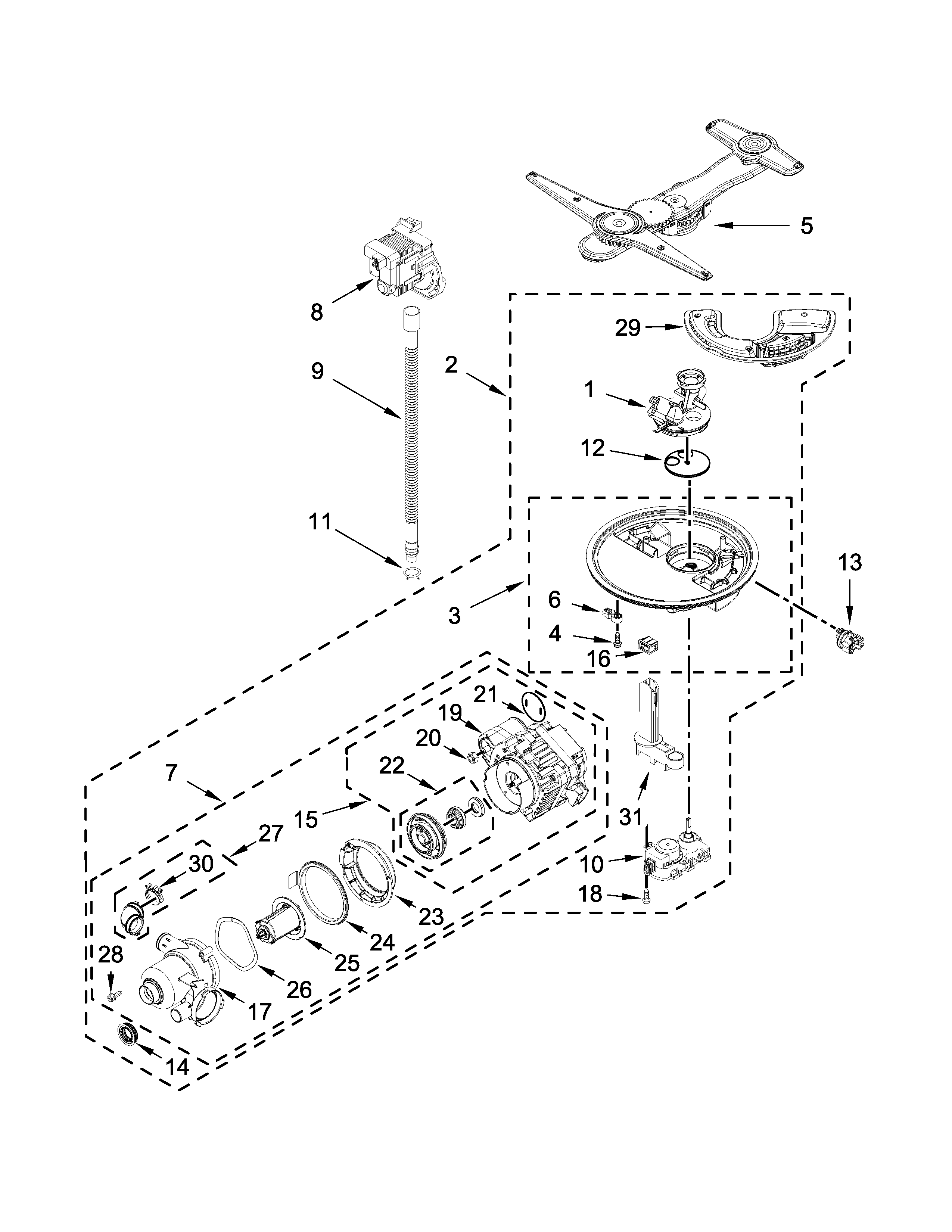

• Dishwasher pump grommet WPW10538166 if vibration increases due to a worn mounting grommet

Why it matters

A dishwasher that runs quietly usually indicates proper loading, stable installation, and smooth water circulation. Addressing thumps and rattles early helps prevent spray arm interference, poor cleaning, and unnecessary wear on the pump and rack components.

Last updated: January 2026

On Kenmore Elite dishwasher model 66514823N510, the E15 code means the dishwasher has detected water in the base pan and the leak sensor (float switch) has been triggered, so the unit may stop or run the drain pump to prevent unsafe operation. Check for leaks and clear the water, then correct the cause.

What to do first (safe, quick checks)

• Turn off power at the breaker; then turn off the water supply valve.

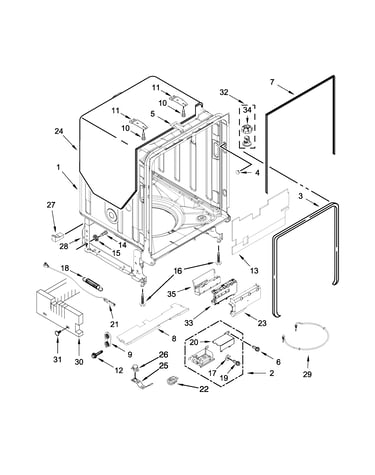

• Pull the toe-kick panel and look for water in the bottom base area.
• If you see water, dry the base pan (towels or a fan) so the leak sensor can reset.
• Inspect the door area for drips; a damaged lower seal can let water run down into the base.
• Check the drain path for backups (air gap or high loop); a slow drain can contribute to overflow conditions.

Common causes of E15 on this model

E15 is usually a symptom of a leak or overflow, not the root problem. These are the most common sources to check:

• Door sealing issues (warped seal, debris on the sealing surface)
• Loose or leaking fill connections at the water inlet valve
• Drain hose leak or a loose clamp
• Over-sudsing from the wrong detergent (hand soap or too much detergent)
• Internal leak at the pump area or sump seals

Parts that often fix the underlying leak

If you find a clear leak source, these model-matched parts are common solutions:

Symptom you see	Likely area	Example model-matched part

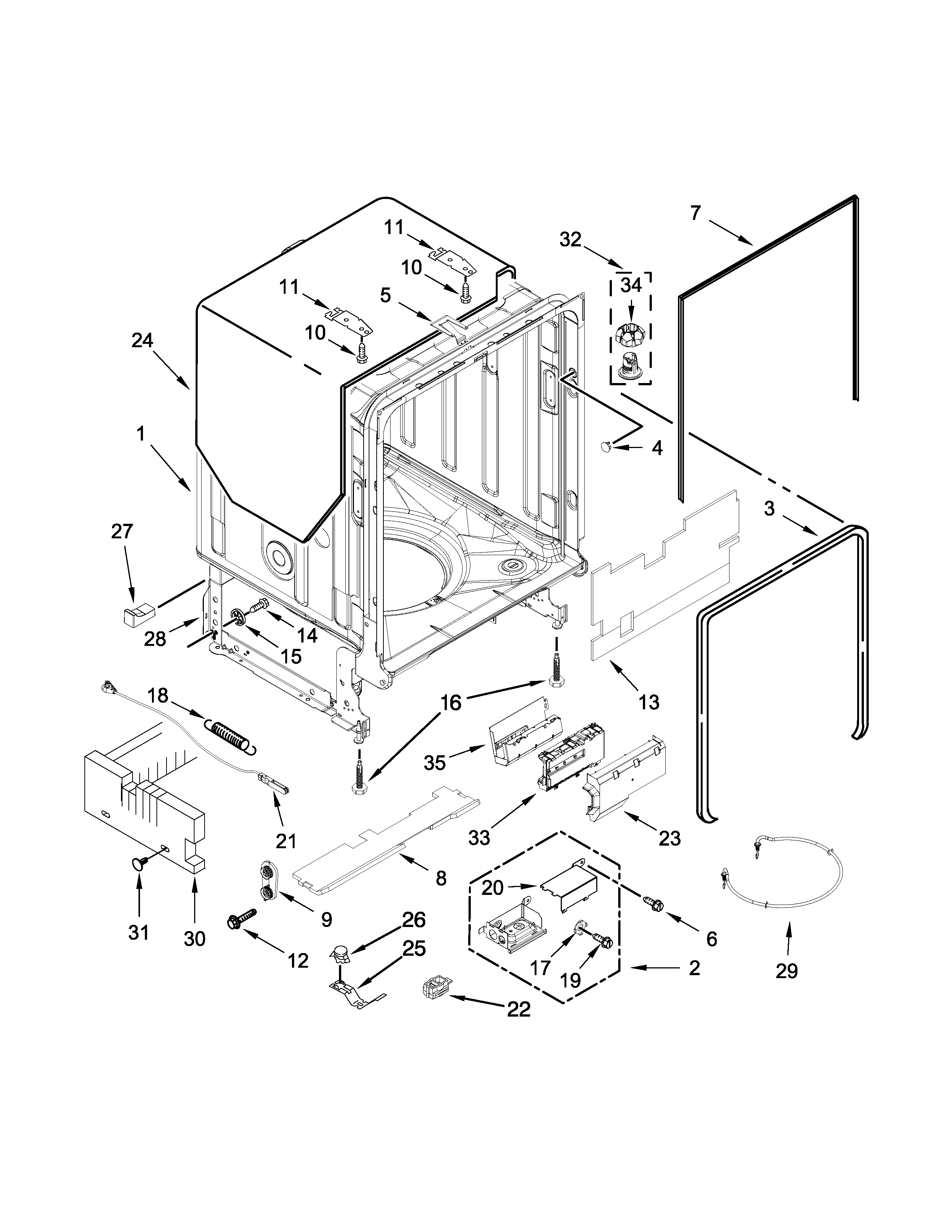

Water dripping from bottom of door	Door sealing	Dishwasher door seal, lower W10909089

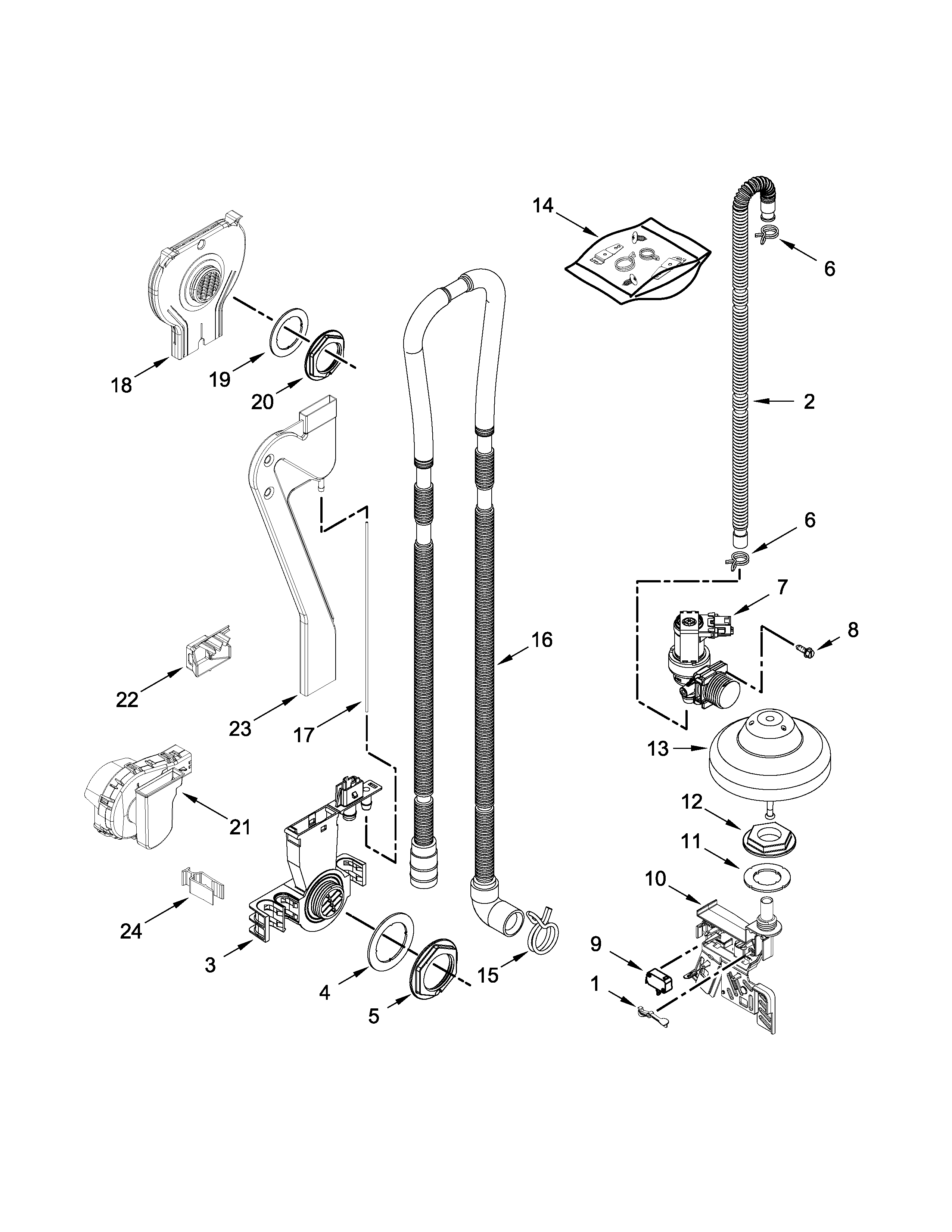

Water leaking under left/front area during fill	Fill system	Dishwasher water inlet valve WPW10327249
Water leaking at cabinet drain connection	Drain line	Dishwasher drain hose 8269144A

Why it matters

When water reaches the base pan, the leak sensor is doing its job: it helps prevent electrical risk and cabinet damage by stopping normal operation. Drying the pan may clear E15 temporarily, but fixing the leak source prevents repeat shutdowns.

Where to confirm model-specific steps

For access panels, safety notes, and installation-related checks (like securing the dishwasher and verifying connections), follow the 66514823N510 installation guide.
