Ice building up on the freezer floor is almost always caused by a defrost drain problem: meltwater cannot flow to the drain pan, so it refreezes at the bottom. On Kenmore Elite refrigerator model 79571056011, clearing the drain path and correcting door-seal issues typically stops the ice from returning; see the 79571056011 owner's manual.

Most common causes (and what to check first)

• Clogged or frozen defrost drain: water backs up and refreezes on the freezer bottom.
• Drain tube restricted at the rear: debris or ice blocks the outlet.
• Door not closing fully: warm, humid air enters and increases frost and meltwater.
• Frequent door openings: adds humidity that turns into frost and ice.
• Gasket not sealing: gaps let moisture in (especially around corners).

Quick fix steps we recommend

1. Unplug the refrigerator and remove food from the freezer floor area.
2. Melt the ice on the bottom (use towels and a hair dryer on low, kept moving).
3. Clear the drain opening under the evaporator area (hot water in small amounts works well).
4. Flush the drain with hot water until it flows freely to the drain pan.
5. Confirm the doors close and seal with a paper-strip test (light resistance when pulling).

If the drain tube is damaged or won’t clear, replacing it is a reliable repair: refrigerator drain tube 5251JA3003D.

What “normal” looks like vs. a problem

Symptom	Most likely cause	Best next step
Solid ice sheet on freezer floor	Drain clogged/frozen	Defrost and flush drain
Water pooling then freezing again in 1 to 3 days	Drain still restricted	Inspect/replace drain tube
Frost on food plus ice buildup	Door sealing/usage issue	Check gasket and door alignment

Why it matters

When the defrost drain can’t carry meltwater away, the freezer repeatedly refreezes that water into a thick ice layer. Fixing the drain prevents recurring ice, protects food storage space, and reduces strain from excess frost.

Last updated: January 2026

If your Kenmore Elite 79571056011 is warm at the bottom, the most common causes are restricted airflow (blocked vents, overpacked shelves), temperature settings that need time to stabilize (wait 24 hours after changes), or a cooling system issue such as dirty condenser coils or a weak fan.

Quick checks we recommend first

• Confirm the refrigerator is set near 37°F and the freezer near 0°F, then wait 24 hours after any adjustment.
• Make sure food packages are not blocking air vents or the return air path.
• Avoid overpacking the bottom shelves and crisper area; cold air has to circulate.
• Verify the doors close fully and the gaskets seal all the way around.
• Clean dust and pet hair from the condenser area (restricted heat release reduces cooling).

Airflow and settings: what to do (in order)

1. Check settings and wait: The controls are designed for gradual changes; we recommend one small change at a time and waiting a full day to judge results. See the temperature guidance in the 79571056011 owner's manual.
2. Reduce warm-air load: Frequent door openings and adding a large amount of food can warm the lower section for several hours.
3. Restore airflow: Rearrange items so air can move freely from the freezer to the refrigerator section.

Parts that commonly affect “warm at the bottom” symptoms

If basic airflow and settings do not fix it, these parts are common suspects on bottom-mount designs:

Symptom you notice	Likely area	Example part to inspect/replace
Temps drift warm, runs a lot	Heat not shedding well	Condenser coil area
Warm spots, uneven cooling	Air movement issue	Fan/ducting (model-specific)
Door not sealing, moisture	Air leaks	Door gasket

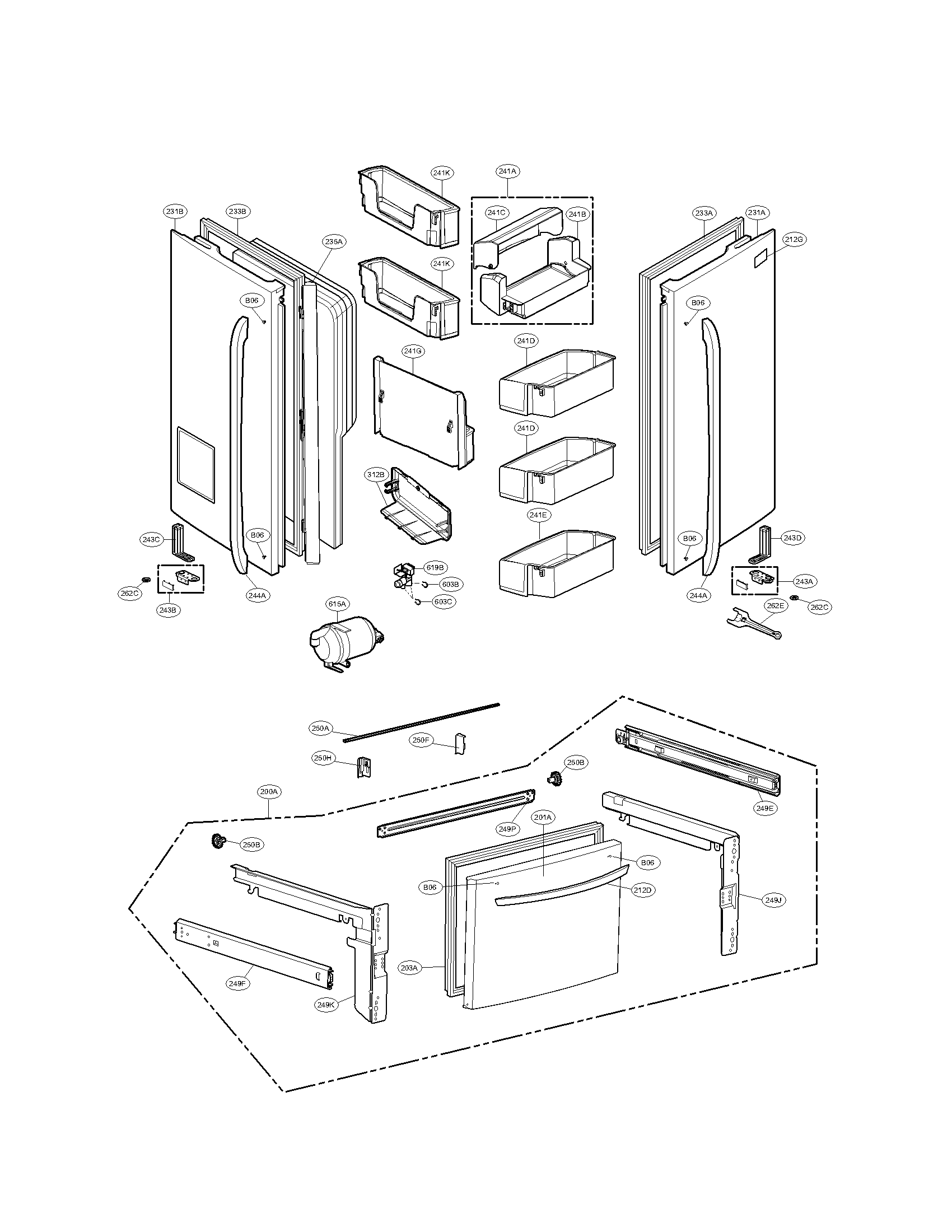

For this model, a damaged or warped right-side seal can contribute to warm zones and longer run times; see refrigerator door gasket, right ADX73550624.

Why it matters

Bottom-area warming is usually an airflow or heat-release problem; when cold air cannot circulate or the condenser cannot dump heat, the refrigerator compartment warms first and food safety can be affected.

Last updated: January 2026

Common problems on the Kenmore Elite 79571056011 bottom-mount refrigerator include weak cooling from dirty condenser coils, ice maker or dispenser issues from door or ice-bin problems, and lights not working from a loose or burned-out bulb. Our 79571056011 owner's manual troubleshooting section helps pinpoint the cause fast.

Most common symptoms and what usually causes them

• Not cooling well or running too much: dirty condenser coils, warm room conditions, frequent door openings, or airflow blocked by food
• Vibration or rattling noise: unit not level, weak/uneven floor, leveling legs need adjustment

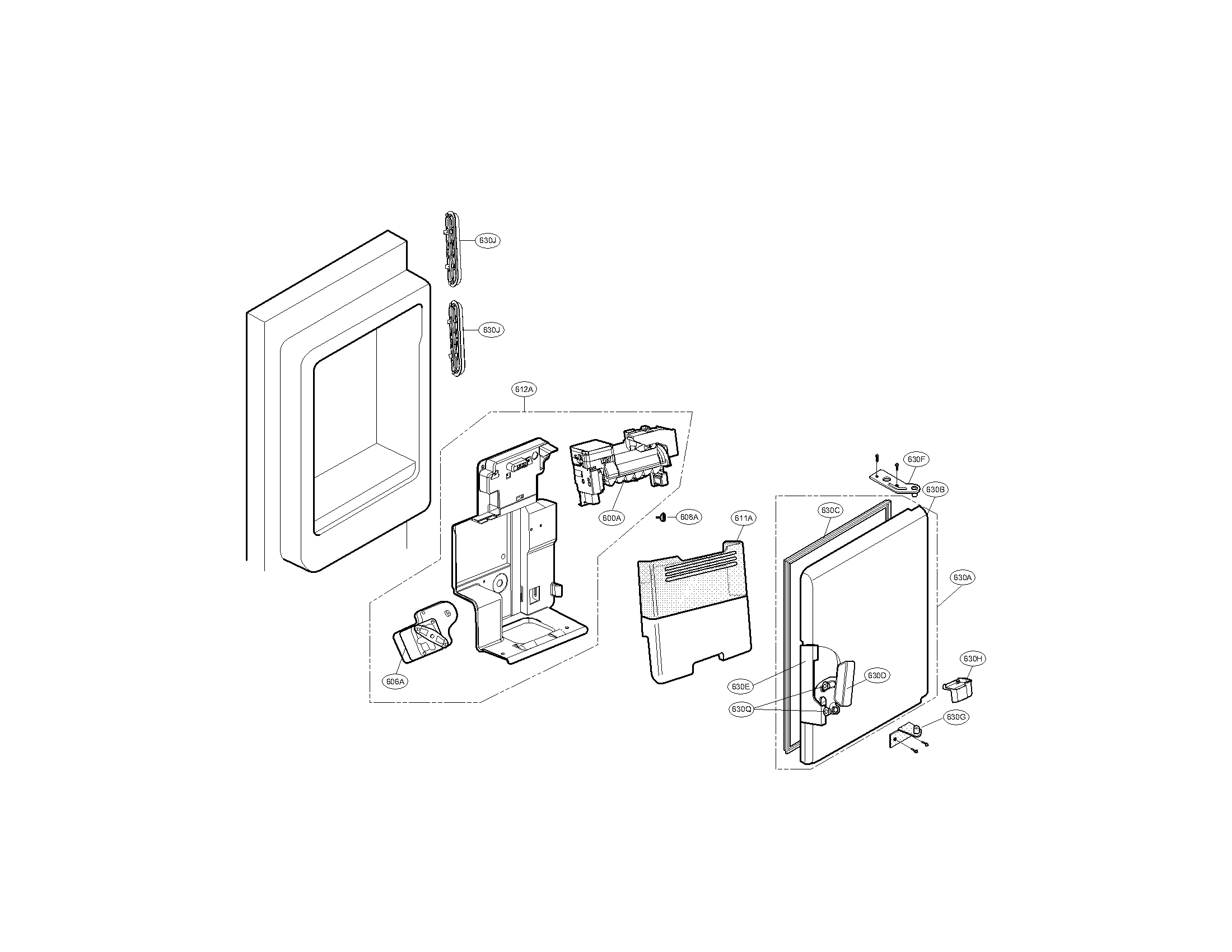

• Ice maker stops or makes little ice: ice bin uneven (icemaker “thinks” it is full), ice compartment door not closed tightly, ice maker switched off
• Lights do not work: power cord unplugged, bulb loose, bulb burned out

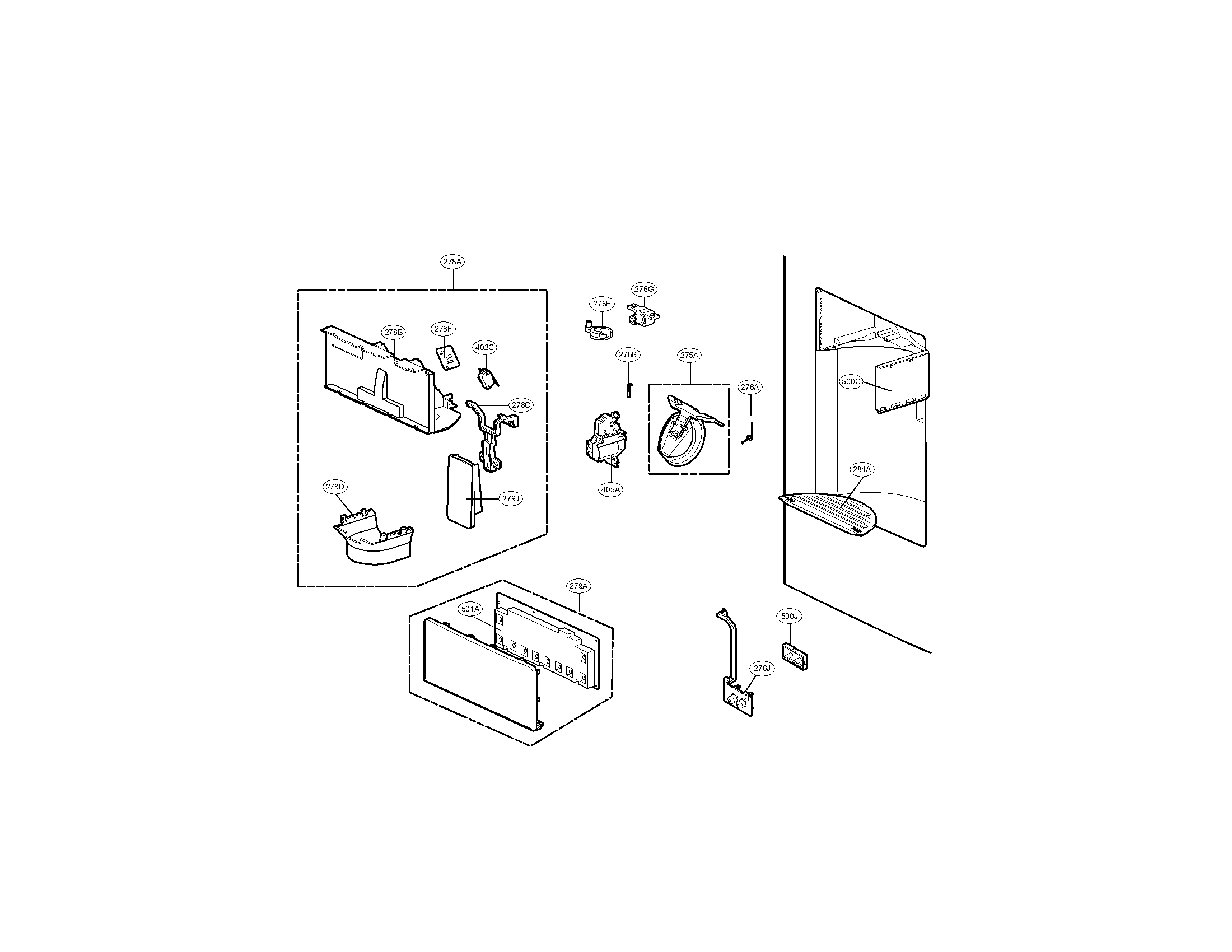

• Water/ice dispenser problems: restricted water flow (often a filter issue), frozen or kinked water line, or a valve problem

Quick checks we recommend before replacing parts

1. Clean the condenser coils (a common cause of poor cooling and long run times).
2. Confirm doors seal and close fully; a door left slightly open can cause temperature swings and frost.
3. Level the refrigerator if you hear rattling or feel vibration.
4. Check the ice compartment door and shake/level the ice in the bin if ice production stops.
5. Check the light bulb seating; unplug first, reseat the bulb, then restore power.

Parts that commonly solve these issues

Symptom	Part that often fixes it	What it does
Water tastes/flows poorly	Genuine Kenmore refrigerator water filter 9690 AGF80300801	Filters incoming water for the dispenser and ice maker

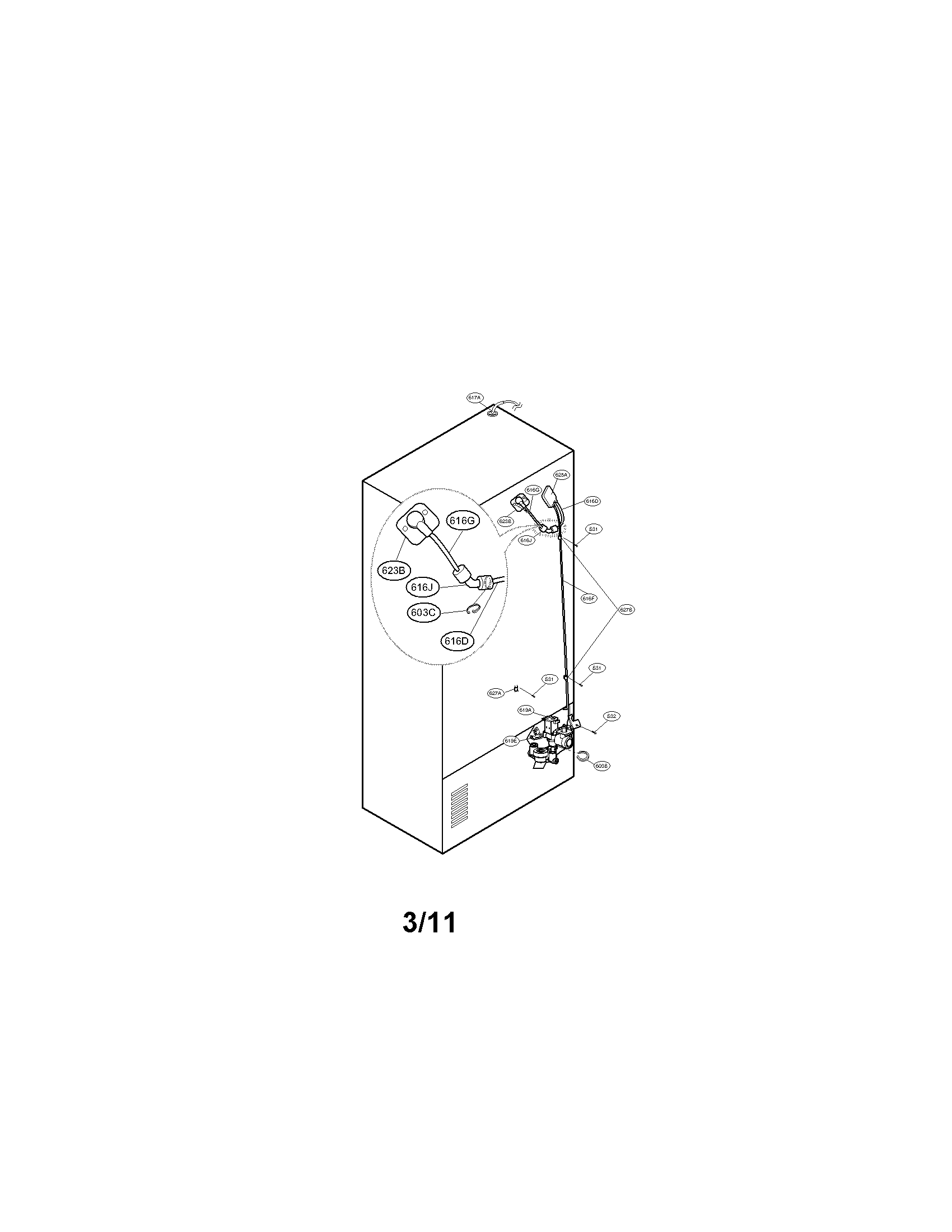

No water to dispenser/ice maker	Lg refrigerator water inlet valve AJU72992601	Opens to supply water when the dispenser or ice maker calls for it
Lights act up when door closes	Refrigerator door switch 6600JB1010A	Tells the control when the door is open or closed

Why it matters

Cooling, ice production, and noise complaints are often connected to airflow, door sealing, and basic maintenance. Addressing those first prevents unnecessary part replacement and helps the compressor run a normal amount of time.

Last updated: January 2026

Kenmore Elite refrigerator model 79571056011 is a bottom-freezer refrigerator; the exact width, height, depth, and required clearances are provided in the model’s dimension and installation section of the 79571056011 owner's manual. Use those specs when planning a cabinet opening, door swing, and water line routing.

What to use as the “official size”

For a correct fit, we use the dimensions shown in the manual’s installation and leveling section, not a generic “typical” size.

• Overall width (cabinet and doors)
• Overall height (to top of case and to top hinge cover, if shown)
• Overall depth (case only and with doors/handles, if listed)
• Clearances (sides, top, and back for airflow)
• Door swing space (so doors and freezer drawer open fully)

How to measure your space (so the fridge fits the first time)

Measure the opening and the path into the kitchen, then compare to the manual.

• Measure opening width at top, middle, and bottom
• Measure opening height to the lowest cabinet/soffit
• Measure counter depth and note any trim that sticks out
• Confirm door swing clearance for the refrigerator doors
• Confirm service space behind the unit for the cord and water line

Water line requirements that affect “fit” behind the refrigerator

If your 79571056011 has an ice maker or water dispenser, plan space for the supply line and service loop.

Item	Specification used for planning
Supply tubing size	1/4-inch OD copper tubing
Water pressure (with filter)	40 to 120 psi
Service loop	Add about 8 ft of extra tubing

Why it matters

Using the model-specific dimensions prevents common installation problems like doors hitting cabinets, the refrigerator sticking out past counters, restricted airflow that hurts cooling, or a kinked water line that stops ice and water.
