Bottom-freezer refrigerators like the GE GFE24JSKJFSS keep fresh food at eye level, but the tradeoff is that frozen items sit lower in a drawer system. The main disadvantages are more bending for freezer access, heavier lifting from a deep drawer, and occasional drawer organization or sticking issues if baskets are overfilled.

Common disadvantages (what you will notice day to day)

• You typically bend or squat more to reach frozen foods, especially items stored in the bottom basket.
• Large, heavy items (bulk meat, frozen pizzas, ice bags) can be awkward to lift up and out.
• Freezer drawers can get cluttered; items can stack and become hard to see.
• Baskets can stick or jam if they are packed above the rim (a common cause of “hard to open” complaints).
• Bottom-freezer models often cost more than basic top-freezer refrigerators with similar capacity.

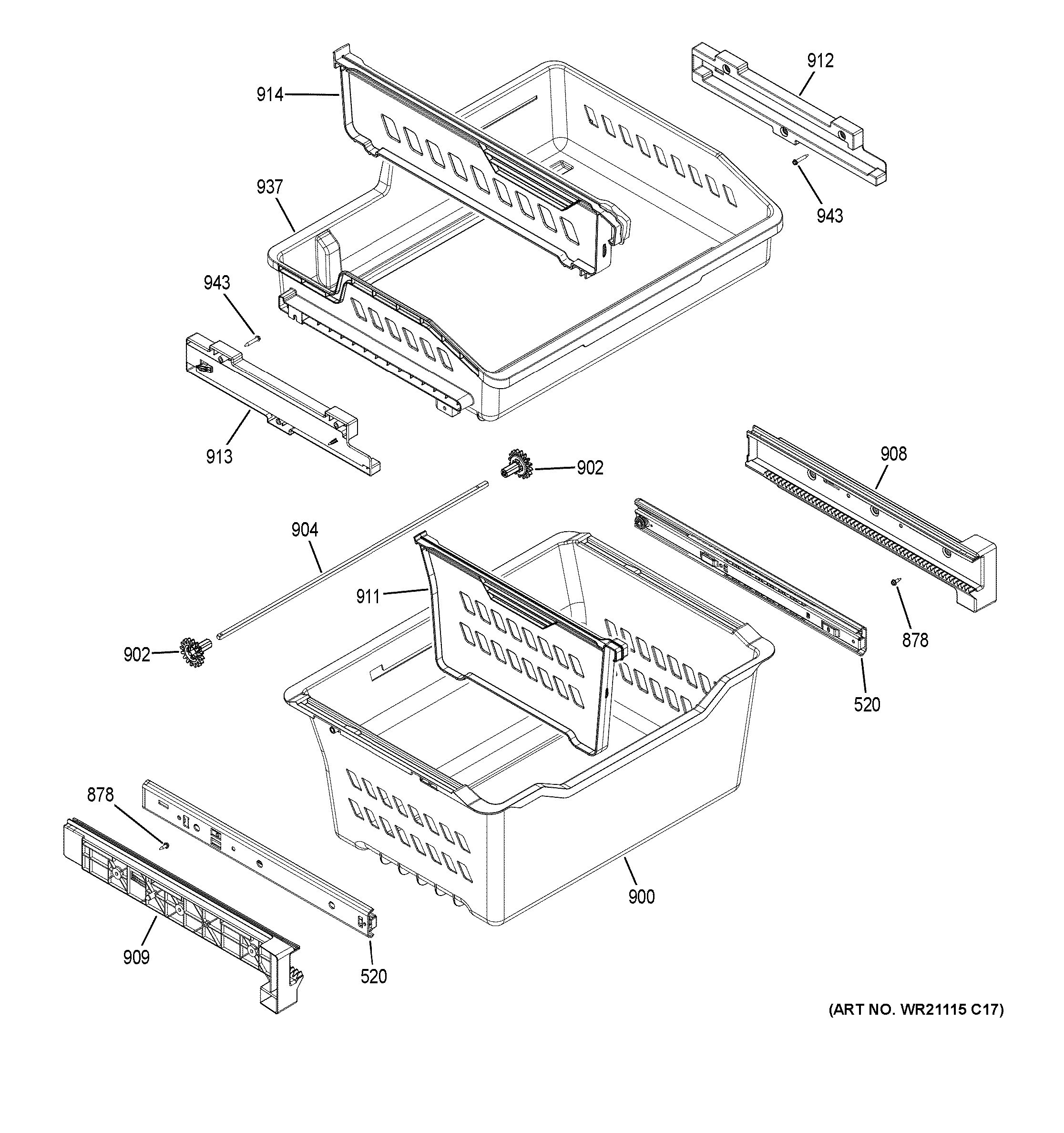

Freezer drawer organization: why it can be frustrating

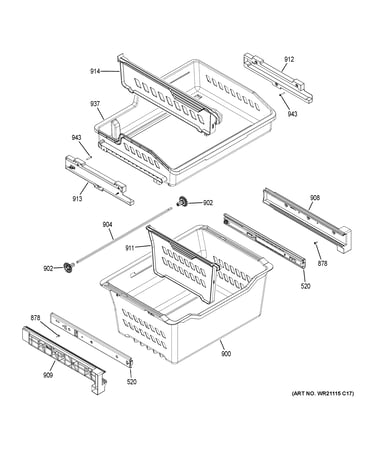

The freezer on many bottom-freezer designs uses multiple baskets (top and bottom). When food is piled too high, the drawer can bind.

Issue	What it causes	What usually fixes it
Overfilled baskets	Drawer sticks or jams	Keep food below the basket rim
Small items loose in drawer	Hard to find food, more door-open time	Use bins or freezer-safe containers
Heavy items stored low	More strain lifting	Store heavy items in the top basket

For basket removal, divider placement, and loading limits, follow the GFE24JSKJFSS owner's manual.

When a bottom freezer is a poor fit

A bottom-freezer refrigerator is usually less ideal when:

• You have knee, hip, or back limitations.
• You rely heavily on frozen foods every day.
• You frequently store bulky frozen items (party trays, large roasts, big bags).

Why it matters

Long freezer door-open times and jammed baskets can lead to temperature swings, frost buildup, and more wear on drawer slides. Keeping baskets properly loaded helps the freezer close fully and cool consistently.

Last updated: January 2026

On the GE GFE24JSKJFSS bottom-mount refrigerator, the bottom grille (base grille) typically comes off by removing any retaining screws (if present) and then pulling the grille straight out to release the clips. For safe access, we unplug the refrigerator first and avoid prying against the cabinet finish.

Before you start (safety and access)

• Unplug the refrigerator to reduce shock risk while working near wiring and fans.
• If you need to roll the unit forward, raise the front leveling legs first.
• Pull the refrigerator straight out (not sideways) to help prevent floor damage.
• Watch the power cord and water line so you do not roll over them.

For model-specific handling and moving guidance, follow the GFE24JSKJFSS owner's manual.

Steps to remove the bottom grille

1. Look along the top edge and corners of the grille for Phillips-head screws.
2. If screws are present, remove them and set them aside.
3. Grip the grille at both ends and pull straight outward to release the retaining clips.
4. If it feels stuck, pull evenly from both sides; do not twist the grille.
5. Once released, lift it away and place it on a non-scratching surface.

If the grille will not release

• Confirm all screws are removed (some versions use multiple screws).
• Check for tape, shipping foam, or debris catching the grille.
• Warm the room slightly if the grille feels brittle from cold.
• Pull from the ends first, then the center, keeping the force straight outward.

Reinstalling the grille

Line the grille up with the mounting slots, press it in until it snaps into place, then reinstall any screws.

Task	What to do	What to avoid
Remove grille	Remove screws, pull straight out	Prying with a screwdriver (scratches)
Move refrigerator	Raise leveling legs, pull straight out	Rolling over cord or water line
Reinstall grille	Align, snap in, reinstall screws	Overtightening screws

Why it matters

Removing the bottom grille correctly prevents broken mounting tabs and cabinet scratches, and it gives you access for cleaning and inspection (dust buildup can affect airflow and cooling performance).

Last updated: January 2026

Cooling problems are the most common issue we see on GE refrigerators like model GFE24JSKJFSS. The root cause is usually restricted airflow or a control/defrost problem, which can make temperatures rise, ice build up, or food spoil even though the lights and display still work.

What to check first (fast, no-parts steps)

• Confirm the temperature settings were not accidentally changed (typical targets: 37°F fresh food, 0°F freezer).
• Make sure doors close fully and nothing is holding them open.

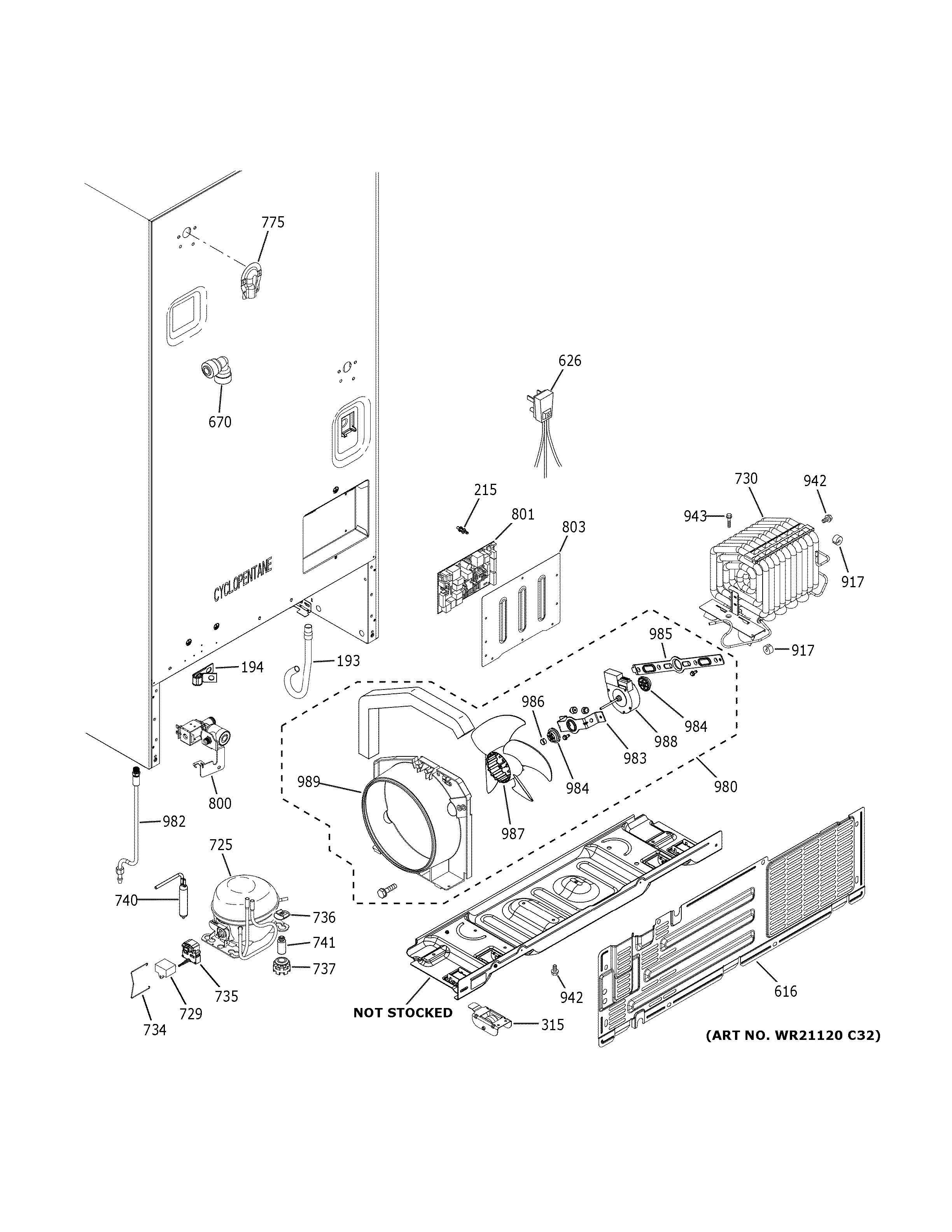

• Clean condenser coils and verify the condenser fan area is not blocked by dust.
• Listen for the evaporator fan running; weak airflow often points to a fan or frost buildup.
• After moving the refrigerator, push it straight in and avoid rolling over the power cord or water line; then re-level the front legs so the unit sits solidly. See the GFE24JSKJFSS owner's manual.

Common causes and the parts that often fix them

If basic checks do not restore normal temperatures, these are the most frequent culprits:

Symptom	Likely cause	Example part for GFE24JSKJFSS
Warm fridge, freezer OK	Airflow/damper issue or sensor reading wrong	GE profile refrigerator temperature sensor WR55X10025

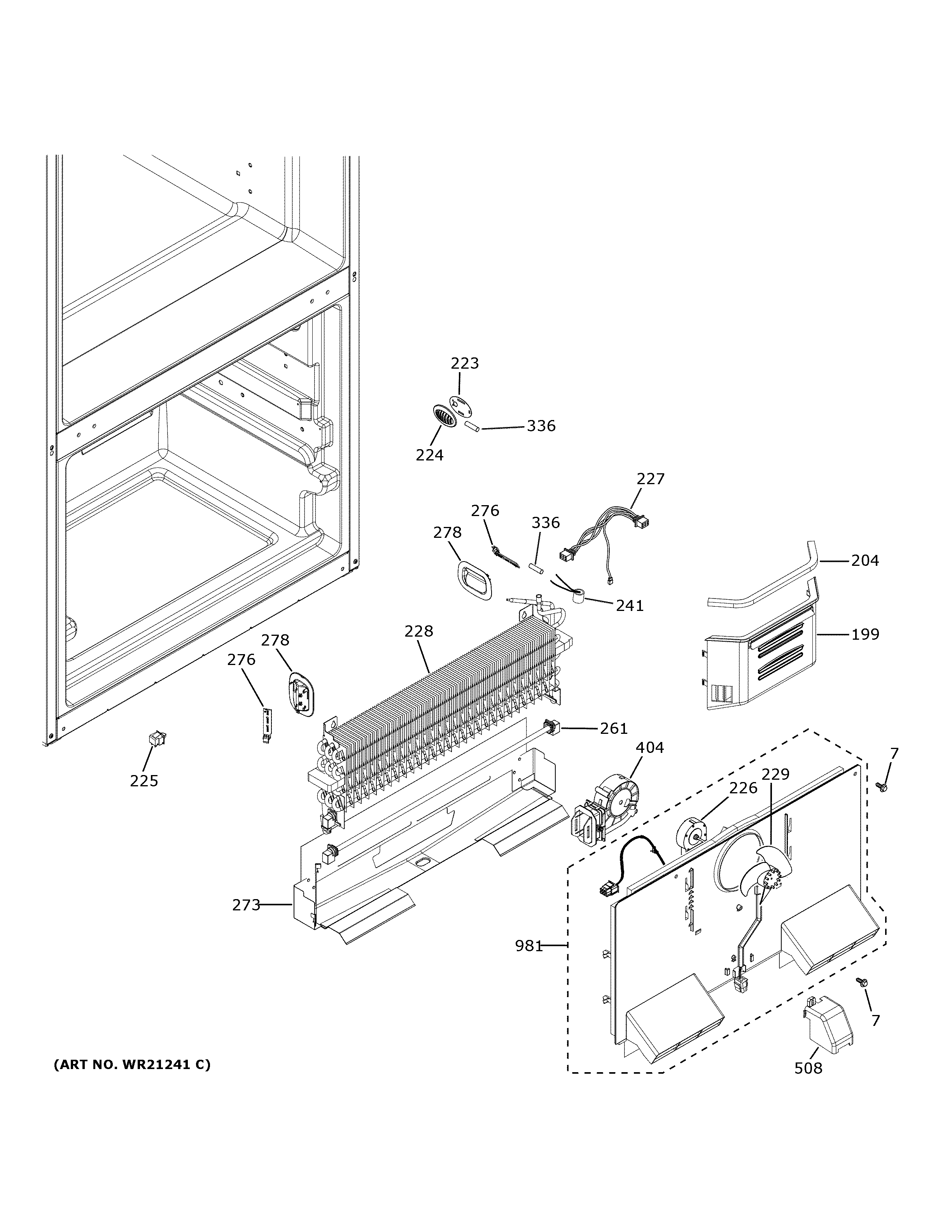

Frost on back wall, weak airflow	Defrost system not clearing ice	Refrigerator defrost bi-metal thermostat WR50X10069 or refrigerator defrost heater WR51X10108
No/weak airflow in freezer	Evaporator fan not running	Refrigerator evaporator fan motor WR60X32614
Random temps, dead functions, odd behavior	Control not managing cooling correctly	Main control board assembly WR55X46945

Why it matters

A refrigerator can look “normal” (lights on, display lit) while temperatures drift unsafe. Catching airflow, defrost, or control problems early helps prevent food loss and reduces strain on the compressor.

When to stop and schedule service

• You hear repeated clicking near the compressor area.
• The unit will not cool at all after basic checks.
• You see heavy frost returning quickly after a manual defrost.

For diagnostic help when the display shows a fault, use GE refrigerator error codes.
