For Kenmore electric range model 79046593503, the most reliable “reset” for the oven control board is a full power reset: turn the range off at the breaker (or unplug it) for 5 to 10 minutes, then restore power. This clears many temporary control glitches and display errors.

Safe reset steps (recommended)

• Turn all surface burner knobs and oven functions to OFF.
• Switch the range circuit breaker OFF (or unplug the power cord).
• Wait 5 to 10 minutes.
• Restore power and set the clock.
• Test Bake and Broil for a few minutes to confirm normal operation.

For control and lockout features specific to this model, follow the keypad steps in the 79046593503 owner's manual.

If the control is “locked” or won’t respond

This model’s control can be placed in an oven lockout mode. If the display shows a lock message or the keypad seems disabled, use the lockout cancel procedure described in the manual.

Common signs you are dealing with lockout (not a failed board):

• The oven won’t start but the display is on
• A lock indicator is lit or “Loc/Lot” appears
• Key presses beep but do not change settings

When a reset does not fix the problem

A power reset will not correct a hard failure such as a stuck key, damaged wiring, or a failed sensor. These checks narrow it down:

Symptom	Most common cause	What to check first
Oven overheats or temperature swings	Temperature sensing issue	Inspect/ohm-test the frigidaire range oven temperature sensor 316217002
Oven will not heat in Bake	Heating circuit problem	Look for damage on the bake element and wiring
Random beeping or error returns quickly	Keypad/control issue	Check for stuck keys, moisture, or a failing overlay

Why it matters

Resetting correctly prevents unnecessary part replacement and helps you tell the difference between a temporary electronic glitch and a real failure in the oven temperature sensor, bake element, or control panel.

Last updated: January 2026

Kenmore model numbers are designed to identify who built the appliance and which version you have. For your Kenmore electric range model 79046593503, the 790 prefix is the key identifier; it points to the manufacturer family, and the remaining digits narrow down the exact series and features.

How the Kenmore model number is structured

Most Kenmore model numbers follow this pattern:

• Prefix (first 3 digits): manufacturer identifier (example: 790)
• Middle digits: base model platform/series
• Ending digits: feature set, color, or revision variations

Quick example

What you see	What it generally means	Why you care
790	Manufacturer prefix	Helps match the correct parts diagrams and service info
46593	Base model/series	Narrows to the correct control system and oven configuration
503	Variation/revision	Helps avoid ordering a “looks right” part that does not fit

Where to find the model and serial number on the range

On Kenmore ranges like 79046593503, the serial plate is typically located on the oven front frame behind the oven door; on some versions it can be behind the drawer. Use the exact model and serial from that plate when ordering parts or requesting service.

• Open the oven door and check the front frame area
• If you do not see it, check behind the storage or warmer drawer
• Write down the model, serial, and any lot number/letter shown

For diagrams and model-specific details, use the 79046593503 owner’s manual.

Why it matters when ordering parts

Even small model-number differences can change which parts fit, especially for:

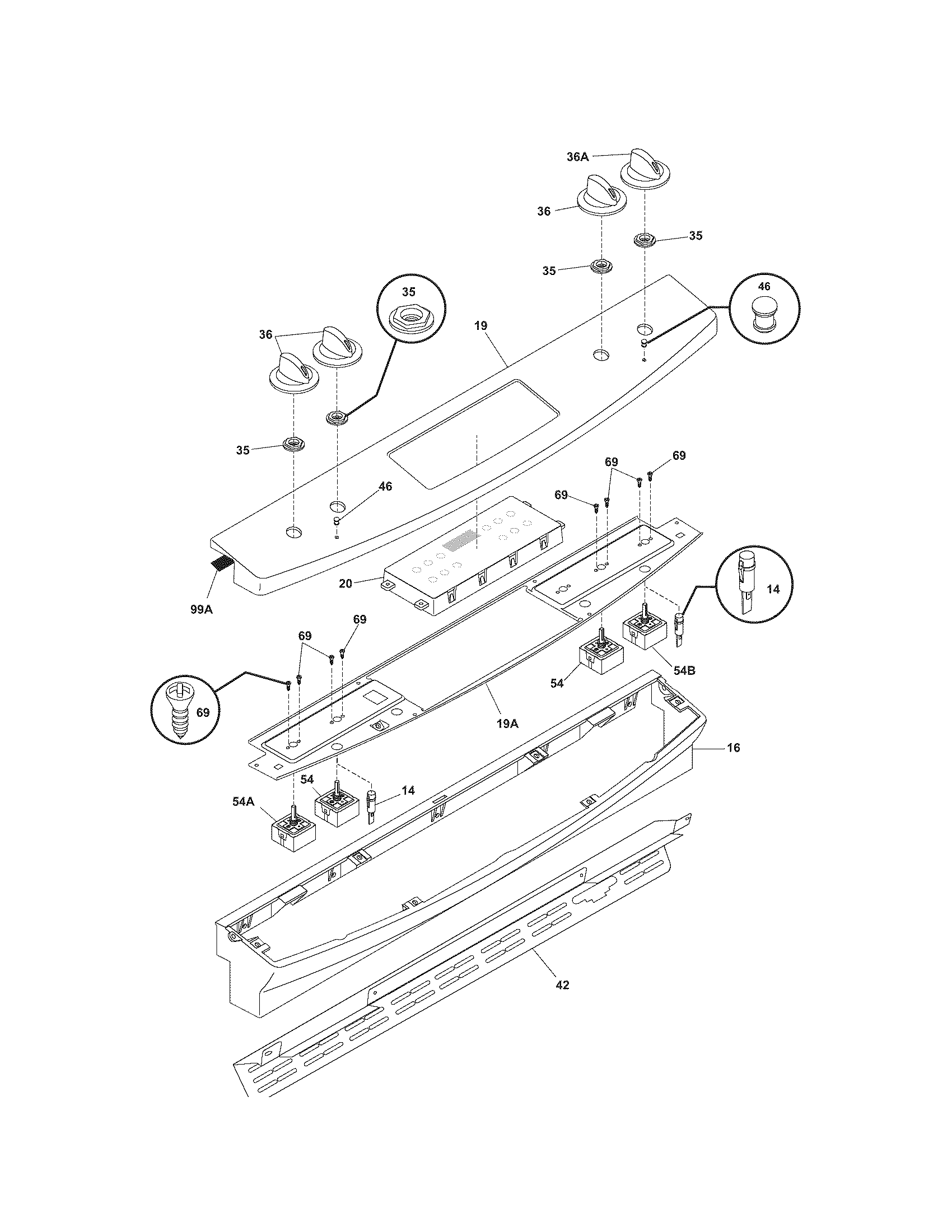

• Electronic control and overlay components
• Oven temperature sensor and wiring harness connections

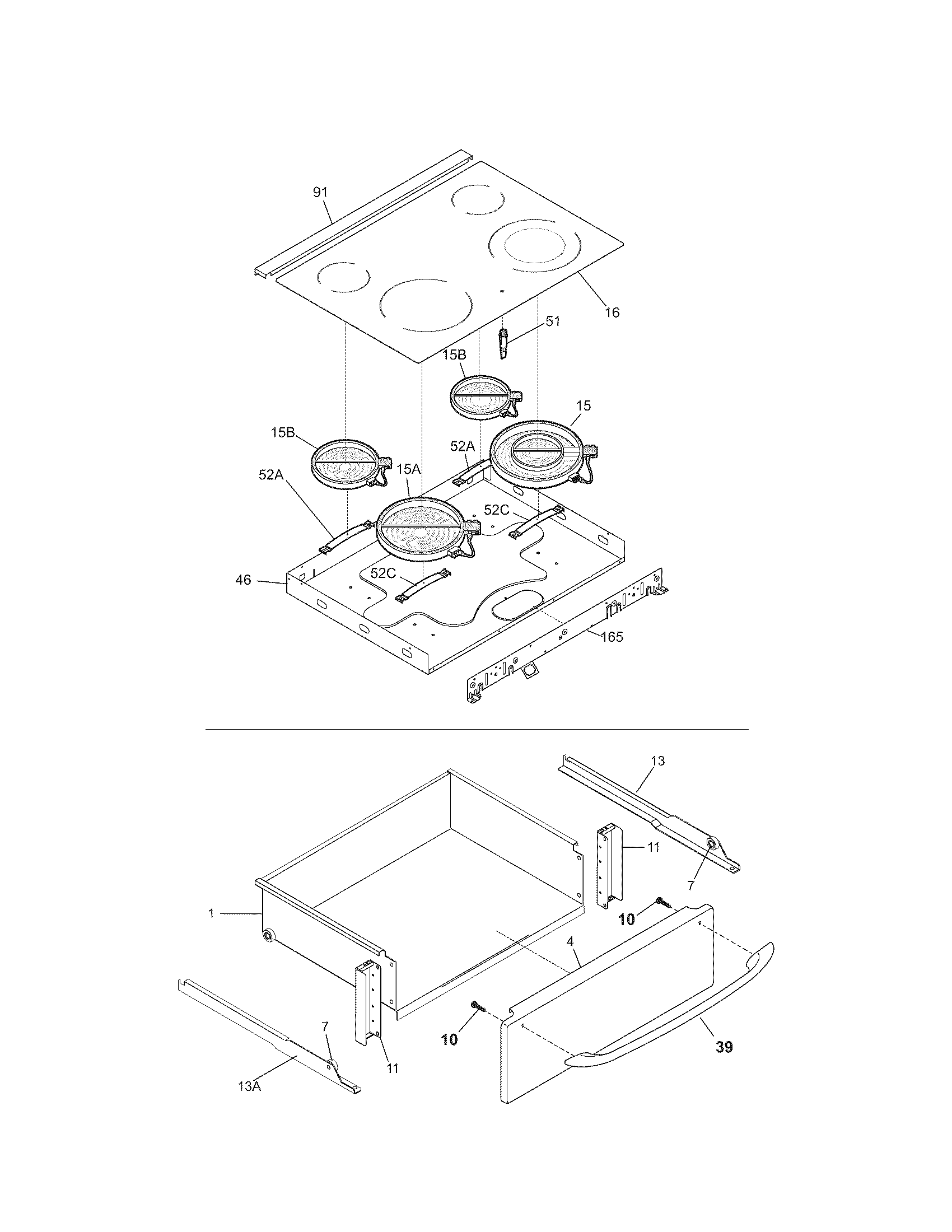

• Surface element sizes (single vs. dual radiant)

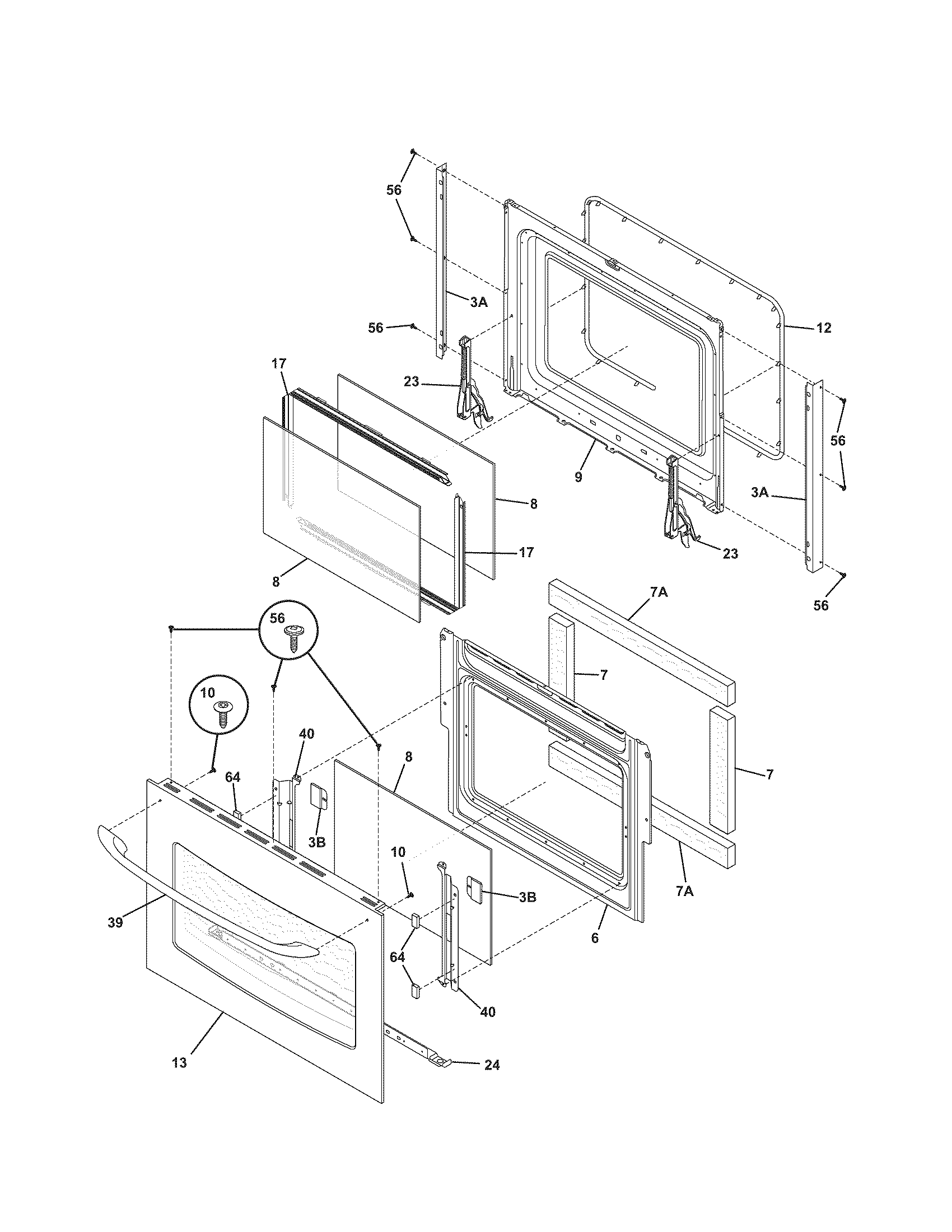

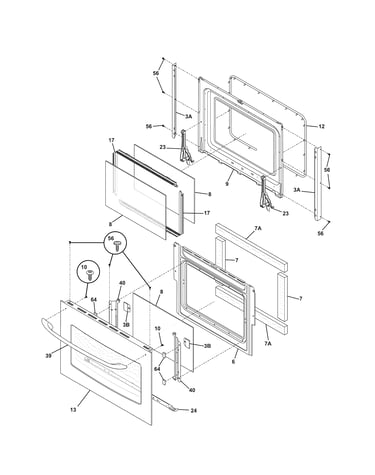

• Door parts (handle, gasket, lock components)

Last updated: January 2026

The Kenmore 79046593503 is a 30-inch slide-in electric range (the installation instructions call out a 30-inch countertop opening). The exact oven cavity capacity (in cubic feet) is not listed in the excerpts we have here, but the overall “size” is typically referenced by the 30-inch class. See the 79046593503 owner's manual for model-specific specifications.

What “size” can mean for this model

When customers ask for oven size, it usually refers to one of these:

• Range width (fits a 30-inch opening)
• Oven capacity (cubic feet)
• Exterior dimensions (height, depth, width)
• Cutout requirements for a slide-in installation

The documentation we have for Kenmore 790.4658_ / 790.4659_ focuses on installation cutout guidance and features rather than listing a cubic-foot capacity.

Installation opening guidance (what we can state from the guide)

From the slide-in installation guidance for this style of range:

• The cooktop sides are designed to overlap the countertop opening.
• Countertops may need trimming at the front corners (formed or tile tops).
• The cutout width referenced is in the 30-inch range class (for example, guidance mentions widths such as 30 1/16 inches and an existing cutout width of 29 inches with additional clearance steps).

For the exact cutout diagram and clearances for your kitchen, use the 79046593503 installation guide.

Quick reference table

Measurement type	What you can rely on	Where to confirm
Range “size class”	30-inch slide-in range	79046593503 installation guide
Oven capacity (cu ft)	Varies by model/series	79046593503 owner's manual
Exterior dimensions	Varies by model/series	79046593503 owner's manual

Why it matters

Getting the right “size” prevents fit problems (countertop cutout, depth to cabinets, leveling) and helps you choose correctly sized racks, bakeware, and replacement parts for your Kenmore electric range.
