Model # U5465-900 Official Hoover vacuum cleaner

Here are the diagrams and repair parts for Official Hoover U5465-900 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 108 parts  |

Vacuum Beater Bar 48414132
#21

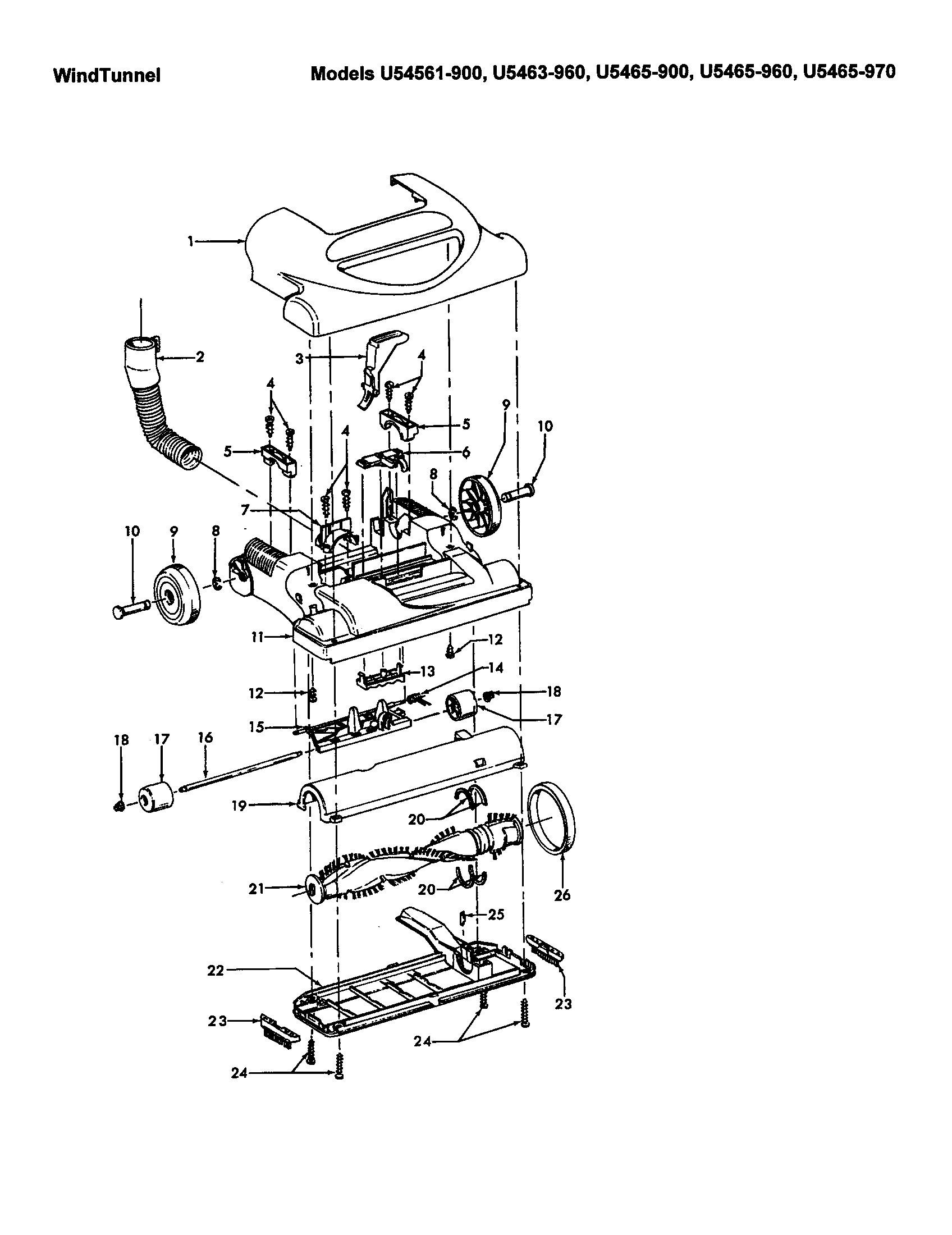

Deluxe hood diagram

Vacuum beater bar

Part #48414132

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Filter Grill 37257221
#47

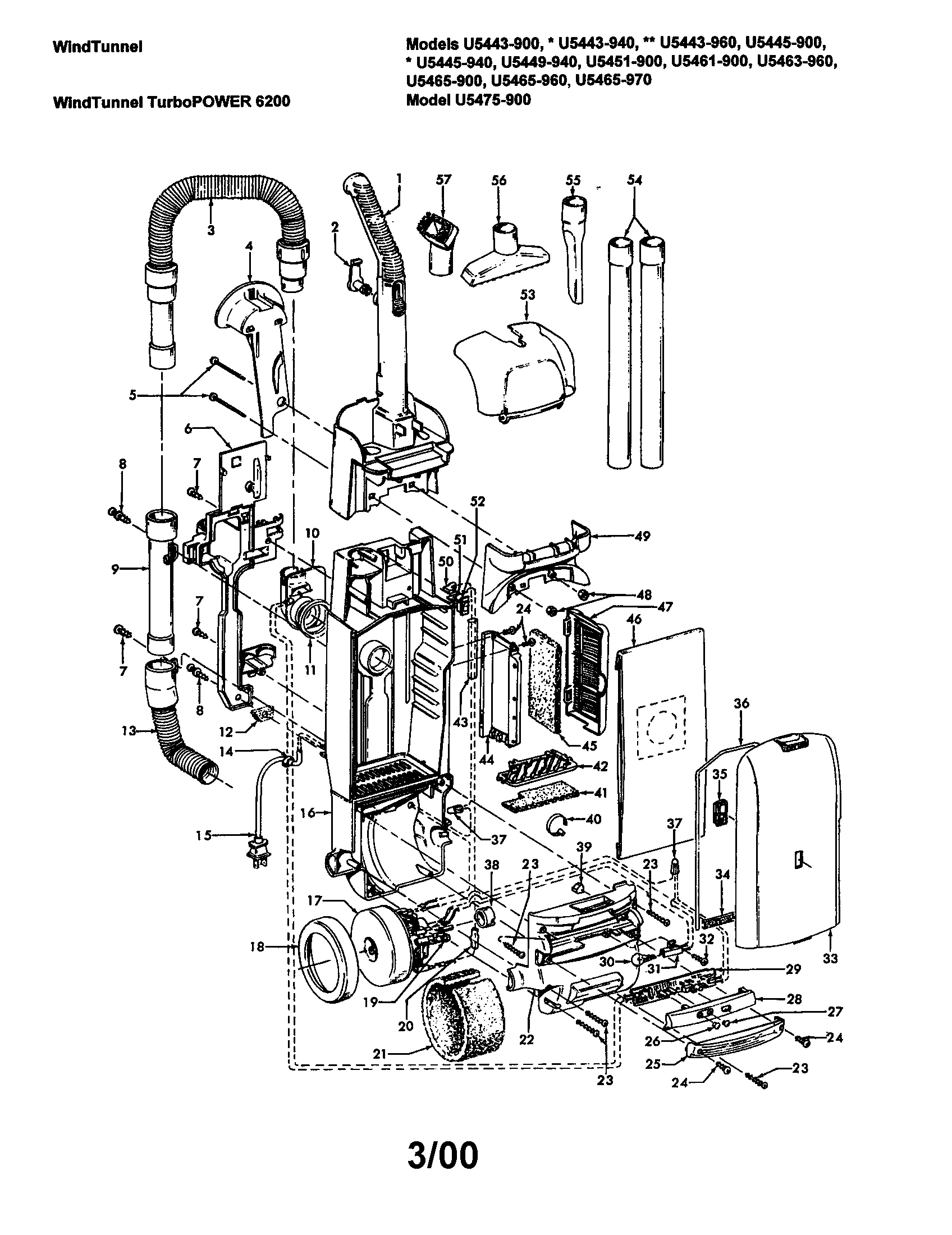

Wind tunnel diagram

Vacuum filter grill

Part #37257221

The manufacturer no longer makes this part, and there's no substitute part

Wire Tie 27479307
#40

Wind tunnel diagram

Wire tie

Part #27479307

The manufacturer no longer makes this part, and there's no substitute part

Cover 42258002
#28A

Wind tunnel diagram

Cover

Part #42258002

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Edge Brush 39511004
#23

Deluxe hood diagram

Vacuum edge brush

Part #39511004

The manufacturer no longer makes this part, and there's no substitute part

Lens Cover 39383107
#25

Wind tunnel diagram

Lens cover

Part #39383107

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose Assembly 43431005
Vacuum hose assembly

Part #43431005

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Trunnion Cover 36131094
#5

Deluxe hood diagram

Vacuum trunnion cover

Part #36131094

The manufacturer no longer makes this part, and there's no substitute part

Retainer 36426034
#42

Wind tunnel diagram

Retainer

Part #36426034

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Screw 23149002
#8

Wind tunnel diagram

Carpet cleaner screw

Part #23149002

The manufacturer no longer makes this part, and there's no substitute part
