Model #KCM1208OB0 KitchenAid coffee maker

Here are the diagrams and repair parts for KitchenAid KCM1208OB0 coffee maker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 7 of 7 parts

    LID, WATER TANK

    #5

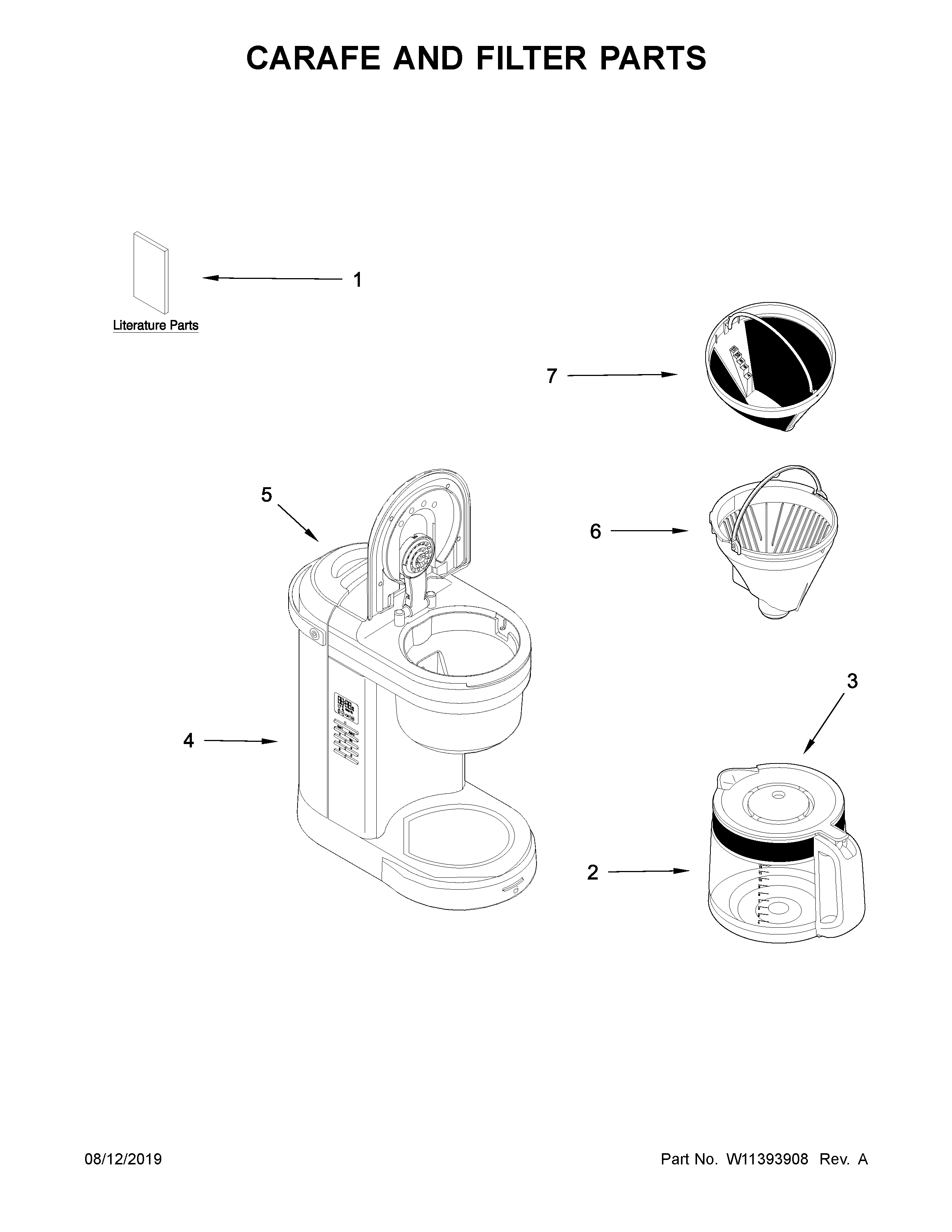

    Carafe and filter parts Diagram

    Lid, water tank

    Part #W11358310
    $21.25

    In Stock

    BREW BASKET

    #6

    Carafe and filter parts Diagram

    Brew basket

    Part #W11358311
    $24.70

    In Stock

    WATER TANK

    #4

    Carafe and filter parts Diagram

    Water tank

    Part #W11358309
    $47.40

    In Stock

    GOLD TONE FILTER

    #7

    Carafe and filter parts Diagram

    Gold tone filter

    Part #W11358312
    $29.60

    In Stock

    LID, CARAFE

    #3

    Carafe and filter parts Diagram

    Lid, carafe

    Part #W11358308
    $15.90

    Back Order

    CARAFE

    #2

    Carafe and filter parts Diagram

    Carafe

    Part #W11358307
    $47.70

    Back Order

    USE AND CARE GUIDE

    #1

    Carafe and filter parts Diagram

    Use and care guide

    Part #W11288105

    The manufacturer no longer makes this part, and there's no substitute part
