Model # 79074233316 Official Kenmore free standing gas range

Here are the diagrams and repair parts for Official Kenmore 79074233316 free standing gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

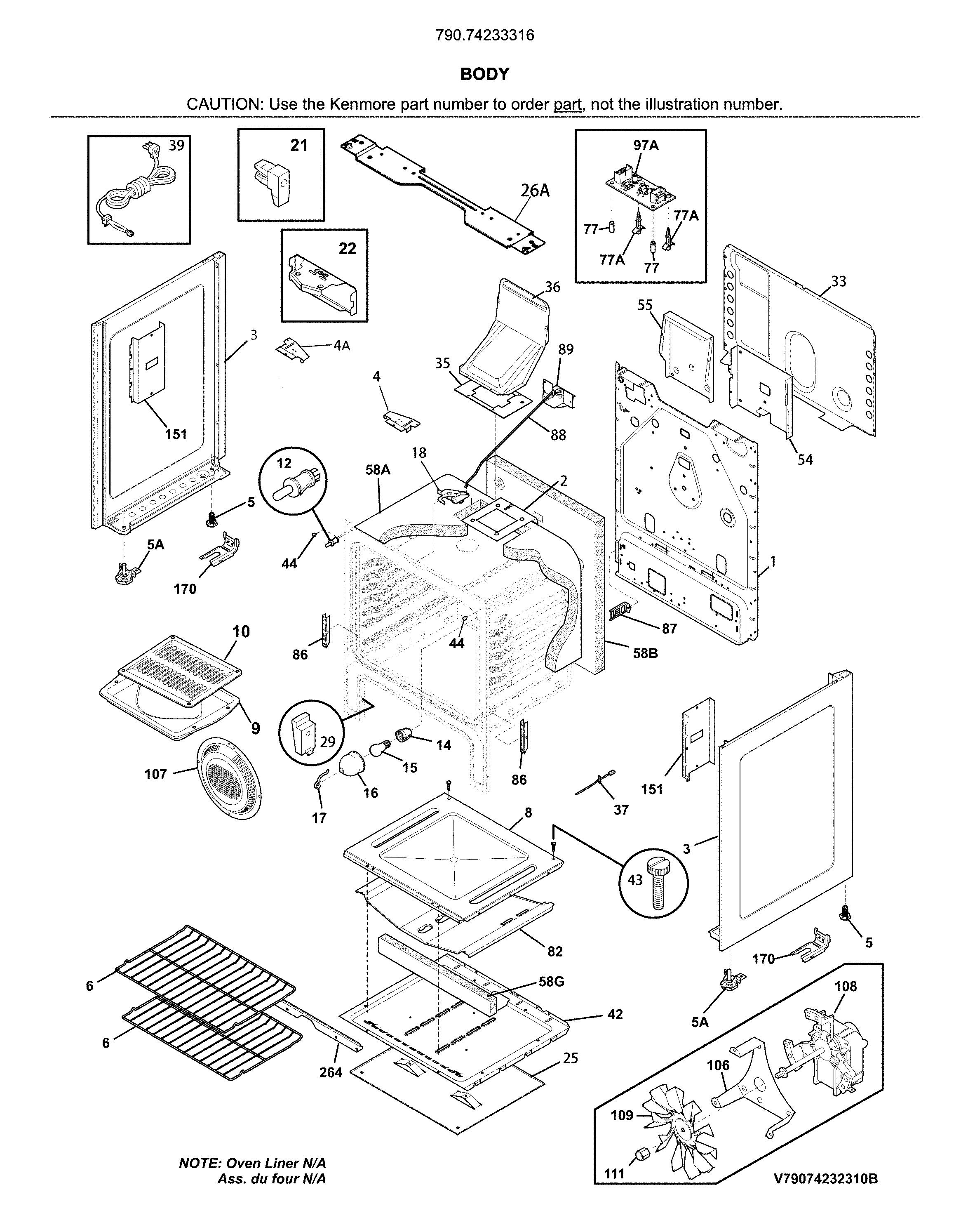

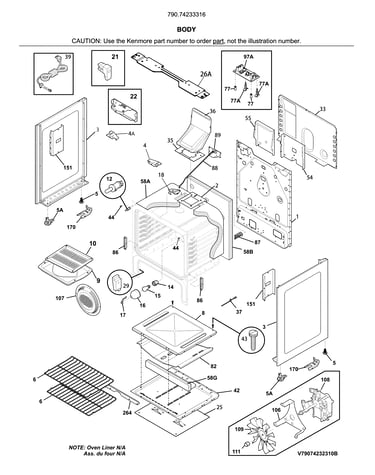

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 163 parts  |

Bake Igniter 5304508786
#26

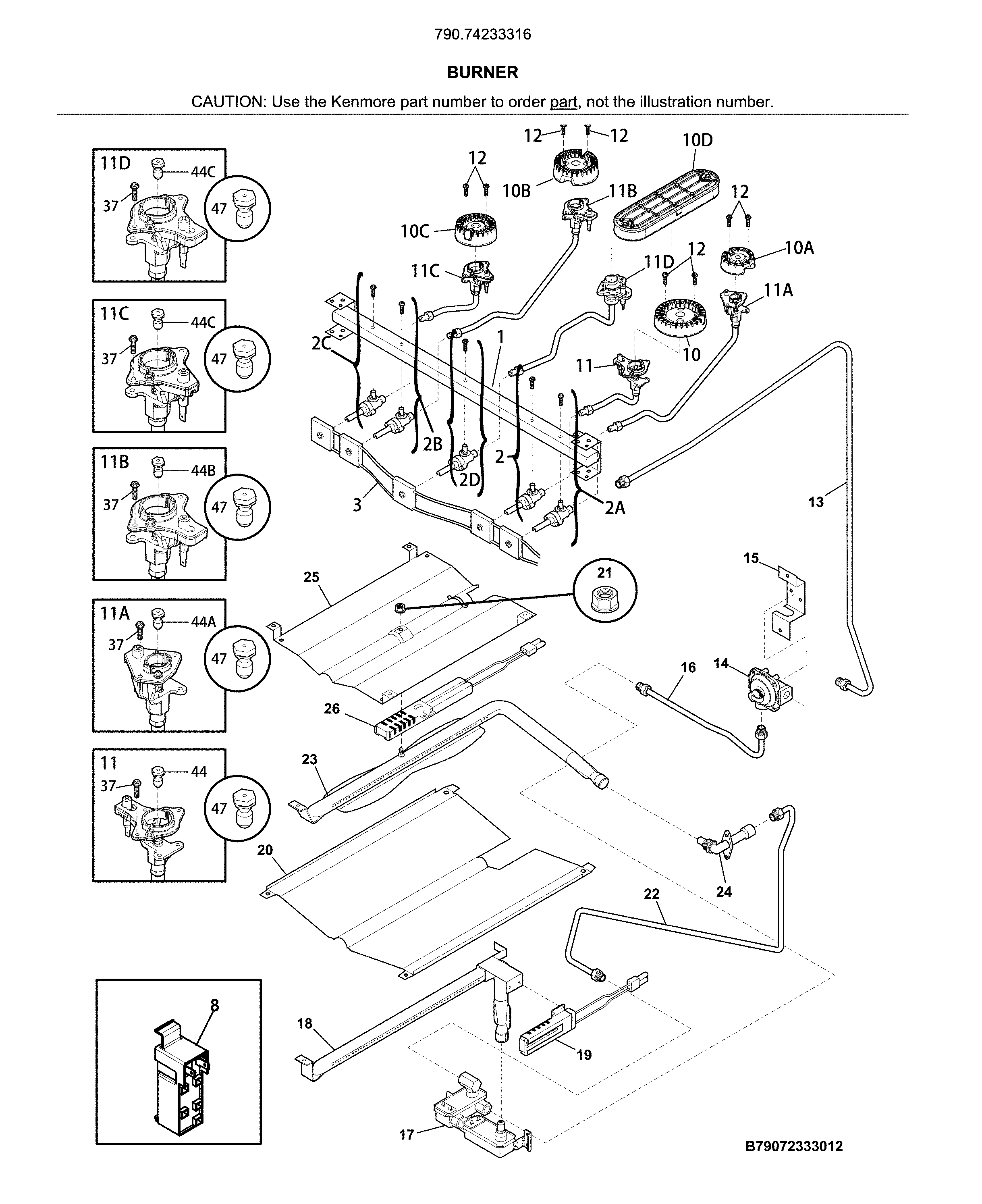

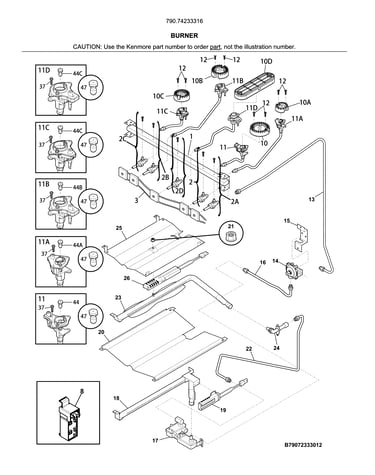

Burner diagram

Bake igniter

Part #5304508786

Replaced by #316489403

?
Manufacturer substitution
This part replaces 5304508786. Substitute parts can look different from the original.
BEST SELLER
$116.21
9% OFF Phone Price : $128.21
In Stock
Range Broil Igniter (replaces 316489404) 5304506545
#19

Burner diagram

Range broil igniter (replaces 316489404)

Part #5304506545

BEST SELLER
$78.03
7% OFF Phone Price : $84.03
In Stock
Range Oven Door Inner Glass 316117502
#8

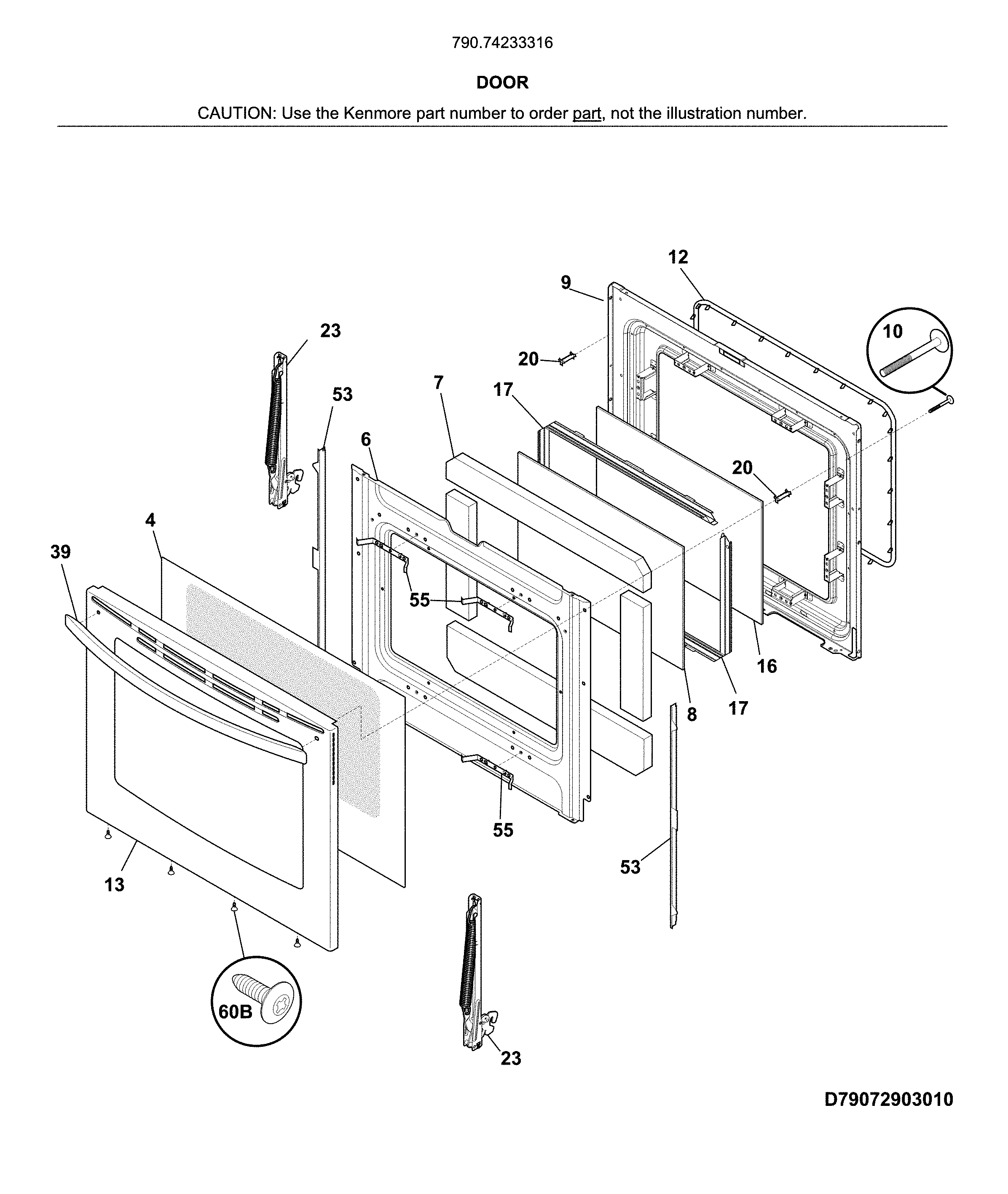

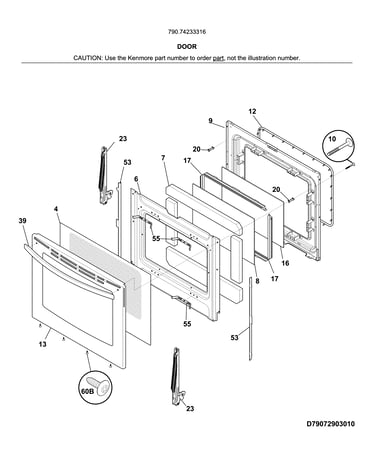

Door diagram

Range oven door inner glass

Part #316117502

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117502. Substitute parts can look different from the original.
BEST SELLER
$74.27
7% OFF Phone Price : $80.27
In Stock
Range Oven Door Inner Glass 316117503
#16

Door diagram

Range oven door inner glass

Part #316117503

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117503. Substitute parts can look different from the original.
BEST SELLER
$74.27
7% OFF Phone Price : $80.27
In Stock
Range Surface Burner Igniter And Orifice Holder (replaces 316449302) 316536602
#11C

Burner diagram

Range surface burner igniter and orifice holder (replaces 316449302)

Part #316536602

BEST SELLER
$79.89
7% OFF Phone Price : $85.89
In Stock
Range Oven Control Overlay 316633007
#20A

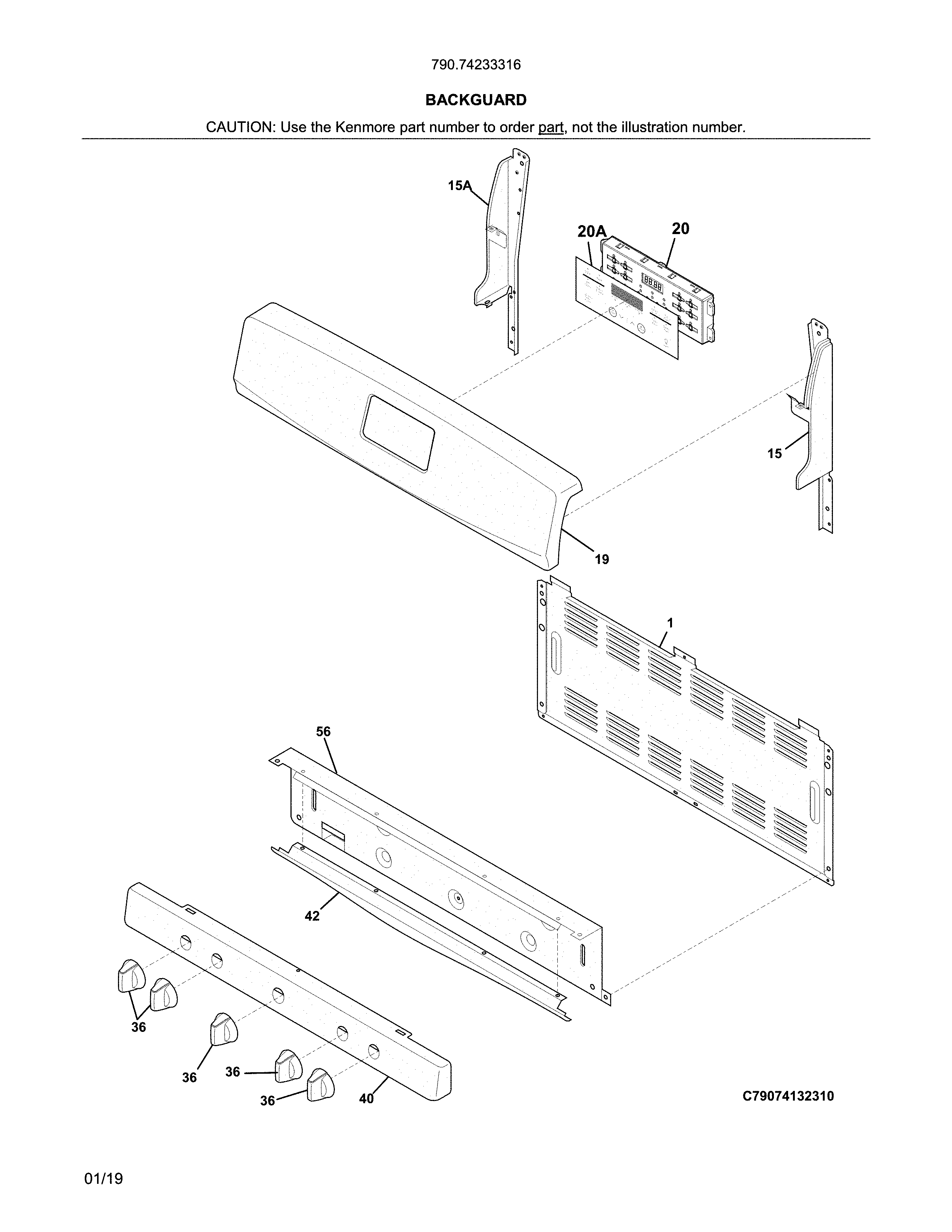

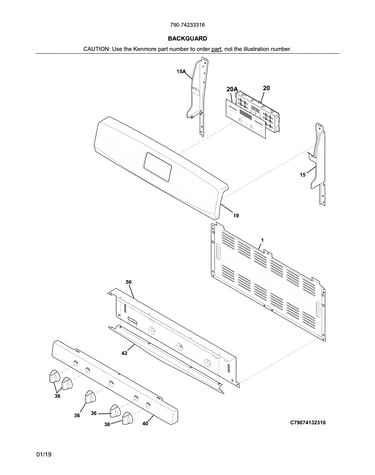

Backguard diagram

Range oven control overlay

Part #316633007

BEST SELLER
$25.72
19% OFF Phone Price : $31.72
In Stock
Tappan Range Surface Burner Igniter And Orifice Holder (replaces 316449500) 316536610
#11A

Burner diagram

Tappan range surface burner igniter and orifice holder (replaces 316449500)

Part #316536610

BEST SELLER
$56.52
10% OFF Phone Price : $62.52
In Stock
Range Surface Burner Cap, 9,500-btu (matte Black) 316261804
#22C

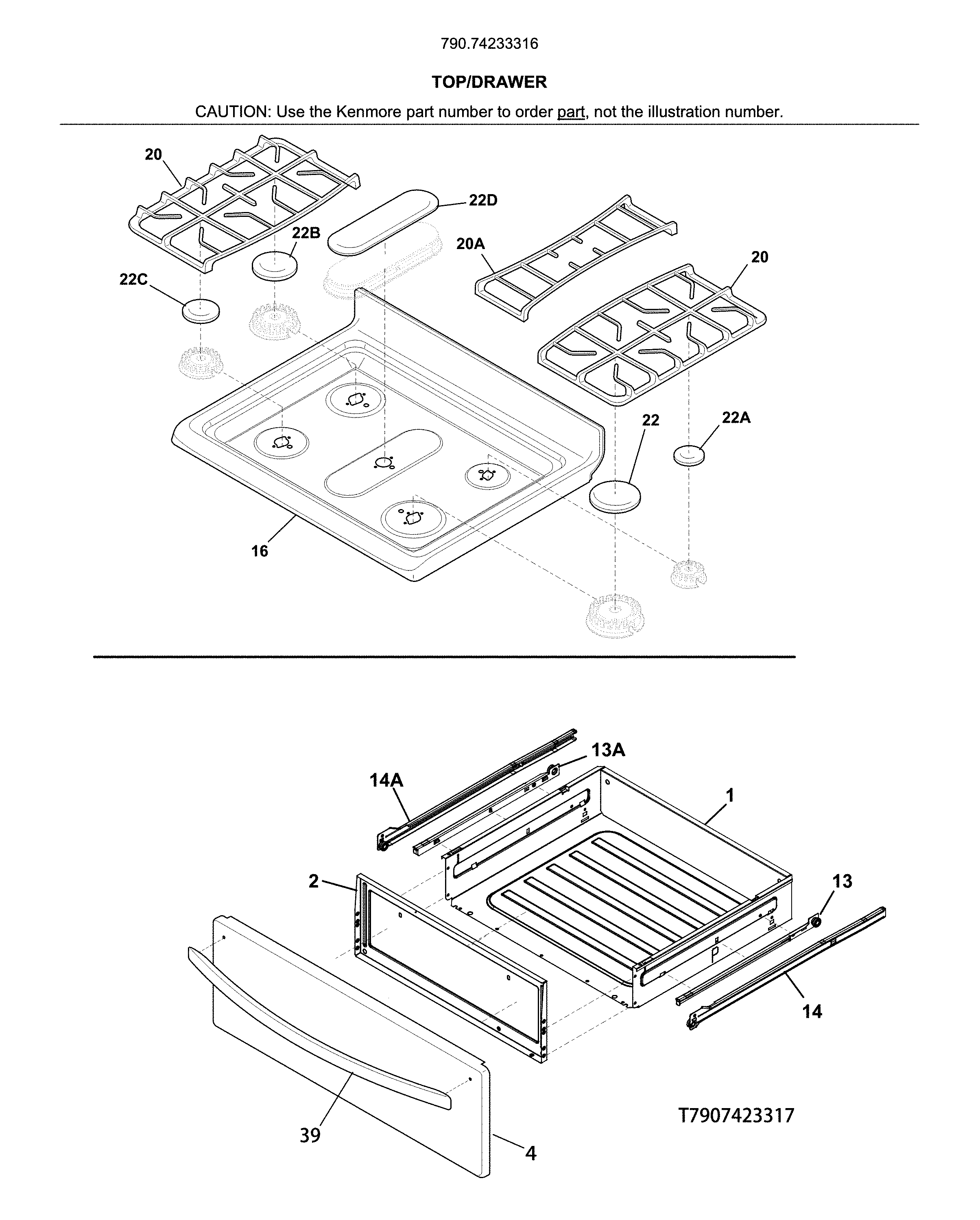

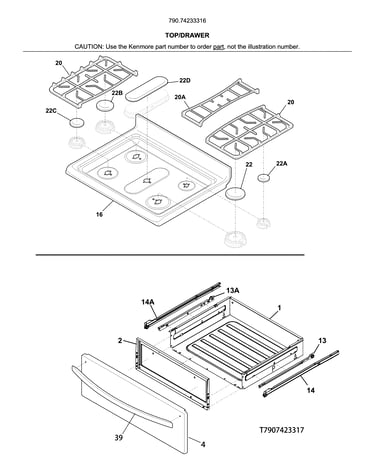

Top/drawer diagram

Range surface burner cap, 9,500-btu (matte black)

Part #316261804

Replaced by #5304508442

?
Manufacturer substitution
This part replaces 316261804. Substitute parts can look different from the original.
BEST SELLER
$26.31
19% OFF Phone Price : $32.31
In Stock
Range Spark Module (replaces 318079001) 808608804
#8

Burner diagram

Range spark module (replaces 318079001)

Part #808608804

BEST SELLER
$58.27
9% OFF Phone Price : $64.27
In Stock
Range Surface Burner Cap, 5,000-btu (matte Black) 316261704
#22A

Top/drawer diagram

Range surface burner cap, 5,000-btu (matte black)

Part #316261704

Replaced by #5304508441

?
Manufacturer substitution
This part replaces 316261704. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$24.49
20% OFF Phone Price : $30.49
In Stock
