Samsung RFG295AABP/XAA-00 refrigerator

Samsung RFG295AABP/XAA-00 refrigerator Parts

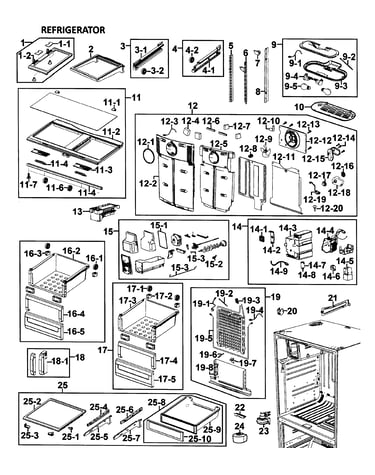

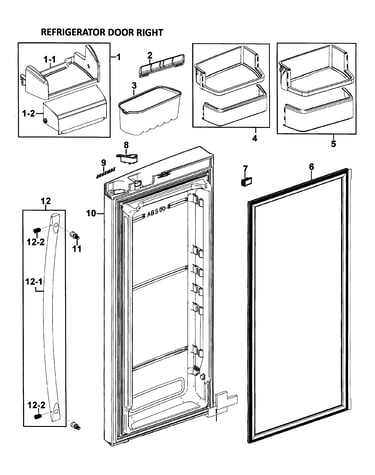

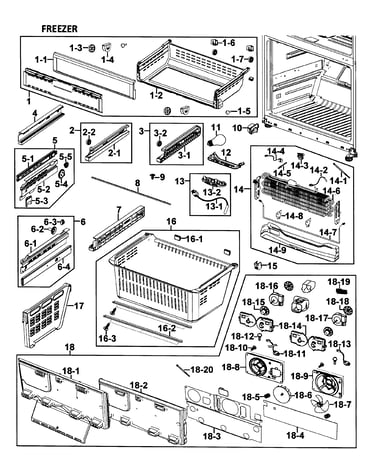

Here are the diagrams and repair parts for Samsung RFG295AABP/XAA-00 refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for RFG295AABP/XAA-00 Refrigerators

Samsung Refrigerator RFG295AABP/XAA-00 FAQs

Samsung refrigerators typically last 10 to 15 years. For your Samsung RFG295AABP, lifespan depends most on compressor health, airflow (clean condenser area), and keeping the defrost and water systems maintained so the unit does not run hot or ice up.

Typical lifespan and what affects it most

Most full-size refrigerators fall into a predictable range; the difference between 10 years and 15 years is usually maintenance and how hard the sealed system has to work.

  • Keep condenser coils and the condenser fan area clean to prevent overheating
  • Maintain good door sealing to reduce run time and frost buildup
  • Fix water leaks quickly to prevent ice buildup and airflow restrictions
  • Avoid overpacking so cold air can circulate through the fresh food and freezer sections
  • Address unusual noises early (fan motors and ice/dispenser parts are common wear items)
Quick guide: what usually fails first (and what it means)
Symptom Common cause area What it does to lifespan
Warm fridge or freezer Airflow or fan issue Forces longer run time and stresses the compressor
Frost/ice buildup, poor cooling Defrost or drain issue Blocks airflow and causes temperature swings
Water under fridge or in drawers Drain system issue Can lead to ice buildup and fan interference
Clicking, won’t start cooling Start/overload issue Prevents compressor from running reliably
Parts that often support a longer service life

If your RFG295AABP is running hot, noisy, or struggling to hold temperature, these model-matched parts are commonly involved in restoring normal operation:

Why it matters

A refrigerator reaches end-of-life sooner when it runs longer and hotter than designed. Good airflow, tight door gaskets, and a clear defrost drain reduce compressor workload, which is the biggest factor in hitting the 10 to 15 year range.

For replacement parts and diagrams for Samsung RFG295AABP, use the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

In a Samsung RFG295AABP refrigerator, an ice maker usually stops making ice because water cannot reach the ice maker or the ice maker cannot cycle. The most common causes are a shutoff condition, a frozen fill path, low water pressure, or a failing inlet valve.

Quick checks we recommend first
  • Confirm the ice maker is turned ON and the ice bin is seated correctly.
  • Make sure the freezer is cold enough; ice production drops fast when temps run warm.
  • Check the fill tube area for ice blockage (a frozen fill path stops water from entering).
  • Dispense water (if equipped); weak or no flow points to a supply or valve issue.
  • Power cycle the refrigerator for a few minutes to clear a control glitch.
Common causes and what to do
Symptom Likely cause What we do next
No ice and no water flow Supply issue or inlet valve not opening Verify house shutoff is open; inspect/replace valve if needed
Ice maker cycles but cubes are small/hollow Low water pressure or restricted flow Check supply line for kinks; replace restricted components
Fill area keeps freezing Freezer too cold, air leak, or slow drip at valve Check door seal and temps; test valve for seepage
Ice clumps or jams in bin Ice not dispensing cleanly Inspect bin and chute area; clear obstructions
Parts that commonly fix “no ice” on this model

If water is not entering the ice maker (or it is inconsistent), the inlet valve is a frequent failure point. For this model’s parts list, we often see customers replace:

Why it matters

An ice maker needs the right freezer temperature and a steady, correctly timed water fill. When water flow is restricted or the fill path freezes, the ice maker can run but never harvest usable cubes.

You can order replacement parts for your Samsung RFG295AABP from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

The most common problem we see on Samsung refrigerators, including model RFG295AABP, is a cooling complaint caused by restricted airflow from frost or ice buildup around the evaporator area. Ice maker and dispenser problems are also frequent when water flow is weak or ice-handling parts start sticking.

Most common symptoms
  • Fresh food section warms up while the freezer still seems cold
  • Temperature swings (food freezing in the fridge or soft ice cream in the freezer)
  • Loud fan noise, buzzing, or rubbing sounds
  • Ice maker stops producing ice or makes small, hollow cubes
  • Dispenser struggles to push ice or ice clumps in the bin
Common causes and related parts
Problem area What it affects Part that can be involved
Defrost drainage Water refreezing, ice buildup, leaks Refrigerator drain cap da97-04049d
Condenser airflow Warm temps, noisy operation Refrigerator condenser fan DA31-00146B
Freezer airflow Poor cooling, frost, noise Refrigerator freezer evaporator fan motor DA31-00146E
Ice storage/dispense Ice not dispensing, clumping Refrigerator ice container assembly DA97-05239E
Quick checks we recommend
  • Make sure doors close fully and gaskets seal all the way around
  • Keep vents clear; avoid packing food tightly against air returns
  • If you see heavy frost, do a full manual defrost (unplug 24 hours with doors open) and recheck temperatures
  • Clean the condenser area; confirm the condenser fan runs when the compressor runs
  • For ice issues, confirm the water supply valve is fully open and pressure is steady
Why it matters

Restricted airflow and inconsistent water flow can trigger repeat frost buildup, warm temperatures, and ice maker failures. Fixing the root cause helps protect food temperatures and reduces strain on the compressor and fan motors.

You can order replacement parts for RFG295AABP from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026
