Whirlpool WGE755C0BS01 electric range Parts
Here are the diagrams and repair parts for Whirlpool WGE755C0BS01 electric range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM

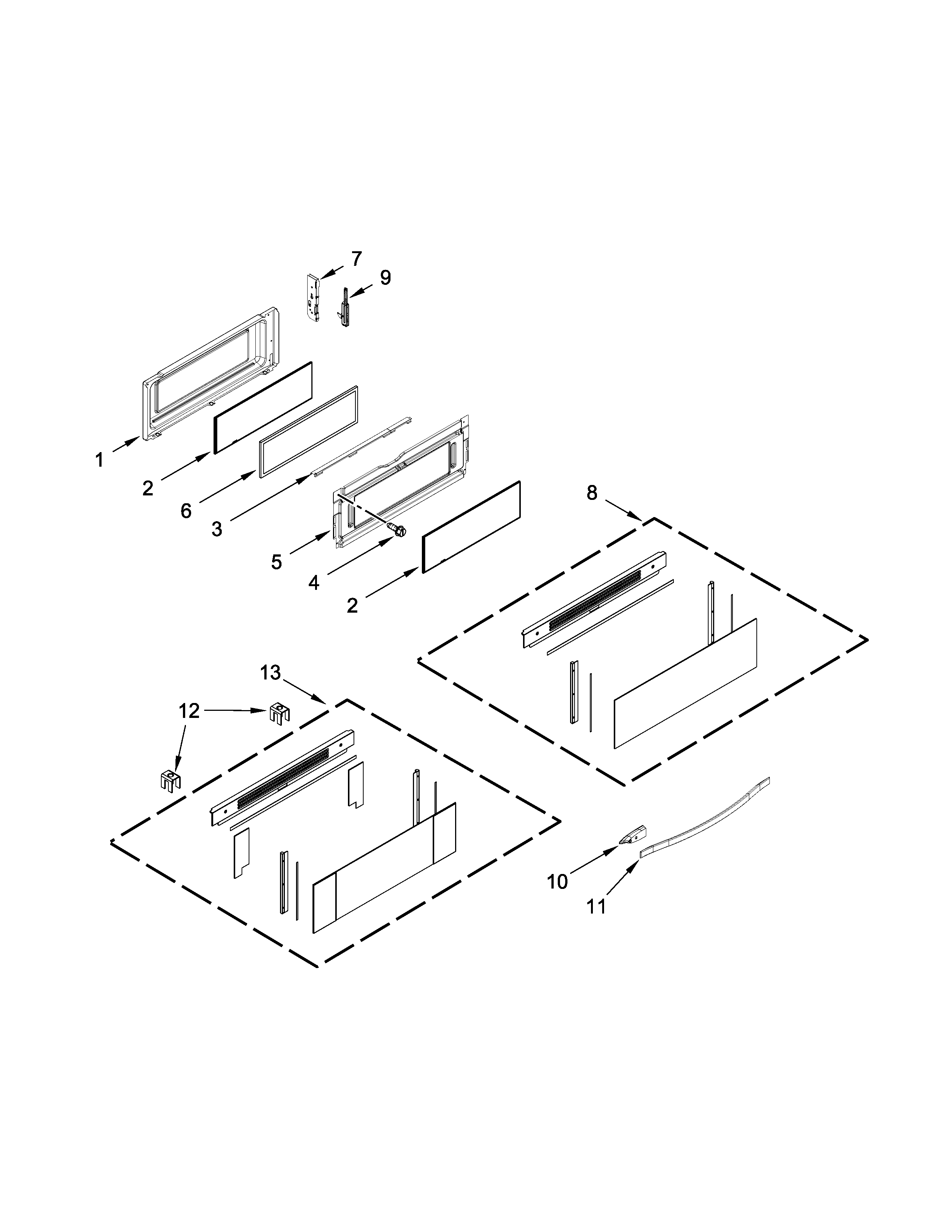

Browse Parts for WGE755C0BS01 Ranges

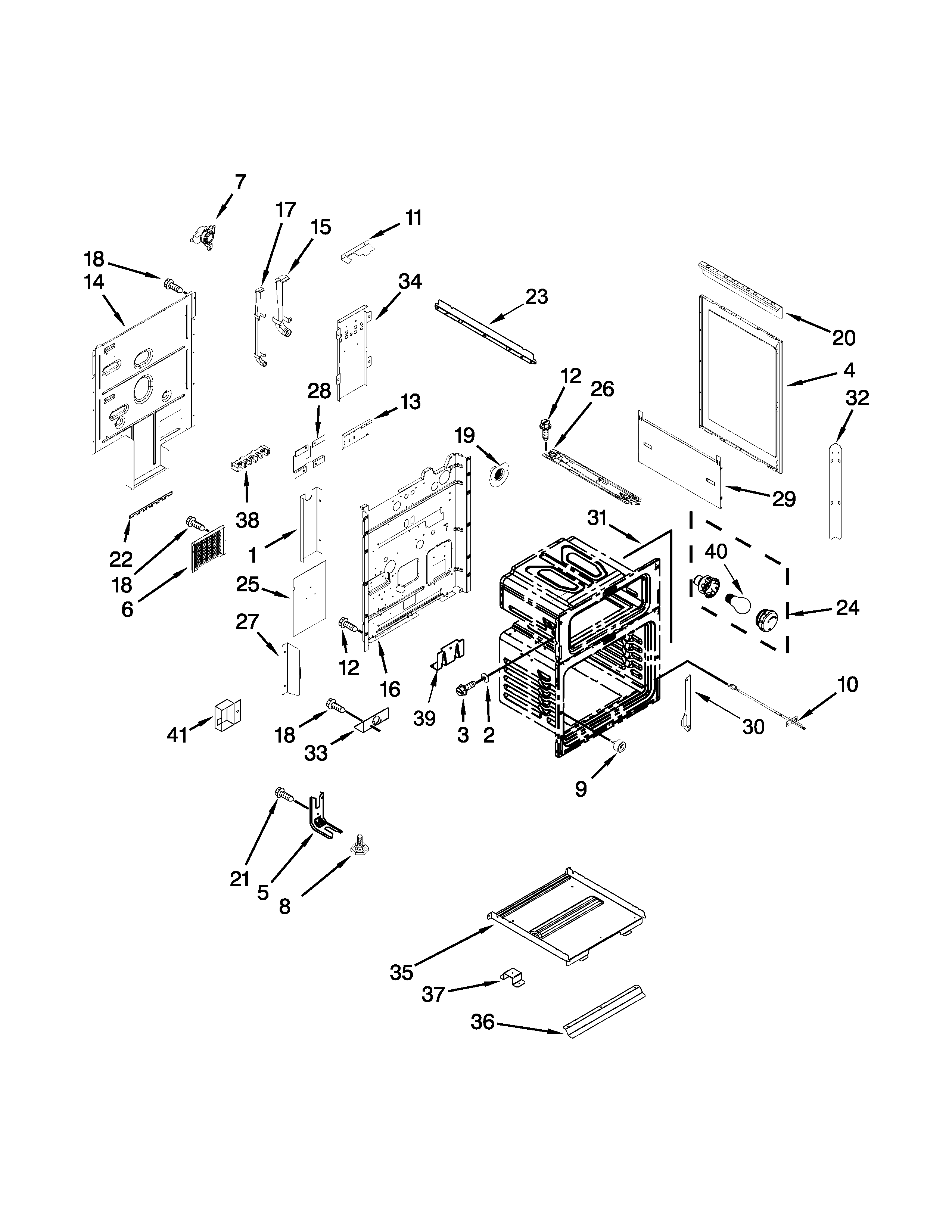

Chassis parts diagram
Terminal Block
Part #7401P039-60Replaced by #WPW10245259
Manufacturer substitutionThis part replaces 7401P039-60. Substitute parts can look different from the original.In Stock$27.9118% OFF Phone Price : $33.91
Qty

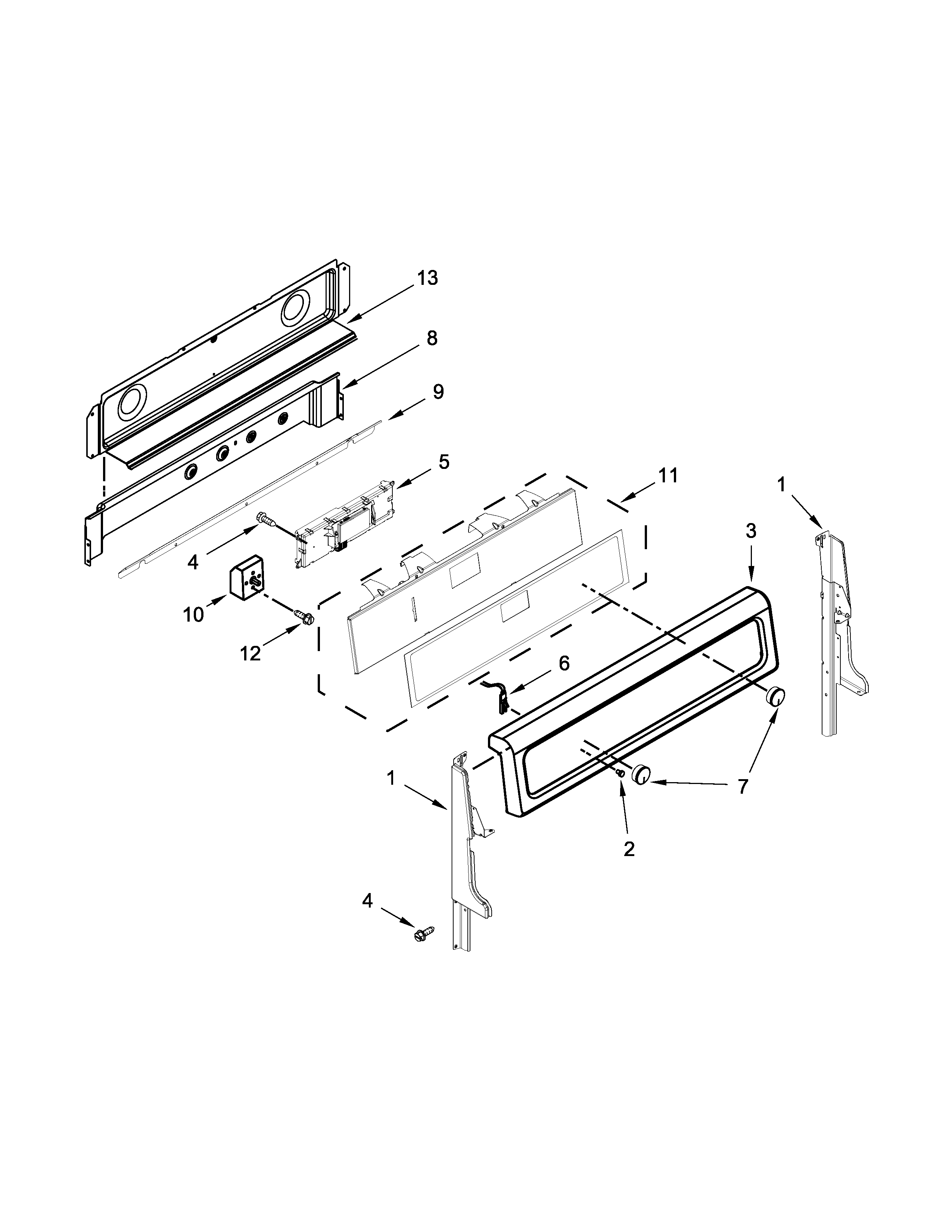

Control panel parts diagram
Switch
Part #7403P373-60Replaced by #WP7403P238-60
Manufacturer substitutionThis part replaces 7403P373-60. Substitute parts can look different from the original.In Stock$53.6410% OFF Phone Price : $59.64QtyControl panel parts diagram
Light Lens
Part #3196068Replaced by #WP3196068

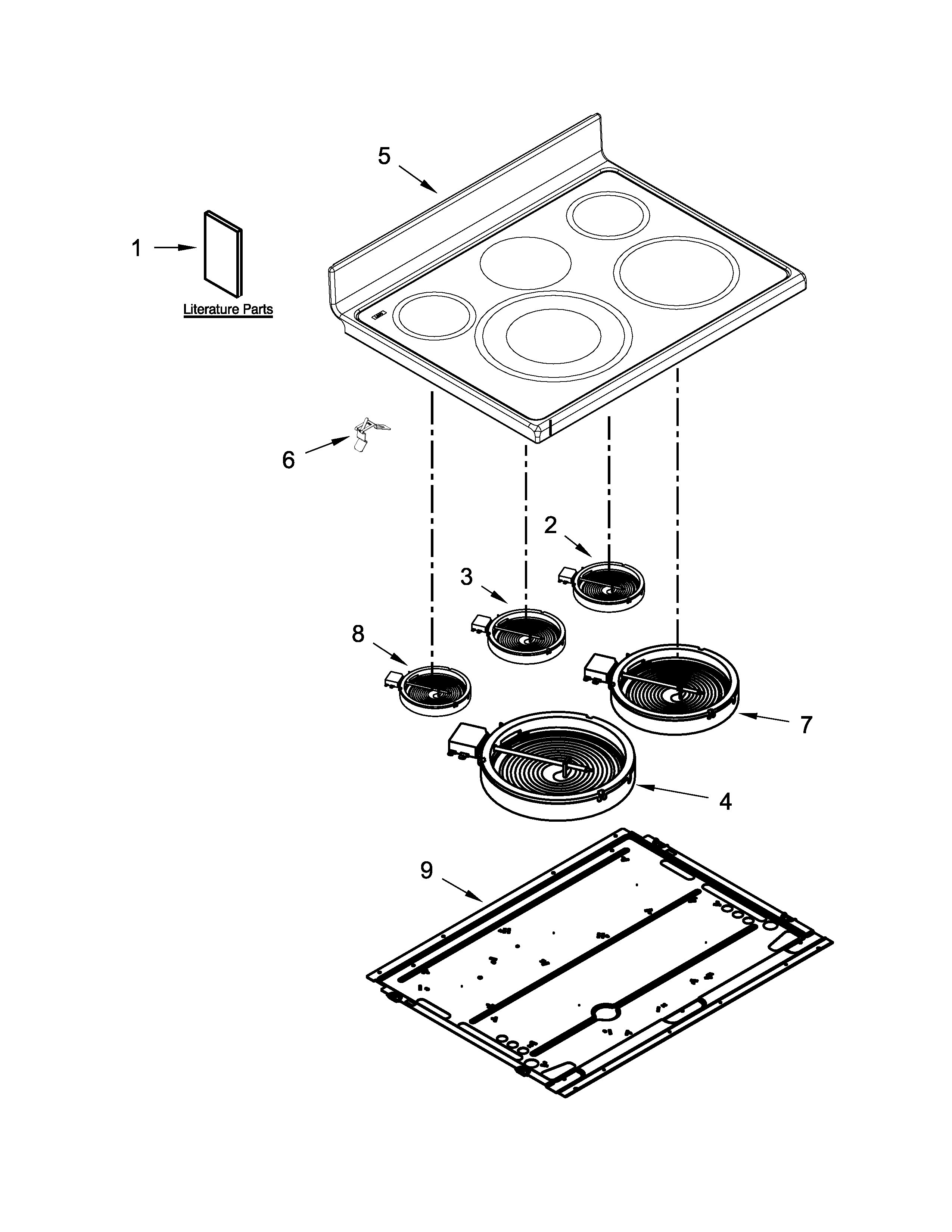

Manufacturer substitutionThis part replaces 3196068. Substitute parts can look different from the original.This item is not returnableIn Stock$6.0814% OFF Phone Price : $7.08QtyCooktop parts diagram
Range Surface Element, Right Front
Part #W10251108Replaced by #WPW10251108
Manufacturer substitutionThis part replaces W10251108. Substitute parts can look different from the original.In Stock$168.897% OFF Phone Price : $180.89QtyControl panel parts diagram
Range Surface Element Control Switch
Part #W10441696Replaced by #WPW10441696
Manufacturer substitutionThis part replaces W10441696. Substitute parts can look different from the original.In Stock$95.6811% OFF Phone Price : $107.68QtyChassis parts diagram
Range Oven Temperature Sensor
Part #7430P044-60Replaced by #WP7430P044-60

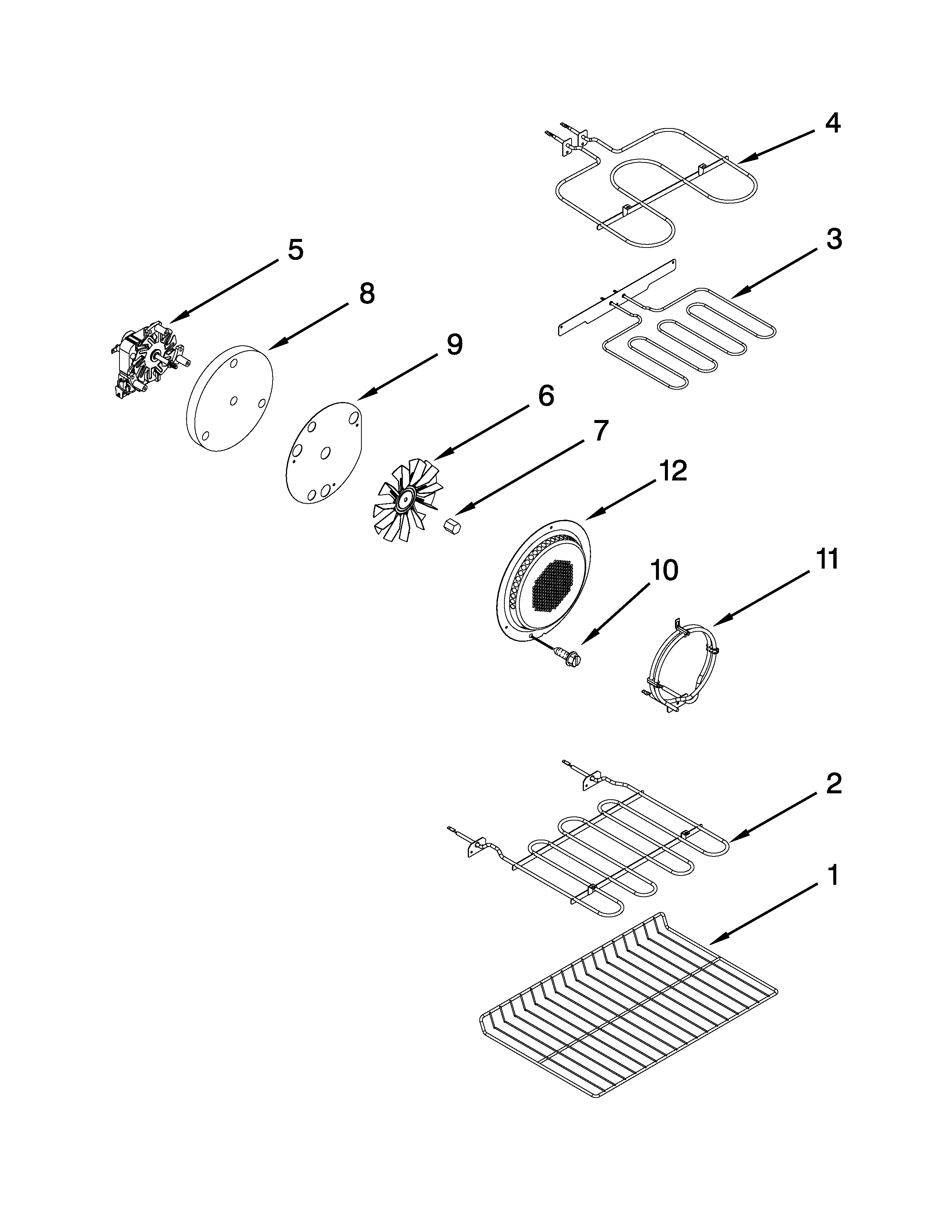

Manufacturer substitutionThis part replaces 7430P044-60. Substitute parts can look different from the original.In Stock$96.7711% OFF Phone Price : $108.77QtyInternal oven parts diagram
Range Bake Element
Part #W10249981Replaced by #W11662148
Manufacturer substitutionThis part replaces W10249981. Substitute parts can look different from the original.In Stock$110.63QtyRange Oven Door Handle End Cap
Part #W10410341Replaced by #WPW10410341

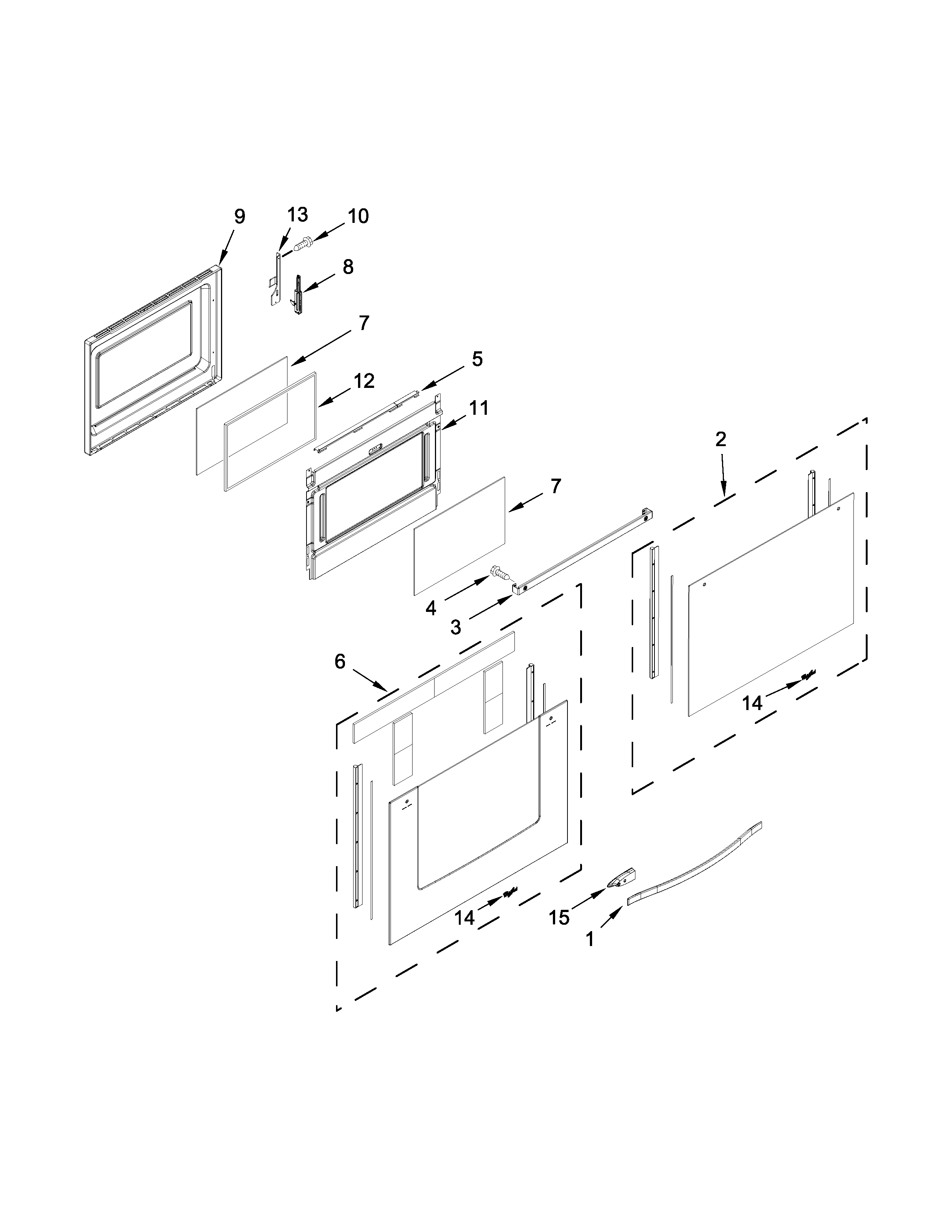

Manufacturer substitutionThis part replaces W10410341. Substitute parts can look different from the original.In Stock$26.6336% OFF Was : $41.62QtyLower door parts diagram
Nameplate
Part #W10481434Replaced by #W11178521
Manufacturer substitutionThis part replaces W10481434. Substitute parts can look different from the original.In Stock$41.2113% OFF Phone Price : $47.21QtyLower door parts diagram
Appliance Nameplate
Part #W10481433Replaced by #W11178521
Manufacturer substitutionThis part replaces W10481433. Substitute parts can look different from the original.In Stock$41.2113% OFF Phone Price : $47.21Qty
