Electrolux
Dryer

Model #EIGD55IKG0 Electrolux gas dryer

Here are the diagrams and repair parts for Electrolux EIGD55IKG0 gas dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guideOwner’s manual

    Showing 10 of 118 parts

    Dryer Lint Screen#27

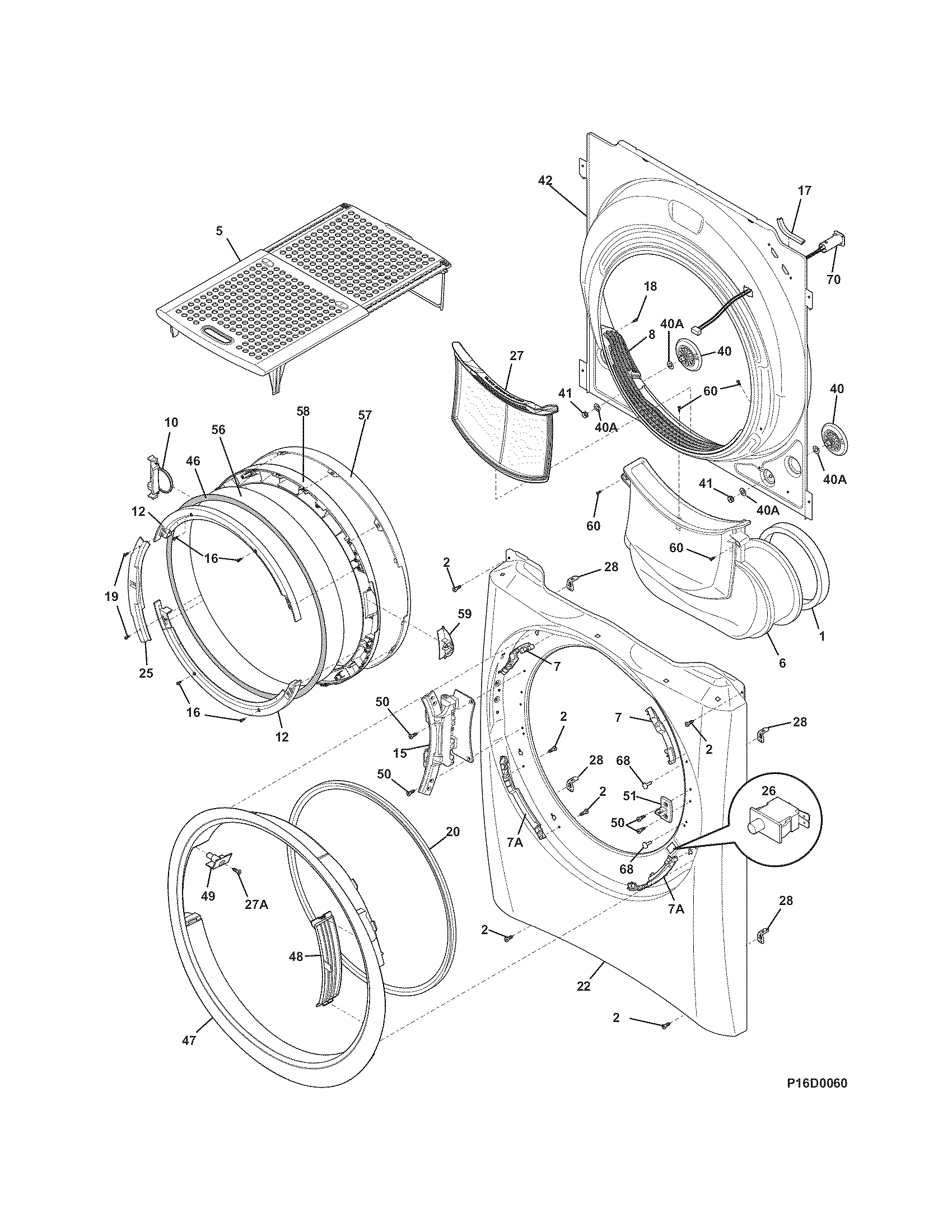

    Front panel/lint filter Diagram

    Lint filter

    Part #7134793600
    Replaced by #134793600
    ?
    Manufacturer substitution
    This part replaces 7134793600. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $61.89 |
    12% OFF
    MSRP: $70.00
    Dryer Exhaust Thermal Limiter#8

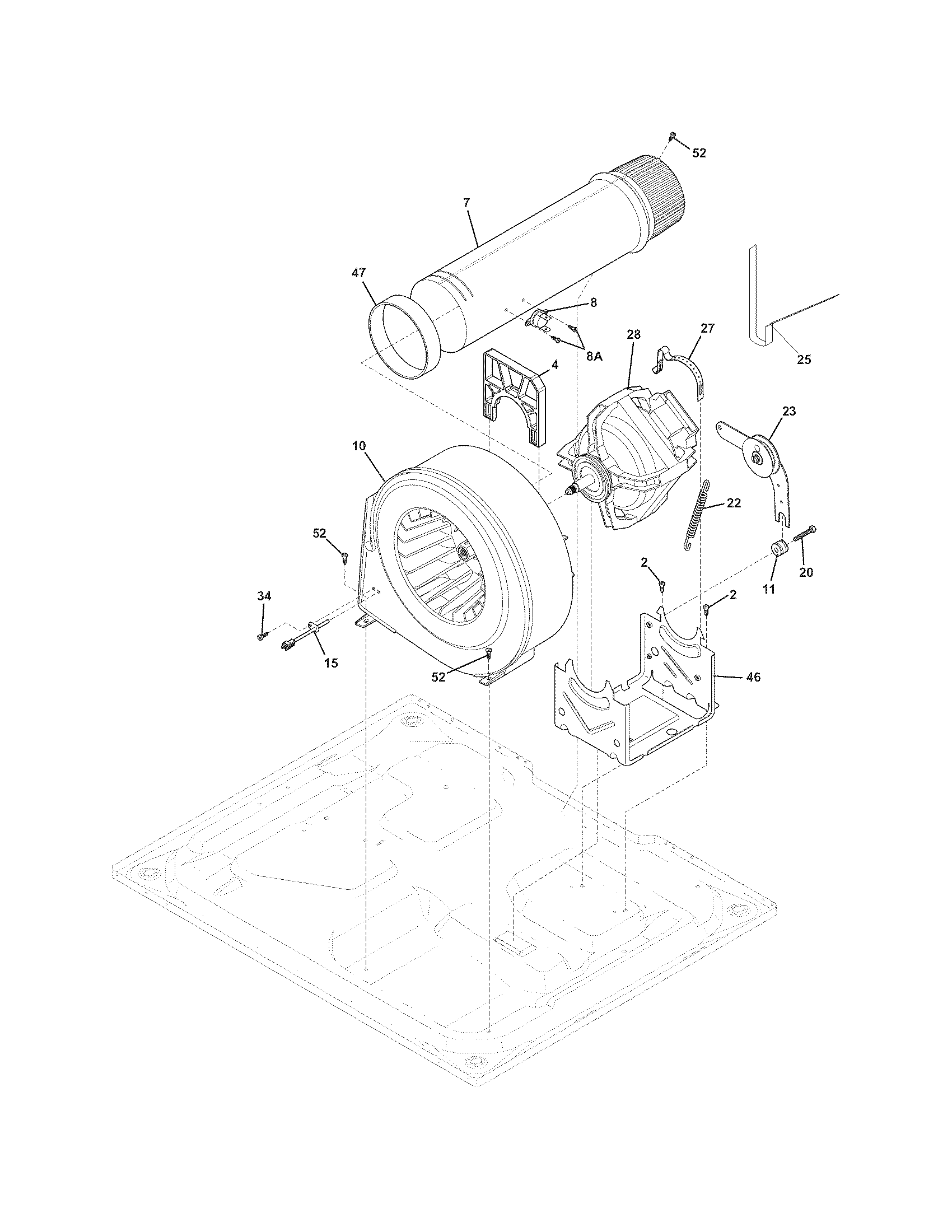

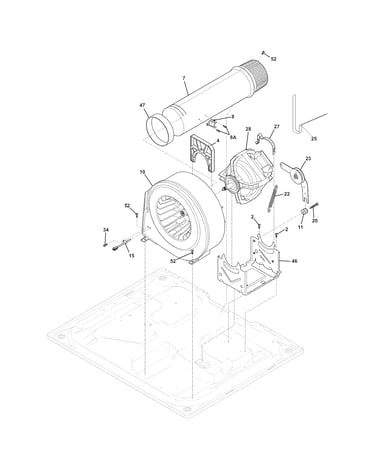

    Motor Diagram

    Limiter,ther

    Part #7134711400
    Replaced by #134711401
    ?
    Manufacturer substitution
    This part replaces 7134711400. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $24.49 |
    6% OFF
    MSRP: $26.00
    Dryer Blower Wheel and Housing Assembly#10

    Motor Diagram

    Blower,housi

    Part #7134690800
    Replaced by #134690800
    ?
    Manufacturer substitution
    This part replaces 7134690800. Substitute parts can look different from the original.
    BEST SELLER
    Back Order
    $144.09 |
    10% OFF
    MSRP: $160.00
    Laundry Appliance Screw, #8-18 x 31/100-in

    See All Related Diagrams

    Screw,pan he

    Part #7131168200
    Replaced by #131168200
    ?
    Manufacturer substitution
    This part replaces 7131168200. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $10.49 |
    20% OFF
    Was: $13.09
    Laundry Appliance Screw, #8-18 x 31/100-in#52

    Motor Diagram

    Screw

    Part #7137034600
    Replaced by #131168200
    ?
    Manufacturer substitution
    This part replaces 7137034600. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $10.49 |
    20% OFF
    Was: $13.09
    Laundry Appliance Stacking Kit#NI

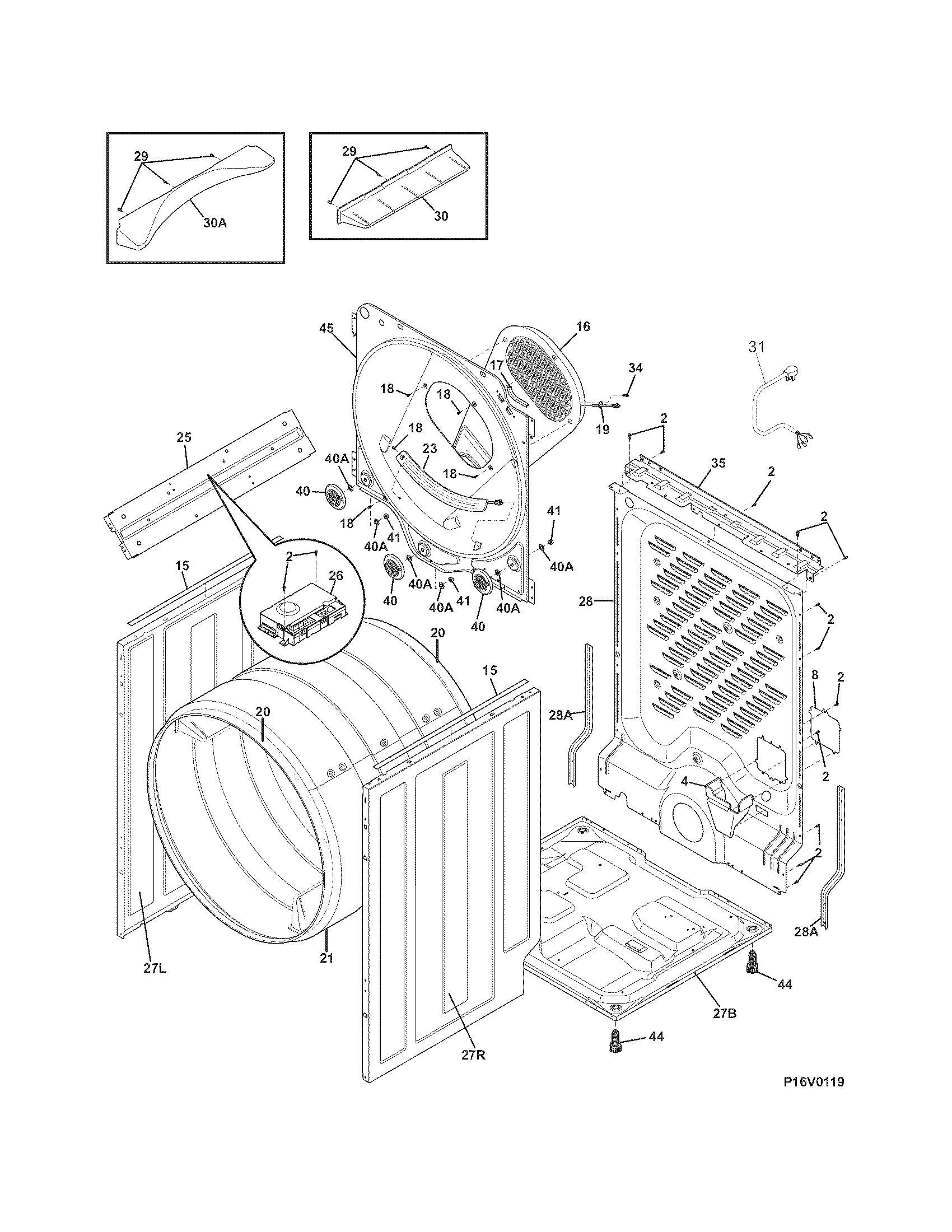

    Cabinet/drum Diagram

    Stacking kit

    Part #7134700400
    Replaced by #134700400
    ?
    Manufacturer substitution
    This part replaces 7134700400. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $65.69
    Laundry Appliance Screw, #8-18 x 31/100-in

    See All Related Diagrams

    Screw,10-16a

    Part #7131477000
    Replaced by #131168200
    ?
    Manufacturer substitution
    This part replaces 7131477000. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $10.49 |
    20% OFF
    Was: $13.09
    Dryer Drum Support Roller

    See All Related Diagrams

    Roller wheel

    Part #7134715900
    Replaced by #134715900
    ?
    Manufacturer substitution
    This part replaces 7134715900. Substitute parts can look different from the original.
    In Stock
    $35.69 |
    20% OFF
    Was: $44.58
    Dryer Idler Spring#22

    Motor Diagram

    Idler spring

    Part #7131601000
    Replaced by #131601000
    ?
    Manufacturer substitution
    This part replaces 7131601000. Substitute parts can look different from the original.
    In Stock
    $42.09
    Dryer Door Glass Seal#46

    Front panel/lint filter Diagram

    Door gasket

    Part #7134934900
    Replaced by #134934900
    ?
    Manufacturer substitution
    This part replaces 7134934900. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $18.12

    Symptoms common to all dryers

    Choose a symptom to see related dryer repairs.

    Main causes: bad drum support roller, damaged idler pulley, broken blower fan blade, worn drum glide bearing, bad drive motor
    Main causes: bad gas valve coils, broken heating element, tripped safety thermostat or fuse, bad operating thermostat, control failure
    Main causes: bad timer or electronic control board, door switch failure
    Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, blown thermal fuse, bad door switch
    Main causes: clogged exhaust vent, bad motor relay, loose dryer door catch, bad door switch, control system failure, faulty drive motor
    Main causes: damaged door strike, worn door catch
    Main causes: door switch failure, lack of power, broken belt, blown thermal fuse, bad drive motor, control system failure
    Main causes: clogged exhaust system, heating system failure, deposits on moisture sensor, control system failure
