Model # 11020994993 Official Kenmore washer

Here are the diagrams and repair parts for Official Kenmore 11020994993 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

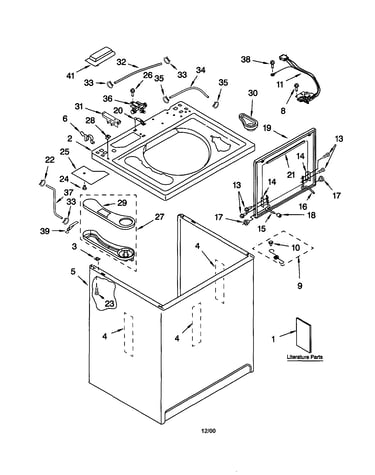

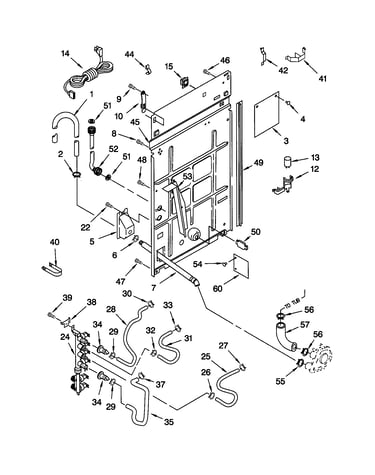

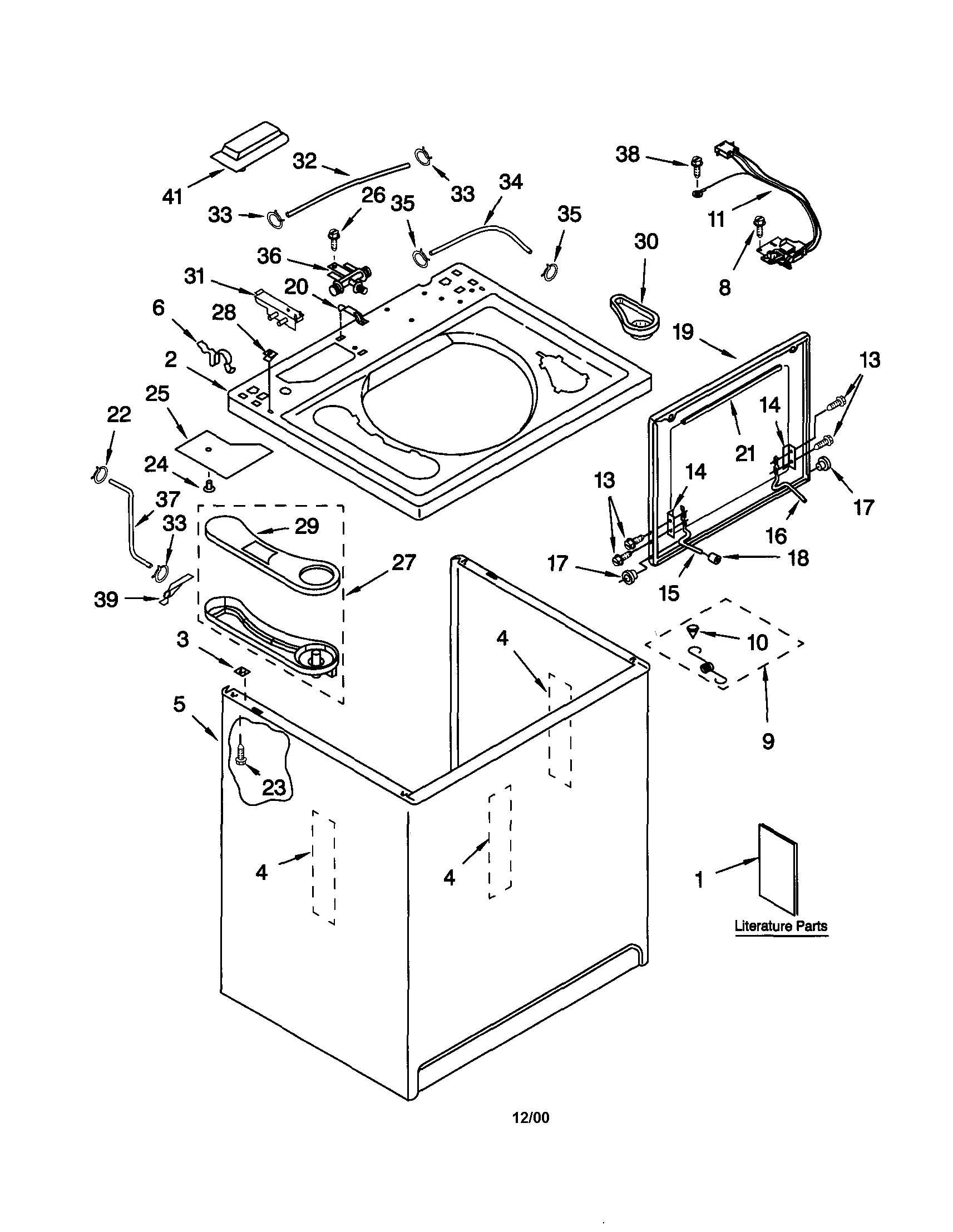

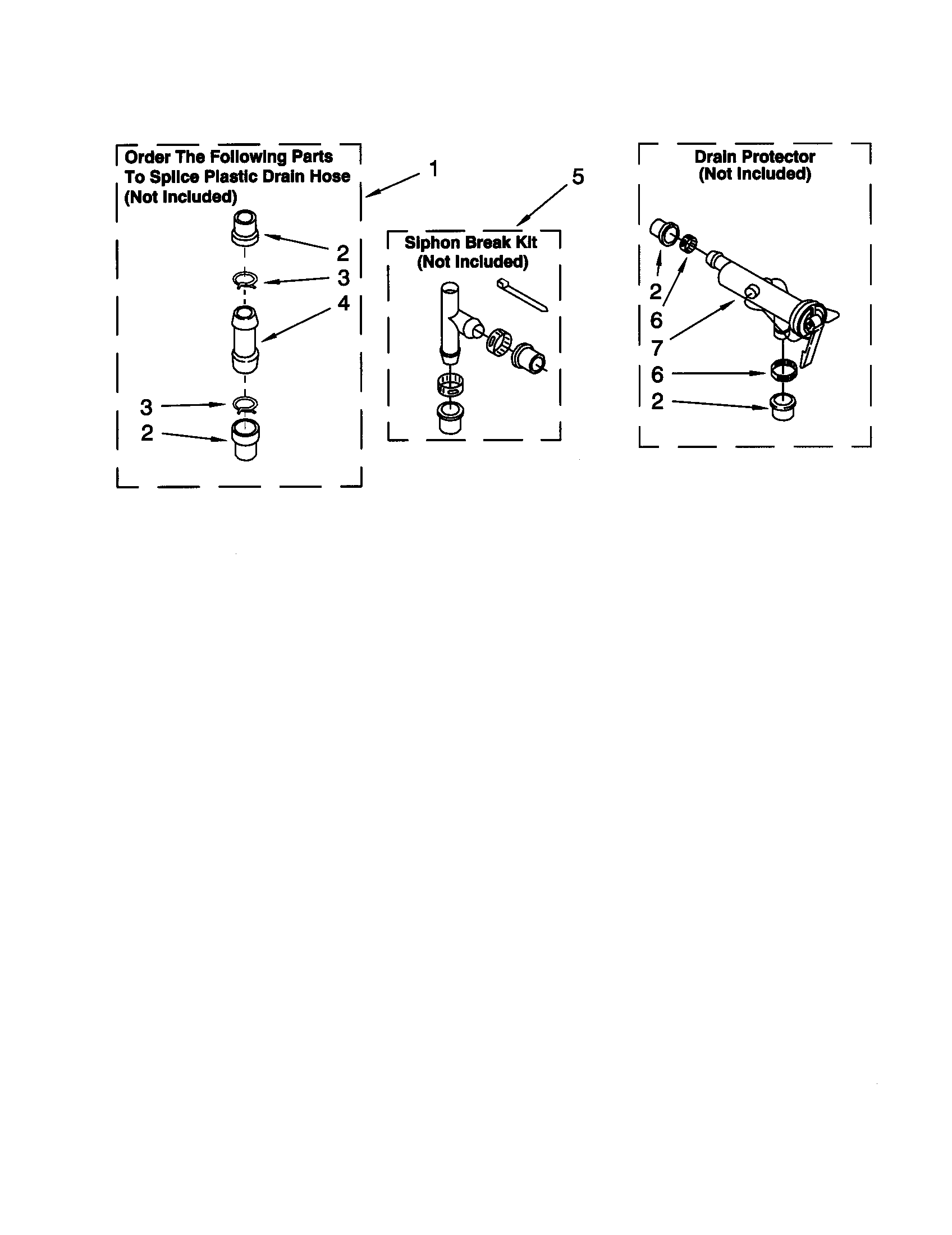

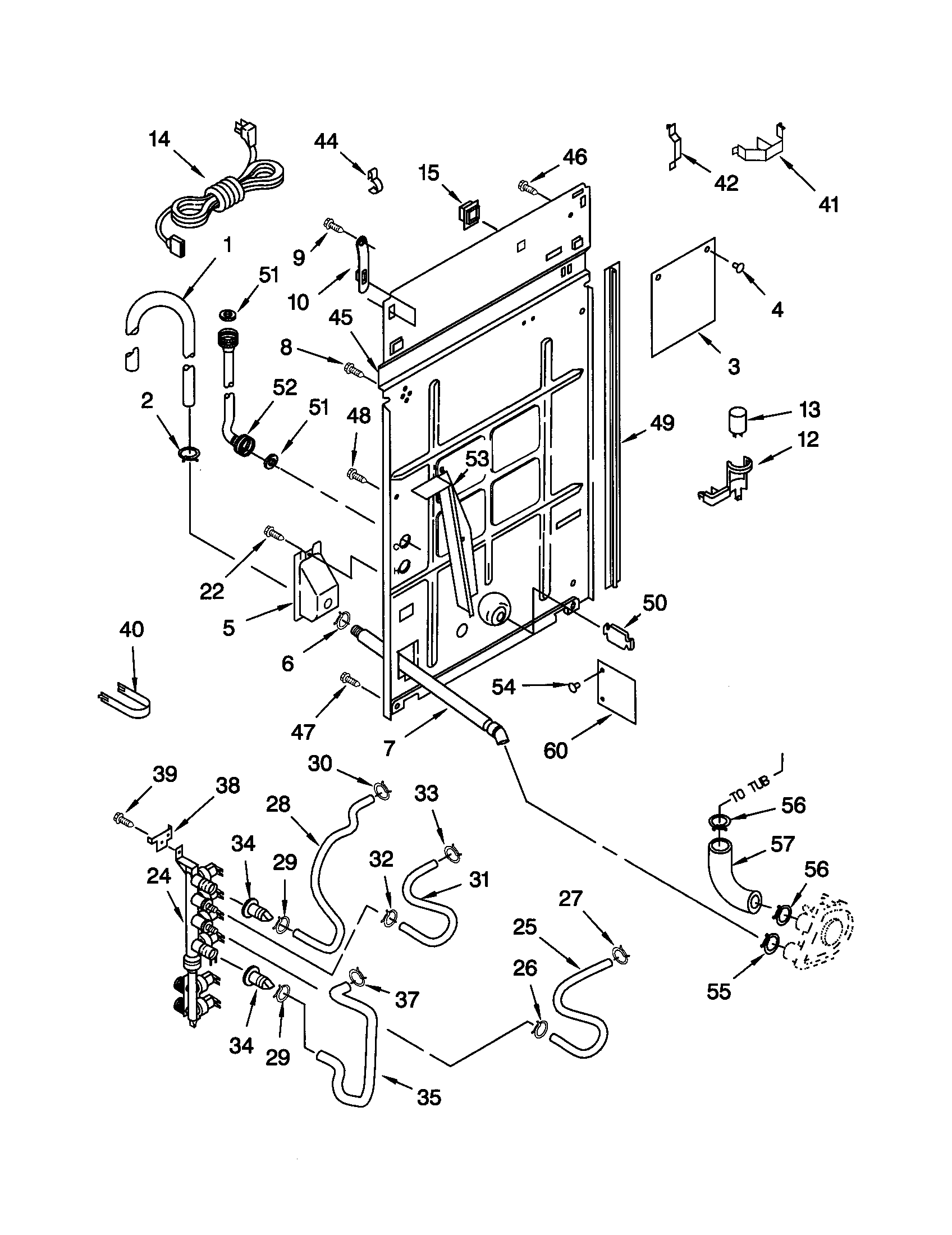

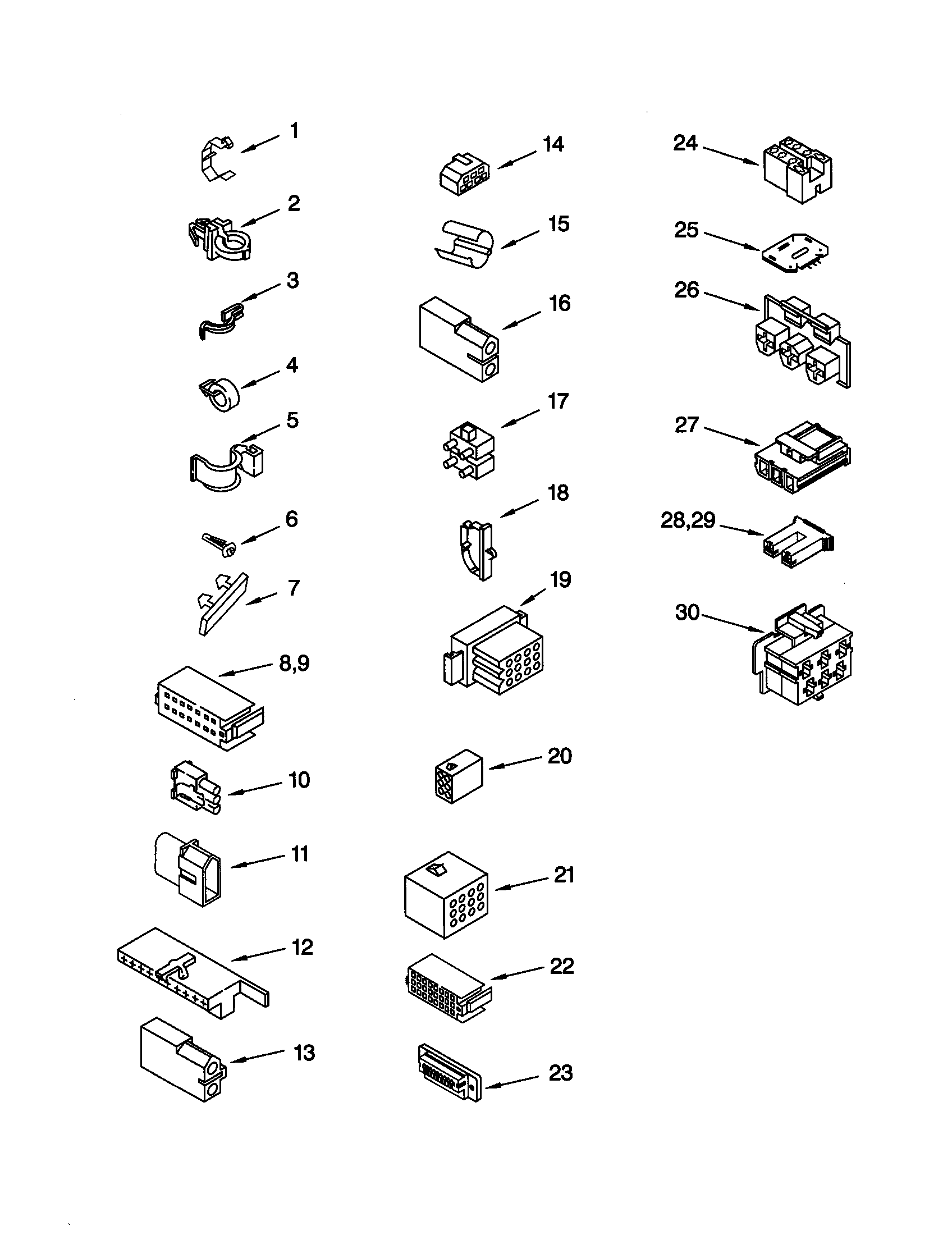

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 282 parts  |

Agitator Dog 3366877
#5

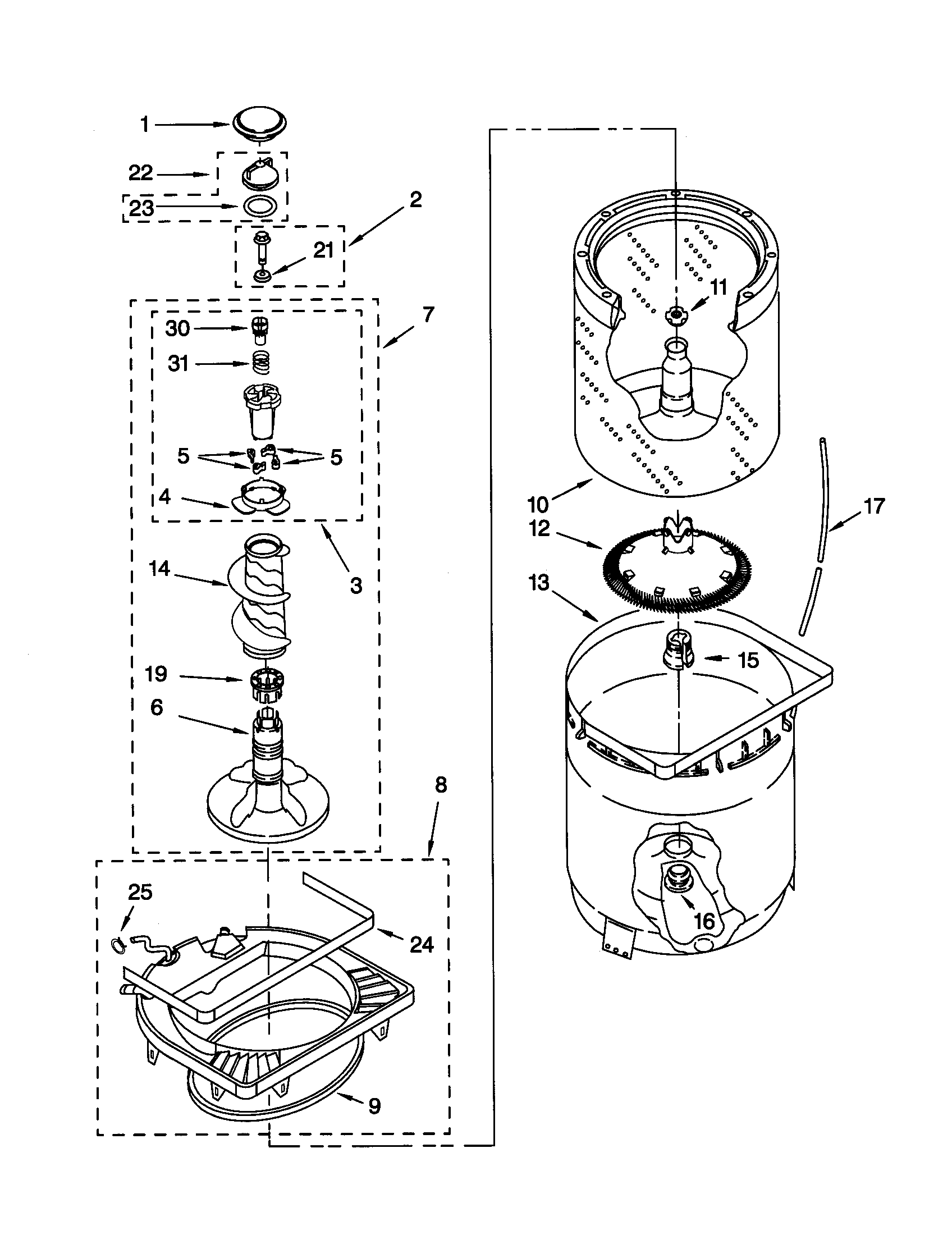

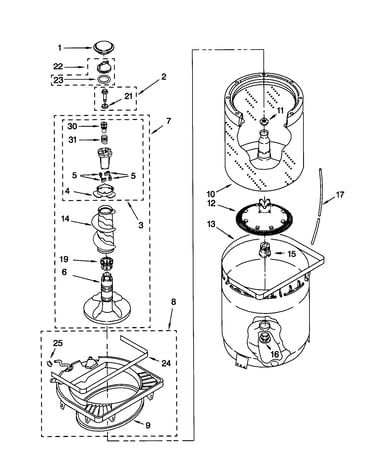

Agitator, basket, and tub diagram

Agitator dog

Part #3366877

Replaced by #80040

?
Manufacturer substitution
This part replaces 3366877. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.48
18% OFF Phone Price : $5.48
In Stock
Coupling 3364003
#13

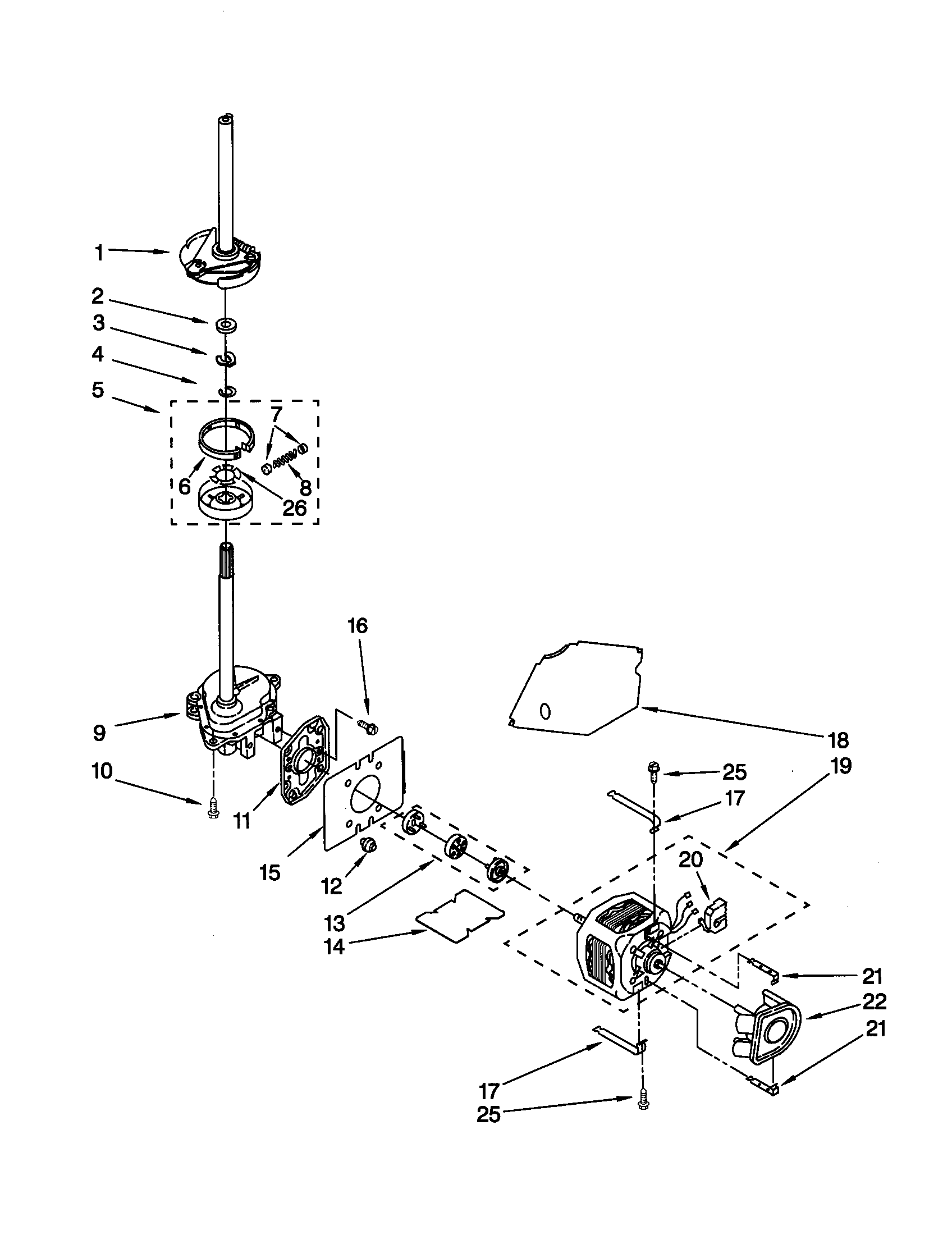

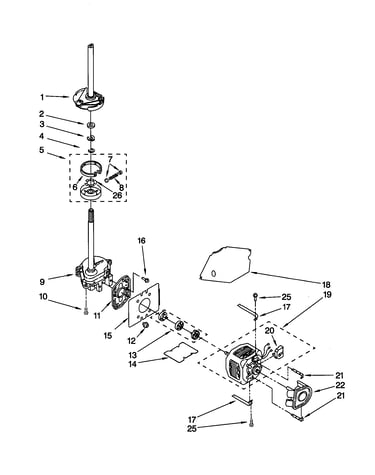

Brake/clutch/gearcase/motor/pump diagram

Coupling

Part #3364003

Replaced by #285753A

?
Manufacturer substitution
This part replaces 3364003. Substitute parts can look different from the original.
BEST SELLER
$24.29
17% OFF Phone Price : $29.29
In Stock
Washer Drain Pump 3363394
#22

Brake/clutch/gearcase/motor/pump diagram

Washer drain pump

Part #3363394

Replaced by #WP3363394

?
Manufacturer substitution
This part replaces 3363394. Substitute parts can look different from the original.
BEST SELLER
$37.32
20% OFF MSRP : $46.50
In Stock
Washer Tub Gasket 383727
#16

Agitator, basket, and tub diagram

Washer tub gasket

Part #383727

Replaced by #W10814296

?
Manufacturer substitution
This part replaces 383727. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.44
77% OFF MSRP : $15.00
In Stock
Counterweight Spring (red) 388492
#15

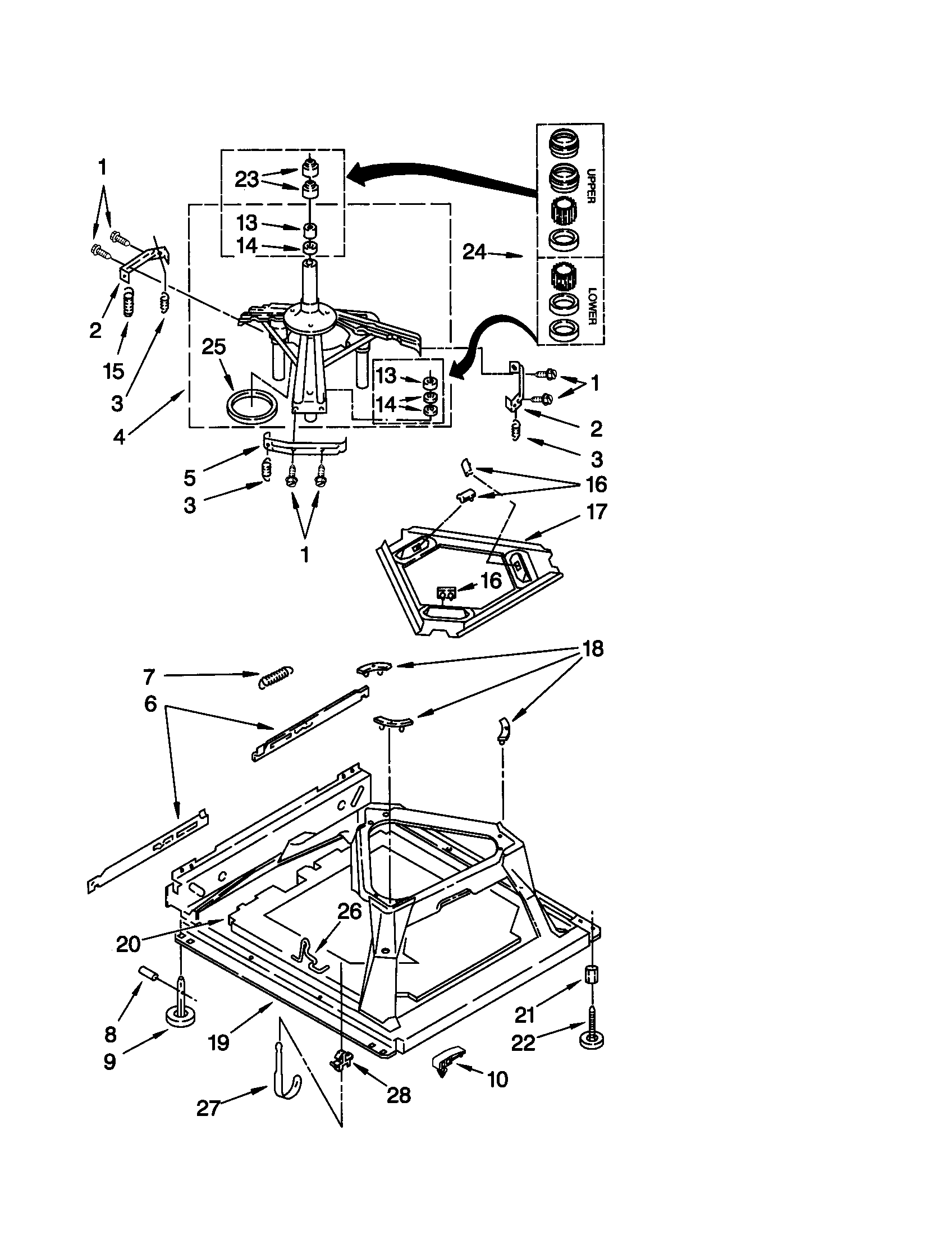

Machine base diagram

Counterweight spring (red)

Part #388492

Replaced by #WPW10250667

?
Manufacturer substitution
This part replaces 388492. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.81
73% OFF MSRP : $14.00
In Stock
Gear Case 3360630
#9

Brake/clutch/gearcase/motor/pump diagram

Gear case

Part #3360630

Replaced by #3360629

?
Manufacturer substitution
This part replaces 3360630. Substitute parts can look different from the original.
BEST SELLER
$248.07
$10.00 OFF Phone Price : $258.07
In Stock
Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017

#NI

All parts diagram

Appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29
11% OFF Phone Price : $9.29
In Stock
Laundry Appliance Control Knob Clip 688805
#5

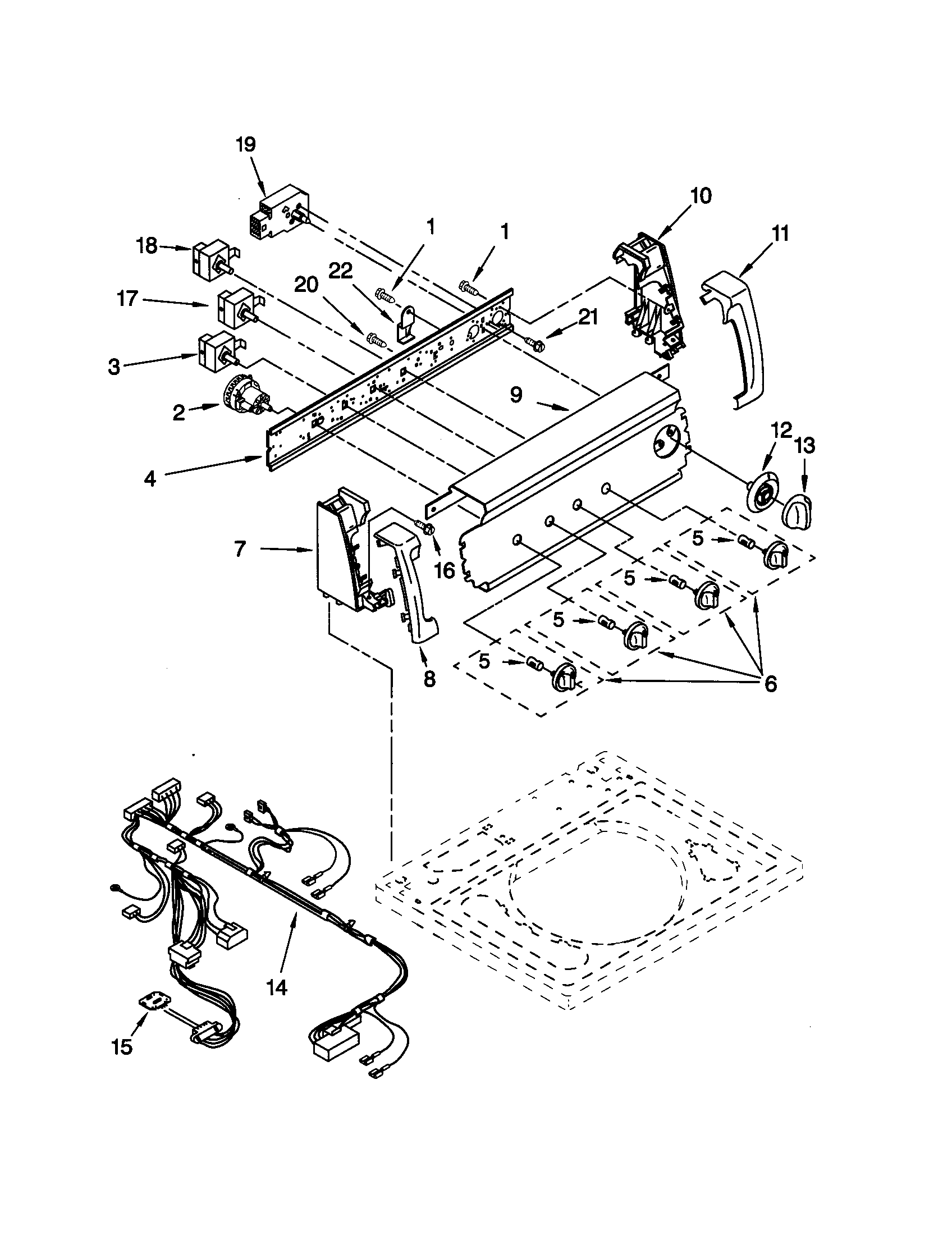

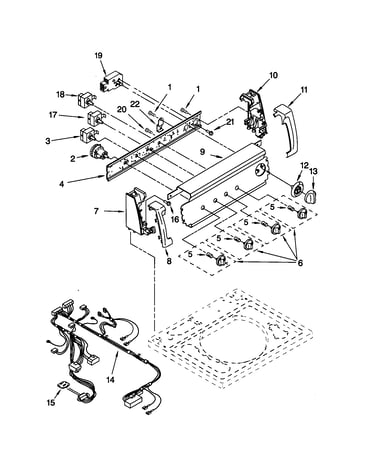

Control panel diagram

Laundry appliance control knob clip

Part #688805

Replaced by #WP688805

?
Manufacturer substitution
This part replaces 688805. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49
13% OFF Phone Price : $7.49
In Stock
Suspension Pad 3363660
#18

Machine base diagram

Suspension pad

Part #3363660

Replaced by #285744

?
Manufacturer substitution
This part replaces 3363660. Substitute parts can look different from the original.
BEST SELLER
$10.72
16% OFF Phone Price : $12.72
In Stock
Washing Machine Washer 3949550
#21

Agitator, basket, and tub diagram

Washing machine washer

Part #3949550

Replaced by #WP3949550

?
Manufacturer substitution
This part replaces 3949550. Substitute parts can look different from the original.
BEST SELLER
$10.69
16% OFF Phone Price : $12.69
In Stock

Most common symptoms to help you fix your washers

Choose a symptom to see related washer repairs.

Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water tem…

Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board…

Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interf…

Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system…

Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspensio…

Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lo…

Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve a…

Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control b…

Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in…
