Porter Cable
Jointer/Planer

Model # 552 Official Porter Cable production pocket cutter

Here are the diagrams and repair parts for Official Porter Cable 552 production pocket cutter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 129 parts  |

Washer 800249
#10

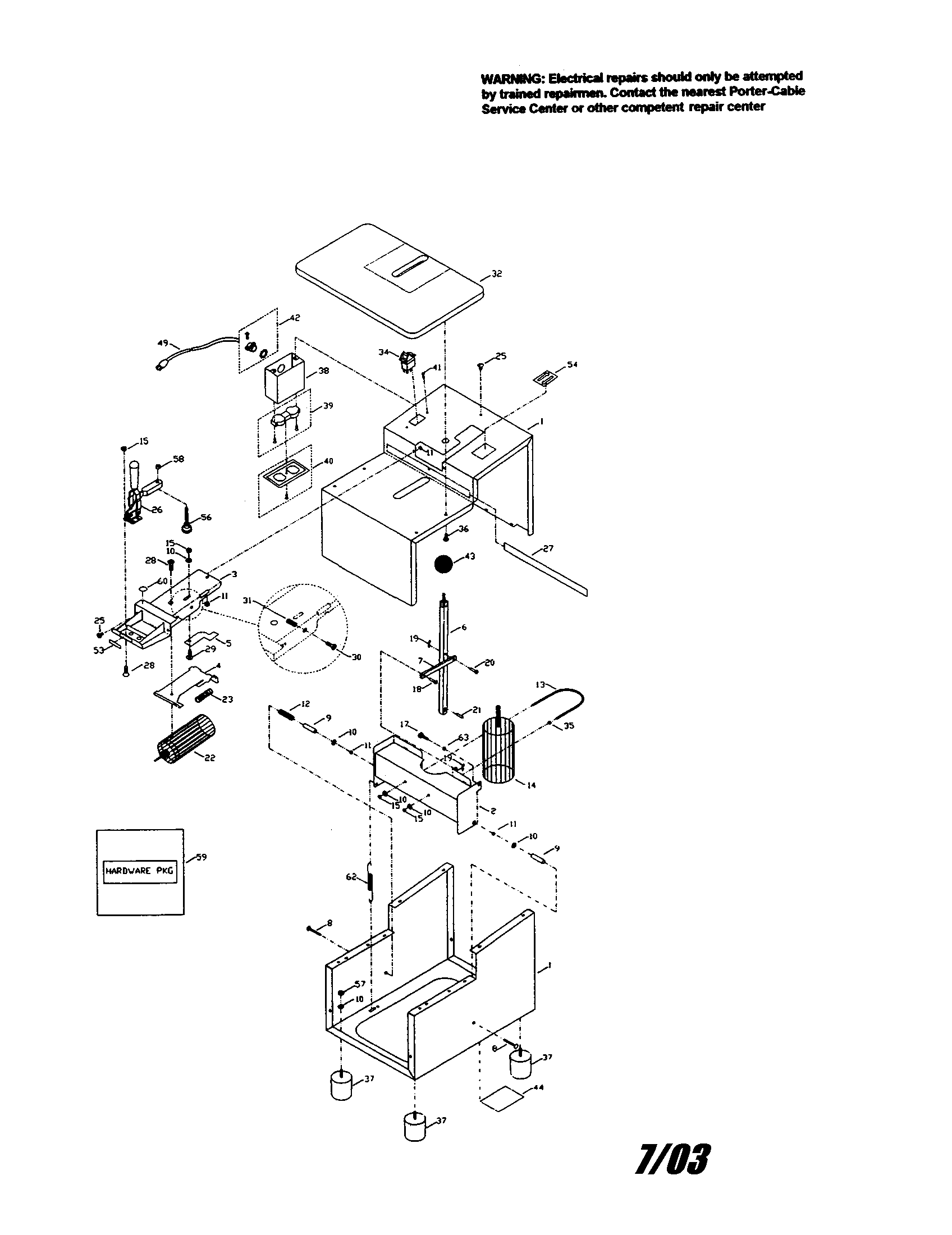

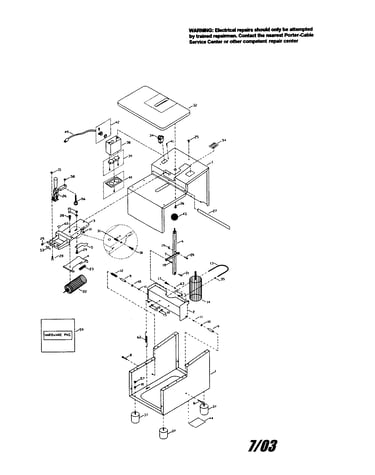

Pocket cutter diagram

Washer

Part #800249

The manufacturer no longer makes this part, and there's no substitute part

Pocket Cutter 9-64-in. Bit 5507
Pocket cutter 9-64-in. bit

Part #5507

The manufacturer no longer makes this part, and there's no substitute part

Lock 698708
#134

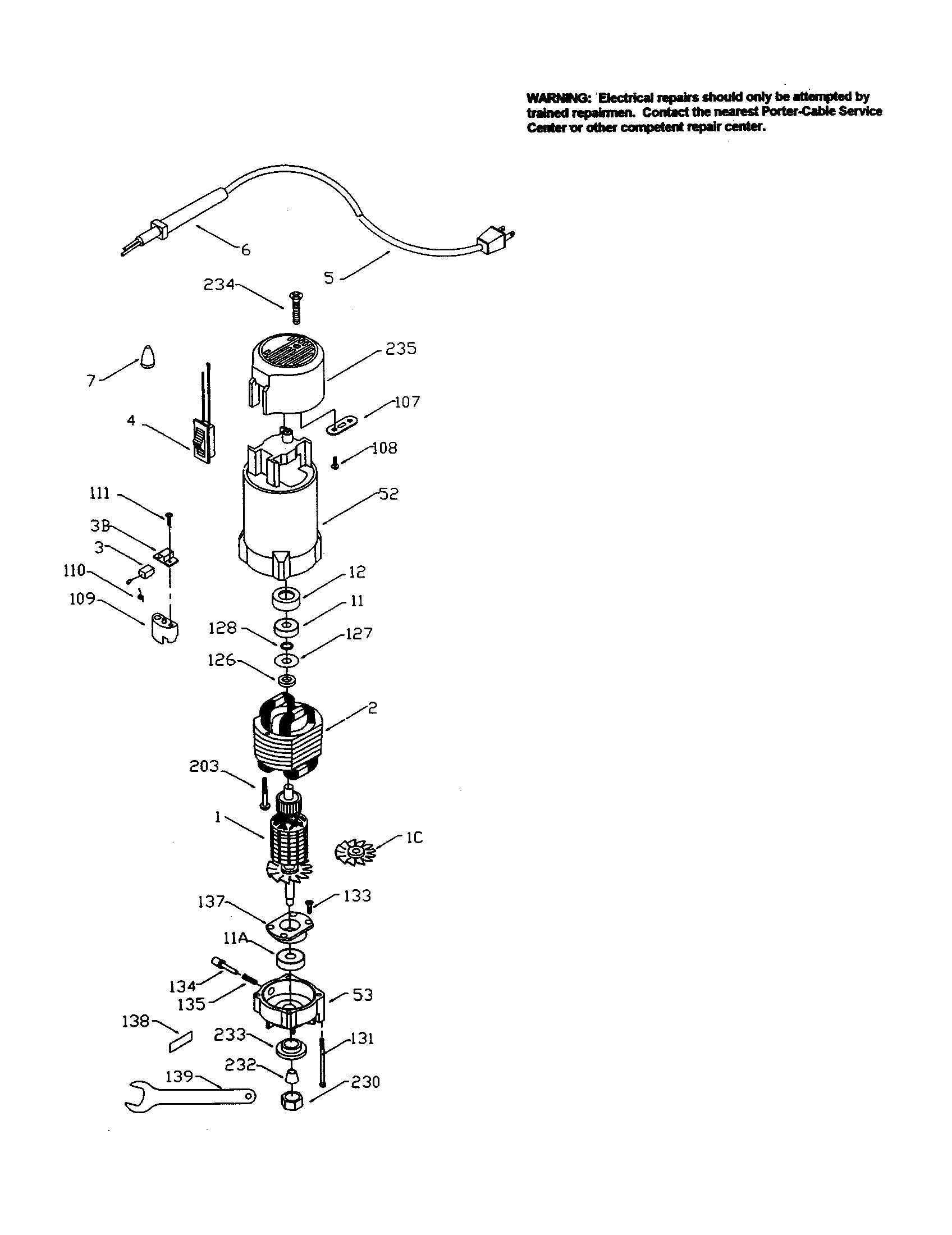

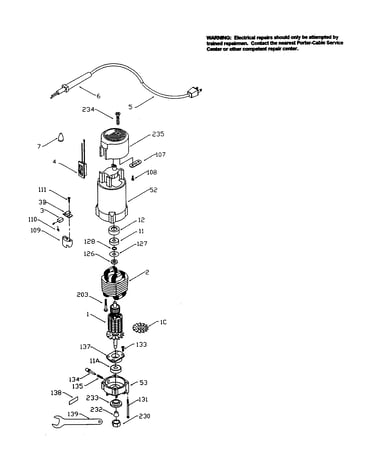

Drill motor 5520 diagram

Lock

Part #698708

The manufacturer no longer makes this part, and there's no substitute part

Wing Nut 800745
#63

Pocket cutter diagram

Wing nut

Part #800745

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Motor Brush 690741
#3A

Drill motor 5520 diagram

Power tool motor brush

Part #690741

The manufacturer no longer makes this part, and there's no substitute part

Label 885833
#138

Drill motor 5520 diagram

Label

Part #885833

The manufacturer no longer makes this part, and there's no substitute part

Chuck 872793
#83

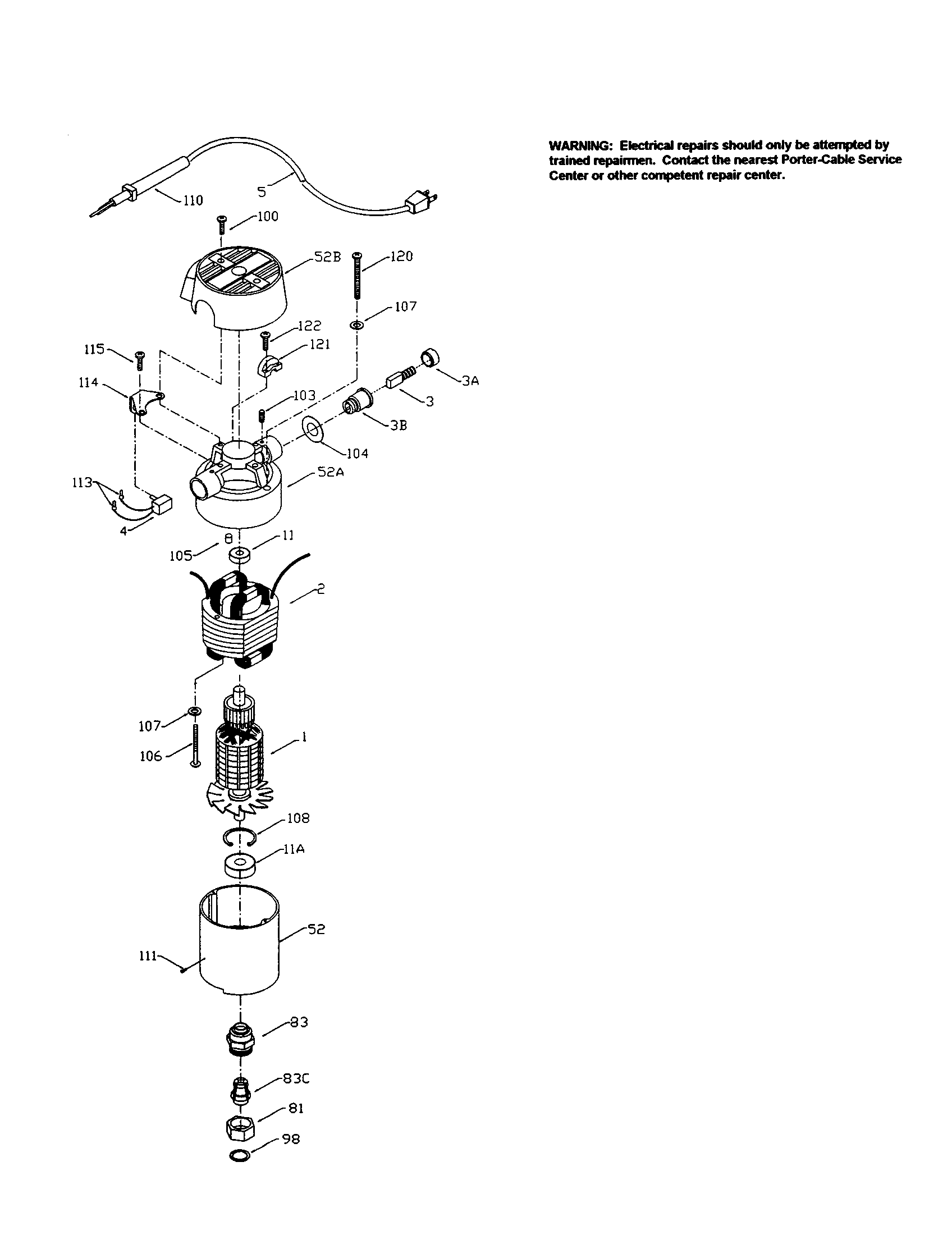

Pocket cut motor 6912 diagram

Chuck

Part #872793

The manufacturer no longer makes this part, and there's no substitute part

Sander Motor Brush Cap 803483
#3A

Pocket cut motor 6912 diagram

Sander motor brush cap

Part #803483

The manufacturer no longer makes this part, and there's no substitute part

Washer 802430
#107

Pocket cut motor 6912 diagram

Washer

Part #802430

The manufacturer no longer makes this part, and there's no substitute part

Heli-coil 874536
#53A

Drill motor 5520 diagram

Heli-coil

Part #874536

The manufacturer no longer makes this part, and there's no substitute part
