Model #FGFL67HBE Official Frigidaire gas range

Here are the diagrams and repair parts for Frigidaire FGFL67HBE gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

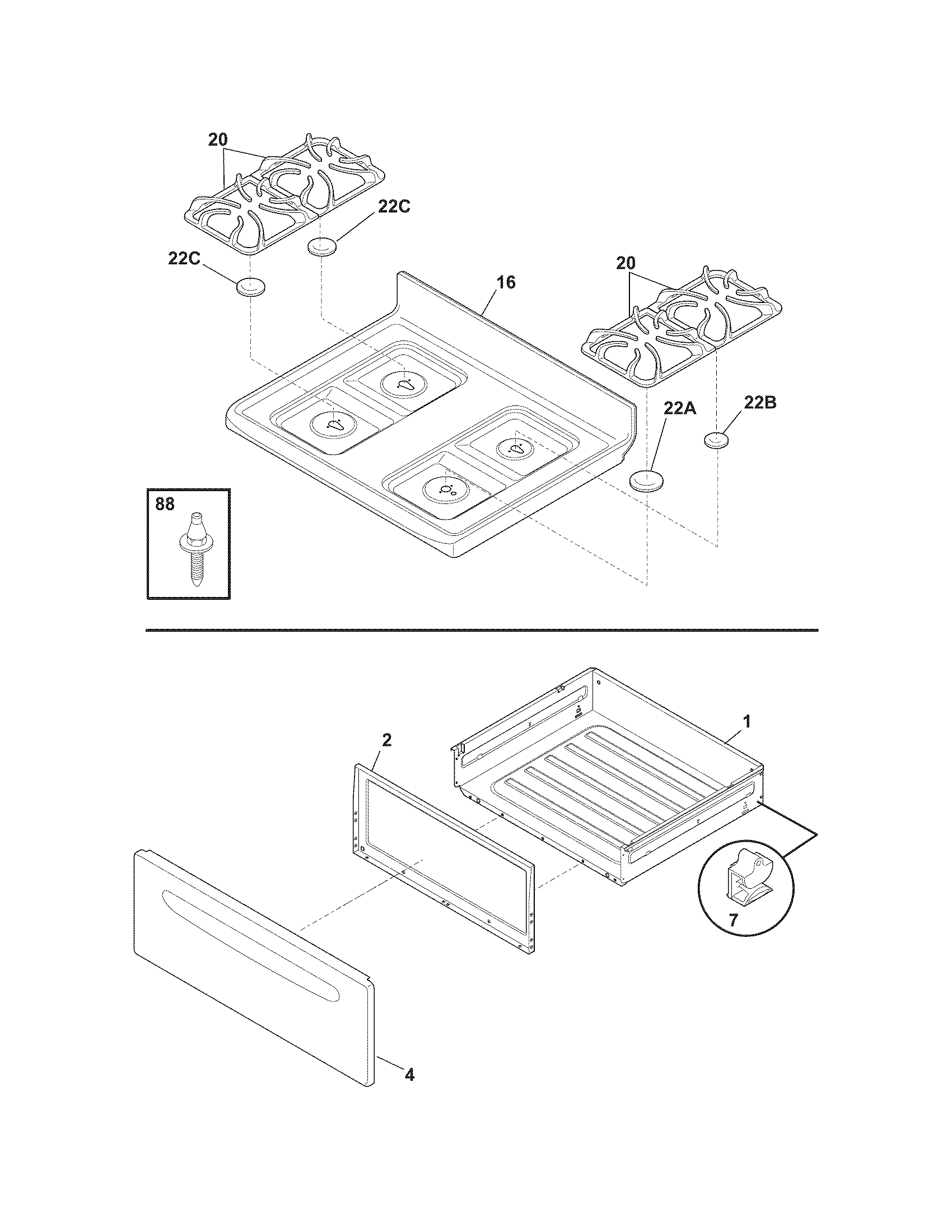

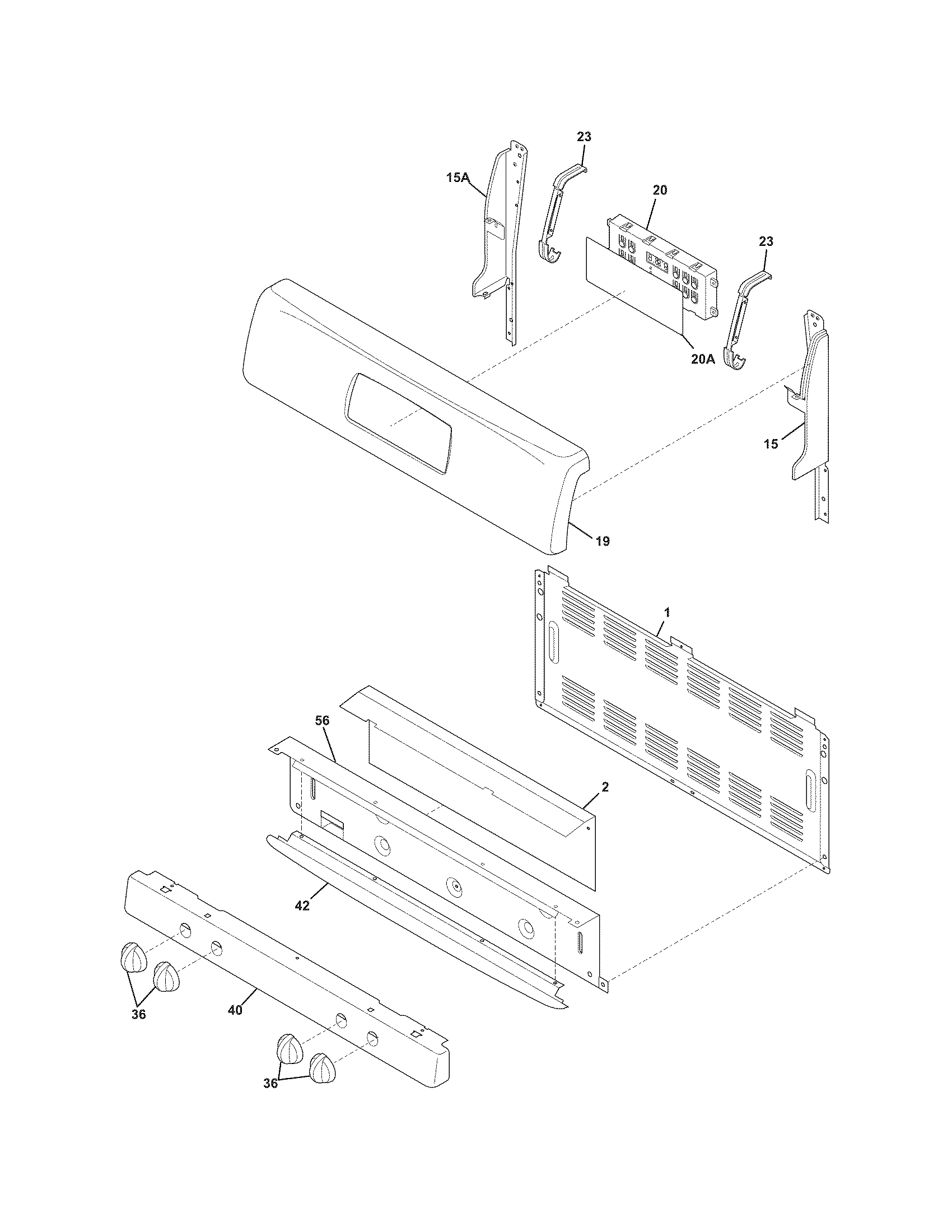

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guideError Codes

Showing 10 of 154 parts

Range Oven Burner Igniter (replaces 5304508786, 7316489403)#26

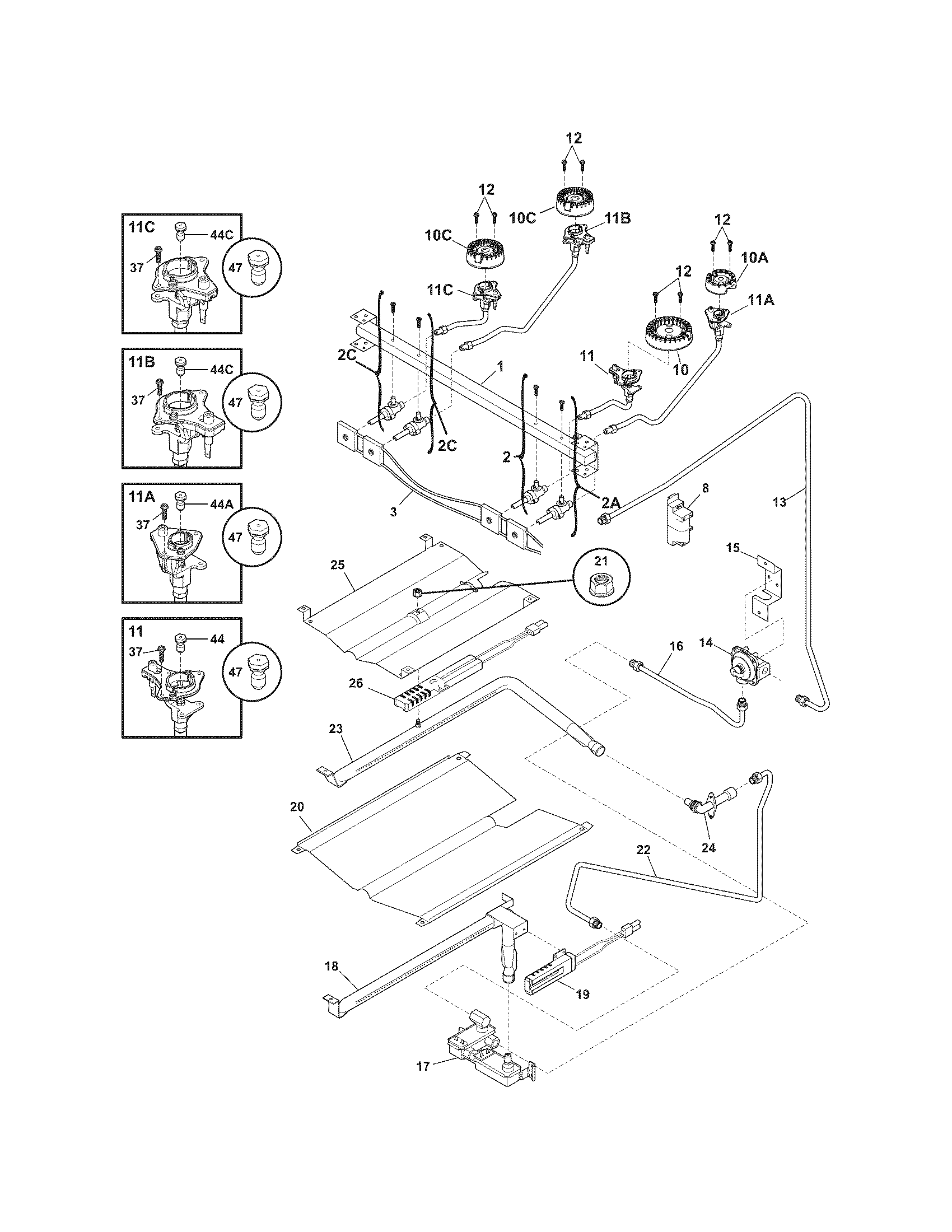

Burner Diagram

In Stock
$111.83 |
8% OFF
Phone Price: $121.83
Range Oven Temperature Sensor (replaces 316490003)#37

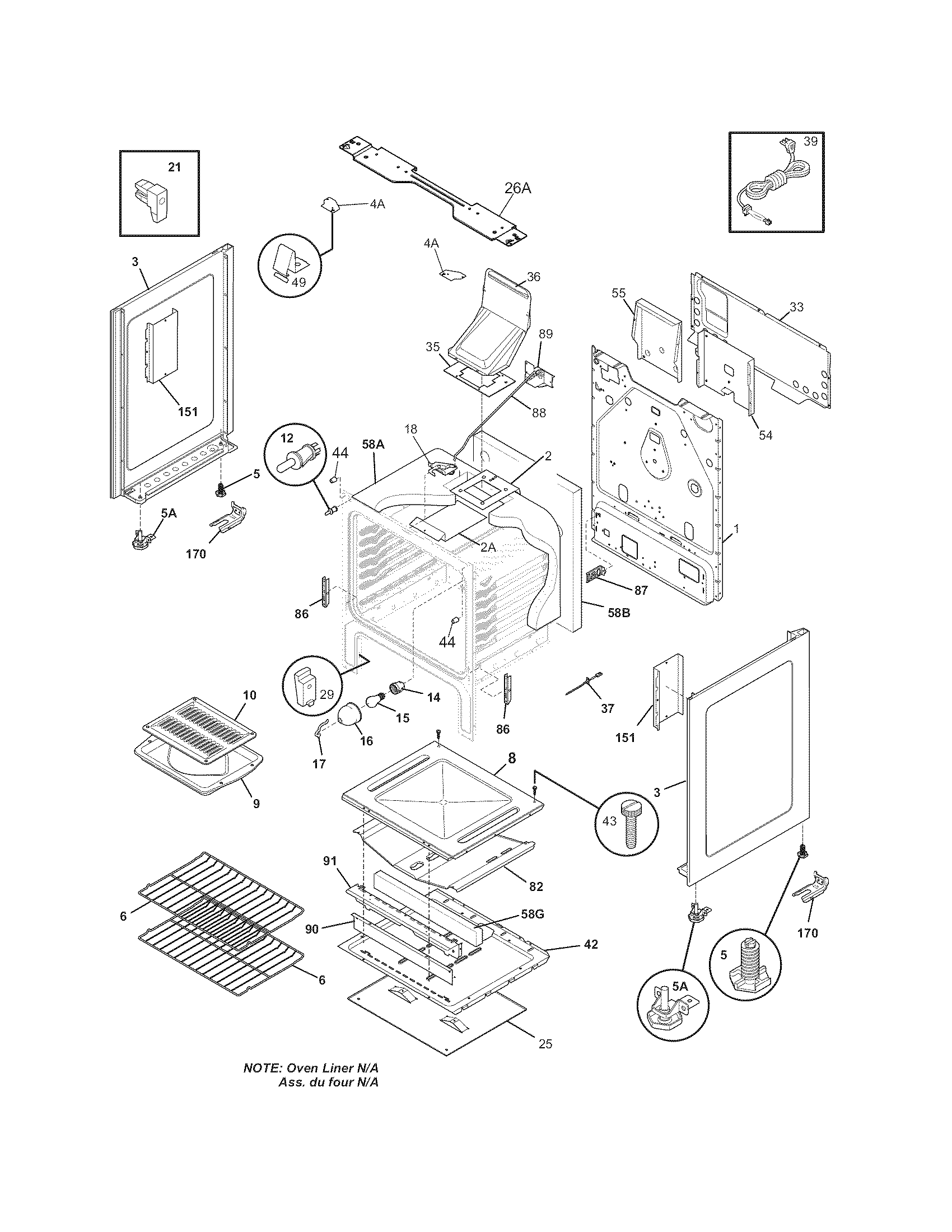

Body Diagram

In Stock
$45.05 |
10% OFF
Phone Price: $50.05
Range Oven Door Handle Screw, 10-14 x 2-1/8-inch#10

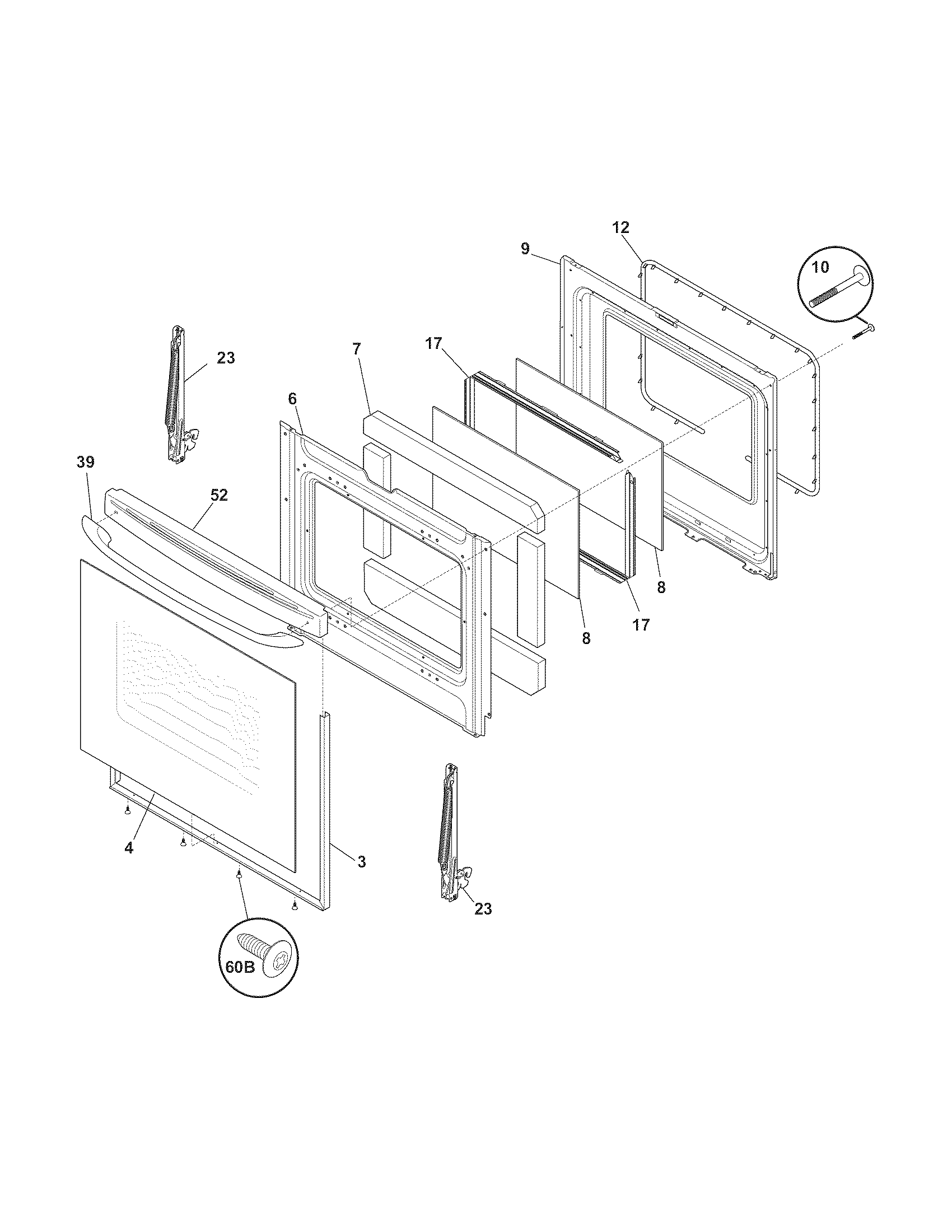

Door Diagram

In Stock
$16.59 |
11% OFF
Phone Price: $18.59
Range Surface Burner Igniter and Orifice Holder (replaces 316449302)#11C

Burner Diagram

In Stock
$64.30 |
7% OFF
Phone Price: $69.30
Range Oven Door Inner Glass (replaces 316117502, 316117503)#8

Door Diagram

Range oven door inner glass

Part #316117500
Replaced by #5304503232
?
Manufacturer substitution
This part replaces 316117500. Substitute parts can look different from the original.
BEST SELLER
In Stock
$69.39 |
7% OFF
Phone Price: $74.39
Range Screw (replaces 5304472956, 7316240600)#37

Burner Diagram

In Stock
$13.97 |
13% OFF
Phone Price: $15.97
Range Surface Burner Orifice (replaces 7316527500)#44C

Burner Diagram

In Stock
$17.89 |
10% OFF
Phone Price: $19.89
Range Oven Light Lens (replaces 318406100)#16

Body Diagram

Range oven light lens

Part #318406100
Replaced by #5304524341
?
Manufacturer substitution
This part replaces 318406100. Substitute parts can look different from the original.
BEST SELLER
In Stock
$13.90 |
13% OFF
Phone Price: $15.90
Range Surface Burner Orifice (replaces 7316527504)#44A

Burner Diagram

In Stock
$18.49 |
10% OFF
Phone Price: $20.49
Range Surface Burner Head (replaces 316527400, 7316558300)#10C

Burner Diagram

Burner

Part #316527400
Replaced by #316558300
?
Manufacturer substitution
This part replaces 316527400. Substitute parts can look different from the original.
BEST SELLER
In Stock
$39.43 |
11% OFF
Phone Price: $44.43
