Amana SRD528VE-P1320402WE side-by-side refrigerator Parts
Here are the diagrams and repair parts for Amana SRD528VE-P1320402WE side-by-side refrigerator, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

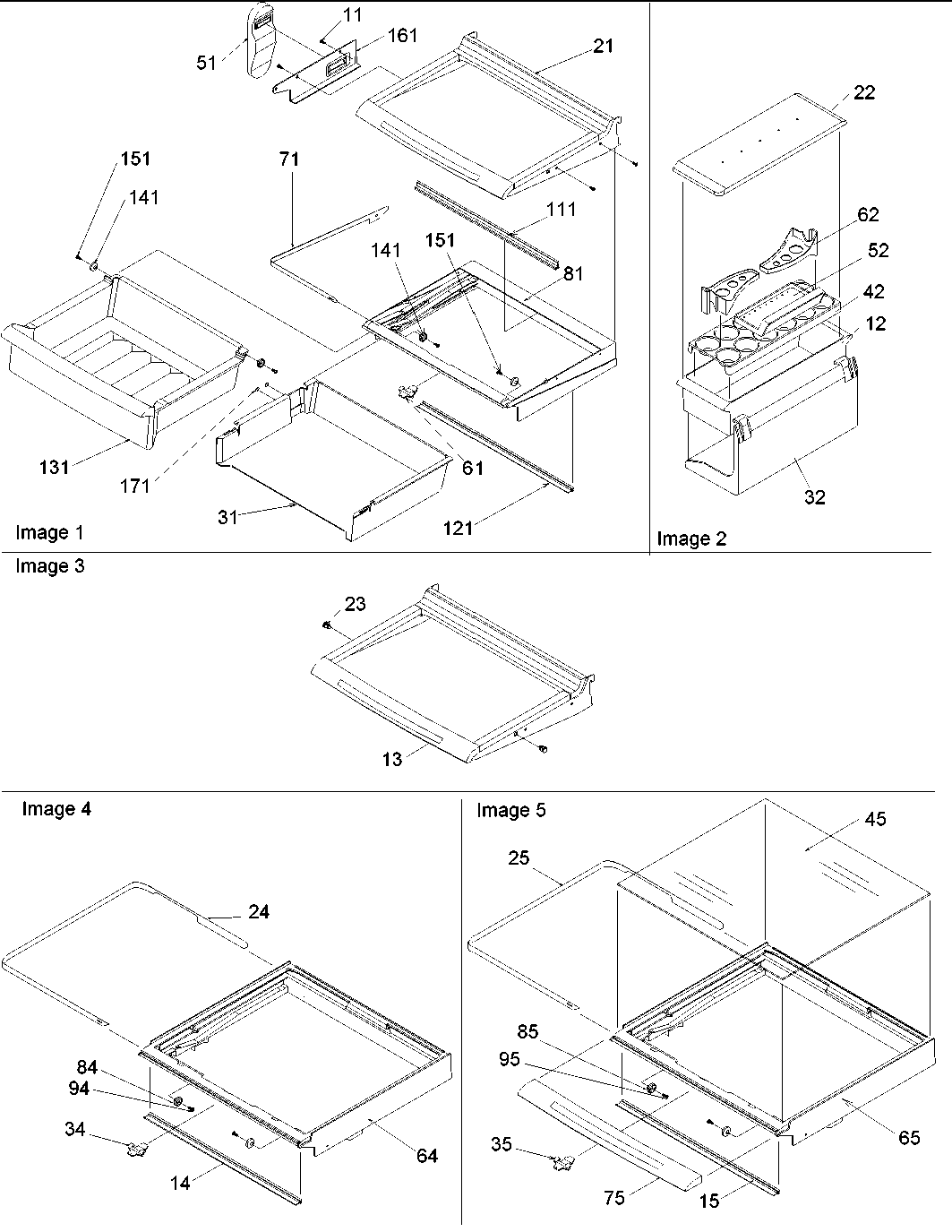

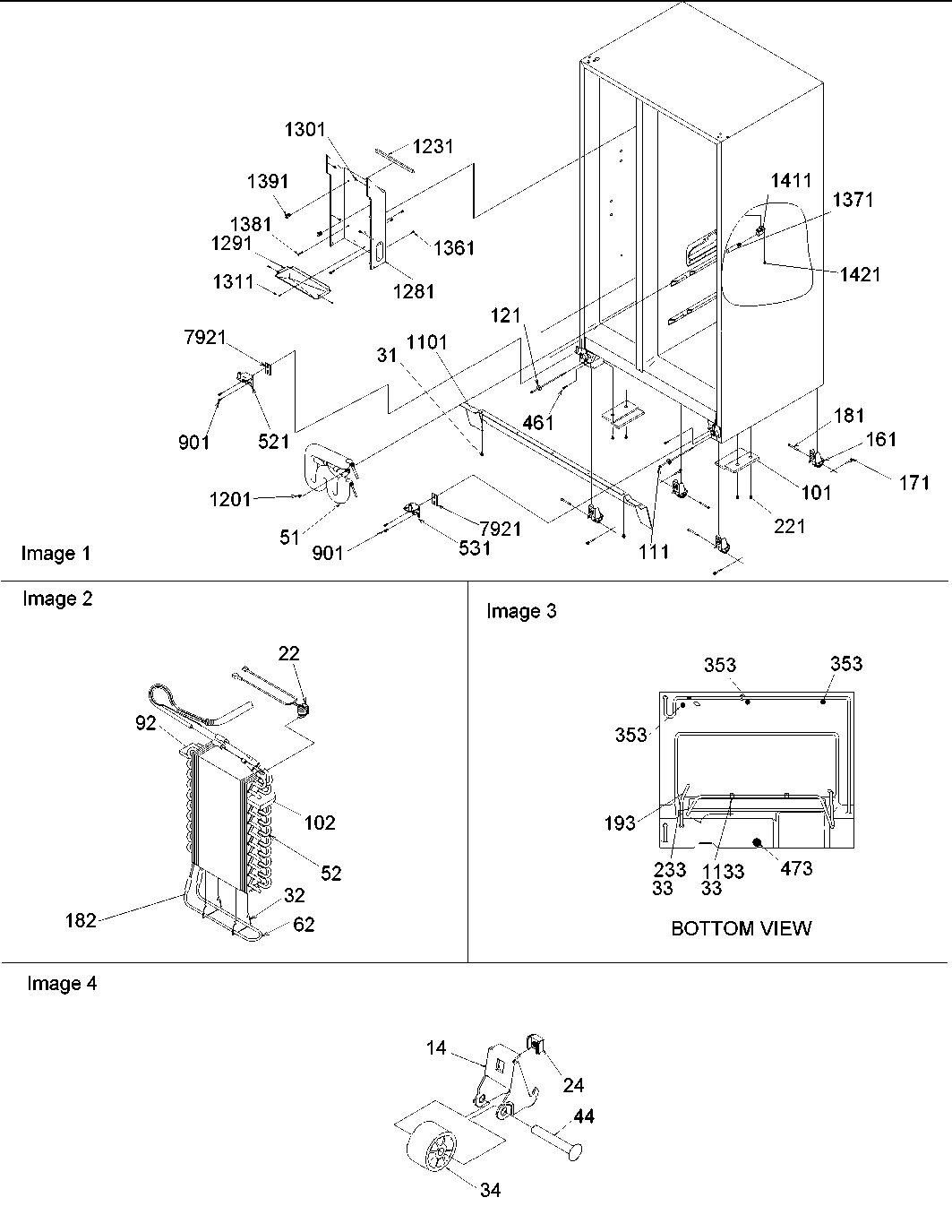

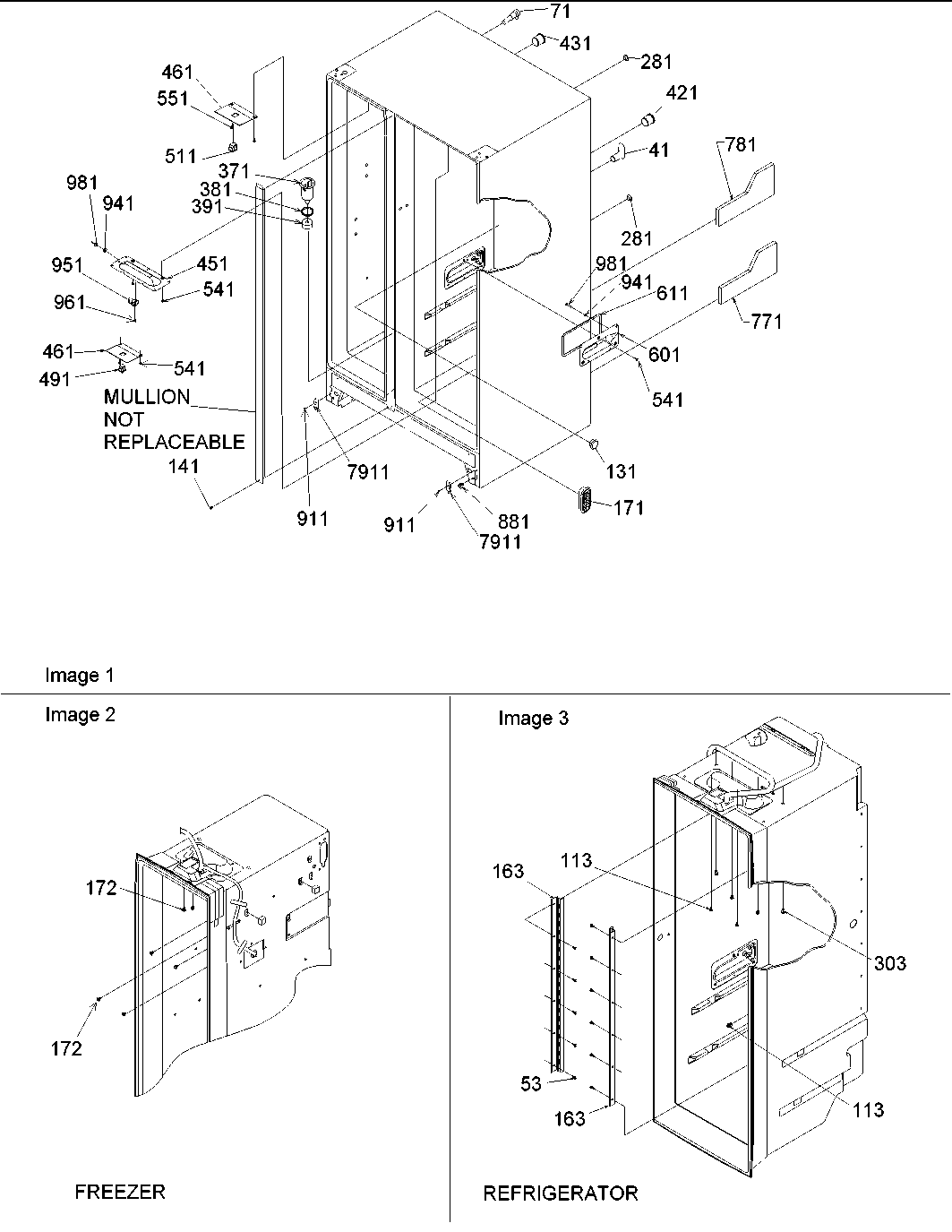

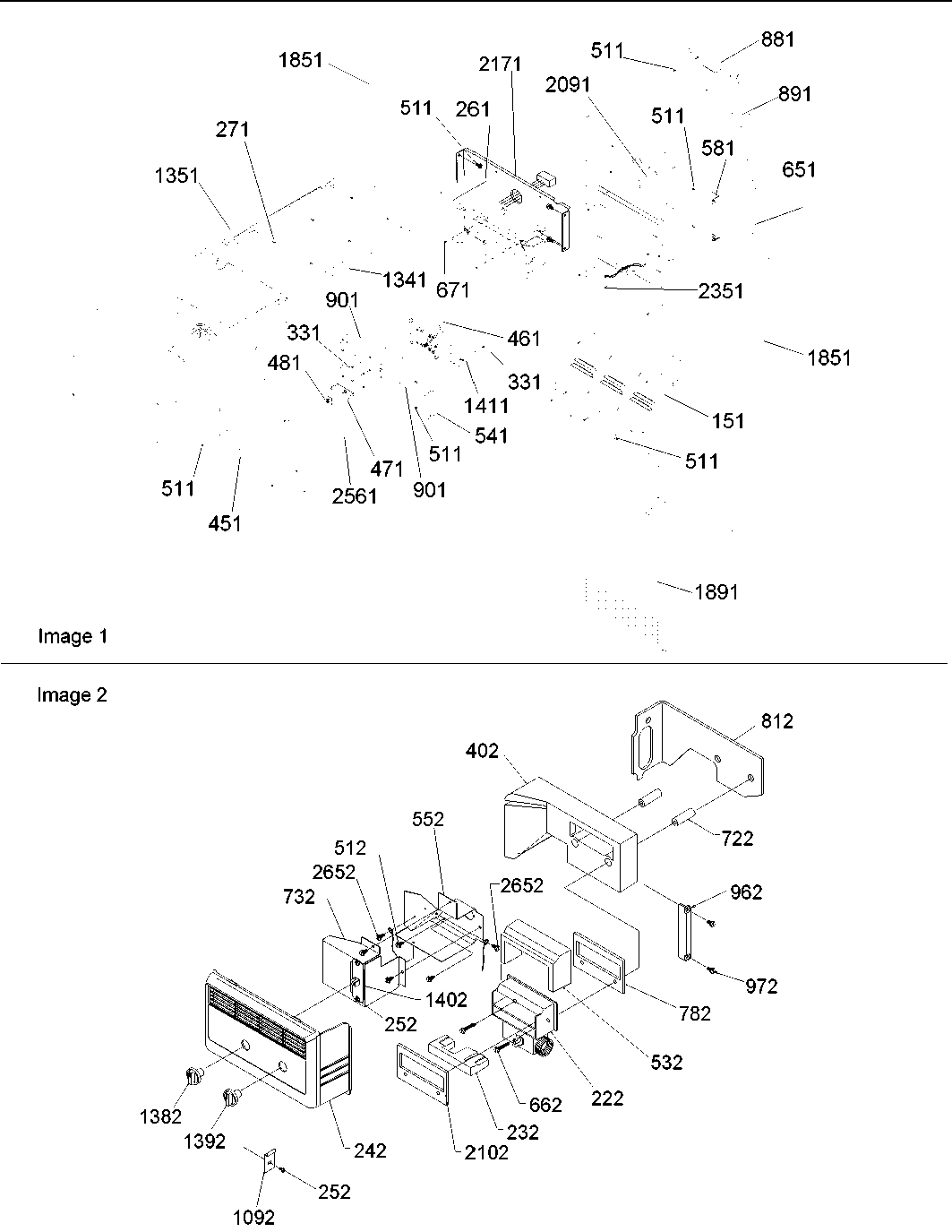

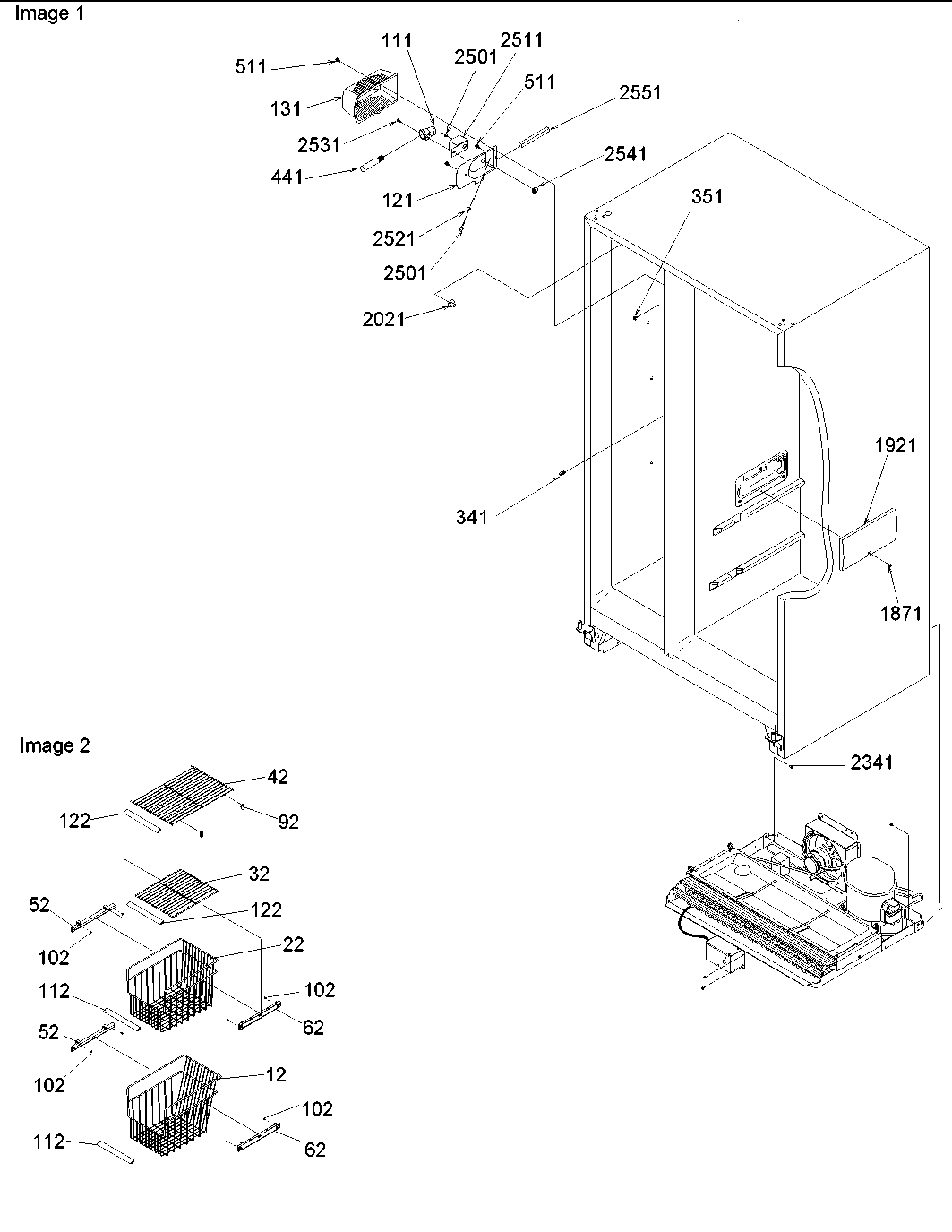

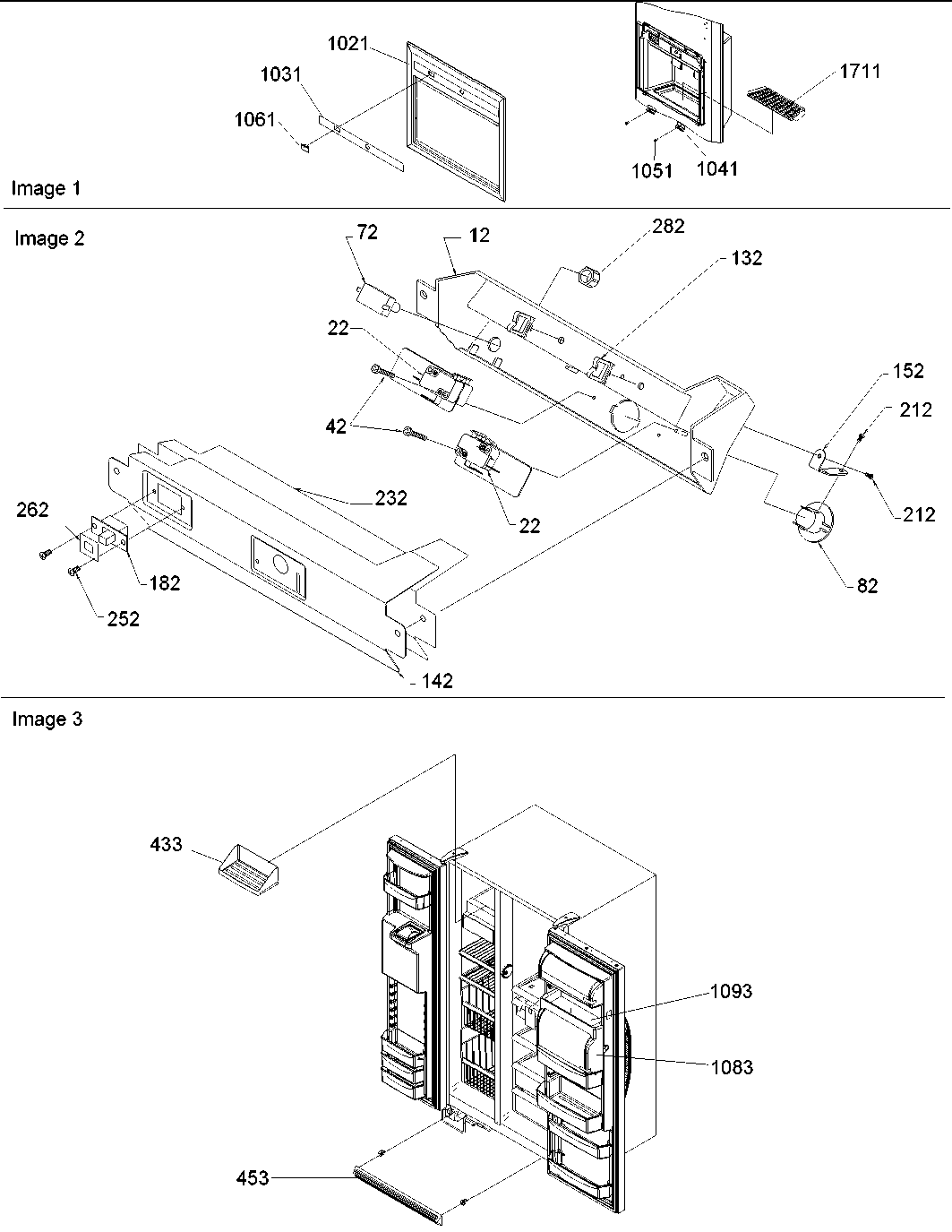

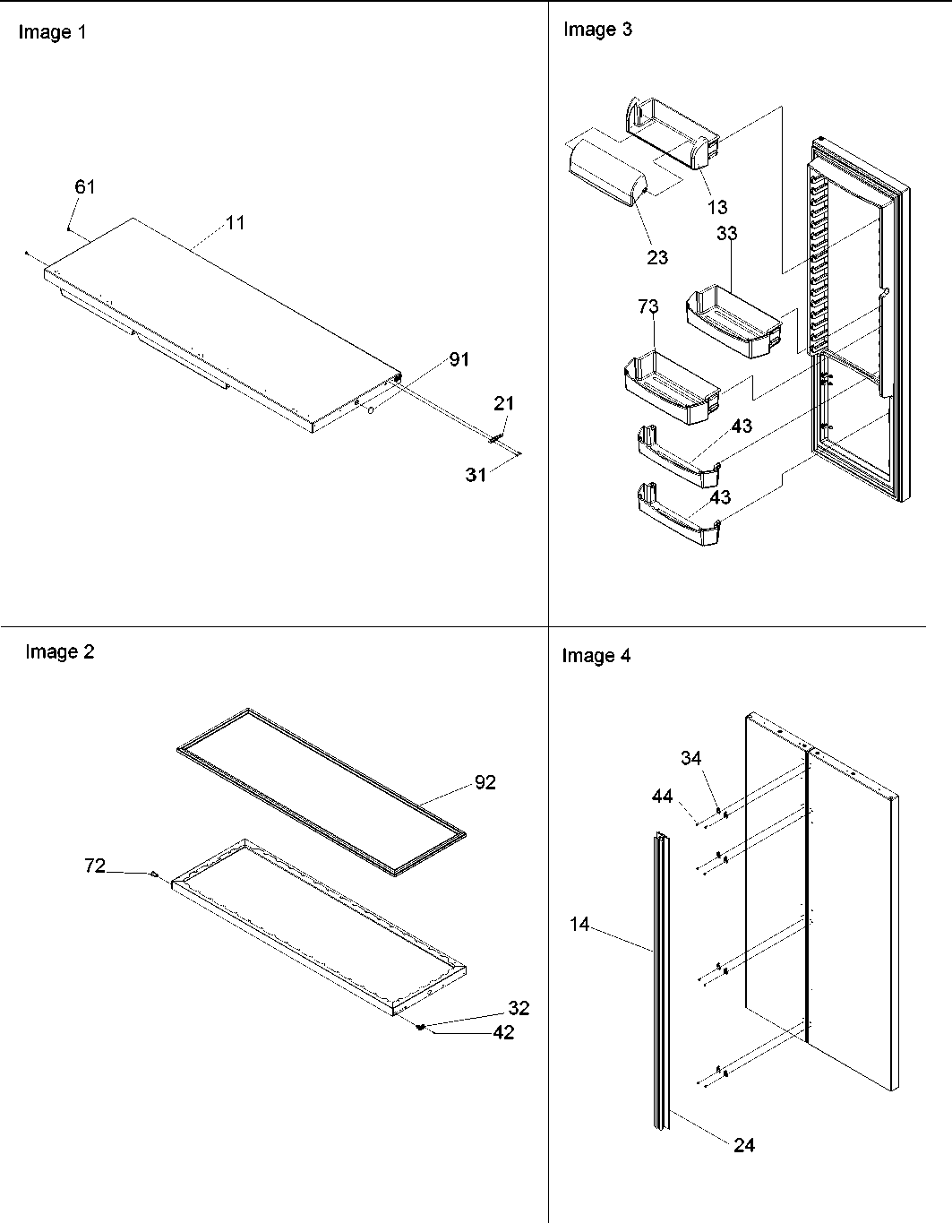

Browse Parts for SRD528VE-P1320402WE Refrigerators

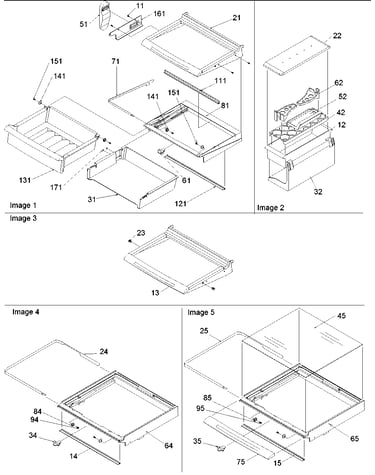

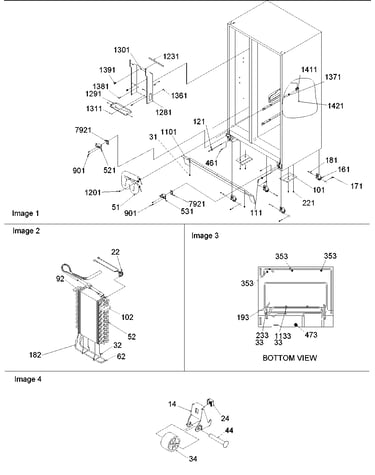

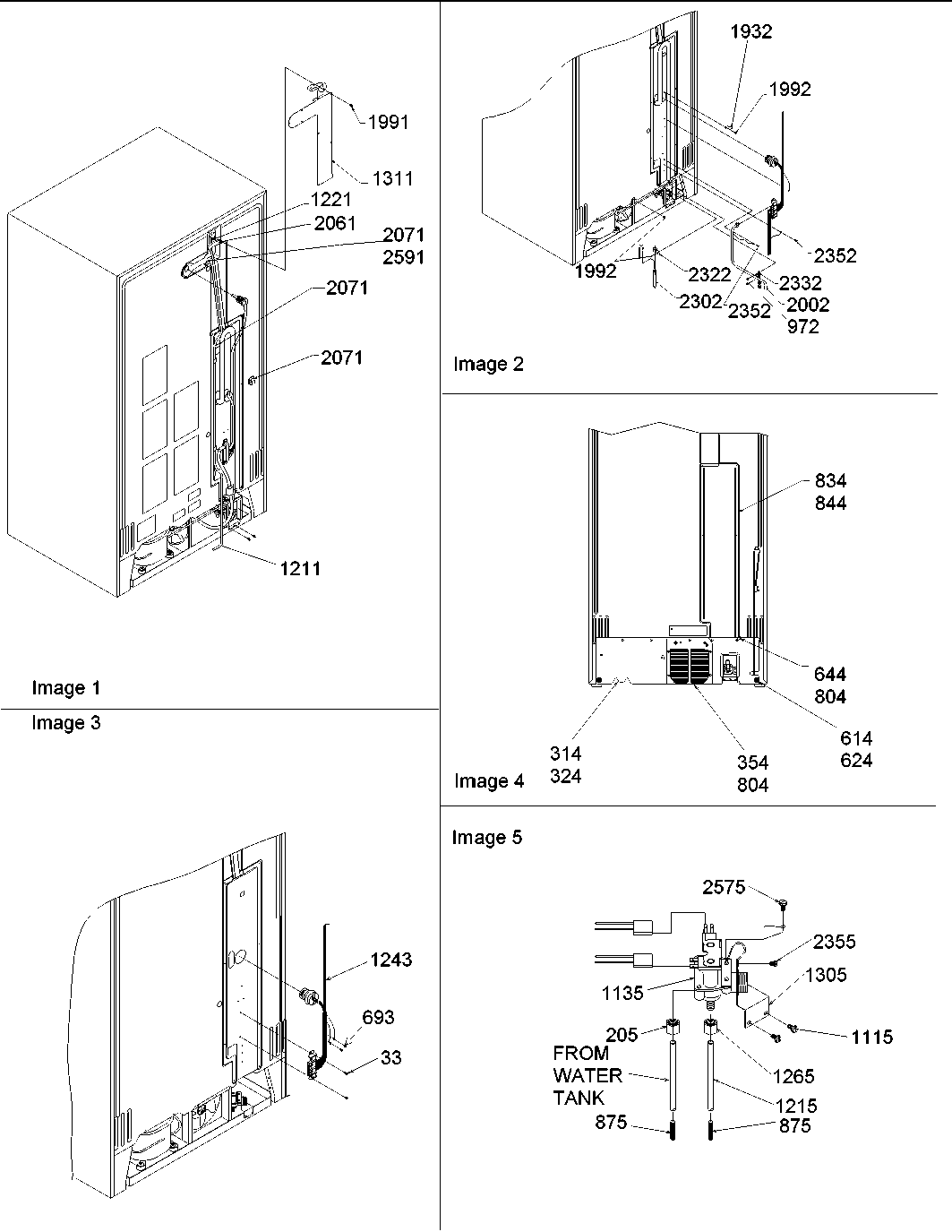

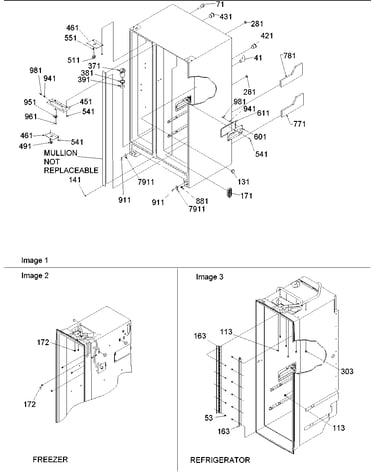

Cabinet back diagram
Refrigerator Fitting
Part #M0753001Replaced by #WP627018
Manufacturer substitutionThis part replaces M0753001. Substitute parts can look different from the original.This item is not returnableIn Stock$8.9810% OFF Phone Price : $9.98
Qty

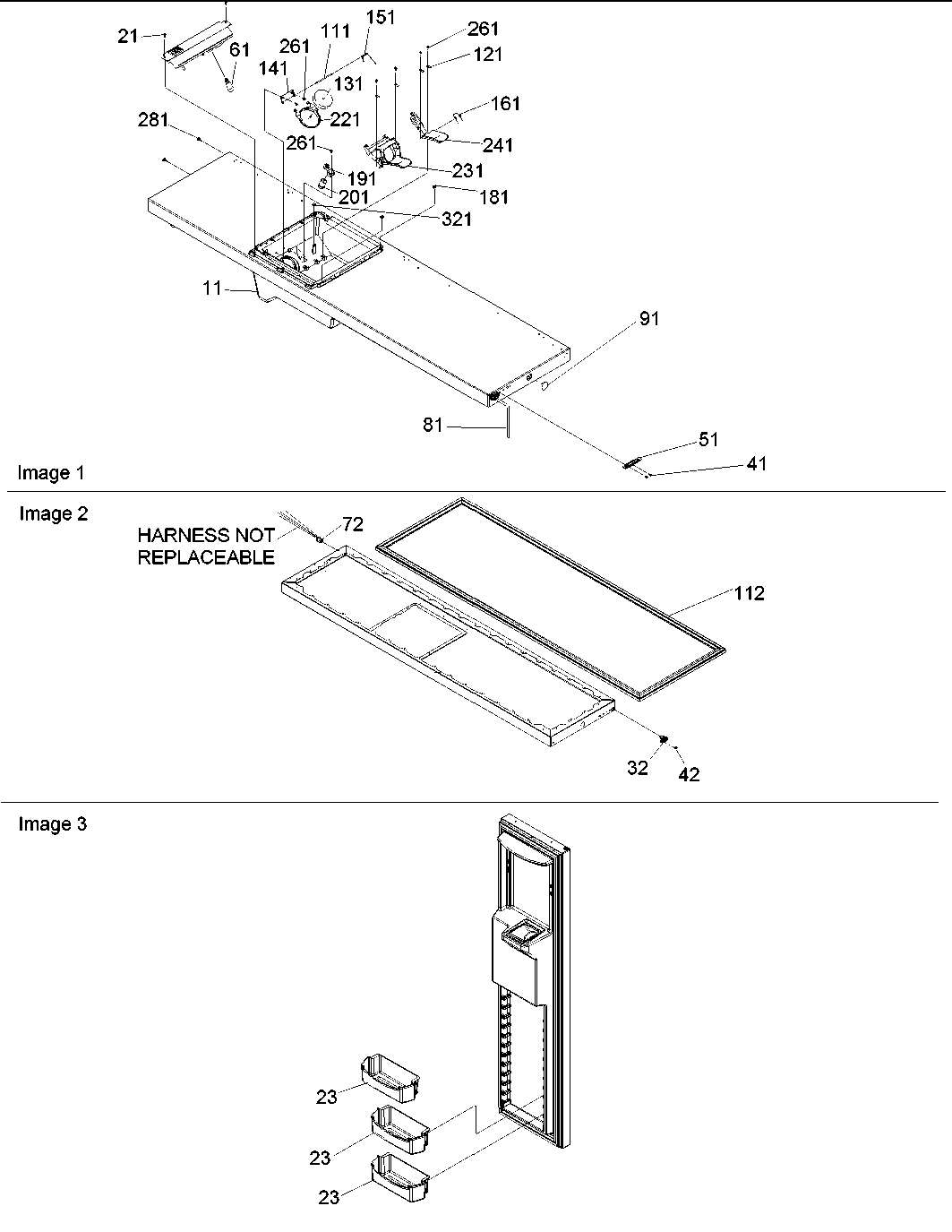

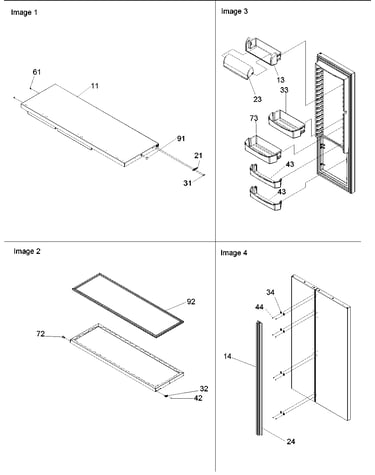

Freezer door diagram
Refrigerator Tubing
Part #B5705326Replaced by #WPB5705307
Manufacturer substitutionThis part replaces B5705326. Substitute parts can look different from the original.This item is not returnableIn Stock$11.9414% OFF Phone Price : $13.94QtyRefrigerator Tubing
Part #B5705321Replaced by #WPB5705307
Manufacturer substitutionThis part replaces B5705321. Substitute parts can look different from the original.This item is not returnableIn Stock$11.9414% OFF Phone Price : $13.94QtyCabinet back diagram
Refrigerator Screw
Part #M0201216Replaced by #WP489464

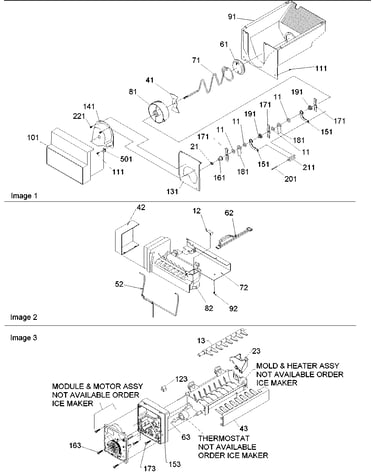

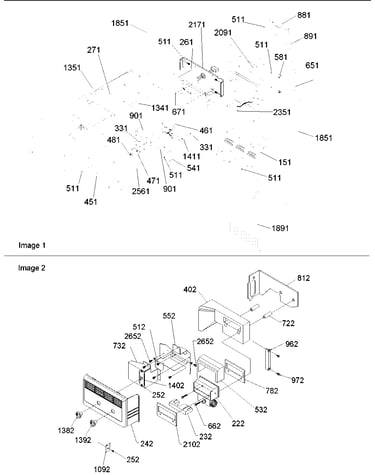

Manufacturer substitutionThis part replaces M0201216. Substitute parts can look different from the original.This item is not returnableIn Stock$7.6712% OFF Phone Price : $8.67QtyIce bucket auger & ice maker parts diagram
Ice Agitator
Part #R0156803Replaced by #WP12740302
Manufacturer substitutionThis part replaces R0156803. Substitute parts can look different from the original.In Stock$297.67$12.00 OFF Phone Price : $309.67QtyLights, hinges & shelving diagram

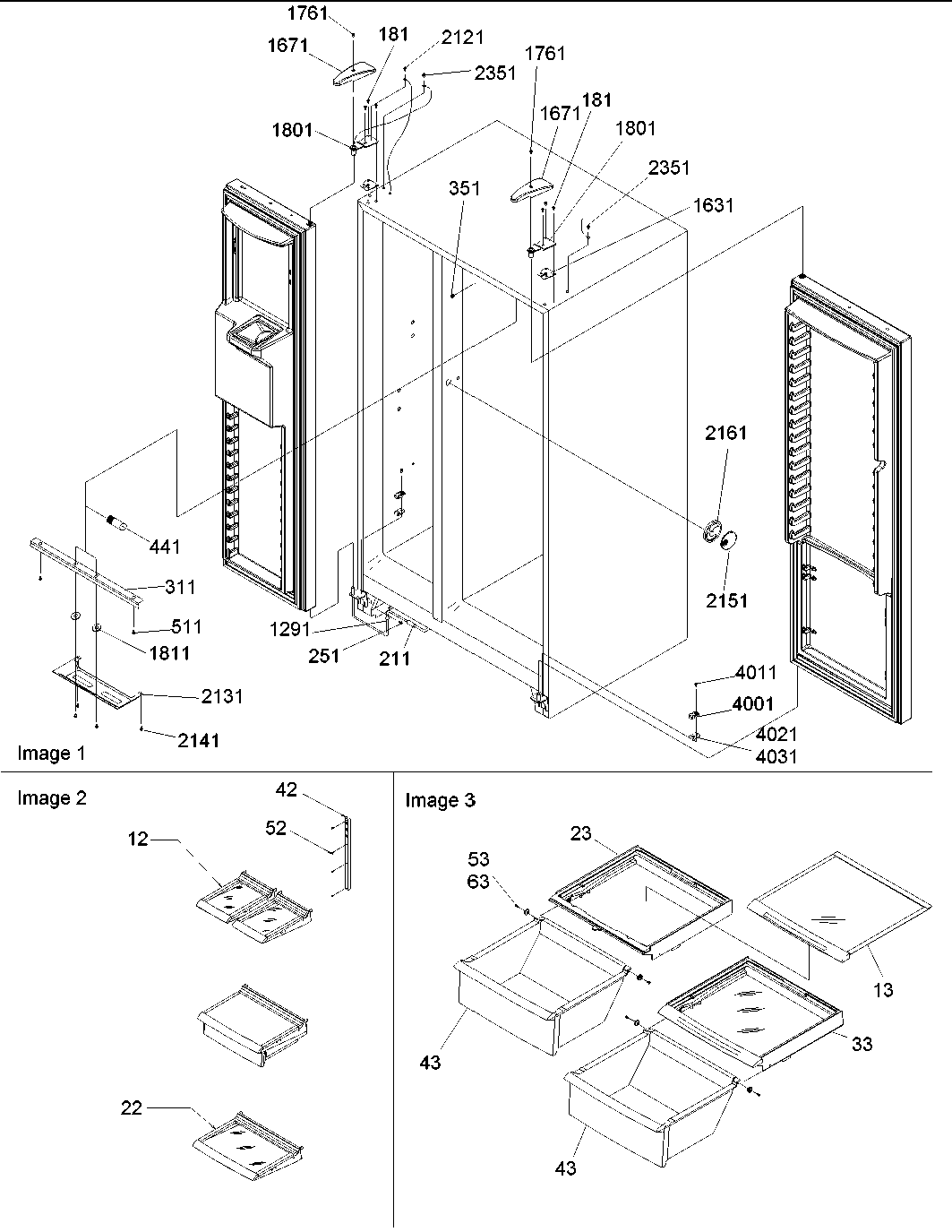

Refrigerator Screw
Part #M0202327Replaced by #WP8281196

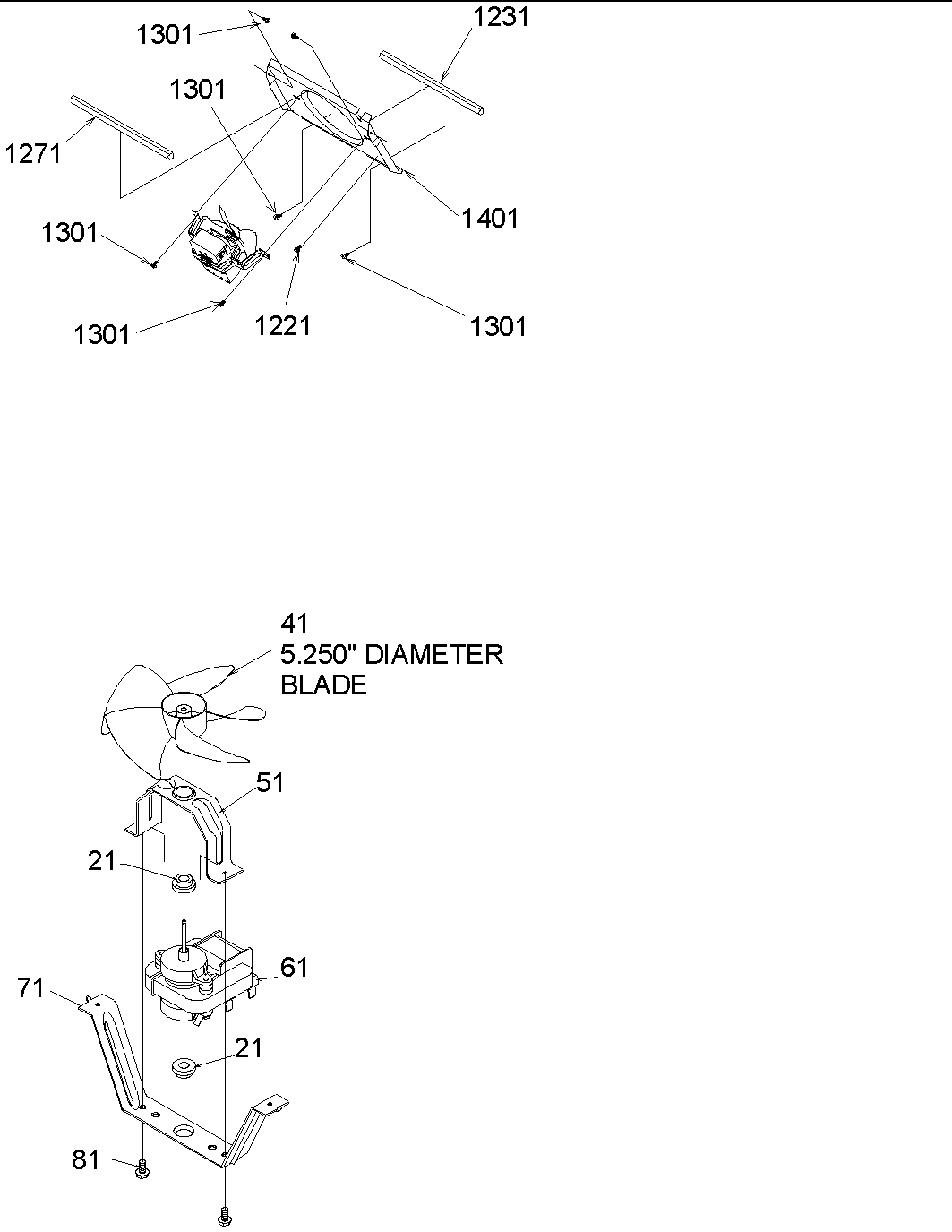

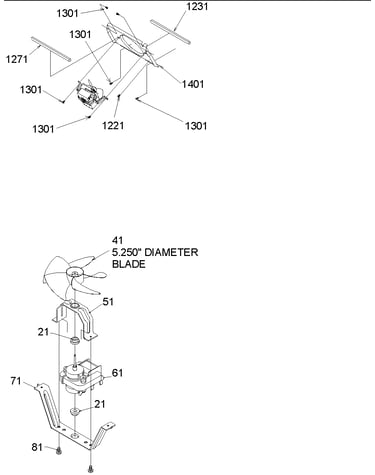

Manufacturer substitutionThis part replaces M0202327. Substitute parts can look different from the original.This item is not returnableIn Stock$7.6712% OFF Phone Price : $8.67QtyEvaporator fan shroud & motor assy diagram
Refrigerator Grommet
Part #A1017202Replaced by #WP2264462

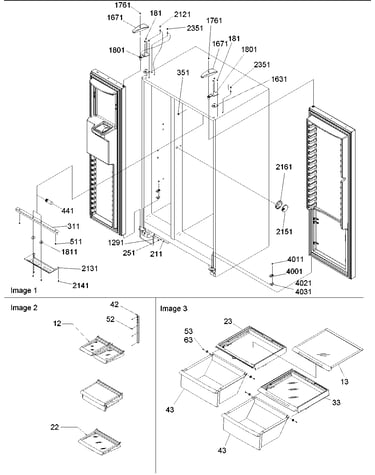

Manufacturer substitutionThis part replaces A1017202. Substitute parts can look different from the original.This item is not returnableIn Stock$27.5218% OFF Phone Price : $33.52QtyLights, hinges & shelving diagram
Refrigerator Shim
Part #10361806Replaced by #WP67005716
Manufacturer substitutionThis part replaces 10361806. Substitute parts can look different from the original.This item is not returnableIn Stock$7.2112% OFF Phone Price : $8.21QtyIce bucket auger & ice maker parts diagram
Stripper, Ic
Part #R0183120Replaced by #WP2182124
Manufacturer substitutionThis part replaces R0183120. Substitute parts can look different from the original.In Stock$42.6912% OFF Phone Price : $48.69QtyIce bucket auger & ice maker parts diagram
Refrigerator Ice Dispenser Drive Auger End Cap
Part #D7749401Replaced by #WPD7749401
Manufacturer substitutionThis part replaces D7749401. Substitute parts can look different from the original.This item is not returnableIn Stock$24.9419% OFF Phone Price : $30.94Qty
