Kelvinator DGS100CW1 gas dryer - lk31686020 Parts
Here are the diagrams and repair parts for Kelvinator DGS100CW1 gas dryer - lk31686020, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

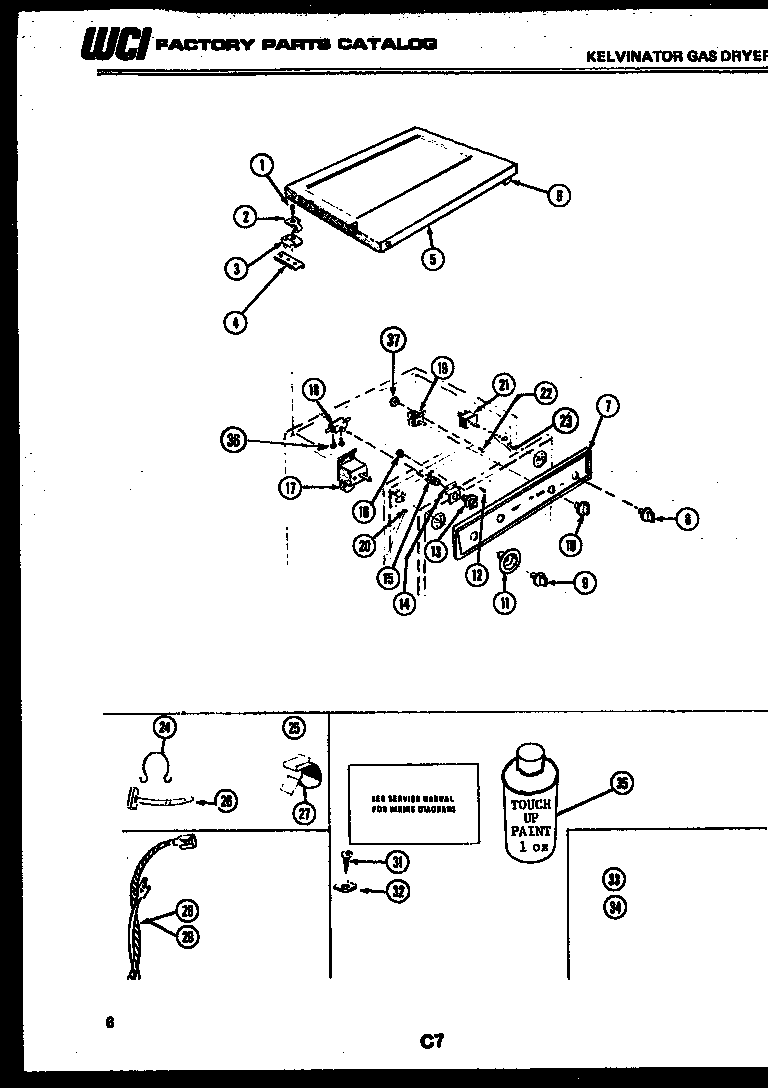

Browse Parts for DGS100CW1 Gas Dryer - LK31686020

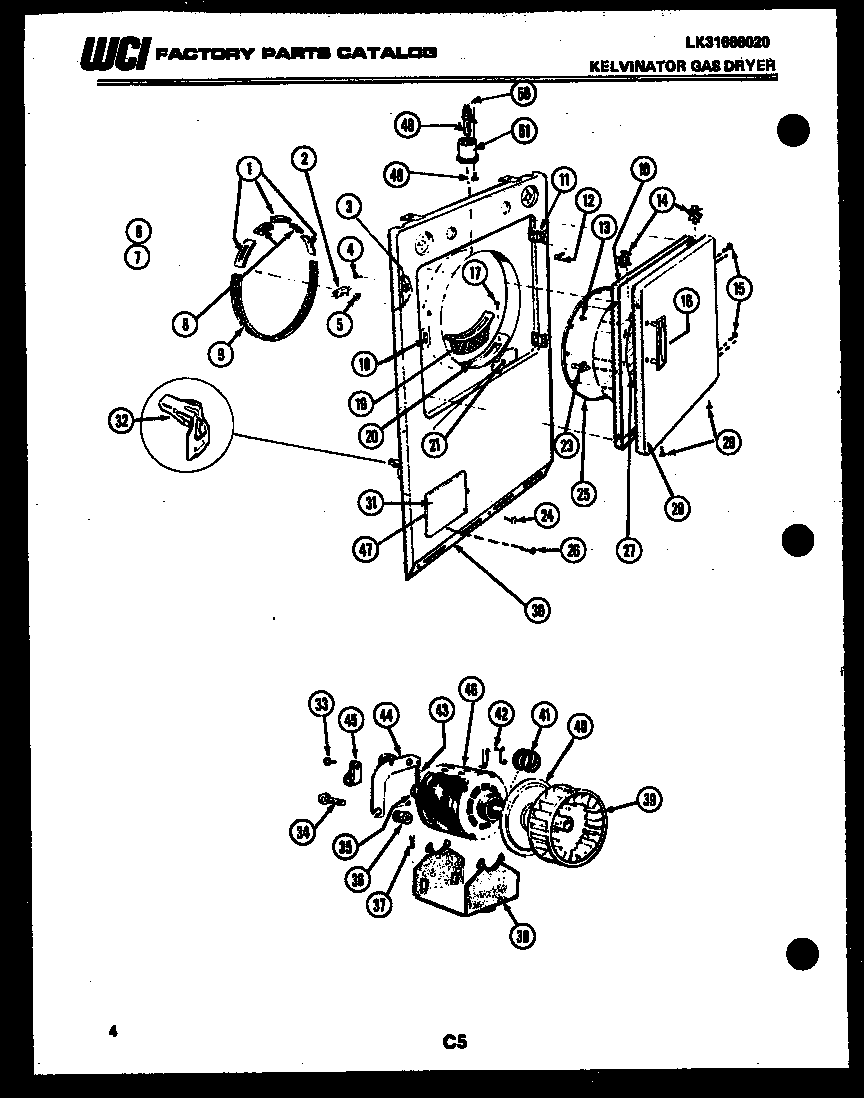

Cabinet front, motor and blower diagram
Idler Spring
Part #WQ94714Replaced by #5303281085
Manufacturer substitutionThis part replaces WQ94714. Substitute parts can look different from the original.This item is not returnableIn Stock$12.6814% OFF Phone Price : $14.68
Qty

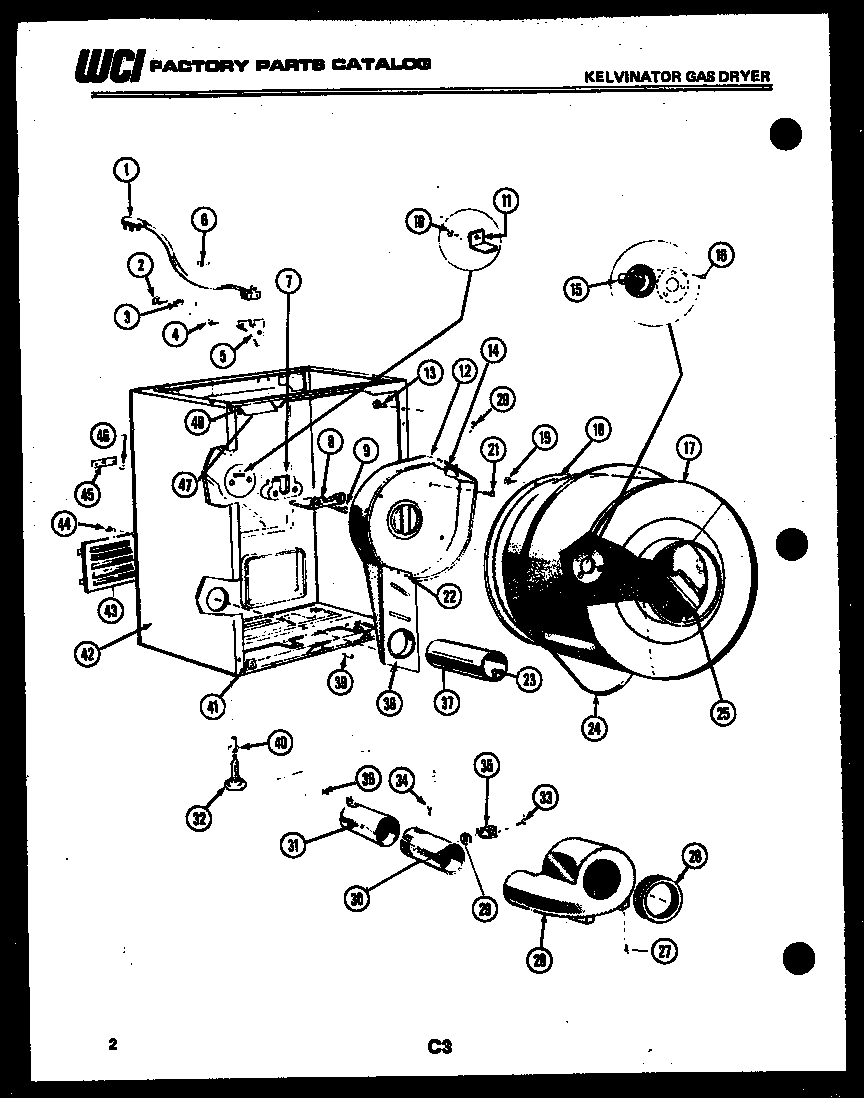

Cabinet, drum and blower housing diagram
Bracket
In Stock$31.90QtyCabinet front, motor and blower diagram
Receptacle
Part #WQ128481Replaced by #5308015210
Manufacturer substitutionThis part replaces WQ128481. Substitute parts can look different from the original.In Stock$116.46QtyCabinet, drum and blower housing diagram
Screw
Part #WQ435152Replaced by #5303010202
Manufacturer substitutionThis part replaces WQ435152. Substitute parts can look different from the original.In Stock$29.26QtyCabinet front, motor and blower diagram
Clamp
Part #WQ502107Replaced by #08015352
Manufacturer substitutionThis part replaces WQ502107. Substitute parts can look different from the original.In Stock$28.39QtyCabinet front, motor and blower diagram
Spacer
Part #WQ631591Replaced by #5308015122

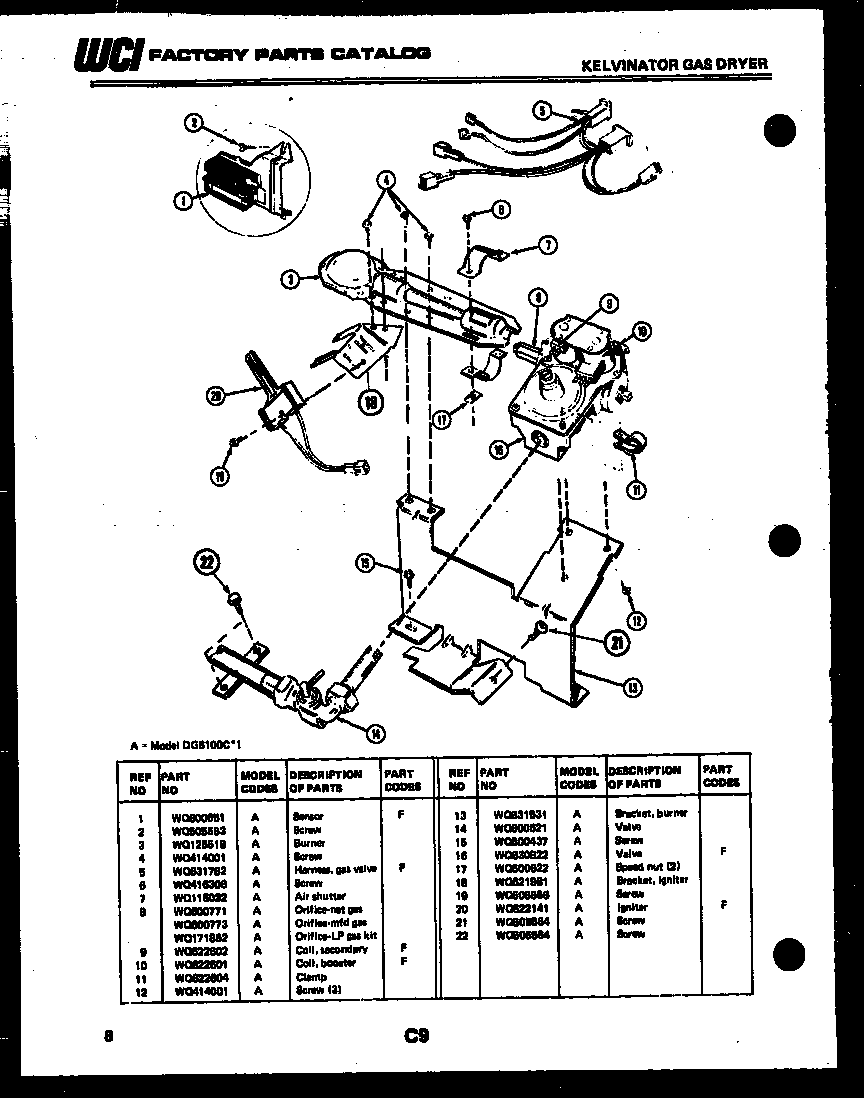

Manufacturer substitutionThis part replaces WQ631591. Substitute parts can look different from the original.In Stock$27.59QtyBurner, igniter and valve diagram
Nut
Part #WQ500622Replaced by #5303281148
Manufacturer substitutionThis part replaces WQ500622. Substitute parts can look different from the original.In Stock$29.10QtyCabinet, drum and blower housing diagram
Fan Housing
Part #WQ171281Replaced by #5303937126
Manufacturer substitutionThis part replaces WQ171281. Substitute parts can look different from the original.In Stock$105.07QtyBurner, igniter and valve diagram
Valve
Part #WQ600621Replaced by #5303281146
Manufacturer substitutionThis part replaces WQ600621. Substitute parts can look different from the original.In Stock$122.46QtyCabinet front, motor and blower diagram
Motor Clamp
Part #WQ62206Replaced by #5303212834
Manufacturer substitutionThis part replaces WQ62206. Substitute parts can look different from the original.In Stock$28.02Qty
