Craftsman
Gas Line Trimmer

Model # 358795320 Official Craftsman trimmer

Here are the diagrams and repair parts for Official Craftsman 358795320 trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 101 parts  |

Lawn & Garden Equipment Fuel Line, Small (replaces 530021058, 530-021058, 530021076, 5300692-47, 530-069247, 530-069751, 530071404) 530069247
#53

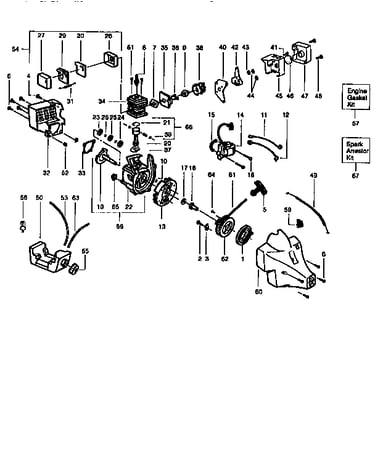

Engine diagram

Lawn & garden equipment fuel line, small (replaces 530021058, 530-021058, 530021076, 5300692-47, 530-069247, 530-069751, 530071404)

Part #530069247

BEST SELLER
This item is not returnable
$6.60
13% OFF Phone Price : $7.60
In Stock
Fuel Filter 530014362
#56

Engine diagram

Fuel filter

Part #530014362

Replaced by #530095646

?
Manufacturer substitution
This part replaces 530014362. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.07
16% OFF Phone Price : $6.07
In Stock
Lawn & Garden Equipment Engine Carburetor Diaphragm And Gasket Kit (replaces 530035173, 530035186, 530-035186, 530035213, 530035219, 530035313, 5300698-44, 530-069844, 530069937) 530069844
#3

Carburetor 530069754-wa226 diagram

Lawn & garden equipment engine carburetor diaphragm and gasket kit (replaces 530035173, 530035186, 530-035186, 530035213, 530035219, 530035313, 5300698-44, 530-069844, 530069937)

Part #530069844

BEST SELLER
This item is not returnable
$14.37
12% OFF Phone Price : $16.37
Back Order
Chainsaw Recoil Starter Rope (replaces 530-022289, 530024451, 530042033, 5300692-32, 530-069232, 530069233, 530-069233, 530069339) 530069232
#61

Engine diagram

Chainsaw recoil starter rope (replaces 530-022289, 530024451, 530042033, 5300692-32, 530-069232, 530069233, 530-069233, 530069339)

Part #530069232

BEST SELLER
This item is not returnable
$6.49
13% OFF Phone Price : $7.49
In Stock
Lawn & Garden Equipment Engine Fuel Return Line (replaces 5300695-99, 530-069599, 530069751) 530069599
#63

Engine diagram

Lawn & garden equipment engine fuel return line (replaces 5300695-99, 530-069599, 530069751)

Part #530069599

BEST SELLER
$6.59
13% OFF Phone Price : $7.59
In Stock
Piston Ring 530049903
#21

Engine diagram

Piston ring

Part #530049903

Replaced by #545154001

?
Manufacturer substitution
This part replaces 530049903. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.09
24% OFF Phone Price : $4.09
In Stock
Line Trimmer Recoil Starter Pulley Kit 530069400
#62

Engine diagram

Line trimmer recoil starter pulley kit

Part #530069400

Replaced by #530071786

?
Manufacturer substitution
This part replaces 530069400. Substitute parts can look different from the original.
This item is not returnable
$7.79
11% OFF Phone Price : $8.79
In Stock
Lawn & Garden Equipment Screw 530015814
#13

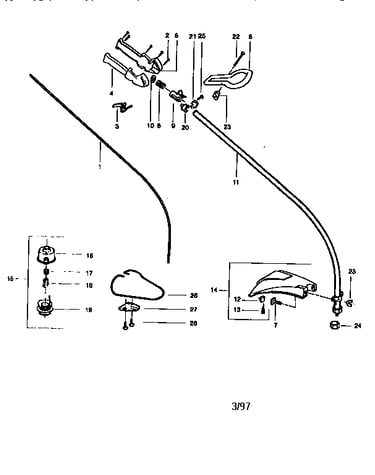

Drive shaft and cutter head assembly diagram

Lawn & garden equipment screw

Part #530015814

Replaced by #503210619

?
Manufacturer substitution
This part replaces 530015814. Substitute parts can look different from the original.
This item is not returnable
$2.80
26% OFF Phone Price : $3.80
Back Order
Lawn & Garden Equipment Engine Carburetor Gasket 530019194
#9

Engine diagram

Lawn & garden equipment engine carburetor gasket

Part #530019194

This item is not returnable
In Stock
Lawn & Garden Equipment Screw 530016080
#64

Engine diagram

Lawn & garden equipment screw

Part #530016080

This item is not returnable
In Stock
