Model # FWFB9200ES1 Official Frigidaire washer

Here are the diagrams and repair parts for Official Frigidaire FWFB9200ES1 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

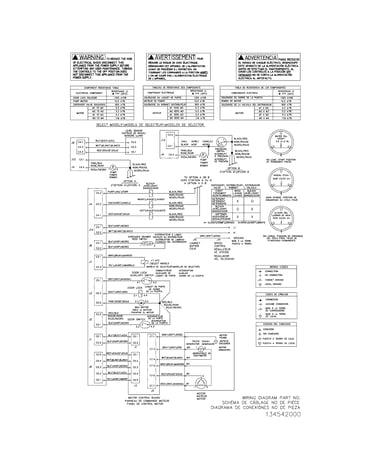

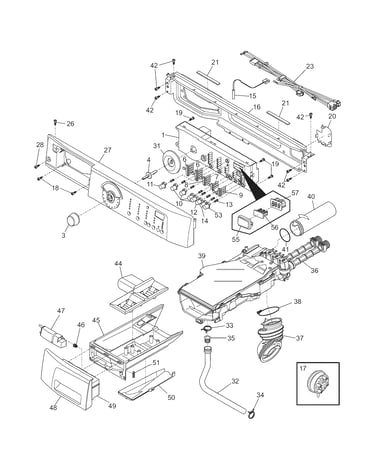

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 131 parts  |

Door Catch 131763200
#8

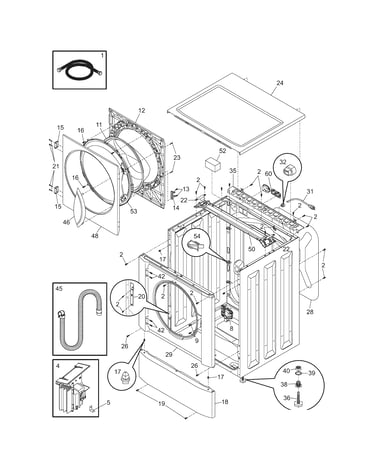

Cabinet/top diagram

Door catch

Part #131763200

Replaced by #131763256

?
Manufacturer substitution
This part replaces 131763200. Substitute parts can look different from the original.
BEST SELLER
$108.01
8% OFF Phone Price : $118.01
In Stock
Washer Door Boot Spring Clamp (replaces 134365400) 134527100
#49

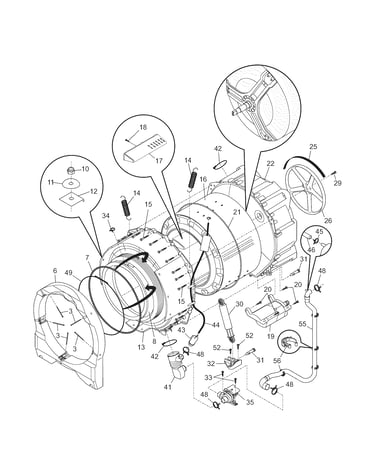

Motor/tub diagram

Washer door boot spring clamp (replaces 134365400)

Part #134527100

BEST SELLER
$34.85
13% OFF Phone Price : $39.85
In Stock
Washer Drive Belt 134051001
#25

Motor/tub diagram

Washer drive belt

Part #134051001

Replaced by #134051003

?
Manufacturer substitution
This part replaces 134051001. Substitute parts can look different from the original.
$34.40
13% OFF Phone Price : $39.40
In Stock
Washer Outer Tub Gasket 134361900
#21

Motor/tub diagram

Washer outer tub gasket

Part #134361900

Replaced by #5304520351

?
Manufacturer substitution
This part replaces 134361900. Substitute parts can look different from the original.
$80.82
6% OFF Phone Price : $85.82
In Stock
Washer Door Boot Spring Clamp 134365300
#7

Motor/tub diagram

Washer door boot spring clamp

Part #134365300

$47.79
9% OFF Phone Price : $52.79
In Stock
Laundry Appliance Door Handle 134472202
#46

Cabinet/top diagram

Laundry appliance door handle

Part #134472202

$178.36
5% OFF Phone Price : $188.36
Back Order
Washer Motor 134362500
#19

Motor/tub diagram

Washer motor

Part #134362500

Replaced by #137043000

?
Manufacturer substitution
This part replaces 134362500. Substitute parts can look different from the original.
$234.15
$10.00 OFF Phone Price : $244.15
In Stock
Washer Door Hinge 134412400
#15

Cabinet/top diagram

Washer door hinge

Part #134412400

This item is not returnable
$40.49
11% OFF Phone Price : $45.49
In Stock
Washer Suspension Spring 134362800
#14

Motor/tub diagram

Washer suspension spring

Part #134362800

$67.43
7% OFF Phone Price : $72.43
In Stock
Washer Water Inlet Valve 134371210
#36

Control panel diagram

Washer water inlet valve

Part #134371210

$98.39
9% OFF Phone Price : $108.39
In Stock
