Dryer

Model # ADE7005AYW Official Admiral dryer

Here are the diagrams and repair parts for Official Admiral ADE7005AYW dryer, as well as links to manuals and error code tables, if available.

By Schematic
By Part

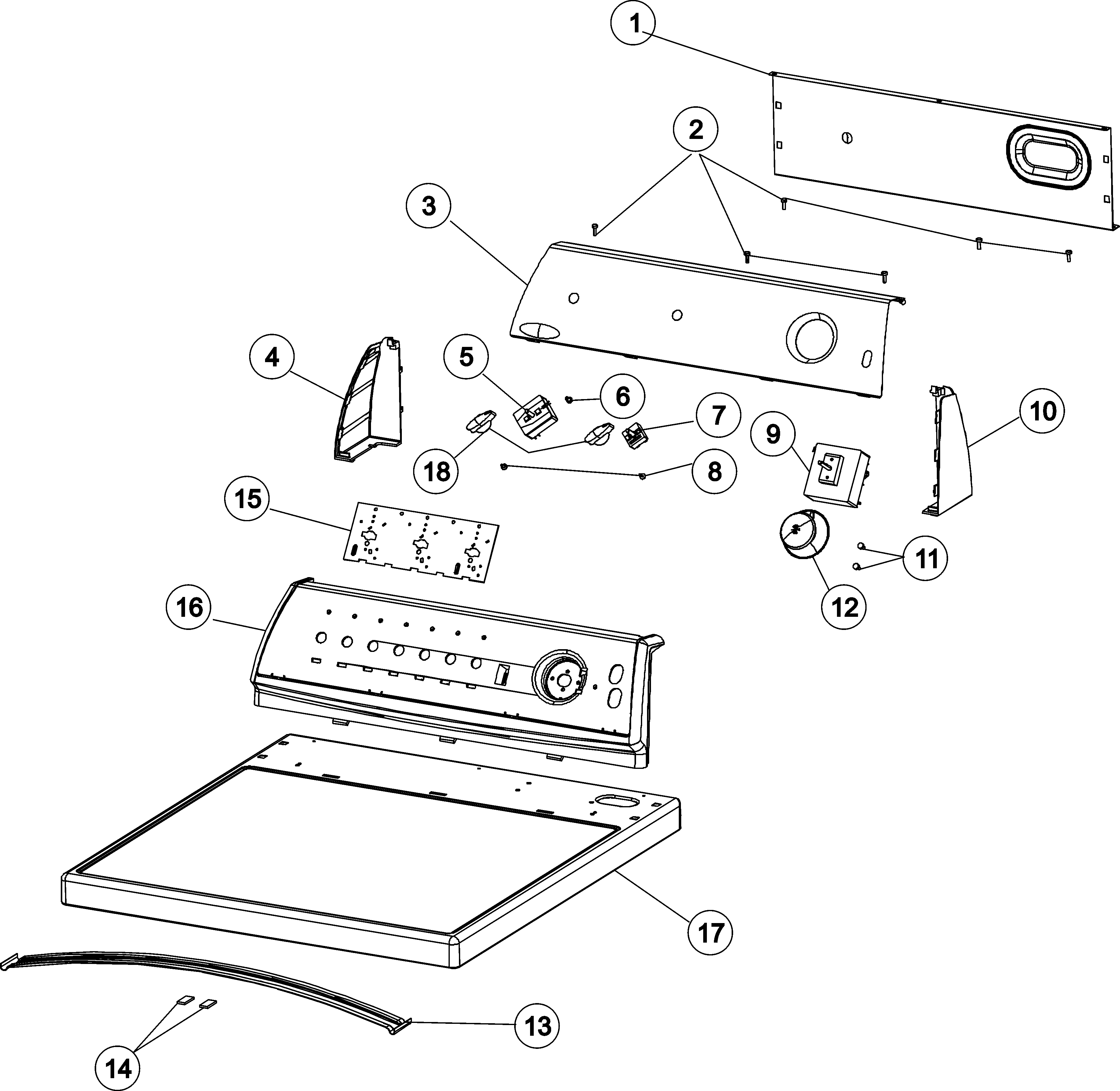

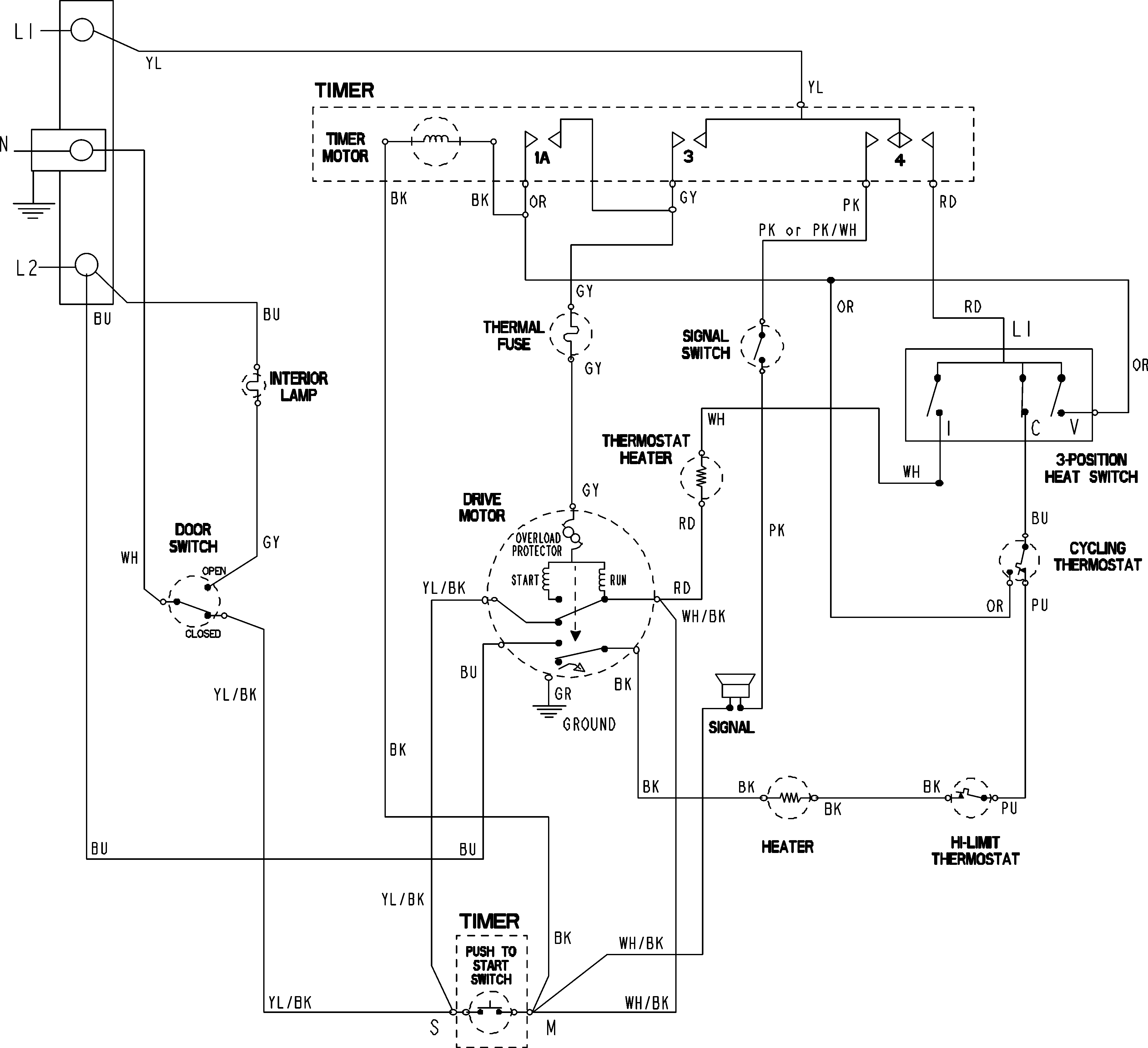

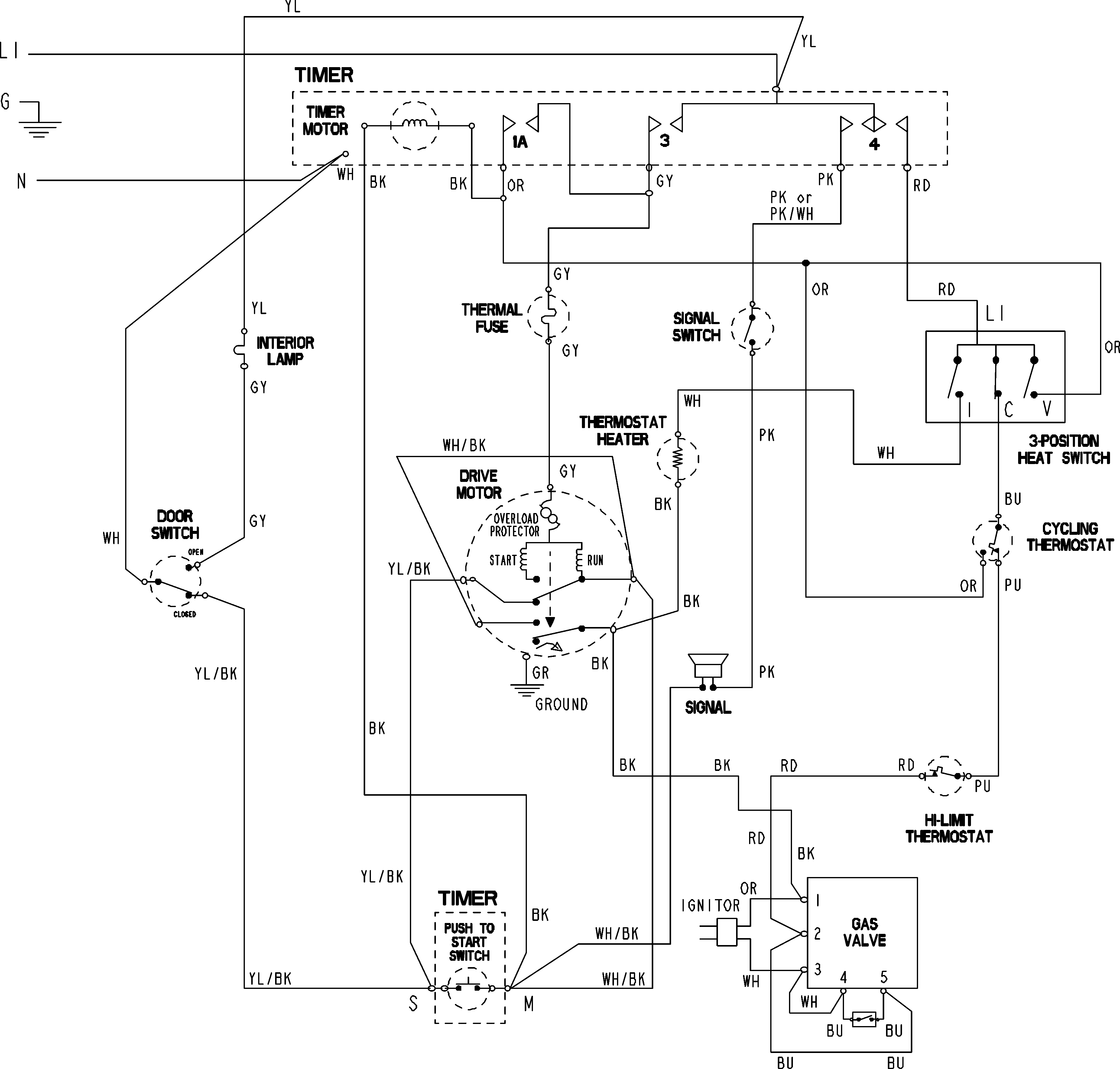

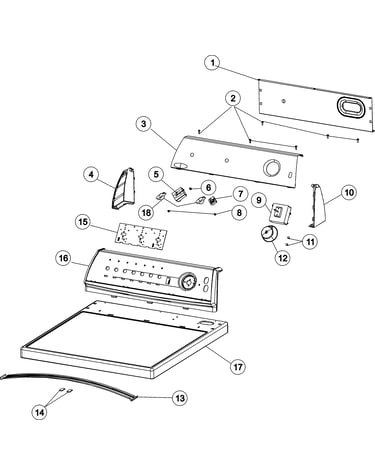

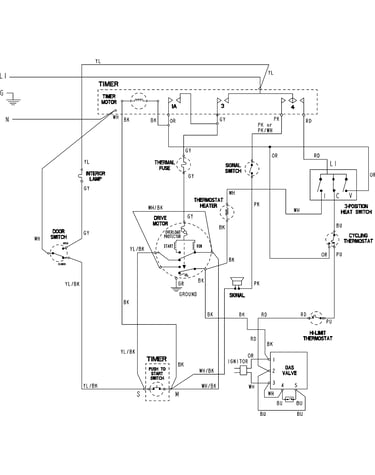

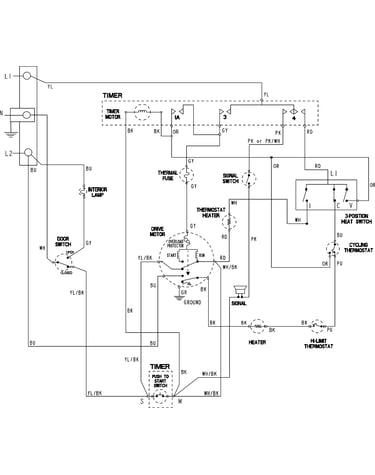

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forADE7005AYW Dryer

  • Dryer Drum Belt 40111201
    #21

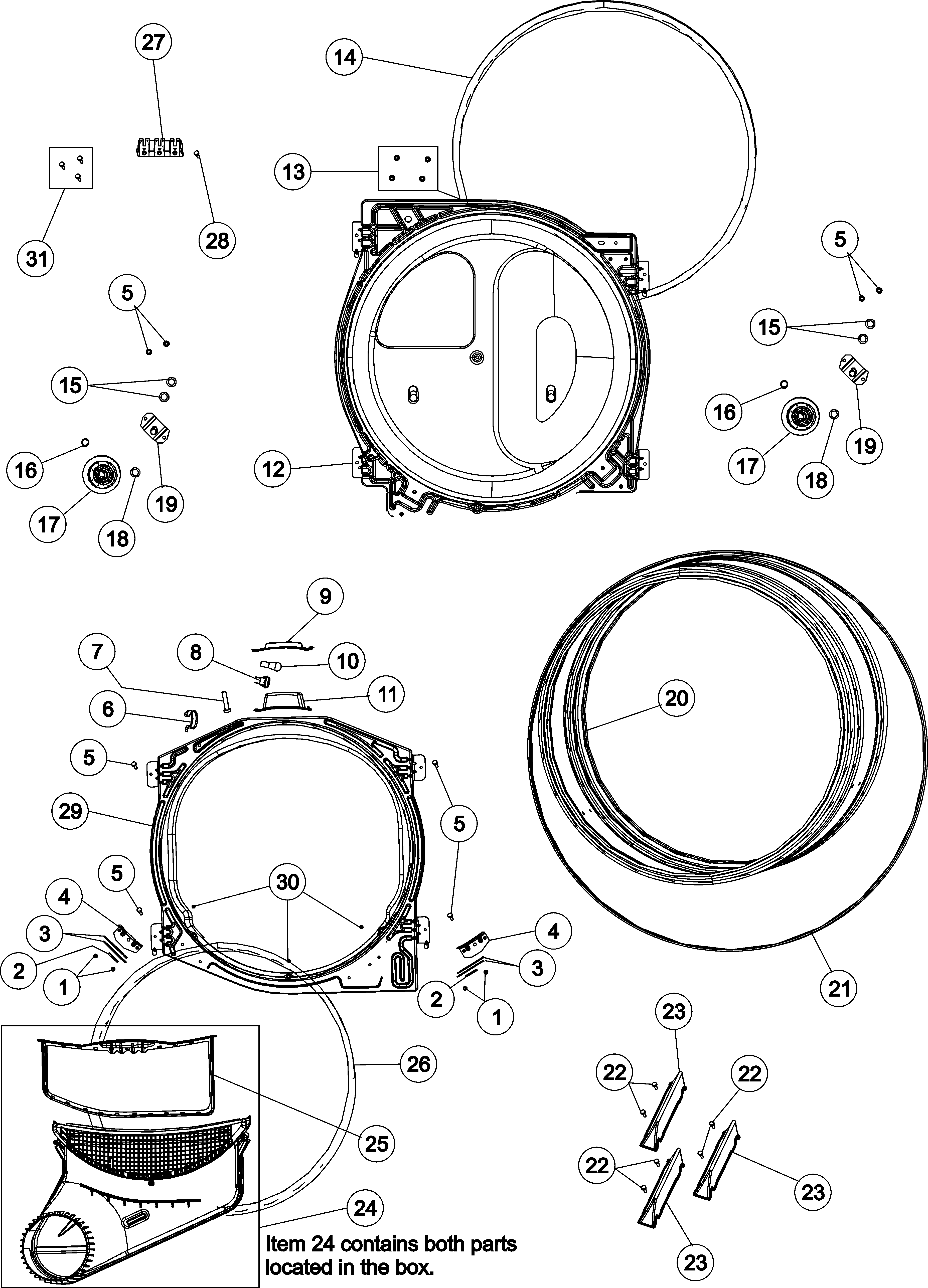

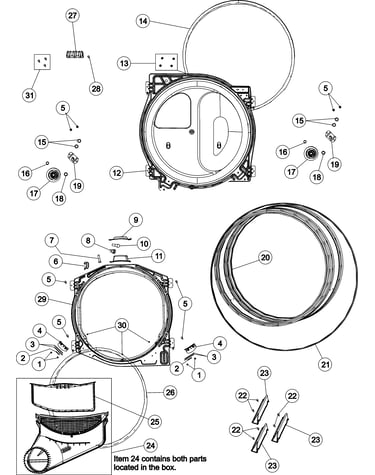

    Tumbler diagram

    Dryer drum belt

    Part #40111201

    Replaced by #WP40111201

    ?
    Manufacturer substitution
    This part replaces 40111201. Substitute parts can look different from the original.
    BEST SELLER
    $14.35
    12% OFF Phone Price : $16.35
    In Stock
  • Dryer Drum Support Roller 37001042
    #17

    Tumbler diagram

    Dryer drum support roller

    Part #37001042

    Replaced by #WP37001042

    ?
    Manufacturer substitution
    This part replaces 37001042. Substitute parts can look different from the original.
    BEST SELLER
    $15.91
    11% OFF Phone Price : $17.91
    In Stock
  • Dryer Idler Assembly 37001287
    #8

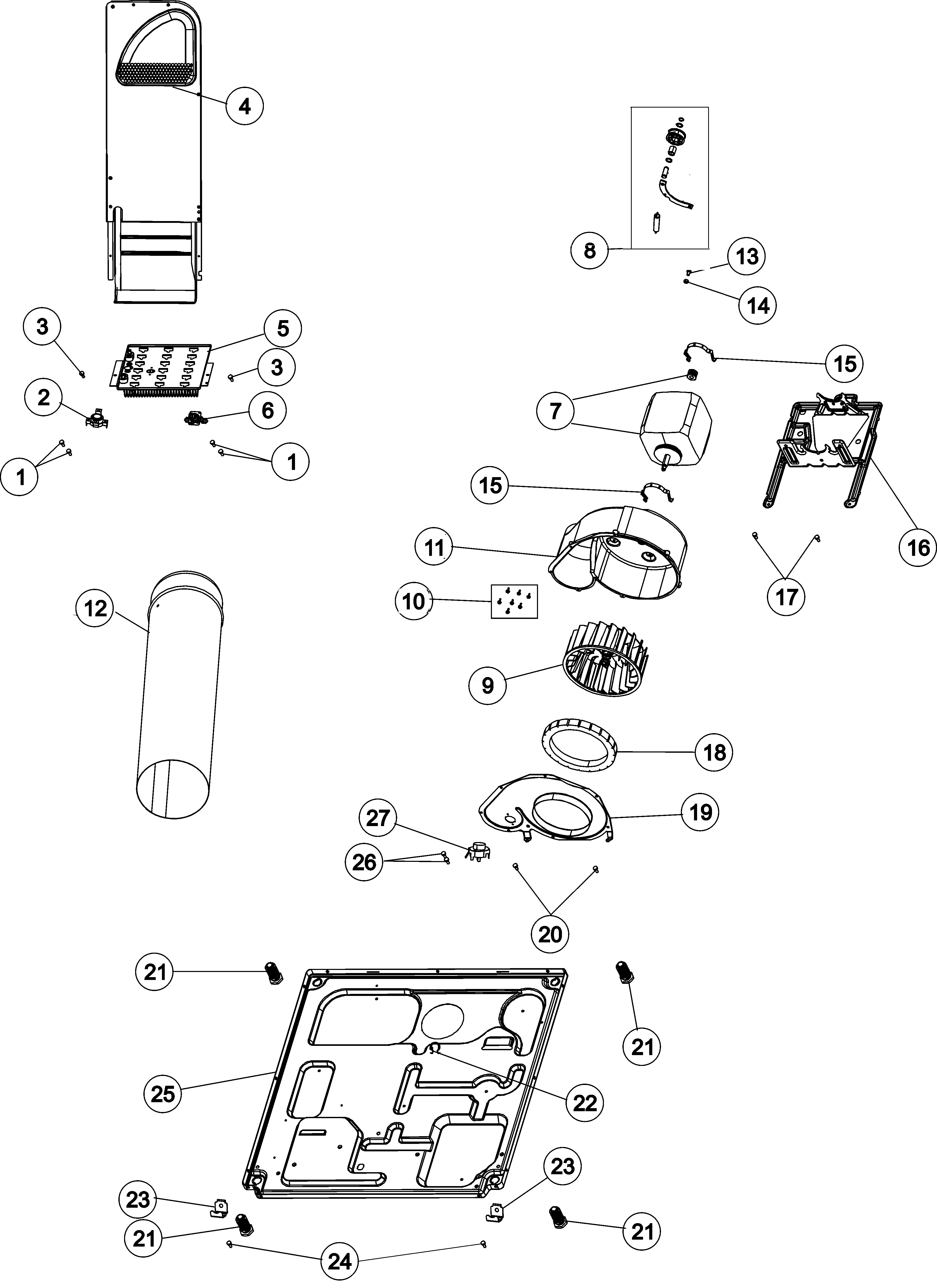

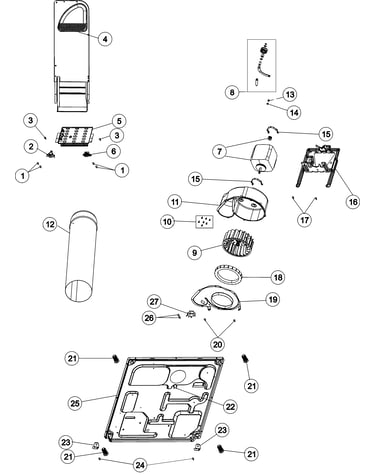

    Base, heater & motor diagram

    Dryer idler assembly

    Part #37001287

    Replaced by #WP37001287

    ?
    Manufacturer substitution
    This part replaces 37001287. Substitute parts can look different from the original.
    BEST SELLER
    $28.40
    17% OFF Phone Price : $34.40
    In Stock
  • Dryer Thermal Fuse, 352-degree F 40113801
    #6

    Base, heater & motor diagram

    Dryer thermal fuse, 352-degree f

    Part #40113801

    Replaced by #WP40113801

    ?
    Manufacturer substitution
    This part replaces 40113801. Substitute parts can look different from the original.
    BEST SELLER
    $13.31
    13% OFF Phone Price : $15.31
    In Stock
  • Cylinder Guide 40116501
    #3

    Tumbler diagram

    Cylinder guide

    Part #40116501

    Replaced by #WP37001298

    ?
    Manufacturer substitution
    This part replaces 40116501. Substitute parts can look different from the original.
    BEST SELLER
    $8.49
    11% OFF Phone Price : $9.49
    In Stock
  • Limit Thermostat 62641
    #2

    Base, heater & motor diagram

    Limit thermostat

    Part #62641

    Replaced by #WPW10116735

    ?
    Manufacturer substitution
    This part replaces 62641. Substitute parts can look different from the original.
    BEST SELLER
    $48.21
    11% OFF Phone Price : $54.21
    In Stock
  • Clamp 58047
    #15

    Base, heater & motor diagram

    Clamp

    Part #58047

    Replaced by #WP660658

    ?
    Manufacturer substitution
    This part replaces 58047. Substitute parts can look different from the original.
    This item is not returnable
    $6.36
    14% OFF Phone Price : $7.36
    In Stock
  • Laundry Appliance Washer 52549
    #15

    Tumbler diagram

    Laundry appliance washer

    Part #52549

    Replaced by #WP233520

    ?
    Manufacturer substitution
    This part replaces 52549. Substitute parts can look different from the original.
    This item is not returnable
    $4.33
    19% OFF Phone Price : $5.33
    In Stock
  • Dryer Operating Thermostat 37001136
    #27

    Base, heater & motor diagram

    Dryer operating thermostat

    Part #37001136

    Replaced by #WP37001136

    ?
    Manufacturer substitution
    This part replaces 37001136. Substitute parts can look different from the original.
    $83.70
    7% OFF Phone Price : $89.70
    In Stock
  • Door Strike 500039
    #23

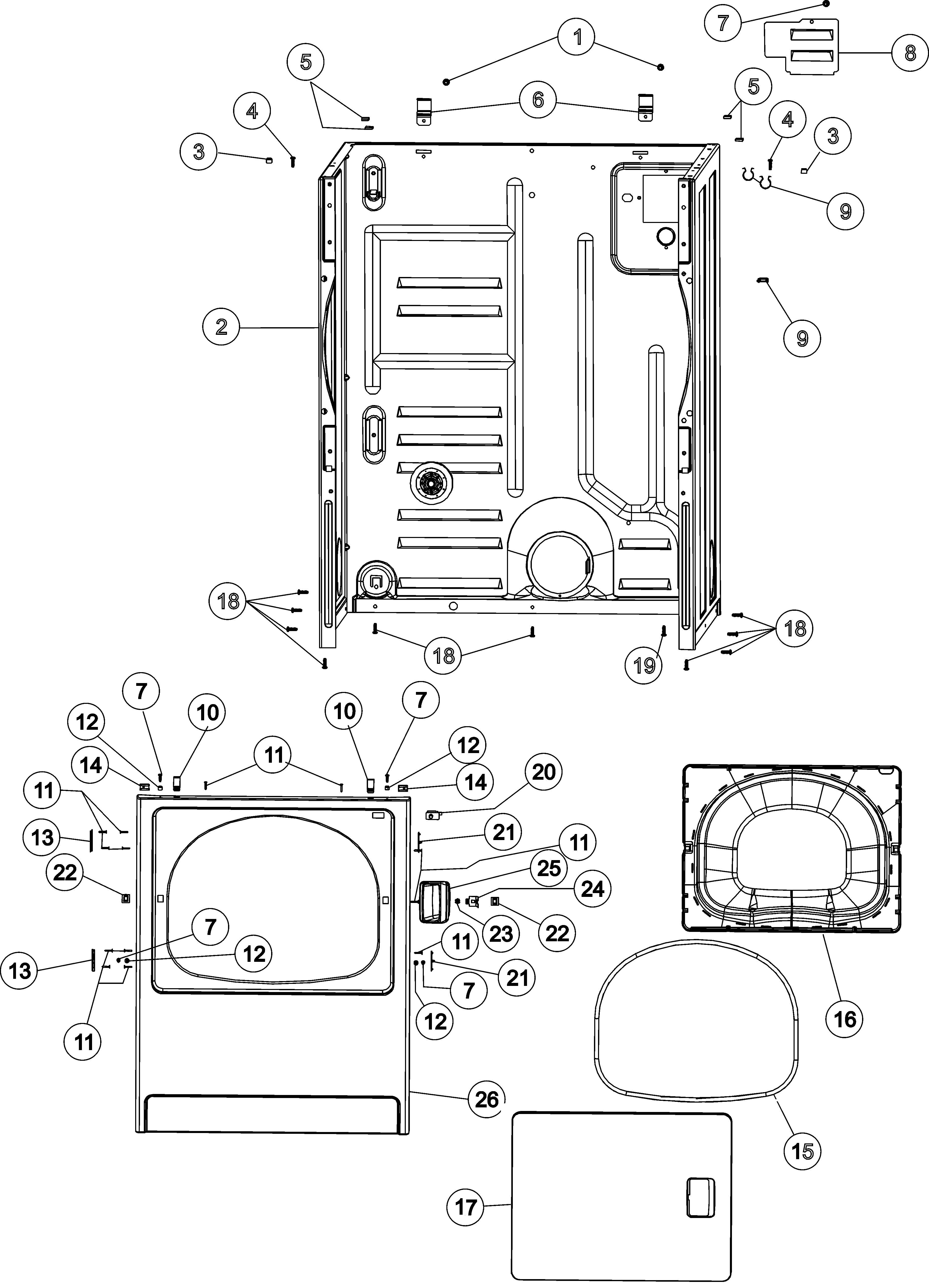

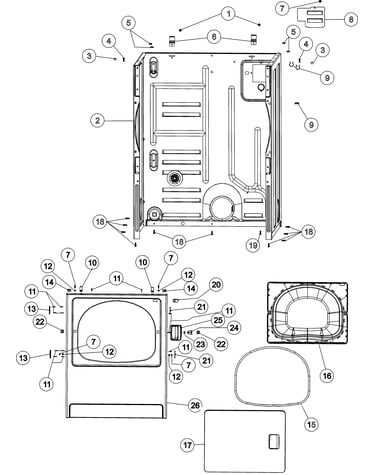

    Cabinet & front panel diagram

    Door strike

    Part #500039

    Replaced by #LA-1003

    ?
    Manufacturer substitution
    This part replaces 500039. Substitute parts can look different from the original.
    This item is not returnable
    $21.66
    22% OFF Phone Price : $27.66
    In Stock

Most common symptoms to help you fix your dryers

Choose a symptom to see related dryer repairs.

Main causes: bad gas valve coils, broken heating element, tripped safety thermostat or fuse, bad operating thermostat, c…

Main causes: bad drum support roller, damaged idler pulley, broken blower fan blade, worn drum glide bearing, bad drive …

Main causes: damaged door strike, worn door catch…

Main causes: clogged exhaust vent, bad motor relay, loose dryer door catch, bad door switch, control system failure, fau…

Main causes: door switch failure, lack of power, broken belt, blown thermal fuse, bad drive motor, control system failur…

Main causes: clogged exhaust system, heating system failure, deposits on moisture sensor, control system failure…

Main causes: bad timer or electronic control board, door switch failure…

Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, blown thermal fuse, bad door s…
