Model #11077401600 Kenmore gas dryer

Here are the repair parts and diagrams for your Kenmore 11077401600 gas dryer.

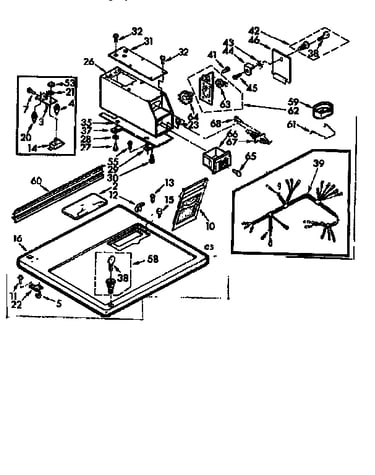

The diagram(s) below can help you find the right part.  If you’d like help, we invite you to call our customer service number at the top of the page, or click chat.

On this page, you can also find any manuals, installation guides and error code tables associated with this model.

For advice on diagnosing problems with appliances, lawn & garden equipment and other products, check out the videos, repair guides and articles in our DIY section.

Save to my profile

Showing 10 of 196 parts

Washer Lid Bumper

#4

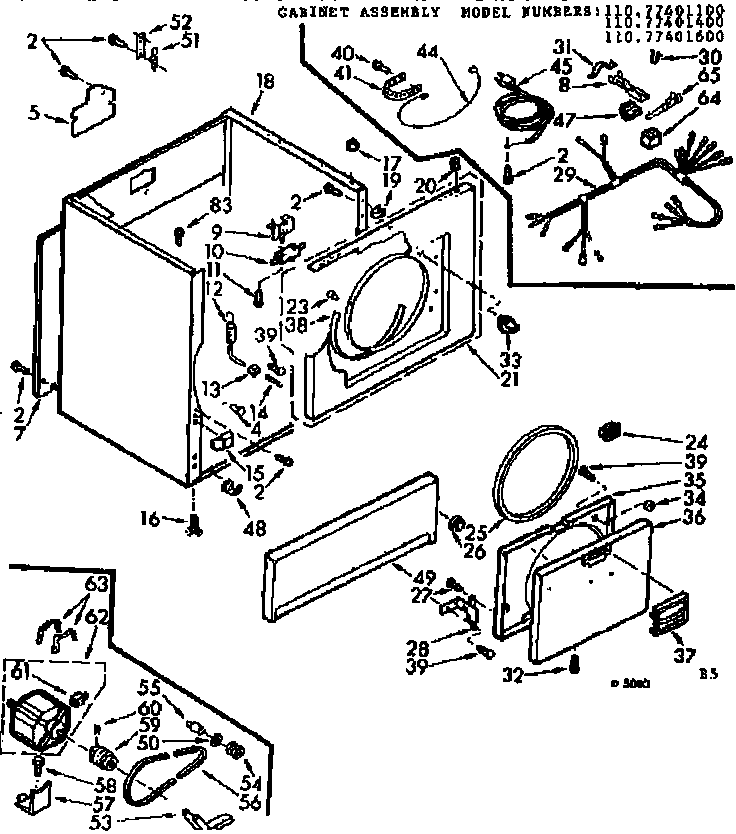

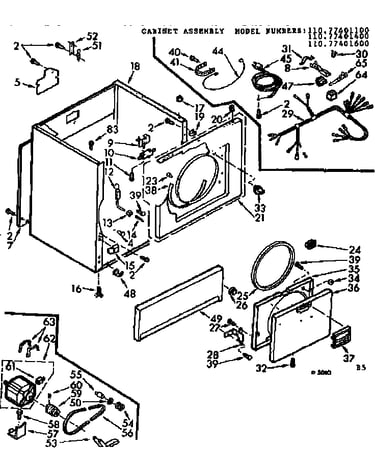

Cabinet assembly Diagram

Washer lid bumper

Part #238614
$29.06
41% OFFMSRP:$49.00

In Stock

Orifice

#6A

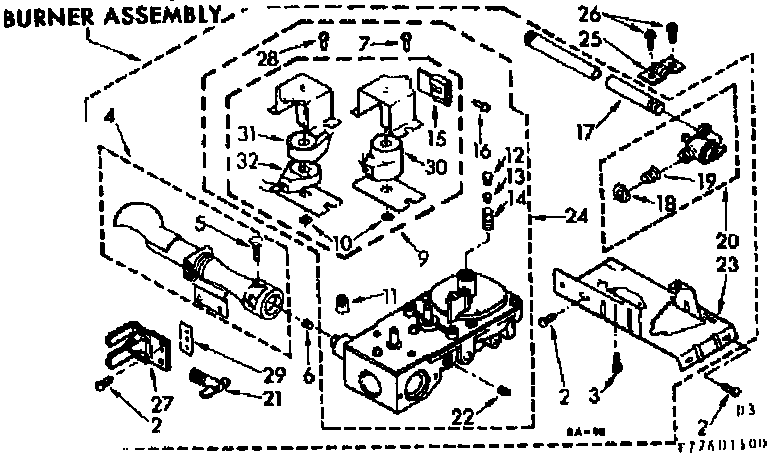

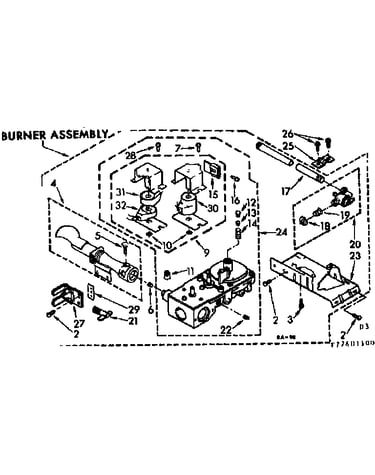

Burner assembly Diagram

Orifice

Part #234870
$17.29

In Stock

Washer Terminal Connector

#15

Burner assembly Diagram

$13.22
6% OFFMSRP:$14.00

In Stock

Clamp

#25

Burner assembly Diagram

Clamp

Part #341029
$9.89

In Stock

Dryer Lint Duct Housing Seal

#73

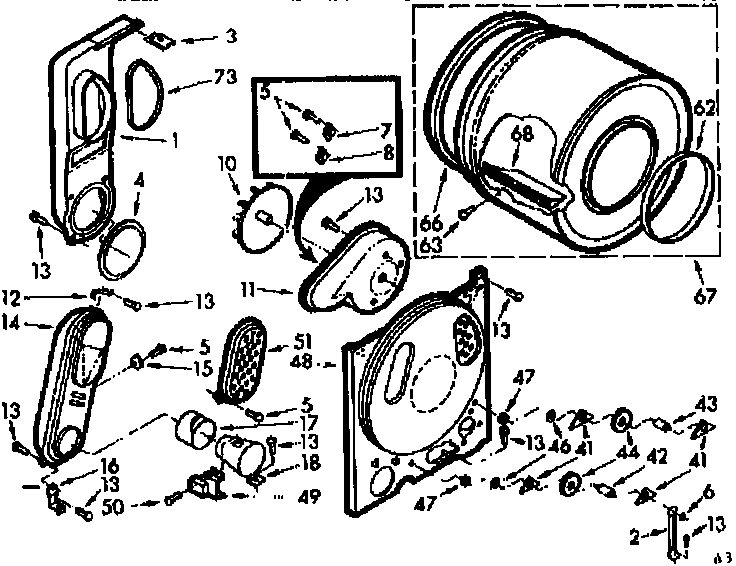

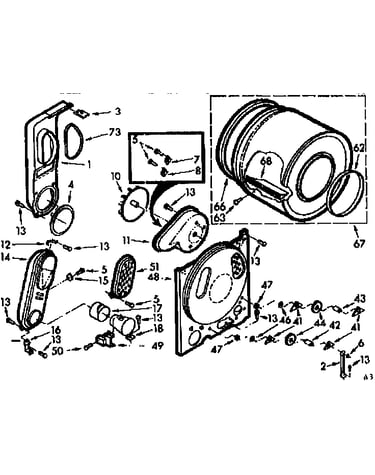

Bulkhead assembly Diagram

Dryer lint duct housing seal

Part #WP339956
?
Manufacturer substitution
This part replaces 339956. Substitute parts can look different from the original.
This part replaces 339956
This item is not returnable
$5.68

In Stock

Dryer Motor Clamp

#63

Cabinet assembly Diagram

Dryer motor clamp

Part #WP660658
?
Manufacturer substitution
This part replaces 343481. Substitute parts can look different from the original.
This part replaces 343481
This item is not returnable
$4.18
15% OFFMSRP:$4.89

In Stock

Dryer Butane Burner Orifice

#6D

Burner assembly Diagram

Dryer butane burner orifice

Part #WP229742
?
Manufacturer substitution
This part replaces 229742. Substitute parts can look different from the original.
This part replaces 229742
$22.20

In Stock

Dryer Door Cable Guide, Left

#13A

Cabinet assembly Diagram

Dryer door cable guide, left

Part #WP337182
?
Manufacturer substitution
This part replaces 337182. Substitute parts can look different from the original.
This part replaces 337182
This item is not returnable
$4.61
6% OFFMSRP:$4.89

In Stock

Dryer Drum Support Roller Shaft

#42

Bulkhead assembly Diagram

Dryer drum support roller shaft

Part #WPW10359270
?
Manufacturer substitution
This part replaces 347364. Substitute parts can look different from the original.
This part replaces 347364
$27.18
27% OFFMSRP:$37.00

In Stock

Dryer LP Conversion Kit

#NI

All parts Diagram

Dryer lp conversion kit

Part #W10402145
?
Manufacturer substitution
This part replaces 239072. Substitute parts can look different from the original.
This part replaces 239072
$58.20
19% OFFMSRP:$71.54

In Stock

Symptoms common to all dryers

Choose a symptom to see related dryer repairs.

Main causes: door switch failure, lack of power, broken belt, blown thermal fuse, bad drive motor, control system failure
Main causes: clogged exhaust system, heating system failure, deposits on moisture sensor, control system failure
Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, blown thermal fuse, bad door switch
Main causes: bad drum support roller, damaged idler pulley, broken blower fan blade, worn drum glide bearing, bad drive motor
Main causes: bad gas valve coils, broken heating element, tripped safety thermostat or fuse, bad operating thermostat, control failure
Main causes: bad timer or electronic control board, door switch failure
Main causes: clogged exhaust vent, bad motor relay, loose dryer door catch, bad door switch, control system failure, faulty drive motor
Main causes: damaged door strike, worn door catch

Repair guides common to all dryers

These step-by-step repair guides will help you safely fix what’s broken on your dryer.
