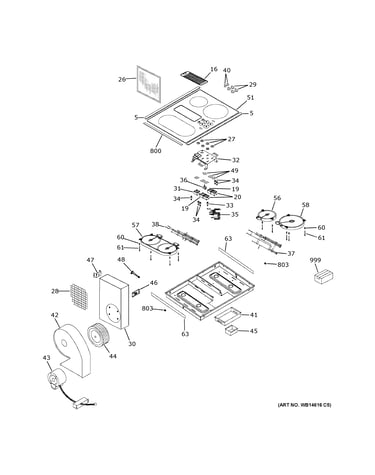

GE PP9830SJ1SS electric cooktop Parts

Yes. On a GE electric cooktop like model PP9830SJ1SS, the glass cooking surface can be replaced, but it’s a careful, parts-specific repair: you must shut off power at the breaker, protect wiring and seals, and reinstall the cooktop so it sits flat and vents correctly. See the PP9830SJ1SS owner’s manual for safety and handling guidance.

What to know before you start

Replacing a radiant glass cooktop top is usually needed when the surface is cracked, deeply chipped, or has pitting or indentation from hot sugar or melted plastic (damage that can require glass replacement and service).

• Turn off power at the circuit breaker (cooktops are typically 240V).
• Let the cooktop cool completely; glass and radiant elements stay hot longer than they look.
• Plan for two people; the glass assembly is awkward and can crack if flexed.
• Take photos of every wire connection and routing before disconnecting anything.
• Replace any damaged seals or foam to prevent vibration, air leaks, and rattles.

Basic replacement overview (high level)

1. Shut off power and confirm the cooktop is dead.
2. Remove the cooktop from the countertop per the PP9830SJ1SS owner’s manual.
3. Label and disconnect wiring to elements, indicator light, and switches.
4. Transfer components from the old glass assembly to the new one (as applicable).
5. Reinstall, verify the cooktop sits level, then restore power and test each element.

Parts that are commonly involved

These are not “glass top” parts, but they are frequently handled during a glass-top replacement or may be the real cause of a “burner not heating” complaint.

Symptom	Common related part	Example for PP9830SJ1SS
One element won’t heat	Radiant surface element	Range radiant surface element, 6-in WB30T10129
Element heats erratically	Element control switch	Cooktop element control switch WB24X10176
Hot surface light issue	Indicator light	Cooktop indicator light (model-specific)

Why it matters

A glass cooktop must stay flat, supported, and properly sealed. Poor fit or pinched wiring can cause uneven heating, nuisance tripping, or damage to the radiant elements and control switches.

Last updated: January 2026

Yes. The GE PP9830SJ1SS electric cooktop needs a dedicated, properly grounded 120/240V or 120/208V, 60 Hz branch circuit protected by a 40-amp circuit breaker (or time-delay fuses), with connections made in a junction box per local electrical codes.

What “special wiring” means for this cooktop

For PP9830SJ1SS, “special wiring” is mainly about having the correct circuit, wire type, and connection method.

• Use an individual (dedicated) branch circuit for the cooktop
• Protect the circuit with a 40-amp breaker (or time-delay fuses)
• Connect through a junction box using 3/4-inch flexible conduit
• Follow local codes; in many areas the National Electrical Code (NEC) applies
• If your home has aluminum wiring, use UL-listed copper-to-aluminum connectors
• Leave a service loop so the cooktop can be lifted about 12 inches for service

For the exact electrical requirements and connection steps, follow the PP9830SJ1SS owner's manual.

3-wire vs 4-wire connections (what to expect)

Many installations require a 4-conductor connection in new construction, while some existing installations may be different depending on code and the home’s wiring.

Item	Typical requirement	Why it matters
Circuit voltage	120/240V or 120/208V	Ensures elements heat correctly
Circuit protection	40-amp breaker (or time-delay fuses)	Prevents overheating and nuisance trips
Connection method	Junction box + conduit	Protects wiring and meets code

Why it matters

Electric cooktops draw high current. Correct voltage, breaker size, grounding, and approved connectors help prevent overheating, nuisance breaker trips, and damage to the cooktop’s wiring and controls.

Last updated: January 2026

On your GE PP9830SJ1SS electric cooktop, the model and serial number are printed on a label located under the cooktop, on the side of the vent chamber. This label is the most reliable way to match the correct parts and documentation.

Where to look on model PP9830SJ1SS

Check these common spots in order:

• Under the cooktop (you may need to look from inside the cabinet below)
• On the right side of the vent chamber (downdraft area)
• Near the vent grille and vent filter area (the label is not on top, but this helps you orient where the vent chamber is)
• On the paperwork that came with the cooktop (sometimes the model is printed there, but the label is best)

Use the location diagram and notes in the PP9830SJ1SS owner's manual to confirm the exact label position.

Tips to read the label clearly

• Turn off power at the breaker before reaching under the cooktop
• Use a flashlight and take a phone photo, then zoom in
• Write down both the model number and serial number
• Copy letters and numbers exactly (including any dashes)

Why it matters

The model number identifies the exact GE cooktop configuration (surface elements, control switches, and downdraft vent parts). Using the correct model number helps us match parts like a surface element, element control switch, or vent fan knob without guesswork.

What to record	Example for this cooktop	What it’s used for
Model number	PP9830SJ1SS	Matching correct parts and diagrams
Serial number	(varies)	Warranty and service identification

Last updated: January 2026
