Model # ZKD910WB1WW Official GE warming drawer

Here are the diagrams and repair parts for Official GE ZKD910WB1WW warming drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 26 parts  |
Door Handle WB15X10031
#17

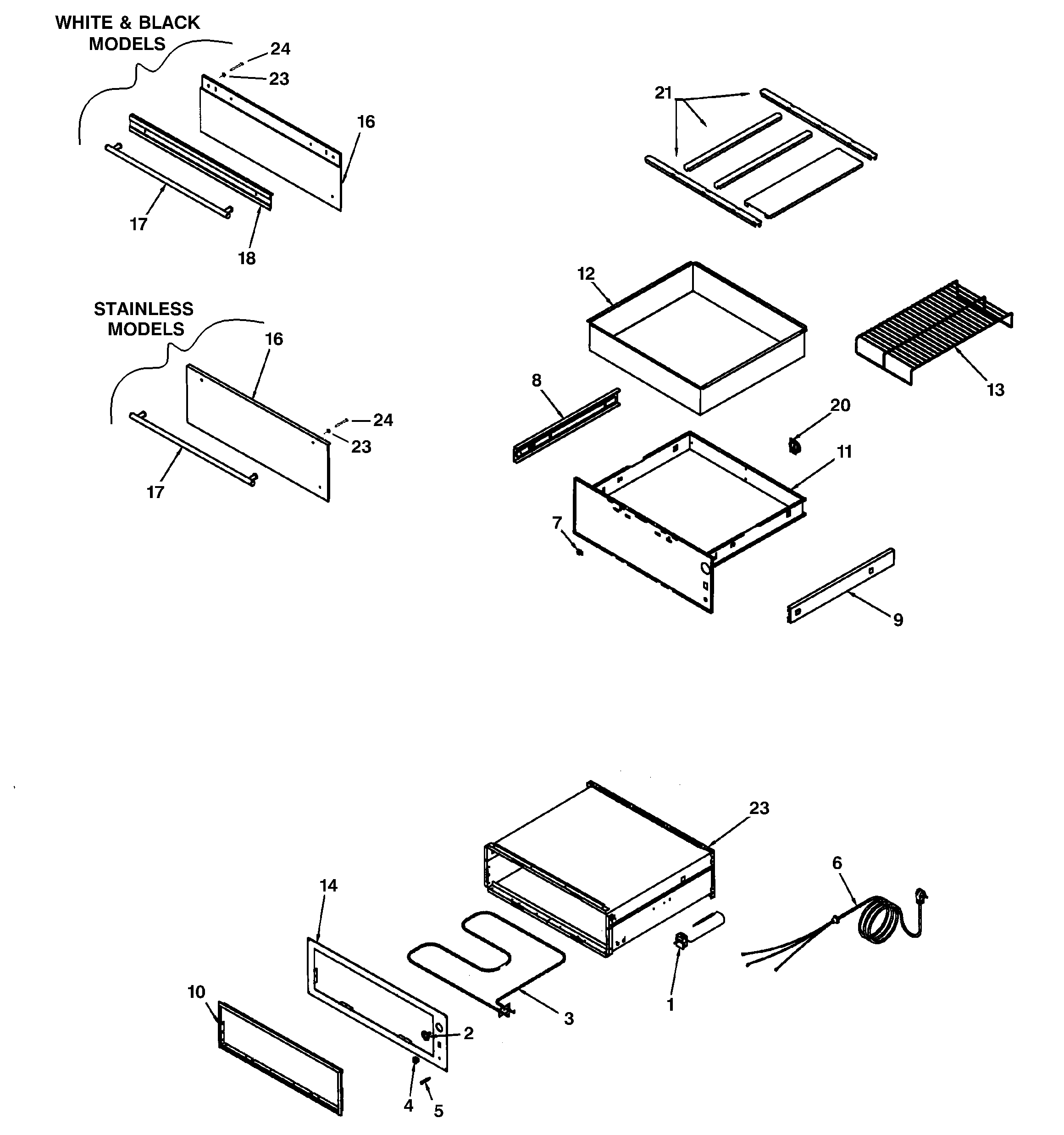

Warming drawer assembly diagram

Door handle

Part #WB15X10031

Replaced by #WD09X10060

?
Manufacturer substitution
This part replaces WB15X10031. Substitute parts can look different from the original.
$99.11 |
9% OFF Phone Price : $109.11
In Stock
Drawer Pan WB58X10004
#12

Warming drawer assembly diagram

Drawer pan

Part #WB58X10004

$416.41
In Stock
Magnet Closure WB02X10592
#20

Warming drawer assembly diagram

Magnet closure

Part #WB02X10592

$153.33
In Stock
Bolt,hex Hea WB01X10288
#24

Warming drawer assembly diagram

Bolt,hex hea

Part #WB01X10288

This item is not returnable
$4.35
In Stock
Face Panel WB56X10118
#14

Warming drawer assembly diagram

Face panel

Part #WB56X10118

$168.40
In Stock
Indicator Lamp WB02X10587
#5

Warming drawer assembly diagram

Indicator lamp

Part #WB02X10587

$74.69 |
6% OFF Phone Price : $79.69
In Stock
Wire Rack WB48X10010
#13

Warming drawer assembly diagram

Wire rack

Part #WB48X10010

Replaced by #WB48X10045

?
Manufacturer substitution
This part replaces WB48X10010. Substitute parts can look different from the original.
$143.09 |
7% OFF Phone Price : $153.09
In Stock
Rail Kit, 27 WB64X10001
#21

Warming drawer assembly diagram

Rail kit, 27

Part #WB64X10001

Replaced by #WB64X10031

?
Manufacturer substitution
This part replaces WB64X10001. Substitute parts can look different from the original.
$228.07
In Stock
Door Handle WB15X10032
#17

Warming drawer assembly diagram

Door handle

Part #WB15X10032

Replaced by #WB15T10053

?
Manufacturer substitution
This part replaces WB15X10032. Substitute parts can look different from the original.
$131.53
In Stock
Element WB44X10024
#3

Warming drawer assembly diagram

Element

Part #WB44X10024

Replaced by #WB44X10029

?
Manufacturer substitution
This part replaces WB44X10024. Substitute parts can look different from the original.
$86.69 |
5% OFF Phone Price : $91.69
In Stock
